Zhao Wei Pd008008-102 8mm 12V 12 Volt DC Brushless DC Motors Micro Coreless Motors Planetary Gear Motor

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools
Operating Speed: Low Speed

Product Description

📋 Basic Info.
Model NO.
PD008008-102
Excitation Mode
Permanent Magnet
Function
Control
Casing Protection
Drip-Proof
Number of Poles
4
Structure
Brush
Type
Planetary Gearbox
Certification
ISO9001, CCC, RoHS
Rated Voltage
3V 5V 6V 12V(3-12V)
Current
100mA Max
Reduction Ratio
5
Rated Speed
1563rpm
Motor Type
Stepper Motor, Coreless Motor
Max Rated Torque
250GF.Cm
Max Instant Torque
600GF.Cm
Gearbox Length
9.7mm
⚙️ Product Description

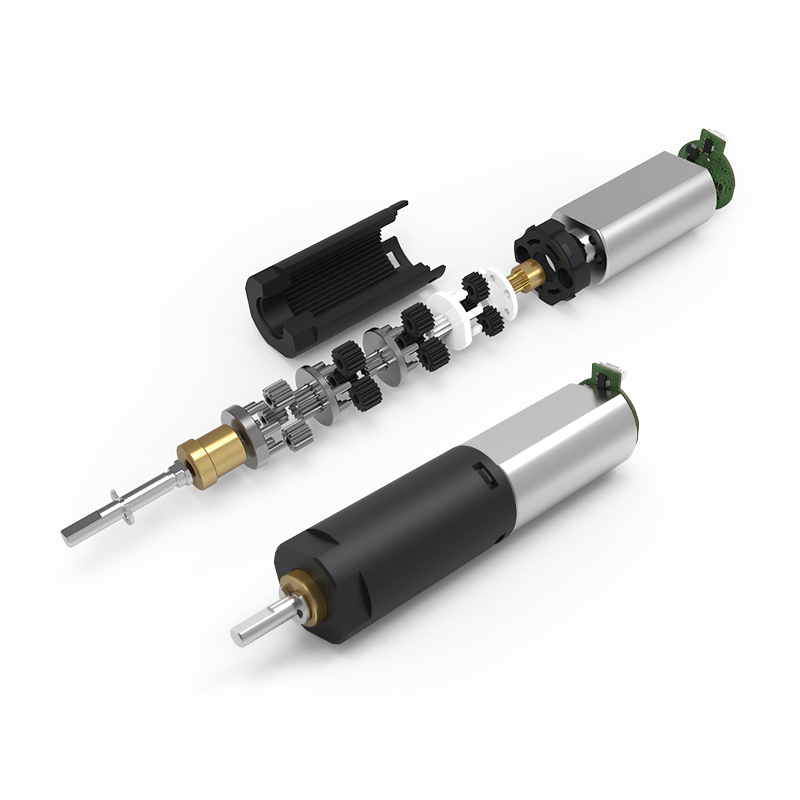

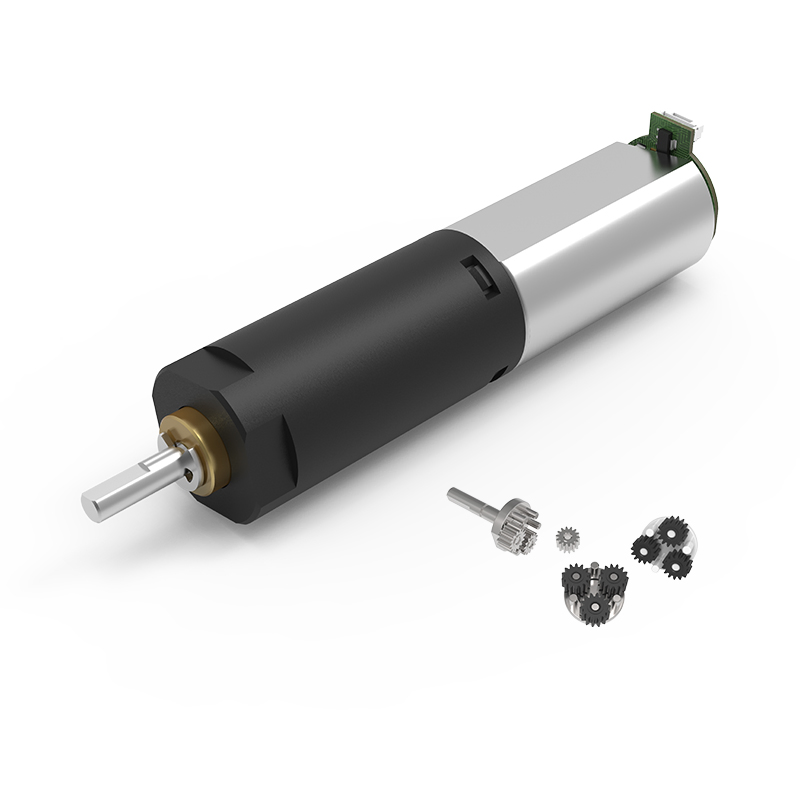

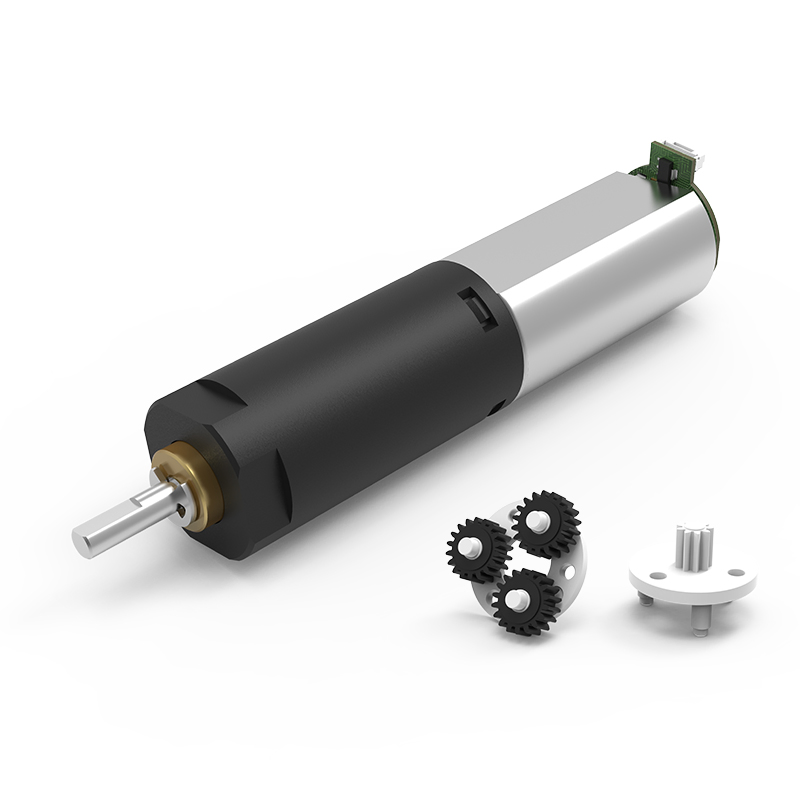

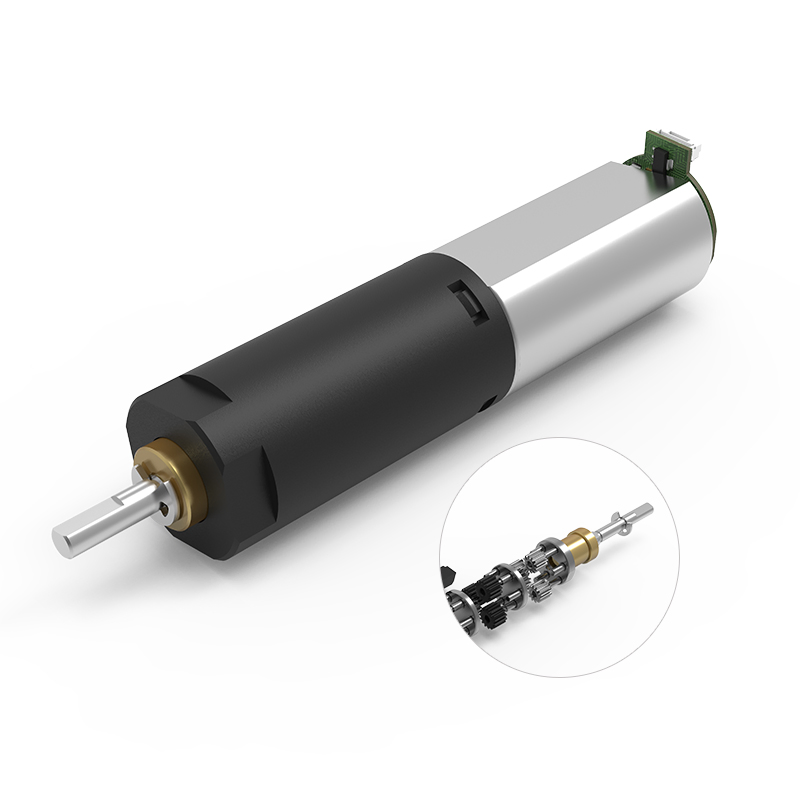

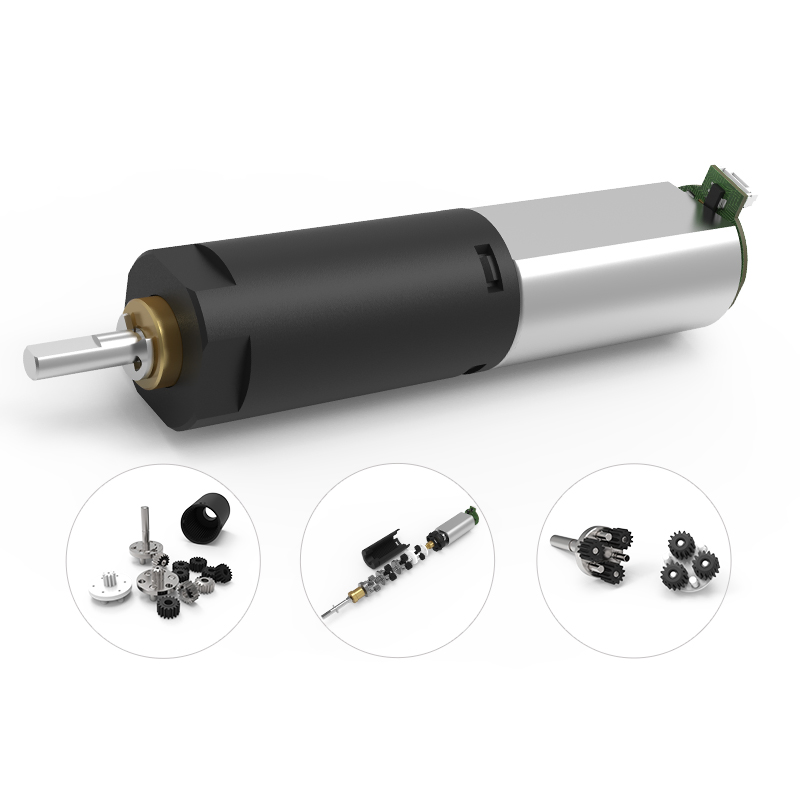

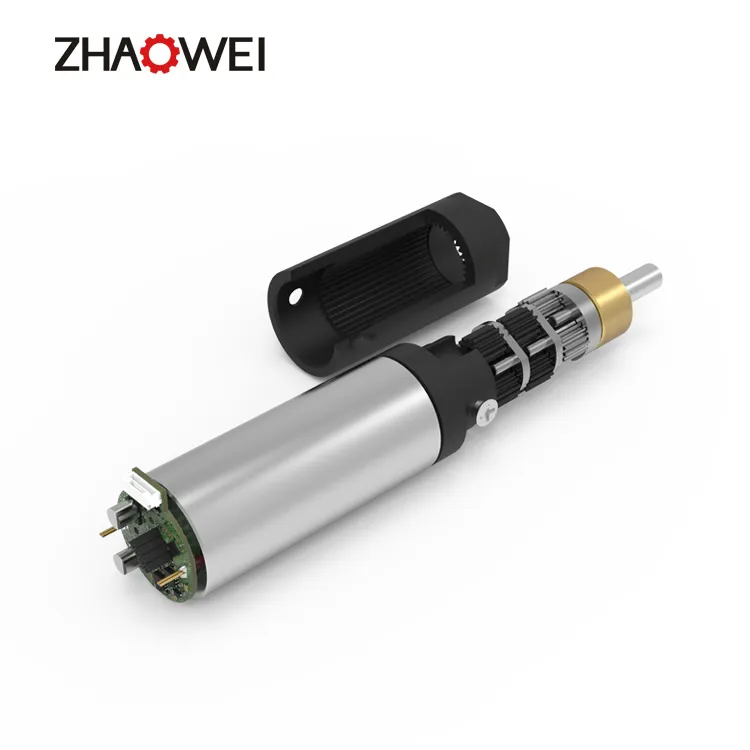

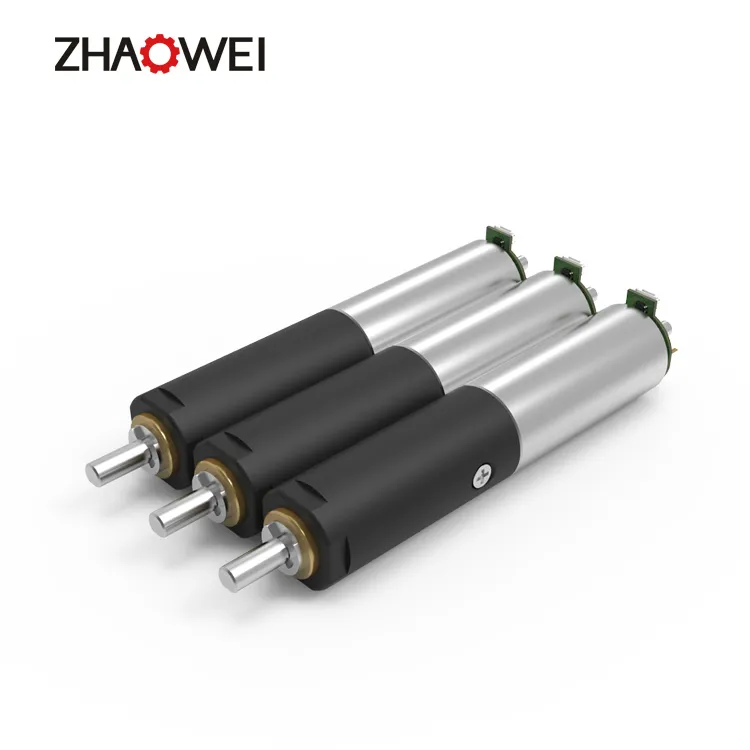

8MM DC Planetary plastic dc Gear Motor
The specifications listed below are for reference and can be customized according to specific requirements.
Motor Specifications: 8mm Motor
Motors (Optional)Brushed Motor, Stepper Motor
Voltage (Optional)3-12V
Input Speed<=30000rpm
Current150mA Max
Model Rated Speed (rpm) Max Rated Torque (gf.cm) Max Instant Torque (gf.cm) Reduction Ratio Gearbox Length (mm) Overall Length (mm)
ZWBPD008008-431115020048.623.1
ZWBPD008008-521005020058.623.1
ZWBPD008008-138641003001311.325.8
ZWBPD008008-472402006004714.028.5
ZWBPD008008-10210920060010214.028.5
ZWBPD008008-8091430090080916.731.2
🚀 Applications
Smart Wearables
Watch, VR, AR, XR devices.
Household
Kitchen appliances, vacuum cleaners, smart locks, sweeping robots, coffee machines.
Automotive
EPB, HUD, tail gate electric putter, sunroof control, seat adjustment.
Medical
Infusion pumps, surgical staplers, dental instruments, surgical robots.

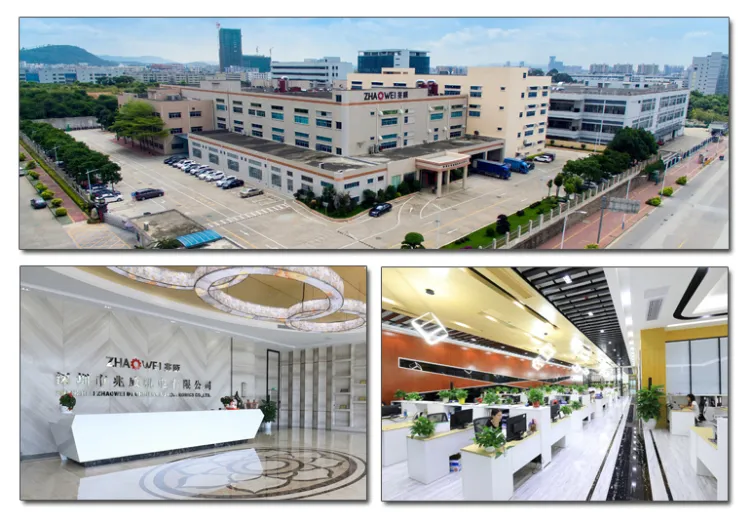

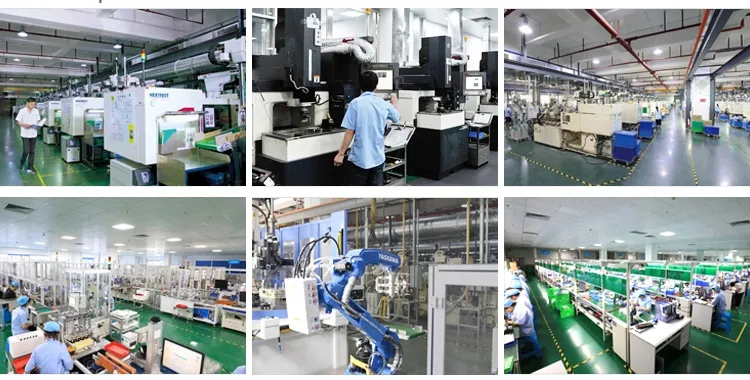

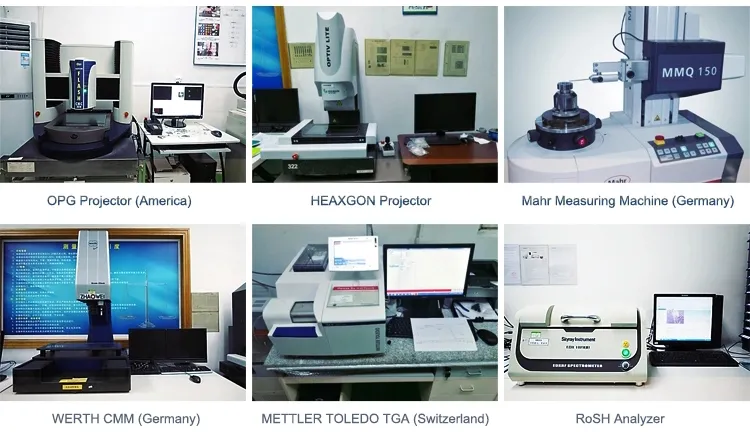

🏭 Production & Testing
We provide total drive solutions including design, tooling fabrication, component manufacturing, and assembly.
Competitive Advantages
  • 19+ years experience in motor gearbox manufacturing.
  • Technical support from R&D to serial production (ODM & OEM).
  • High performance: Low noise, high efficiency, and long lifespan.
  • Precision reduction gearboxes ranging from 3.4mm to 38mm.
  • Strict quality control with ISO9001 and IATF16949 certifications.
Certifications
Frequently Asked Questions
Can you make the gearbox with custom specifications?
Yes. We have a dedicated design and development team with experienced engineers to handle custom requirements.
Do you provide samples?
Yes, samples can be provided. The delivery time is typically 5-15 days depending on the gearbox specifications.
What is your MOQ?
Our standard MOQ is 2000pcs, but we can accept small orders during the initial phase of business.
Do you provide technology support?
Yes, our company offers full technical support through our design and development team for your application needs.
How can I know if the product is suitable for me?
Provide us with your product requirements and specifications. We will recommend the best match and prepare samples for your confirmation.
How are the products shipped?
We ship goods via major carriers such as DHL, UPS, or FEDEX using your provided account.
