Casing Protection
Protection Type
Working Principle
Brushless
Certification
ISO9001, CCC
Applications
Air Conditioners/Air Curtain/Electronic
1. Features
- Step Angle Accuracy: ±5%
- Resistance Accuracy: ±10%
- Inductance Accuracy: ±20%
- Temperature Rise: 80°C Max
- Ambient Temperature: -20°C ~ +50°C
- Insulation Resistance: 100MΩ Min., 500VDC
- Dielectric Strength: 500VAC for one minute
- Shaft Radial Play: 0.02Max (450g-load)
- Shaft Axial Play: 0.08Max (450g-load)
2. Related Specifications
42mm Series
| Model |
Voltage (V) |
No load speed (rpm) |
Rated torque (Nm) |
Rated Speed (rpm) |
Rated Current (A) |
| DMW421 | 24 | 5000 | 0.063 | 4000 | 1.7 |
| DMW422 | 24 | 5000 | 0.094 | 4000 | 2.5 |
| DMW423 | 24 | 5000 | 0.125 | 4000 | 3.5 |
70mm Series
| Model |
Rated Voltage (VDC) |
No load speed (RPM) |
Rated torque (Nm) |
Rated Speed (rpm) |
Rated power (W) |
| DMW701 | 48 | 3500 | 0.5 | 3000 | 157 |
| DMW702 | 48 | 3500 | 1 | 3000 | 314 |
| DMW703 | 48 | 3500 | 1.5 | 3000 | 471 |

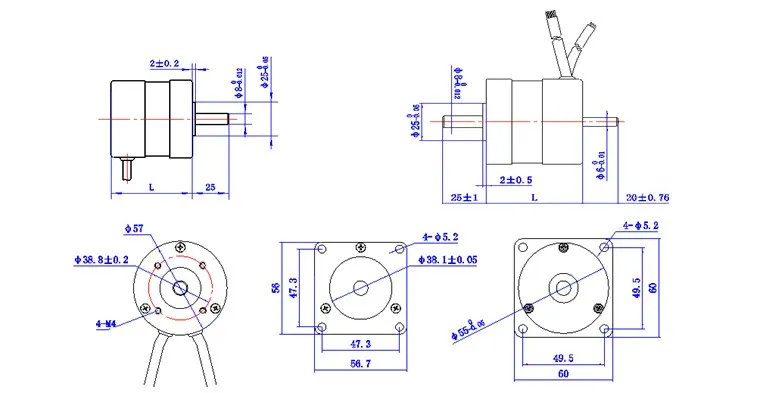

3. Outlines & Drawings

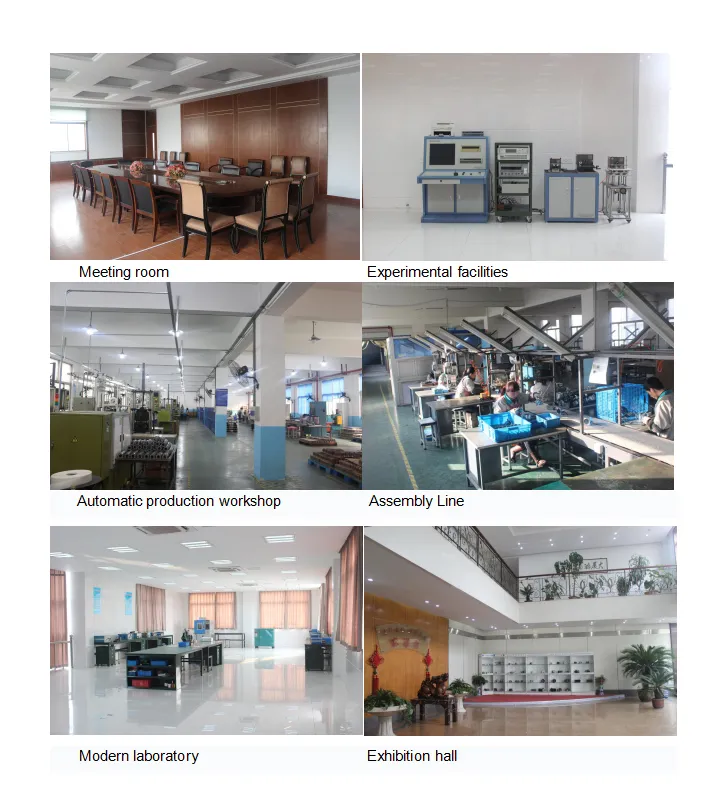

4. Production Capacity & Quality Control
Our manufacturing unit is a developing company focusing on refrigeration market electrical products. We have a highly qualified team with over eight years of experience in machinery design, manufacturing, and management. ISO 9000 standards and 6S management guarantee effective quality control for every process.

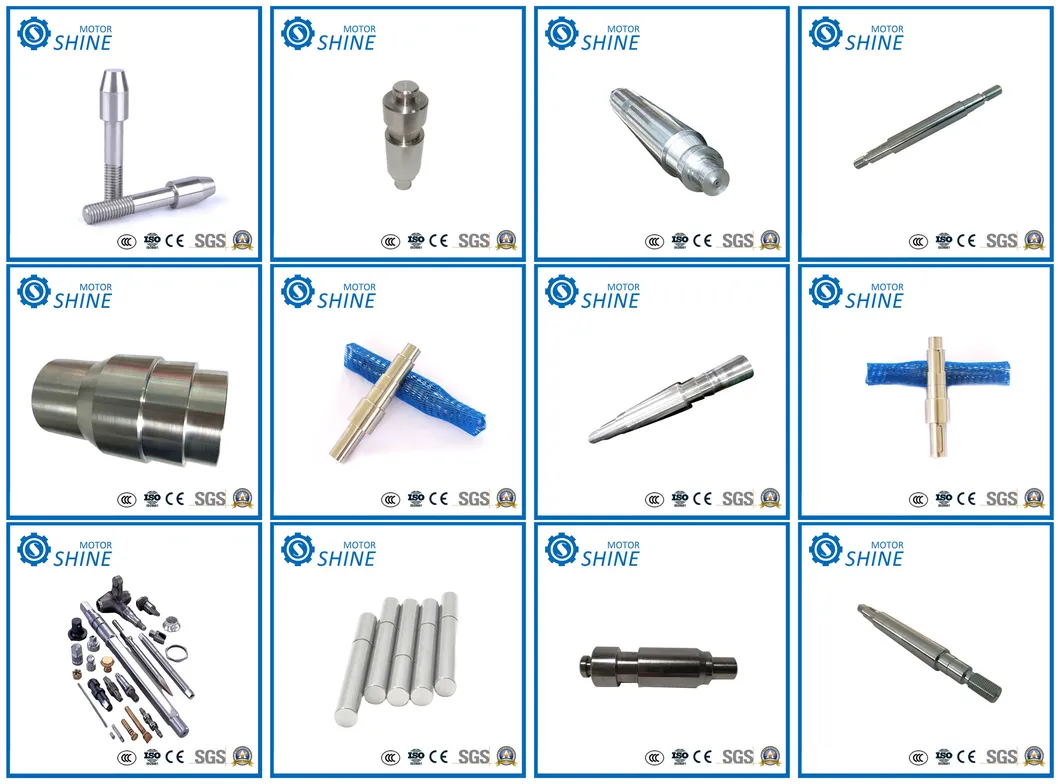

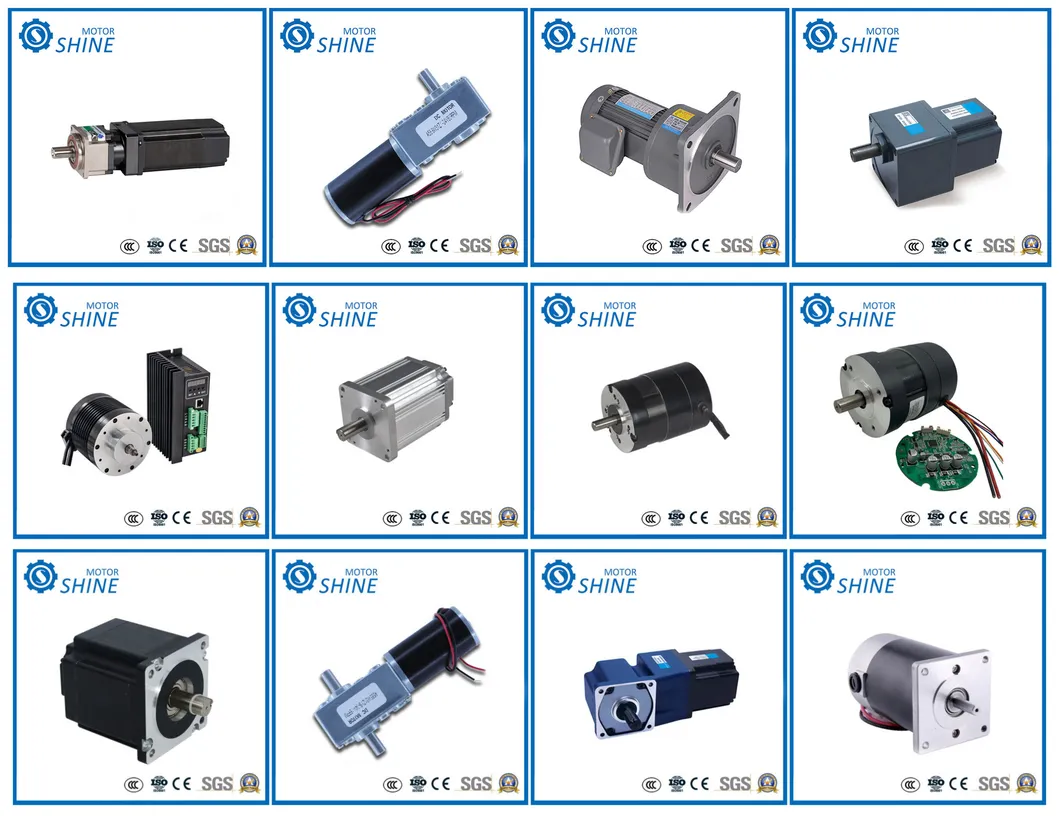

5. Main Product Series
6. Application Showcase
7. Package and Shipping
- FedEX / DHL / UPS / TNT for samples, Door to door service
- By sea for batch goods
- Delivery Time: 20-25 Days for samples; 30-35 Days for batch goods
- Payment Terms: T/T, L/C at sight, D/P etc.
Frequently Asked Questions
Q1. When can I get the quotation?
We usually quote within 24 hours after we receive your inquiry. For urgent price requests, please call us directly.
Q2. How can I get a sample to check your quality?
After price confirmation, you can request samples. Sample costs are applicable but can be refundable when your first order reaches the MOQ.
Q3. Can you provide OEM services?
Yes, product packaging and specifications can be designed according to your requirements.
Q4. What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 piece for standard carton box packaging.
Q5. What are your main international markets?
Our primary markets include Eastern Europe, Southeast Asia, and South America.
Q6. What are the available shipping methods?
We offer express delivery (FedEx/DHL/UPS) for samples and sea freight for bulk orders, or via customer-specified forwarders.
