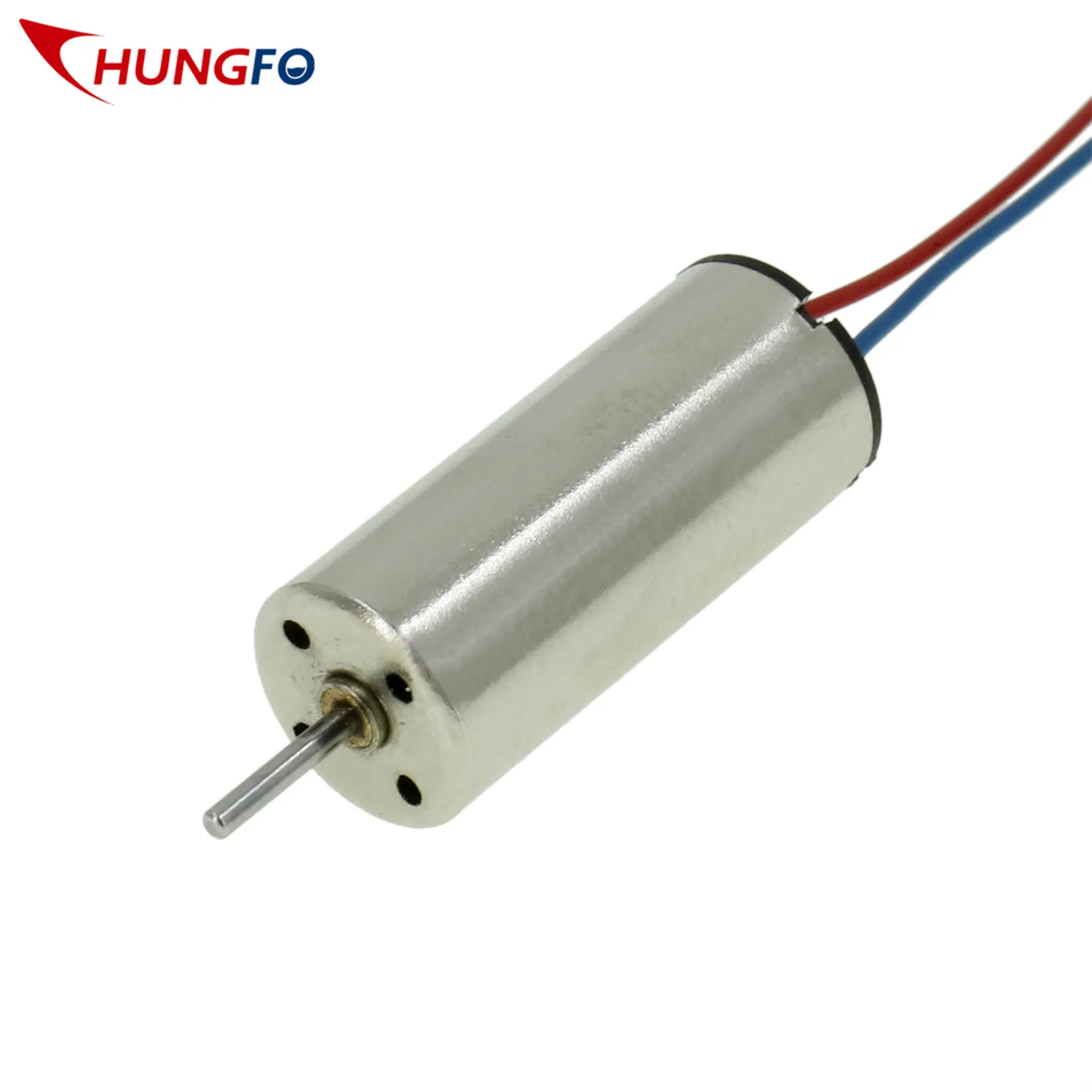

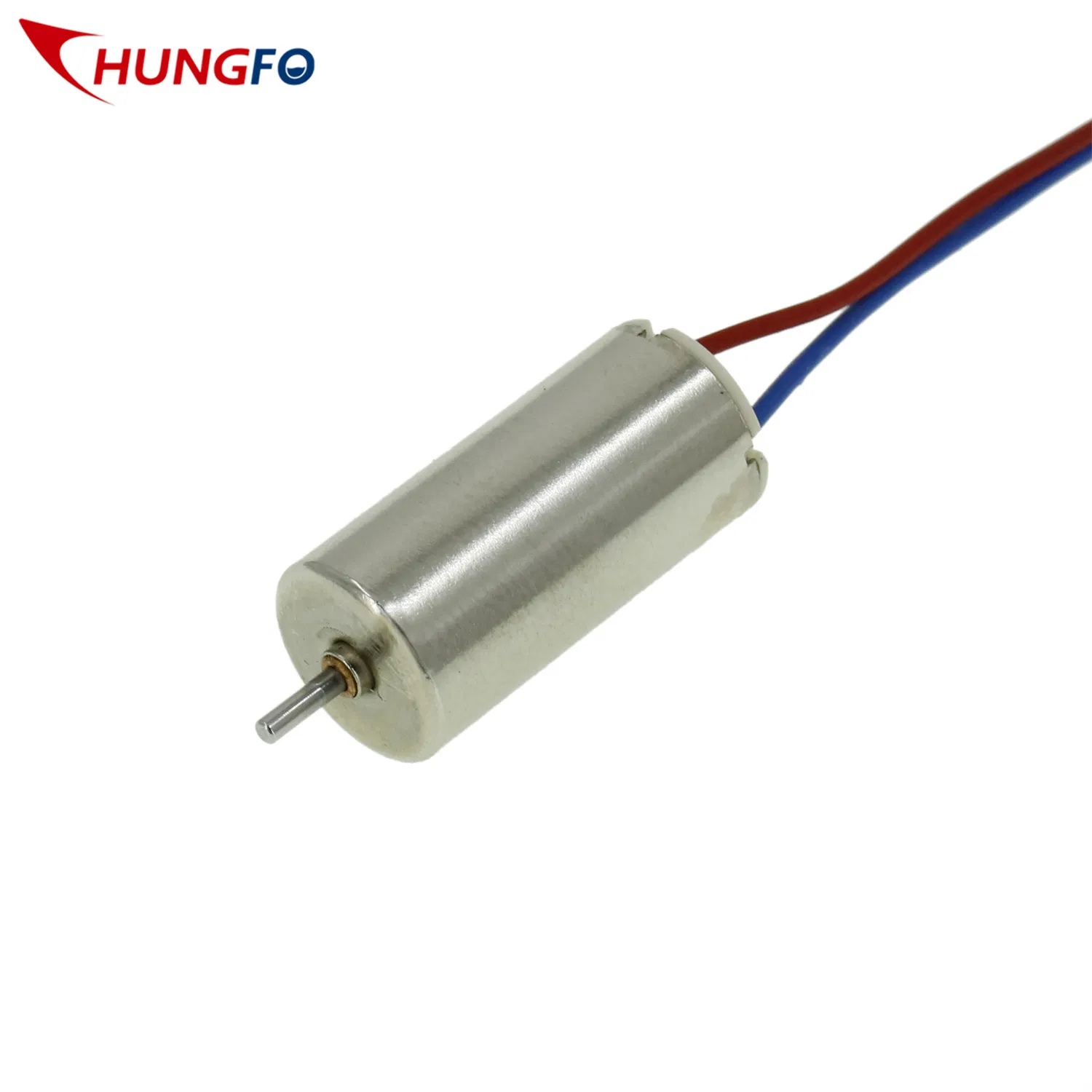

Energy Saving 54000rpm DC Brushes Vibration Rotor Micro Coreless Motor

1 / 3

Energy Saving 54000rpm DC Brushes Vibration Rotor Micro Coreless Motor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

■ Basic Information

Model NO.

6A610

Power Source

DC Motor

Function

Control, Driving

Casing Protection

Closed Type

Structure

Combined

Certification

ISO9001, RoHS, CE

Diameter

6mm

Length of Body

10.3mm

Transport Package

Standard Export Carton

HS Code

8501109990

Capacity

4 Million PCS/Month

■ Product Description

6A Series φ6mm x L10 Precious Metal Brushes Coreless Motor

Motor Parameters			Units	6A1-135241	6A3-070211	6A3-188241
Rated Voltage		1	V	3.0	3.7	4.5
Free Load	No load speed	2	rpm	24500	53720	25813
Free Load	No load current	3	mA	15	42	10
At Max. Efficiency	Max. efficiency	4	%	45.90%	52.41%	56.09%
	Speed	5	rpm	13500	42092	20627
	Current	6	mA	68	153	40.6
	Torque	7	g.cm	0.31	0.69	0.48
At Stall	Stall current	12	A	0.13	0.553	0.16
At Stall	Stall torque	13	g.cm	1.26	3.17	2.41

Motor Characteristics & Mechanical Parameters
Ambient temperature	-20~+65 ºC
Max. winding temperature	85 ºC
Max. No-load speed	60000 rpm
Number of pole pairs	1
Commutator segments	3
Weight	1.2 g

* Remarks: Rotation direction, wire specification and performance parameters can be customized. Motors can be mounted with various shapes of eccentric weights (iron, brass, ferro-alloy).

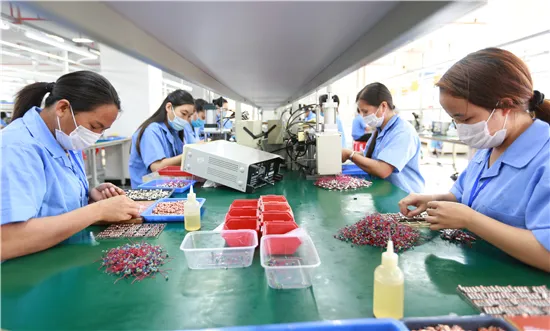

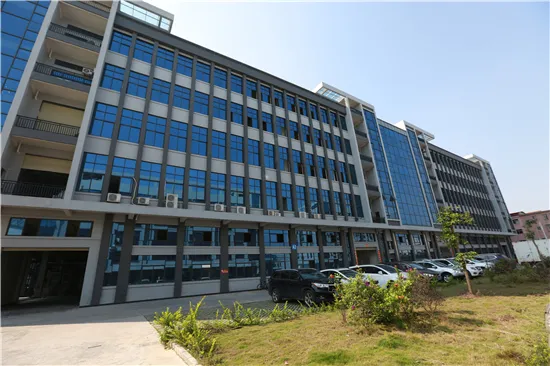

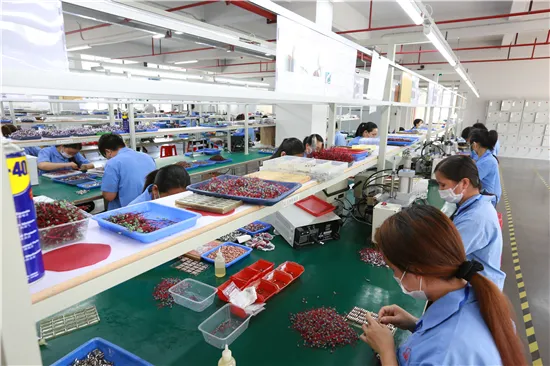

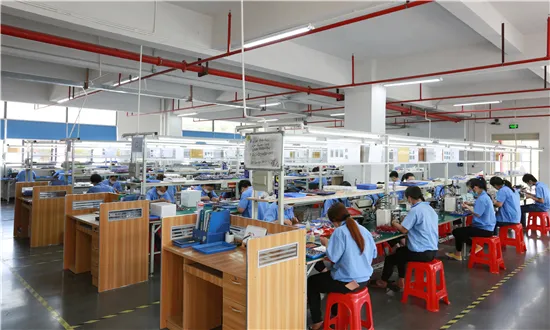

■ Factory Display

■ Application Areas

FAQ

What are the primary applications for this 6mm coreless motor?

These micro coreless motors are ideal for high-speed vibration, precision control, driving mechanisms in medical devices, handheld electronics, and RC models.

Can the motor performance parameters be customized?

Yes, rotation direction, wire specifications, and performance parameters such as speed and torque can be adjusted according to specific customer requirements.

What is the production capacity for this series?

We maintain a high production capacity of approximately 4 million pieces per month to ensure stable supply for large-scale orders.

What certifications do your motors hold?

Our products are fully compliant with international quality standards, holding ISO9001, RoHS, and CE certifications.

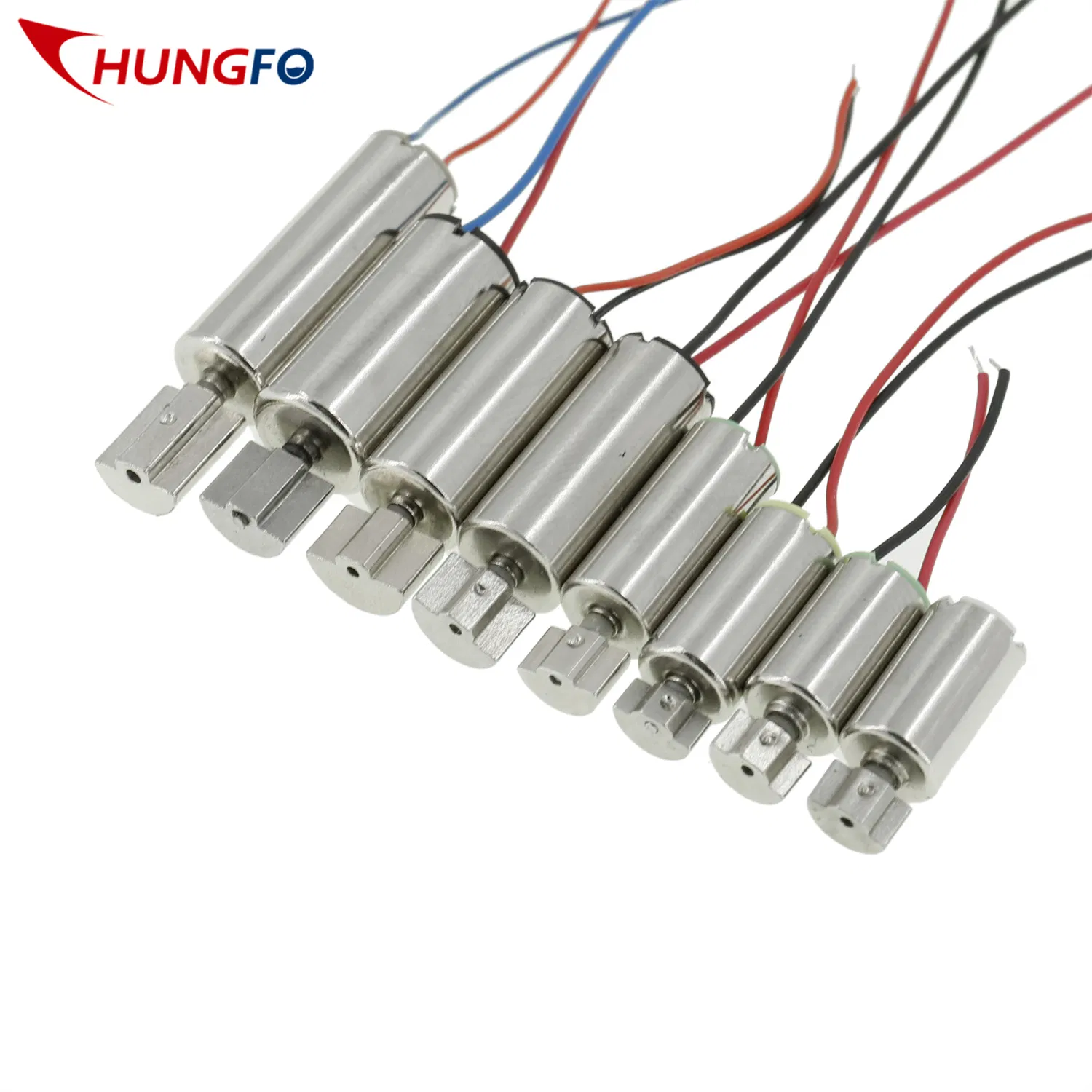

Can these motors be converted into vibration motors?

Yes, the motors can be mounted with various shapes and sizes of eccentric weights made of iron, brass, or ferro-alloy to function as vibration motors.

What is the operating temperature range for these motors?

The motors are designed to operate efficiently in ambient temperatures ranging from -20ºC to +65ºC.
