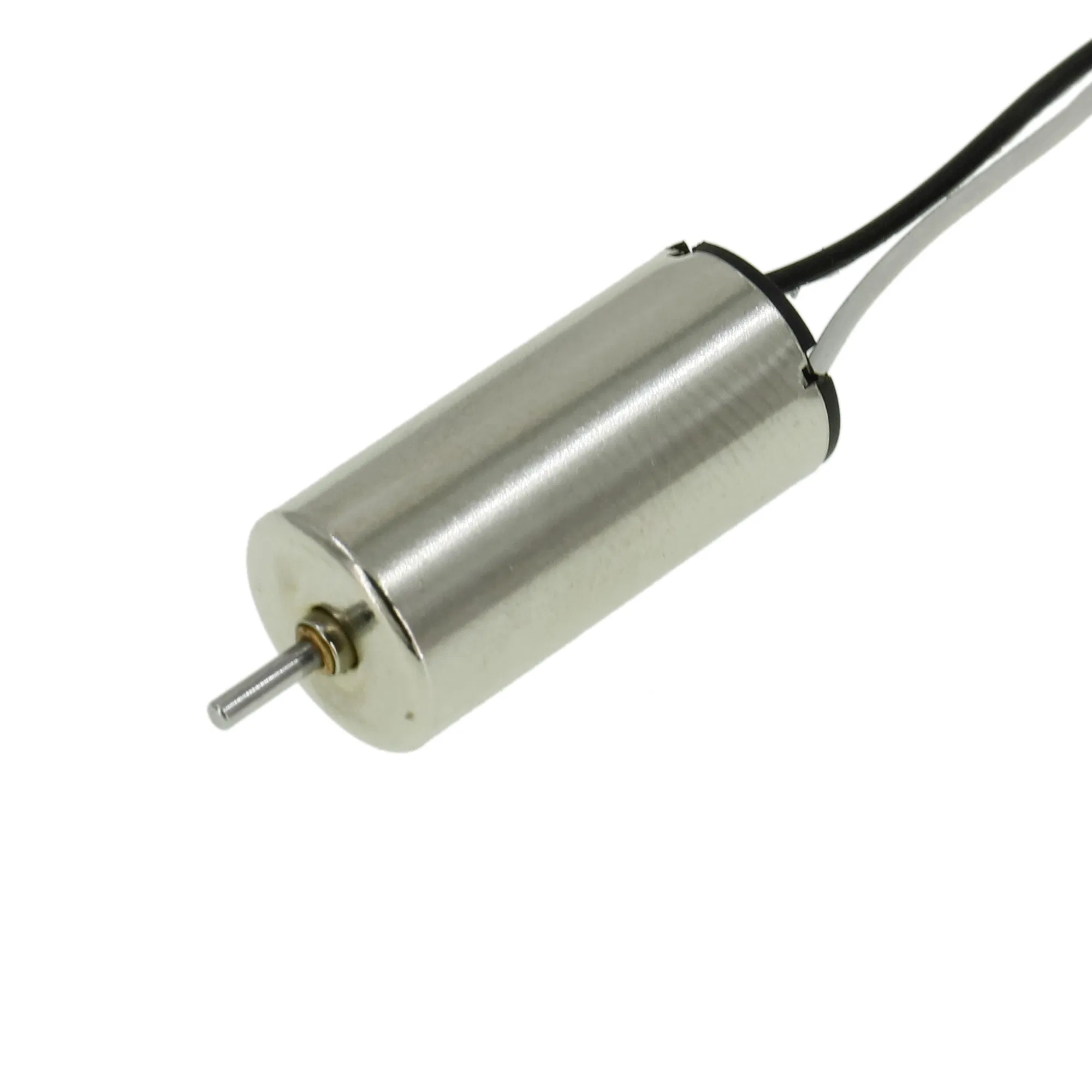

DC Brushed Torque Coreless Vibration Spindle Motor with High Precision
DC Brushed Torque Coreless Vibration Spindle Motor with High Precision
DC Brushed Torque Coreless Vibration Spindle Motor with High Precision
1 / 3
DC Brushed Torque Coreless Vibration Spindle Motor with High Precision
DC Brushed Torque Coreless Vibration Spindle Motor with High Precision
DC Brushed Torque Coreless Vibration Spindle Motor with High Precision

DC Brushed Torque Coreless Vibration Spindle Motor with High Precision

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
10A1013
Power Source
DC Motor
Function
Control, Driving
Casing Protection
Closed Type
Structure
Combined
Certification
ISO9001, RoHS, CE
Diameter
10mm
Motor Body Length
13.3mm
Production Capacity
4 Million PCS/Month
HS Code
8501109990
Product Description

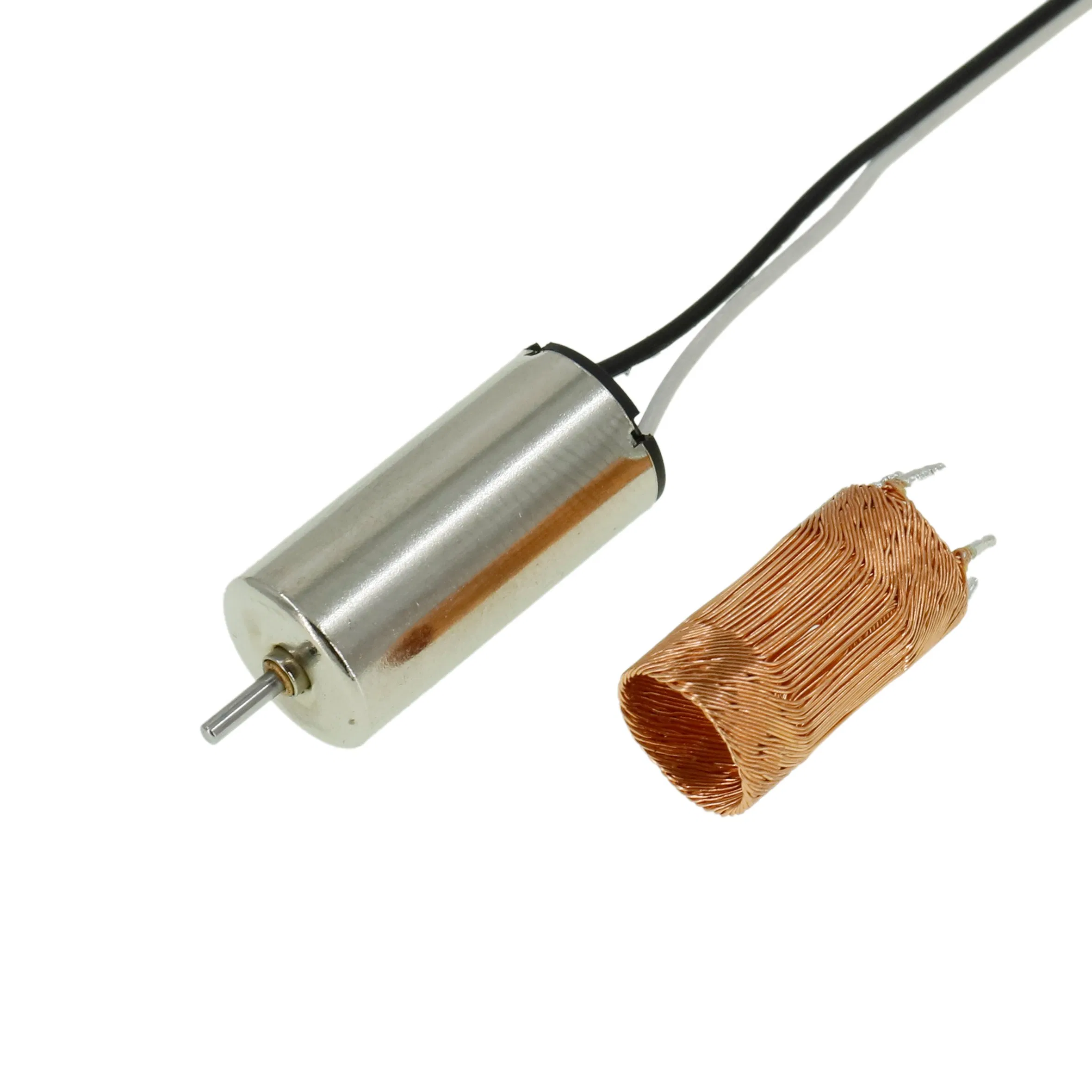

10A Series φ10mm x L13.3 Precious Metal Brushes

DC Brushed Torque Coreless Motor
Motor Parameter (at nominal voltage) Unit 10A1NA-021111 10A1NA-023121 10A1NA-020192
Rated Voltage V 1.2 3.0 3.0
Free Load No Load Speed rpm 12915 30785 41771
No Load Current mA 36 61 107
Max Efficiency Efficiency % 61.28% 65.21% 54.00%
Speed rpm 10609 25806 30962
Current mA 164 317 403
Torque g.cm 1.11 2.34 1.93
At Stall Stall Current A 0.75 1.64 1508
Stall Torque g.cm 6.2 14.48 9.57
Terminal Resistance Ω 1.3 1.6 2
Torque Constant g.cm/A 8.63 9.153 6.528
Motor Characteristics
Thermal & Mechanical Parameters
Ambient Temperature-20 ~ +65 ºC
Max. Winding Temperature85 ºC
Max. No-load Speed55000 rpm
Max. Axial Load (dynamic)0.15 N
Number of Pole Pairs1
Number of Commutator Segments3
Weight5.2 g

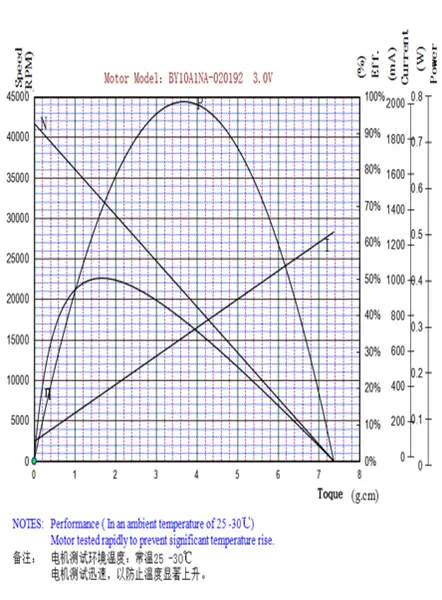

Performance Curve

Typical Performance Chart
Notes:
1. Rotation direction, wire specification and performance parameters can be customized according to requirements.

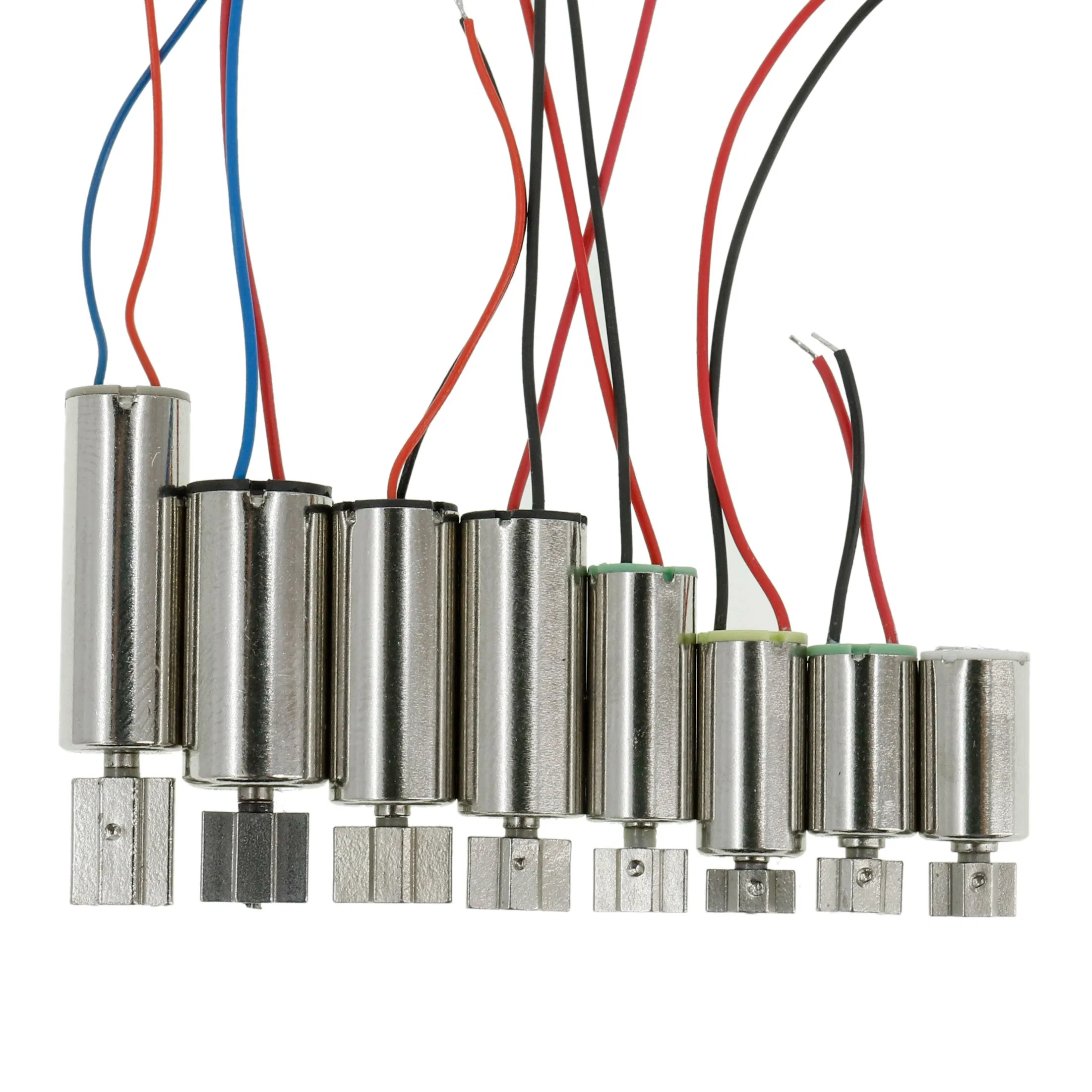

2. Motor can be equipped with various shapes and sizes of eccentric weights (iron, brass, or ferro-alloy) for vibration functions.
3. Conversion: 1g=0.035oz | 1inch=25.4mm | 1g.cm=0.098mN.m
Facility & Manufacturing

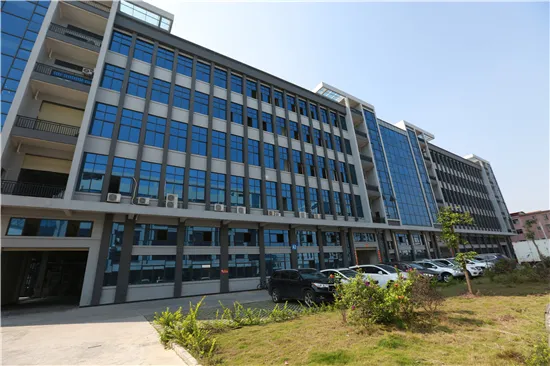

Production Line 1
Production Line 2

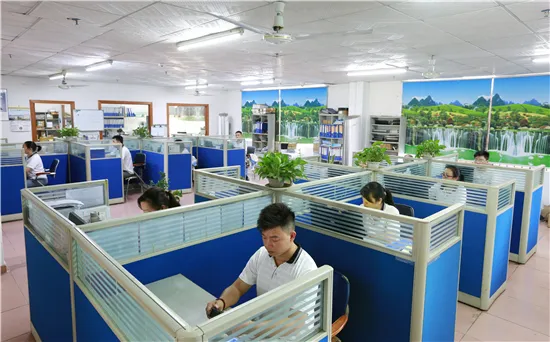

Quality Control

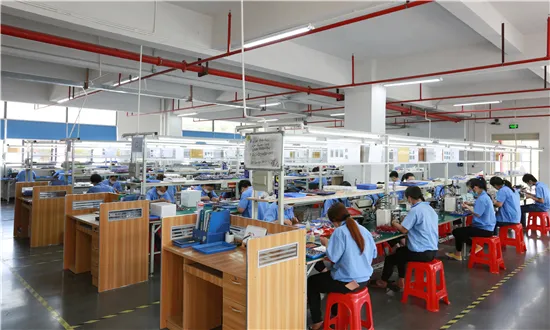

Equipment 1

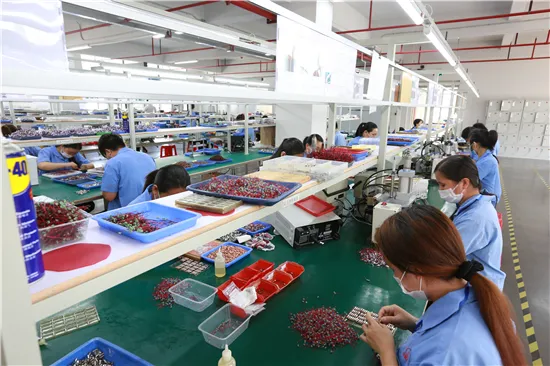

Equipment 2

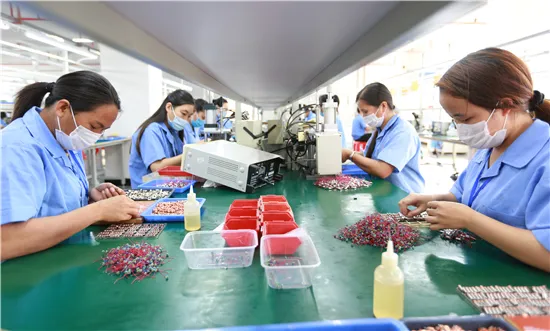

Facility 1

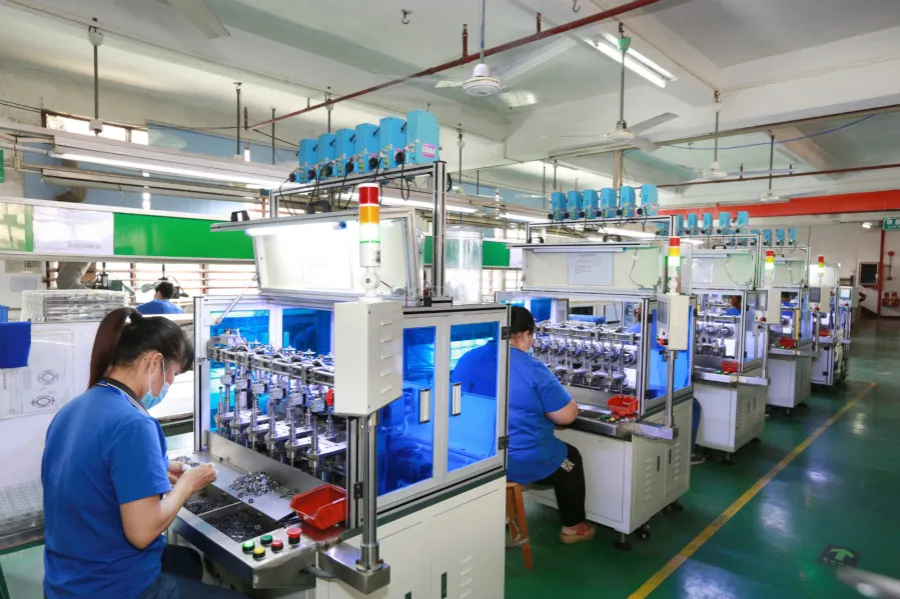

Facility 2

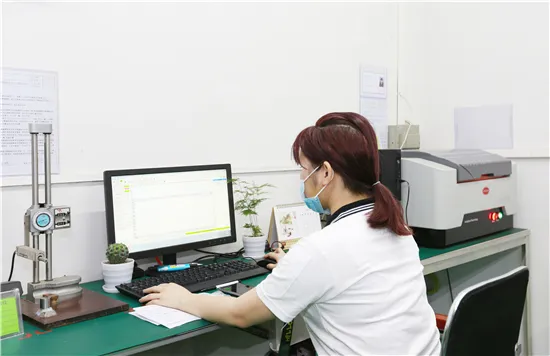

Testing Lab

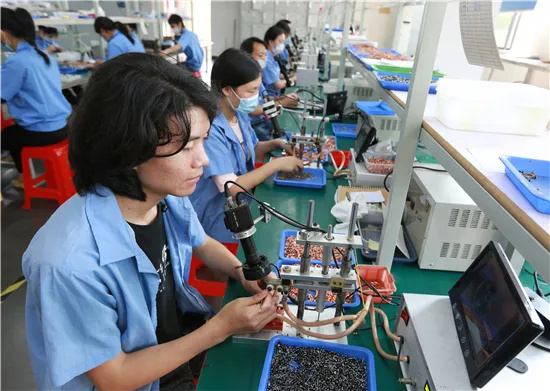

Workshop
Application Fields
Motor Applications
Frequently Asked Questions
1. What are the primary applications for the 10A Series motor?
The 10A Series is a high-precision coreless DC motor designed for control and driving functions, commonly used in precision instruments and vibration-based devices.
2. Can the motor performance be customized?
Yes. We can adjust the rotation direction, wire specifications, and various performance parameters (speed, torque, voltage) based on your specific application requirements.
3. How does this motor function as a vibration motor?
By mounting different shapes and sizes of eccentric weights made of brass, iron, or ferro-alloy onto the spindle, the coreless motor effectively provides vibration feedback.
4. What quality certifications do these motors hold?
All 10A Series motors are compliant with ISO9001, RoHS, and CE standards, ensuring high quality and environmental safety.
5. What is the monthly production capacity for this model?
We have a robust manufacturing capability of 4 million pieces per month to support high-volume industrial demands.
6. What is the operating temperature range?
The motor is designed to operate in ambient temperatures ranging from -20°C to +65°C, with a maximum winding tolerance of 85°C.
