Sweg Motor
Sweg Motor
| Model NO. | 6mm gear motor | Voltage | 3V |
|---|---|---|---|
| Excitation Mode | Permanent Magnet | Gearbox Diameter | 6mm |
| Function | Control | No Load Speed | 26rpm |
| Casing Protection | Drip-Proof | No Load Current | 40mA |
| Structure | Brush | Type | Planetary Gearbox |
| Certification | ISO9001, CCC, RoHS | Rated Torque | 330g.cm |
| Gear Ratio | 711:1 | Motor Type | DC Geared Motor |

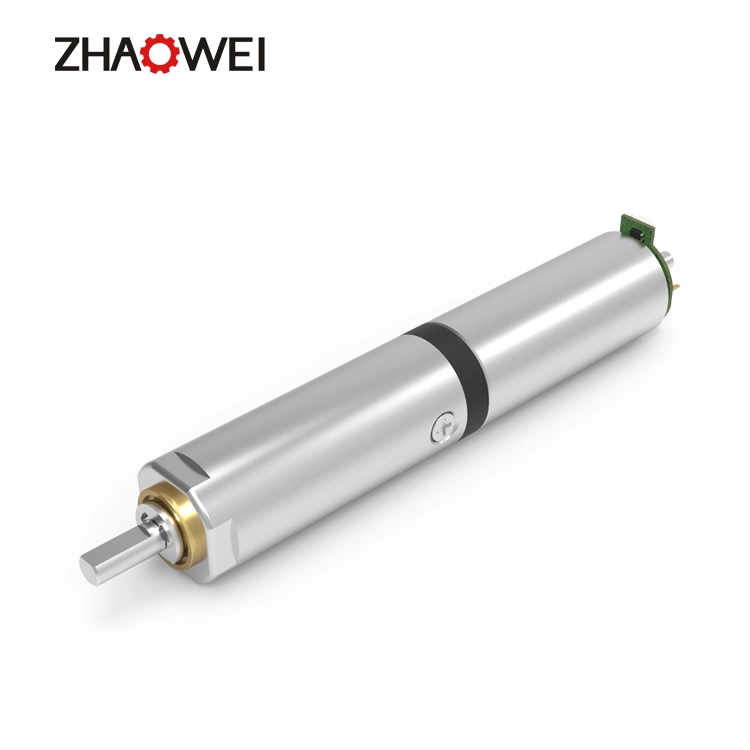

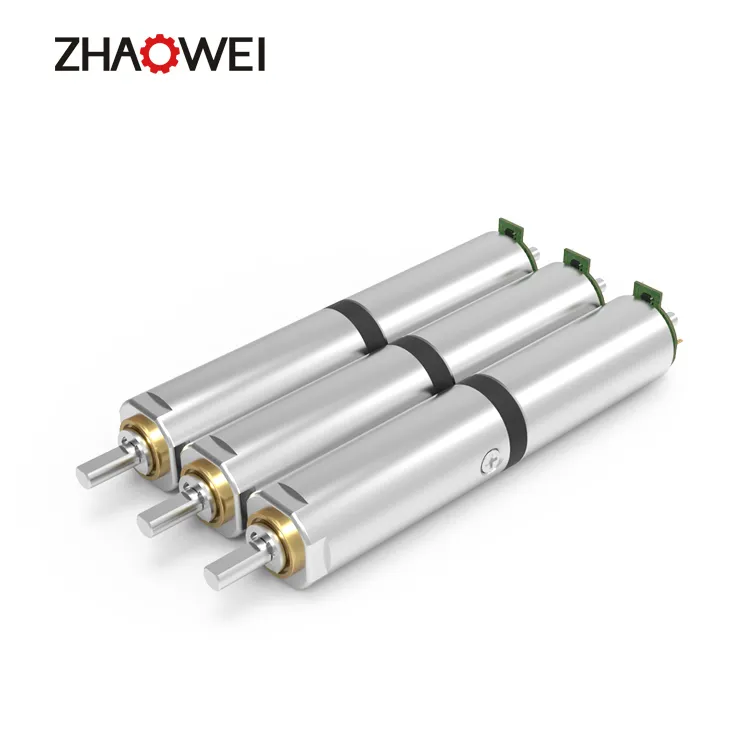

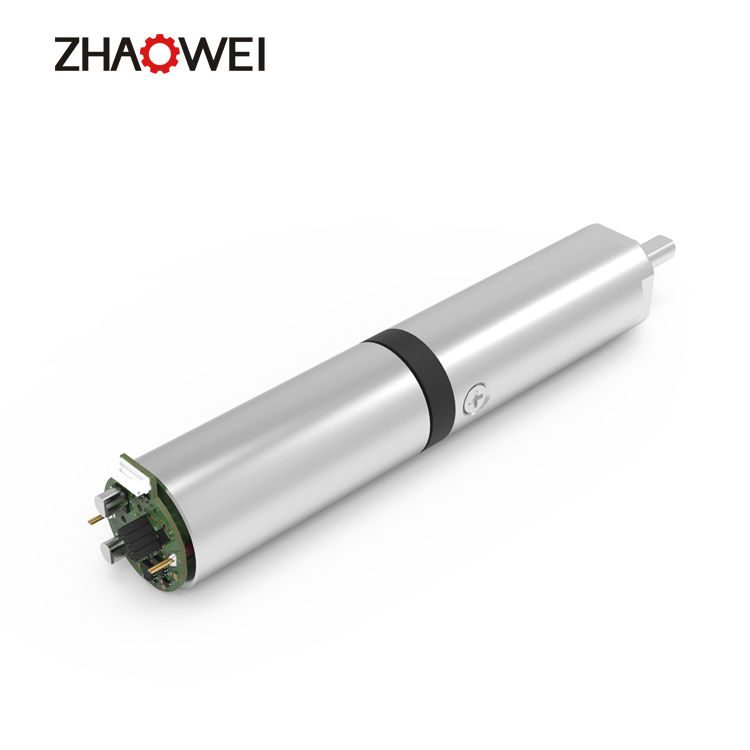

Model: ZWBMD006006-711

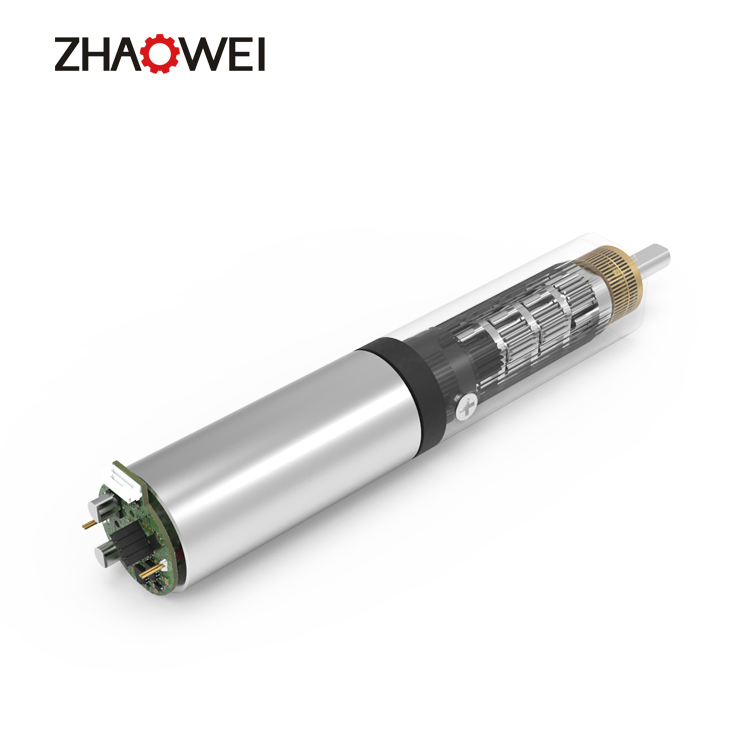

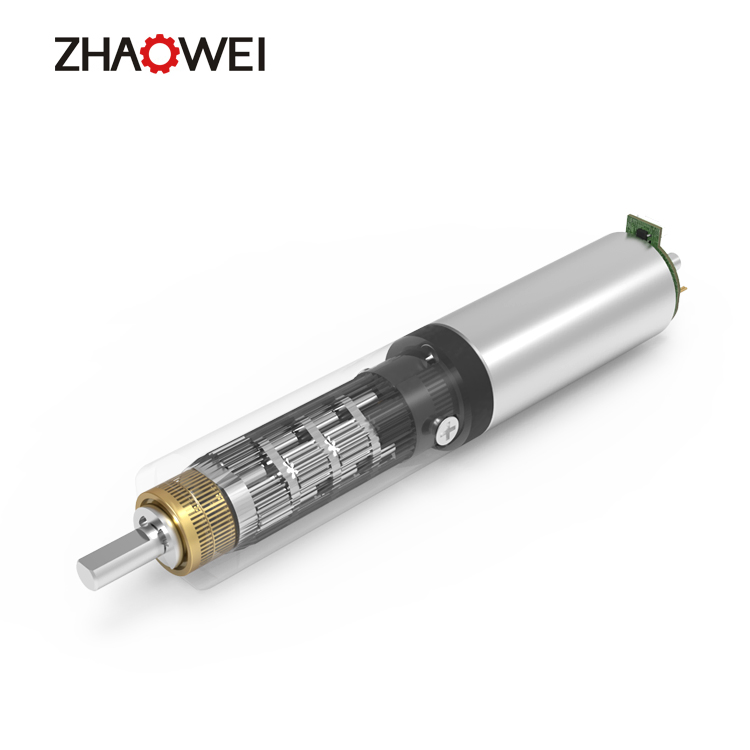

Highly efficient micro planetary gearbox designed for precision control. Featuring a compact 6mm diameter, this motor provides high torque output despite its small footprint.
| Model | Voltage (VDC) | No Load Speed (rpm) | No Load Current (mA) | Rated Speed (rpm) | Rated Current (mA) | Rated Torque (gf.cm) | Gear Ratio | Length (mm) |
|---|---|---|---|---|---|---|---|---|
| ZWBMD006006-110 | 3.0 | 166 | 37 | 140 | 100 | 54.3 | 110.6 | 14.5 |
| ZWBMD006006-266 | 3.0 | 69 | 37 | 58 | 100 | 130.5 | 265.7 | 14.5 |
| ZWBMD006006-711 | 3.0 | 26 | 40 | 21 | 100 | 296.9 | 711.0 | 16.9 |
| ZWBMD006006-1708 | 3.0 | 11 | 40 | 10 | 75 | 330 | 1707.9 | 16.9 |
Note: Above specifications are for reference and customizable according to micro transmission solution requirements.
| Smart Wearables | Smart watches, VR, AR, XR devices. |
|---|---|
| Household Appliances | Kitchen appliances, vacuum cleaners, smart locks, sweeping robots, coffee machines. |
| Automotive Products | Door lock actuators, rearview mirror control, HUD, vehicle charging stations. |
| Medical Equipment | Surgical staplers, infusion pumps, dental instruments, medical ventilators. |
| Consumer Electronics | Cameras, UAVs (Drones), smart speakers, PTZ cameras. |

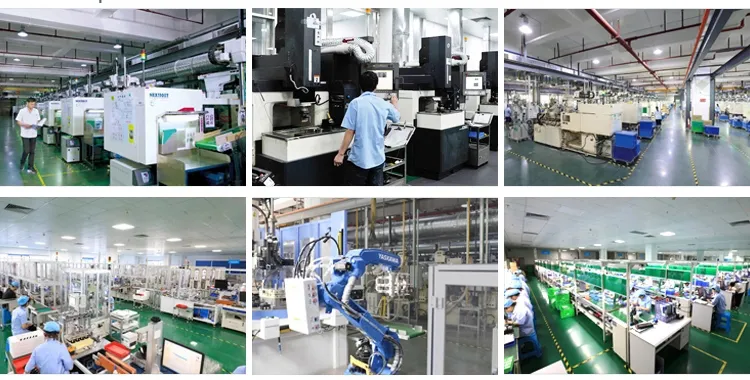

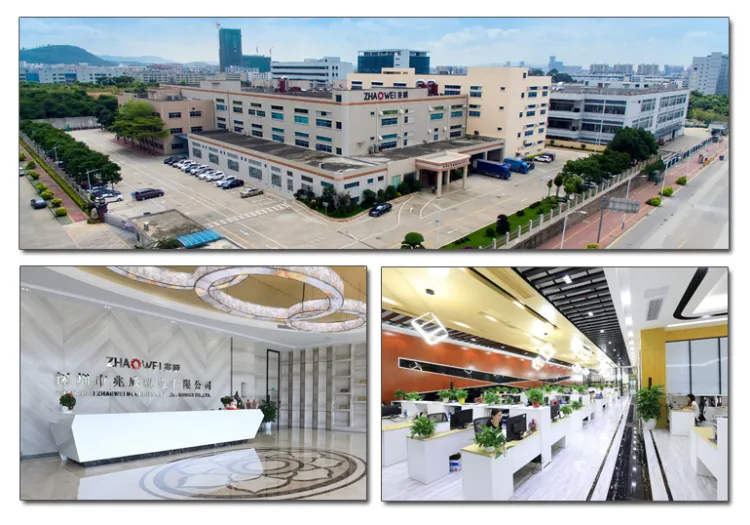

Established with a focus on total drive solutions, our facility handles everything from design and tooling fabrication to component manufacturing and assembly.
Services: We provide gearbox design, micro drive custom solutions, and comprehensive technology support.
Packaging: Products are packed in nylon bags, then secured in cartons, and reinforced with wooden cases for outer protection or as per client requirements.
Shipping: Samples are typically shipped within 10 days via international couriers like DHL, UPS, or FEDEX.
Yes. Our engineering and R&D teams have years of experience in designing custom micro transmission solutions tailored to specific application needs.
Yes, we can provide samples. The delivery time usually ranges from 5-15 days depending on the complexity of the gearbox specifications.
Our standard MOQ is 2000 pieces. however, we are open to accepting smaller trial orders at the initial stage of cooperation.
No, we do not keep items in stock. All products are manufactured based on specific customer orders to ensure optimal performance and quality.
Please provide us with your detailed requirements (voltage, speed, torque, space constraints). Our team will recommend the most suitable model and provide samples for confirmation.
We generally accept T/T in advance and can handle payments in multiple currencies including USD and RMB.
