Sweg Motor
Sweg Motor

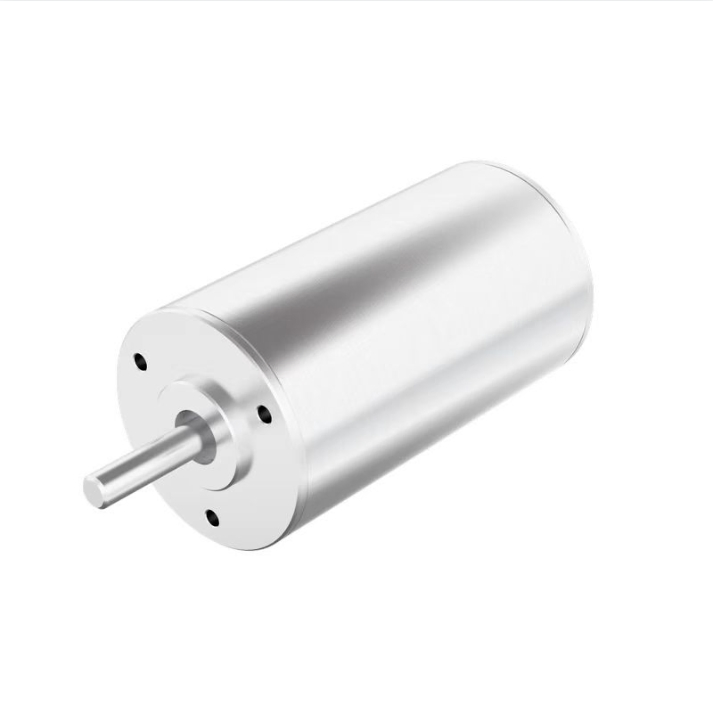

This high-performance brushless DC coreless motor is engineered for electronic water pumps and demanding industrial applications. By eliminating the iron core, this motor offers exceptional efficiency and responsiveness, bringing significant technological advancements to modern automated systems.

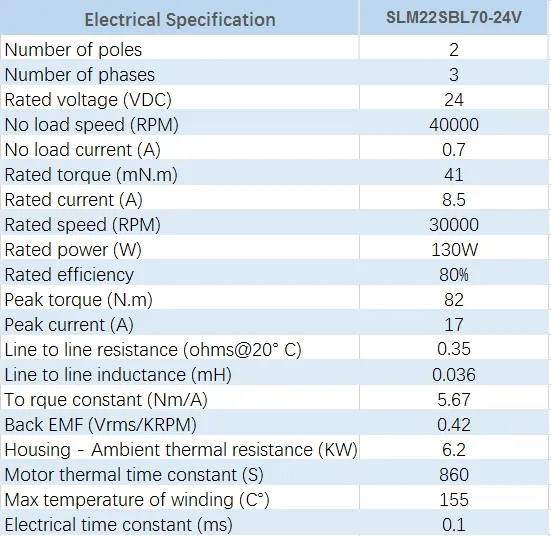

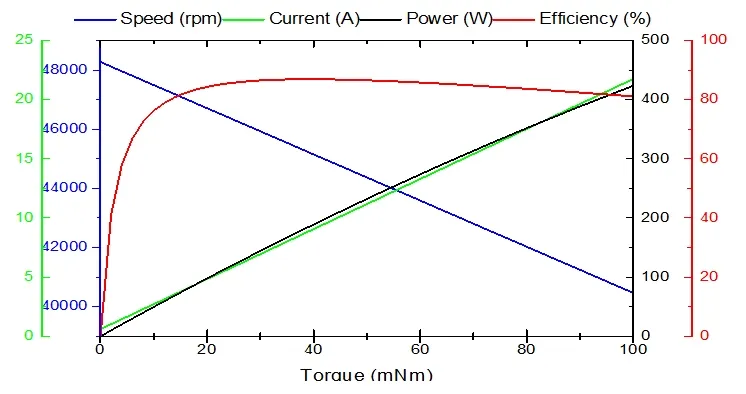

No-load speed up to 40,000 RPM with 80% rated efficiency. Maximizes production output while minimizing energy loss.
Rated torque of 41mN.m and peak torque reaching 82N.m. Ensures stable operation under heavy load conditions.
Allowable winding temperature up to 155°C. Built for durability in high-temperature industrial environments like textiles.
130W rated power in a small form factor, ideal for space-constrained medical and financial equipment.
A: Coreless motors eliminate iron losses, resulting in higher efficiency, faster acceleration, and smoother rotation without "cogging" torque.
A: Yes, the compact design and high power density make it ideal for surgical robots and ventilators where precision and reliability are critical.
A: The no-load speed can reach up to 40,000 RPM, making it suitable for high-speed industrial applications.
A: It is designed to operate in ambient temperatures from -20°C to +50°C, with a maximum allowable winding temperature of 155°C.
A: Yes, we provide customized manufacturing to meet specific requirements for dimensions, electrical specs, and wiring configurations.
A: This motor utilizes a Star connection method, which provides stable voltage and current for smooth operation.
