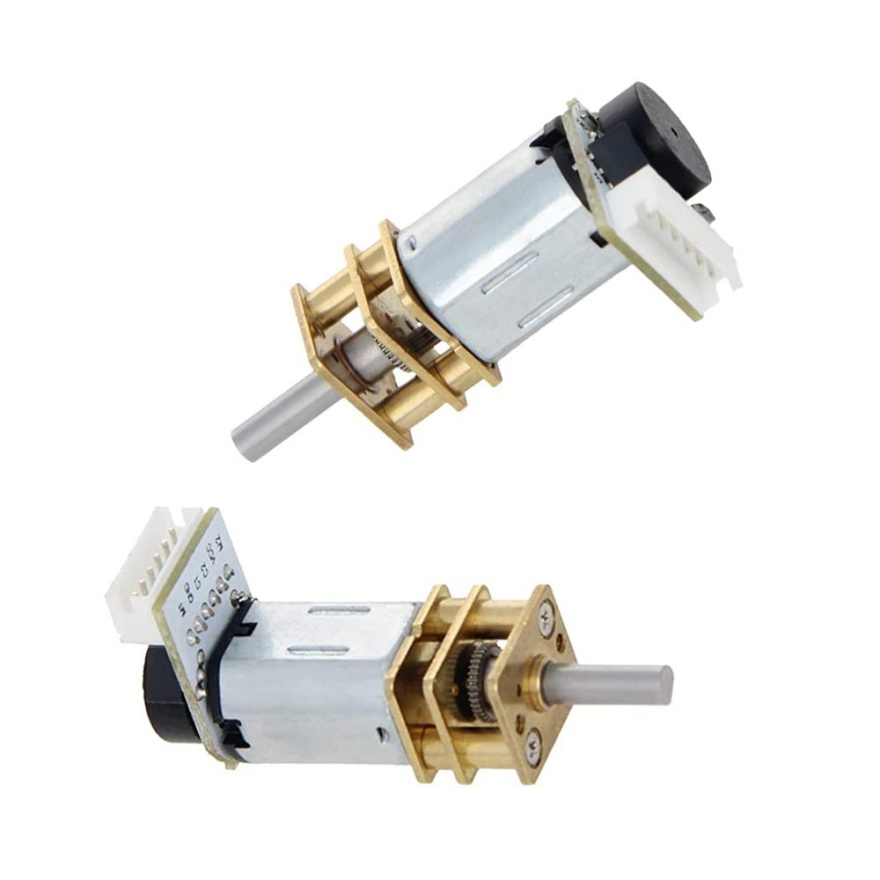

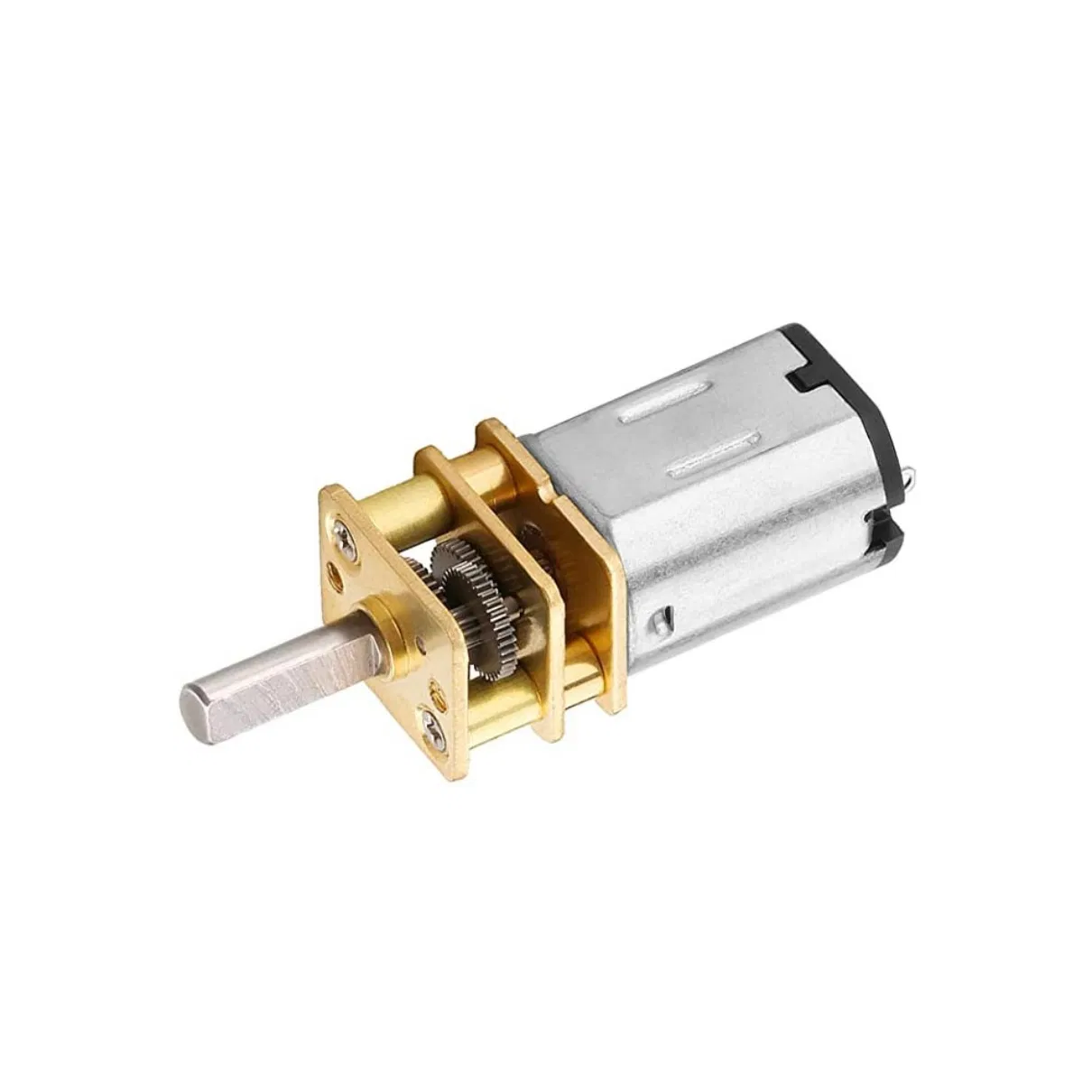

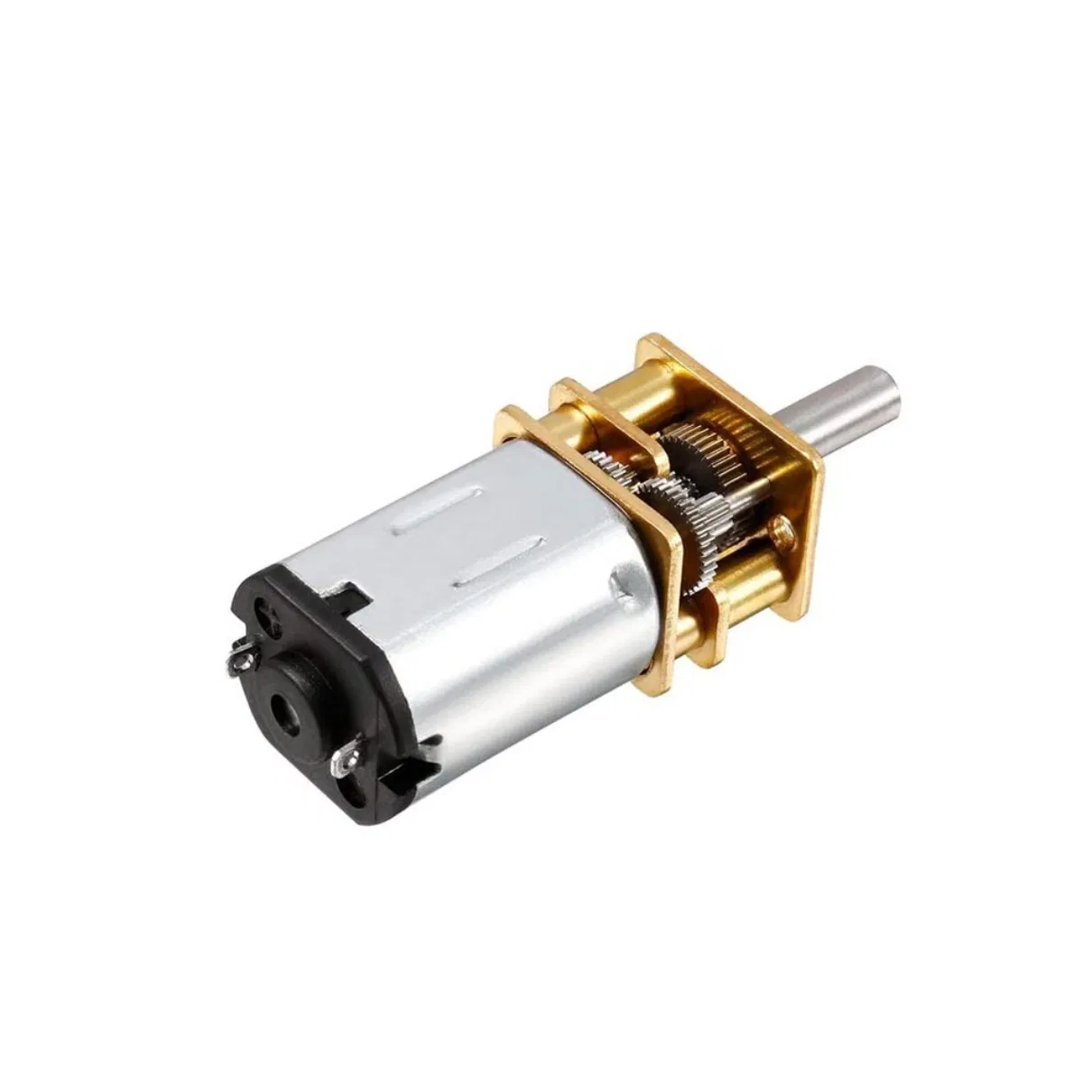

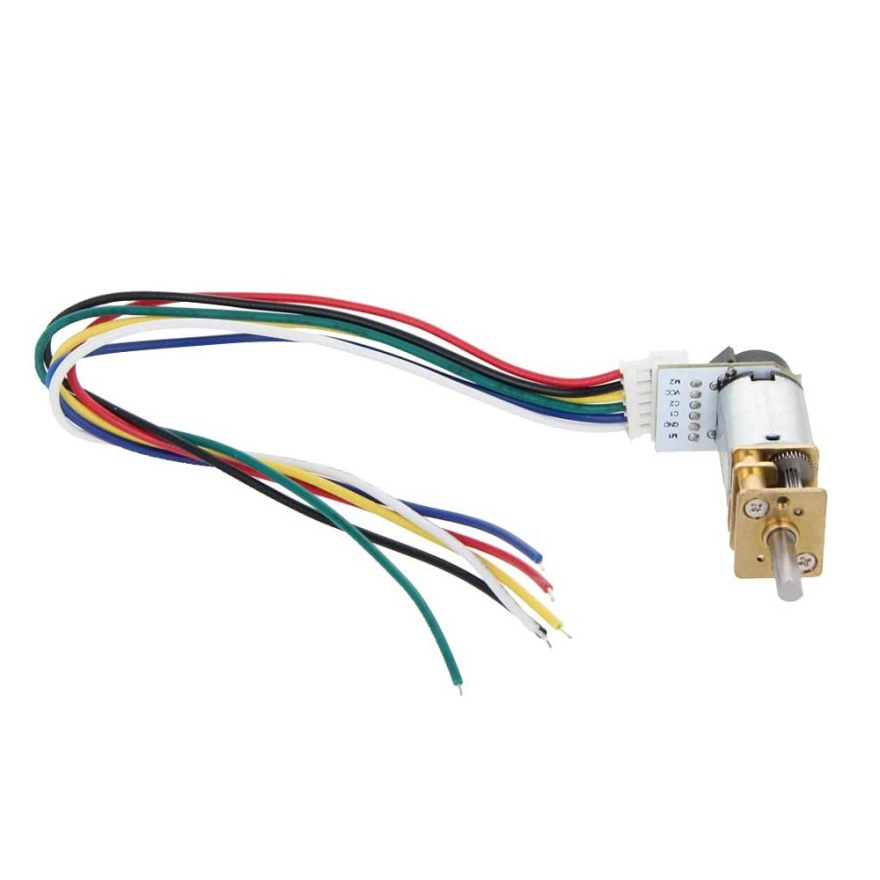

Voltage-Customized Shaft Shape Mini DC Spur Gear Motor for Model Train

1 / 5

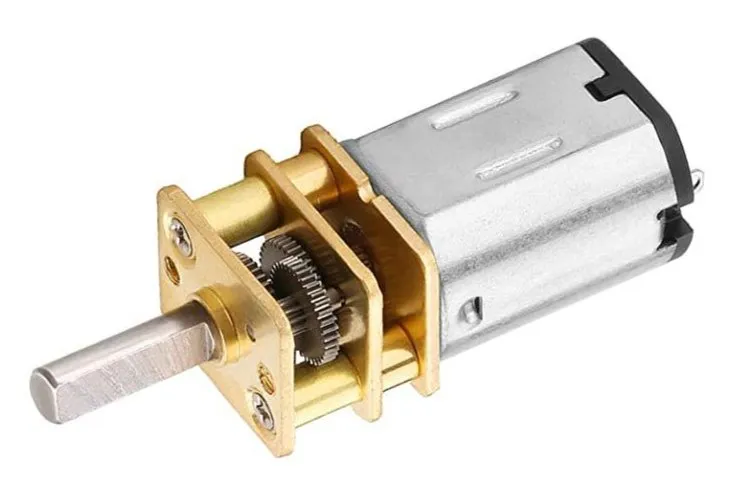

Voltage-Customized Shaft Shape Mini DC Spur Gear Motor for Model Train

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

LGM12-N20

Principle

Brush DC Motor

Type

DC Geared Motor

Voltage

1.5V-24V

Material

Stainless Steel

Rotation

CW / CCW

Dimensions

Φ12*10*15mm

Product Description

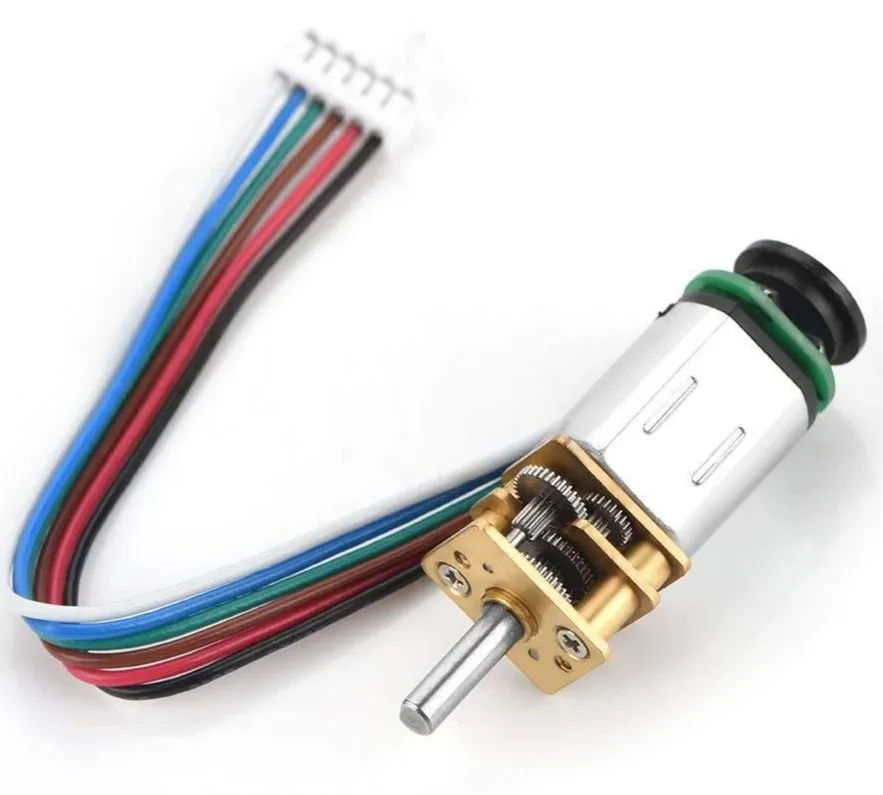

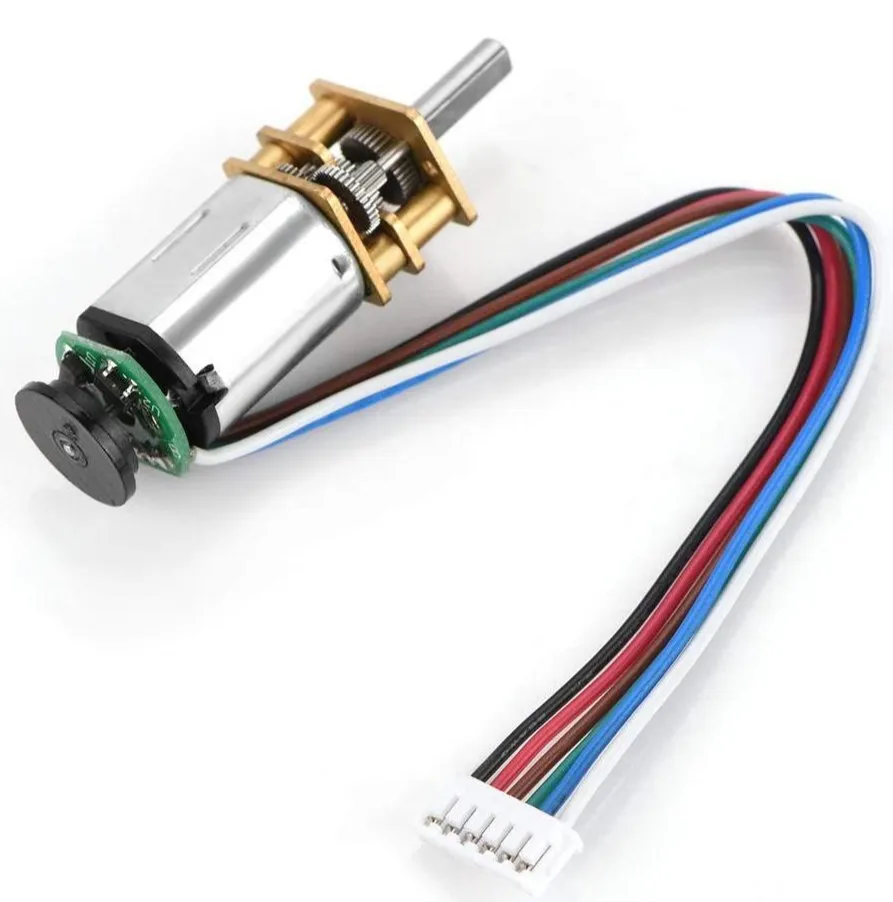

The 12mm micro gearbox can be integrated with N10, N20, or N30 motors and encoders. All specific parameters are fully customizable upon request to meet your specific project needs.

Key Applications

Our precision gear motors are widely used in various industries including:

Commercial Products
Smart Door Locks
Industrial Tools
Model Trains
Educational Robots
Electric Shavers
Security Systems
Hub Locks

Technical Specifications

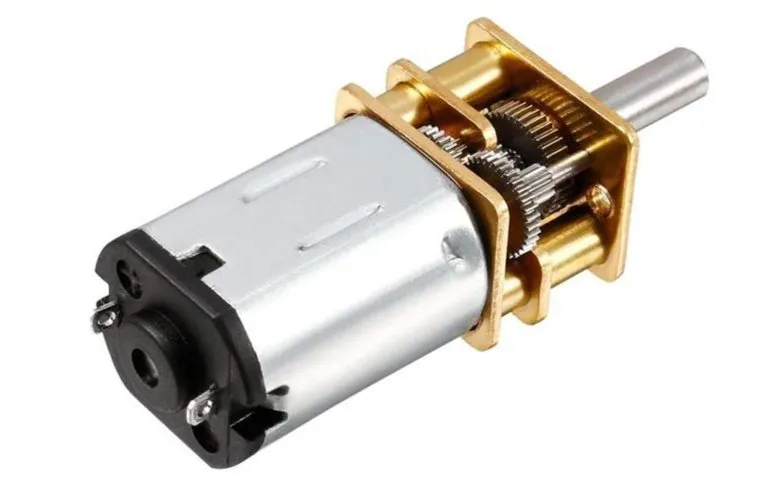

12mm Micro DC Geared Motor Specs
Model	LGM12-N20	Type	DC Geared Motor
Voltage Range	1.5V - 24V	Speed Range	5rpm - 3000rpm
Continuous Current	≤0.3A	Stall Torque	≤1kg.cm

Gear Ratio and Gearbox Length
Gear Stages	3	4	5	7
Gear Ratio	10	23, 30, 50, 75, 100, 150	210, 256, 298, 380	1000
Length (L)	9 mm			12 mm

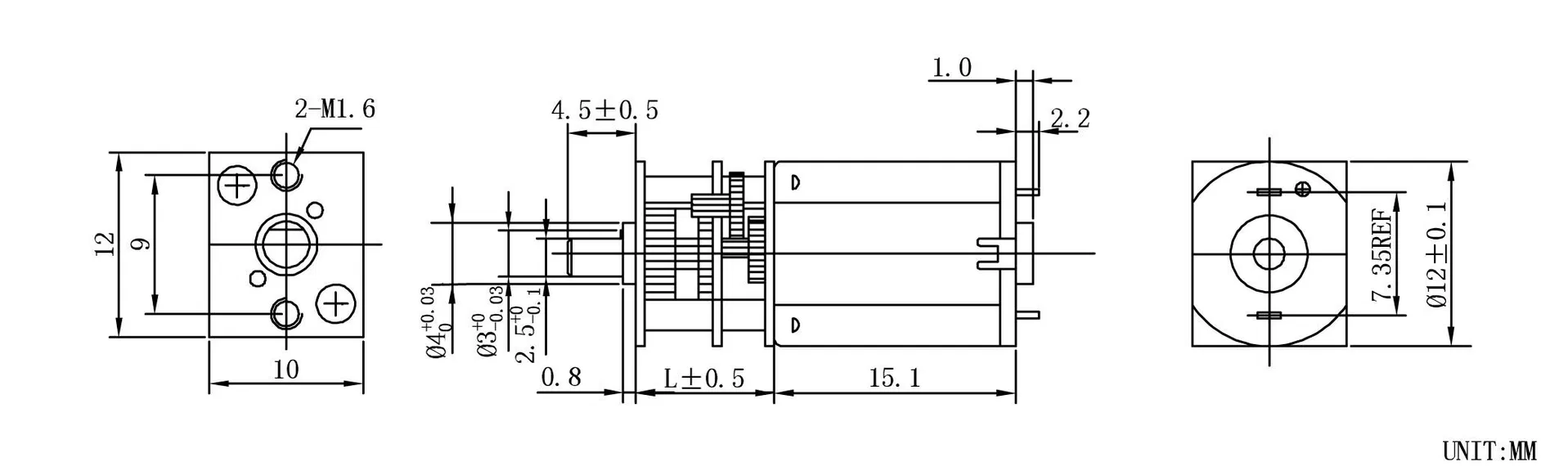

Outline Dimensions

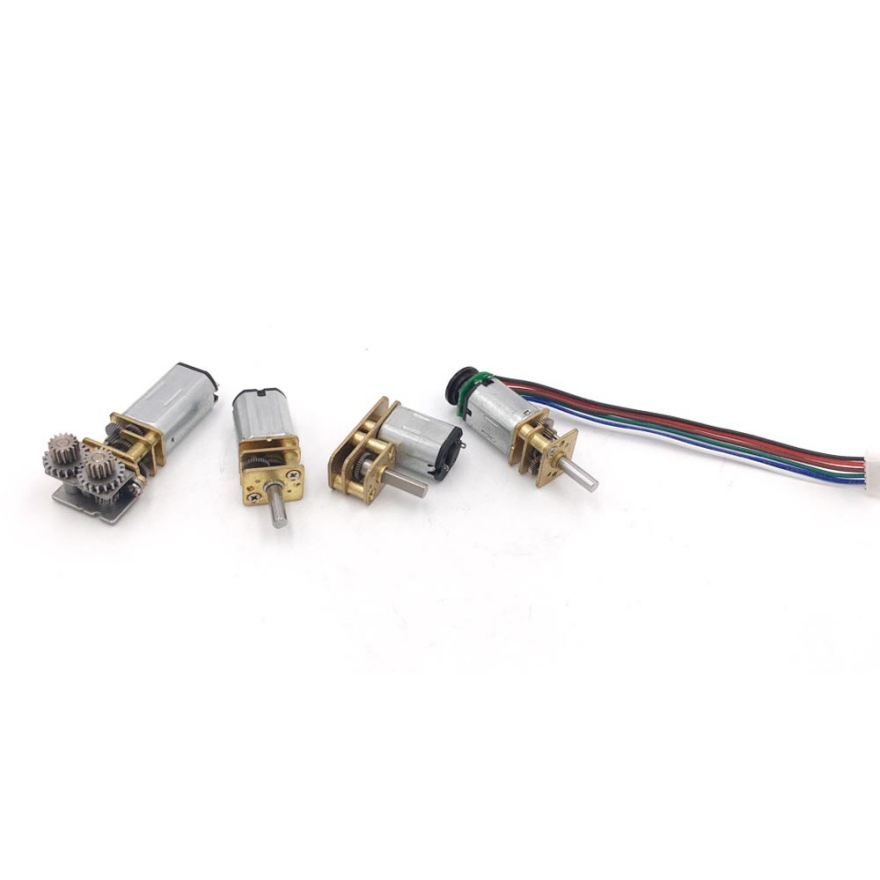

Product Range Showcase

Technical Capability

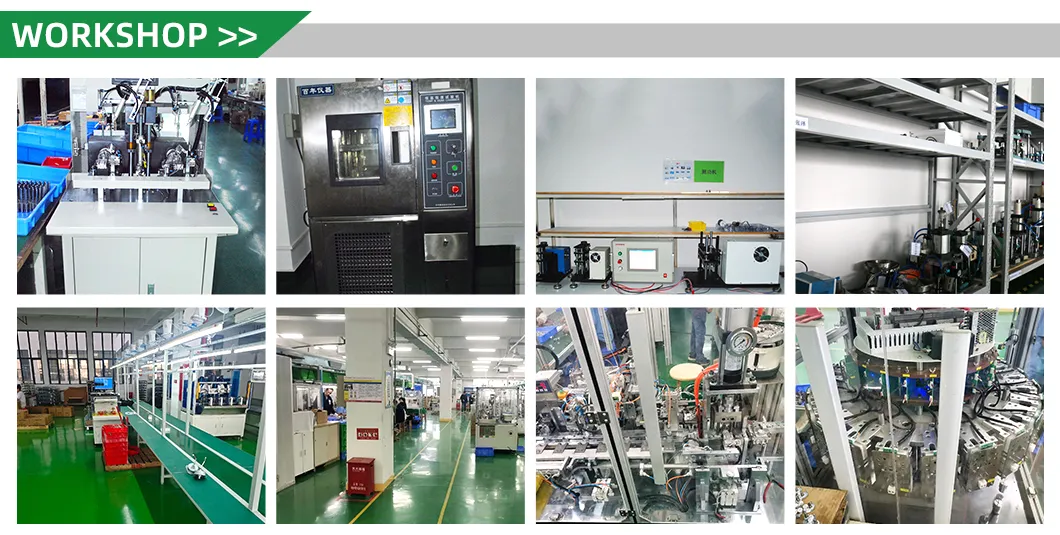

We specialize in hardware modules, small gear modules, and miniature precision planetary gearboxes. Our team provides comprehensive drive system solutions for industrial tools, personal care, automotive parts, and healthcare devices.

Packaging & Logistics

Frequently Asked Questions

Do you provide samples for testing?

Yes, we provide samples for all clients to test before proceeding to mass production. The typical lead time for samples is 7-15 days.

How do I select the right DC Gear Motor for my application?

Please provide us with details such as voltage, speed, torque, motor size, and duty cycle. If you have drawings or pictures, sharing those will help us recommend the most suitable geared motor.

Can you customize the motor specifications?

Yes! We offer customized services for voltage, speed, torque, and shaft size/shape. We can also add specific wires, connectors, or EMC components as per your requirement.

What is your typical shipping method?

We generally ship goods via air express (DHL, FedEx, UPS, TNT) or by sea, depending on the volume and your specific requirements.

Do you maintain items in stock?

We do not keep items in stock; all our products are manufactured based on specific orders to ensure the highest quality and compliance with requirements.

What payment methods do you accept?

We accept T/T (Telegraphic Transfer) in advance, along with PayPal and major credit cards for convenience.
