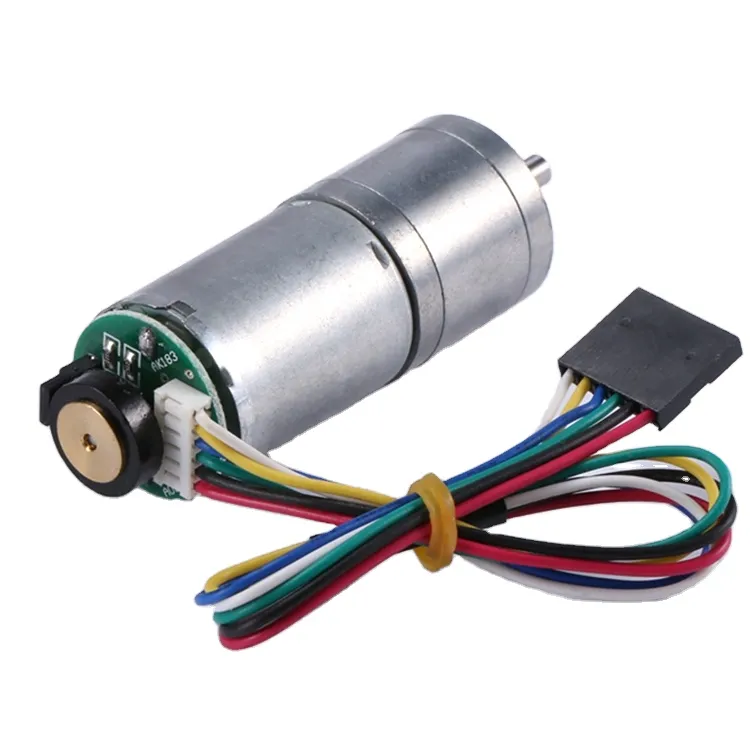

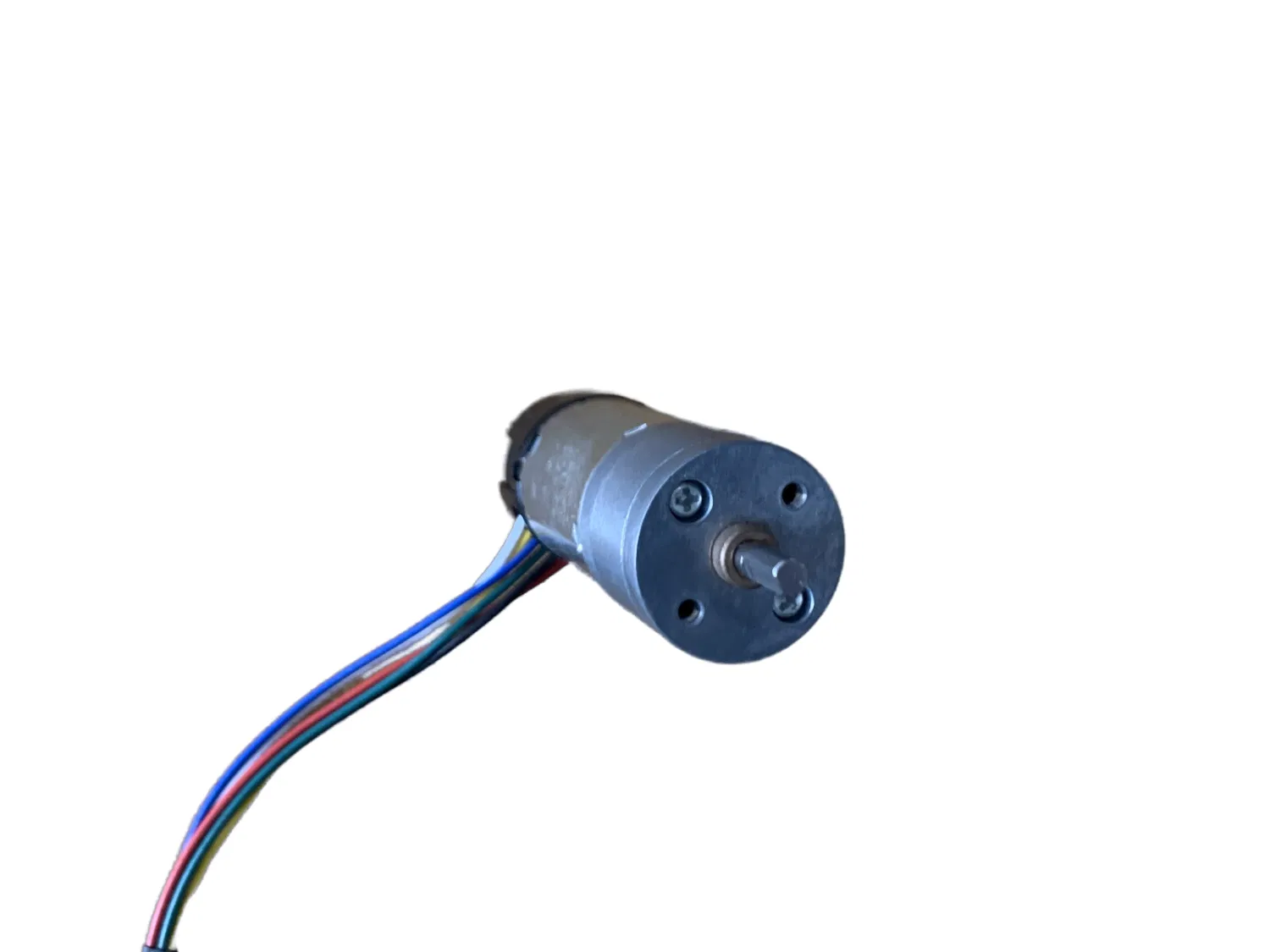

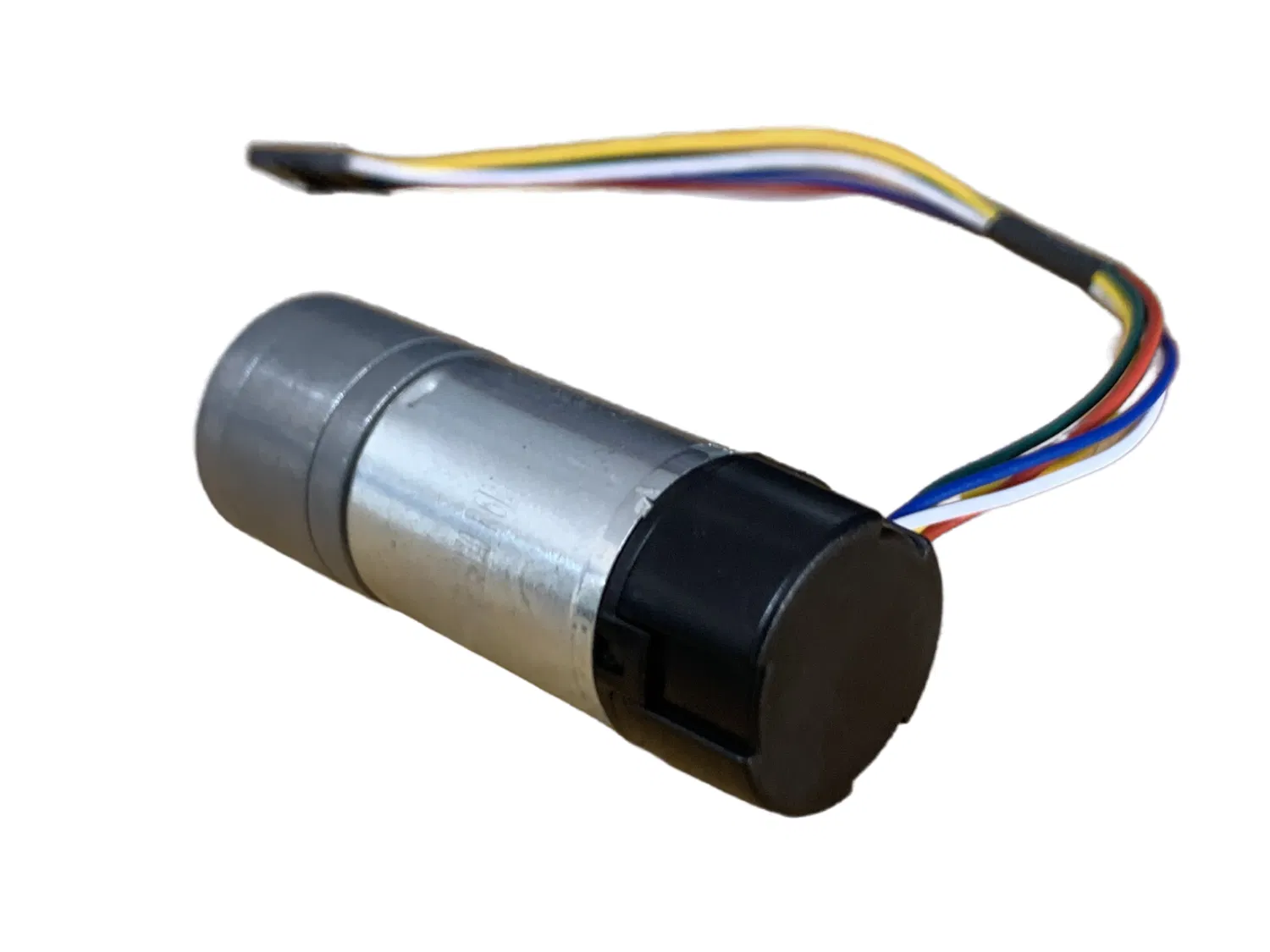

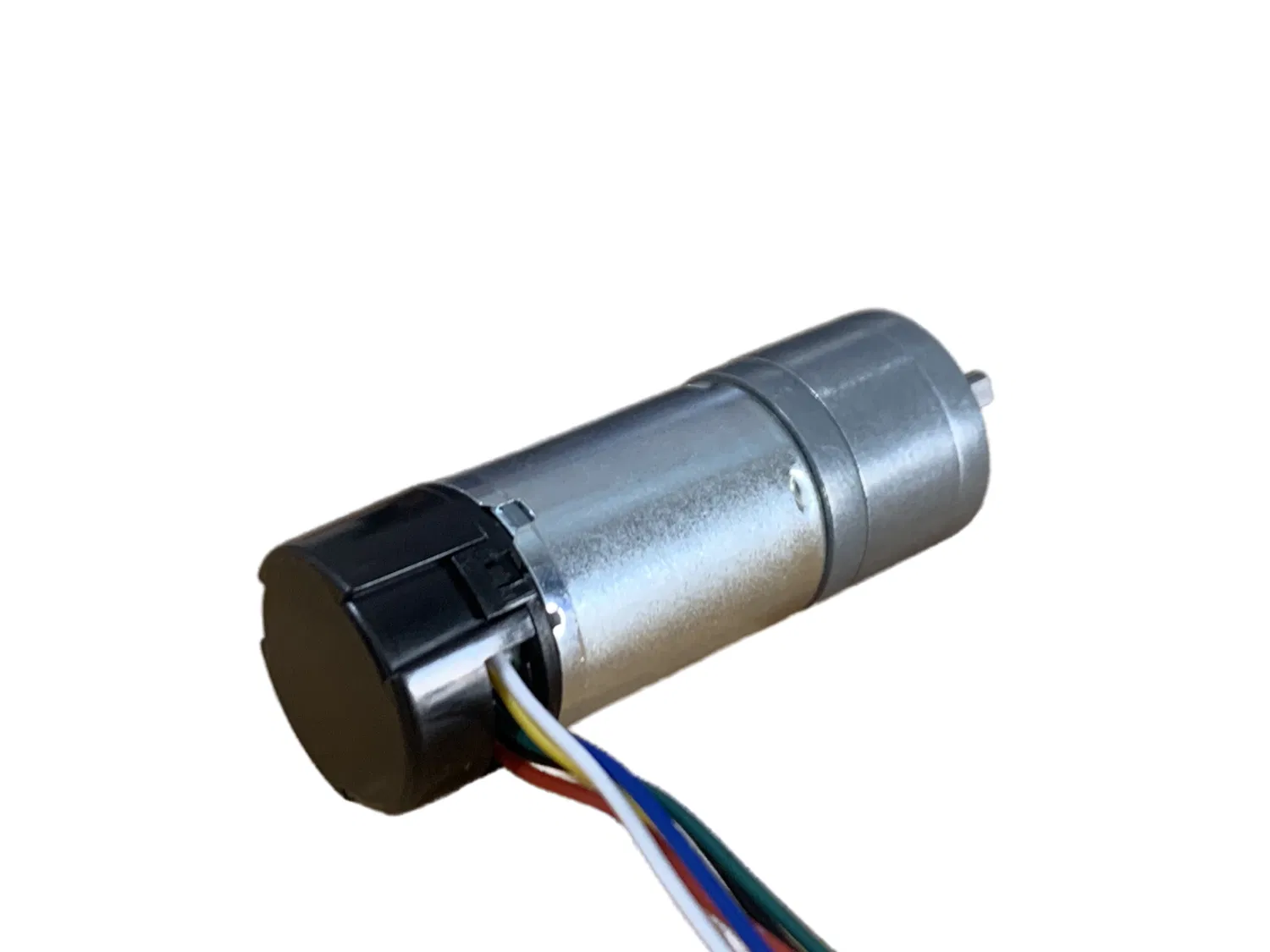

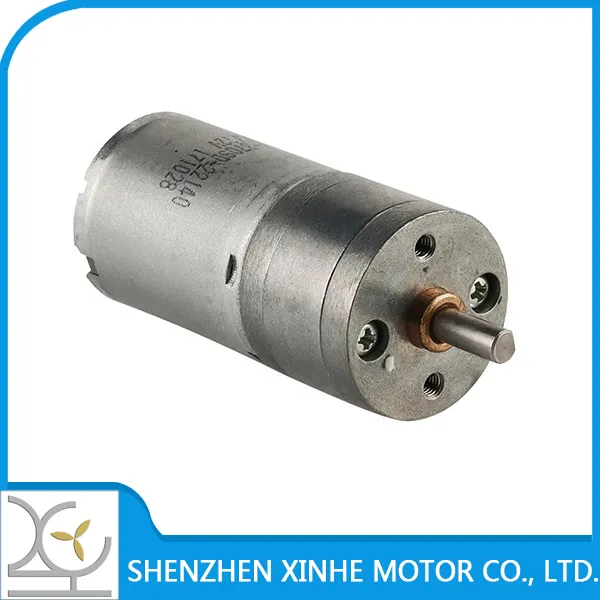

25mm Spur Gear Motor 48CPR Encoder 25D Gearbox 24V Geared Motor

1 / 5

25mm Spur Gear Motor 48CPR Encoder 25D Gearbox 24V Geared Motor

Customization:	Available
Application:	Universal, Industrial, Household Appliances, Car, Power Tools
Operating Speed:	Low Speed

Send Inquiry

Product Description

Basic Information

Model NO.

25D-EN

Excitation Mode

Excited

Function

Driving

Casing Protection

Open Type

Number of Poles

Structure

Brush

Type

Gear Type

Spur Metal Gear

Diameter

25mm

Voltage

12V 24V

Speed

10~3000rpm

Power

5~15W

Encoder

48CPR

Noise

Less Than 45dB

Product Description

25mm DC Gear Motor Technical Features:

High Power version with 6A stall current
Available with or without 48CPR encoder
Option for back shaft
Choice between metal brush or carbon brush

Product Details:

This 25mm diameter gearbox motor features a first stage with options for spur tooth or helical pinion, ideal for operations requiring small clearance. Available in 12V or 24V, with consistent motor parameters. Various gearbox ratios ranging from 10:1 to 499:1.

Compatible with different motors (e.g., 300, 370) for a wide range of output speeds and torques. Can be equipped with a 12PPR (48CPR) magnetic encoder, offering servo motor-like functionality at a cost-effective price point. Suitable for use in intelligent control products such as robots and 3D printers.

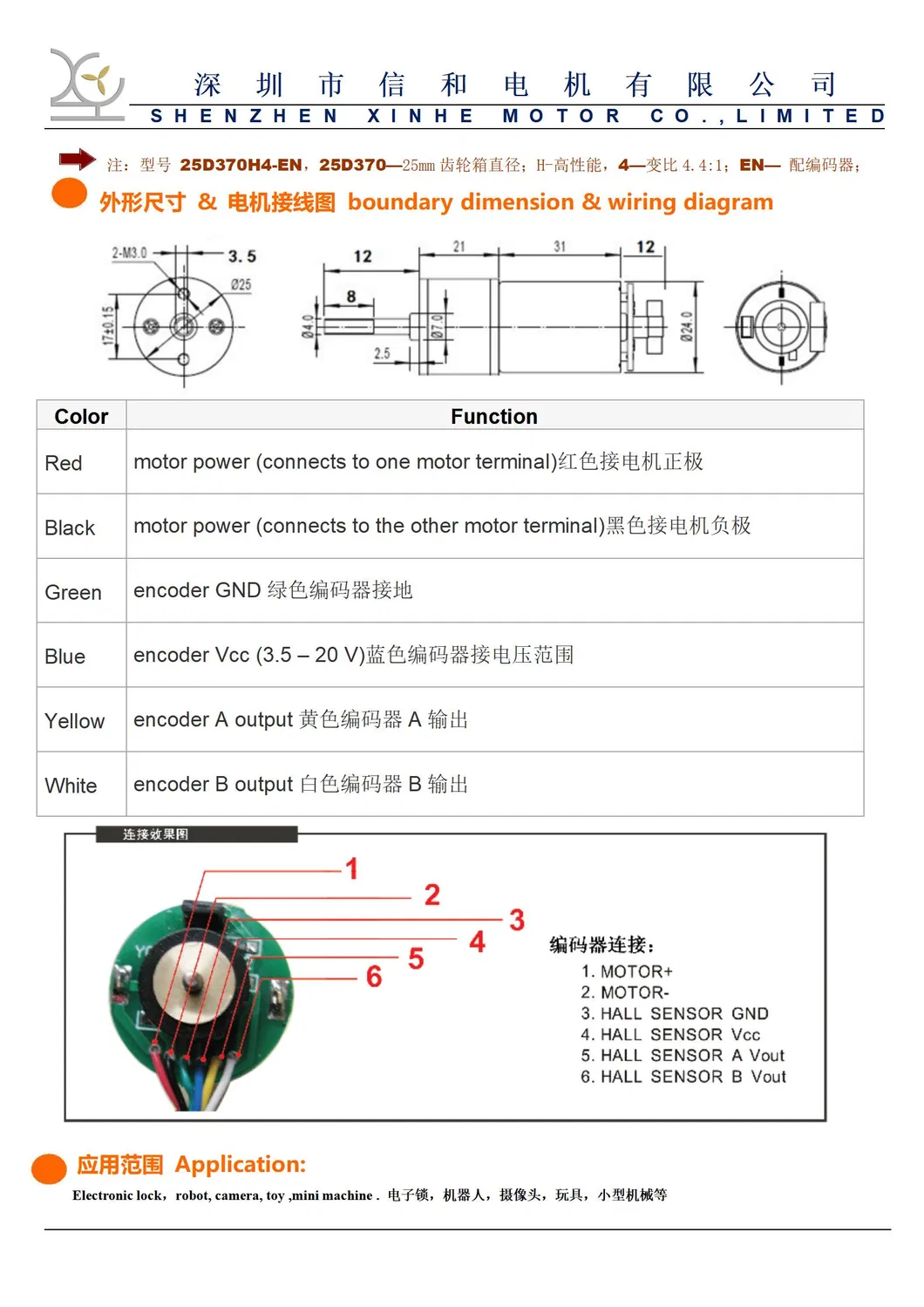

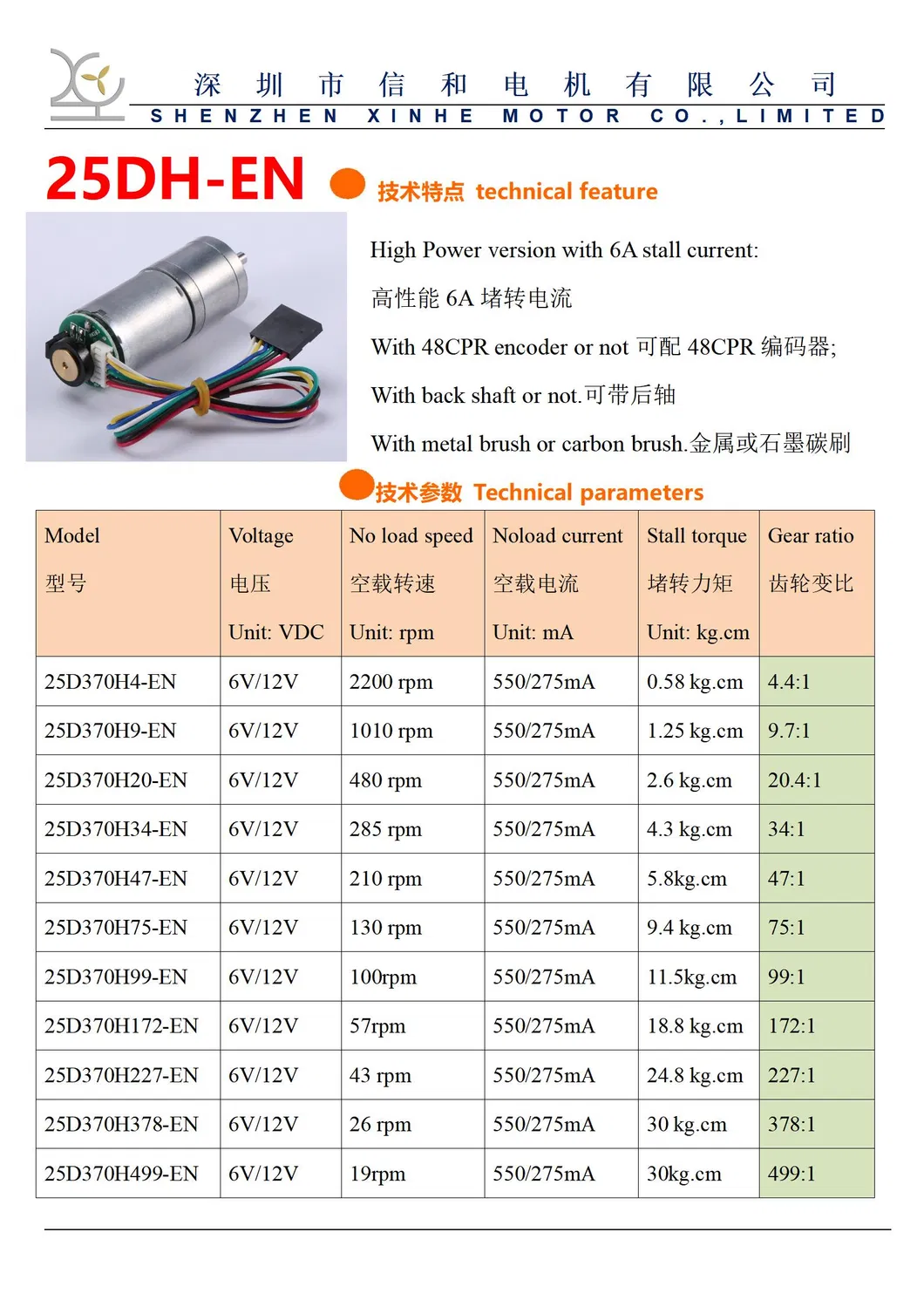

HP Version with Encoder Data Sheet:

Model	Voltage (VDC)	No load speed (rpm)	Noload current (mA)	Stall torque (kg.cm)	Gear ratio
25D370H4-EN	6V/12V	2200 rpm	550/275mA	0.58 kg.cm	4.4:1
25D370H9-EN	6V/12V	1010 rpm	550/275mA	1.25 kg.cm	9.7:1
25D370H20-EN	6V/12V	480 rpm	550/275mA	2.6 kg.cm	20.4:1
25D370H34-EN	6V/12V	285 rpm	550/275mA	4.3 kg.cm	34:1
25D370H75-EN	6V/12V	130 rpm	550/275mA	9.4 kg.cm	75:1
25D370H499-EN	6V/12V	19rpm	550/275mA	30kg.cm	499:1

LP Version Data Sheet:

Model	Voltage (VDC)	No load speed (rpm)	Noload current (mA)	Stall torque (kg.cm)	Gear ratio
25D370L4	6V/12V	1280 rpm	250/125mA	0.36 kg.cm	4.4:1
25D370L34	6V/12V	165 rpm	250/125mA	2.9 kg.cm	34:1
25D370L99	6V/12V	57rpm	250/125mA	8.0kg.cm	99:1
25D370L499	6V/12V	12rpm	250/125mA	21.5kg.cm	499:1

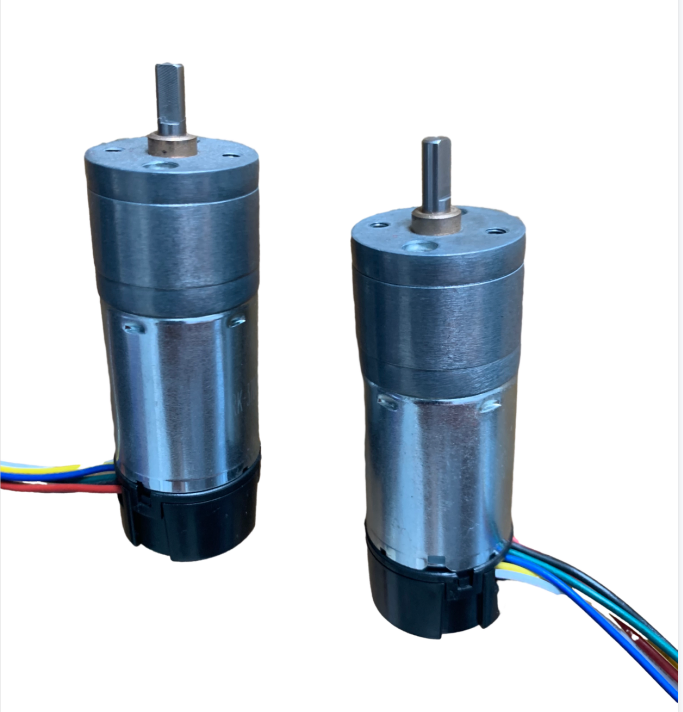

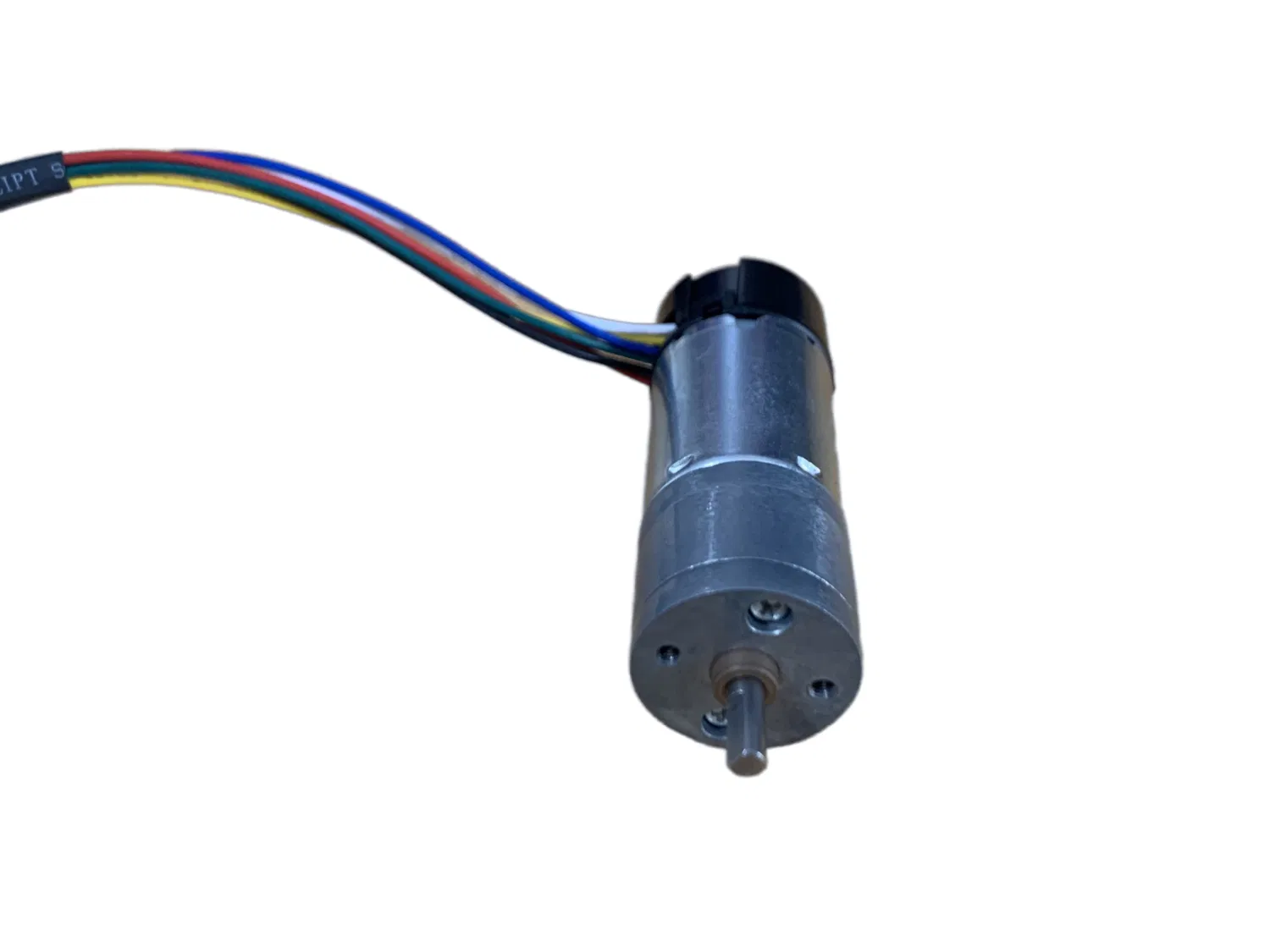

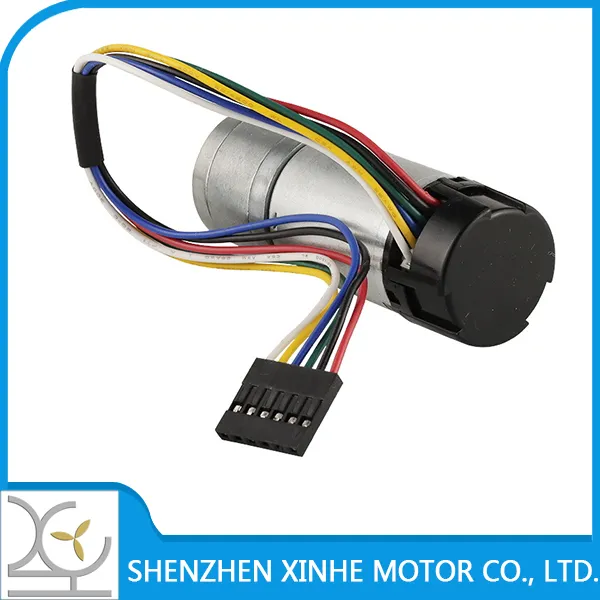

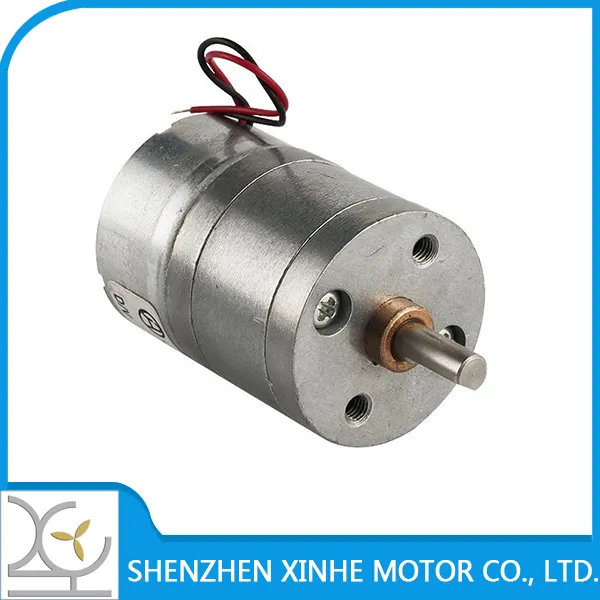

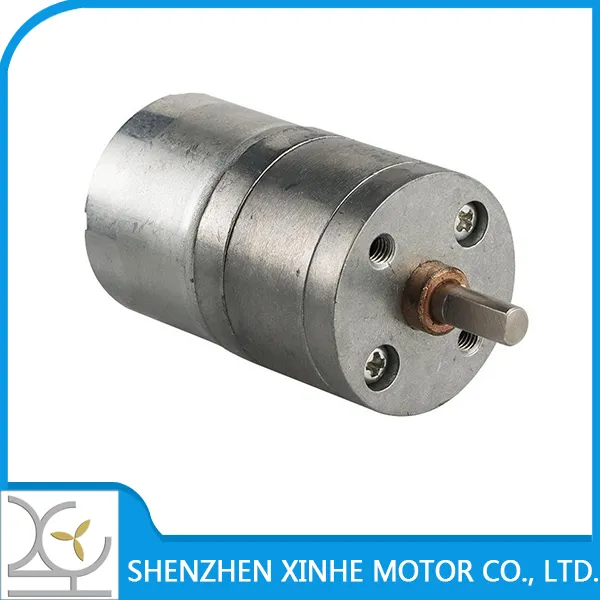

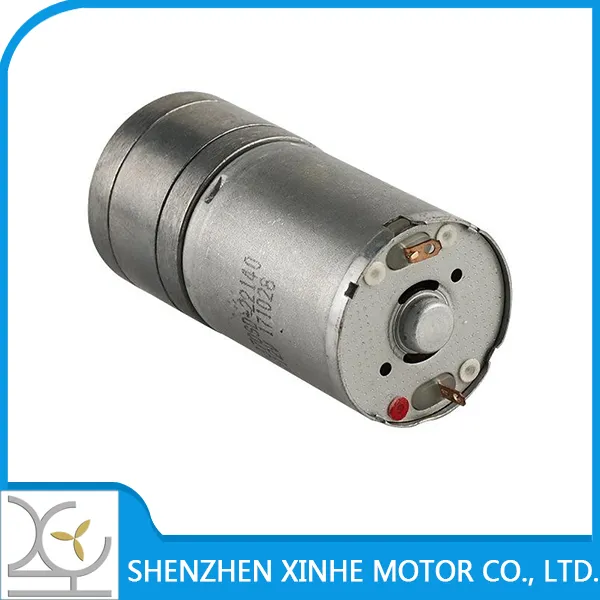

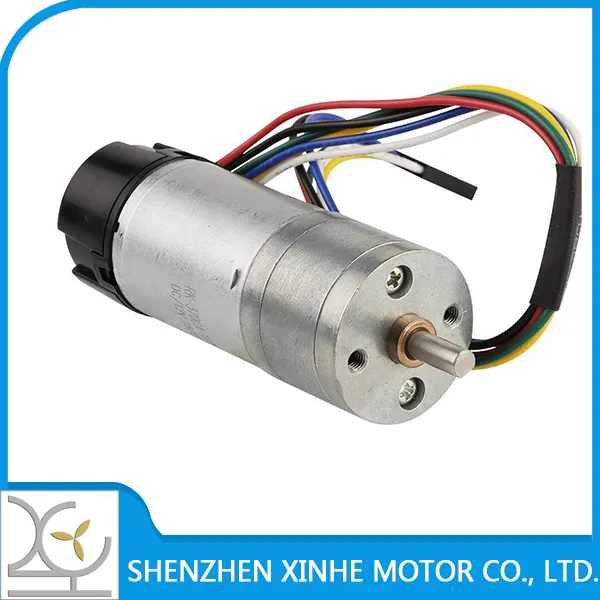

Detailed Photos

Product Parameters

Our 25mm gearbox motor is designed for various applications such as robots, toys, 3D printers, smart devices, and kitchen supplies. It offers low noise operation and the choice between small load torque plastic gear (POM) or large load torque metal gear.

Equipped with an encoder, it provides cost-effective servo functionality. Customizable parameters allow for adjustments based on needs, delivering a maximum torque of 5N.m at 12V/24V with a speed range of 10 to 3000 RPM.

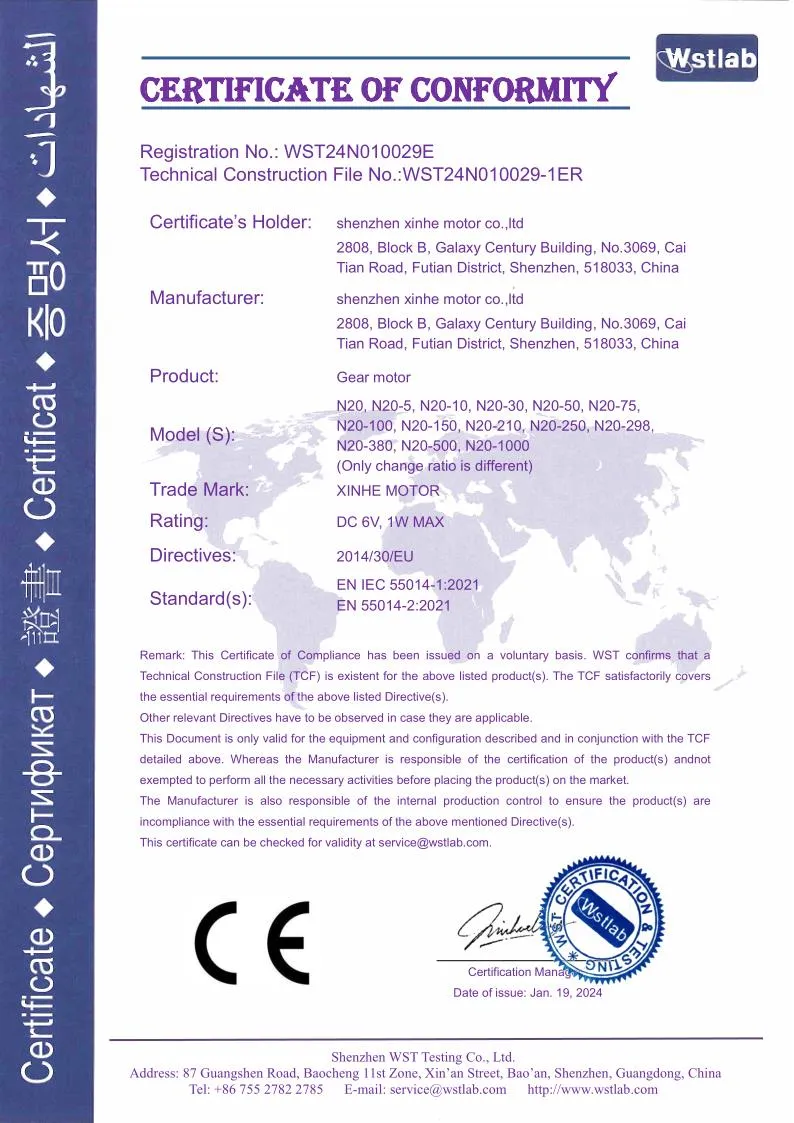

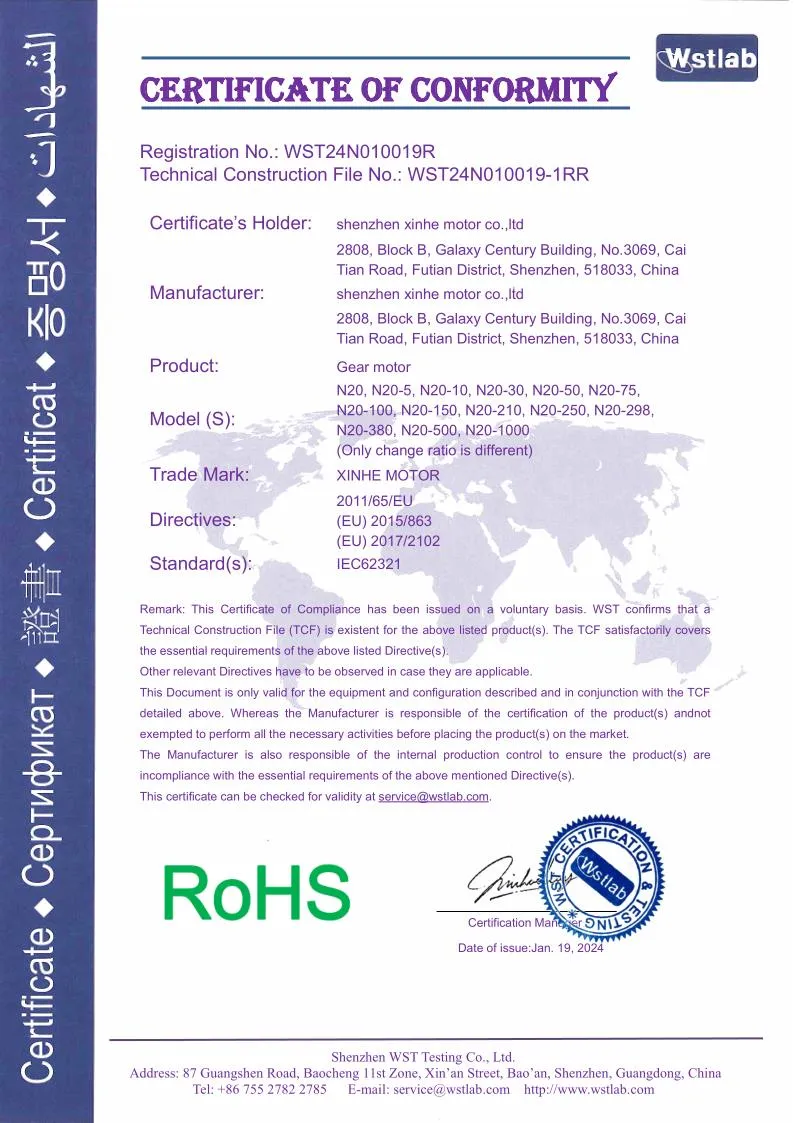

Certifications

Packaging & Shipping

Installation Instructions

Frequently Asked Questions

Q1. What are the available payment methods?

A1. We accept TT at sight or trade assurance. Usually, a 30% down payment is required after the contract is valid, and the 70% balance is paid before shipment.

Q2. How long is the product guarantee?

A2. We offer high-quality motors with a 12-month guarantee and provide technical support within 5 hours for any inquiries.

Q3. How can we get help if motor parts are broken?

A3. We will send spare parts free of charge if they are within the warranty period (excluding easy-broken parts). For easy-broken parts, we only charge the cost fee.

Q4. How is quality control managed in your facility?

A4. We hold CE certificates and maintain a dedicated QC department responsible for product quality. We can also assist in applying for other specific certificates if required.

Q5. What type of packaging is used for shipment?

A5. Our conventional packaging includes anti-rust treatment, plastic film wrapping, and securing the motor on a wooden bracket or in high-strength cartons.

Q6. Can we check the motor before delivery?

A6. Yes, we provide online checking during on-site testing. We also prepare detailed testing videos and reports before delivery and accept third-party testing.
