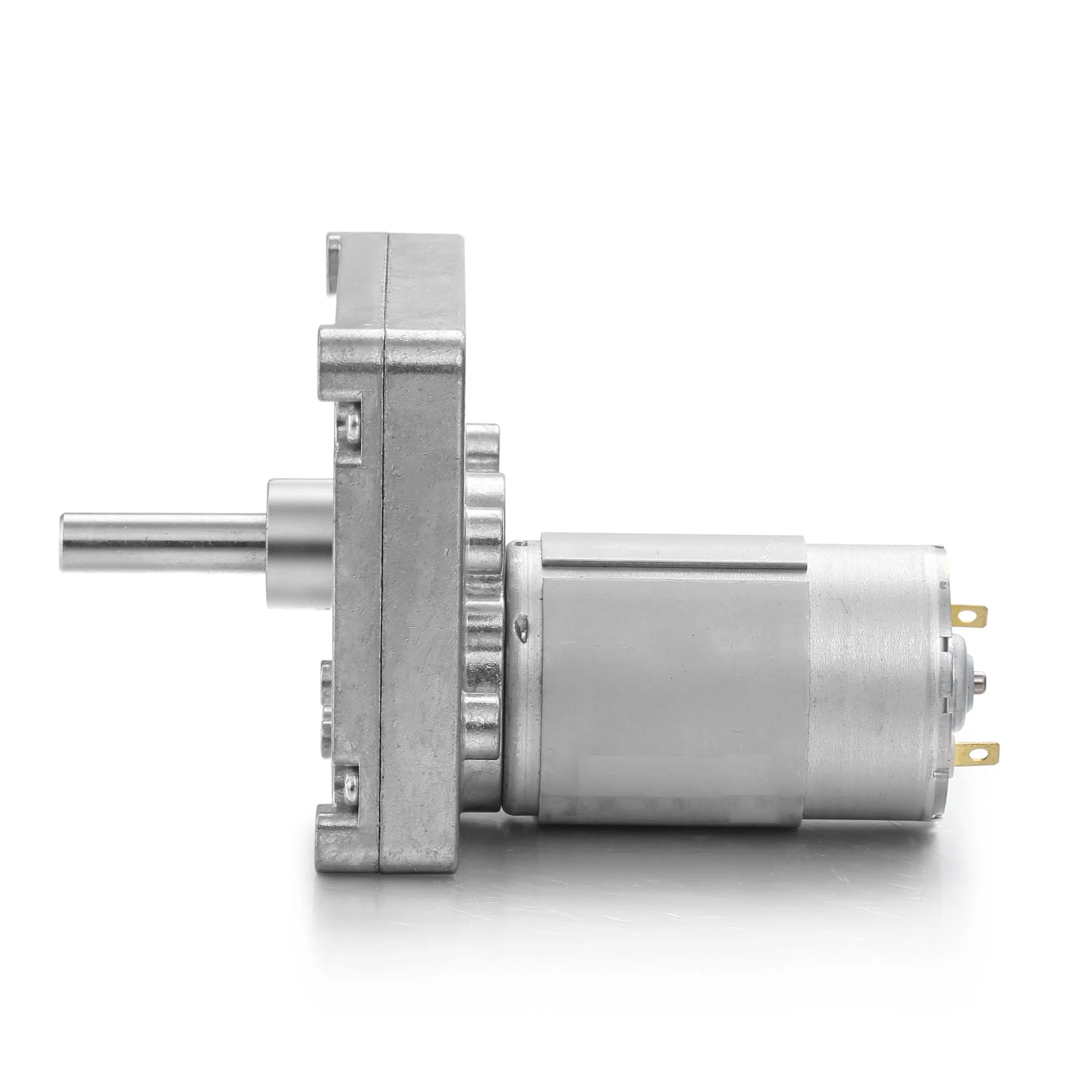

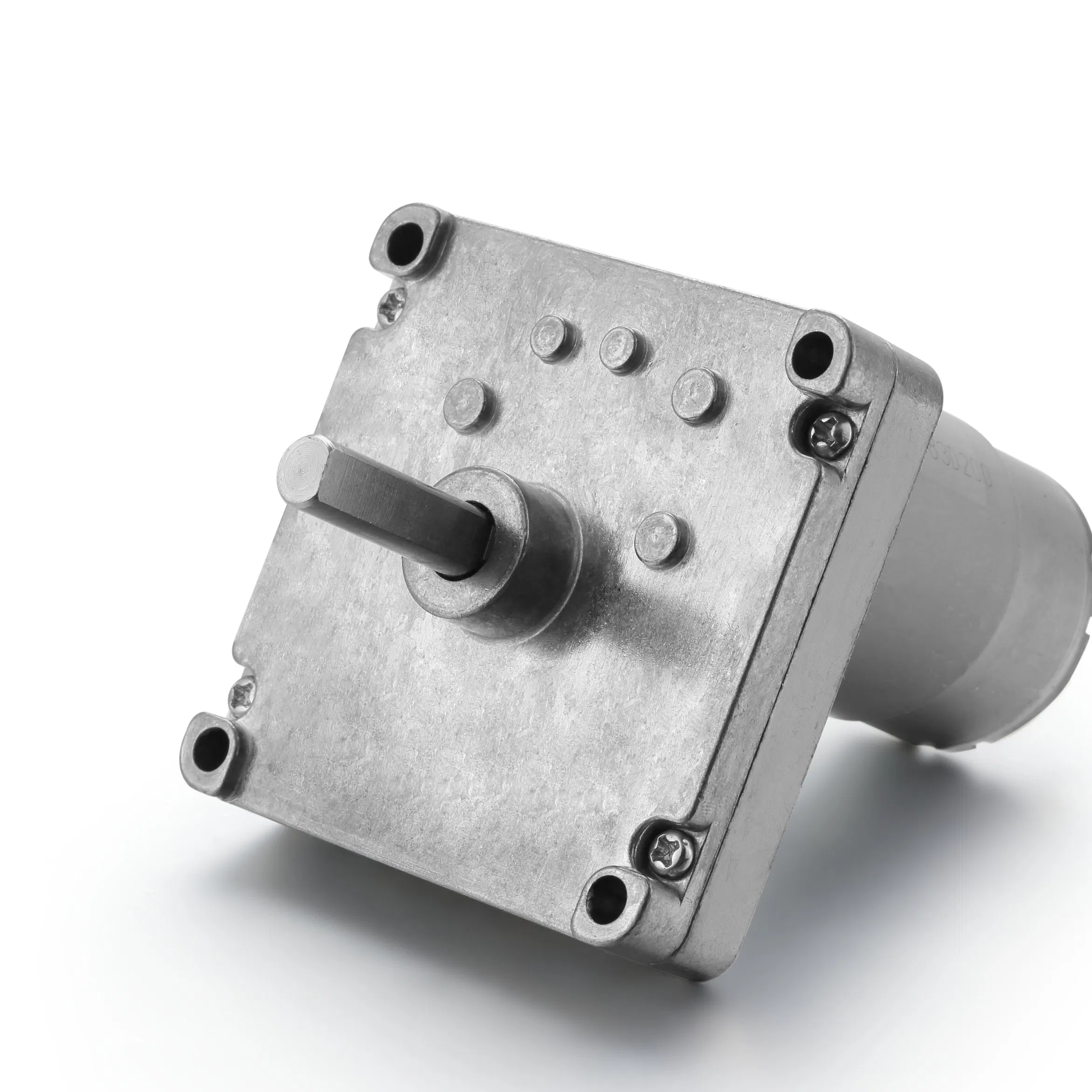

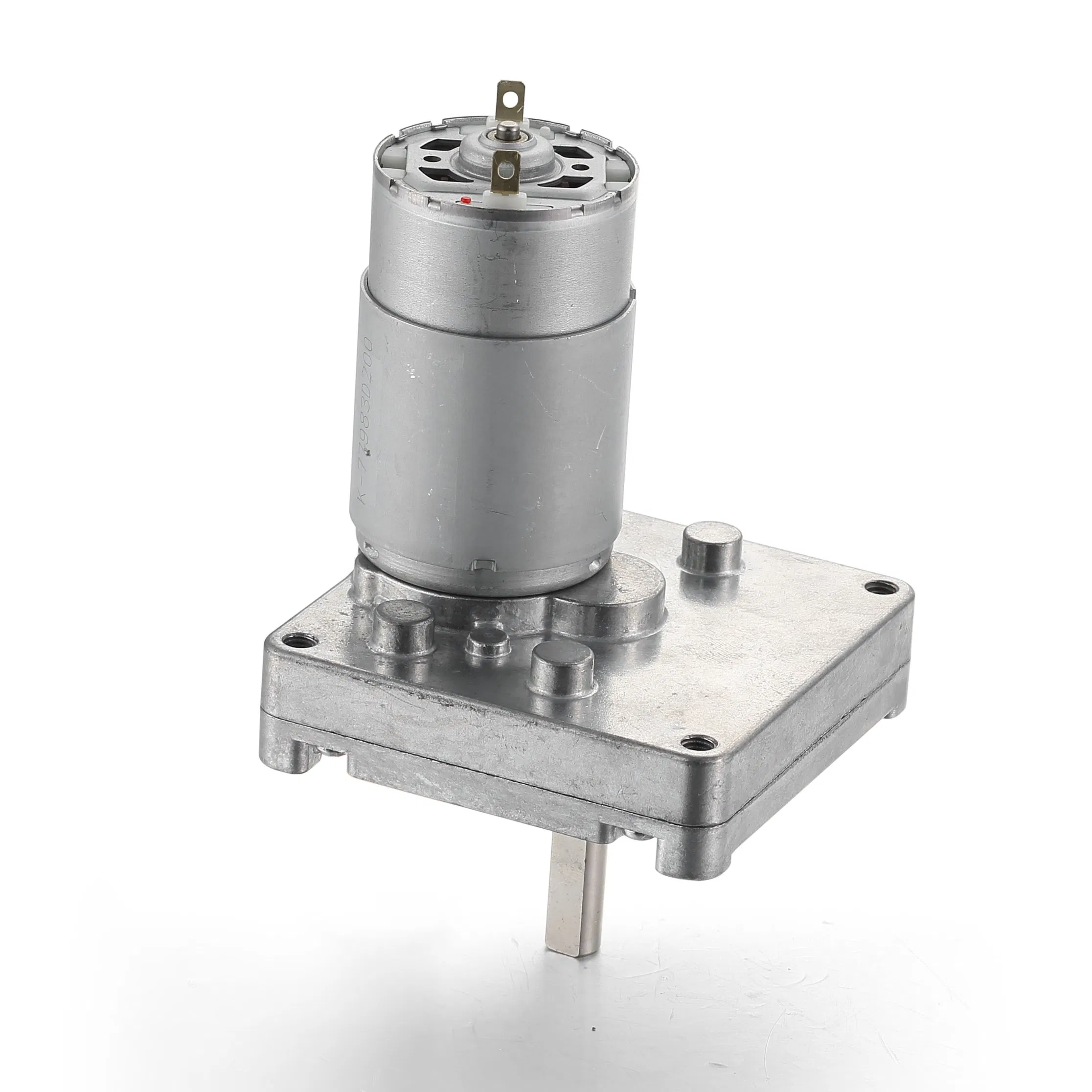

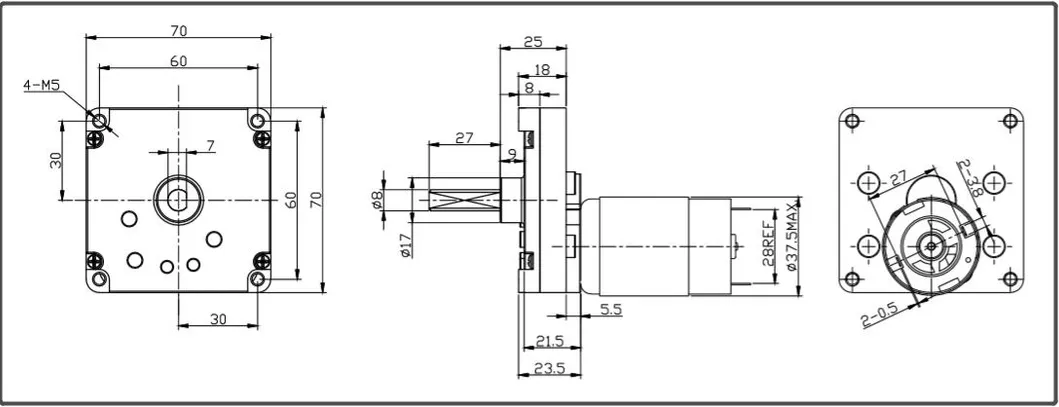

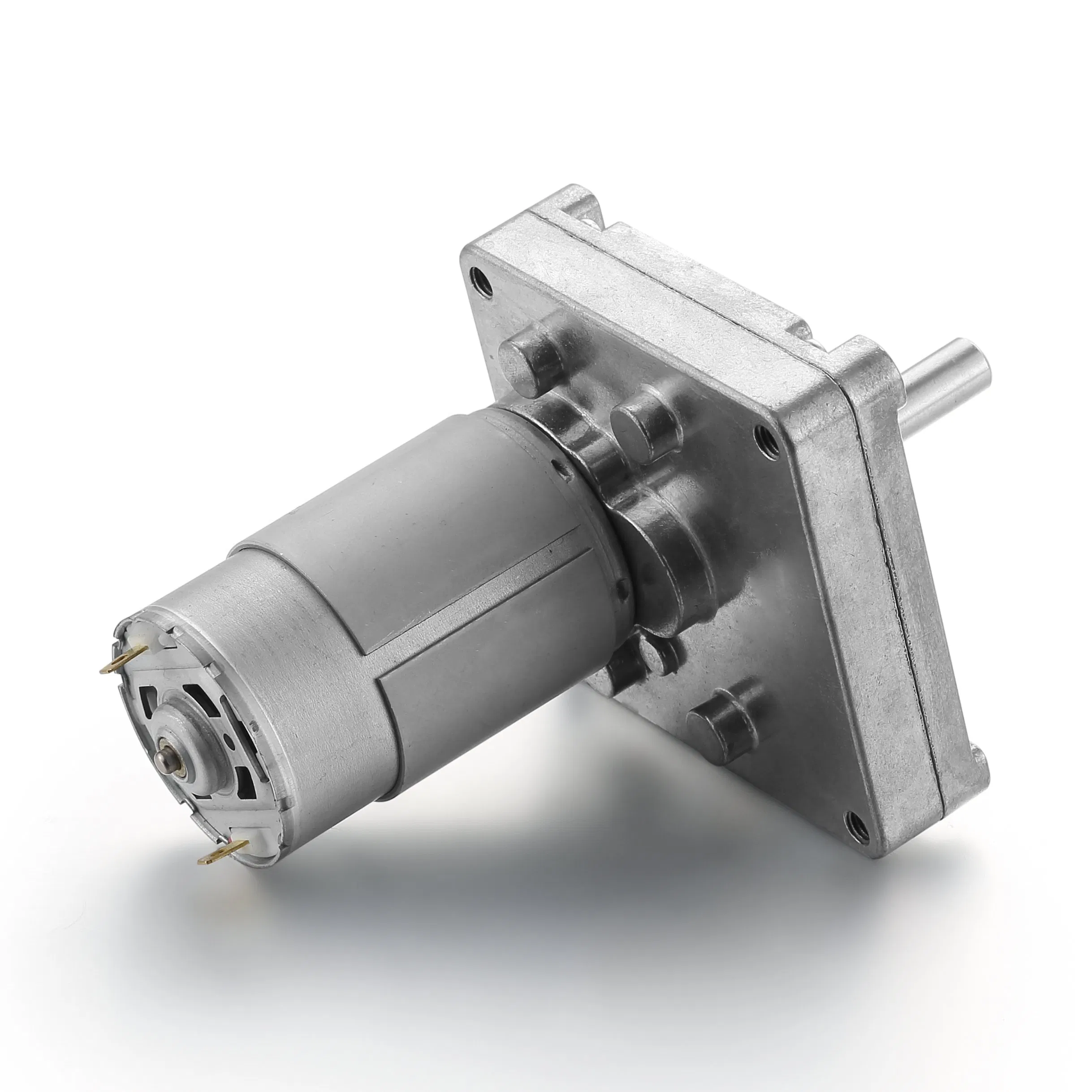

| BG 36ZYT DC Brushed Motor Specifications | |
|---|---|
| Environmental Conditions | -20ºC~50ºC |
| Insulation Class | B |
| Protection class | IP44 |
| Noise | ≤65dB |
| Number of phases | Single |
| Lifespan | >1000h |
| Model | RATED LOAD | NO LOAD | STALL | ||||||
| Voltage (V) | Power (W) | Speed (rpm) | Torque (N.m) | Current (A) | Speed (rpm) | Current (A) | Torque (N.m) | Current (A) | |
| BG 36555-1 | 12 | 4.5 | 2500 | 0.18 | 0.54 | 3000 | 0.14 | 0.12 | 3.1 |
| BG 36555-2 | 24 | 7.8 | 3980 | 0.19 | 0.45 | 4500 | 0.14 | 0.17 | 3.4 |
| Ratio | 3.7 | 5.2 | 50.9 | 99.5 | 137 | 669 | 997 | 2672 |
| NO-load speed | 810 | 576 | 59 | 30 | 22 | 4.4 | 5 | 1.1 |
| Rated speed(rpm) | 675 | 480 | 49 | 25 | 18 | 3.7 | 2.5 | 0.9 |
| Rated torque (N.m) | 0.06 | 0.08 | 0.78 | 1.52 | 1.85 | 3 | 3 | 3 |

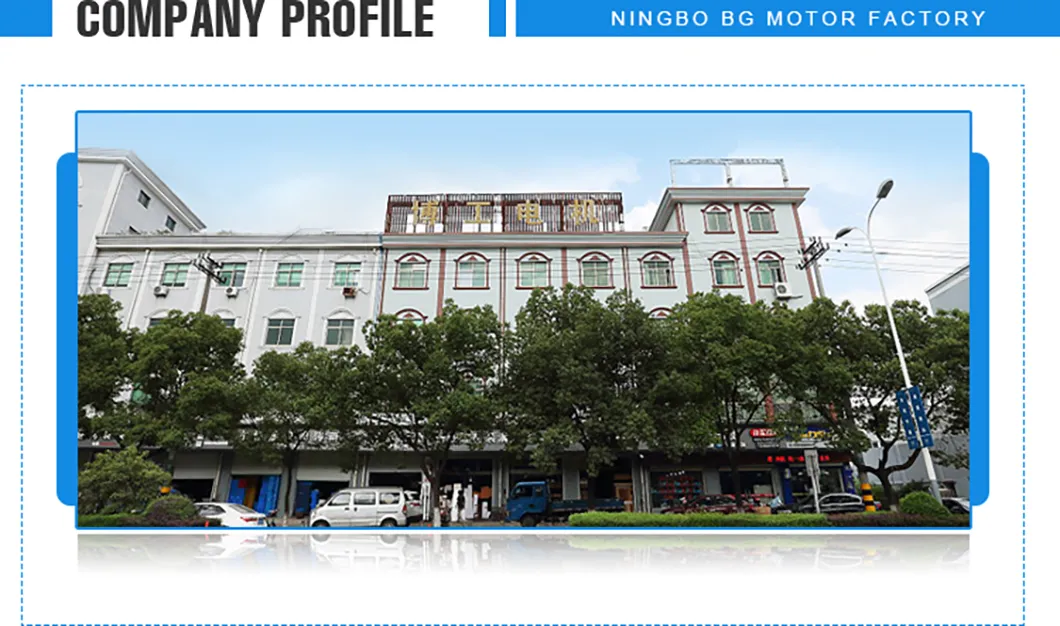

Established in 1994, our factory is a professional manufacturer of brushless DC motors, brushed DC motors, planetary gear motors, worm gear motors, Universal motors and AC motors. We have a plant area of 6000 square meters, multiple patent certificates, and we have the independent design and development capabilities and strong technical force, with an annual output of more than 1 million units. Since the beginning of its establishment, we have focused on the overall solution of motors. We manufacture and design motors, provide professional customized services, respond quickly to customer needs, and actively help customers to solve problems. Our motor products are exported to 20 countries, including the United States, Germany, Italy, the United Kingdom, Poland, Slovenia, Switzerland, Sweden, Singapore, South Korea etc.
Our founder has more than 40 years of experience in motor technology, and our other engineers also have more than 15 years of experience, and 60% of our staff have more than 10 years of experience, and we can assure you that the quality of our motors is top notch.
The products cover AGV, underwater robots, robots, sewing machine industry, automobiles, medical equipment, automatic doors, lifting equipment, industrial equipment and have a wide range of applications.
We strive for excellence in the quality of each product, and we are only a small and sophisticated manufacturer.
Our vision: Drive the world forward and make life better!
