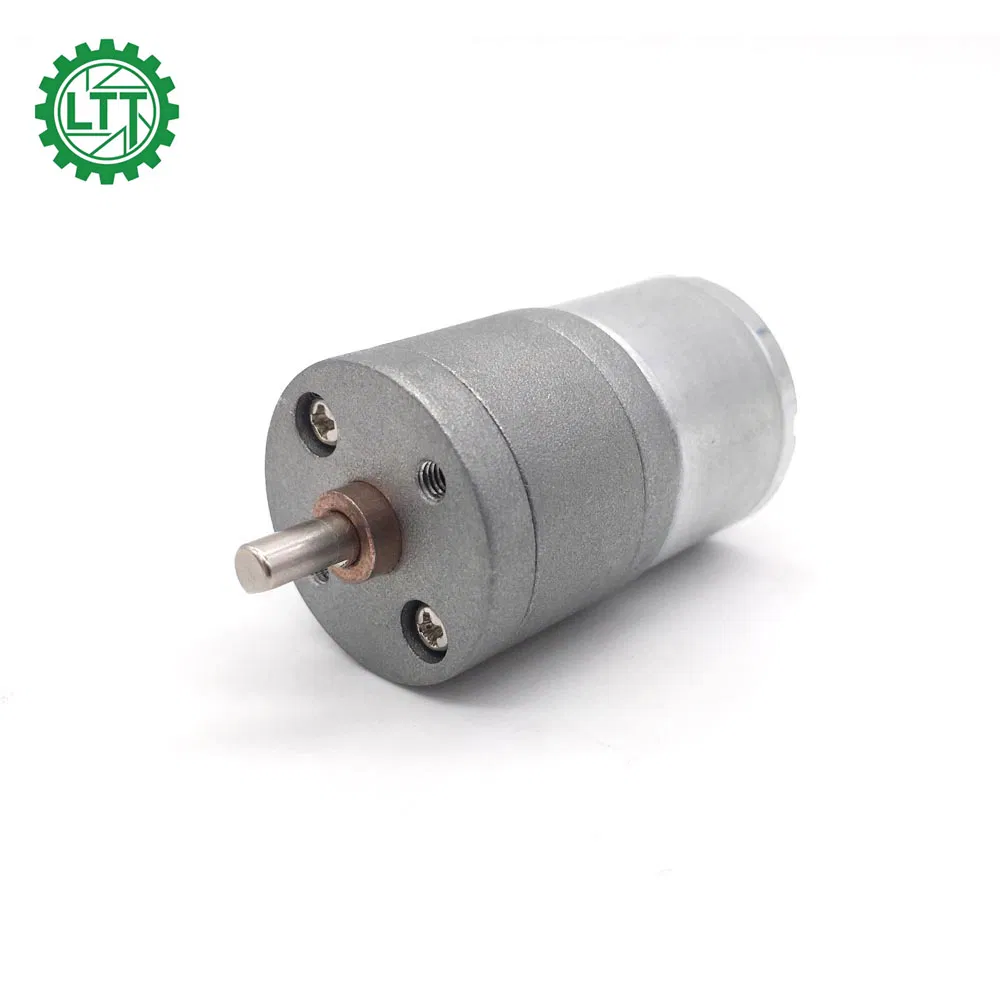

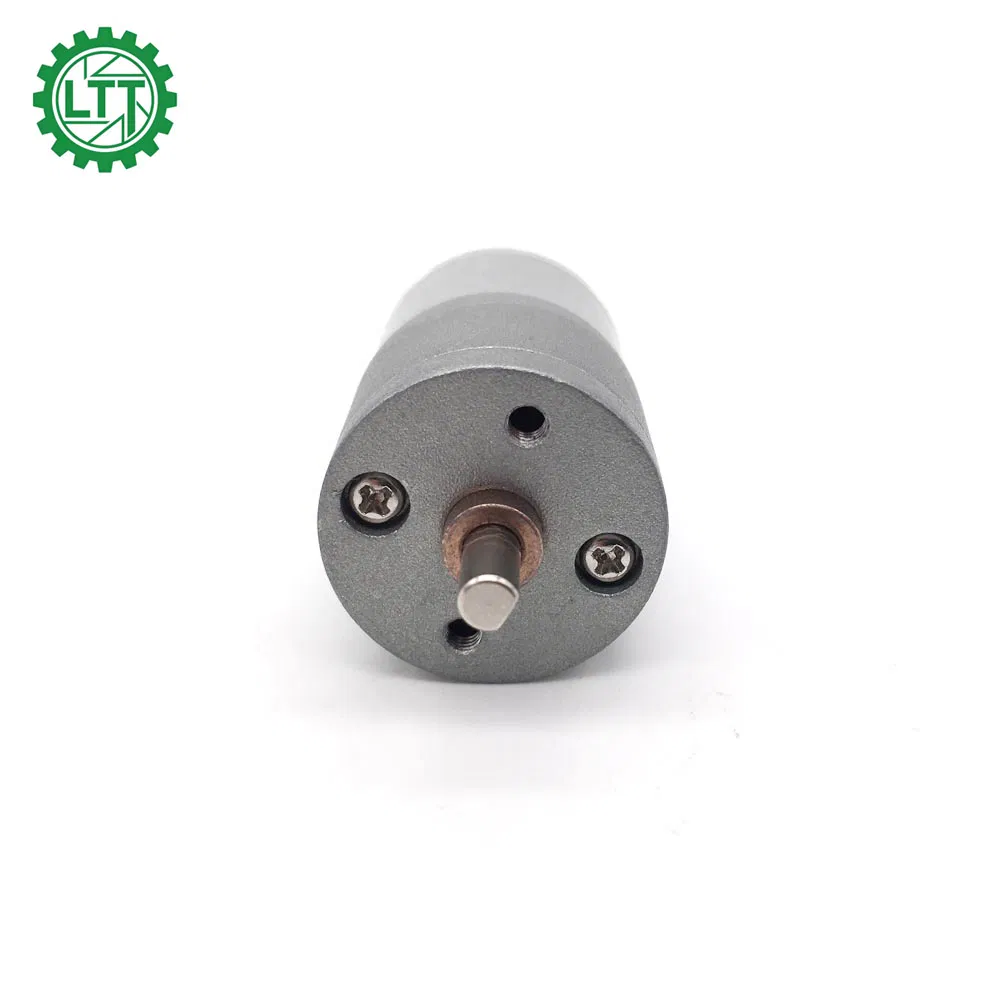

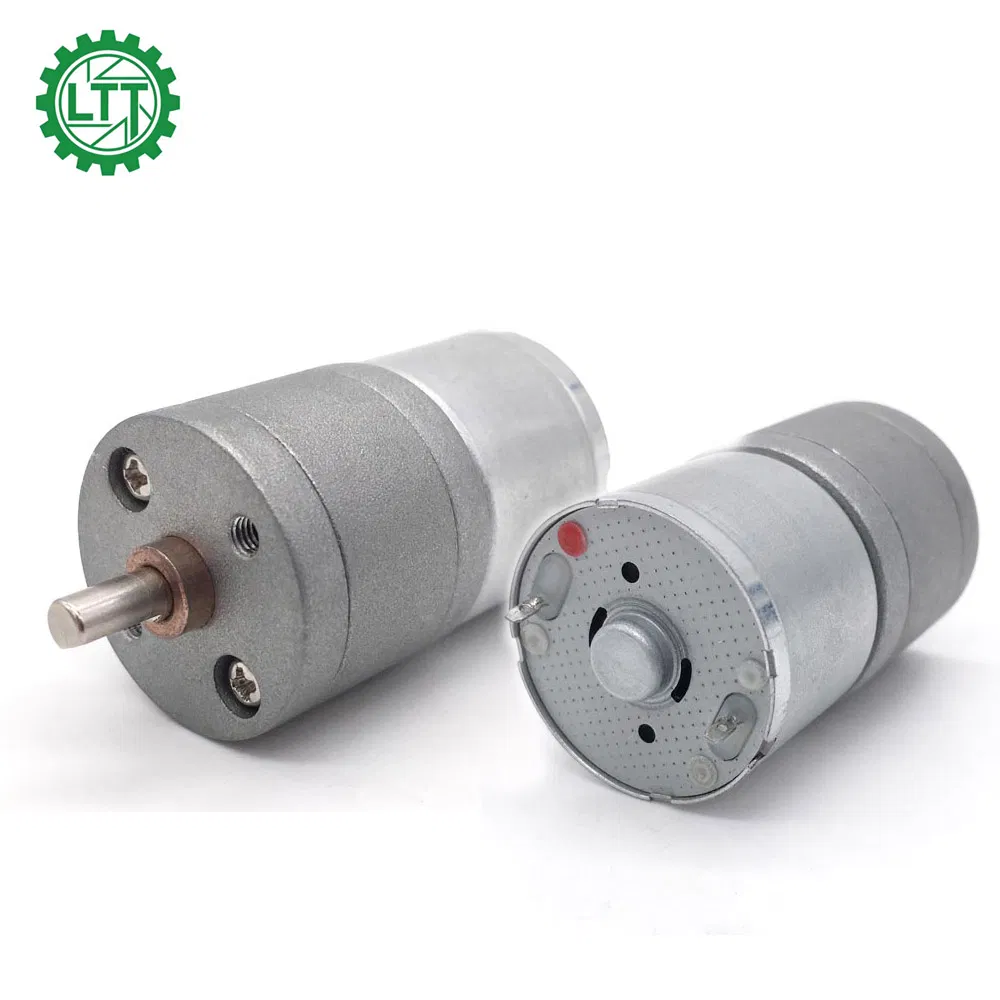

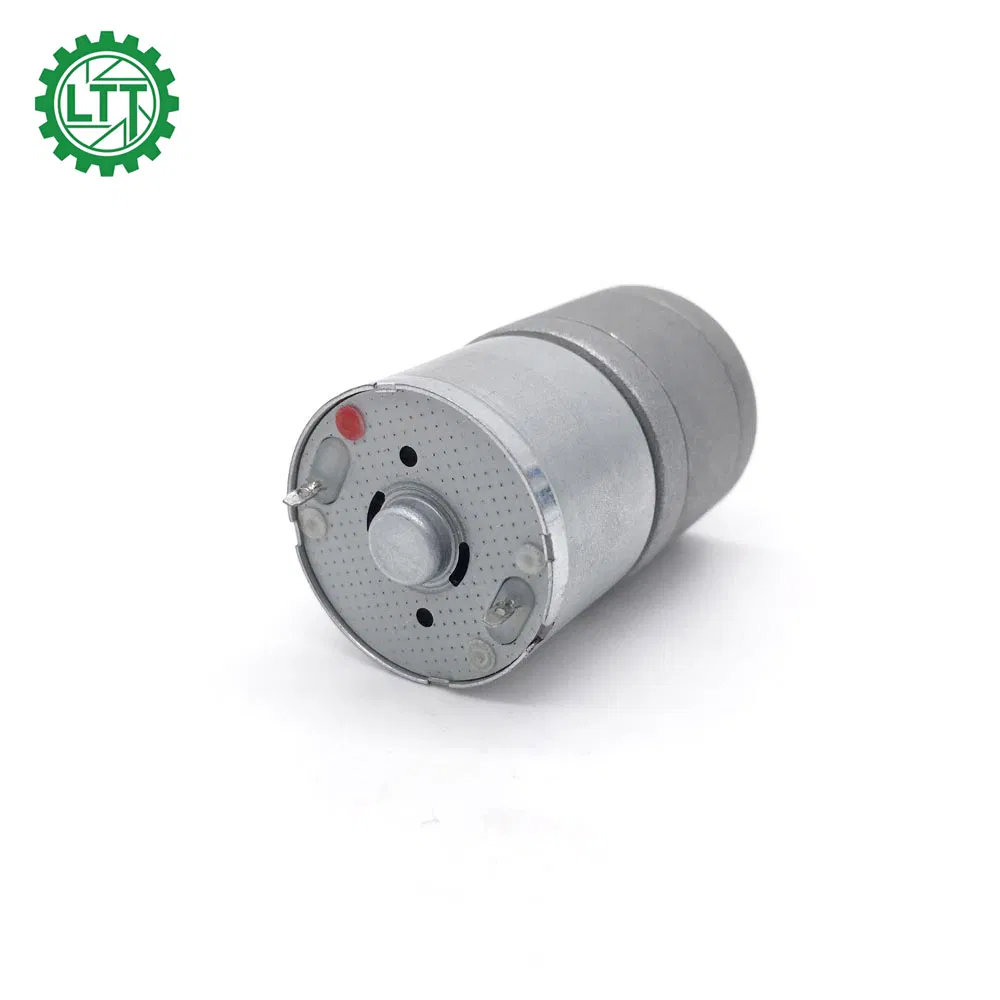

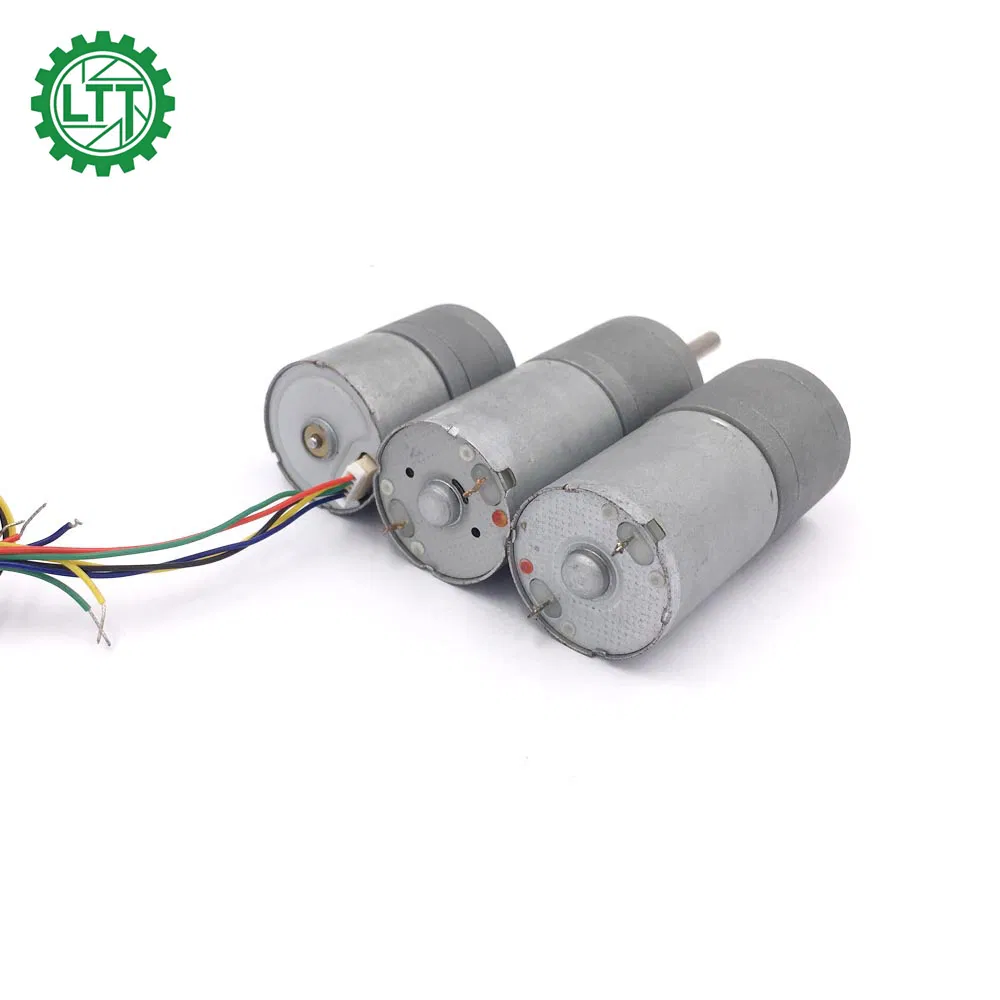

25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox
25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox
25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox
25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox
25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox
1 / 5
25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox
25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox
25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox
25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox
25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox

25mm DC Gear Motor Permanent Magnet 6V 12V 24V 310 Motor with Spur Metal Gearbox

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LGM25-310
Type
DC Gear Motor
Excitation Mode
Shunt
Function
Control, Driving
Rated Voltage
6V 12V 24V
Gearbox Size
φ25*L mm
Certification
ISO9001, CE, RoHS
Shaft Diameter
4mm
Production Capacity
500,000 pieces/Month
Product Description
25mm Diameter Micro DC Gear Motor
Model:LGM25-310Type:DC Geared Motor
Voltage:3V-24VSpeed:3rpm-1500rpm
Continuous Current:≤3AStall Torque:≤6kg.cm
Typical Application:Balance scale, Coffee machine, Educational robot, Home Appliances, Valves, Meters, etc.
Gearbox material:Steel, brass, plastic, powder metallurgy, zinc alloy
Bearing Type:Ball Bearing, Oil bearing

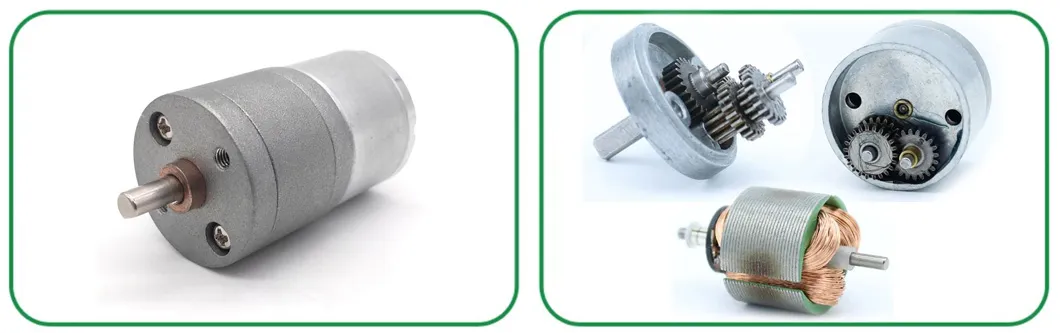

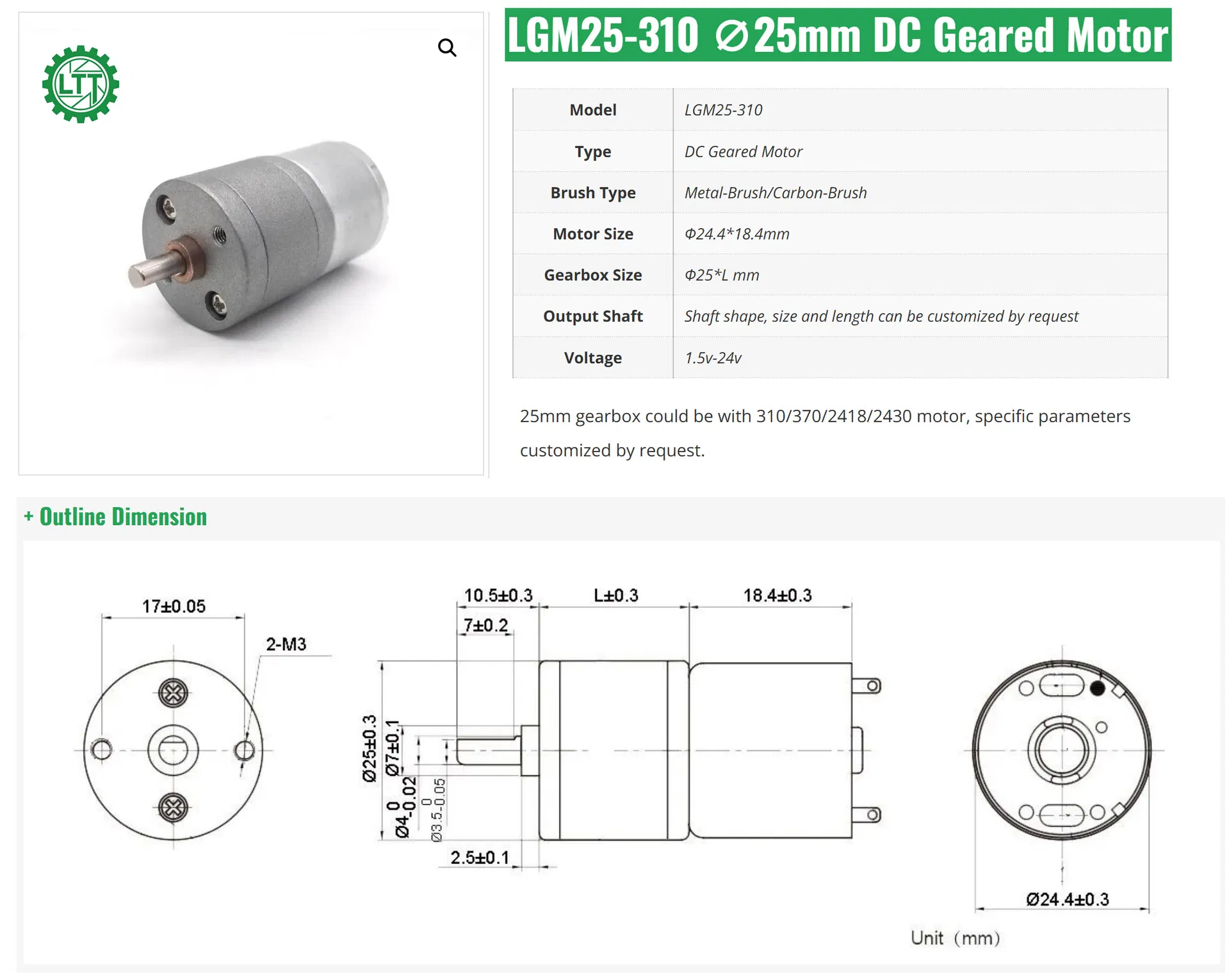

DC Gear Motor Overview DC Gear Motor Application

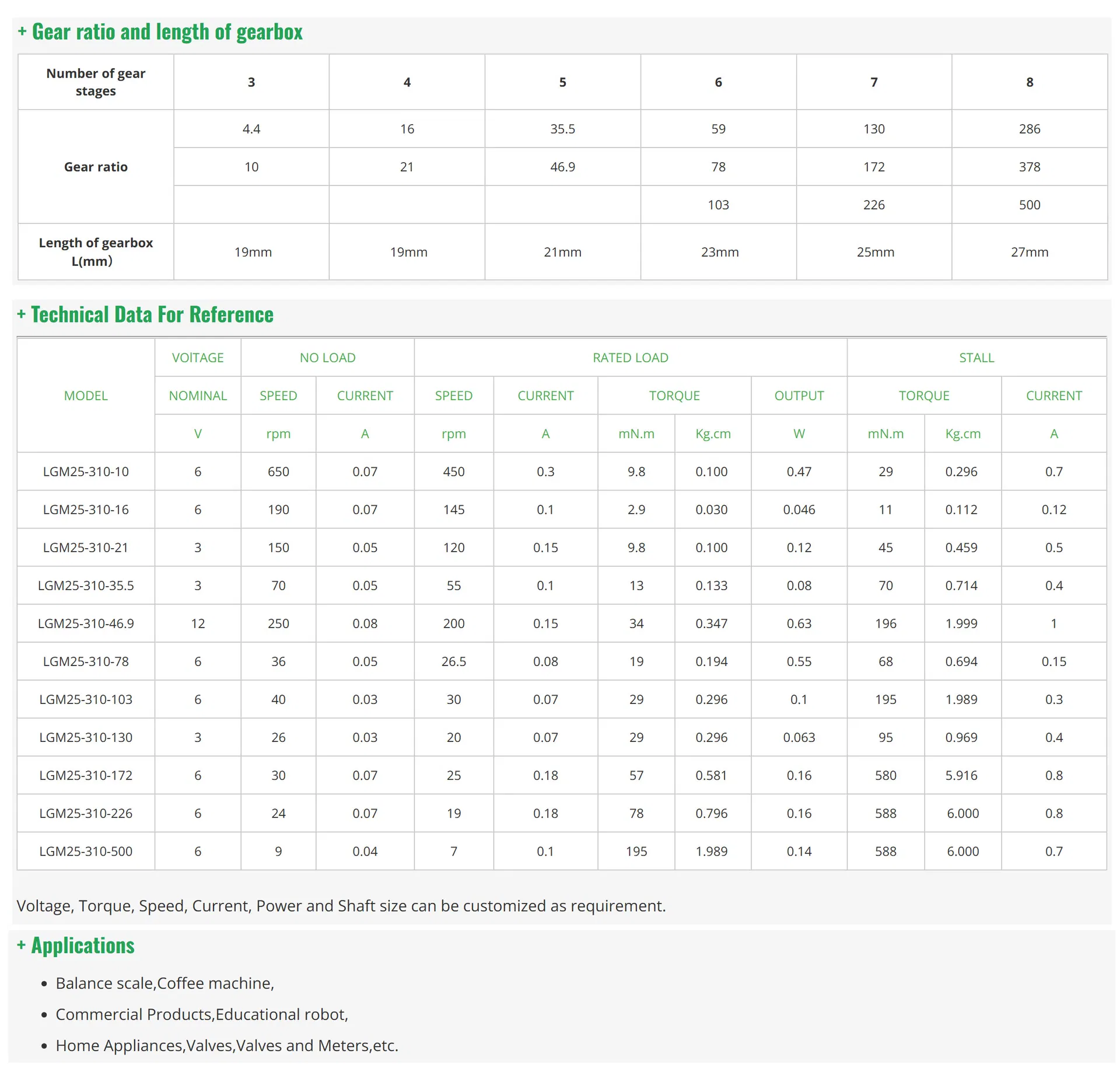

Technical Specifications
Motor Specifications Motor Technical Data

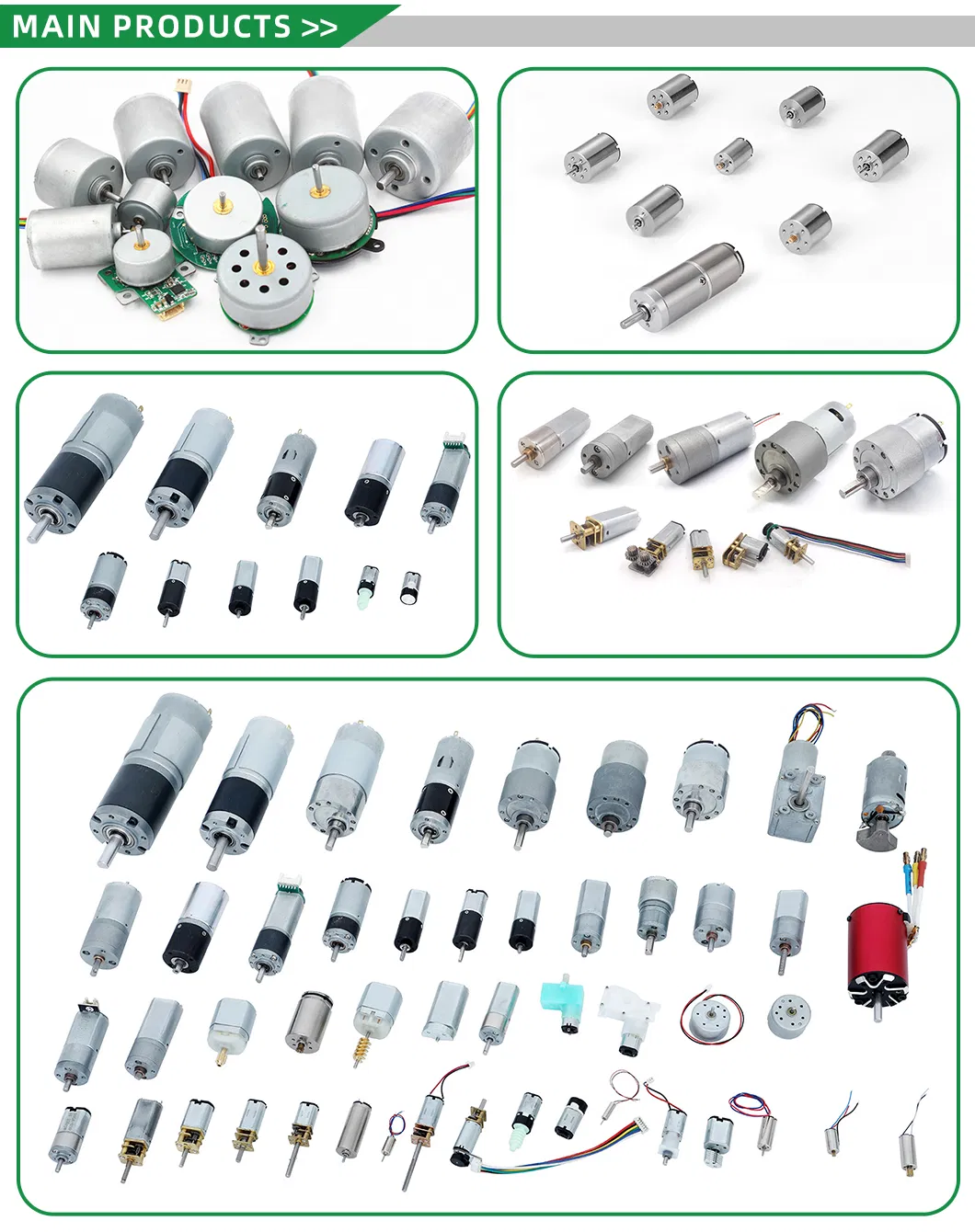

Main Products Range
Product List 1 Product List 2
Our Advantages
Focus on Micro DC Motor Integrated R&D, manufacturing and sales with 10 years of professional manufacturing experience.
Customization Quick Supply Provide customized solutions with 7-day sample production efficiency based on requirements.
Full Testing & Certification Quality control system passing international safety certifications such as CE, RoHS, and UL.
Imported Quality Materials Key motor parts are made of high-precision imported materials.
Long Service Life Designed for 3-20 years of durability under standard use conditions.
Worry-Free Service 7x24 hours online response with a dedicated after-sales support team.
Production & Quality Control

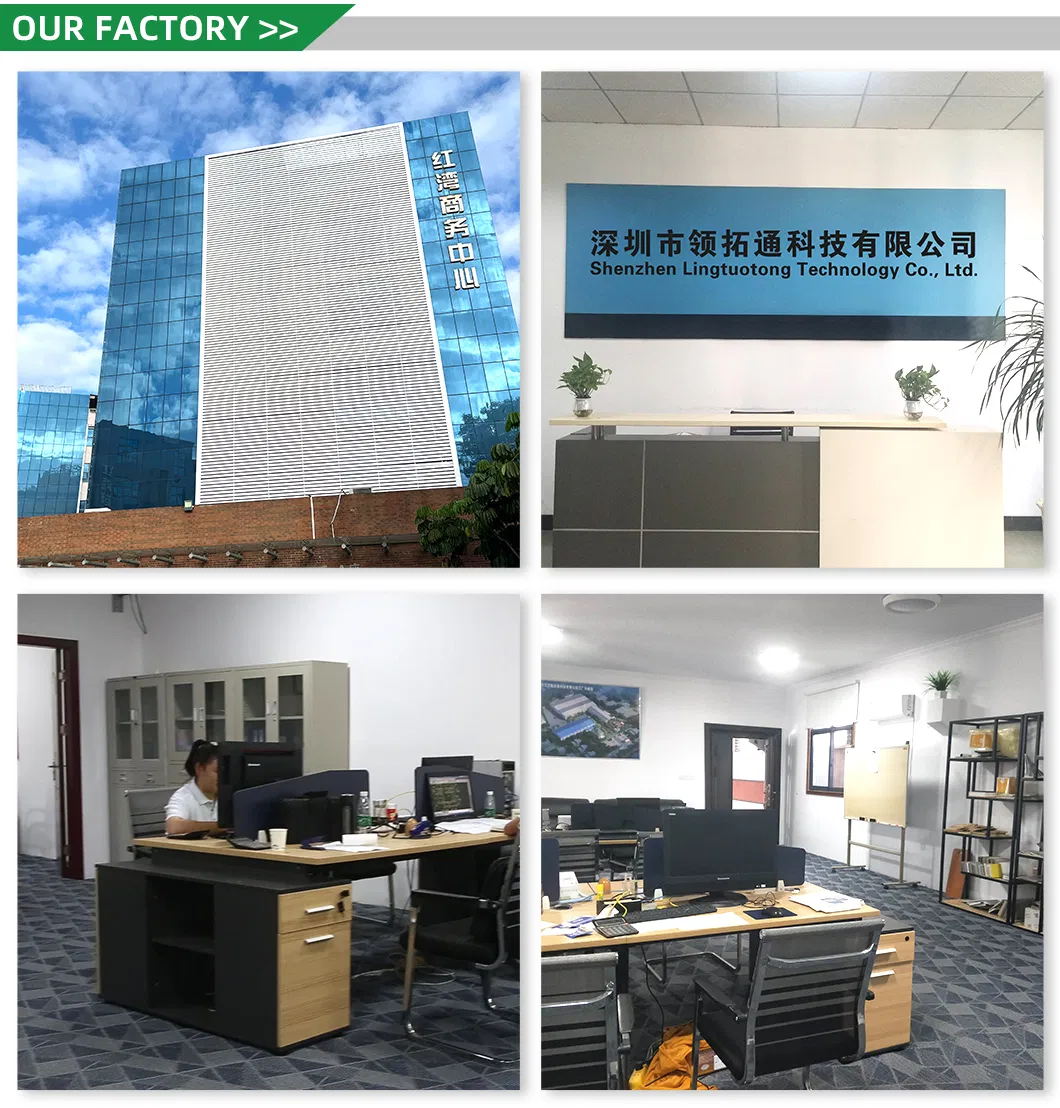

Production Facility

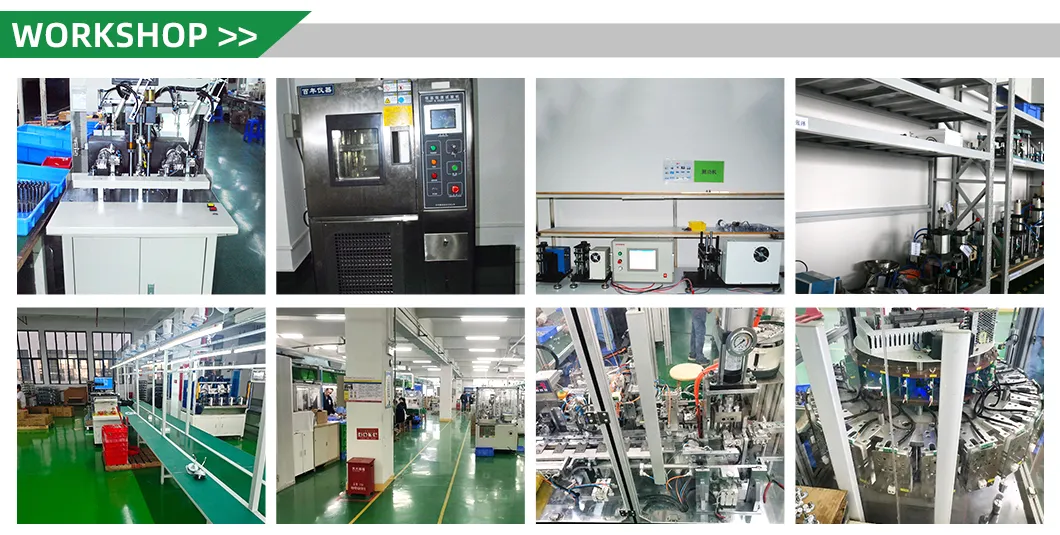

Manufacturing Quality Testing
Certifications
Certificates 1 Certificates 2

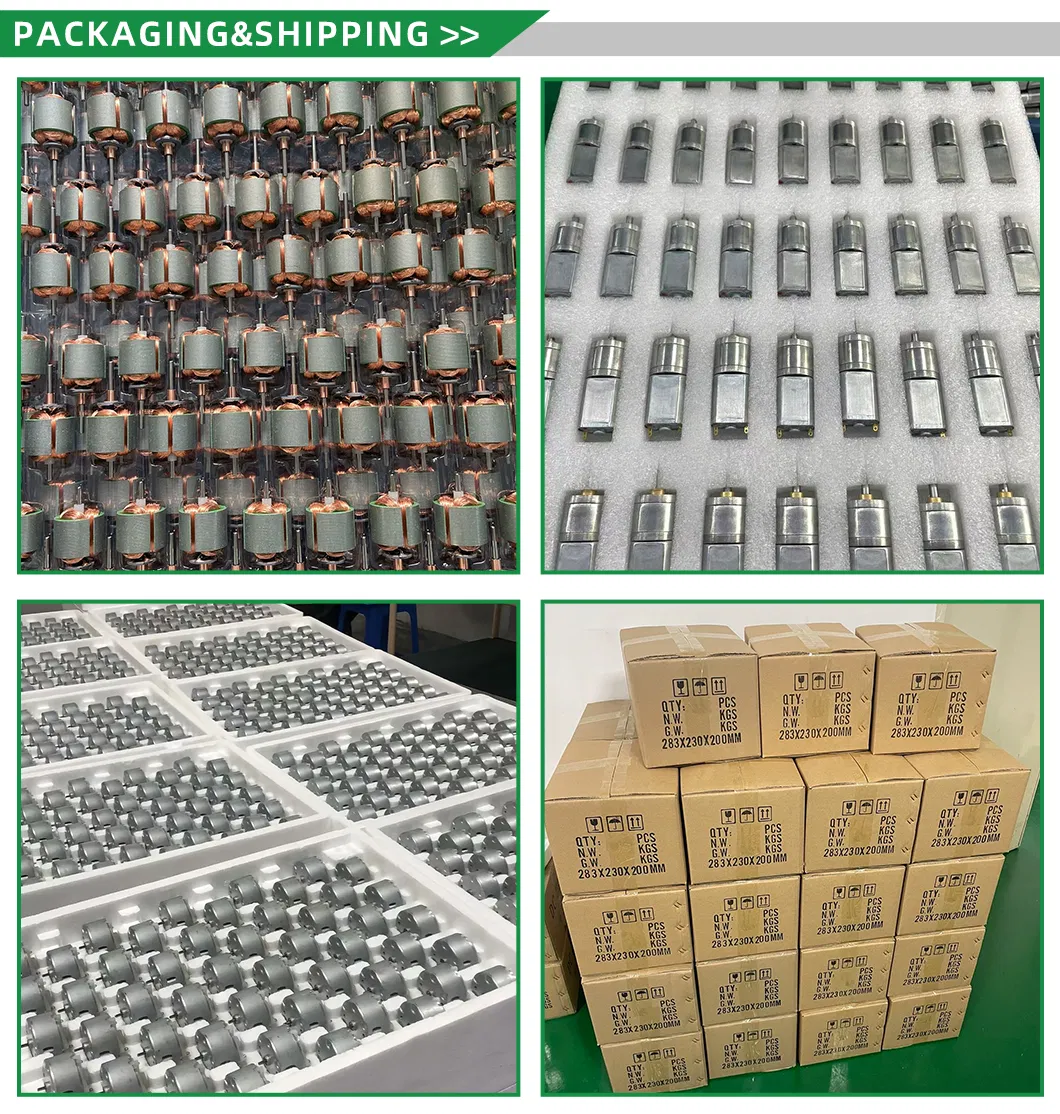

Packaging & Shipping
Packaging Details

Packing by crate, carton or pallet; Shipping available by air (DHL, FedEx, UPS, TNT), by sea or express delivery.

Frequently Asked Questions
Do you provide samples?
Yes. We provide samples for all clients to test before mass production. The lead time usually is 7-15 days.
Do you provide technology support?
Yes. We have strong R&D capability and can provide full technical support if required.
How to select a suitable DC Gear Motor?
If you provide specs like voltage, speed, torque, motor size, and working mode, we can recommend a suitable motor accordingly.
Do you offer customized services?
Yes, we can customize voltage, speed, torque, shaft size/shape, and add wires, connectors, or EMC components.
Do you have items in stock?
We do not stock items; all products are manufactured based on specific orders.
What are the payment methods?
We accept T/T in advance, PayPal, and credit cards for transaction processing.
