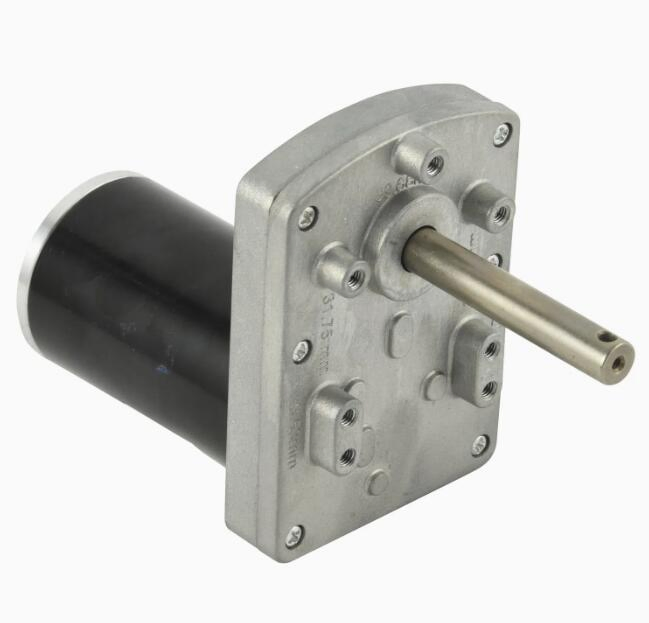

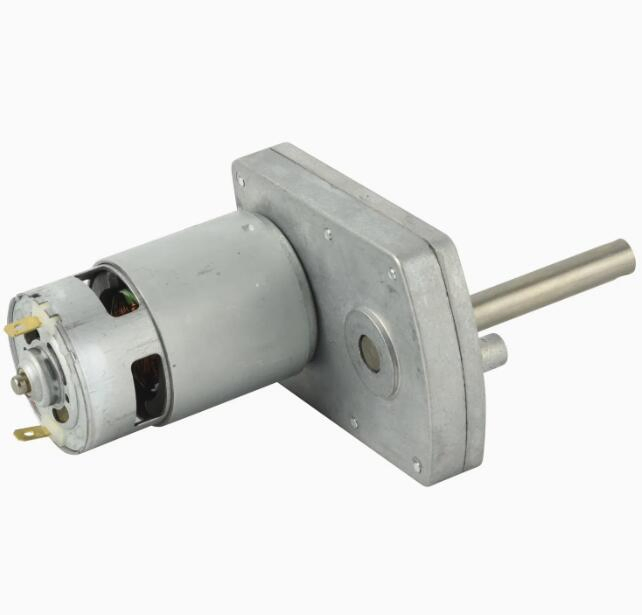

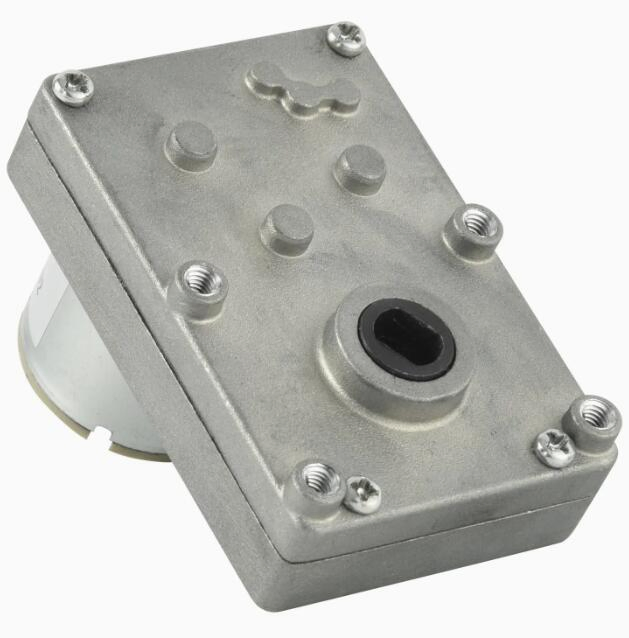

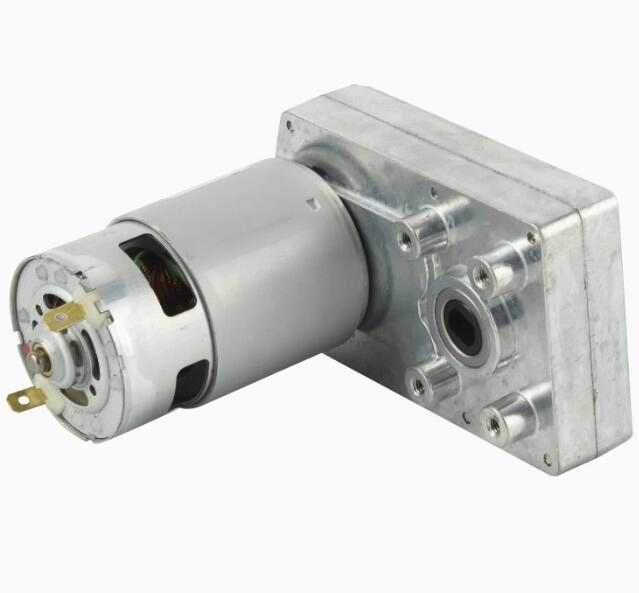

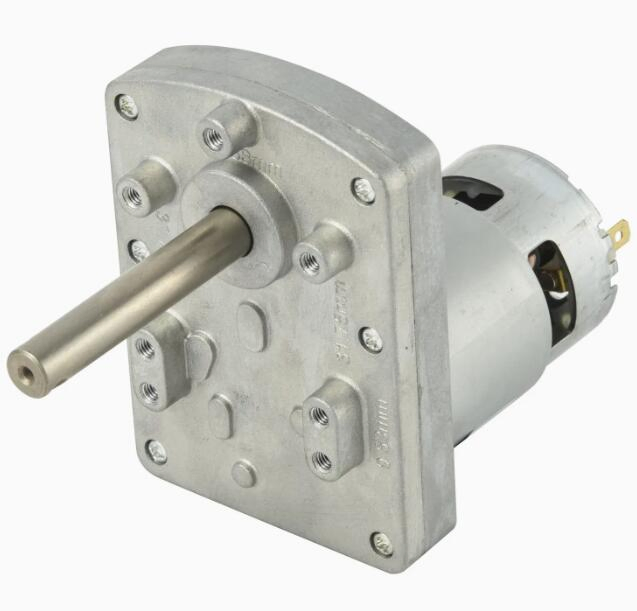

Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
1 / 5
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor

Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Specification
Excitation Mode
Shunt
Function
Driving
Casing Protection
Closed Type
Number of Poles
2
Structure
Brush
Type
DC Gear Motor
Certification
CE
Voltage
12/24V
Usage
Home Appliance
No-Load Speed
3000rpm
Current
140mA
Production Capacity
30000PCS/Month
⚙️ Product Description
Model: RS-555

We provide professional design services according to your specific technical requirements.

■ Gear Box Technical Data:

Number of stages Stages reduction (1) Stages reduction (2) Stages reduction (3)
Reduction ratio 36, 66, 94 129, 139, 155, 196, 219, 277 232, 392, 456, 555, 833
Max. Running torque 30kgf.cm 40kgf.cm 50kgf.cm
Max. Gear breaking torque 90kgf.cm 120kgf.cm 150kgf.cm
Max. Gearing efficiency 73% 65% 59%

■ Motor Performance Data:

Type Rated Voltage (V) No Load Load Torque Stall Torque
Current(mA) Speed(rpm) Current(mA) Speed(rpm) Torque(gf.cm) Power(W) Torque(gf.cm) Current(mA)
RS555-123000 12 ≤140 3000 ≤800 2200 150 3.3 600 3000
RS555-124500 12 ≤220 4500 ≤1200 3300 220 7.2 880 4800
RS555-126000 12 ≤350 6000 ≤2000 4500 300 13.5 1200 6000
RS555-243000 24 ≤70 3000 ≤400 2200 150 3.3 600 1600
RS555-244500 24 ≤110 4500 ≤600 3300 220 7.2 880 3000
RS555-246000 24 ≤180 6000 ≤1000 4500 300 13.5 1200 4000
🖼️ Product Gallery
DC Gear Motor Display 1
DC Gear Motor Display 2
DC Gear Motor Display 3
DC Gear Motor Display 4
DC Gear Motor Display 5
❓ Frequently Asked Questions
Can the reduction ratio of the RS-555 gear motor be customized?
Yes, we offer multiple reduction ratios ranging from 36 to 833. We can also adjust parameters based on your specific torque and speed requirements.
What voltage options are available for this DC motor?
The RS-555 model typically supports 12V and 24V DC inputs, providing flexibility for various power supply environments.
Is the motor suitable for continuous operation in home appliances?
Absolutely. This closed-type brush DC gear motor is designed for driving functions in home appliances, ensuring reliable performance and durability.
What is the maximum torque this gearbox can handle?
Depending on the reduction stages, the maximum running torque ranges from 30kgf.cm to 50kgf.cm, with a gear breaking torque up to 150kgf.cm.
Does the motor have any certifications?
Yes, the motor and its specifications are CE certified, meeting essential health and safety protection requirements.
What is the typical lead time for large orders?
With a production capacity of 30,000 PCS per month, we can fulfill standard export orders efficiently. Specific lead times depend on the order volume and customization requirements.
