Sweg Motor
Sweg Motor
| Model NO. | LGM20-130 | Type | DC Gear Motor |
| Excitation Mode | Shunt | Certification | ISO9001, CE, RoHS |
| Function | Control, Driving | Gearbox Size | φ20*L mm |
| Casing Protection | Protection Type | Motor Size | φ20.4*15.4*25.1mm |
| Number of Poles | 2 | Applications | Intelligent Robot, Smart Lock, Electric Lock |
| Structure | Brush | Shaft Diameter | 4mm |
| Rated Voltage | 6V 12V 24V | HS Code | 8501101000 |

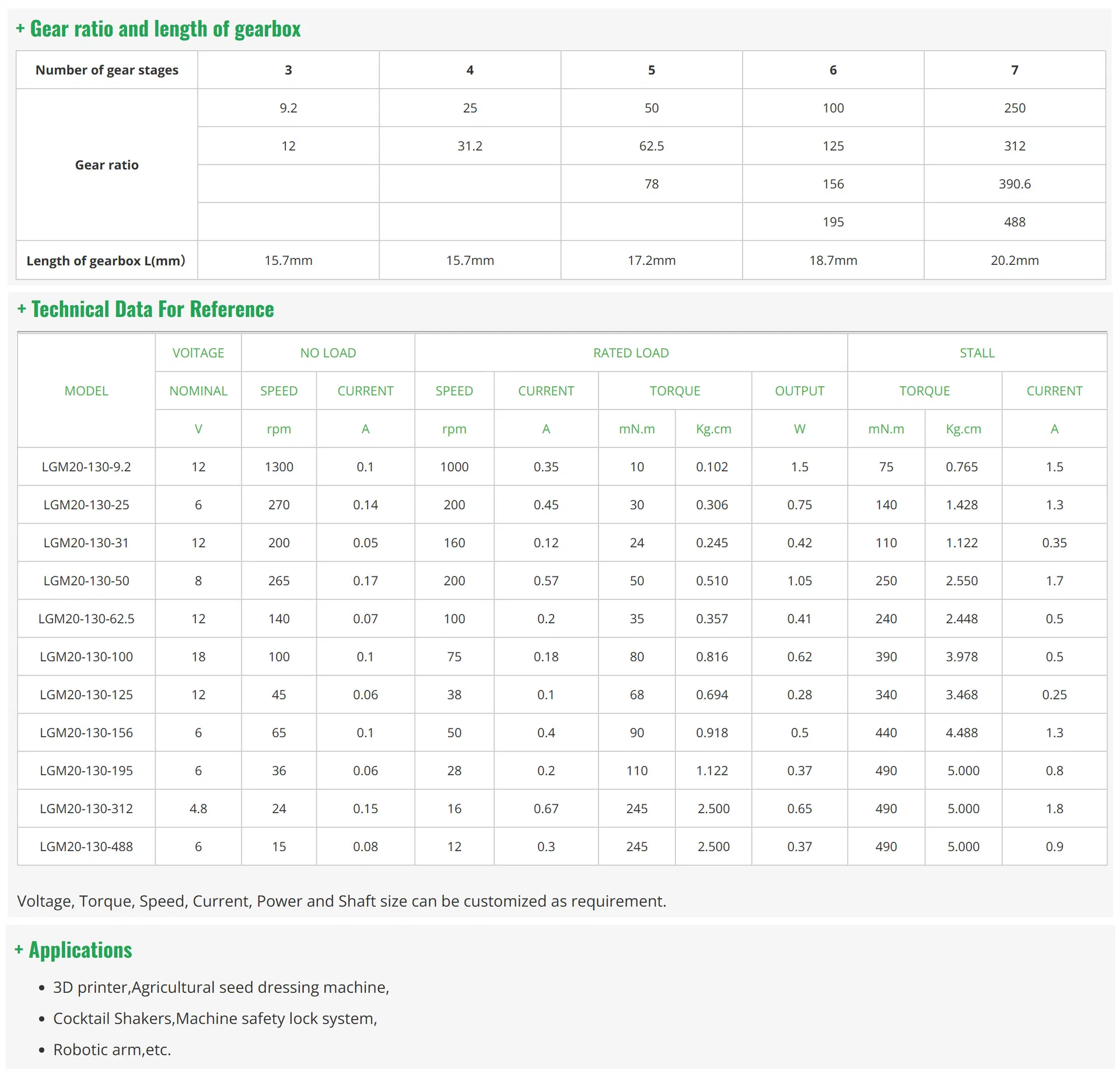

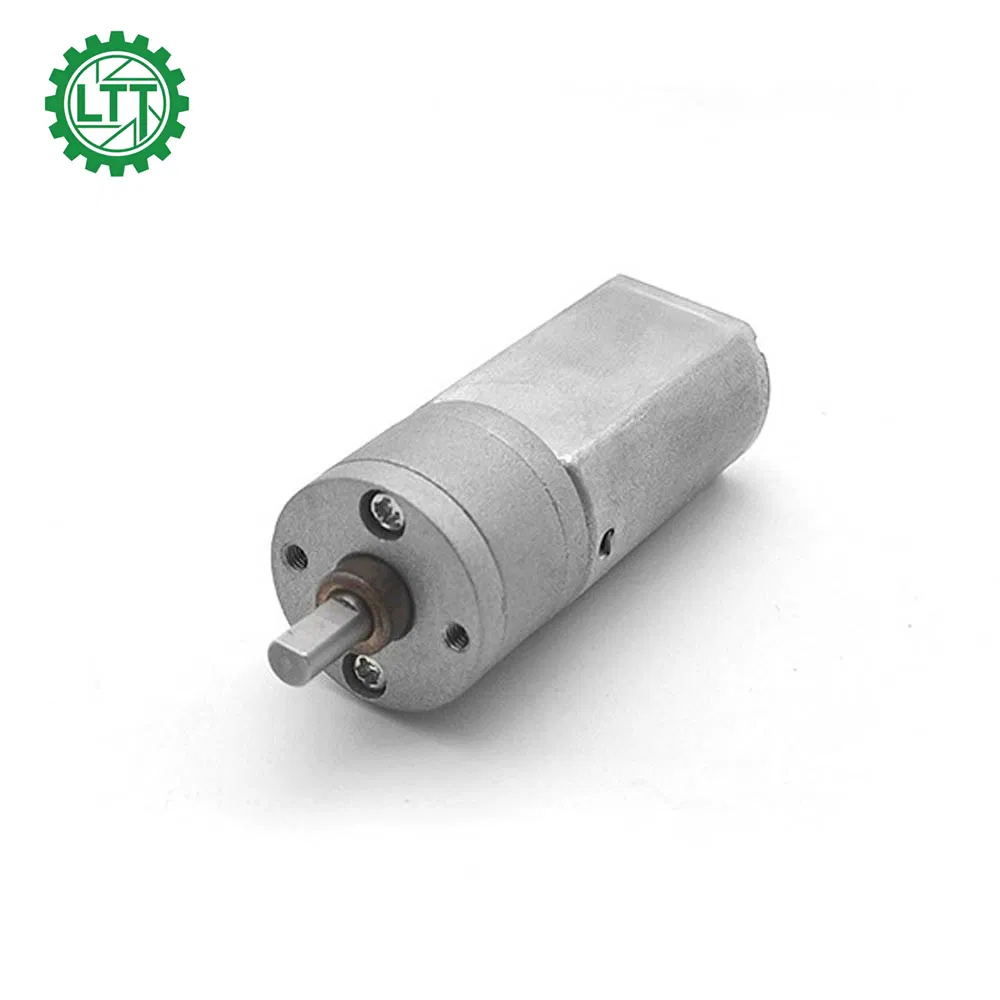

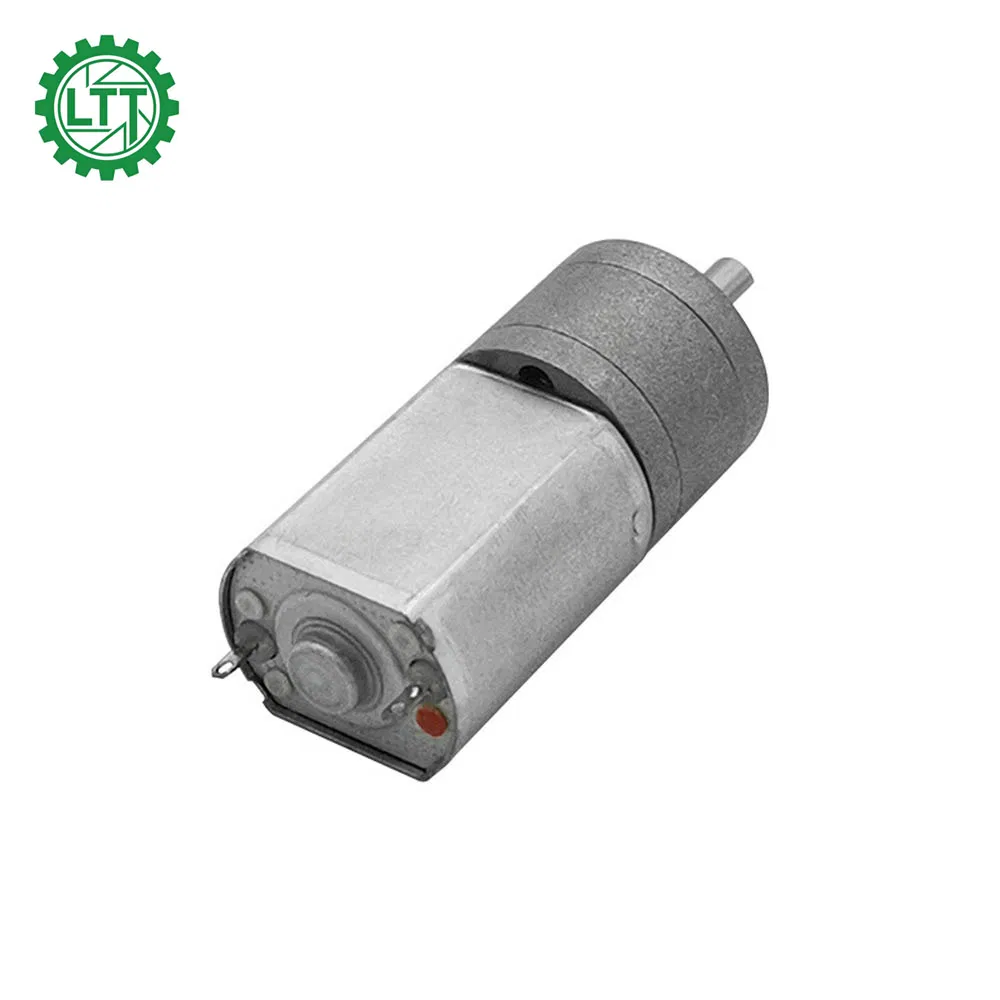

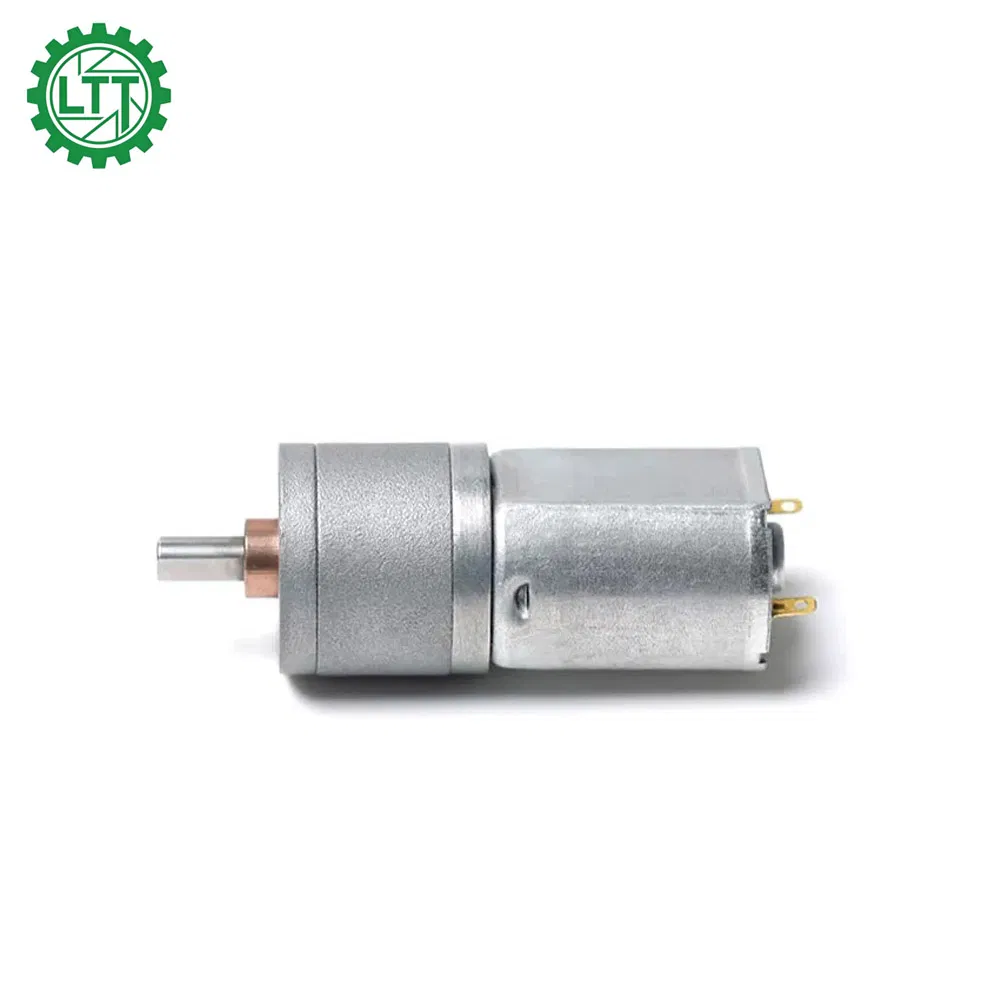

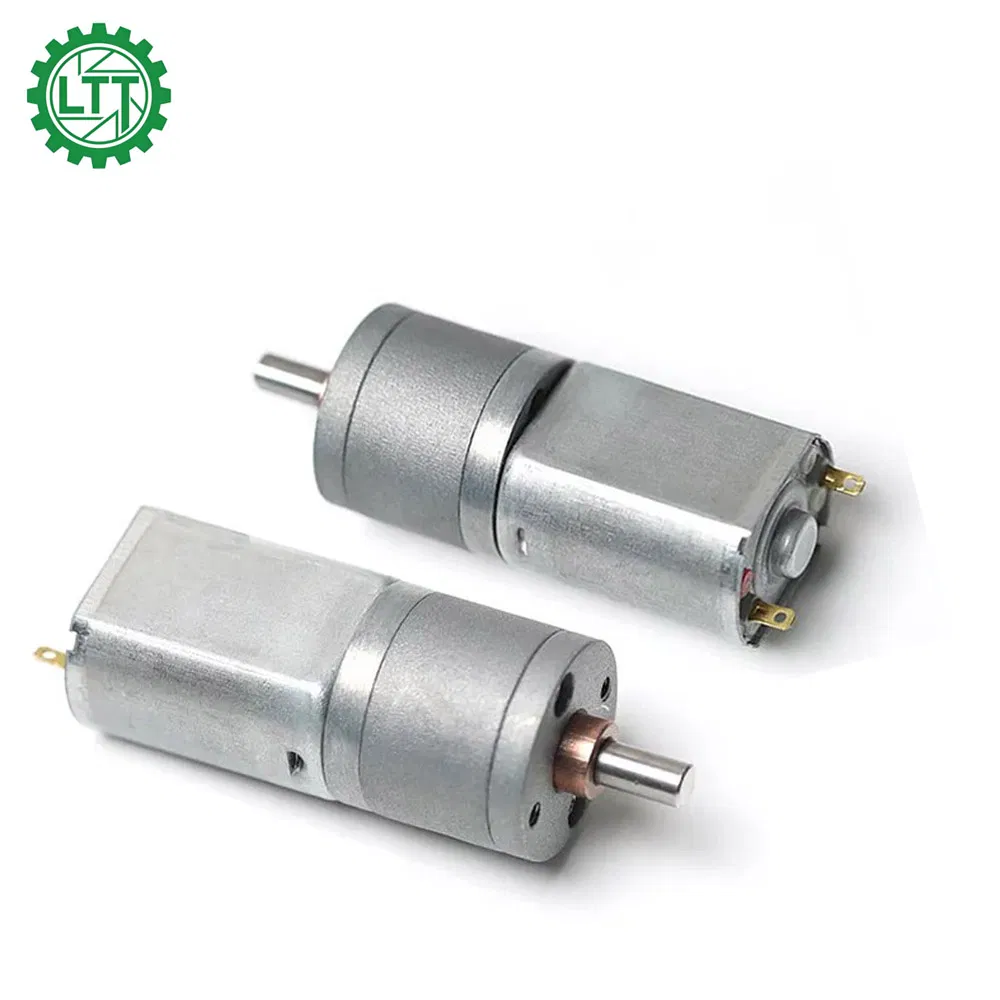

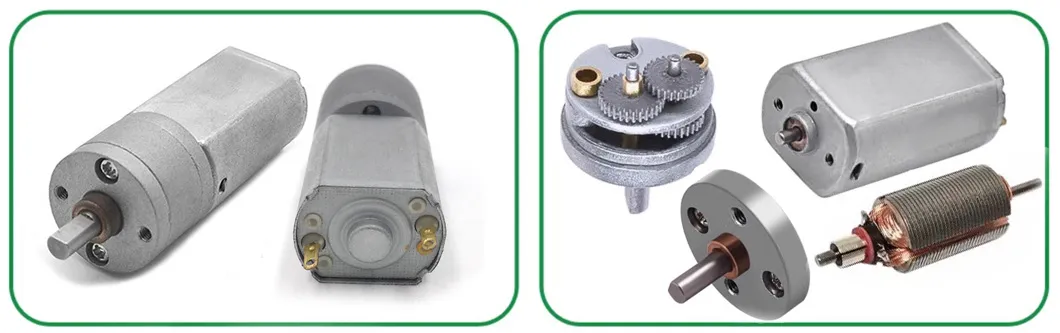

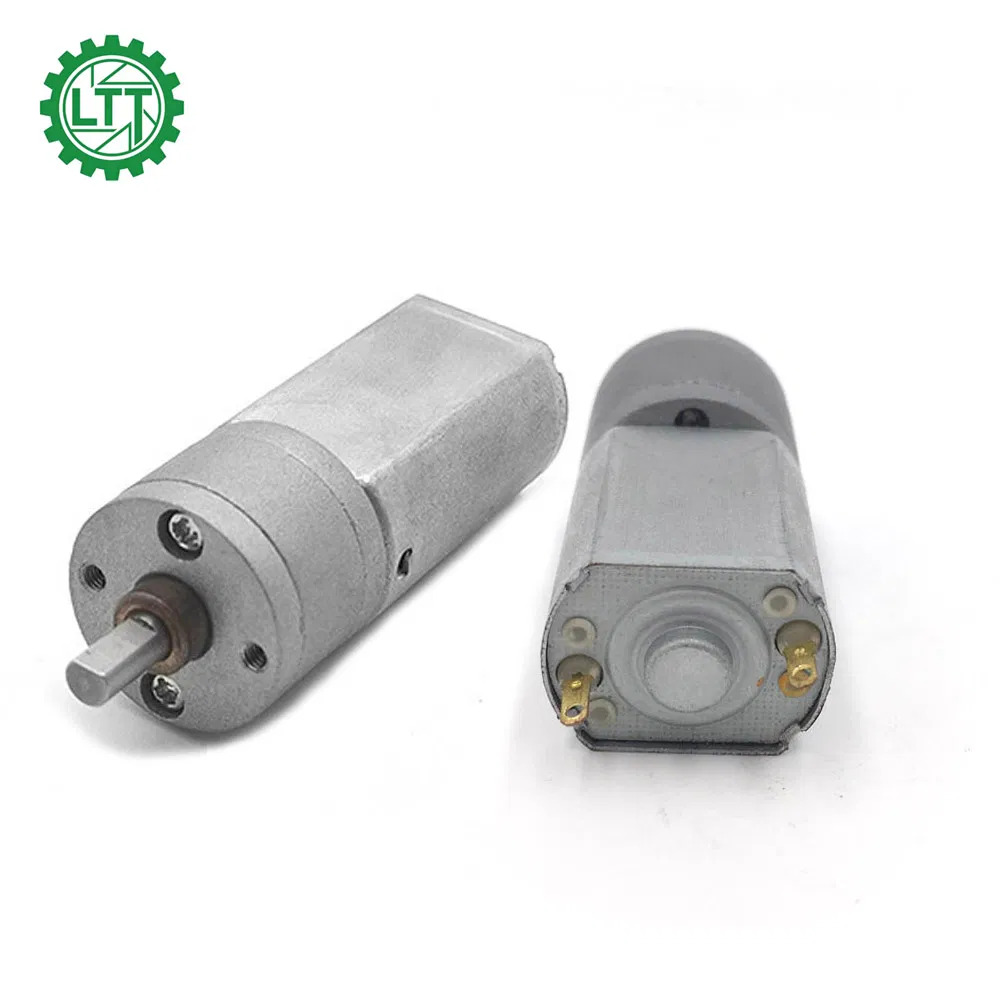

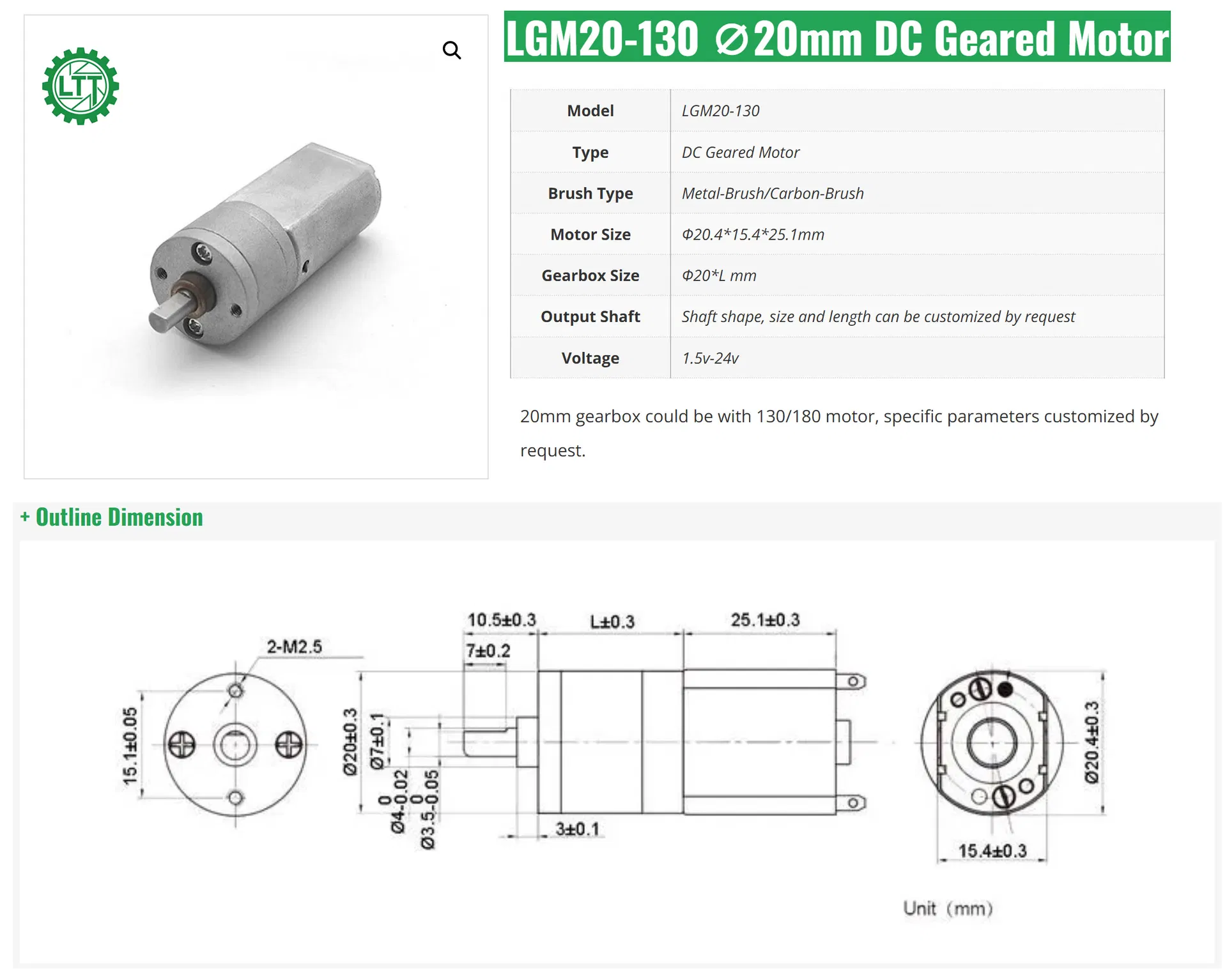

20mm Diameter Micro DC Gear Motor
| Voltage Range | 3V - 24V | Speed | 5rpm - 1500rpm |
| Continuous Current | ≤3A | Stall Torque | ≤5kg.cm |
| Typical Applications | 3D printer, Agricultural seed dressing machine, Cocktail Shakers, Machine safety lock system, Robotic arm, etc. | ||
| Gearbox Material | Steel, brass, plastic, powder metallurgy, zinc alloy | ||
| Shaft Type | Circular, D-shaft, Slotted, Knurled, Square, Hexagon, Threaded, Shaft with hole | ||
Modern high-tech enterprise with over 10 years of specialized manufacturing experience in R&D and sales.

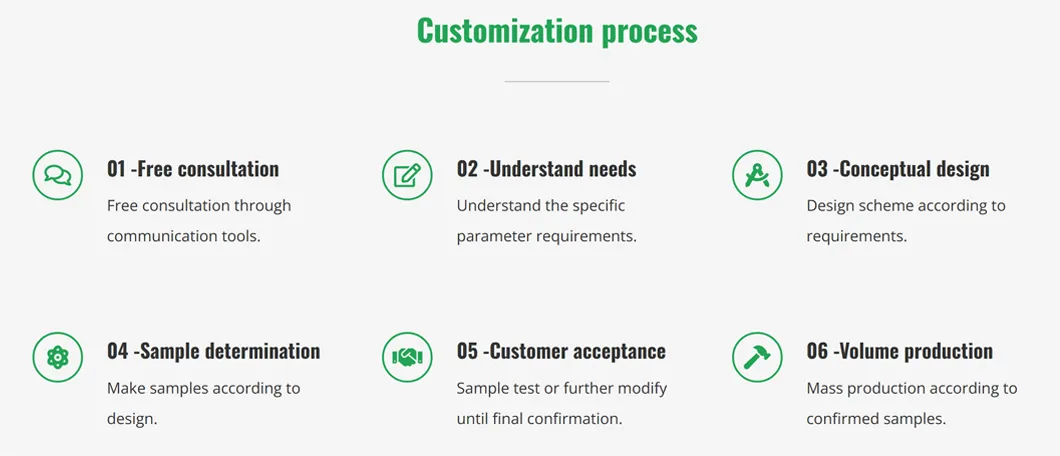

Provision of tailored solutions with a high efficiency 7-day sample production cycle to meet specific client needs.
Strict quality control under ISO9001:2008 with international safety certifications including CE, RoHS, and UL.
Utilization of high-precision imported materials for critical motor components to ensure superior performance.
Engineered for durability, offering a service life of 3 to 20 years under standard operating conditions.
Independent production stages with an intimate after-sales team providing 7x24 hours quick response.
Shipping Methods: Packing by crate, carton, or pallet. Delivery options include Air (DHL, FedEx, UPS, TNT), Sea, or Express depending on customer requirements.
