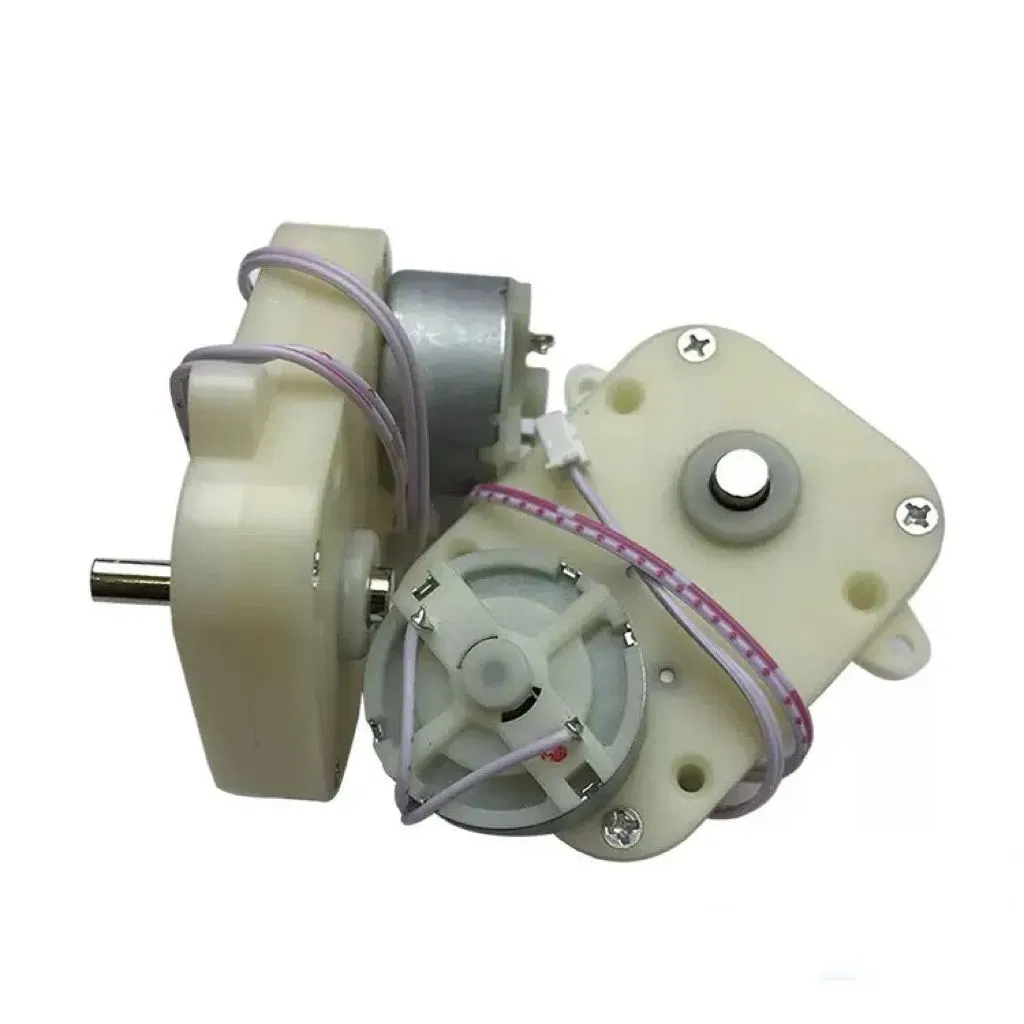

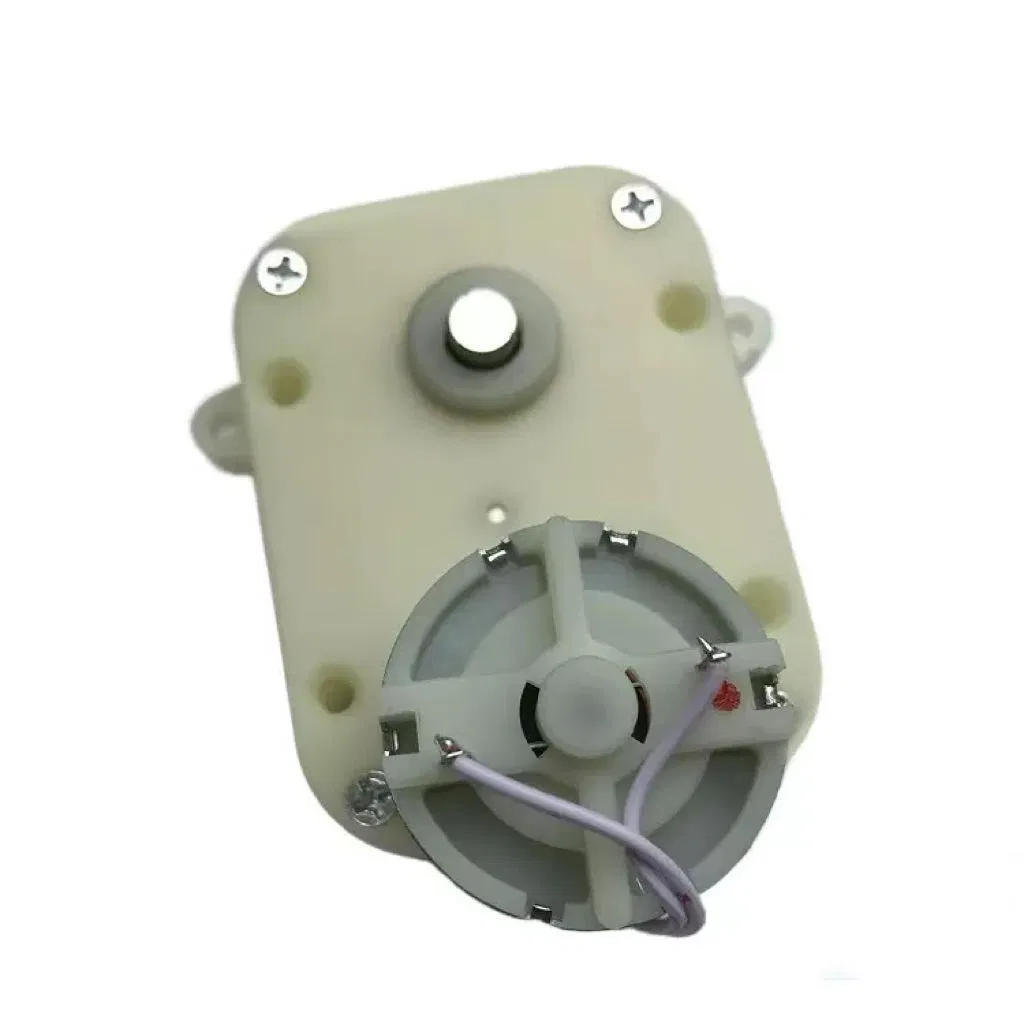

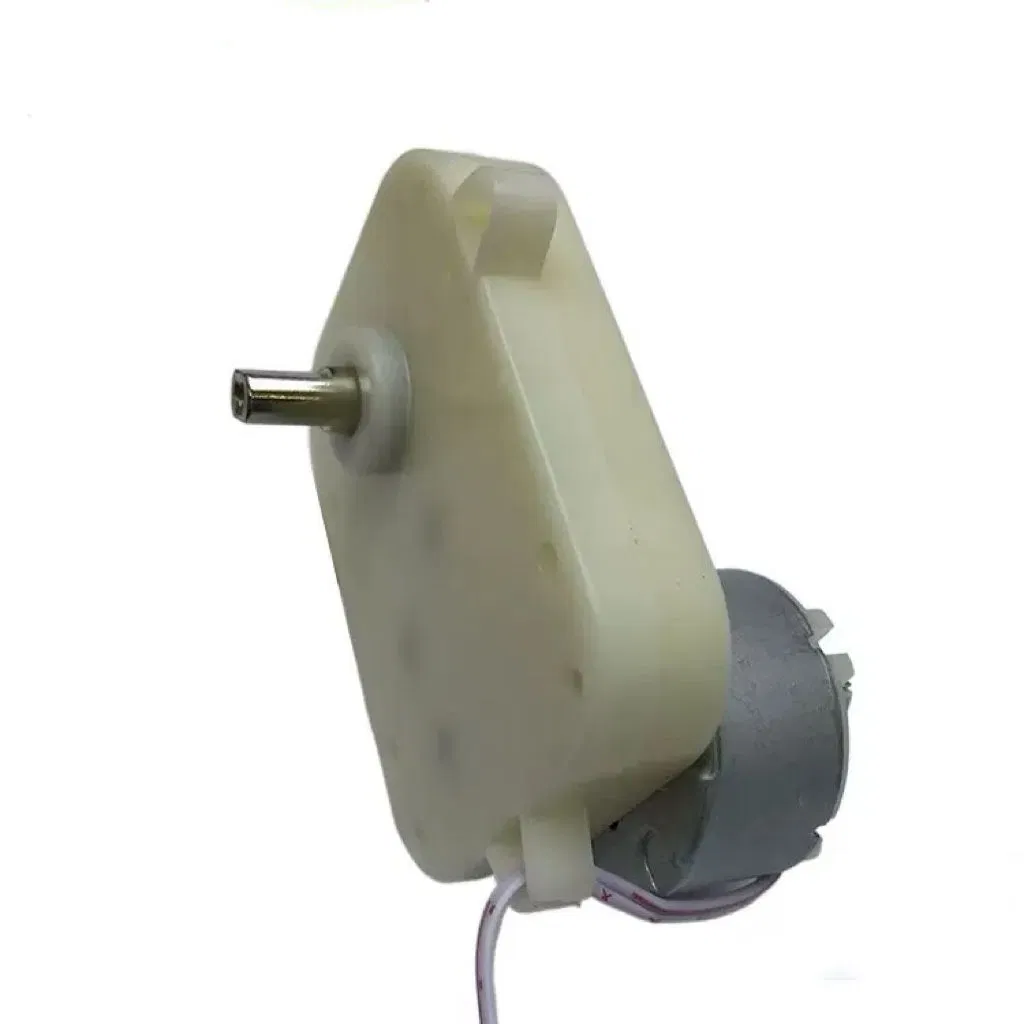

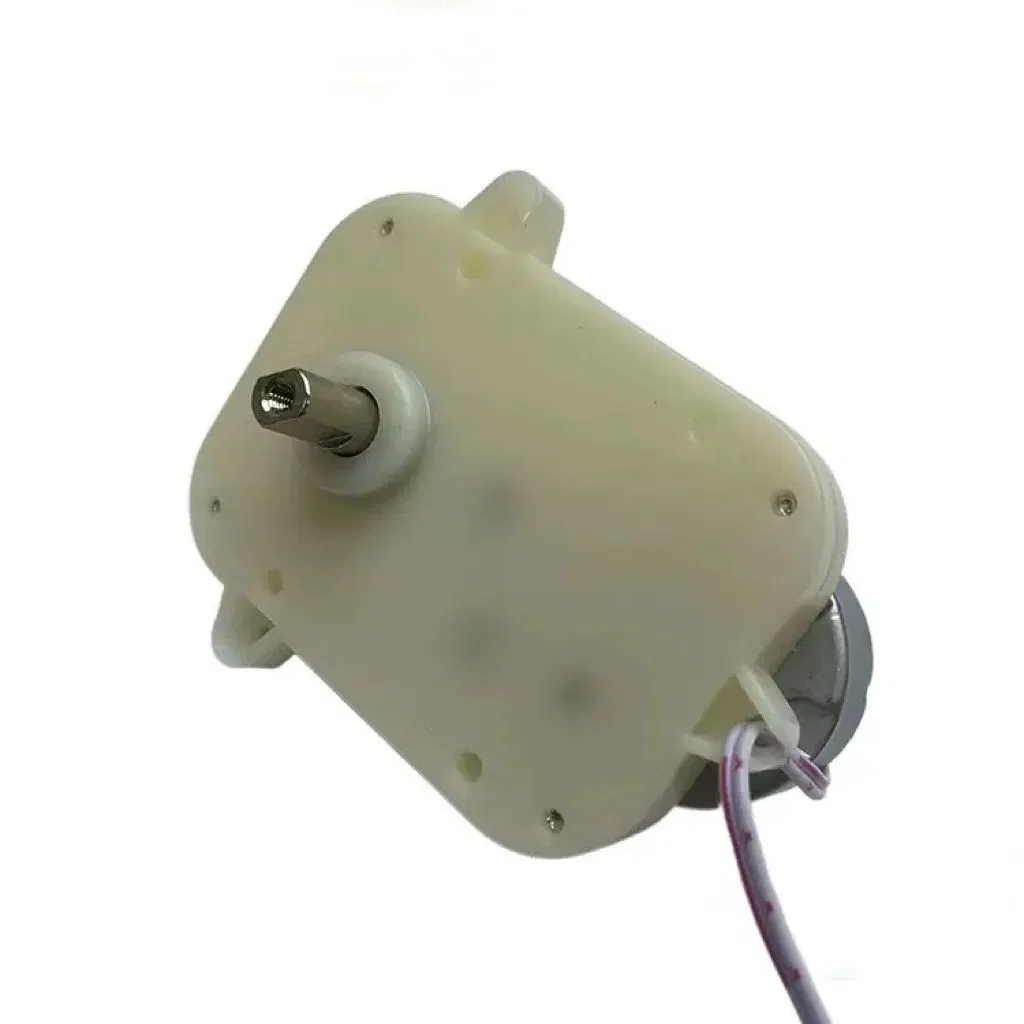

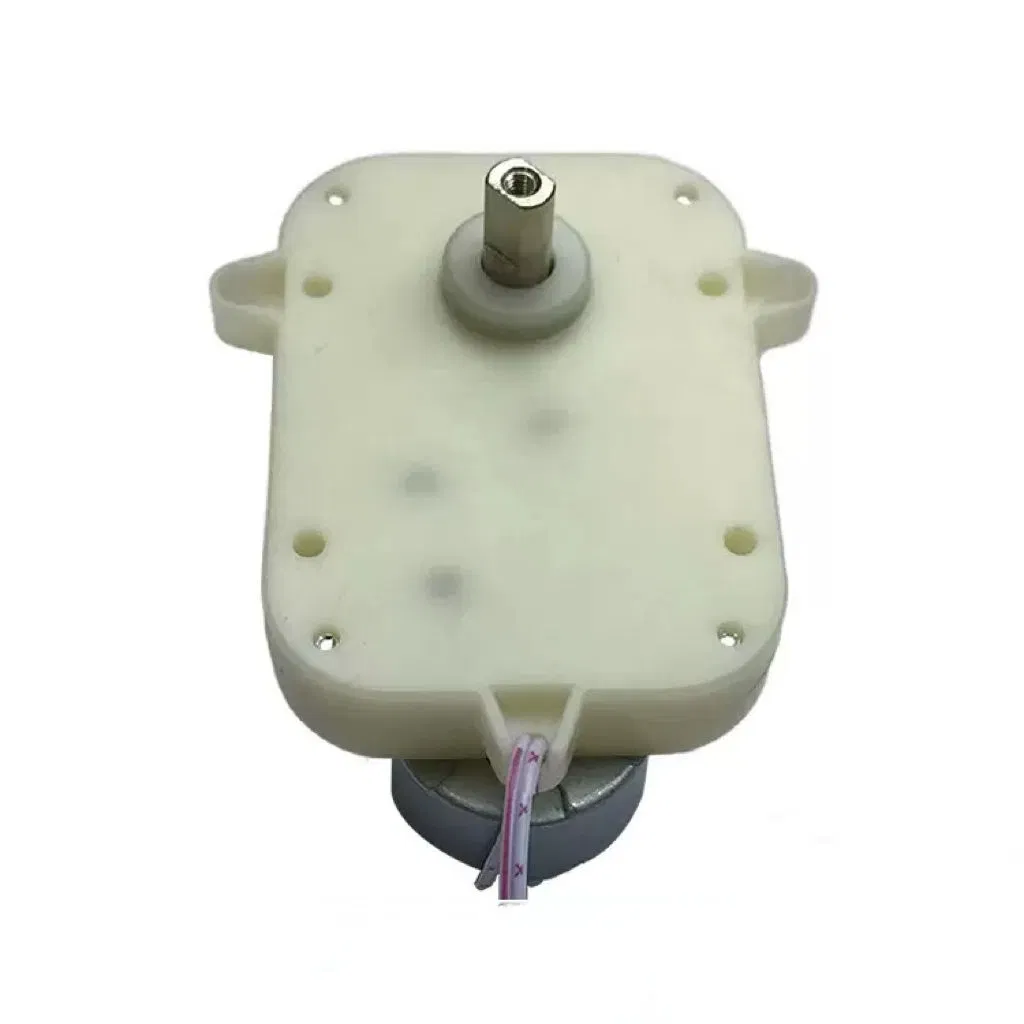

Sweg Motor
Sweg Motor

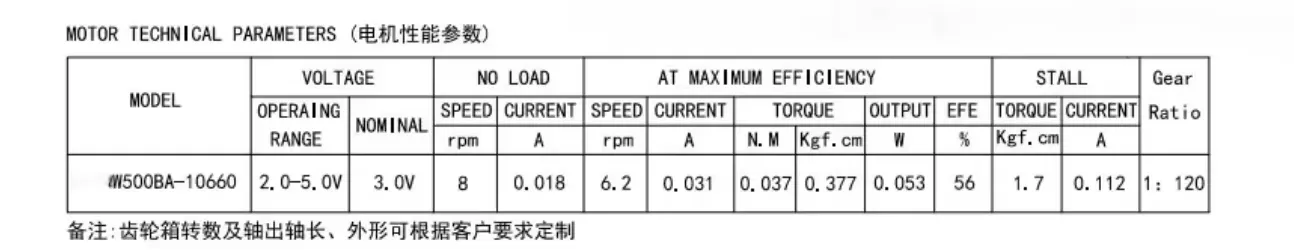

| Model NO. | DY500 |
| Excitation Mode | Excited |
| Function | Control, Driving |
| Casing Protection | Protection Type |
| Number of Poles | 10 |
| Structure and Working Principle | Brush |
| Type | Brushed DC Gear Motor |
| Certification | ISO9001, CCC, VDE, RoHS |
| Rotation Speed | 6.2rpm |
| Rated Power | 0.053W |
| Rated Voltage | DC 3/12/24V |
| Torque | 0.037n.M |
| Rated Current | 0.031A |
| Package Size | 10.00cm * 15.00cm * 20.00cm |
| Package Gross Weight | 0.300kg |
| Transport Package | Carton Box |
We can customize various shafts, speed, torque, wire, lead, etc. according to your requirements. Please tell us your choice of voltage, rotation speed and torque to get a quick quotation.

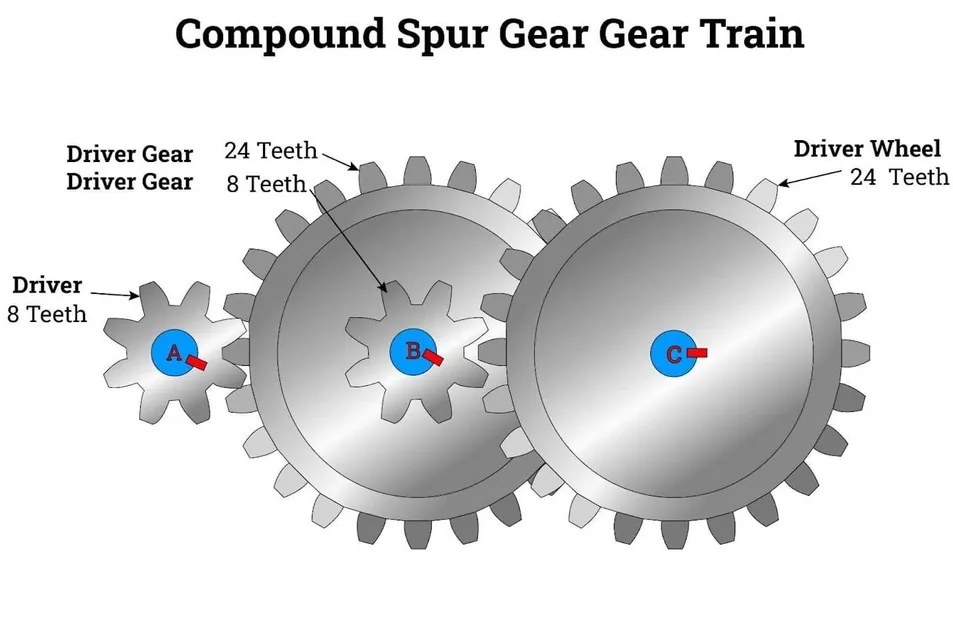

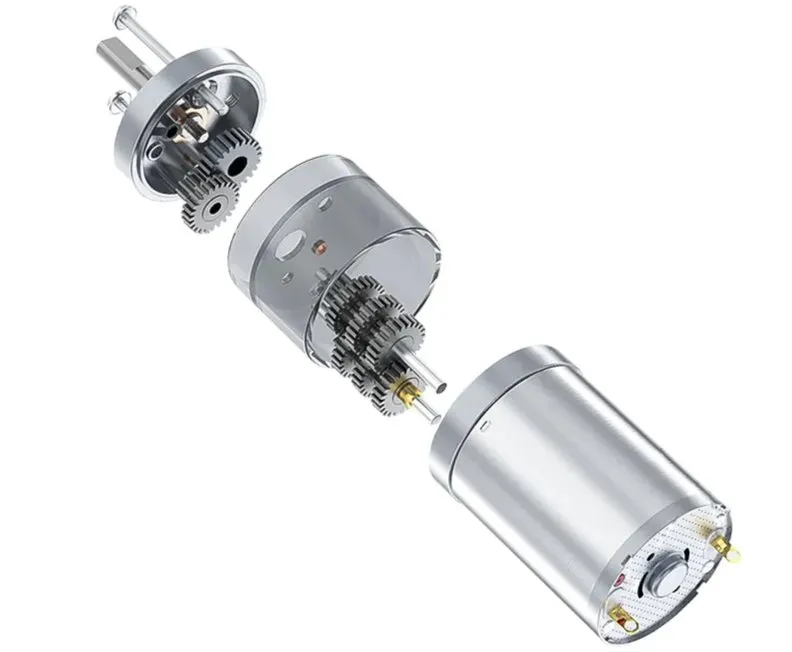

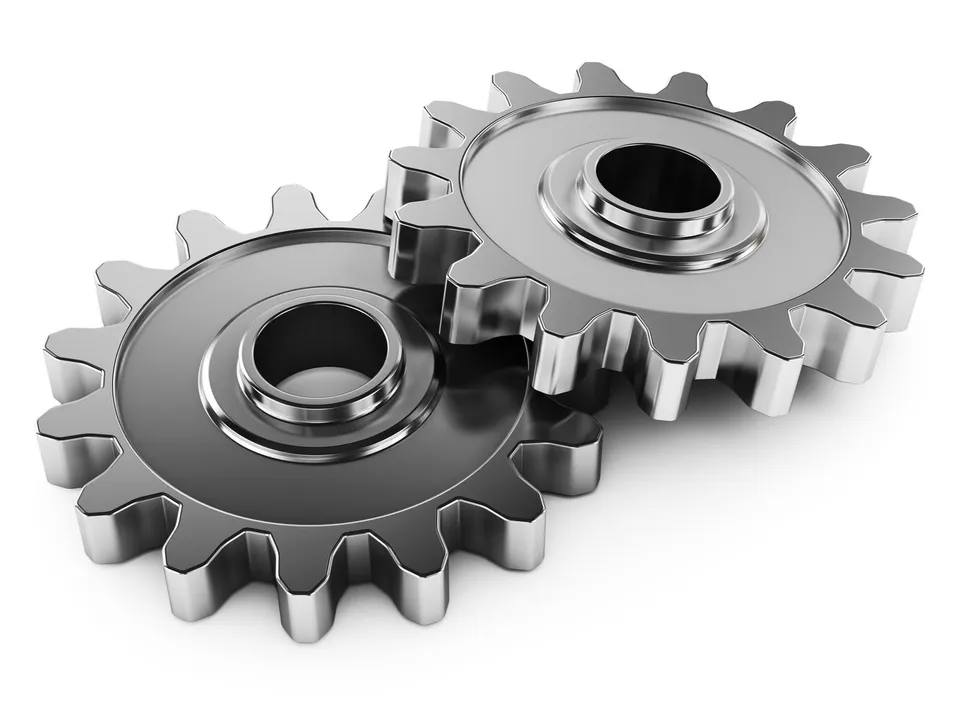

What is a Spur Gear Box?
A spur gear box is a mechanical system that uses spur gears to transfer torque between two parallel shafts. The gears inside the gearbox are designed with straight teeth that mesh together efficiently to transmit power from one gear to another. Spur gearboxes are one of the simplest and most widely used types of gearboxes due to their straightforward design, low cost, and reliability.
Advantages of Spur Gear Box:
1. High Efficiency: With efficiency levels up to 98%, they minimize energy loss and maximize torque transmission.
2. Cost-Effectiveness: Simple design leads to affordable manufacturing costs.
3. Reliability and Durability: Robust construction ensures long hours of continuous operation.
