📋 Basic Specifications
Casing Protection
Closed Type
Number of Poles
Can Be Chosen
Product Name

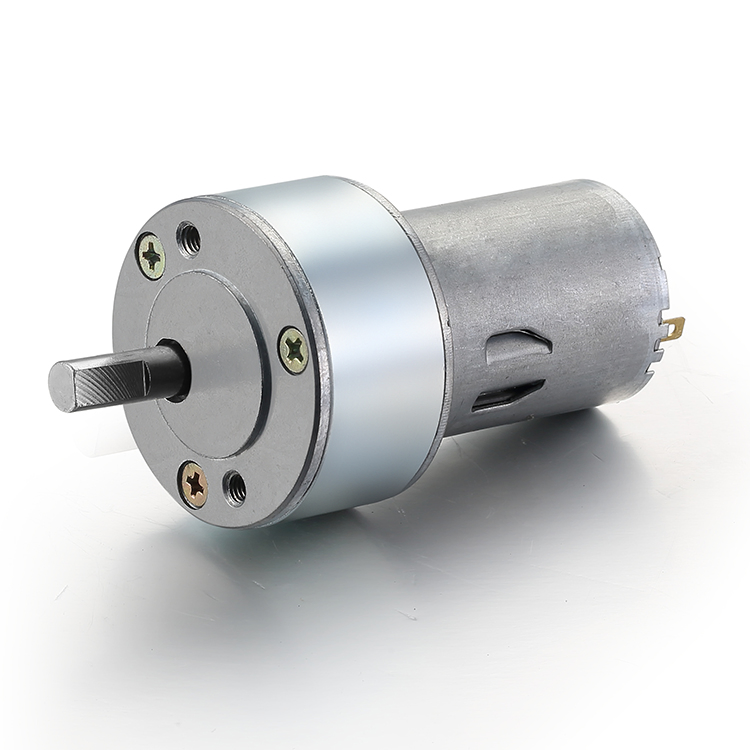

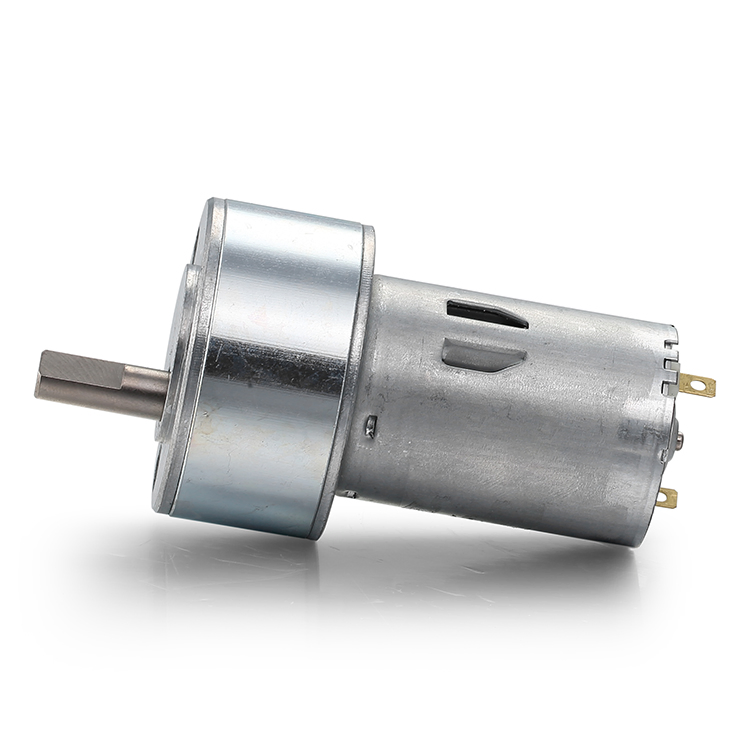

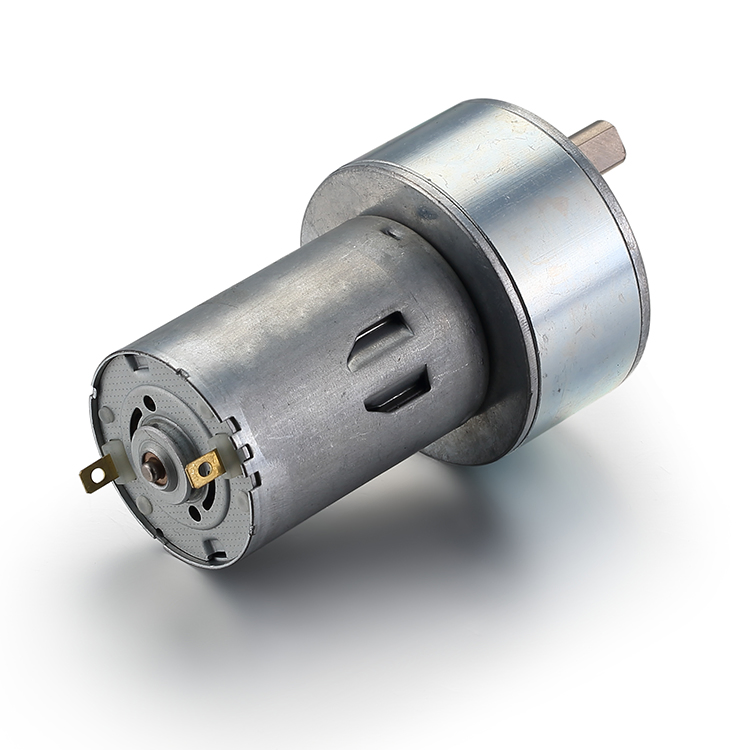

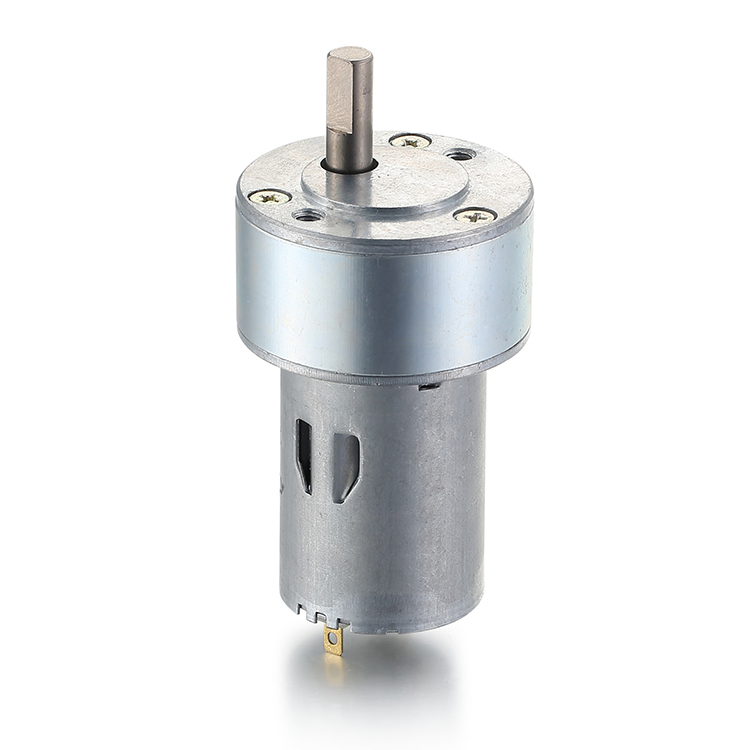

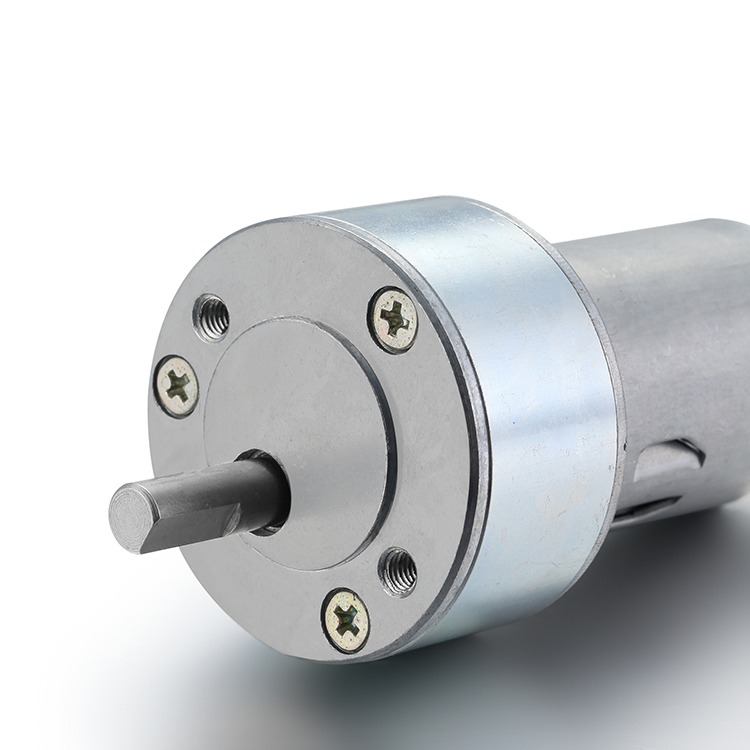

36mm Brushed DC Gear Motor
⚙ Technical Parameters
| DC Brushed Motor Conditions |
| Environmental Conditions | -20ºC~50ºC |
| Insulation Class | B |
| Protection Class | IP40 |
| Noise | ≤65dB |
| Lifespan | >1000h |
| Model |
RATED LOAD |
NO LOAD |
STALL |
| Voltage(V) | Power(W) | Speed(rpm) | Torque(N.m) | Current(A) |
Speed(rpm) | Current(A) | Torque(N.m) | Current(A) |
| BG 36555-1 | 12 | 4.5 | 2500 | 0.18 | 0.54 | 3000 | 0.14 | 0.12 | 3.1 |
| BG 36555-2 | 24 | 7.8 | 3980 | 0.19 | 0.45 | 4500 | 0.14 | 0.17 | 3.4 |
Customization services are available to meet specific performance requirements.

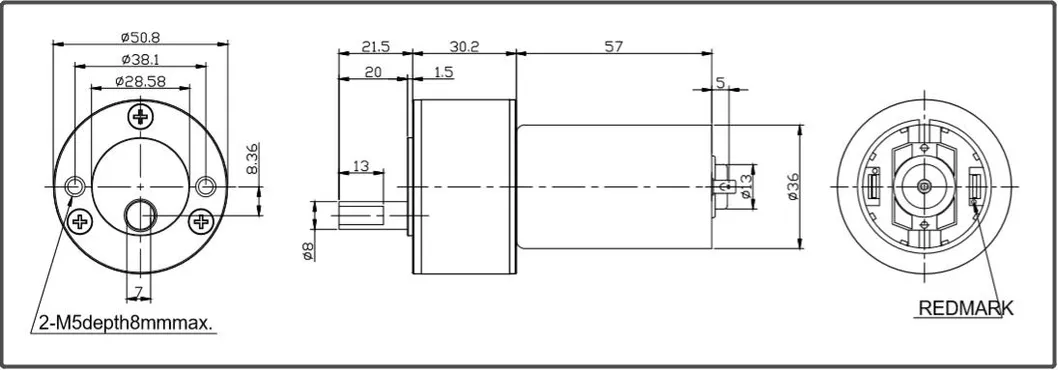

📊 Planetary Gear Motor Data
| NO-load speed | 810 | 576 | 59 | 30 | 22 | 4.4 | 5 | 1.1 |
| Rated speed (rpm) | 675 | 480 | 49 | 25 | 18 | 3.7 | 2.5 | 0.9 |
| Rated torque | 0.06 | 0.08 | 0.78 | 1.52 | 1.85 | 3 | 3 | 3 |
🏭 Manufacturing Excellence

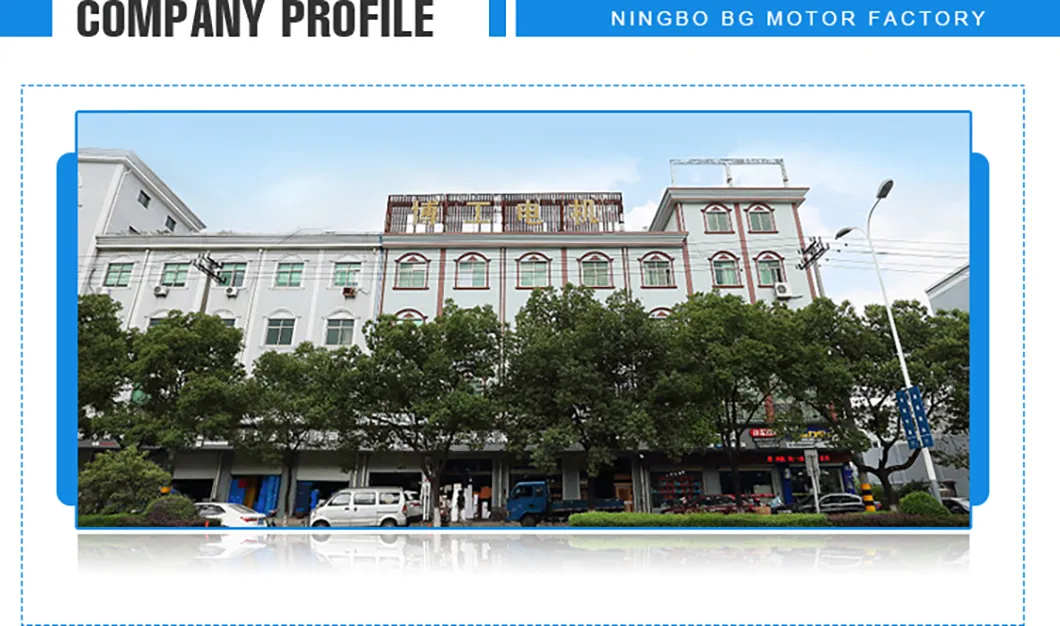

Professional manufacturer specialized in brushless DC motors, brushed DC motors, planetary gear motors, worm gear motors, and AC motors. With a plant area of 6000 square meters and multiple patent certificates, the facility possesses independent design and development capabilities with an annual output exceeding 1 million units.
Our engineering team brings over 40 years of expertise in motor technology. With 60% of staff possessing more than 10 years of experience, we ensure top-notch quality across our product range. Our motors are widely applied in AGVs, underwater robots, medical equipment, automatic doors, and industrial lifting equipment.
❓ Frequently Asked Questions
What kind of motors can you provide?
We mainly produce brushless DC motors, brush DC motors, AC motors, and Universal Motors. Motor power ranges up to 5000W with diameters up to 200mm.
Can you send me a price list?
All motors are customized based on requirements like lifetime, noise, voltage, and shaft specifications. Price varies by annual quantity. Please share your detailed requirements for a formal offer.
Can I get some samples?
We provide samples for testing before official orders if MOQ and pricing terms are acceptable. Since all motors are custom-made, we generally do not hold stock for individual retail use.
Can you provide OEM or ODM service?
Yes, both OEM and ODM services are available. Our professional R&D department provides customized solutions tailored to your needs.
Can I visit the factory before placing an order?
You are welcome to visit our facility. It is a great opportunity to understand our manufacturing capabilities and quality control processes.
What's the lead time for a regular order?
The standard lead time is 15-20 days. This may vary based on the specific model, production period, and order quantity.
