Sweg Motor
Sweg Motor

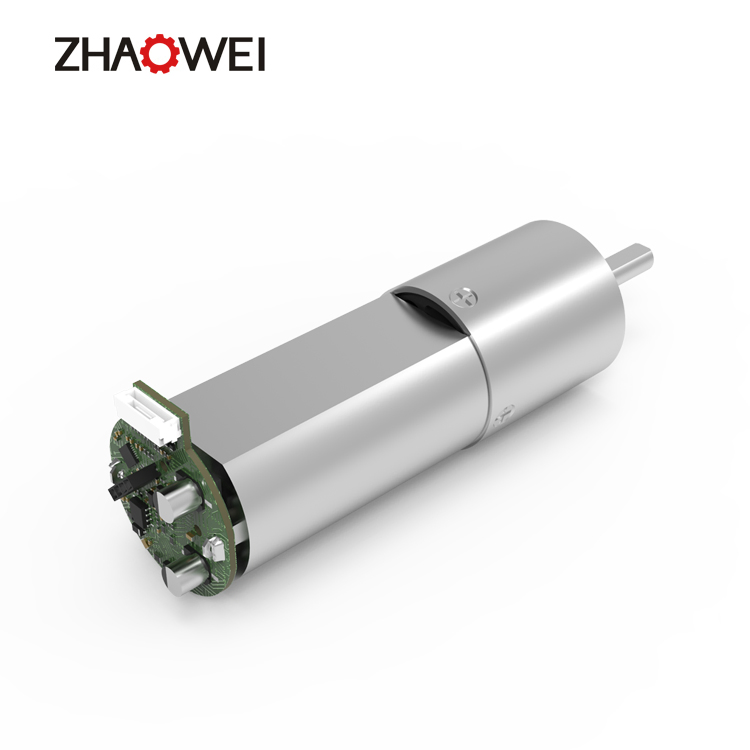

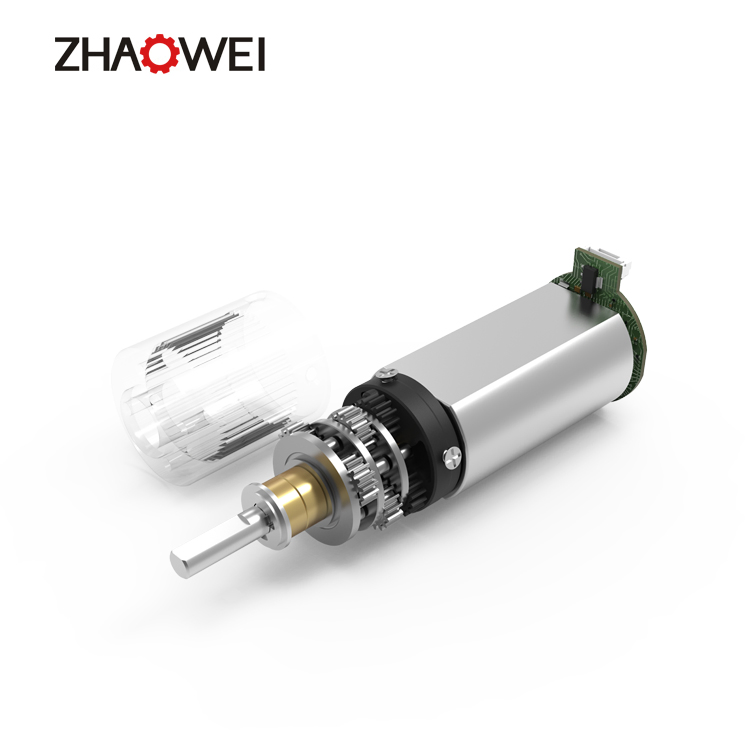

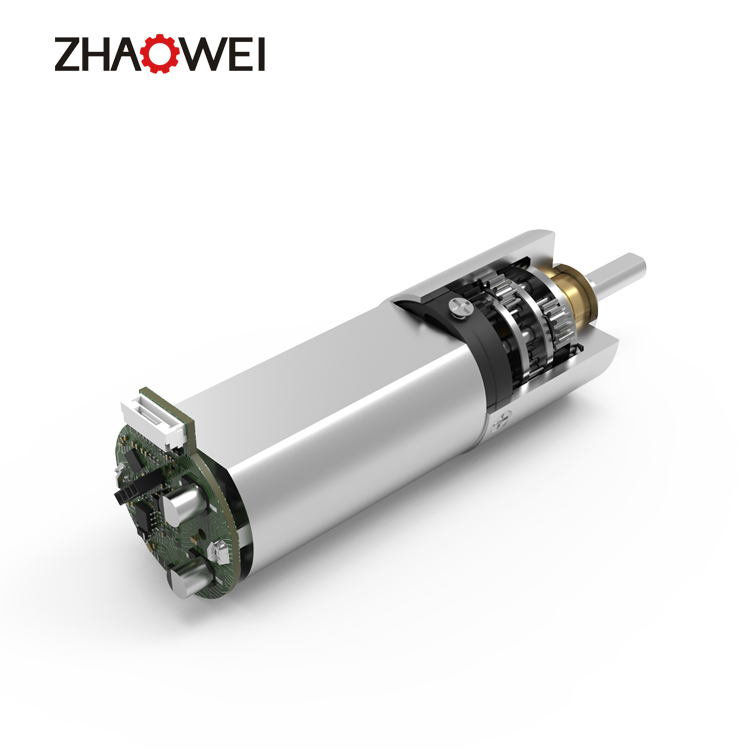

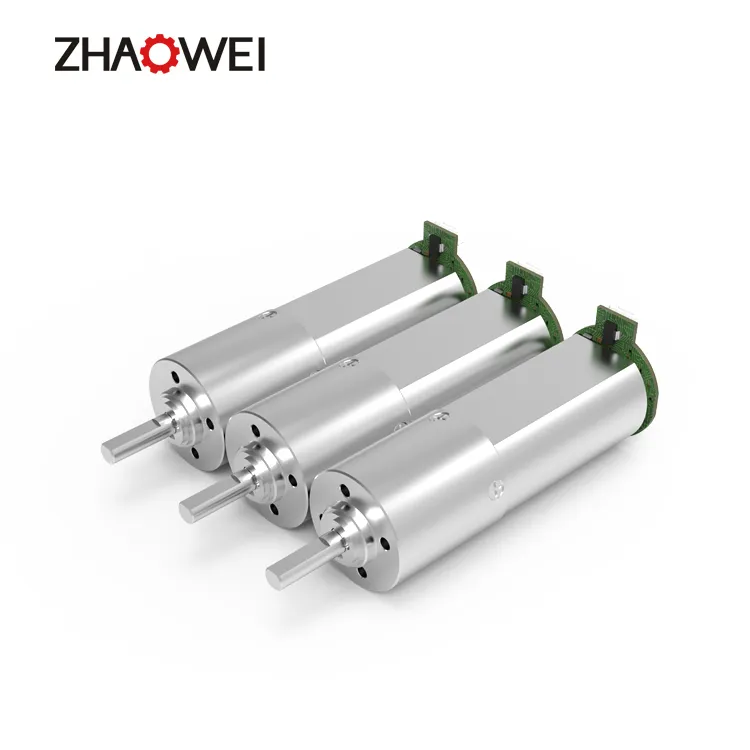

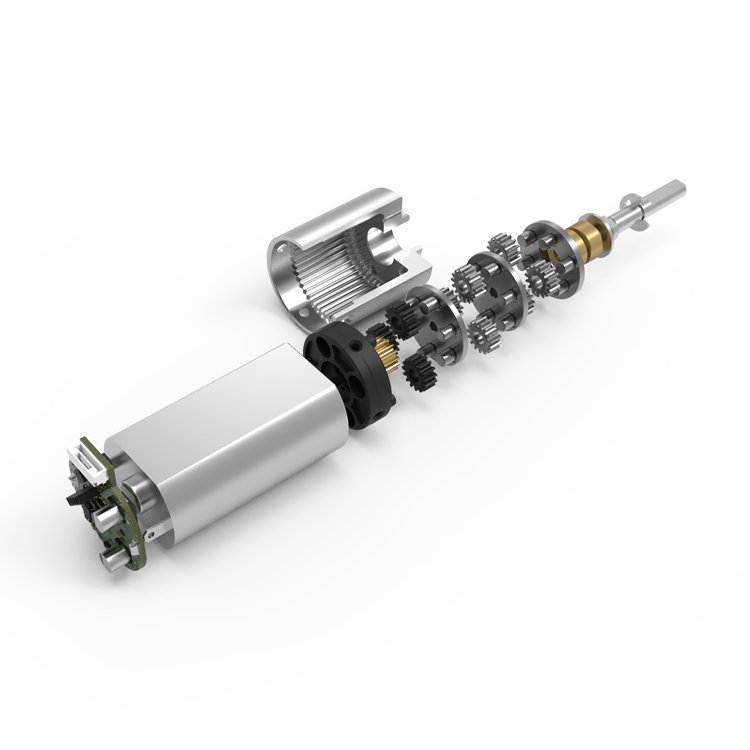

Model: ZWBMD024024-711
Performance Overview: Rated Voltage 3V, No Load Speed 26rpm, No load current 40mA. Rated Torque reaches 296.9g.cm with an overall length of 30.9mm.
| Model | No Load | Rated Load | Torque | Overall Length (mm) | Gear Ratio | |||
|---|---|---|---|---|---|---|---|---|
| Speed (rpm) | Current (mA) | Speed (rpm) | Current (mA) | (gf.cm) | (mN.m) | |||
| ZWBMD006006-110 | 166 | 37 | 140 | 100 | 54.3 | 5.33 | 28.5 | 110.6 |
| ZWBMD006006-148 | 124 | 37 | 105 | 100 | 72.8 | 7.14 | 28.5 | 148.1 |
| ZWBMD006006-198 | 93 | 37 | 78 | 100 | 97.5 | 9.56 | 28.5 | 198.4 |
| ZWBMD006006-266 | 69 | 37 | 58 | 100 | 130.5 | 12.80 | 28.5 | 265.7 |
| ZWBMD006006-711 | 26 | 40 | 21 | 100 | 296.9 | 29.12 | 30.9 | 711.0 |
| ZWBMD006006-1275 | 14 | 40 | 12 | 85 | 330 | 32.36 | 30.9 | 1275.2 |
Above specifications are for reference and customizable according to requirements.
| Category | Application Details |
| Smart Wearables | Watch, VR, AR, XR devices. |
| Household Appliances | Kitchen appliances, vacuum cleaners, window curtains, intelligent wardrobes, and sweeping robots. |
| Automotive Products | Conditioning damper actuator, car door lock actuator, rearview mirrors, and vehicle sunroofs. |
| Medical Equipment | Breathing machines, medical cleaning pumps, infusion pumps, and surgical robots. |
| Consumer Electronics | Cameras, mobile phones, rotating smart speakers, and UAVs. |

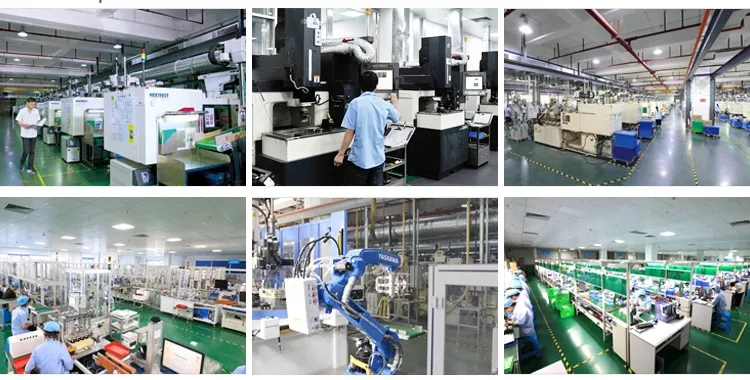

Providing total drive solutions from design and tooling fabrication to component manufacturing and assembly.
Our facilities are certified with ISO9001:2015, ISO14001:2004, ISO13485:2016, and IATF16949:2016.
