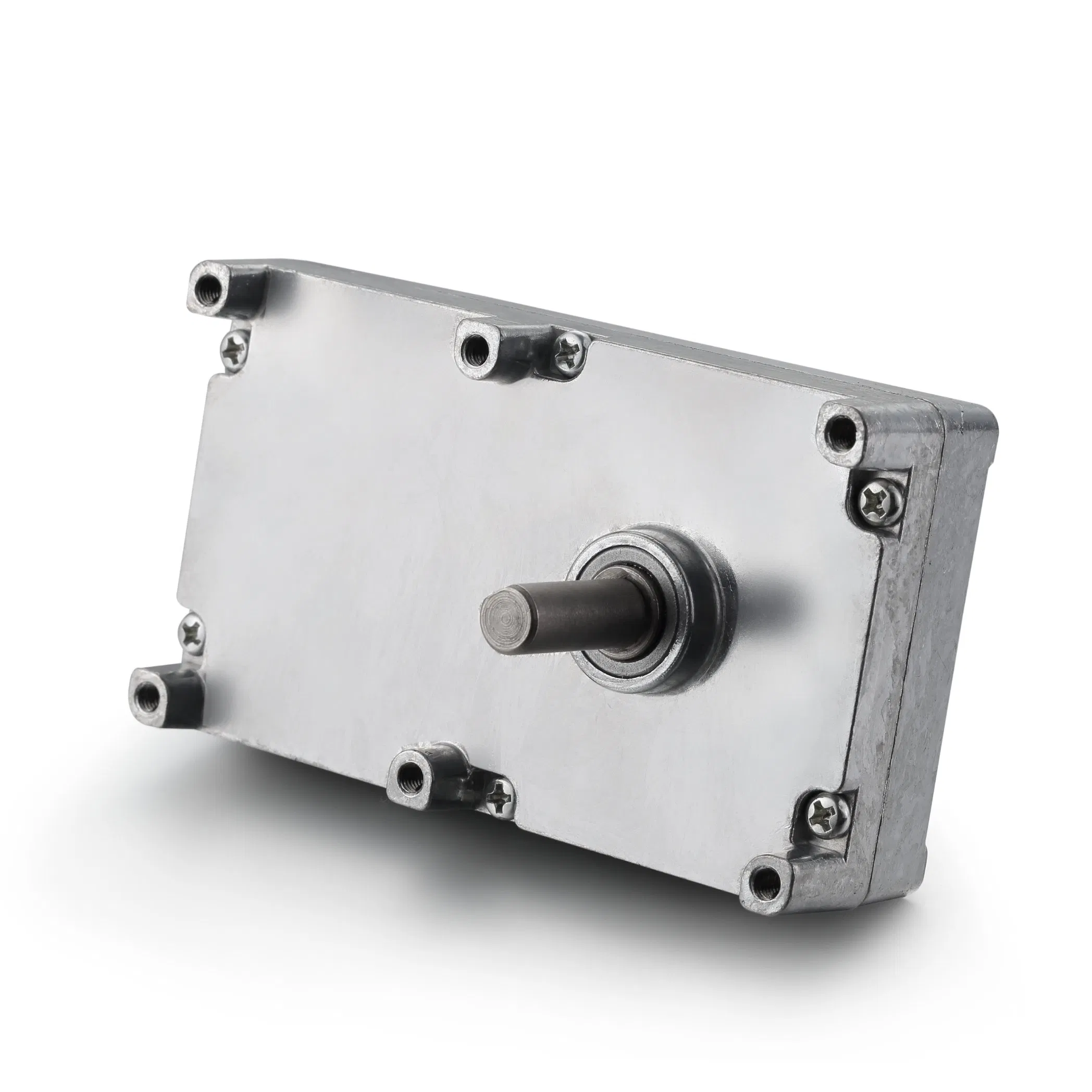

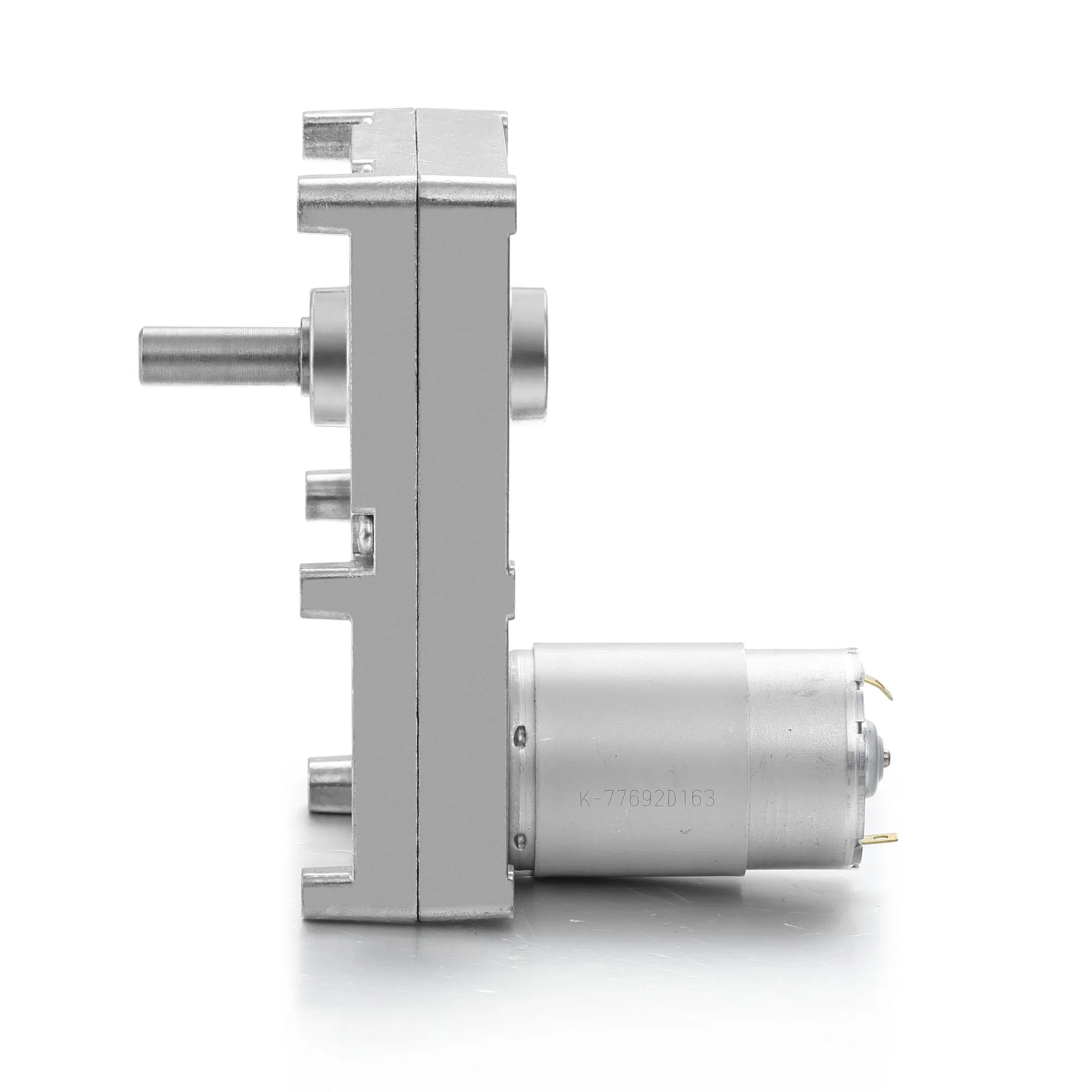

| BG 42ZYT DC Brushed Motor | |
| Environmental Conditions | -20ºC~50ºC |
| Insulation Class | B |
| Protection Class | IP44 |
| Noise | ≤65dB |
| Number of Phases | Single |
| Lifespan | >1000h |
| Electrical Specifications | |||||||||
| Model | RATED LOAD | NO LOAD | STALL | ||||||
| Voltage (V) | Power (W) | Speed (rpm) | Torque (N.m) | Current (A) | Speed (rpm) | Current (A) | Torque (N.m) | Current (A) | |
| BG 42775-1 | 12 | 10.4 | 2430 | 0.04 | 1.3 | 3000 | 0.4 | 0.25 | 6.7 |
| BG 42775-2 | 24 | 21.1 | 3850 | 0.05 | 1.25 | 4500 | 0.25 | 0.4 | 8.3 |
| We can also customize products according to customer requirements. | |||||||||
| Planetary Gear Motor Technical Data | ||||||||
| Ratio | 10.2 | 19.2 | 26.9 | 188 | 264 | 721 | 669 | 1911 |
| NO-load speed | 1167 | 700 | 437 | 175 | 98 | 87.5 | 58 | 36 |
| Rated speed (rpm) | 1000 | 600 | 375 | 150 | 83 | 75 | 50 | 31 |
| Rated torque (N.m) | 0.34 | 0.65 | 0.9 | 5.6 | 6 | 6 | 6 | 6 |
