📋 Basic Info
Casing Protection
Closed Type
Certification
ISO9001, RoHS, CE
Transport Package
Standard Export Carton
Production Capacity
4 Million PCS/Month
⚙️ Product Description

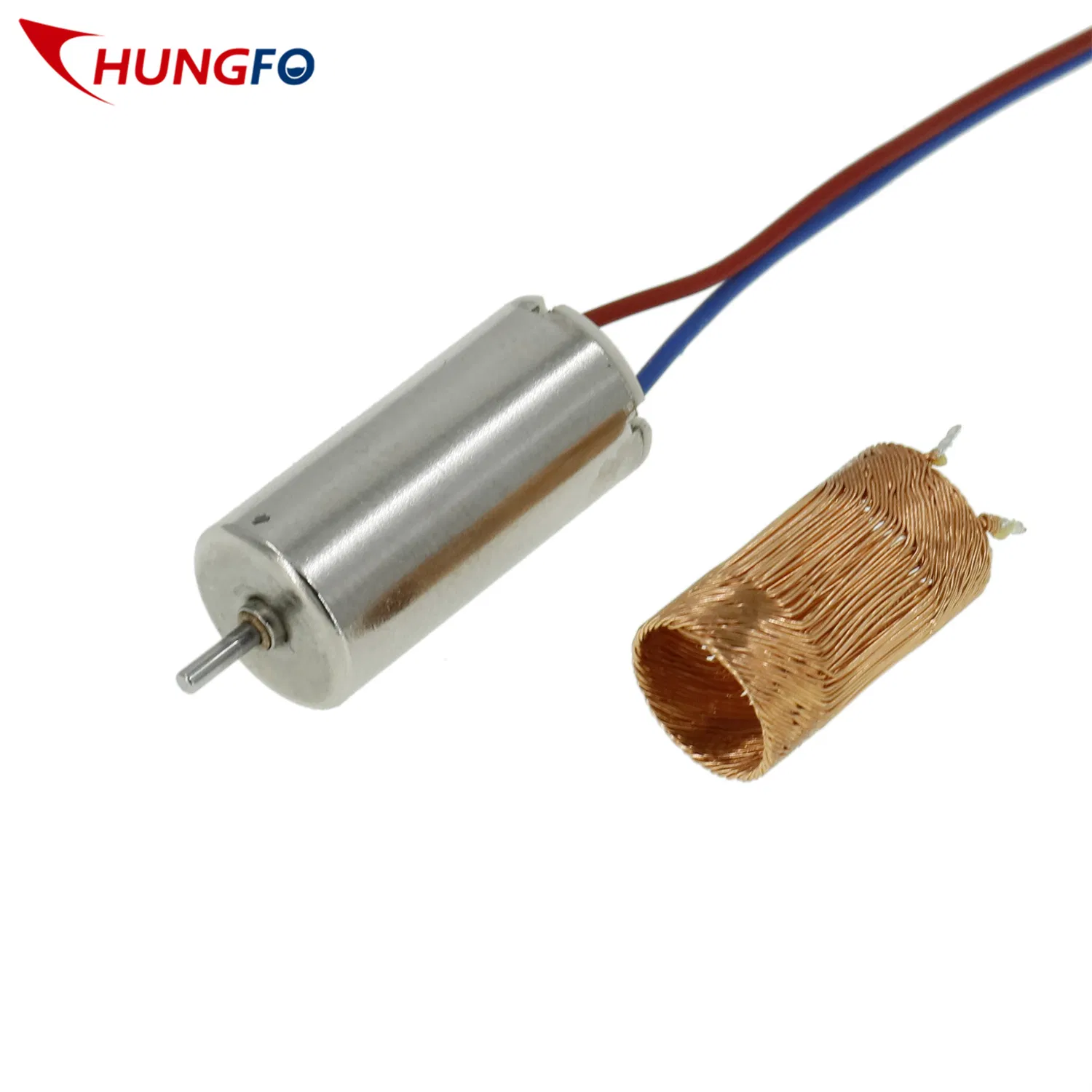

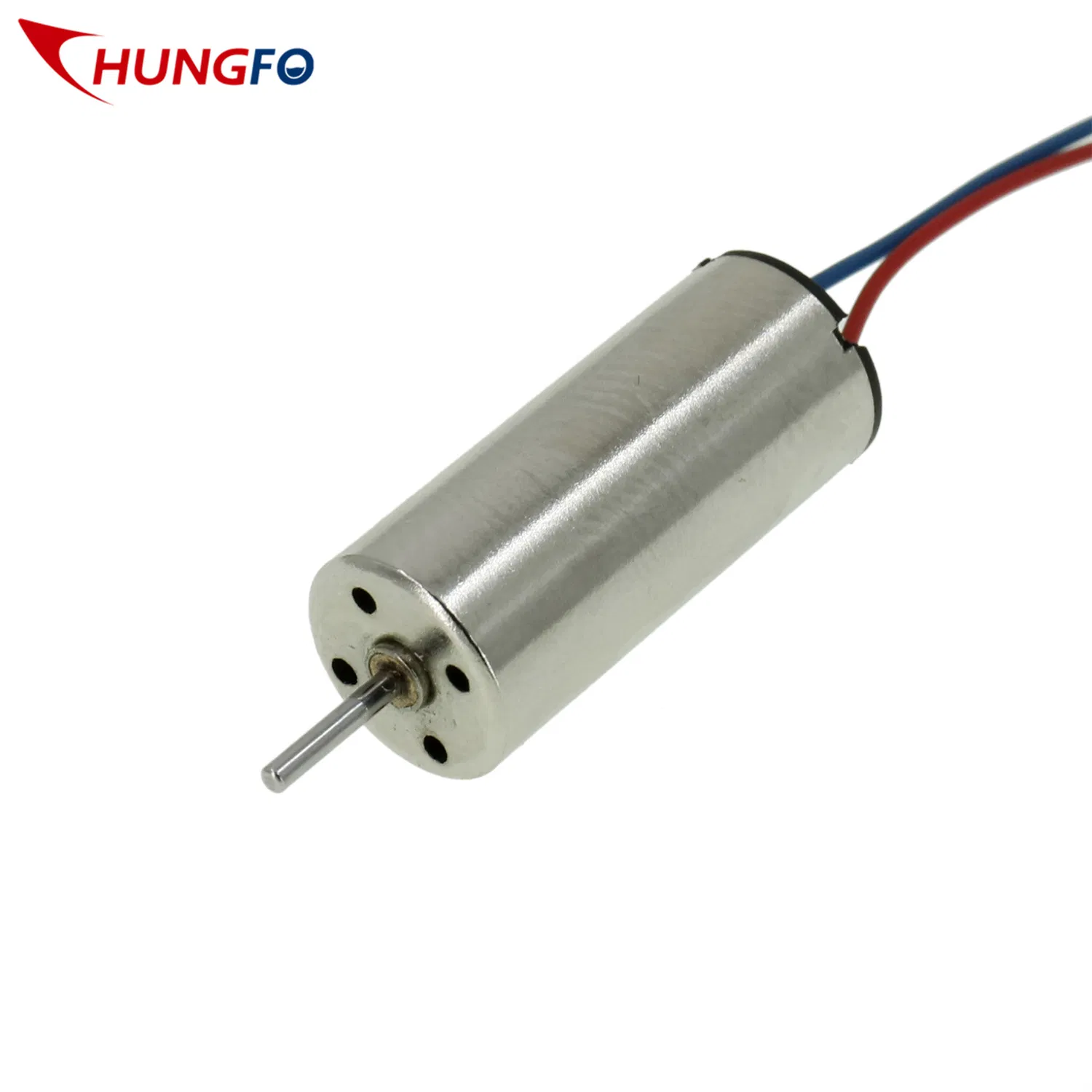

10D Series φ10mm x L20 Precious Metal Brushes Coreless Motor
| Motor Parameter |
Motor Model |
| Values at nominal voltage |
10D1NA-018061 |
10D1-015081 |
10D1-016061 |
| 1 |
Rated voltage (V) |
7.4 |
3.7 |
3.7 |
| Free Load |
No load speed (rpm) |
43022 |
30700 |
26300 |
| No load current (mA) |
54 |
77 |
68 |
| At Max. Efficiency |
Max. efficiency (%) |
82.88% |
70.00% |
72.00% |
| Speed (rpm) |
39478 |
26371 |
22751 |
| Current (mA) |
606 |
472 |
435 |
| Torque (g.cm) |
9.17 |
4.52 |
4.95 |
| At Max. Output |
Max. output (W) |
12.29 |
2.53 |
2.47 |
| Speed (rpm) |
21511 |
15347 |
13153 |
| Current (mA) |
3401.9 |
1479 |
1427 |
| Torque (g.cm) |
55.68 |
16.05 |
18.31 |
| At Stall |
Stall current (A) |
0.68 |
2881 |
2786 |
| Stall torque (g.cm) |
111.35 |
32.09 |
36.62 |
📊 Motor Characteristics
| Thermal & Mechanical Parameters |
|---|
| 18 | Ambient temperature (ºC) | -20~+65 |
| 19 | Max. permissible winding temp (ºC) | 85 |
| 20 | Max. No-load speed (rpm) | 45000 |
| 21 | Max. axial load (dynamic) (N) | 0.15 |
| 24 | Weight (g) | 7.5 |
Notes:
1. Rotation direction, wire specification and performance can be customized.

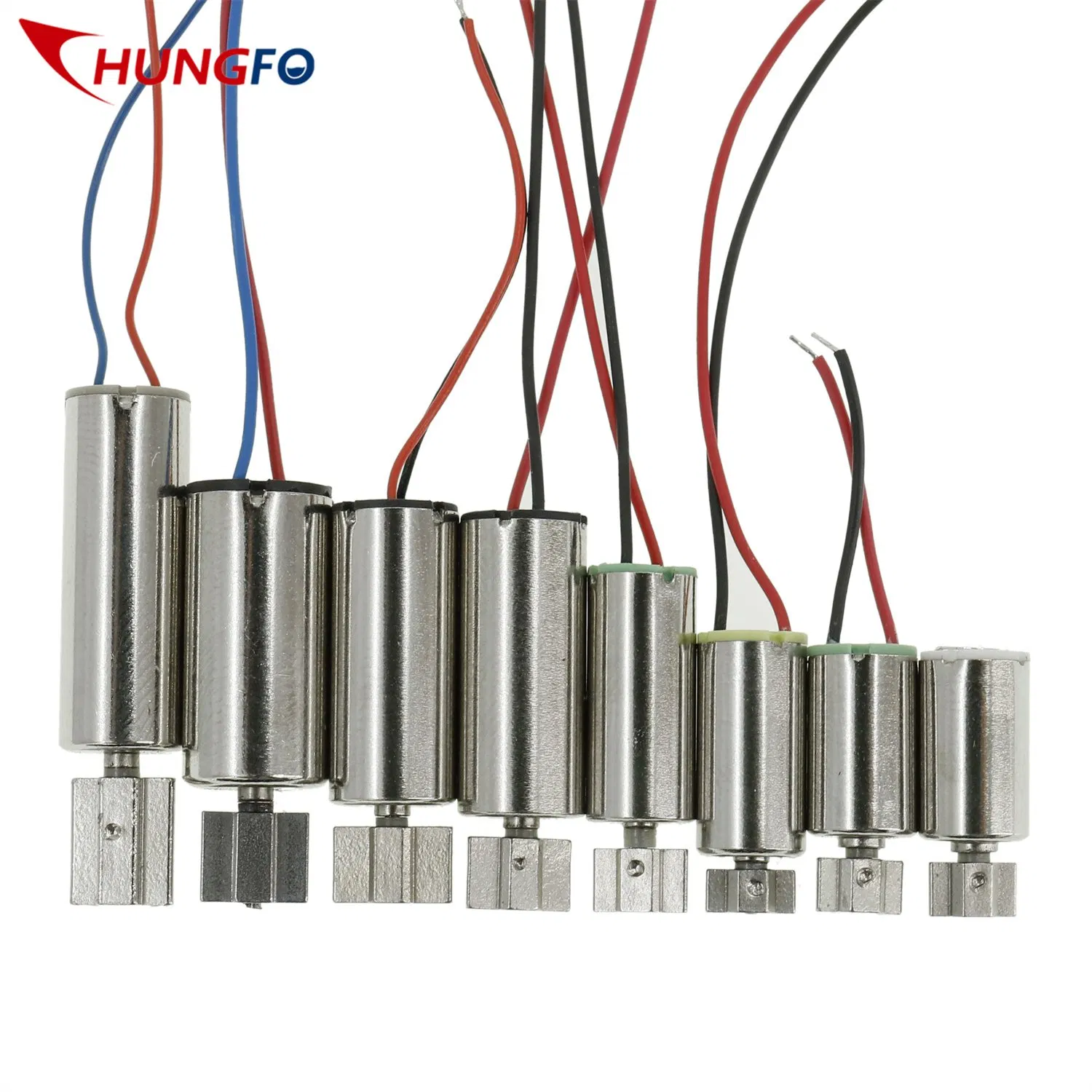

2. Can be mounted with iron, brass or ferro-alloy eccentric weights.
3. Conversions: 1g=0.035oz | 1inch=25.4mm | 1g.cm=0.098mN.m

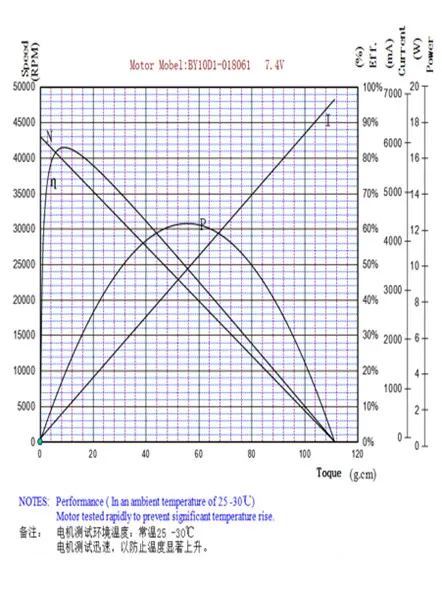

Typical Performance Chart

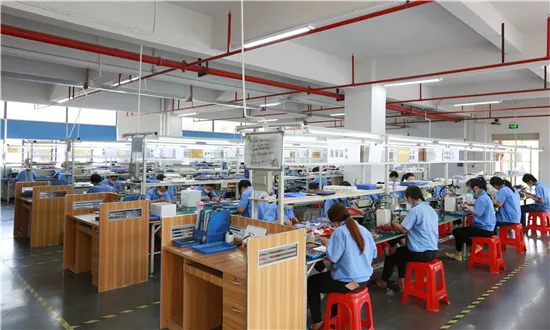

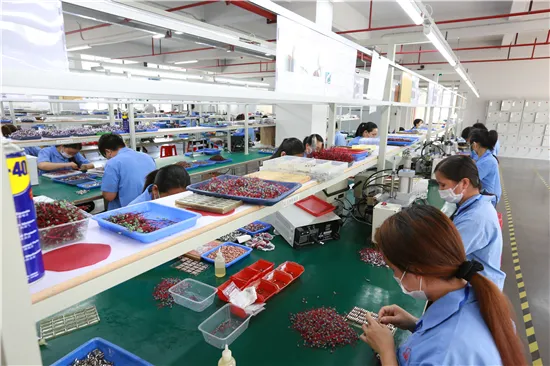

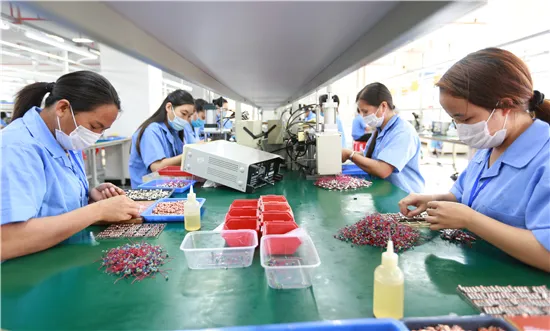

🏭 Factory & Production
📱 Appliance & Applications
Frequently Asked Questions
What are the main advantages of the 10D series coreless motor?
The 10D series features a coreless design with precious metal brushes, offering high efficiency (up to 82.88%), compact size (10mm diameter), and rapid acceleration, making it ideal for precision RC toys and spindle applications.
Can the motor performance parameters be customized?
Yes, the rotation direction, wire specifications, and specific performance parameters such as speed and torque can be adjusted according to specific customer requirements.
What is the operating temperature range for these motors?
The standard ambient operating temperature range is -20ºC to +65ºC, with a maximum permissible winding temperature of 85ºC.
Are these motors compatible with vibration functions?
Absolutely. The motor can be mounted with various shapes and sizes of eccentric weights made of iron, brass, or ferro-alloy to function as a vibration motor.
What certifications do these coreless motors hold?
Our coreless motors are manufactured under strict quality control and are certified with ISO9001, RoHS, and CE standards.
What is the production capacity for this specific model?
We have a robust production capability of approximately 4 million pieces per month, ensuring a stable supply for high-volume industrial and consumer electronics orders.
