ⓘ Basic Information
Casing Protection
Closed Type
Transport Package
Standard Export Carton
Production Capacity
4 Million PCS/Month
⚙ Product Description

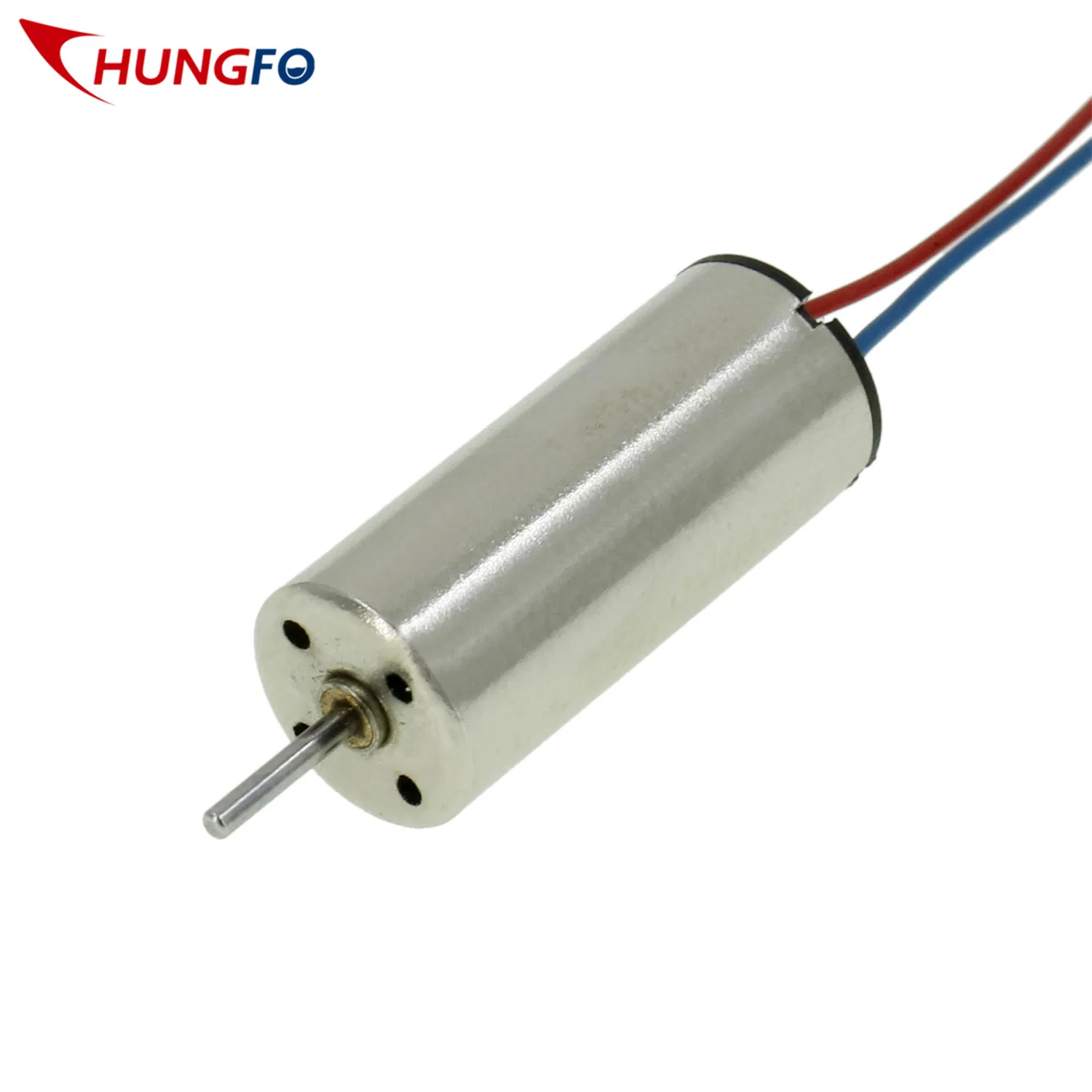

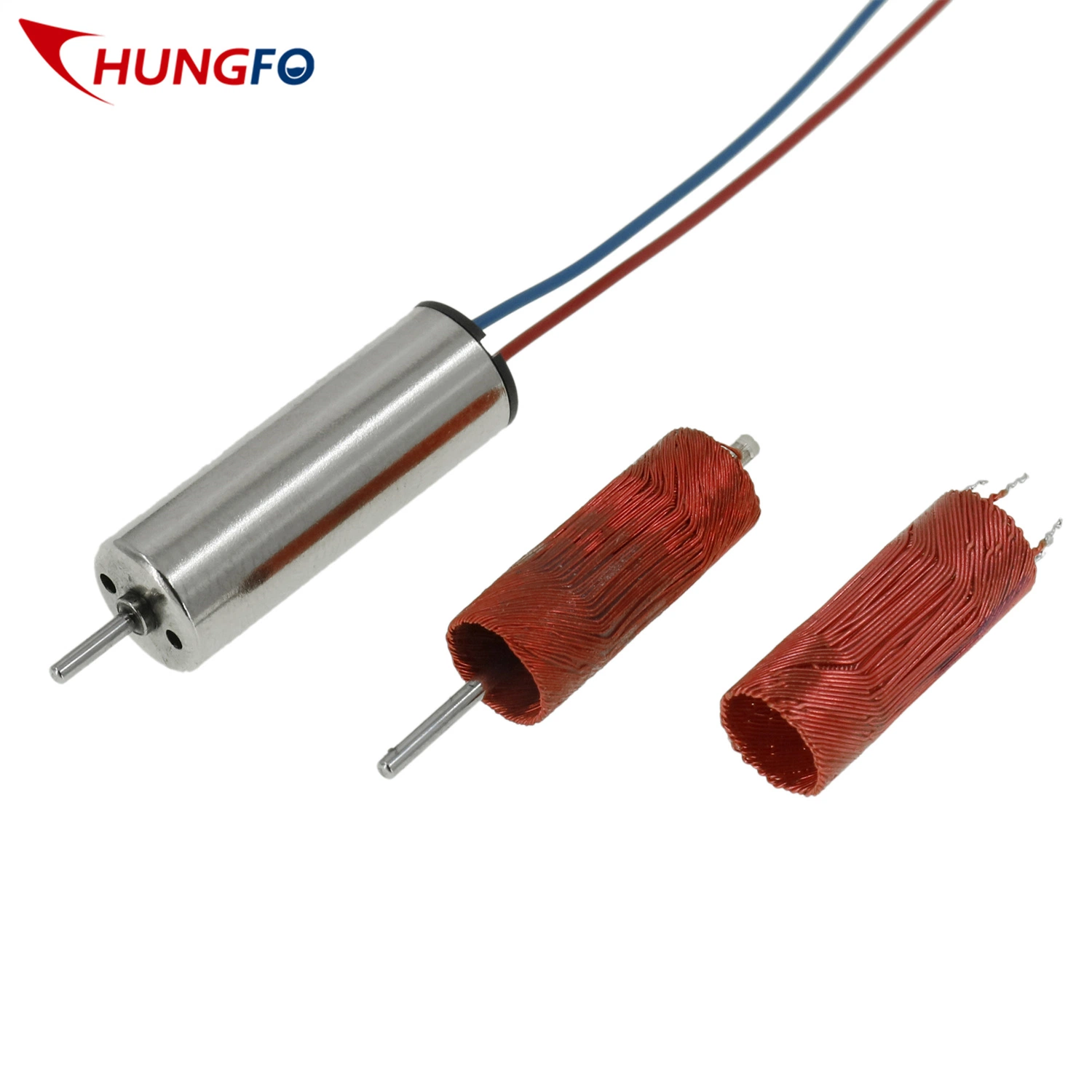

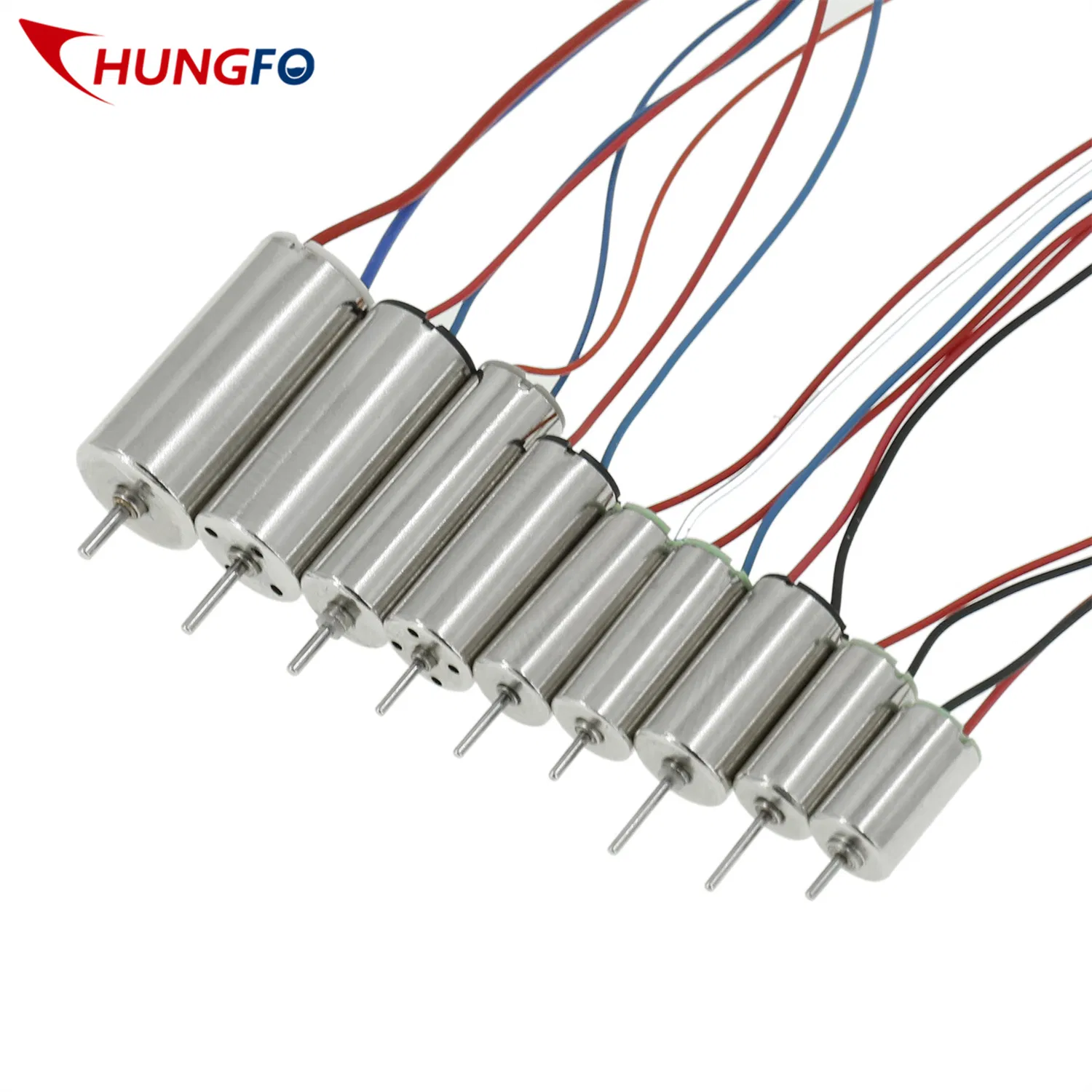

10B Series φ10mm x L15 Precious Metal Brushes Coreless Motor
| Motor Parameter |
Unit |
Value (10B1NA-040121) |
| 1 | Rated voltage | V | 7.4 |
| 2 | No load speed | rpm | 60462 |
| 3 | No load current | mA | 112 |
| 4 | Max. efficiency | % | 67.42% |
| 5 | Speed at Max. efficiency | rpm | 51254 |
| 6 | Current at Max. efficiency | mA | 6223 |
| 7 | Torque at Max. efficiency | g.cm | 5.9 |
| 8 | Max. output | W | 6.01 |
| 9 | Speed at Max. output | rpm | 30231 |
| 10 | Current at Max. output | mA | 1788 |
| 11 | Torque at Max. output | g.cm | 19.38 |
| 12 | Stall current | A | 3.45 |
| 13 | Stall torque | g.cm | 38.76 |
| Motor Constants |
| 14 | Terminal resistance | Ω | 1.75 |
| 15 | Torque constant | g.cm/A | 11.562 |
| 16 | Speed constant | rpm/V | 8443 |
| 17 | Speed/Torque constant | rpm/g.cm | 1559.7 |

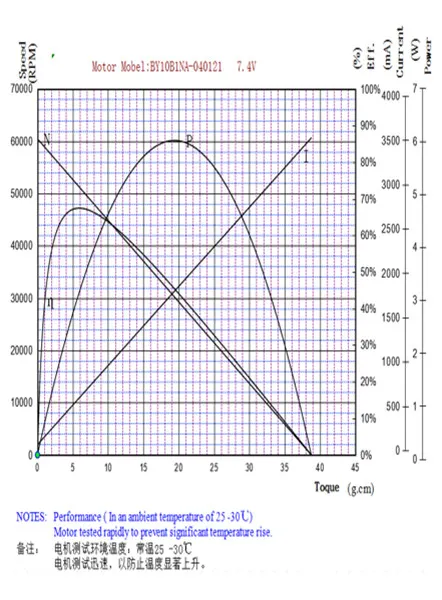

📊 Motor Characteristics
| Thermal & Mechanical Parameters |
|---|
| 18 | Ambient temperature | -20~+65 ºC |
| 19 | Max. winding temperature | 85 ºC |
| 20 | Max. No-load speed | 50000 rpm |
| 21 | Max. axial load (dynamic) | 0.15 N |
| 22 | Number of pole pairs | 1 |
| 23 | Commutator segments | 3~5 |
| 24 | Weight | 5.8 g |
Remarks:
1. Rotation direction, wire specification and performance parameters can be customized.
2. Motor can be mounted with various shapes and sizes of eccentric weights (iron, brass or ferro-alloy).
3. Dimensions marked with "*" can be adjusted per requirements.

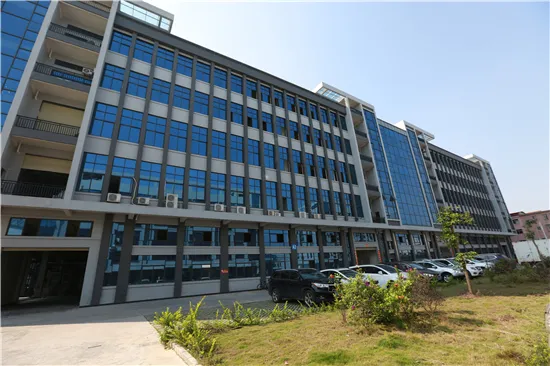

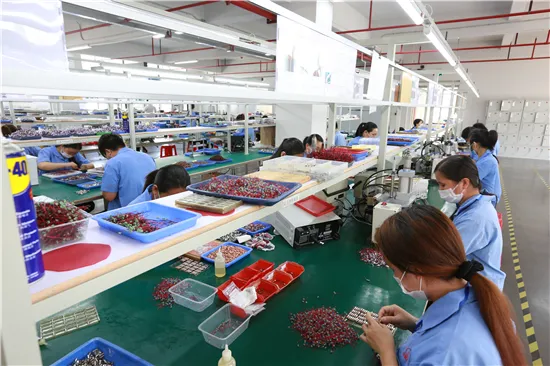

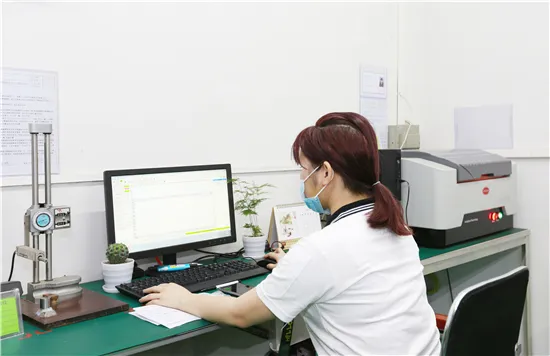

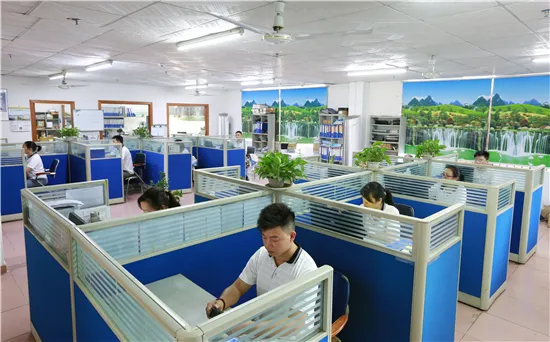

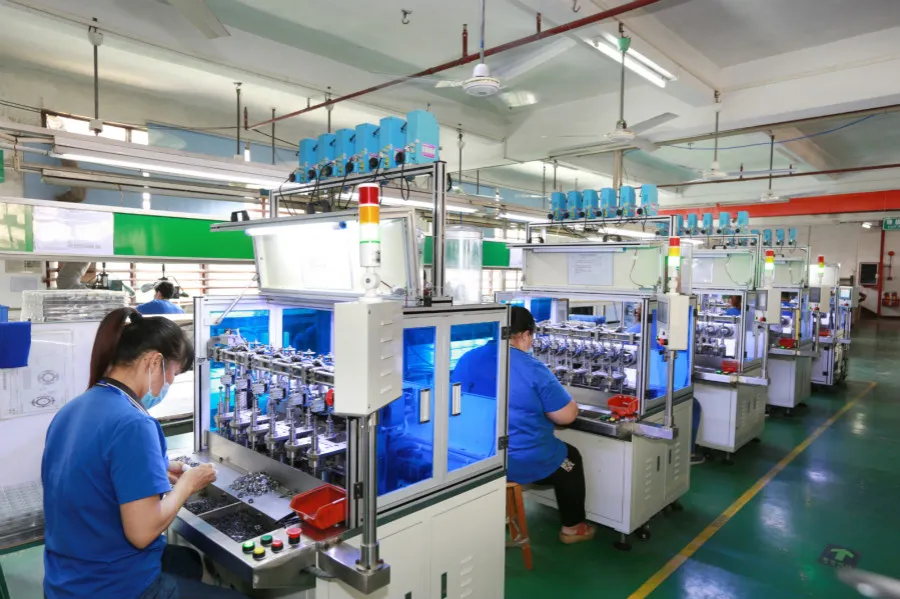

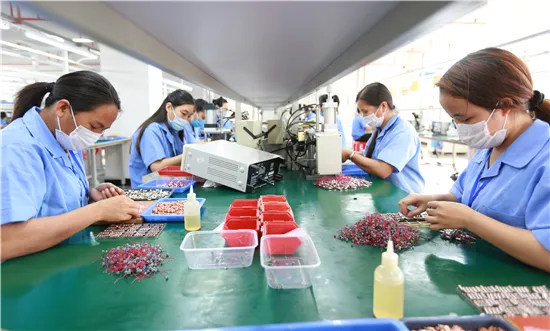

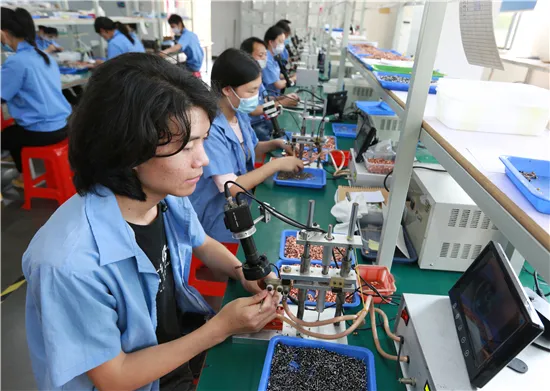

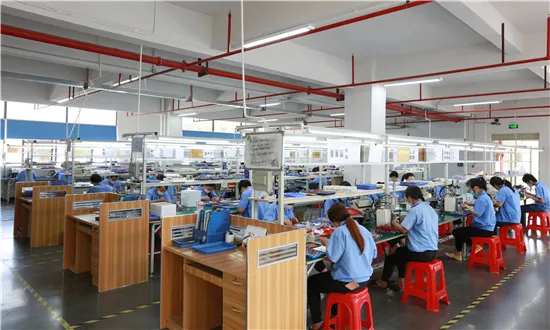

🏭 Factory & Production
💡 Applications
Frequently Asked Questions
What is the rated voltage for the 10B series coreless motor?
The standard rated voltage for this model is 7.4V DC, providing a high-speed output of over 60,000 rpm under no-load conditions.
Can the technical specifications be customized?
Yes, we can customize the rotation direction, wire specifications, and performance parameters (speed, torque, etc.) to meet your specific requirements.
Is this motor suitable for vibration-related functions?
Absolutely. The motor can be equipped with various sizes of eccentric weights made from iron, brass, or ferro-alloy to serve as an efficient vibration motor.
What are the physical dimensions of the 10B1015 model?
This motor features a compact design with a 10mm diameter and a body length of 15mm, weighing approximately 5.8g.
What is the production capacity for this motor?
Our facility has a robust production capacity of approximately 4 million pieces per month, ensuring reliable supply for large-scale orders.
What certifications does the product hold?
The manufacturing process and the products are certified under ISO9001 standards, ensuring consistent quality and performance.
