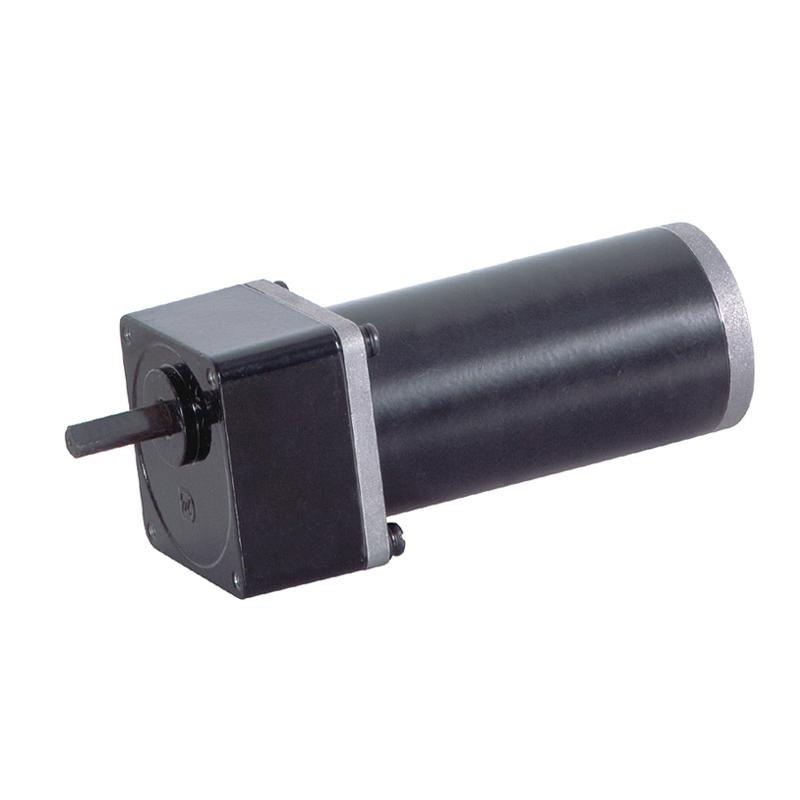

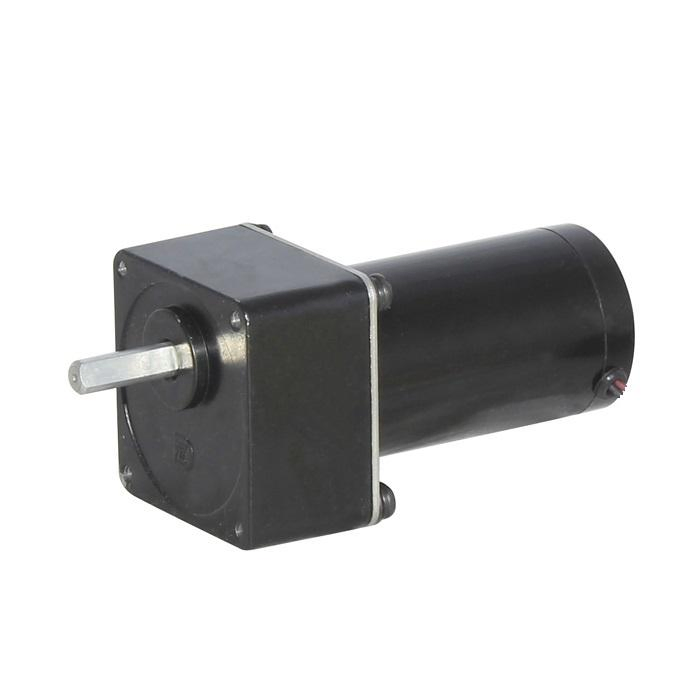

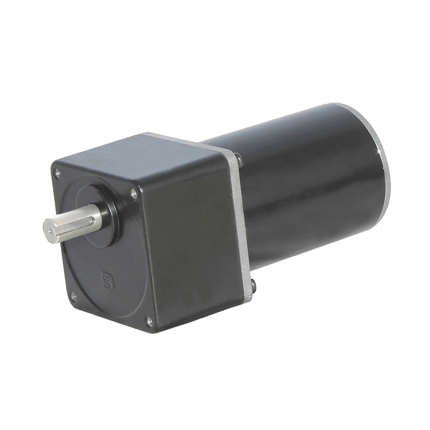

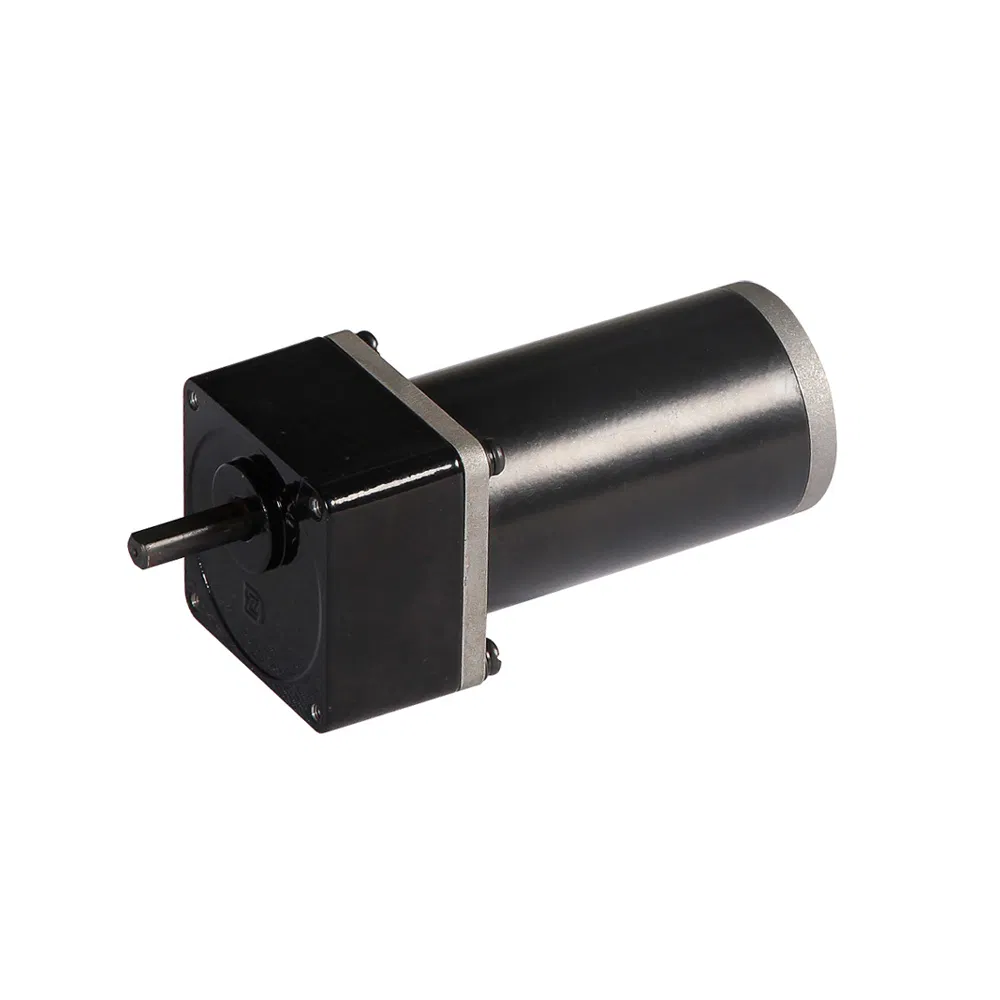

60mm Integrated Gearbox, All Equipped with Ball Bearings, DC Spur Gear Motor

1 / 5

60mm Integrated Gearbox, All Equipped with Ball Bearings, DC Spur Gear Motor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:60JB50K/52ZY95

Excitation Mode:Excited

Function:Control, Driving

Casing Protection:Closed Type

Number of Poles:2

Structure:Brush Principle

Certification:ISO9001, CCC, RoHS

Gearbox & Motor Dia:60mm & 52mm

No Load Speed:2000~3000 Rpm

Rated Load Torque:5 N.M (Max)

Gear Ratio:1:3~1:90

Production Capacity:1000 PCS / Day

Product Description

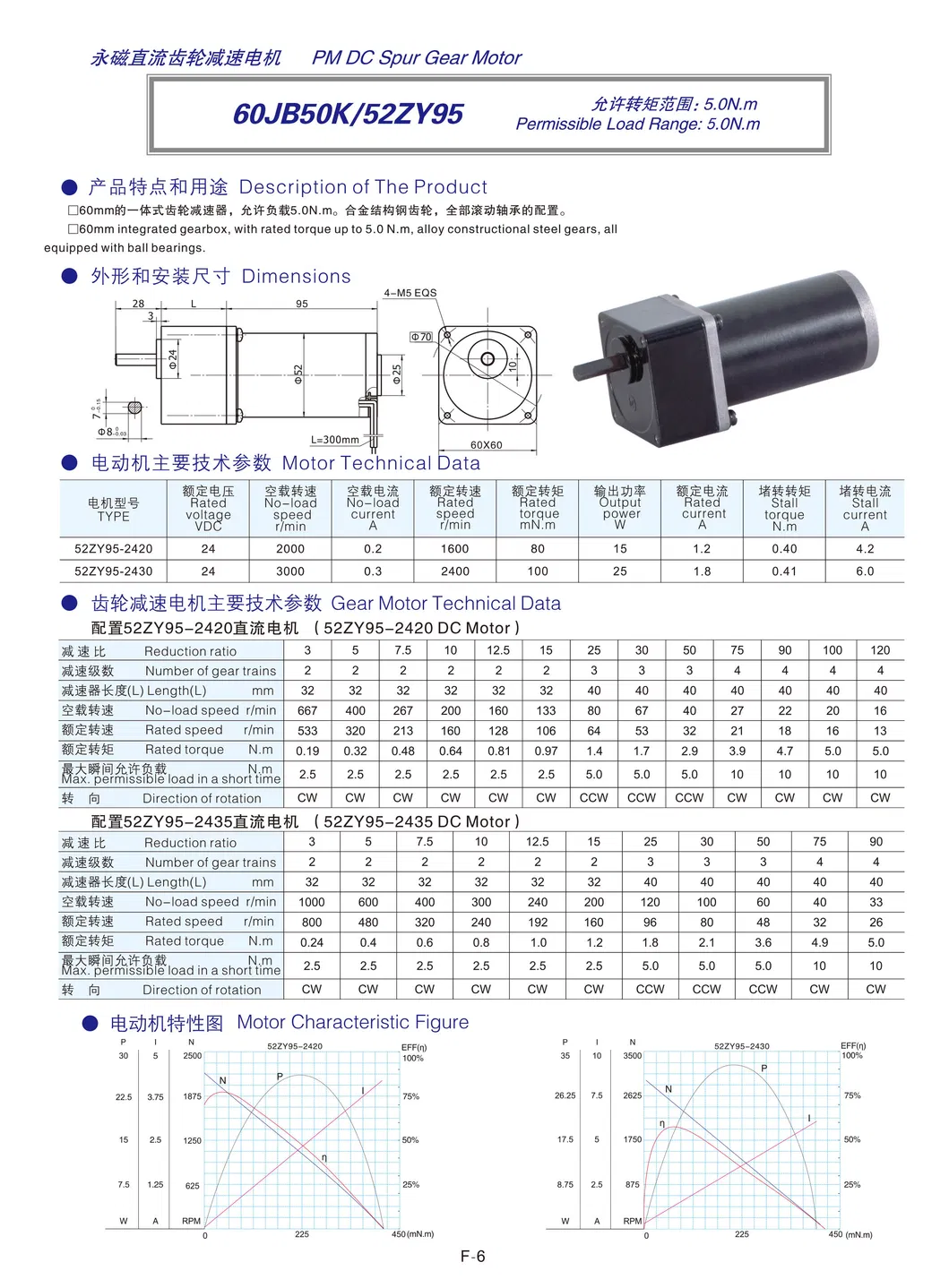

60mm Integrated Gearbox DC Spur Gear Motor

Dimensions (mm)	Rated Voltage (V)	Rated Speed (r/min)	Reduction Ratio	Rated Torque (N.m)
37	12~24	2300-4300	1:6-1:3000	0.03-1.0
60	12~24	1600-2400	1:3-1:150	0.19-5.0
70	12~24	1600-2400	1:50-1:150	2.7-8.0
80	12~24	1600-2600	1:3-1:75	0.49-10.0
90	12~24	1700-2600	1:3-1:75	0.86-17.0
104	12~24	1700-3000	1:3-1:75	1.6-30.0

★

Key Features:
The planetary gearbox for transmission is widely matched with DC motor and BLDC motor. It shows characters of high torque and controllability as well as high lasting torque. The perfect combination fully expresses the product's compact size and high torque capabilities.

Logistics & Service

Packaging & Shipping:

Waterproof plastic bag packed in foam box and carton as outer packing.
Standard export wooden box packaging for specialized products.
Capability to ship worldwide with on-time delivery assurance.

Why Choose This Solution:

Innovative technical solutions from a talented engineering team.
One-stop supplier for complete sub-systems.
Quality products provided at competitive low costs.
Fast service on return and repair results.
Professional manufacturing of high-quality AC/DC gear motors for industrial automation, medical equipment, and solar tracking systems.

Frequently Asked Questions

Q1: What are the main applications for this gear motor?

A: These motors are widely used in industrial automation, medical equipment, financial instruments, office automation, and solar automatic tracking systems.

Q2: What is the maximum torque capacity of the 60mm series?

A: The 60mm integrated gearbox can provide a rated torque of up to 5.0 N.m depending on the specific reduction ratio.

Q3: Are these motors compliant with international standards?

A: Yes, the products carry CCC, CE, RoHS, and REACH certifications, ensuring they meet strict safety and environmental requirements.

Q4: Can the gear ratio be customized?

A: We offer a wide range of standard reduction ratios from 1:3 up to 1:3000 across different dimension series to meet diverse mechanical needs.

Q5: How is the product protected during international shipping?

A: Products are secured in waterproof plastic bags, housed in shock-absorbing foam boxes, and finally packed in sturdy export-grade cartons or wooden boxes.

Q6: Does the motor feature ball bearings?

A: Yes, the 60mm integrated gearbox models are fully equipped with high-quality ball bearings for enhanced durability and smooth operation.
