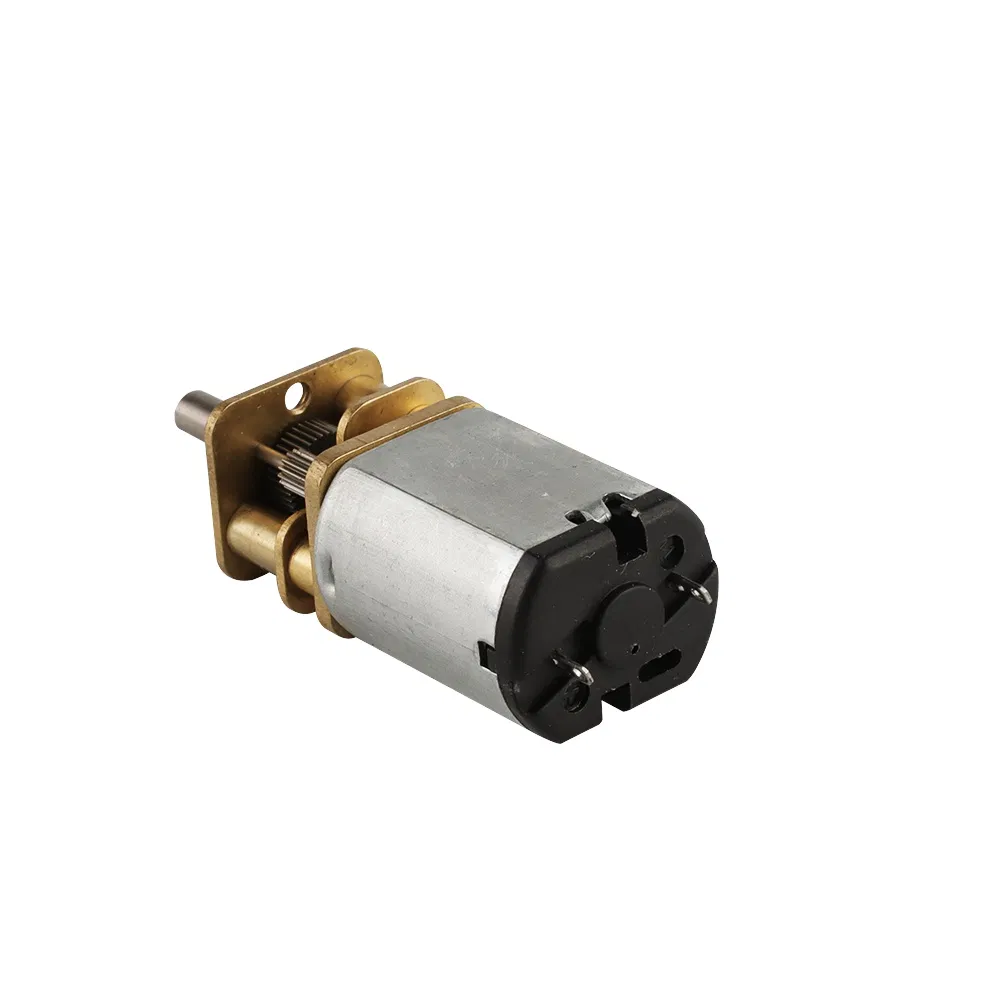

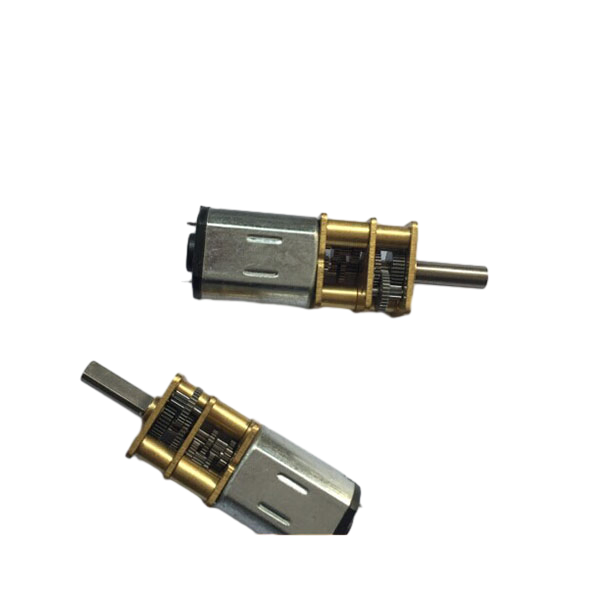

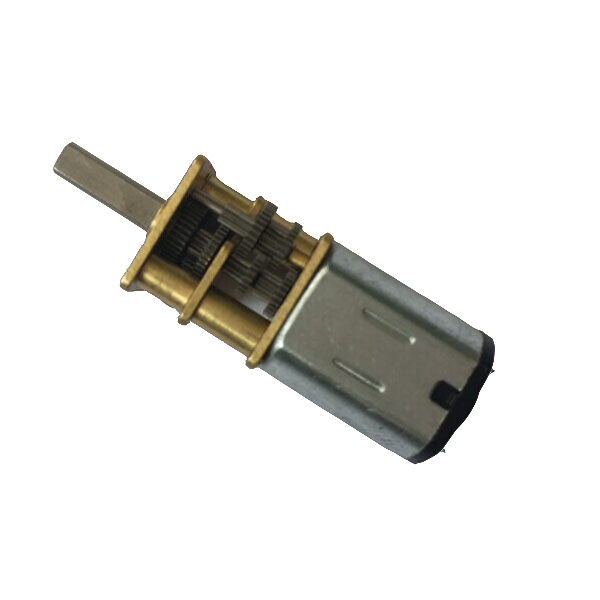

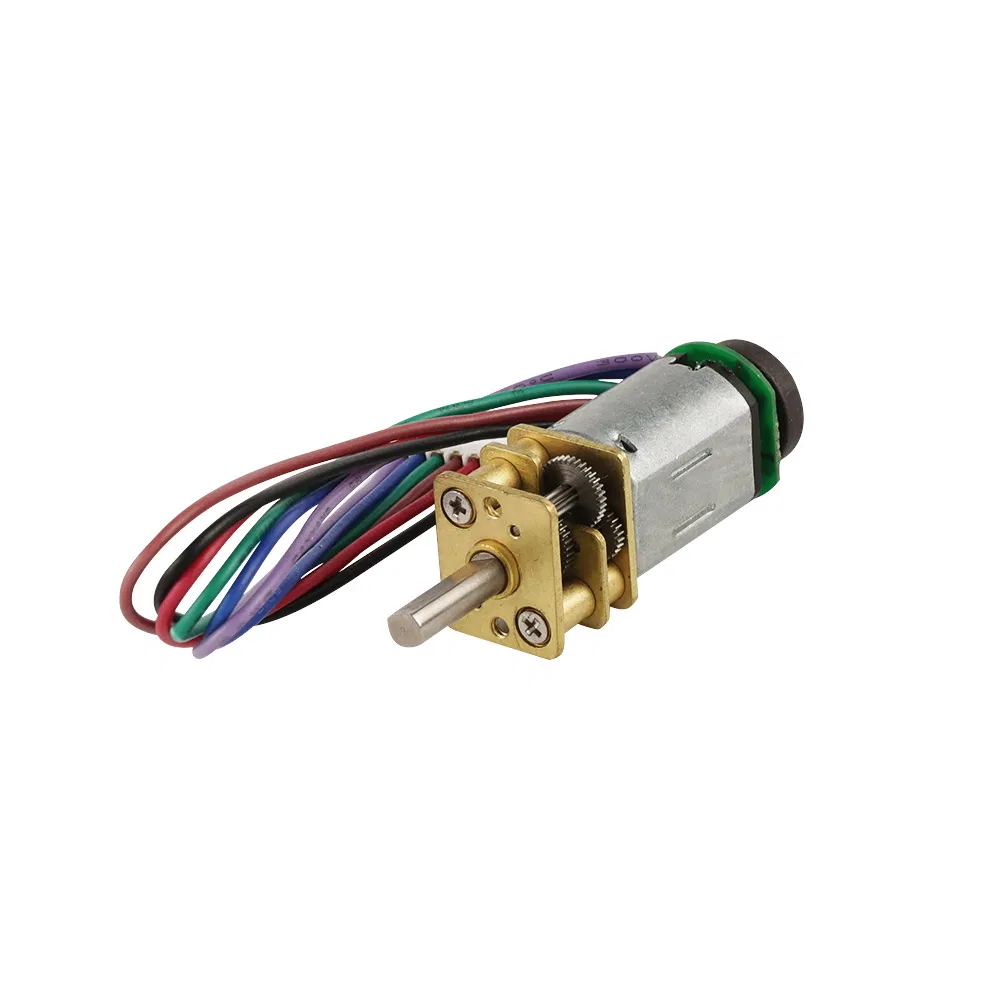

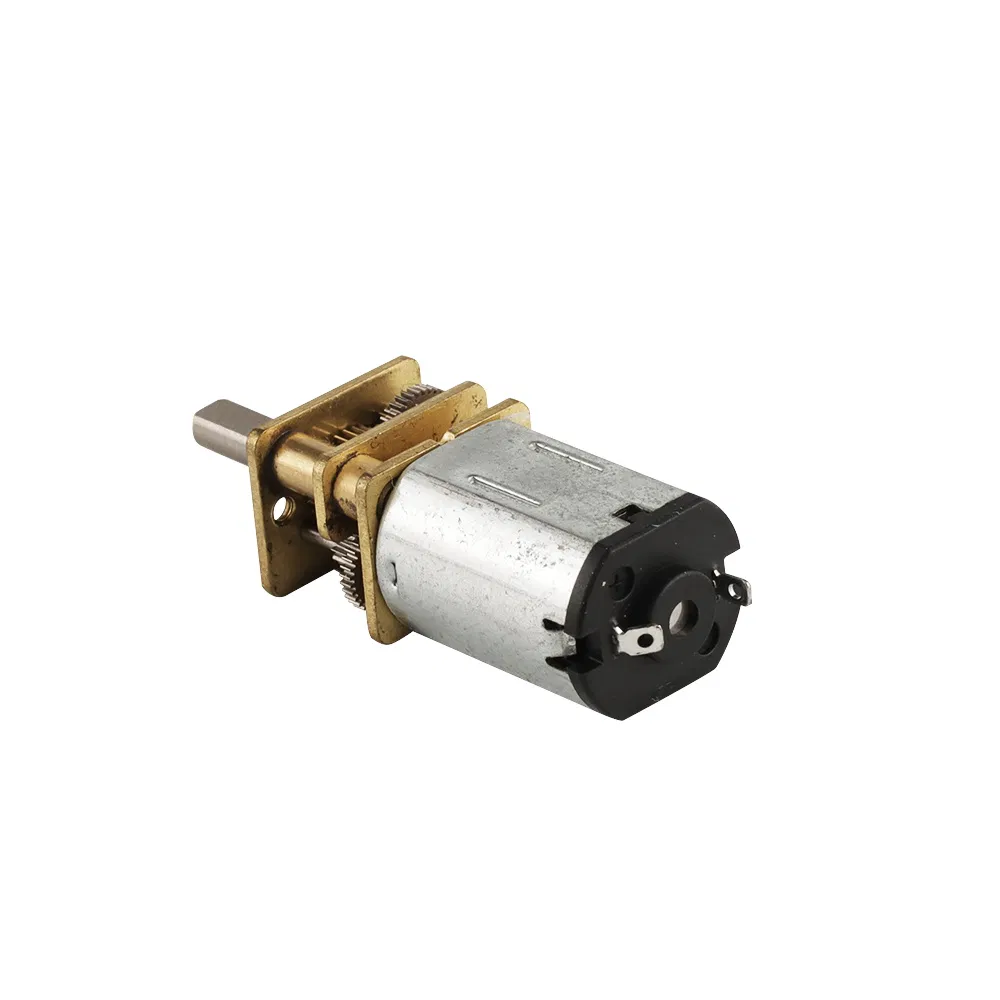

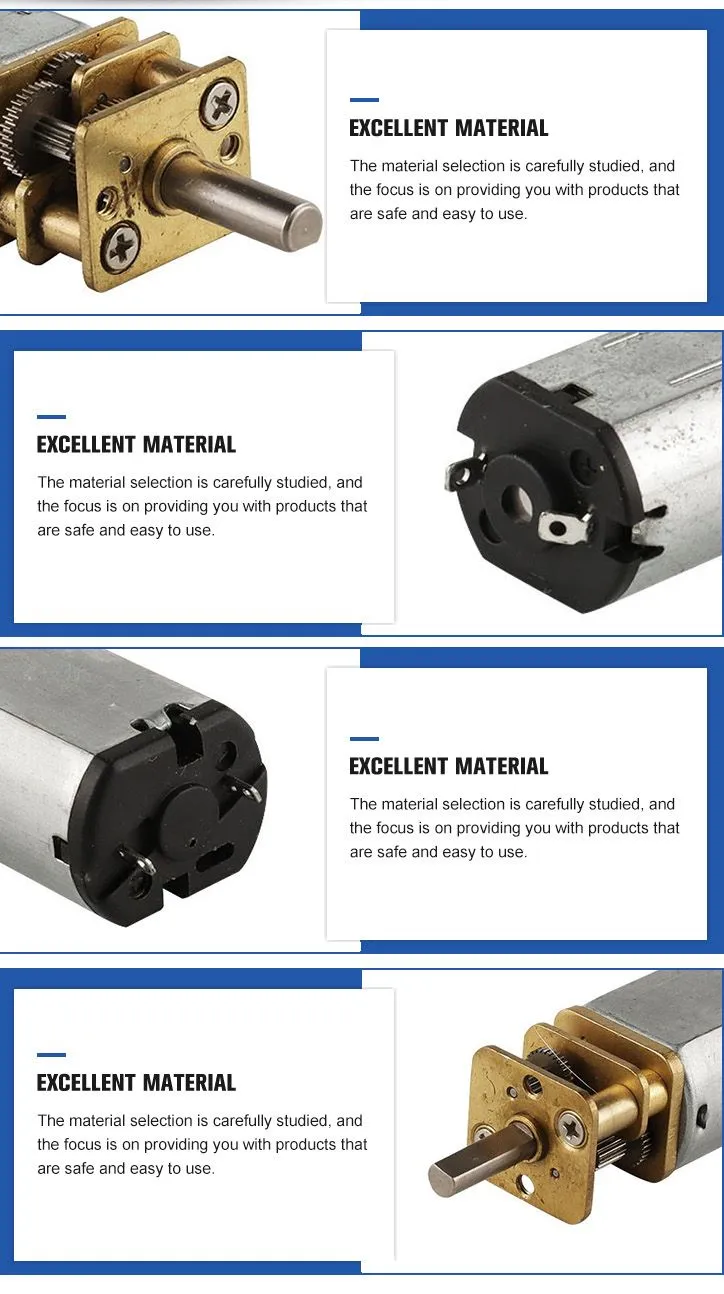

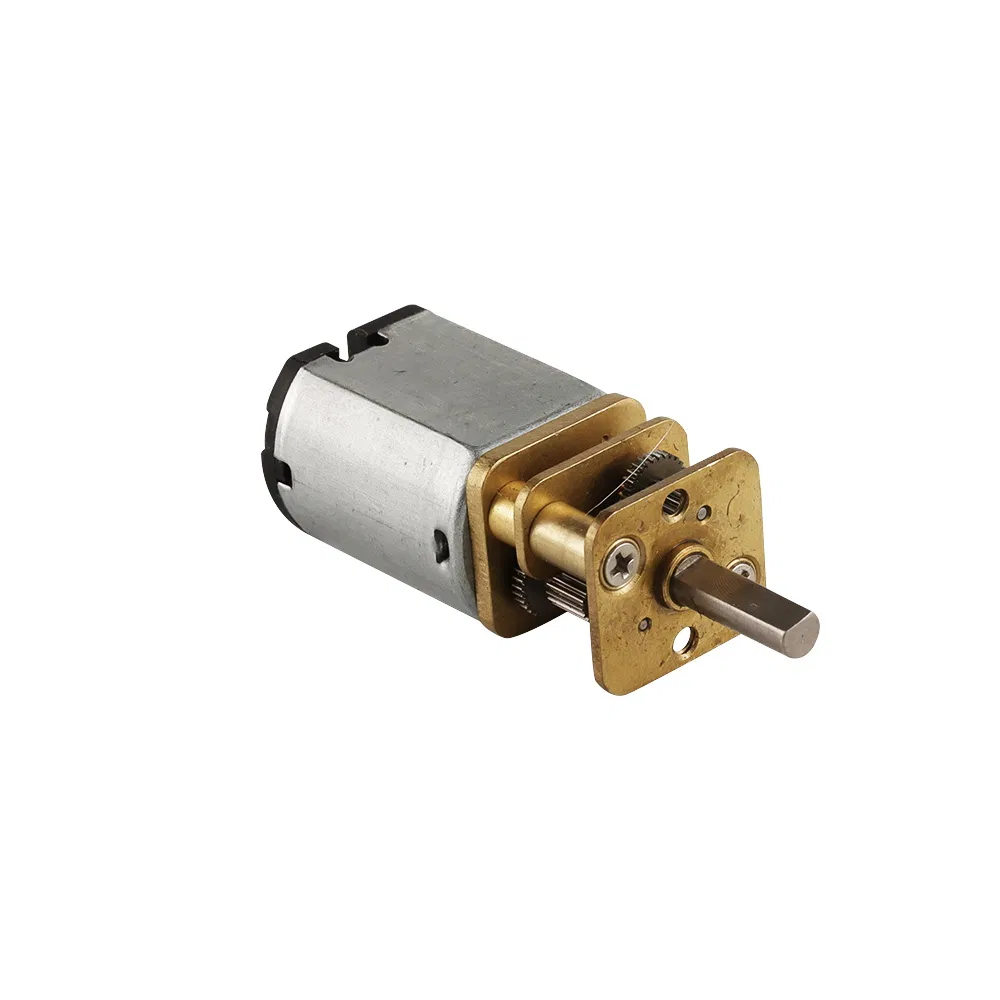

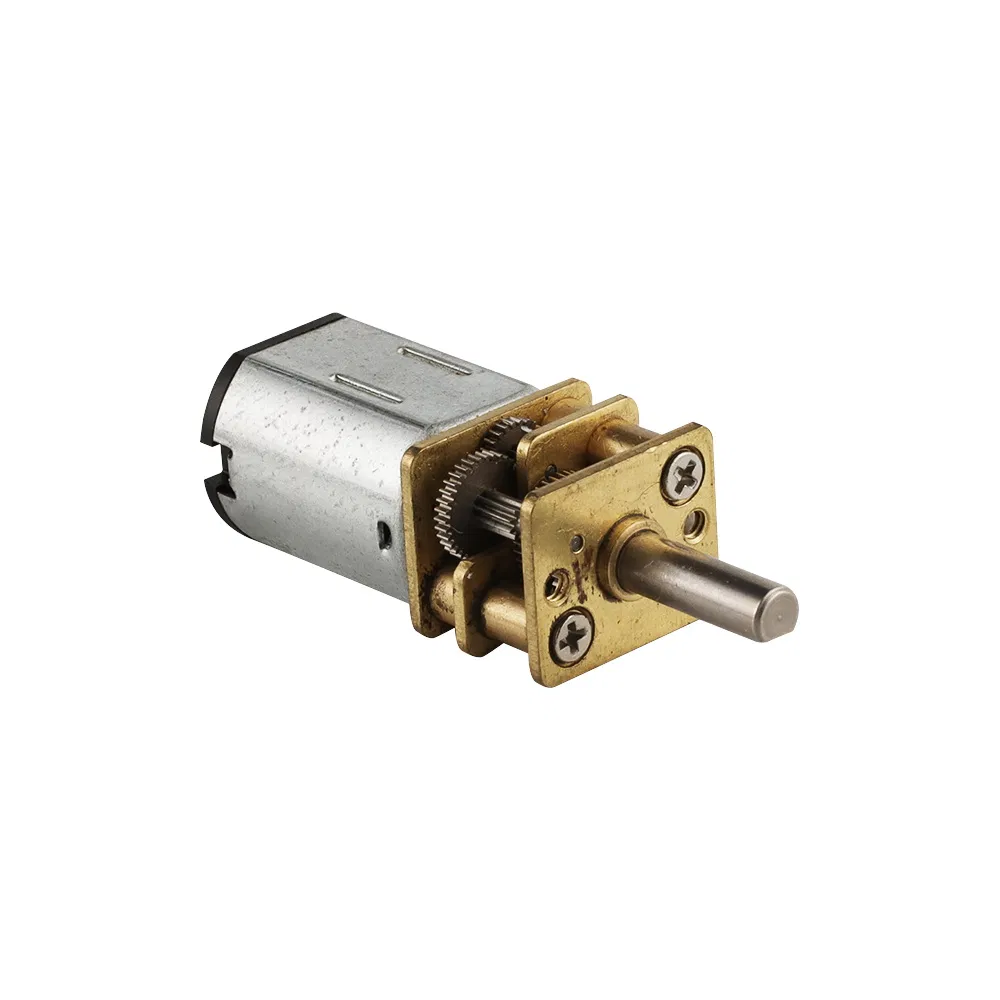

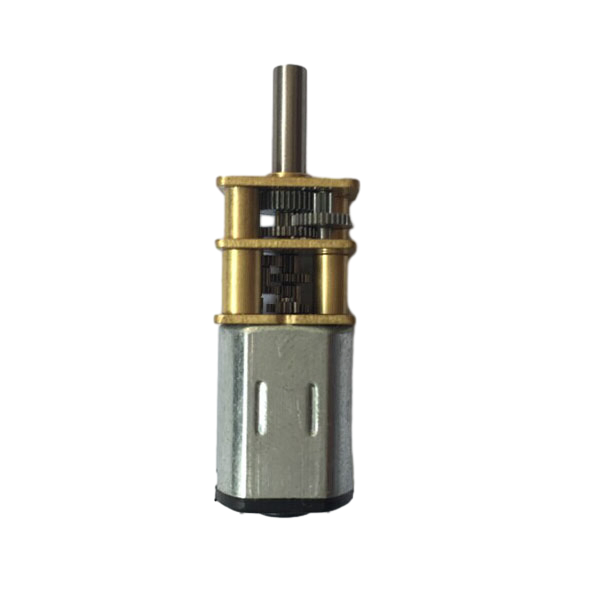

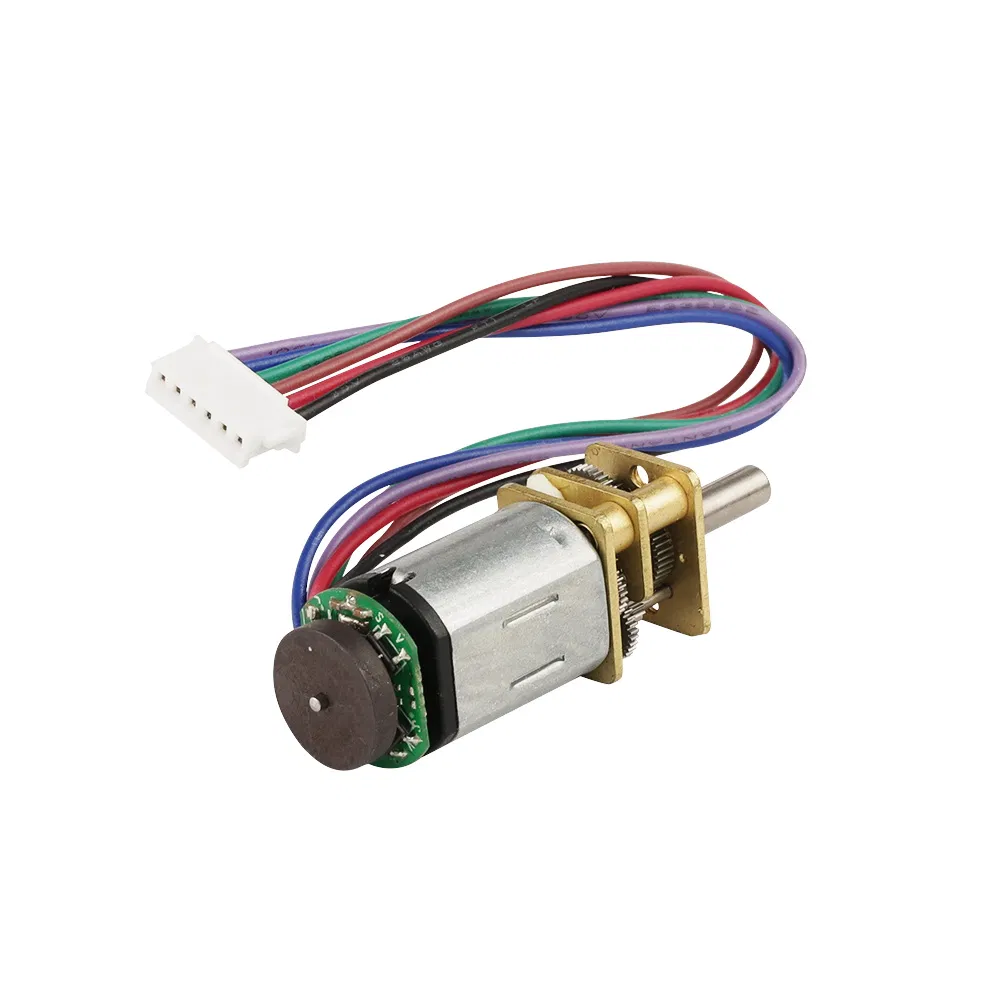

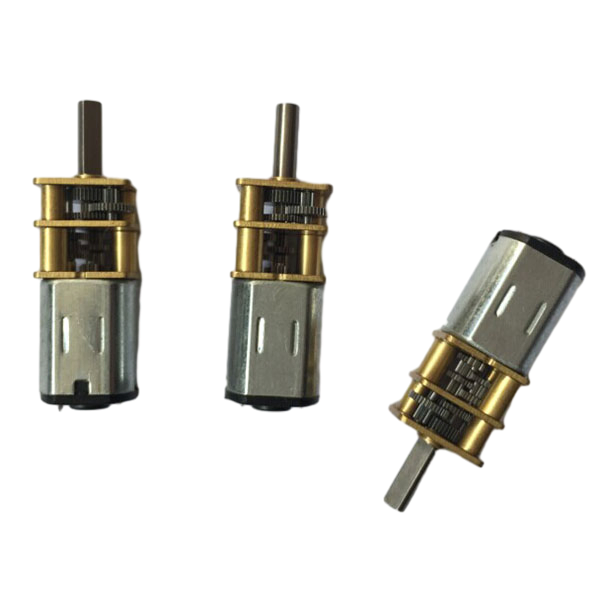

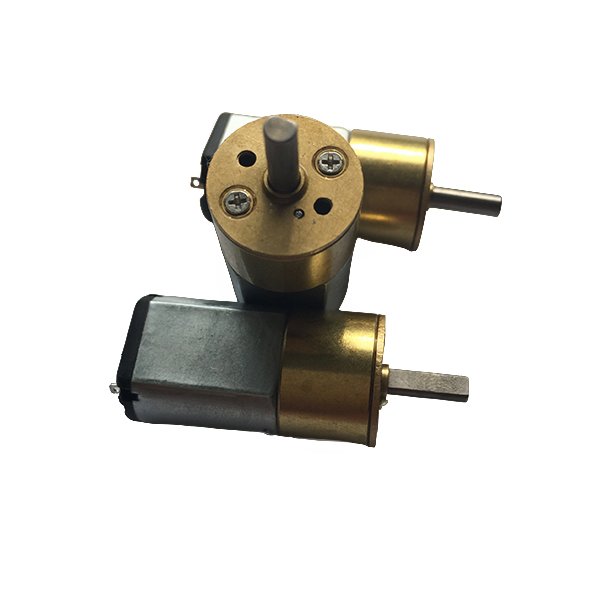

The 12mm DC Motor Encoder Gearbox is a compact, high-torque motor solution with low RPM, specifically engineered for diverse industrial and consumer applications. These high-quality motors (N10, N20, N30 series) feature gearboxes constructed from durable steel for exceptional longevity and wear resistance.
This motor series is ideal for electronic door locks, shared bicycles, robotics, automatic window curtains, household appliances, and precision medical devices.

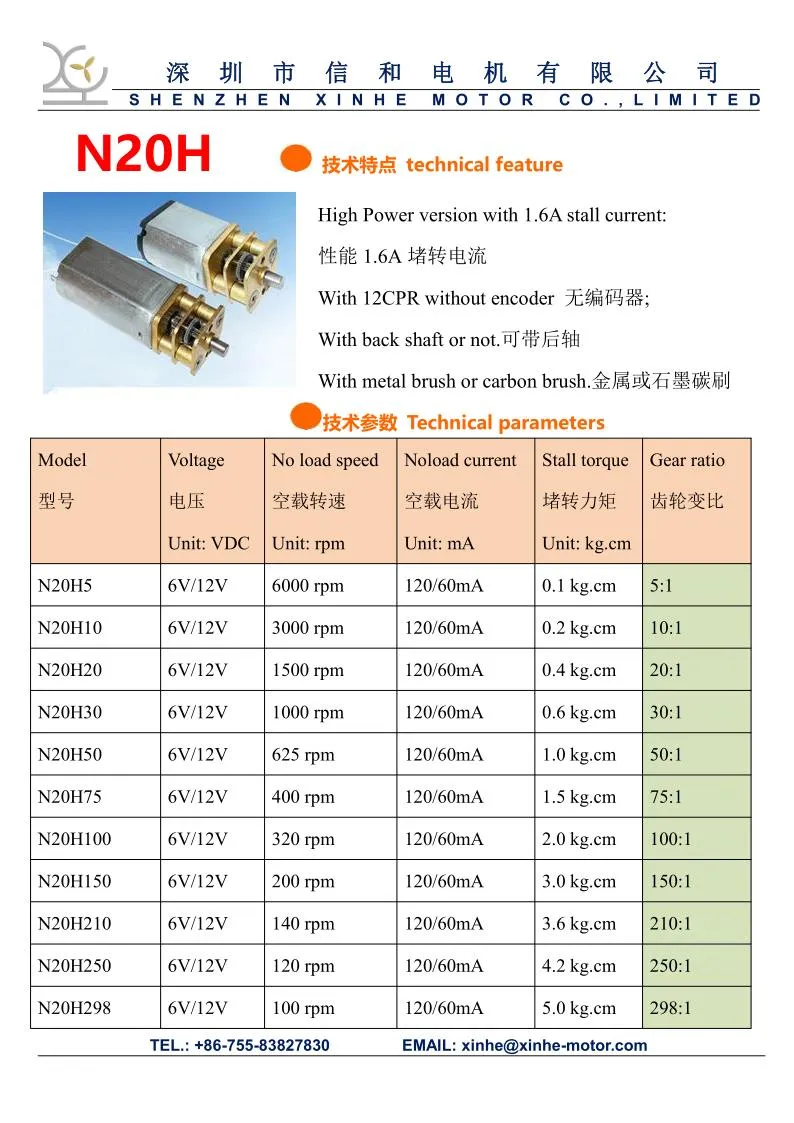

| Model | Voltage (VDC) | No Load Speed (rpm) | No Load Current (mA) | Stall Torque (kg.cm) | Gear Ratio |
|---|---|---|---|---|---|
| N20H5 | 6V/12V | 6000 | 120/60 | 0.1 | 5:1 |
| N20H30 | 6V/12V | 1000 | 120/60 | 0.6 | 30:1 |
| N20H100 | 6V/12V | 320 | 120/60 | 2.0 | 100:1 |
| N20H298 | 6V/12V | 100 | 120/60 | 5.0 | 298:1 |
| N20H1000 | 6V/12V | 32 | 120/60 | 9.0 | 1000:1 |

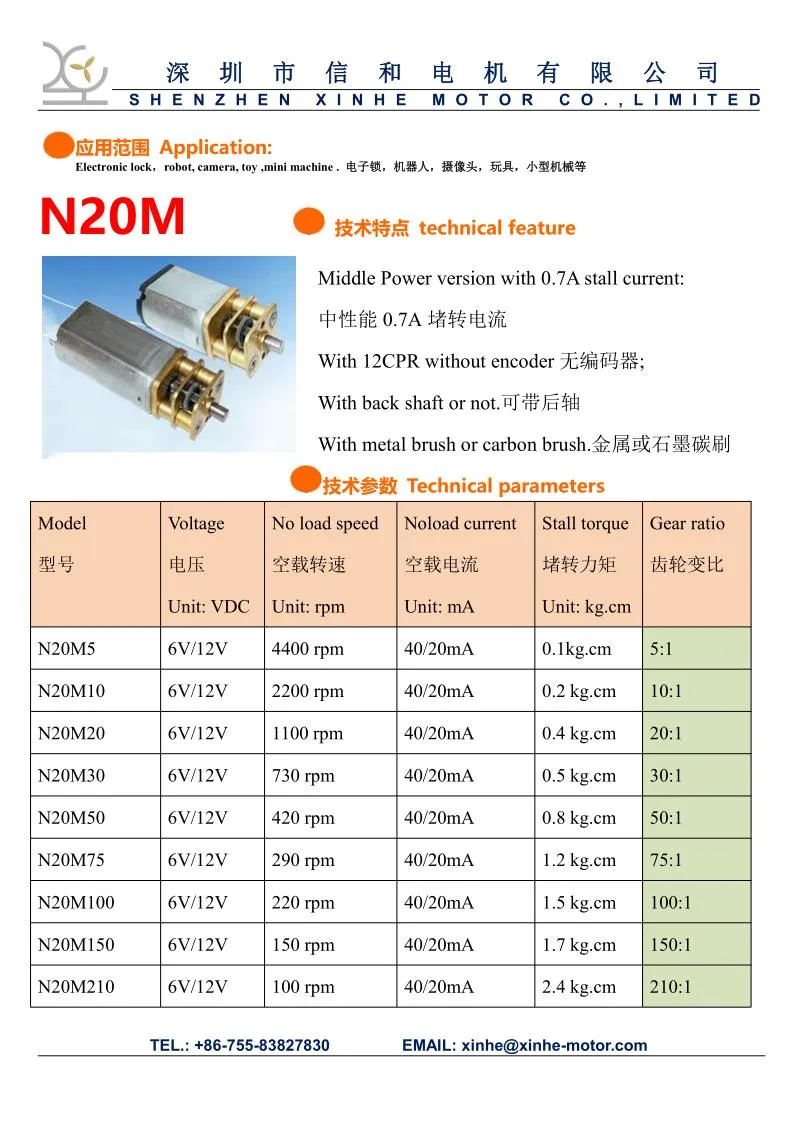

| Model | Voltage (VDC) | No Load Speed (rpm) | No Load Current (mA) | Stall Torque (kg.cm) | Gear Ratio |
|---|---|---|---|---|---|
| N20M5 | 6V/12V | 4400 | 40/20 | 0.1 | 5:1 |
| N20M50 | 6V/12V | 420 | 40/20 | 0.8 | 50:1 |
| N20M210 | 6V/12V | 100 | 40/20 | 2.4 | 210:1 |
| N20M1000 | 6V/12V | 22 | 40/20 | 6.0 | 1000:1 |
