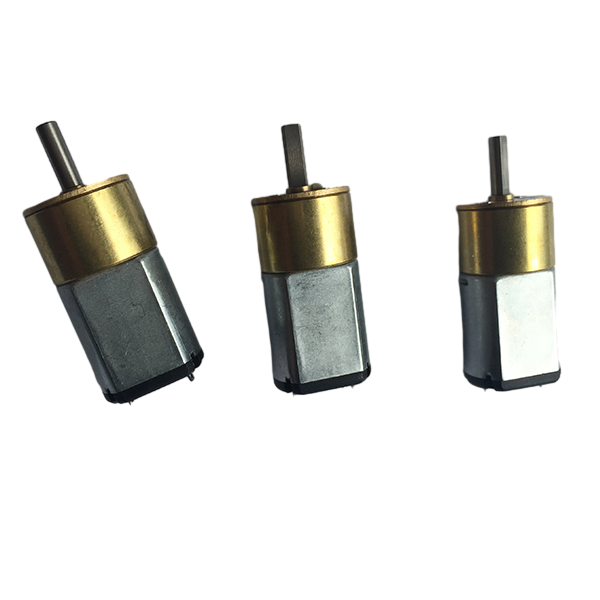

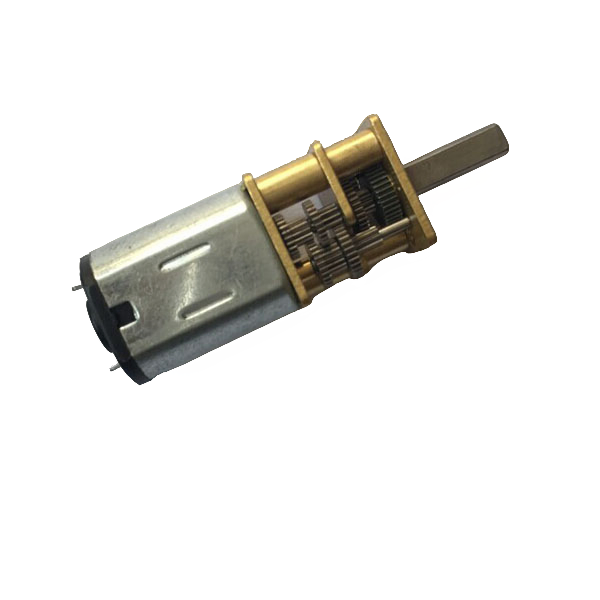

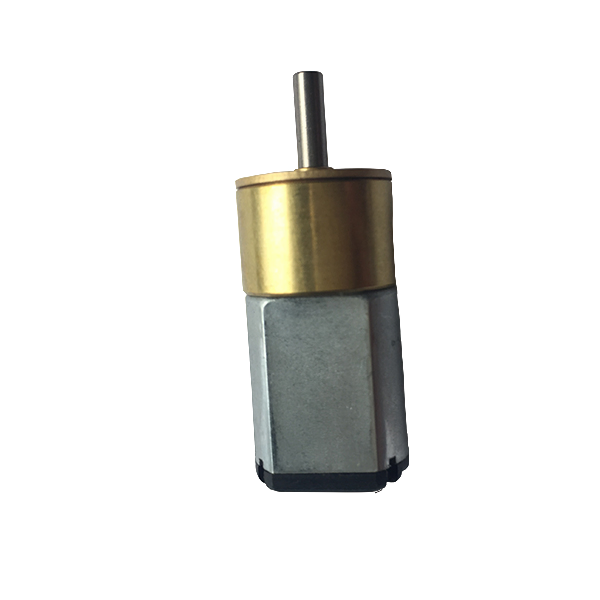

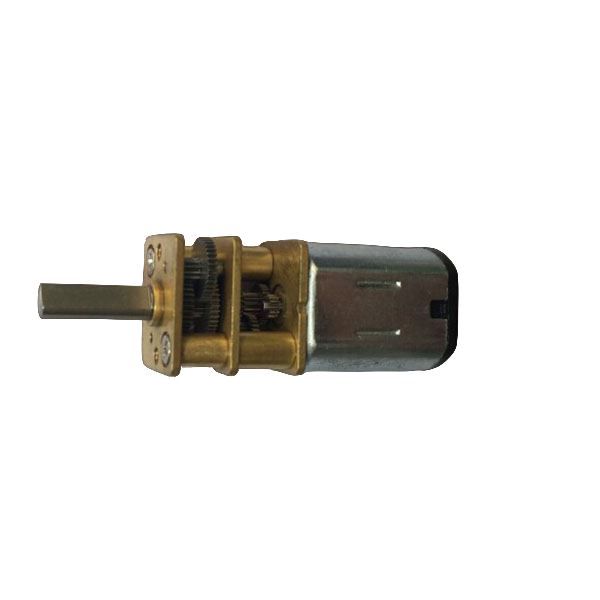

12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor
12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor
12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor
12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor
12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor
1 / 5
12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor
12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor
12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor
12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor
12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor

12mm Diameter Spur Gear Motor 6V High Torque Brushed DC Motor 3V DC Geared Motor

Customization: Available
Application: DC Gear Motor
Operating Speed: Low Speed
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
n20
Excitation Mode
Excited
Function
Driving
Casing Protection
Open Type
Number of Poles
2
Structure
Brush
Type
Z2
Certification
RoHS, CE
Gear
Spur Gear Motor
Diameter
12mm
Voltage
3V~12V
Speed Range
10~3000rpm
Power
0.2~1W
Gear Ratio
10:1~1000:1
Noise Level
Less Than 35dB
Encoder
12PPR
!

Product Description

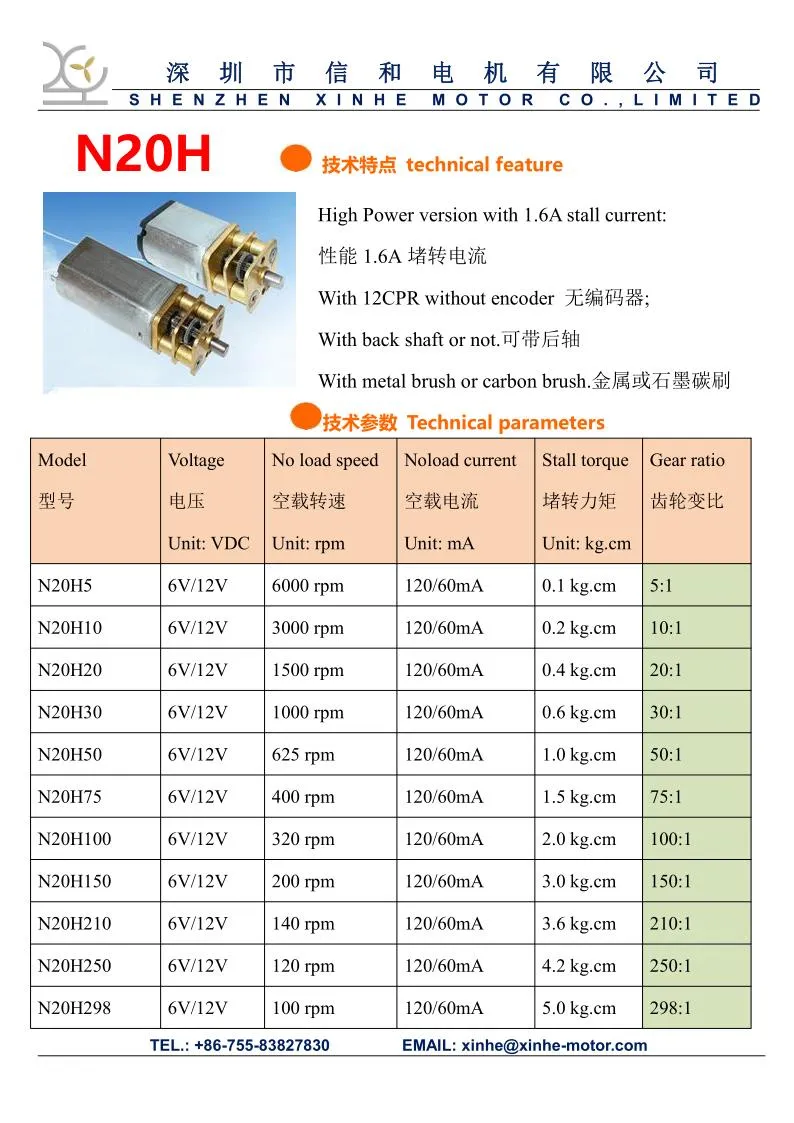

High Power version with 1.6A stall current: 1.6A. Features 12CPR without encoder, back shaft option, and choice of metal or carbon brush.

Model Voltage (VDC) No load speed (rpm) No load current (mA) Stall torque (kg.cm) Gear ratio
N20H56V/12V6000120/600.15:1
N20H106V/12V3000120/600.210:1
N20H206V/12V1500120/600.420:1
N20H306V/12V1000120/600.630:1
N20H506V/12V625120/601.050:1
N20H1006V/12V320120/602.0100:1
N20H2986V/12V100120/605.0298:1
N20H10006V/12V32120/609.01000:1
P

Detailed Photos

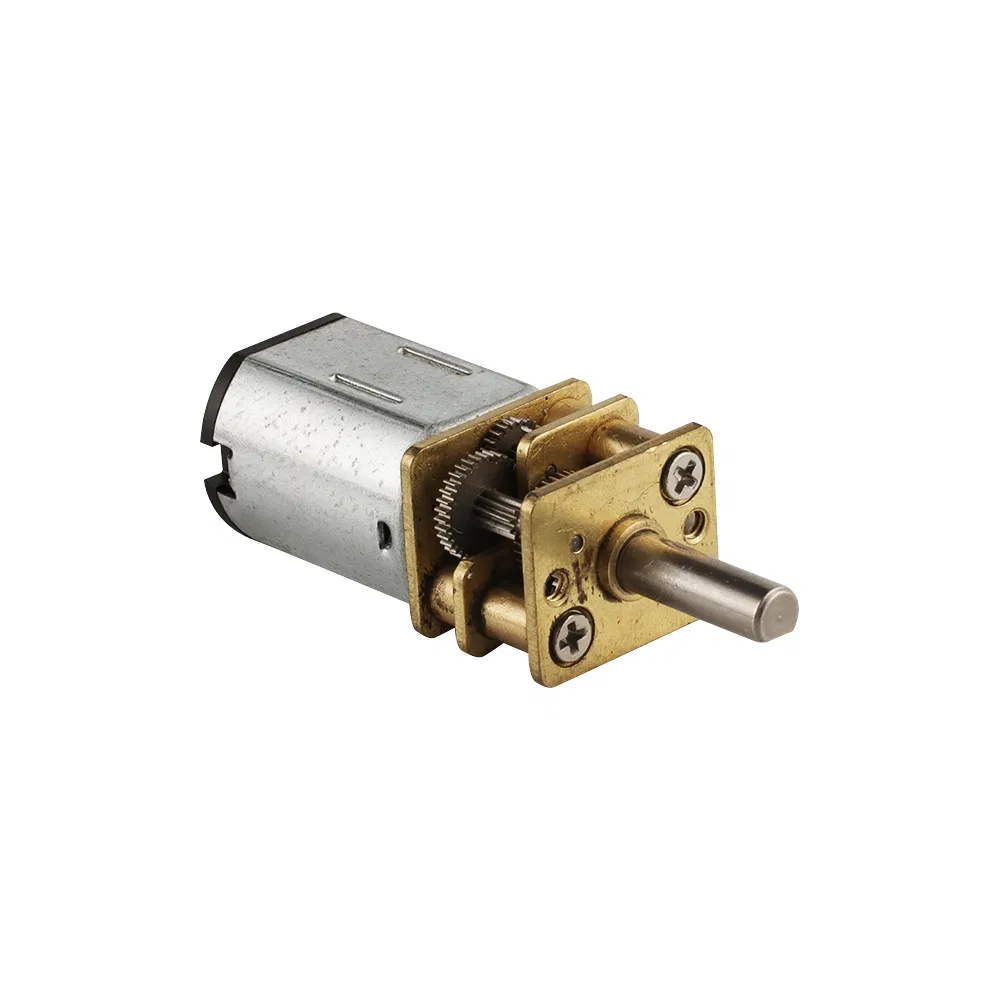

Spur Gear Motor View 1

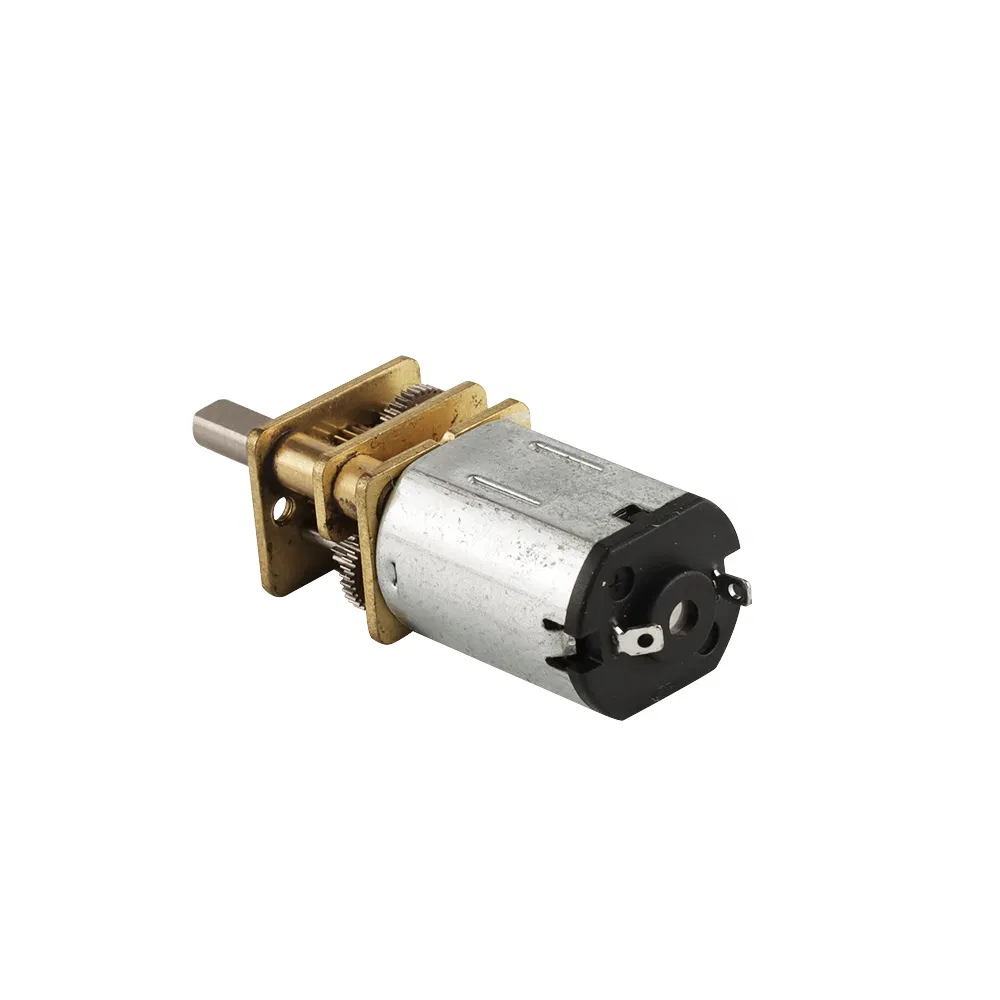

Spur Gear Motor View 2

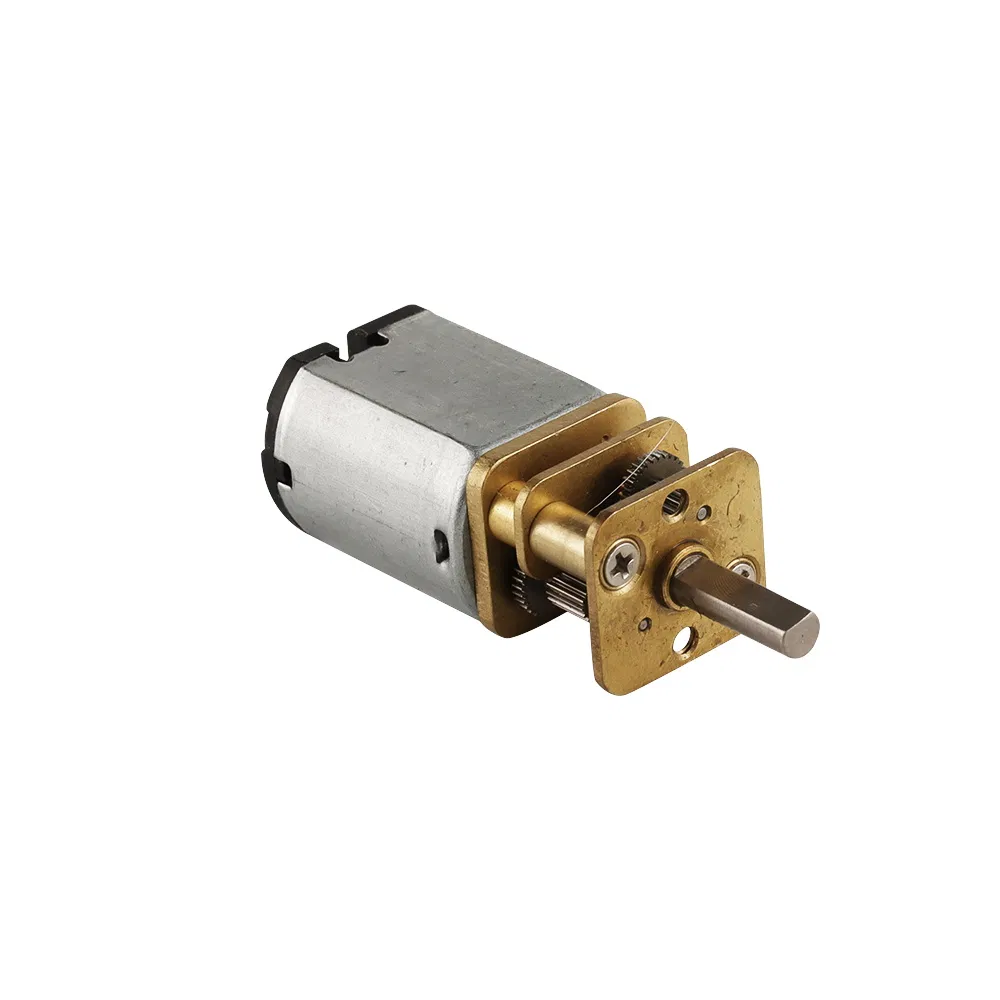

Spur Gear Motor View 3

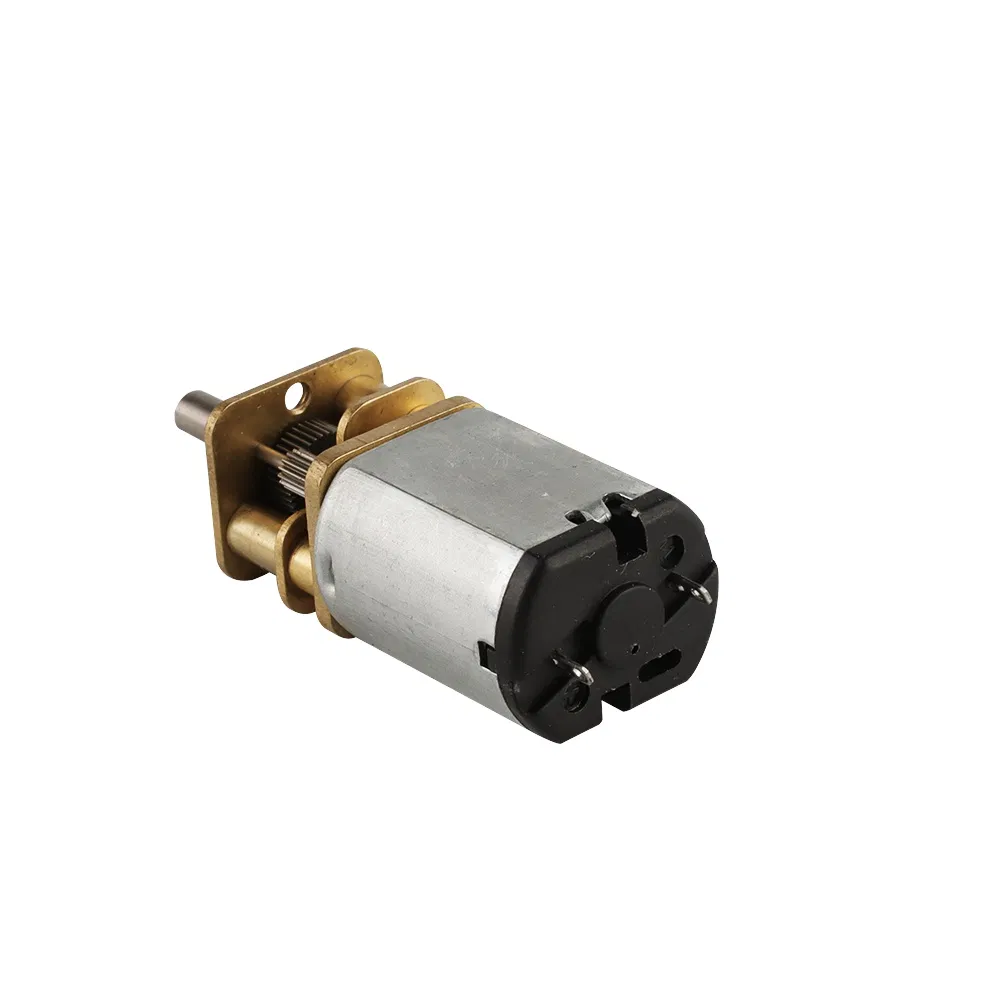

Spur Gear Motor View 4

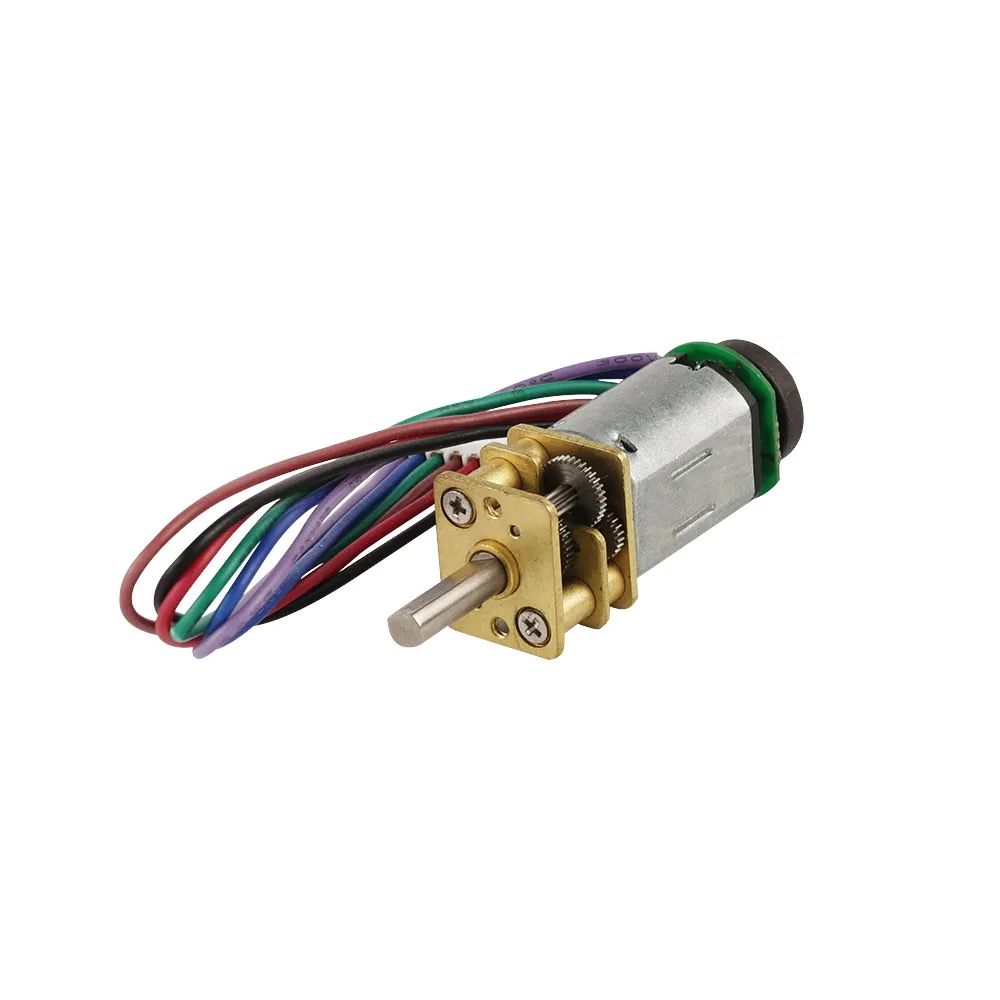

Spur Gear Motor View 5

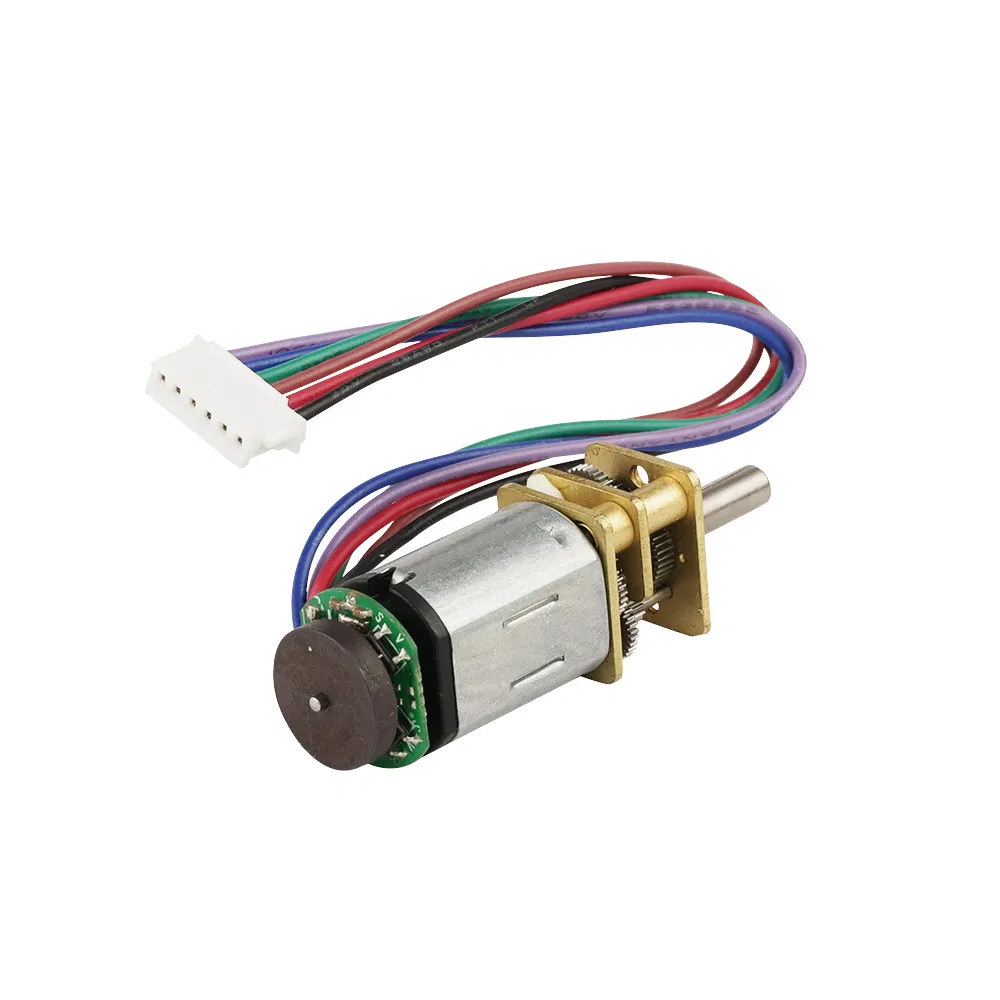

Spur Gear Motor View 6
S

Product Parameters & Technical Drawings

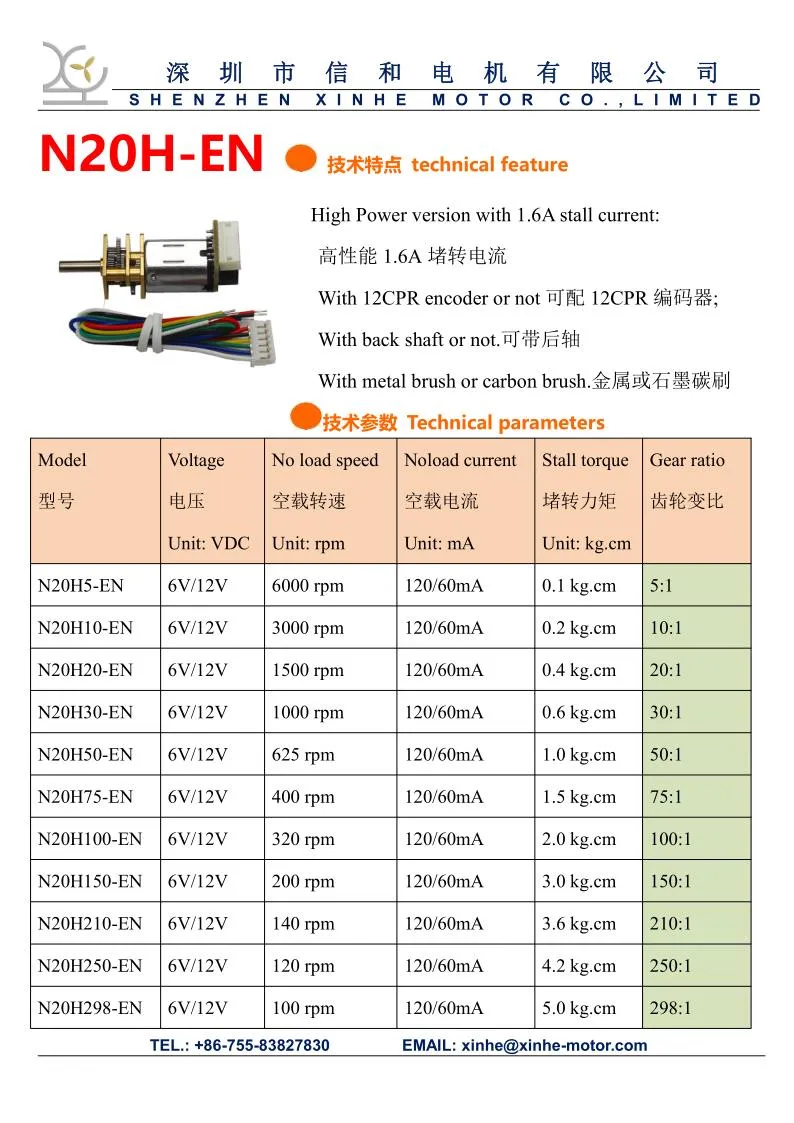

Drawing 1

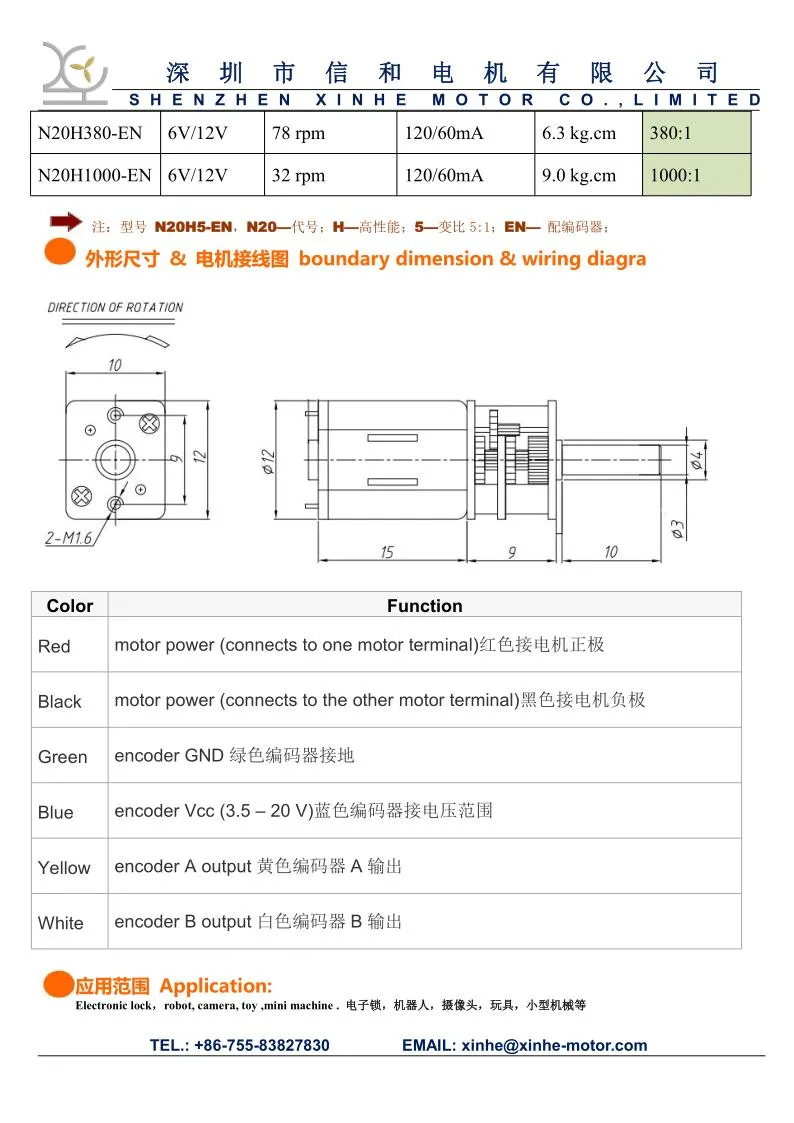

Drawing 2
Drawing 3

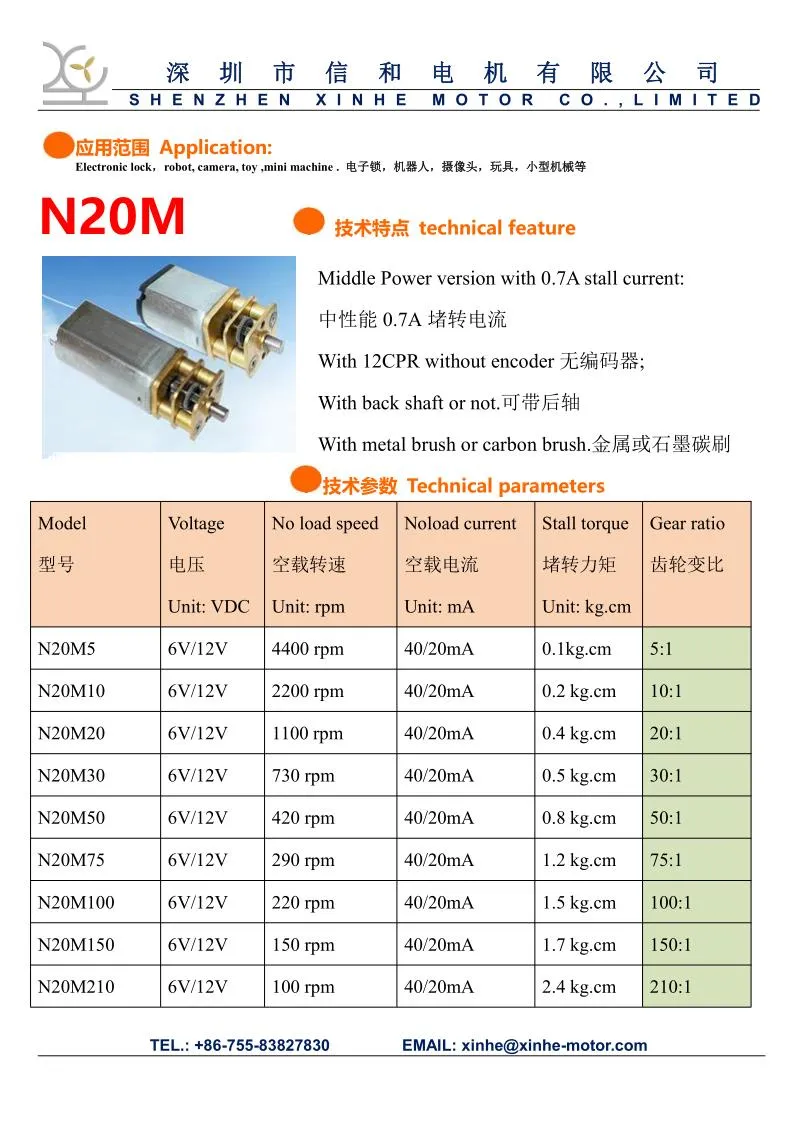

Drawing 4

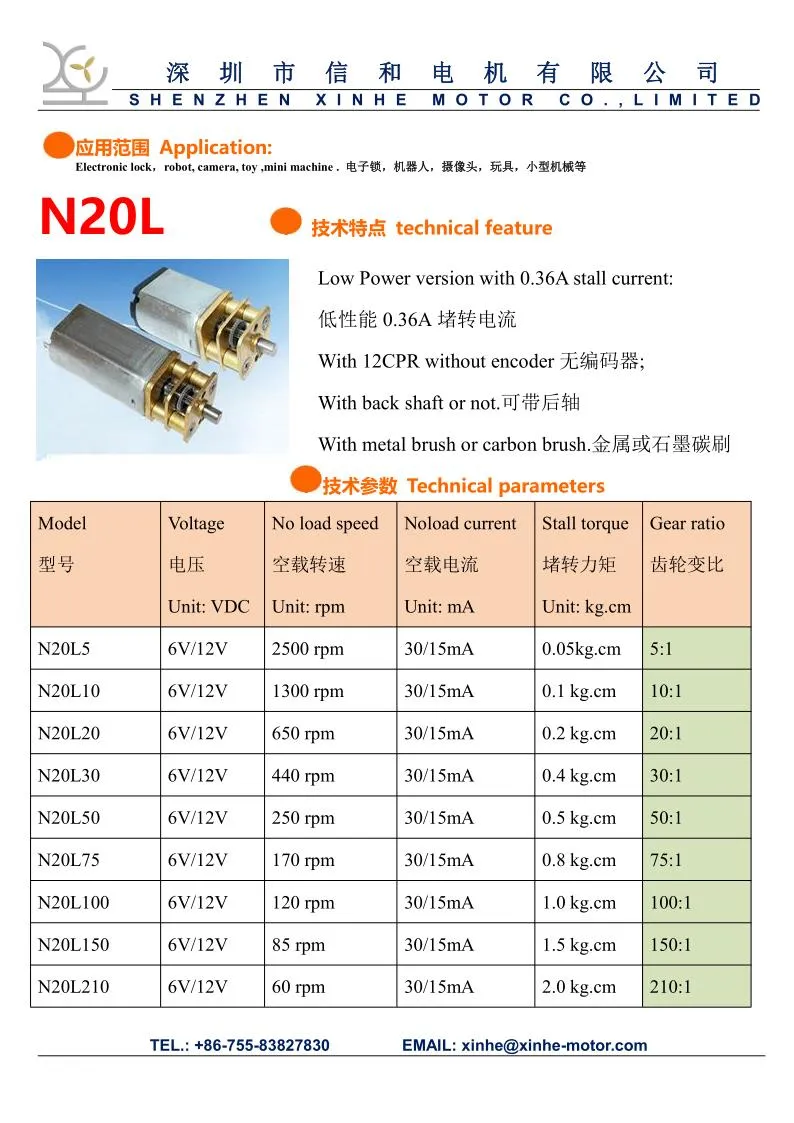

Drawing 5

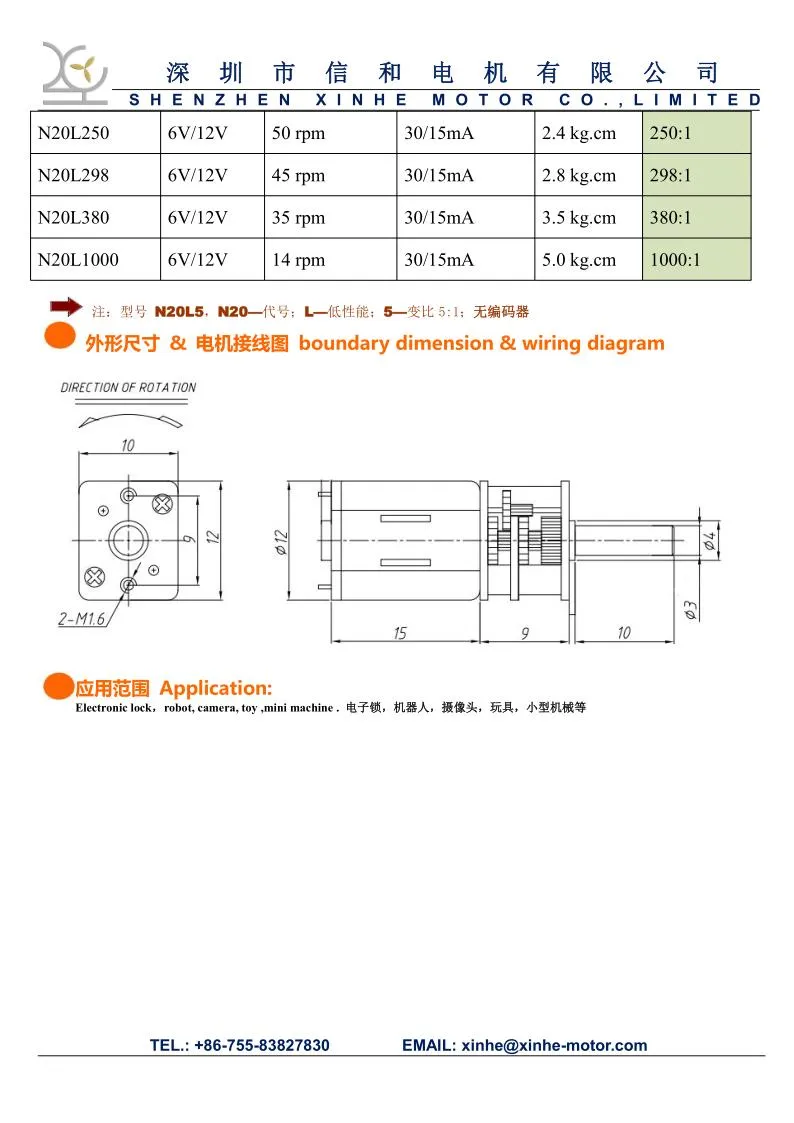

Drawing 6
C

Certifications

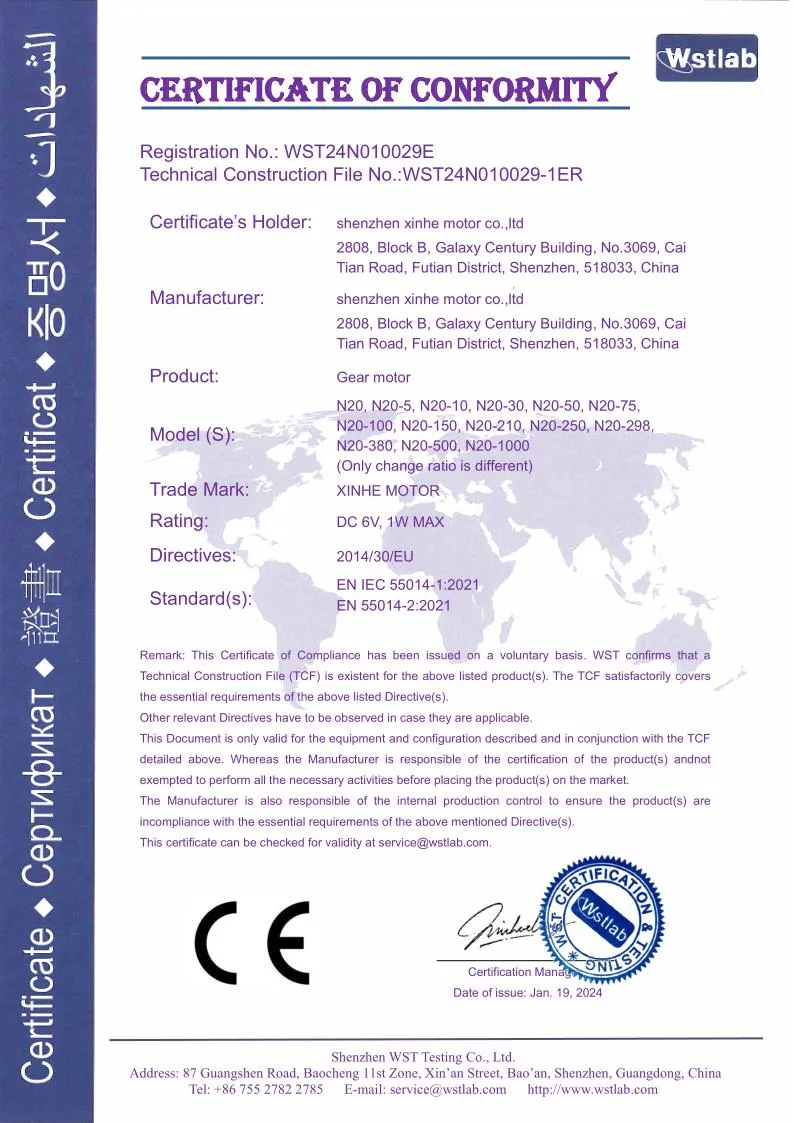

Cert 1

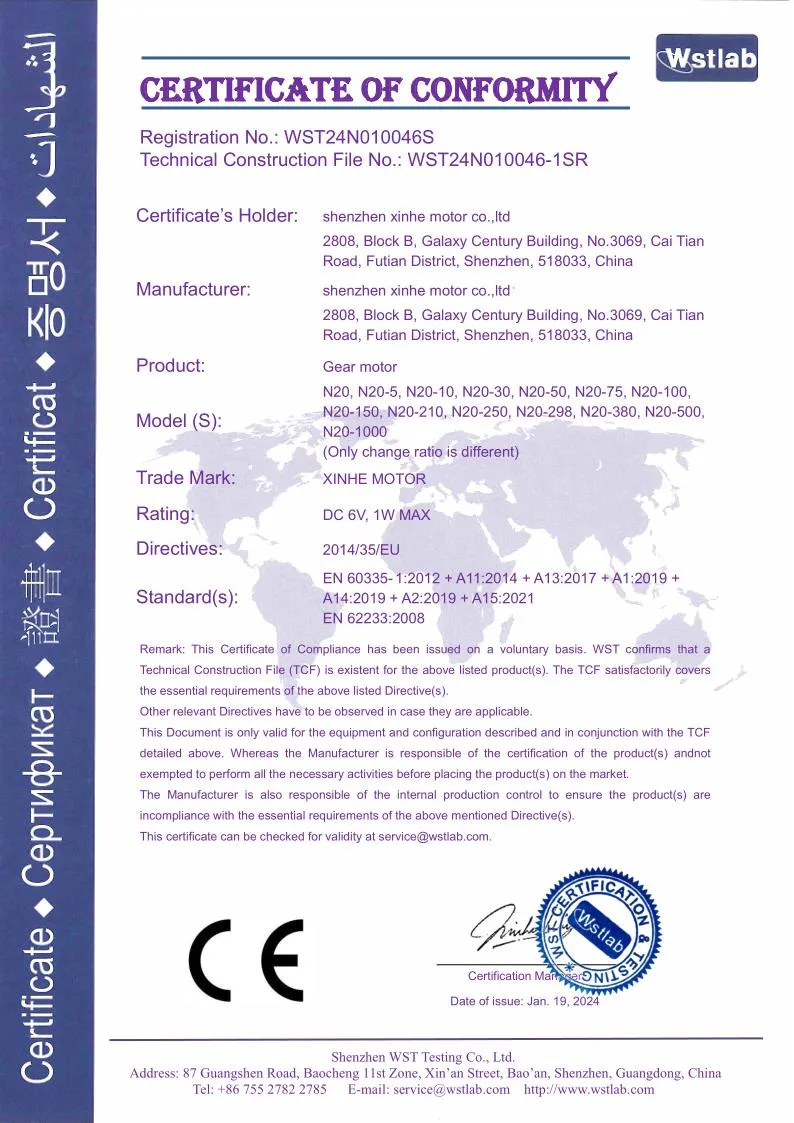

Cert 2

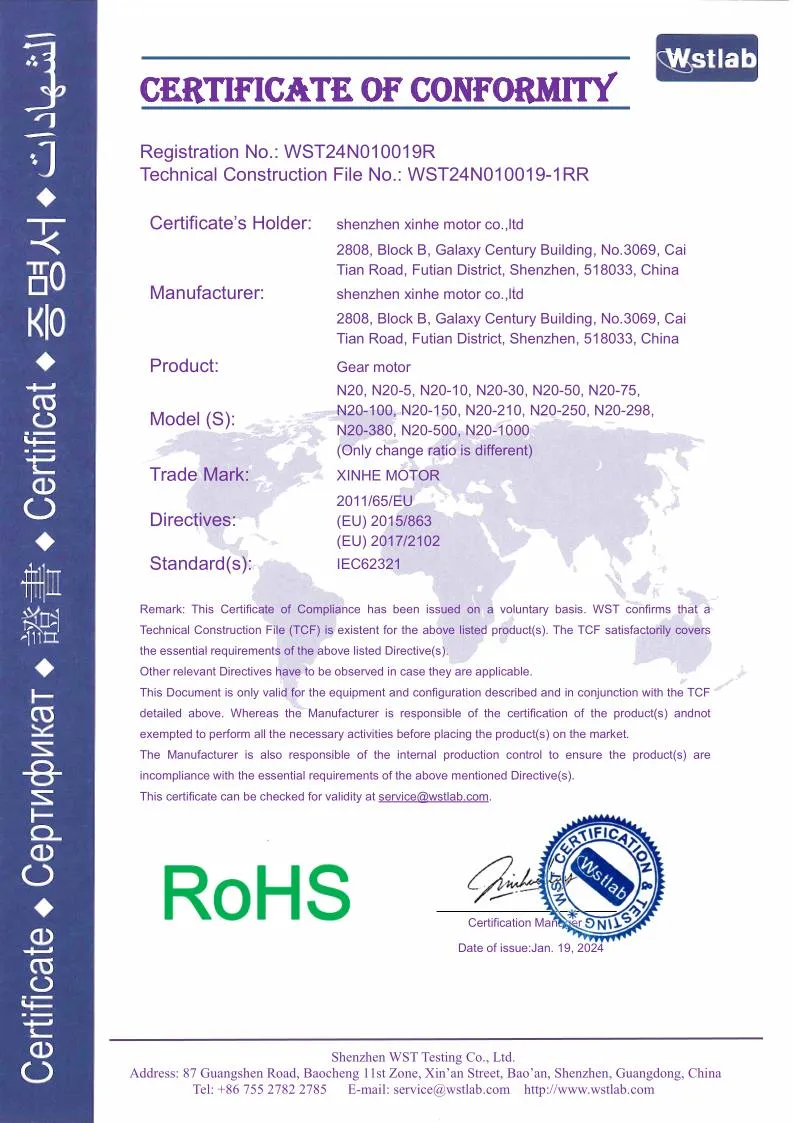

Cert 3
Production Environment
A

Product Assembly & Details

Discover the 12mm Diameter Spur Gear Motor. Perfect for low speed, high torque applications. Compact and efficient design.

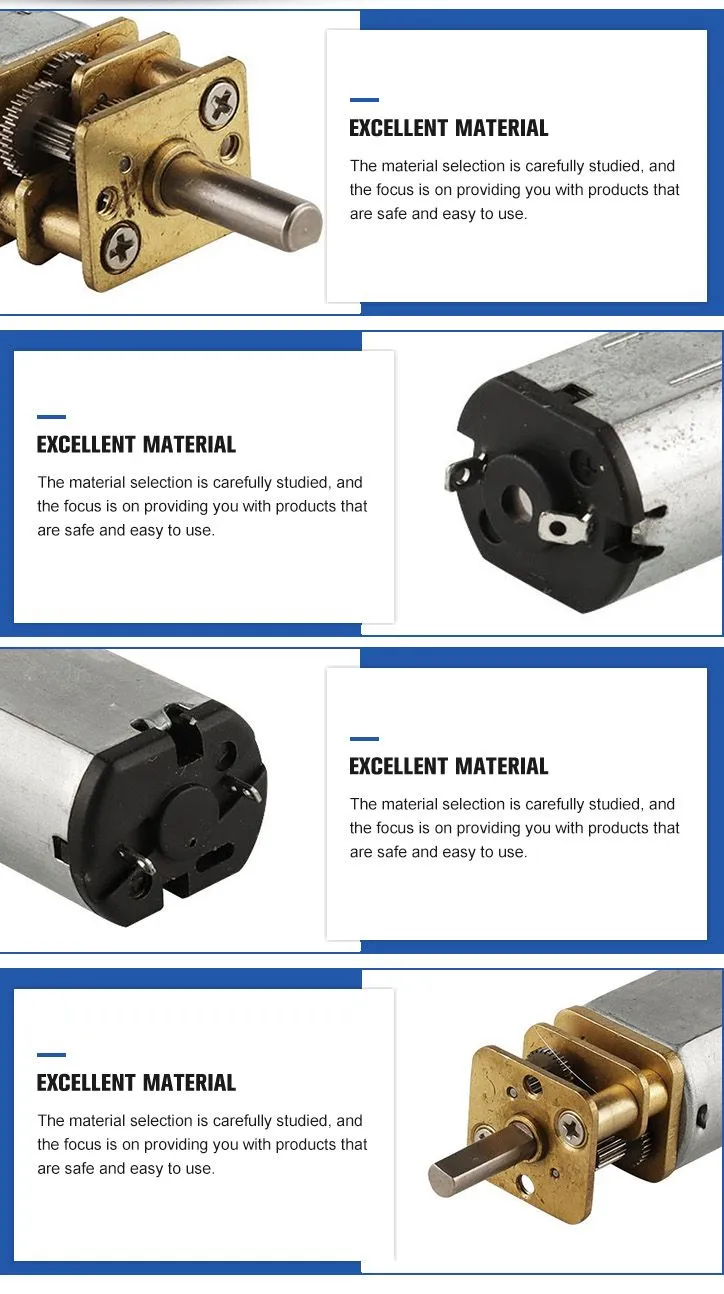

Assembly Details
H

Manufacturing Excellence

Company Capability
Q

Frequently Asked Questions

What is the operating voltage for this gear motor?
The motor supports a wide voltage range from 3V to 12V DC, making it versatile for various electronic projects and industrial applications.
What gear ratios are available?
We offer a broad selection of gear ratios ranging from 10:1 up to 1000:1 to meet different speed and torque requirements.
Is the motor suitable for noise-sensitive environments?
Yes, the motor is designed for quiet operation with a noise level of less than 35dB.
Can I get this motor with an encoder?
Yes, a 12PPR encoder option is available for applications requiring precise position and speed feedback.
What are the brush material options?
You can choose between metal brushes or carbon brushes depending on your lifespan and performance needs.
What is the typical lead time for production?
The standard lead time for manufacturing is approximately 25 days after order confirmation.
