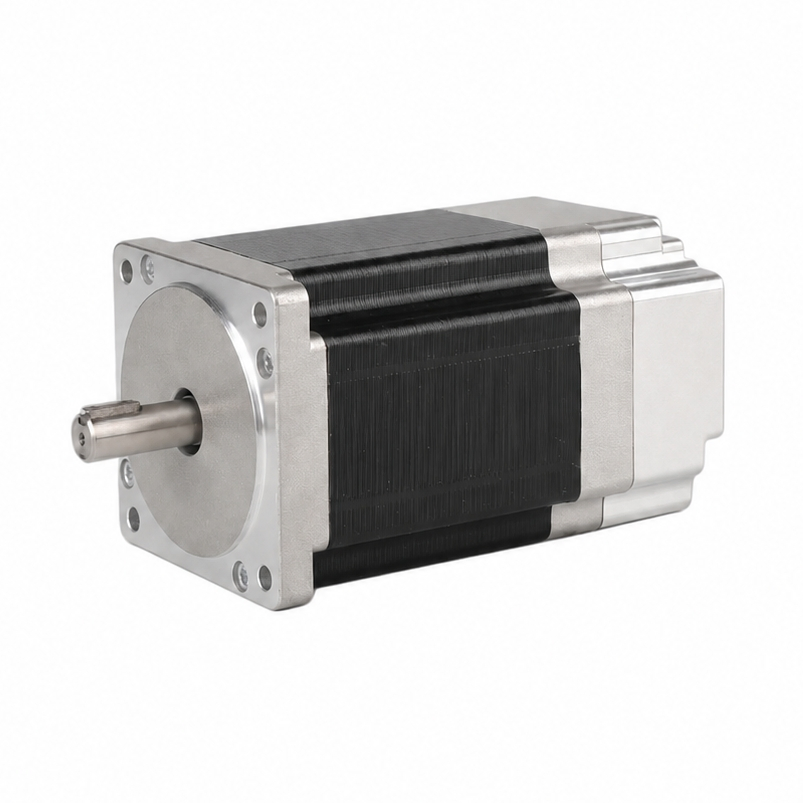

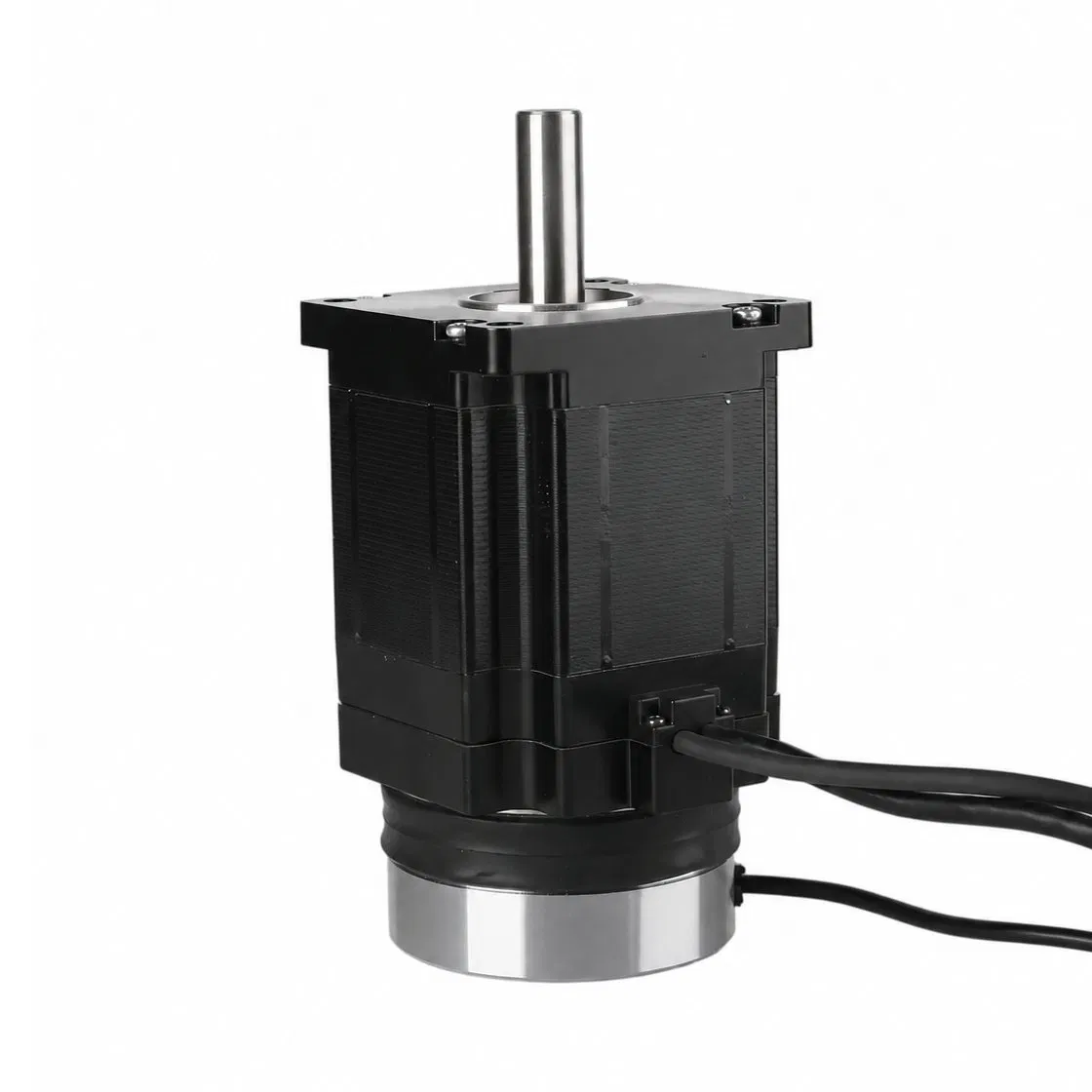

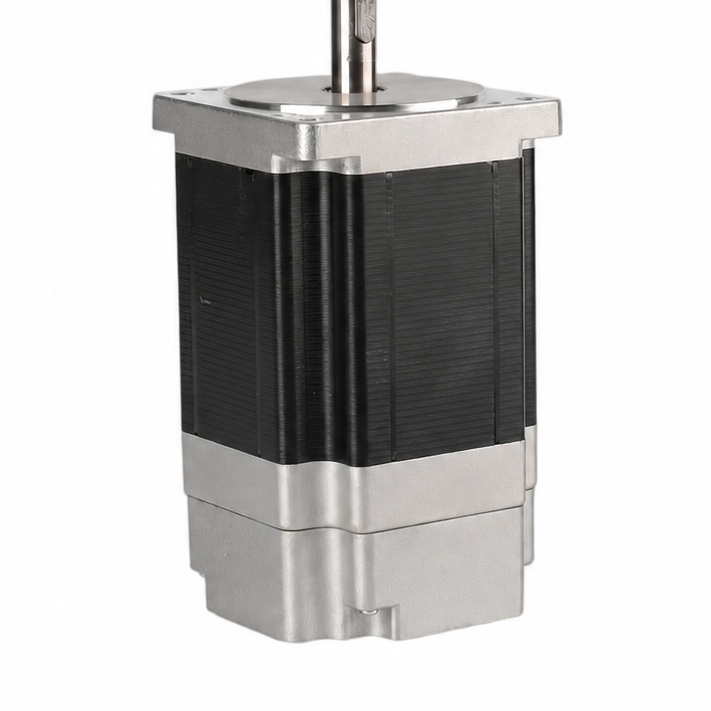

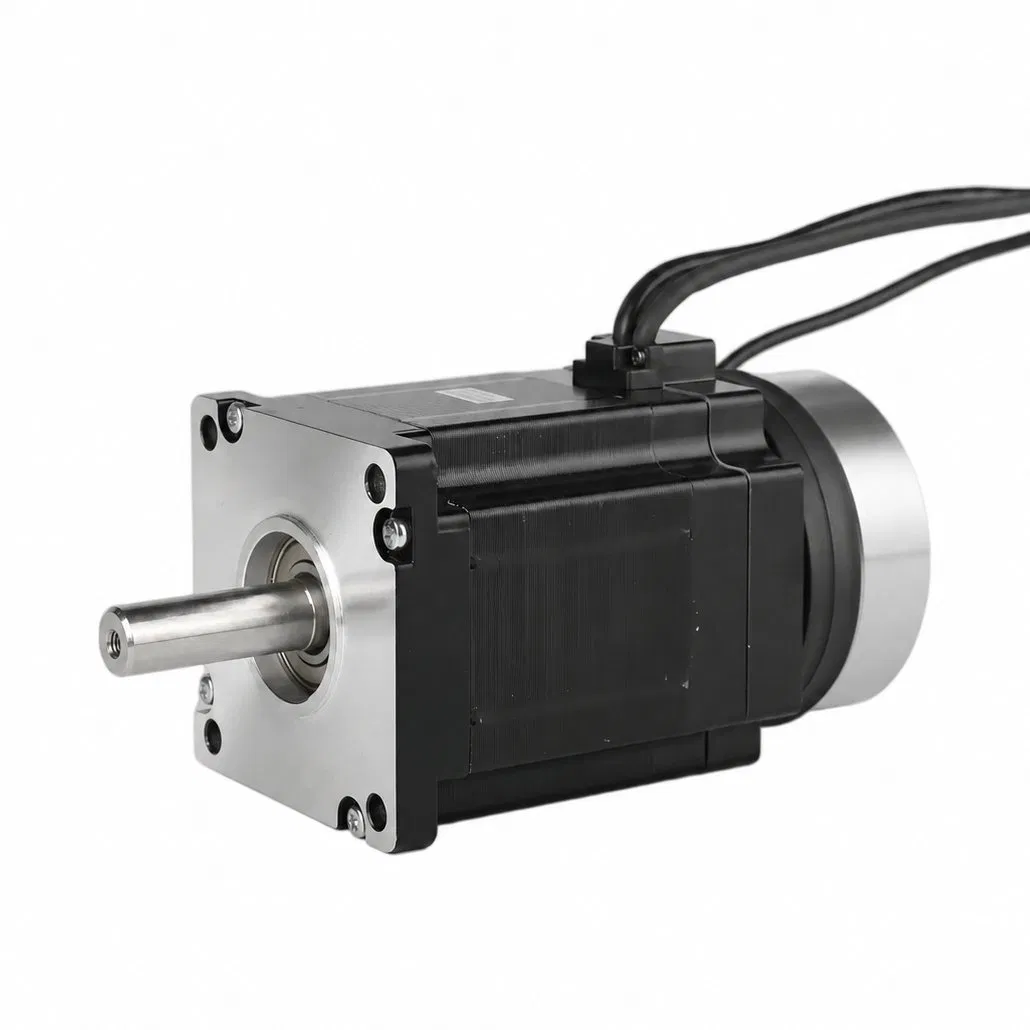

The 110BHH116-600-55Mp-Z is a 110mm (NEMA 42) 2-phase hybrid closed-loop stepper motor with an integrated 1000-line encoder and a DC 24V electromagnetic brake. Delivering 12 N·m holding torque at 6.0A, the integrated brake provides secure position holding when power is removed — ideal for vertical axis, safety-critical, or heavy-load applications.
| PARAMETER | VALUE |
|---|---|
| Step Angle | 1.8° ± 5% |
| Holding Torque | 12 N·m |
| Rated Current | 6.0 A/Phase |
| Rated Voltage | 2.88 VDC |
| Phase Resistance | 0.48 Ω ± 10% |
| Phase Inductance | 6.5 mH ± 20% |
| No. of Phases | 2 |
| No. of Leads | 4 |
| Shaft Diameter | 19 mm |
| Frame Size | 110 mm (NEMA 42) |
| Body Length | 116 mm (+ 55mm brake) |
| Rotor Inertia | 8700 g·cm² |
| Encoder Type | Incremental encoder (1000 lines/rev) |
| Connector | HDD15 |
| Cable Length | 8 m |
| Recommended Driver | CWDS860 / CWDS860H |
With over 30 years of production experience in the industrial motor field, we specialize in OEM customization and motion control solutions. Our core strength is working directly with equipment manufacturers and automation engineers to design motors that match exact application requirements — from shaft dimensions and winding specs to encoder type and connector configuration.

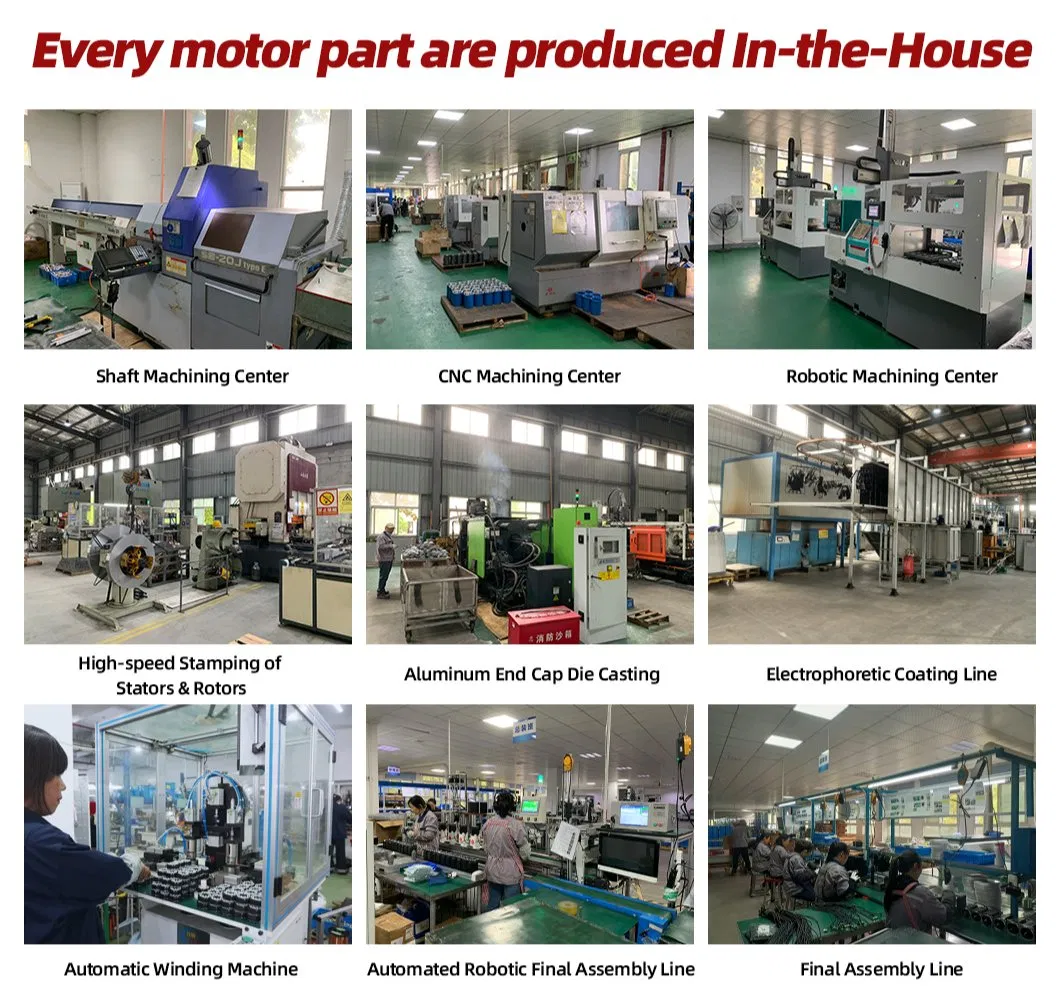

All motor components are manufactured in-house, allowing for comprehensive development and rigorous quality control. We support both single-unit prototypes and high-volume production runs.
