Sweg Motor
Sweg Motor

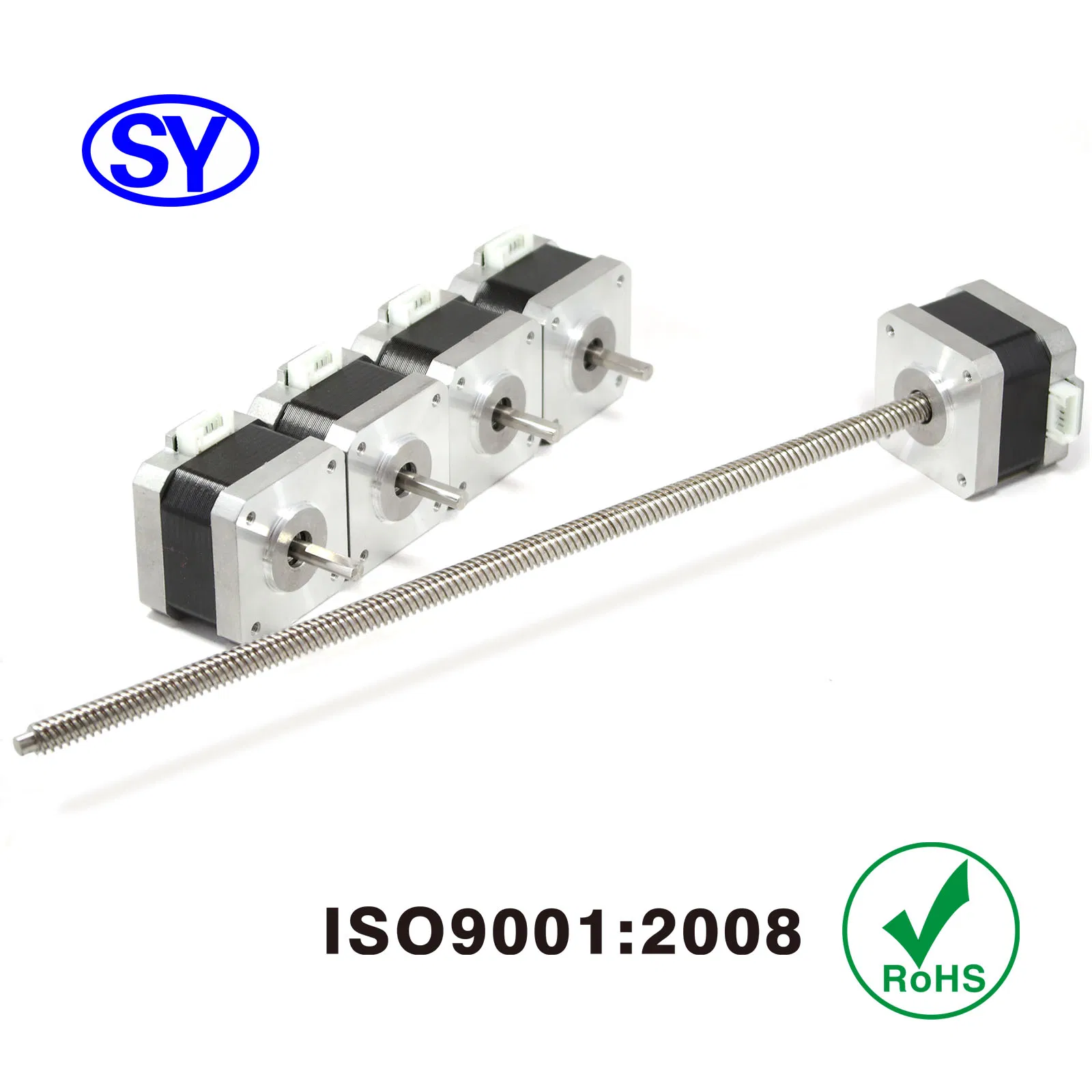

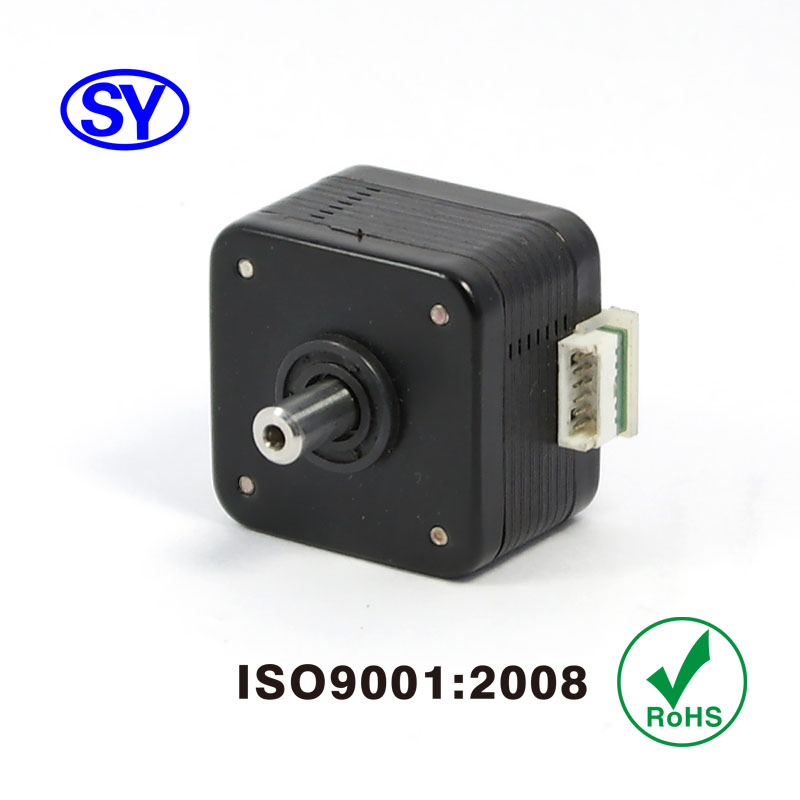

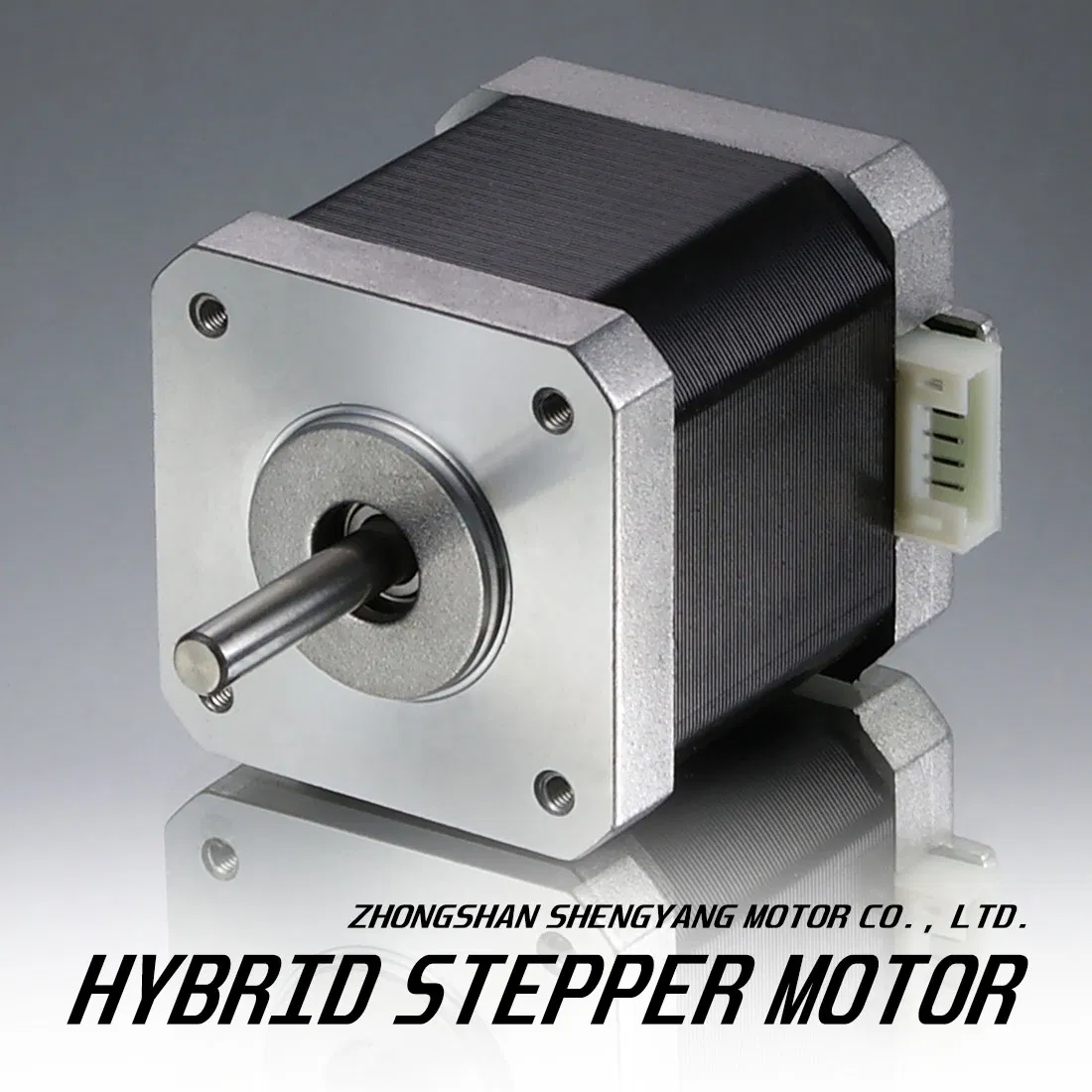

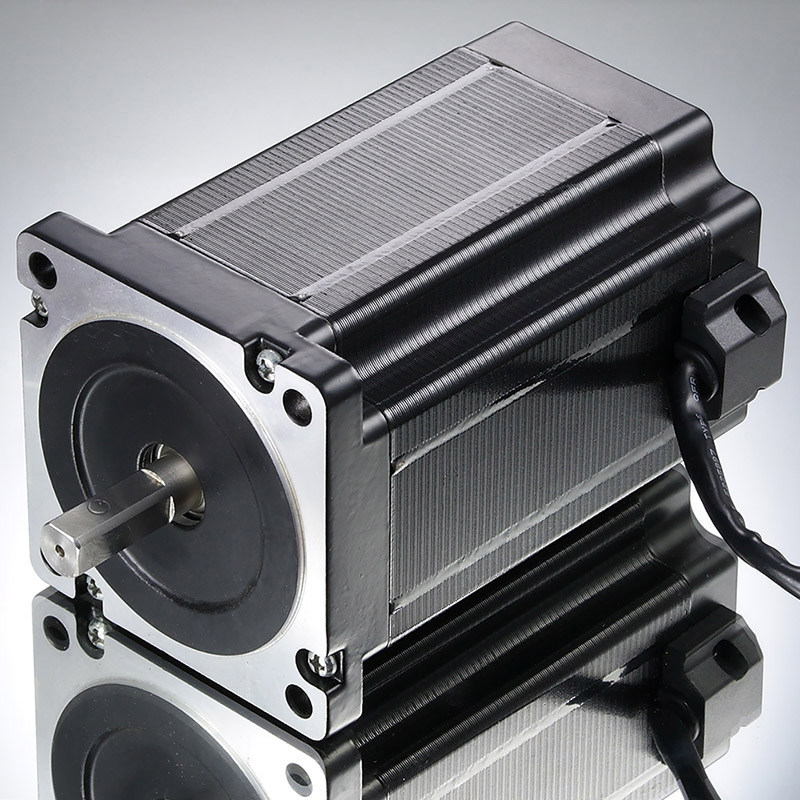

Stepper motors, AC servo motors, and brushless DC motors are available to be customized for global requirements. Our range includes NEMA 11, 14, 16, 17, 23, 24, 34 stepper motors, alongside 50W to 1200W AC servo motors and brushless DC motors.
These high-performance products are widely utilized in various industries and daily life applications, including:
Customization & Support:
1. Performance and parameters can be fully customized. Simply provide your motor diagram or samples for a competitive reference price.
2. Pricing is determined by motor performance, parameters, and specific requirements.
3. Standard payment terms: T/T in advance, 30% deposit, 70% balance before shipment.
| Series & Length | Model Number | Holding Torque | Rated Current | Resistance/Phase | Inductance/Phase |
|---|---|---|---|---|---|
| mNm / oz-in | A | ohm | mH | ||
| 39BYG0 (20mm) | 39BYGOO1 | 90 / 12.74 | 0.4 | 28 | 19 |
| 39BYG1 (22mm) | 39BYG103 | 120 / 17 | 0.4 | 22 | 32 |
| 39BYG9 (23mm) | 39BYG902 | 180 / 25.49 | 0.4 | 26 | 40 |
| 42BYGH0 (26mm) | 42BYGH001 | 120 / 17 | 0.3 | 42 | 48 |
| 42BYGH3 (40mm) | 42BYGH312 | 530 / 75.05 | 0.6 | 26 | 48 |
| 57BYGH2 (56mm) | 57BYGH220-B-21 | 1240 / 175 | 2 | 2.4 | 5.8 |
| 60BYG1 (54mm) | 60BYG103 | 900 / 127.44 | 1.5 | 6.8 | 11 |
| 86BYGH2 (100mm) | 86BYGH204 | 4900 / 694 | 5.2 | 0.43 | 2.7 |
