5:1-80:1 NEMA23 Worm Gear Stepper Motor with NMRV30 Speed Reducer (Length 56mm)
🛠️ Material Specifications
- Worm Wheel: High-grade Nodular cast iron and bronze
- Worm Shaft: 45# steel (Surface hardness 56-62HRC, carbonized layer 0.3-0.5mm)
- Housing: Durable aluminum with oven painting finish
- Color: Classic Silver
📦 Package Content

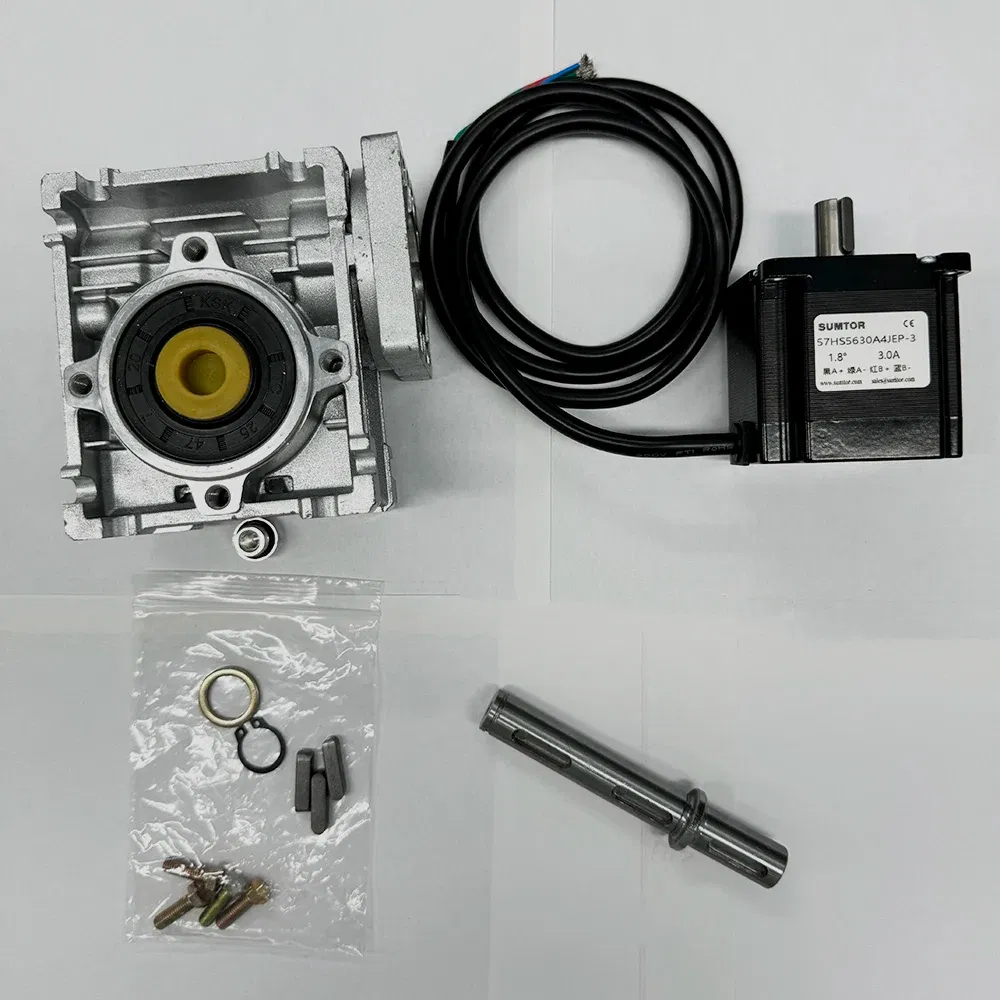

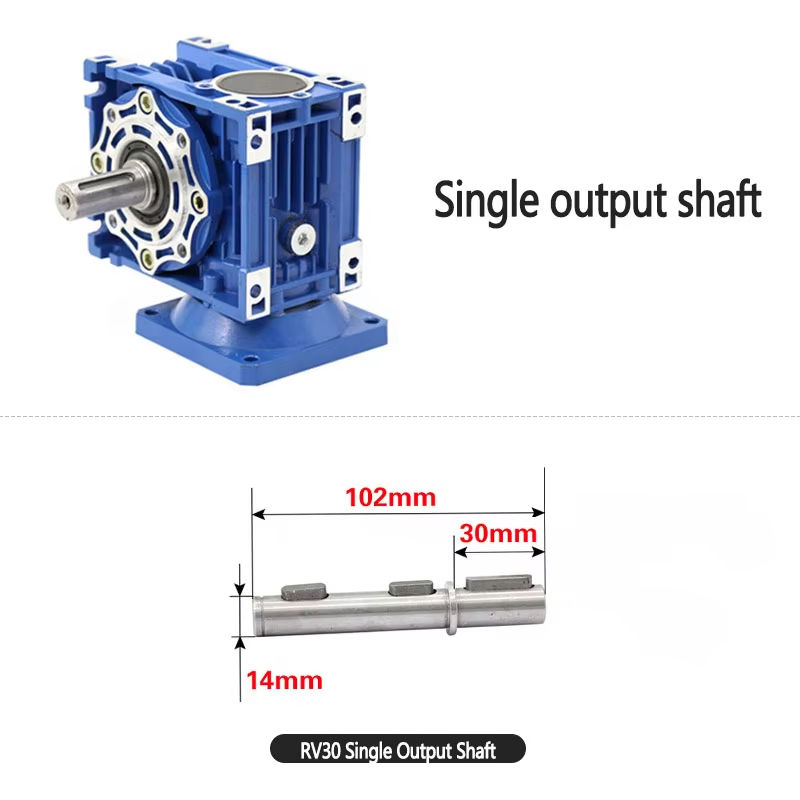

- 1 x NEMA 23 Worm Gearbox Stepper Motor

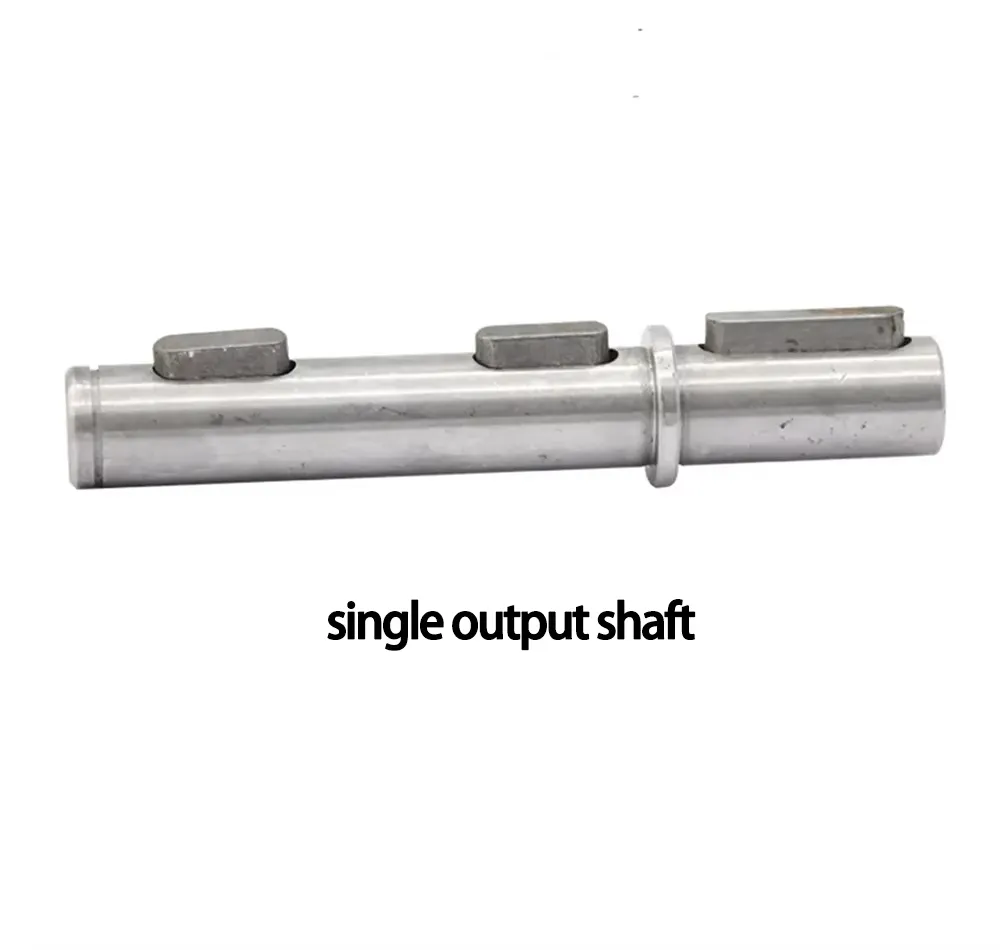

- 1 x RV30 Single Output Shaft
Key Features Description
- High-quality aluminum alloy die-cast gearbox for superior heat dissipation.
- High-accuracy worm gear and worm shaft ensures precise motion control.
- Optimized design for reduced noise and lower temperature increase during operation.
- Easy mounting and flexible linking options with high transmission efficiency.
Technical Specifications
| Item |
Specifications |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80°C max (rated current, 2 phase on) |
| Ambient Temperature | -20°C ~ +50°C |
| Insulation Resistance | 100MΩ Min. 500VDC |
| Dielectric Strength | 500VAC / 1 minute |

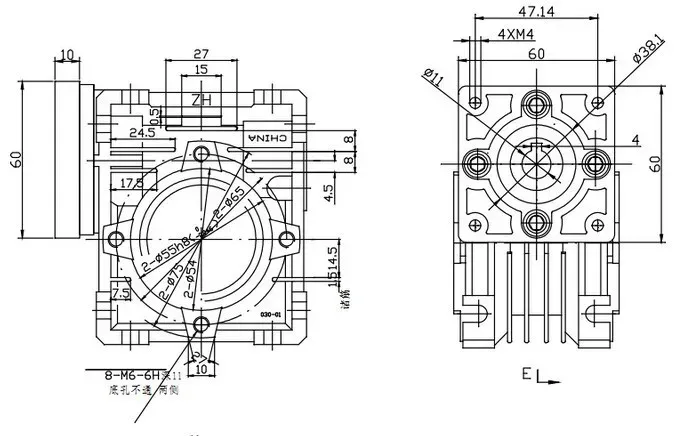

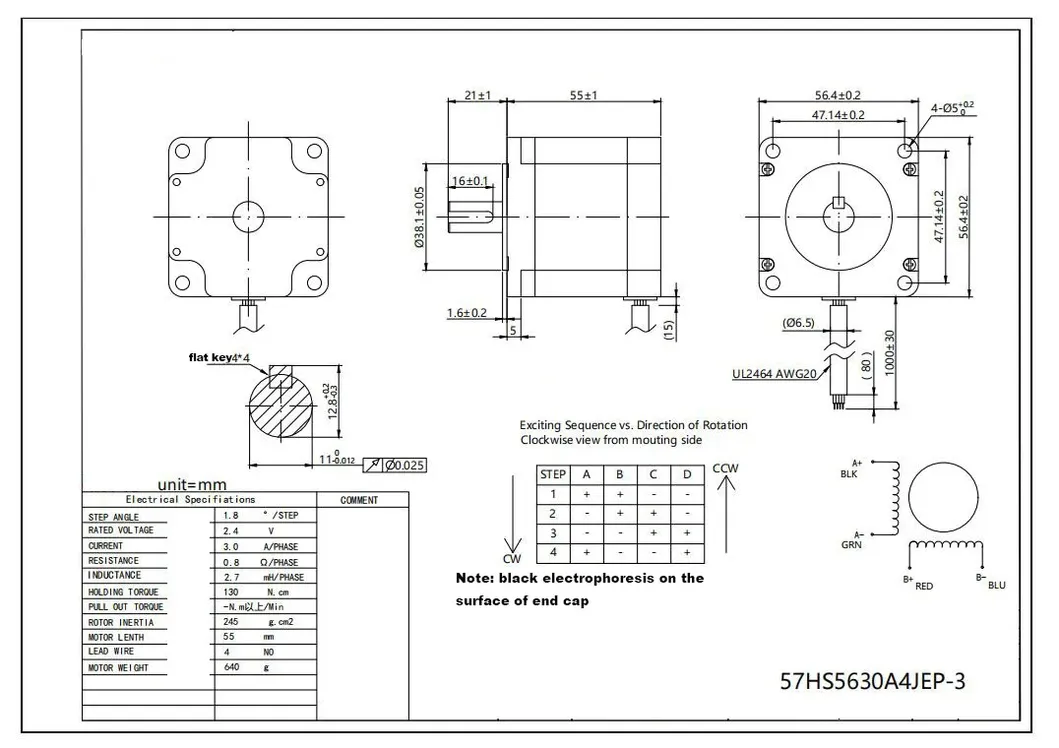

Technical Drawings

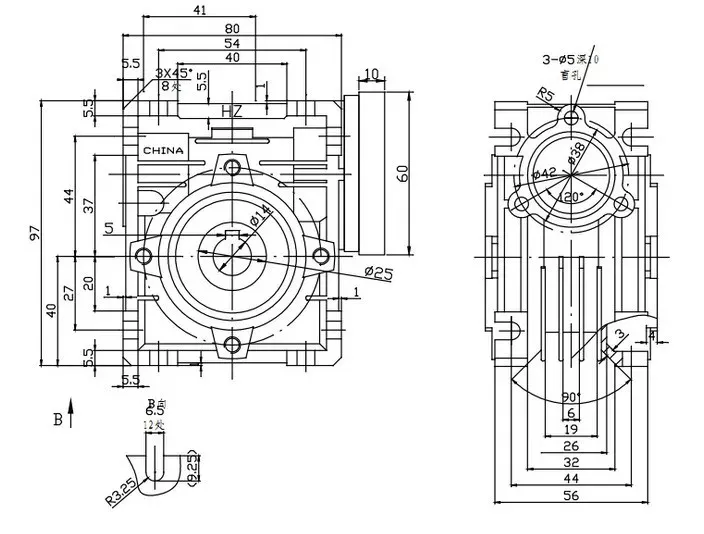

Motor & Product Dimensions

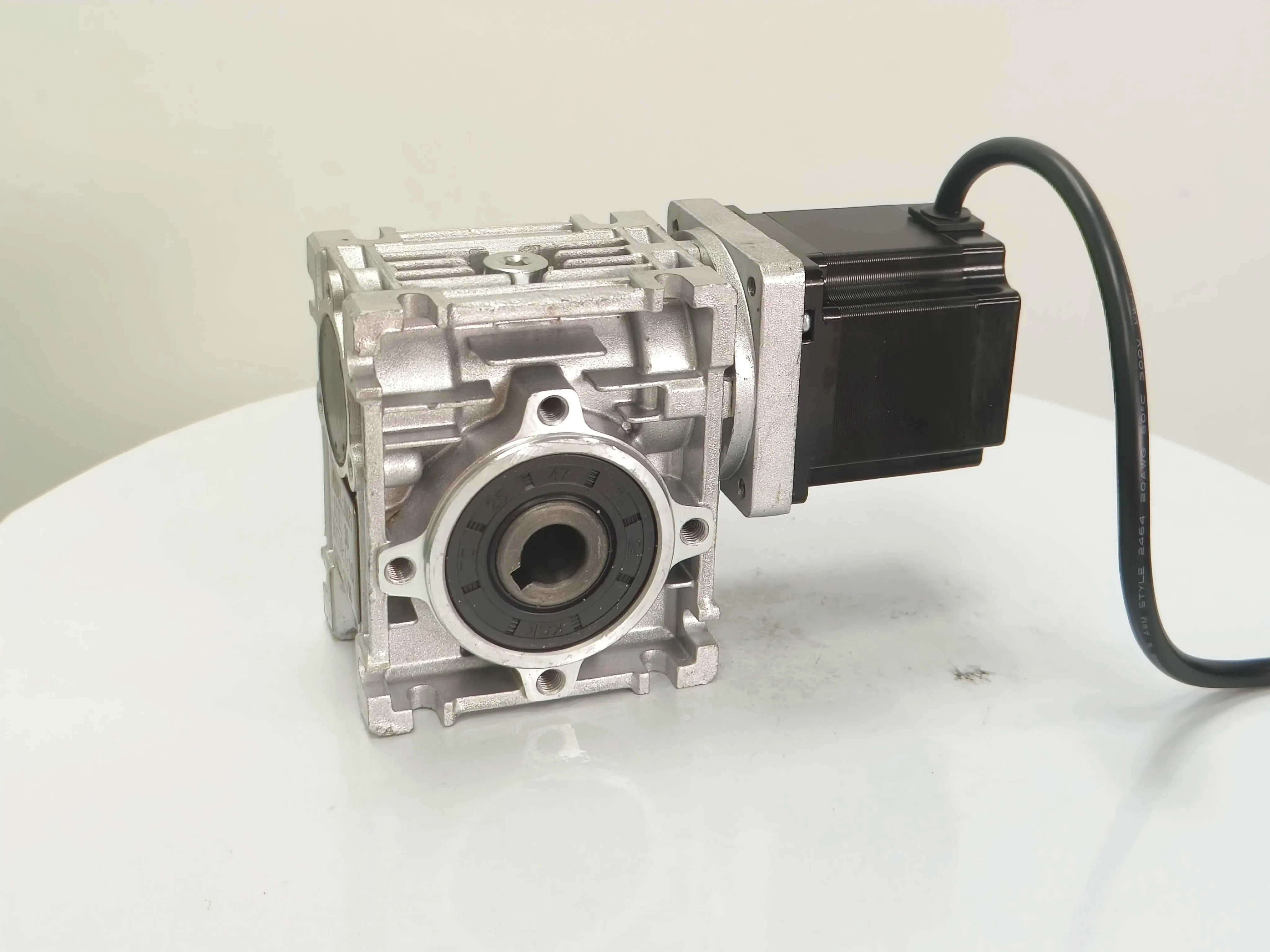

Product Showcase

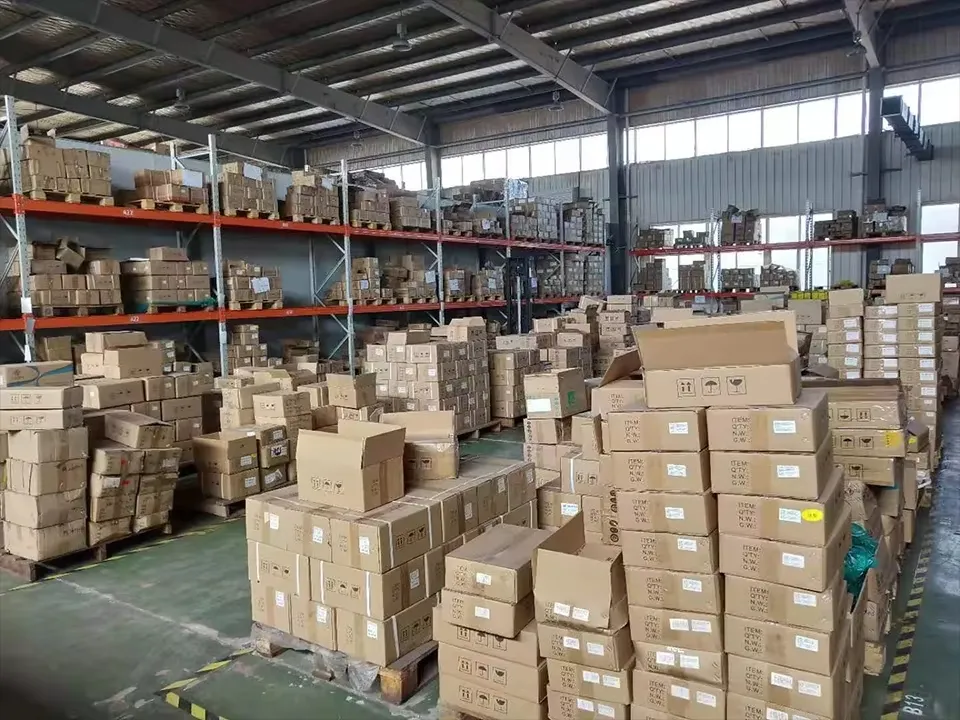

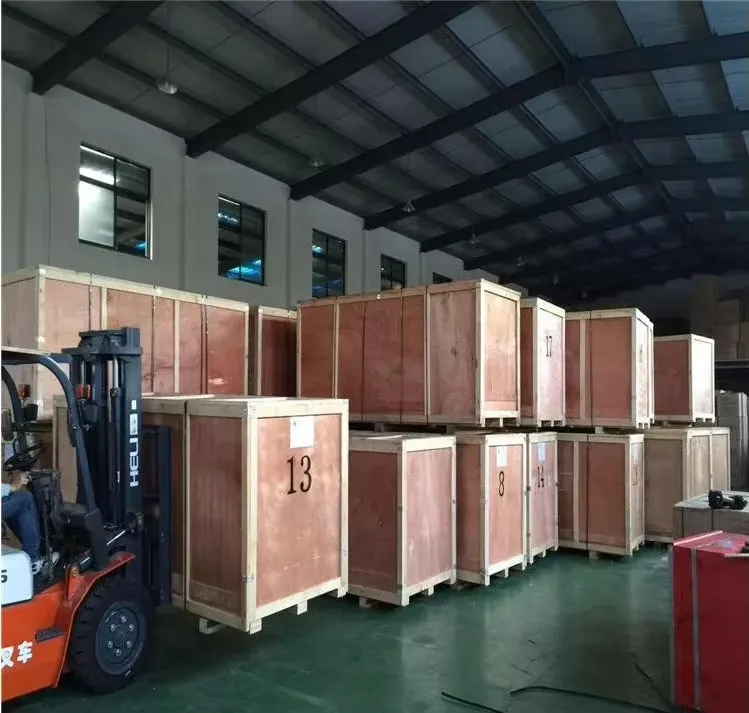

Packaging Details
Frequently Asked Questions
What is the reduction ratio range for this NEMA23 worm gear motor?
This motor supports a wide range of speed reduction ratios from 5:1 up to 80:1, allowing for versatile torque and speed adjustments.
What materials are used in the construction of the gearbox?
The worm wheel is made of high-quality nodular cast iron and bronze, while the housing is constructed from die-cast aluminum alloy for better durability and heat dissipation.
Does the package include the output shaft?
Yes, each unit comes with one NEMA 23 Worm Gearbox Stepper Motor and one RV30 single output shaft.
Is the motor suitable for quiet environments?
Absolutely. One of the primary features of the NMRV30 reducer is its design for lower noise and minimal temperature increase during operation.
What is the physical length of the NEMA 23 motor used?
The motor features a standard body length of 56mm, providing a compact yet powerful solution for various automation needs.
What is the environmental operating range for this motor?
The motor is designed to operate efficiently within an ambient temperature range of -20°C to +50°C.
