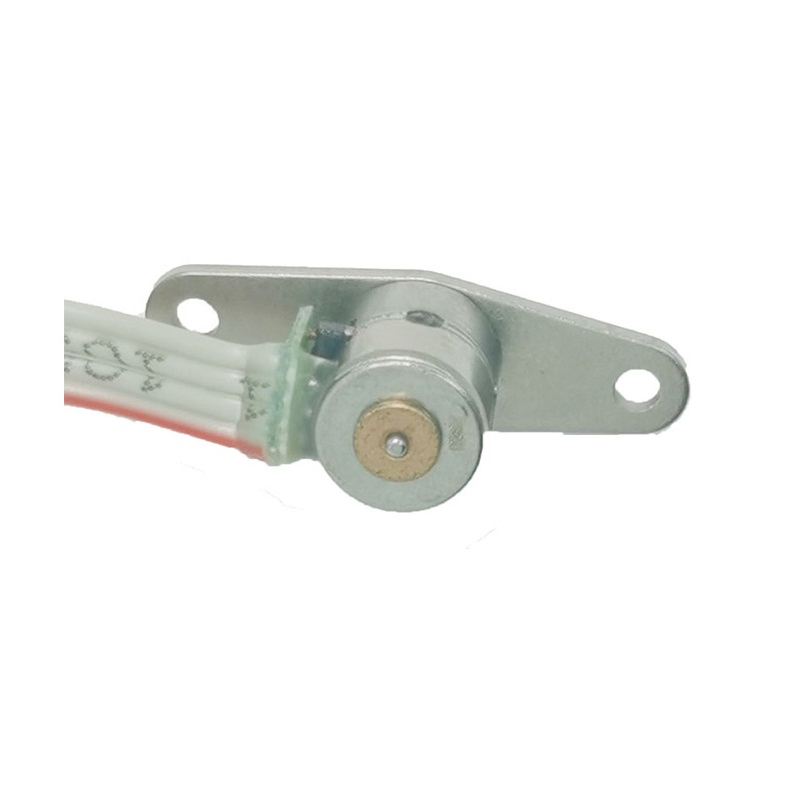

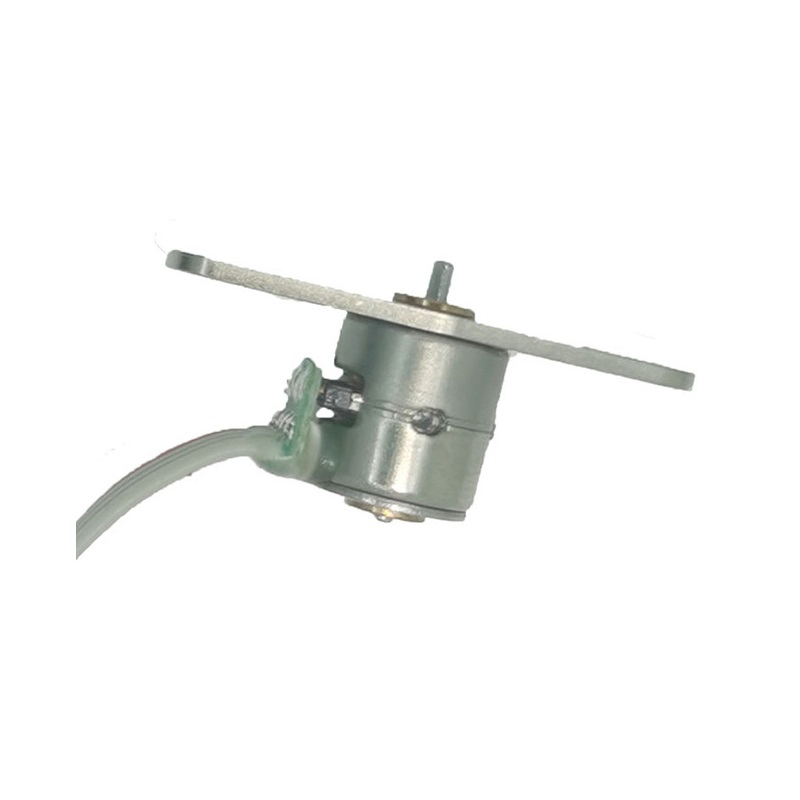

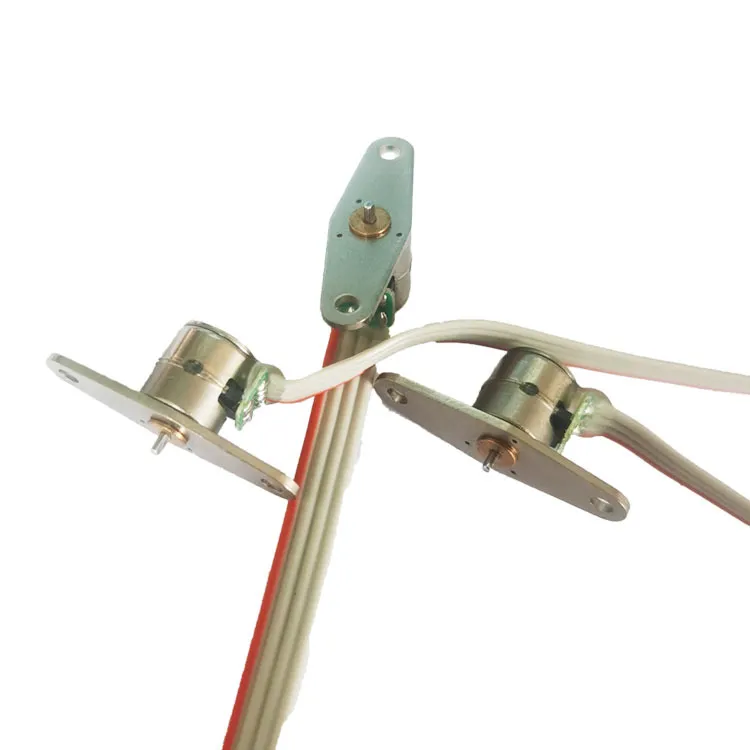

Compact 8mm 5V DC Micro Stepper Motor for Precision Control

1 / 5

Compact 8mm 5V DC Micro Stepper Motor for Precision Control

Send Inquiry

Product Description

📊 Technical Parameters of Micro Stepper Motor

No.	Model No.	Dimensions (mm)	Stroke (mm)	Slider Material	Voltage (V)	Current (mA)	Resistance (Ω)	Output Torque (gf.cm)
1	07-005-002	Φ6x(5.9+3.95)	/	/	3.3	165	20	/
2	07-005-003	Φ6x(5.9+3.95)	/	/	3.3	165	17.5	/
3	07-005-004	Φ6x(5.9+3.95)	/	/	3.3	275	12	2.00
4	07-005-005	Φ6x(9.1+11.4)	6.8	Plastic	3.3	110	30	0.06
5	07-005-006	Φ6xL(8+4.8)	/	/	4.8	180	26.5	1.60
6	07-005-007	Φ6x(7.7+5.1)	/	/	4.8	180	26.5	1.60
7	07-005-011	Φ6x(4.3+2.9)	/	/	3.3	110	30	0.06
8	08-005-001	Φ6x(7.8+4.5)	10.7	/	5.0	300	15	1.00
9	07-005-027	Φ8x(8.82+23)	16	Plastic	3.3	160	20	80.00
10	07-005-032	Φ8x(8.5+4.2)	/	/	3.3	165	20	1.50
11	07-005-033	Φ8x(8.82+18.6)	17	/	3.3	160	20	0.25
12	07-005-034	Φ8x(8.82+15.75)	13.35	/	5.0	100	50	0.23
13	07-005-035	Φ8x(8.5+4.1)	/	/	3.3	165	20	1.50
14	08-005-011	Φ8.3x(10.1+22.5)	19.4	Copper	3.0	500	6	20.00
15	08-005-012	Φ8x(+)			3.0	500	6	20.00
16	08-005-013	Φ8.3x(9+5.7)	/	/	4.8	220	23	3.00
17	08-005-014	Φ8.3x(9+14)	11.5	/	5.0	300	16.3	30.00
18	08-005-015	Φ8.3x(9+4)	/	/	3.3	500	6	2.50
19	07-005-041	Φ10x(10.62+37.6)	36.6	/	5.0	90	55	0.30
20	07-005-042	Φ10x(10.62+37.6)	34.4	Copper	5.0	90	55	0.30
21	07-005-043	Φ10x(+)			5.0	160	31	5.00
22	07-005-044	Φ10x(+)			5.0	160	31	7.00
23	07-005-045	Φ10x(9.62+38.6)	33.8	Copper	5.0	300	15	6.50
24	07-005-046	Φ10x(9.3+19)	/	/	5.0	250	20	15.00
25	07-005-047	Φ10x(9.8+2.4)	/	/	3.3	66	15	4.00
26	07-005-048	Φ10x(8.8+5.1)	/	/	5.0	300	15	5.00
27	07-005-049	Φ10x(9.3+2.9)	/	/	3.3	66	15	4.00
28	08-005-021	Φ10x(10+56.5)	50.5	Copper	5.0	270	18	6.00
29	08-005-022	Φ10x(10+70)	65	Copper	5.0	270	18	6.00
30	08-005-024	Φ10x(9+14.5)	/	/	5.0	200	25	150.00
31	08-005-025	Φ10x(10.5+9)	/	/	5.0	128	20	500.00
32	08-005-026	Φ10x(10.8+31)	23.9	Plastic	5.0	330	15	5.00
33	08-005-031	Φ10.2x(10.75+11.4)	5.4	Plastic	5.0	330	15	9.00
34	08-005-032	Φ10.2x(10.75+11.4)	5.4	Plastic	5.0	330	15	9.00
35	08-005-033	Φ10x(10.6+38.6)	35.1	Copper	5.0	330	15	7.00
36	08-005-035	Φ10.72+18.55	15.5	Copper	5.0	128	39	4.00
37	08-005-036	Φ10.75+18.6	11.8	Plastic	5.0	330	15	9.00
38	08-005-037	Φ10.75+14.7	7	Plastic	5.0	400	15	9.00
39	08-005-038	Φ10.75+18.6	11.8	Plastic	5.0	330	15	9.00
40	08-005-039	Φ10.75+12.6	5.4	Plastic	5.0	330	15	9.00
41	07-005-060	Φ15x(10.8+59)	/	/	12.0	400	31	180.00
42	07-005-061	Φ15x(12.9+36.5)	26.7	Copper	6.0	300	15	200.00
43	07-005-062	Φ15x(12.9+46.5)	12.9	Copper	6.0	300	15	200.00
44	07-005-063	Φ15x(10.8+12)	/	/	12.0	760	31	720.00
45	07-005-064	Φ15x(12.9+46.5)	37.5	Copper	12.0	760	31	720.00
46	07-005-079	Φ15x(10.8+12)	/	/	12.0	760	31	720.00
47	08-005-041	Φ15x(11+16.5)	/	/	3.0	200	15	6.00
48	08-005-042	Φ15x(10.9+30)	19.7	Copper	6.0	400	15	200.00
49	08-005-043	Φ15x(10.9+30)	20	Plastic	6.0	400	15	200.00
50	08-005-046	Φ15x(21+13)	/	/	12.0	200	118	1700.00
51	08-005-047	Φ15x(10.9+25)	11.8	Copper	6.0	400	15	200.00
52	08-005-048	Φ15x(11.3+30)	17.5	Copper	12.0	200	31	700.00
53	07-005-082	Φ20x(21+46.1)	34.2	Copper	12.0	800	15	1800.00
54	07-005-083	Φ20x(21+66.9)	55.9	Copper	12.0	800	15	1800.00
55	07-005-084	Φ20x(18.4+4)	/	/	12.0	300	40	20.00
56	08-005-061	Φ20x(20.1+34.9)	22	Copper	12.0	770	15.6	1200.00
57	08-005-062	Φ20x(20.1+34.9)	22	Copper	12.0	770	15.6	1200.00
58	08-005-063	Φ20x(20.1+47.9)	35	Copper	12.0	600	20	1000.00
59	08-005-064	Φ20x(18.4+4.3)	/	/	12.0	600	20	32.00
60	08-005-065	Φ20x(37.4+10.5)	/	/	12.0	600	20	2000.00
61	08-005-066	Φ20x(35.9+10.5)	/	/	12.0	200	60	500.00
62	08-005-101	Φ20x(15.5+19)	/	/	12.0	200	60	1000.00

❓ Frequently Asked Questions (FAQ)

What are the primary applications for these micro stepper motors?

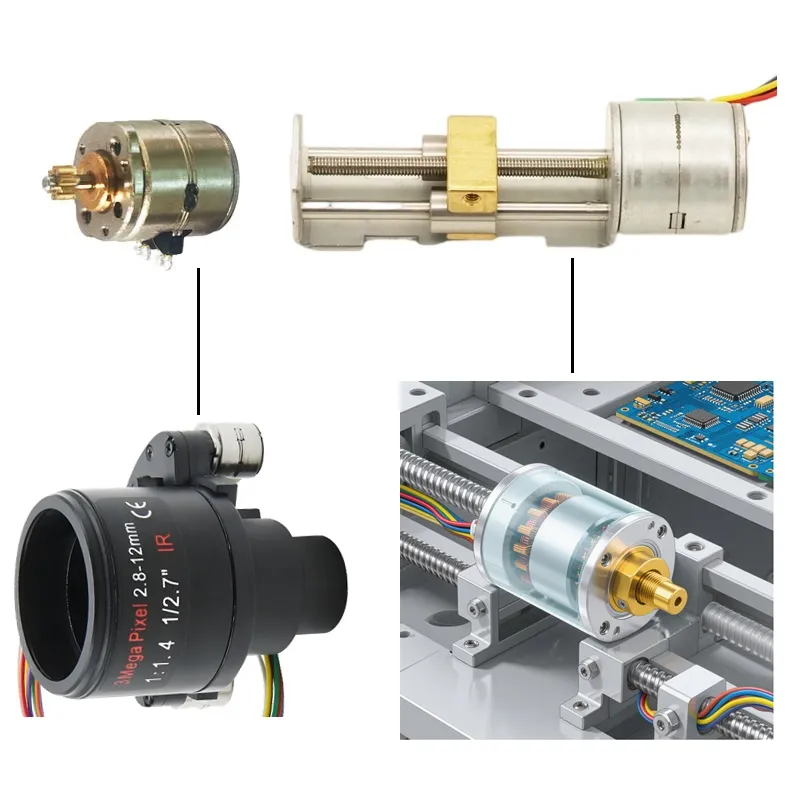

These motors are designed for high-precision control in compact devices such as medical equipment, camera lens actuators, precision laboratory instruments, and small-scale automation where space is limited.

What is the difference between plastic and copper slider materials?

Copper sliders offer higher durability and heat resistance for heavy-duty cycles, while plastic sliders are often preferred for lightweight applications and cost-effective solutions requiring minimal friction.

How do I choose the correct voltage for my project?

The voltage should match your driver's capabilities. Models range from 3.0V to 12.0V. Higher voltage generally allows for better performance at higher speeds, but must be balanced with the current limitations of the motor.

Can the stroke length be modified for specific requirements?

Yes, technical parameters show various stroke lengths ranging from 5.4mm to 65mm. Selecting the right model number ensures the mechanical movement matches your specific linear travel requirements.

What determines the output torque in these micro motors?

Output torque is influenced by the motor's size (diameter), internal resistance, and the current supplied. Our range offers torque from 0.06 gf.cm up to 2000.00 gf.cm to suit different load demands.

Are these motors compatible with standard micro-controllers?

Most of these 5V and 3.3V DC micro stepper motors are compatible with standard micro-controllers when used with an appropriate stepper motor driver to manage current and stepping sequences.
