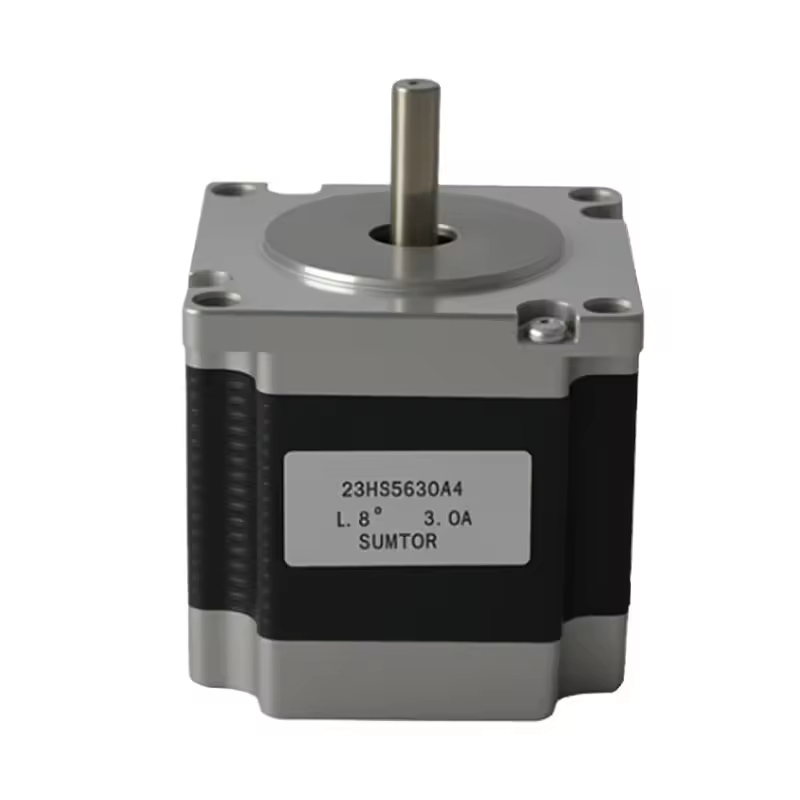

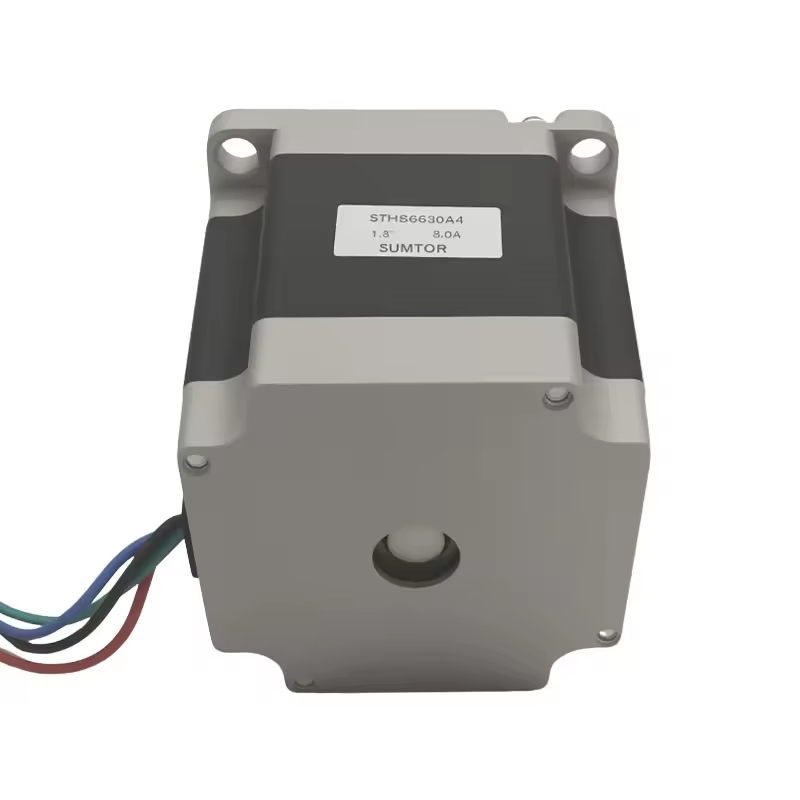

2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm
2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm
2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm
2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm
2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm
1 / 5
2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm
2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm
2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm
2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm
2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm

2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
57HS5630A4
Operate Mode
2 Phase
Type
Hybrid
Certification
CE
Current/Phase
3A
Holding Torque
1.2n.M
Phase Resistance
0.8ω
Frame Size
NEMA23, 57mm
Motor Length
56mm
Shaft Diameter
6.35mm
Lead Wire
4-Lead
Origin
China
📦 Packaging & Delivery
Package Size
22.00cm * 8.00cm * 8.00cm
Gross Weight
1.000kg
Lead Time
15 days (1 - 100 Pieces); To be negotiated (> 100 Pieces)
🔍 Product Overview
NEMA 23 Stepper Motor Banner Product Divider
Motor Step 1
STEP
Motor Step 2
STEP
Motor Step 3
STEP
Motor Details 1
STEP

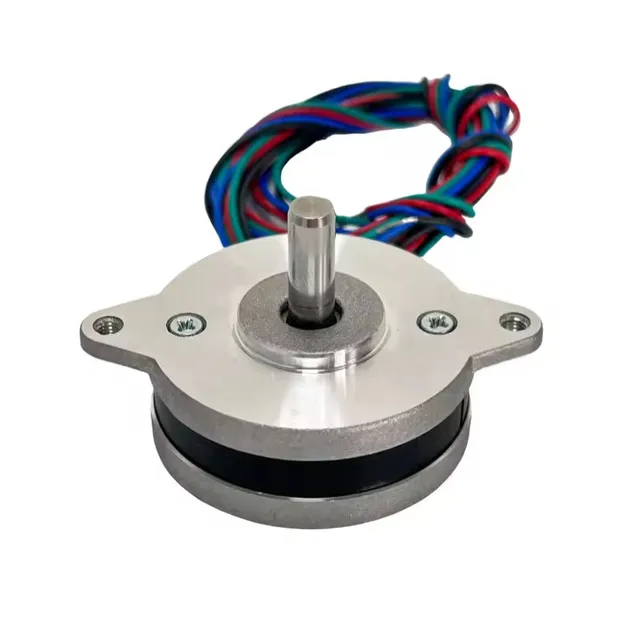

Motor Details 2
STEP

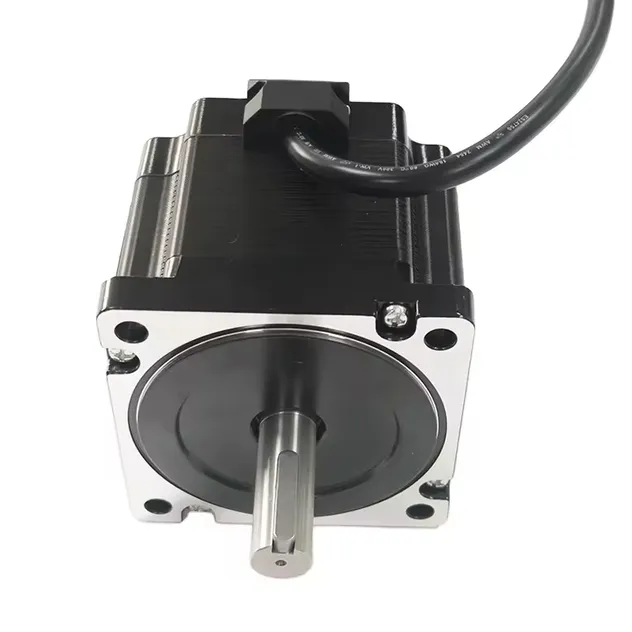

Motor Details 3
STEP
2 Phase Nema 23 Stepper Motor 57Bygh CNC Stepping Engine

3A 4-wire CE for Medical and Textile Machine

Package includes: 1pc * Nema 23 stepper motor

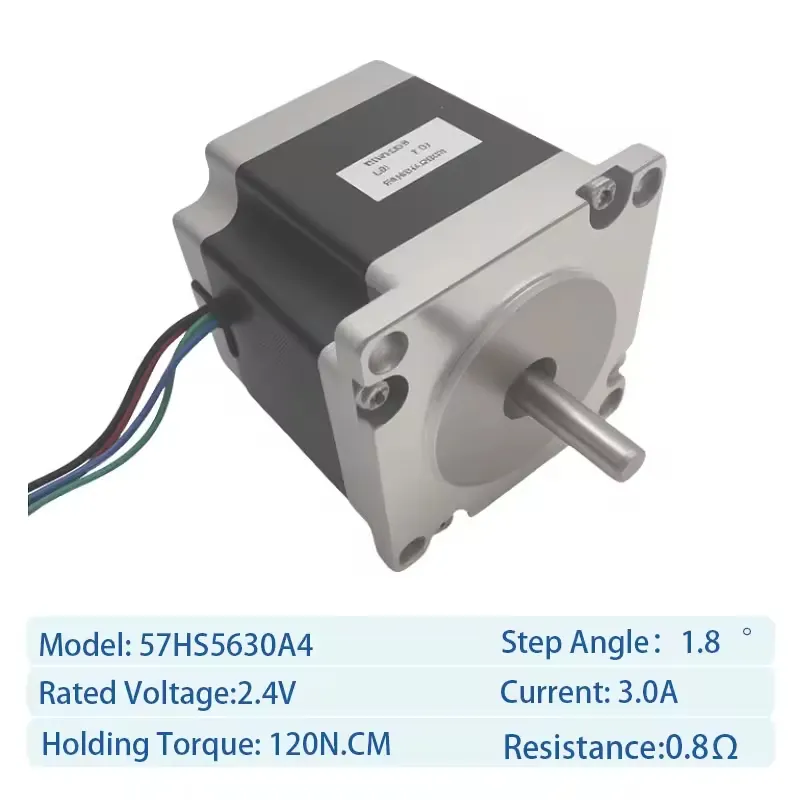

NEMA 23 Motor
1.8 degree 1.2N.m NEMA 23 Stepper Motor
  • Low noise
  • Speed adjustable
  • Long lifetime characteristics
  • High step angle accuracy
⚙️ Technical Data and Size Drawing
Model Step Angle (°) Rated Current (A) Resistance (Ω) Inductance (mH) Holding Torque (N.m) Rotor Inertia (g.cm²) Length L (mm) Lead Wire
57HS5630A4 1.8 3 0.8 2.4 1.2 280 56 4

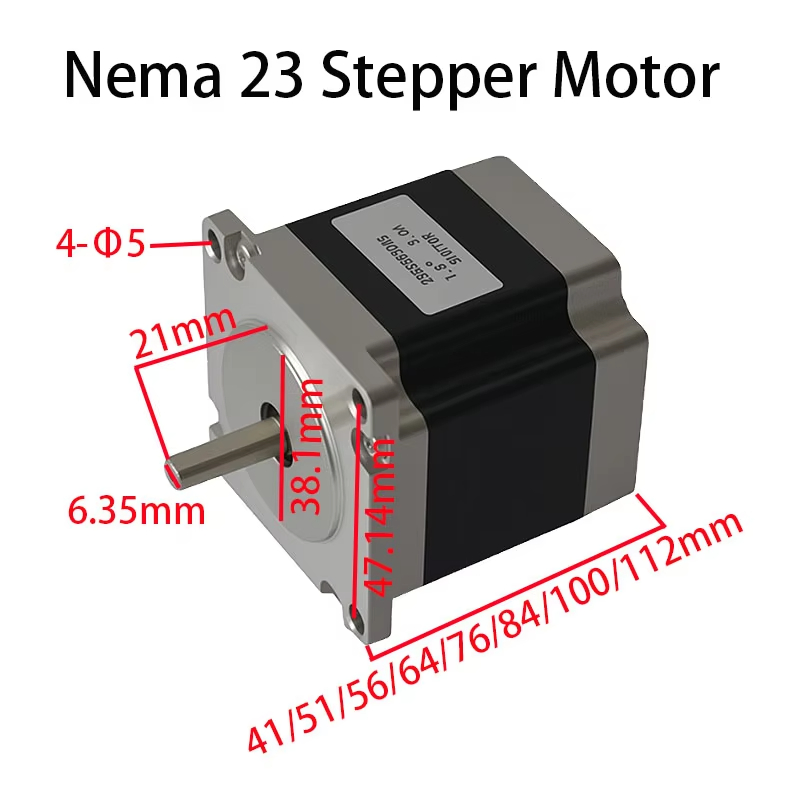

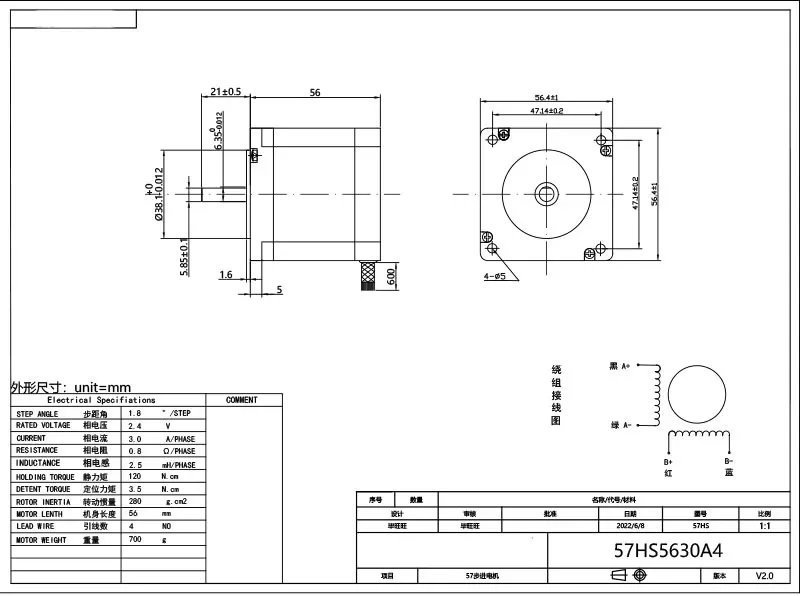

Size Drawing

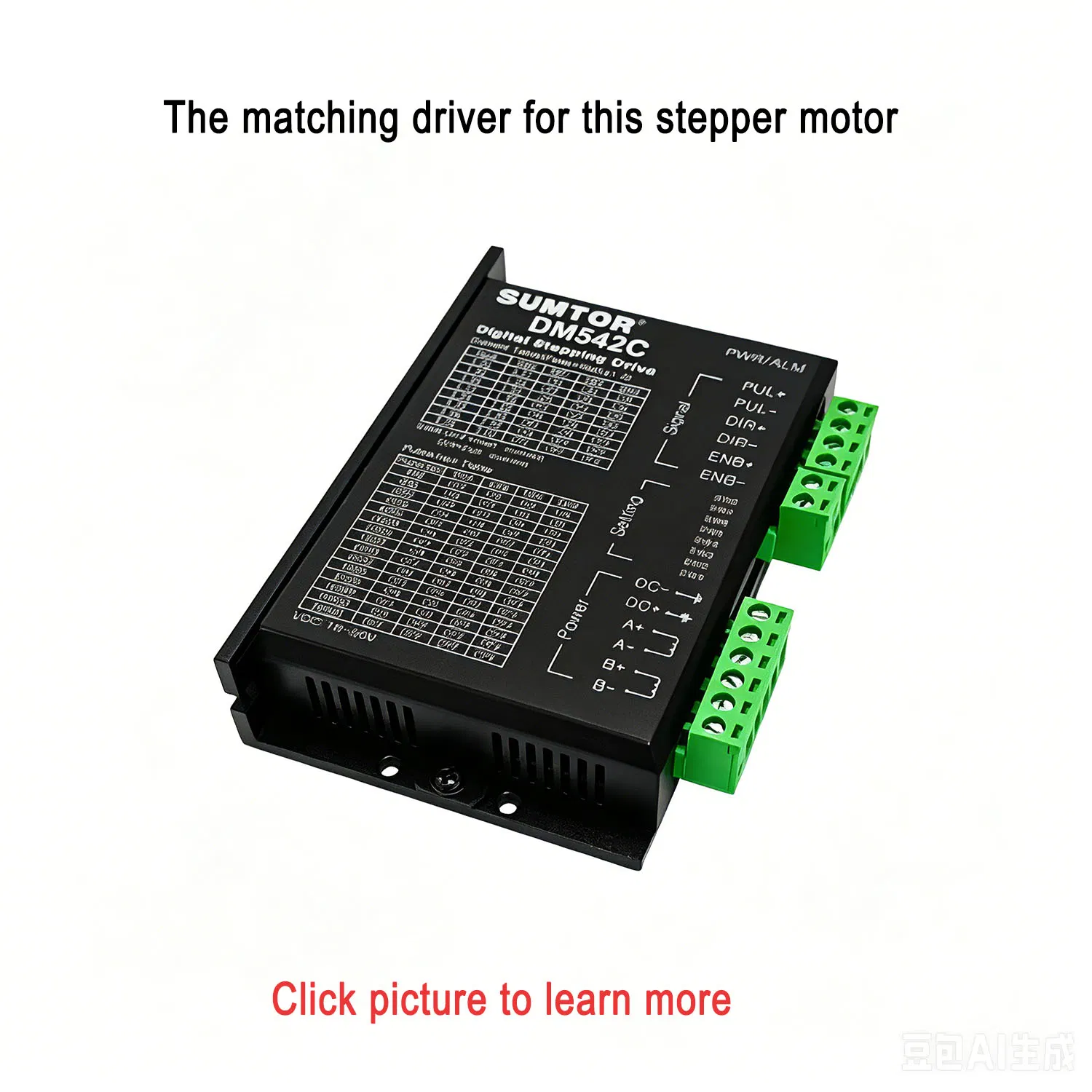

Driver Compatible

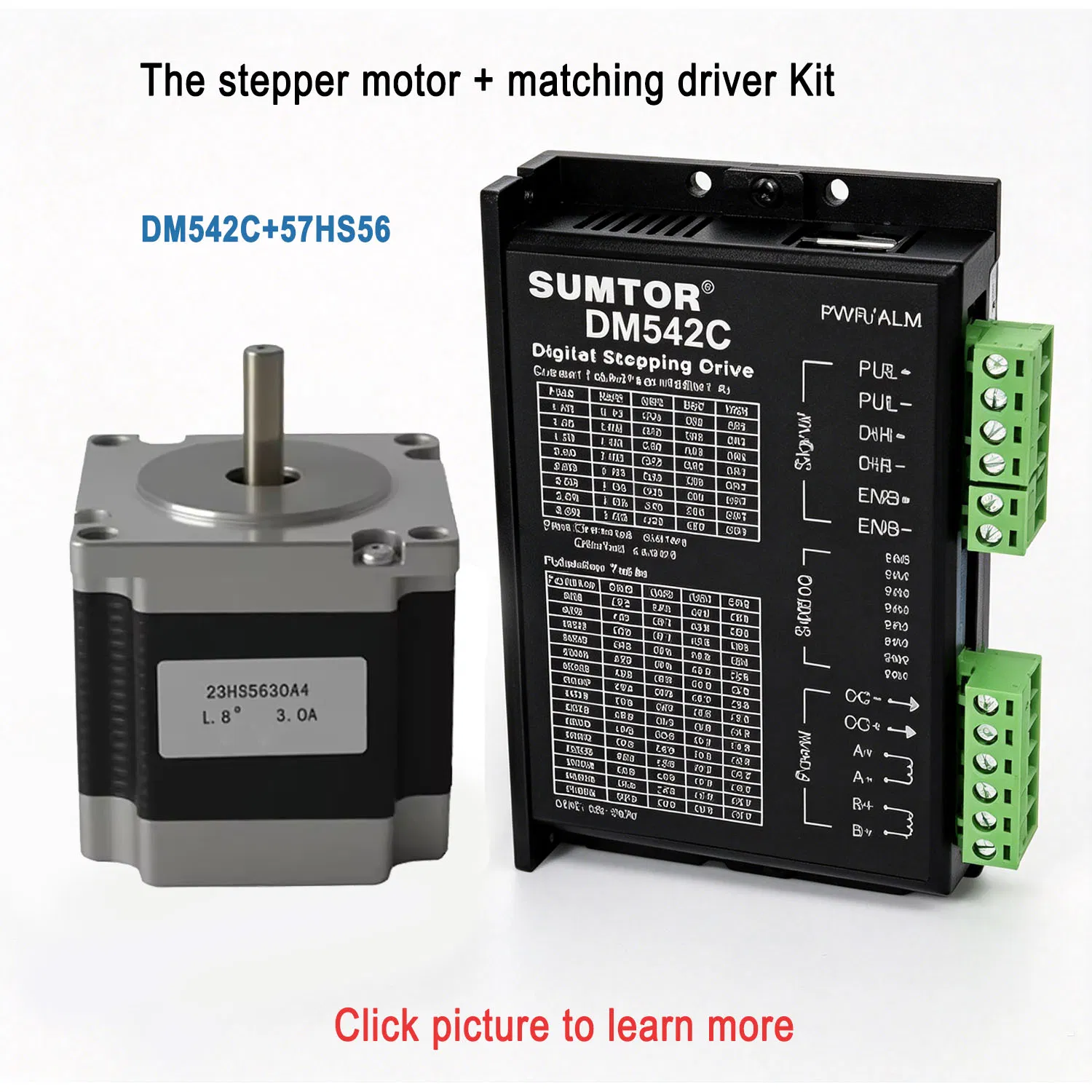

Driver Kit
Performance Curve Dimension Details Wiring Diagram
🛠️ Customization & Application

About Customization:

If you need customized shaft, lead wire, or other specifications, feel free to contact us for technical support.

Application of Stepper Motor:

Stepper motors are widely used in industrial transmission control, powder packaging machines, CD-ROM readers, winding machines, printing machines, cutting machines, engraving machines, printers, plotters, robotics, and other automation equipment.

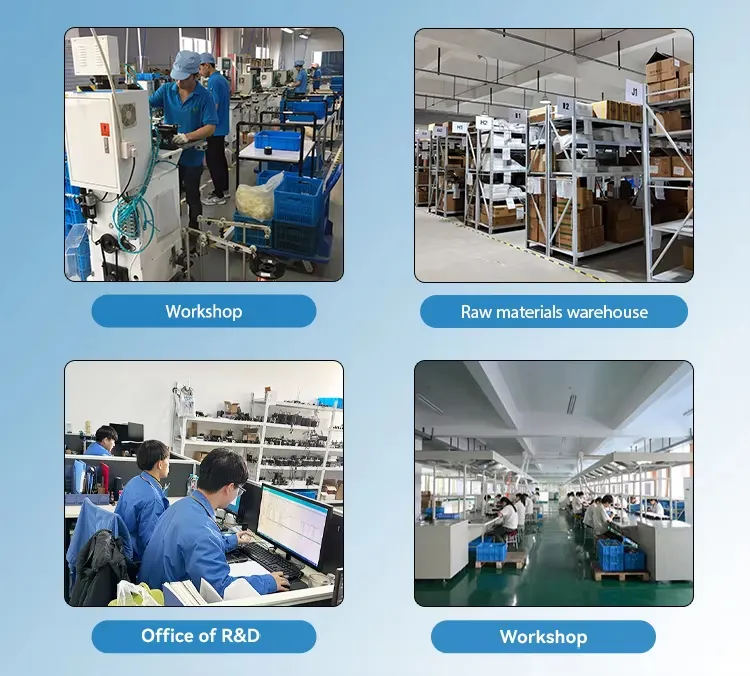

Application Examples Factory Overview Quality Control Packaging Process
Frequently Asked Questions (FAQ)
1. What are the key features of the NEMA 23 stepper motor?
The NEMA 23 stepper motor (57HS5630A4) features low noise operation, adjustable speed, a long service life, and high step angle accuracy, making it ideal for precision tasks.
2. Can I get a customized shaft for this motor?
Yes, customization options are available for the shaft, lead wires, and other specific requirements to fit your unique machinery or application.
3. What is the holding torque of this specific model?
Model 57HS5630A4 provides a holding torque of 1.2 N.m, which is suitable for various CNC and industrial automation needs.
4. Is this motor compatible with 3D printers and CNC machines?
Absolutely. NEMA 23 motors are standard for CNC routers, 3D printers, engraving machines, and medical equipment due to their reliability and precision.
5. What certifications does this motor hold?
This 2-phase hybrid stepper motor is CE certified, ensuring it meets the necessary safety and environmental standards for international use.
6. What is the standard lead time for an order?
For orders between 1 to 100 pieces, the standard lead time is approximately 15 days. For larger quantities, the timeframe can be negotiated based on production capacity.
