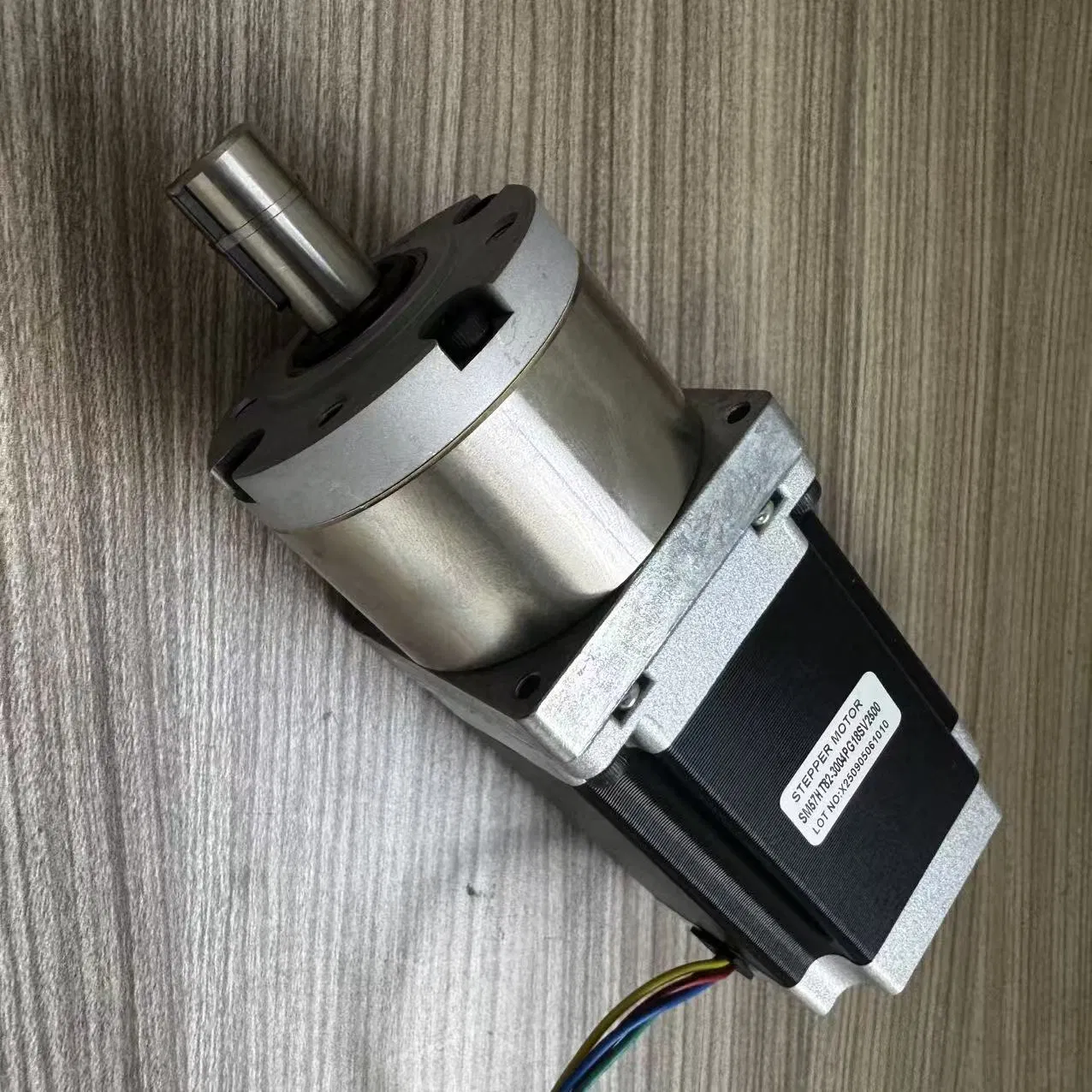

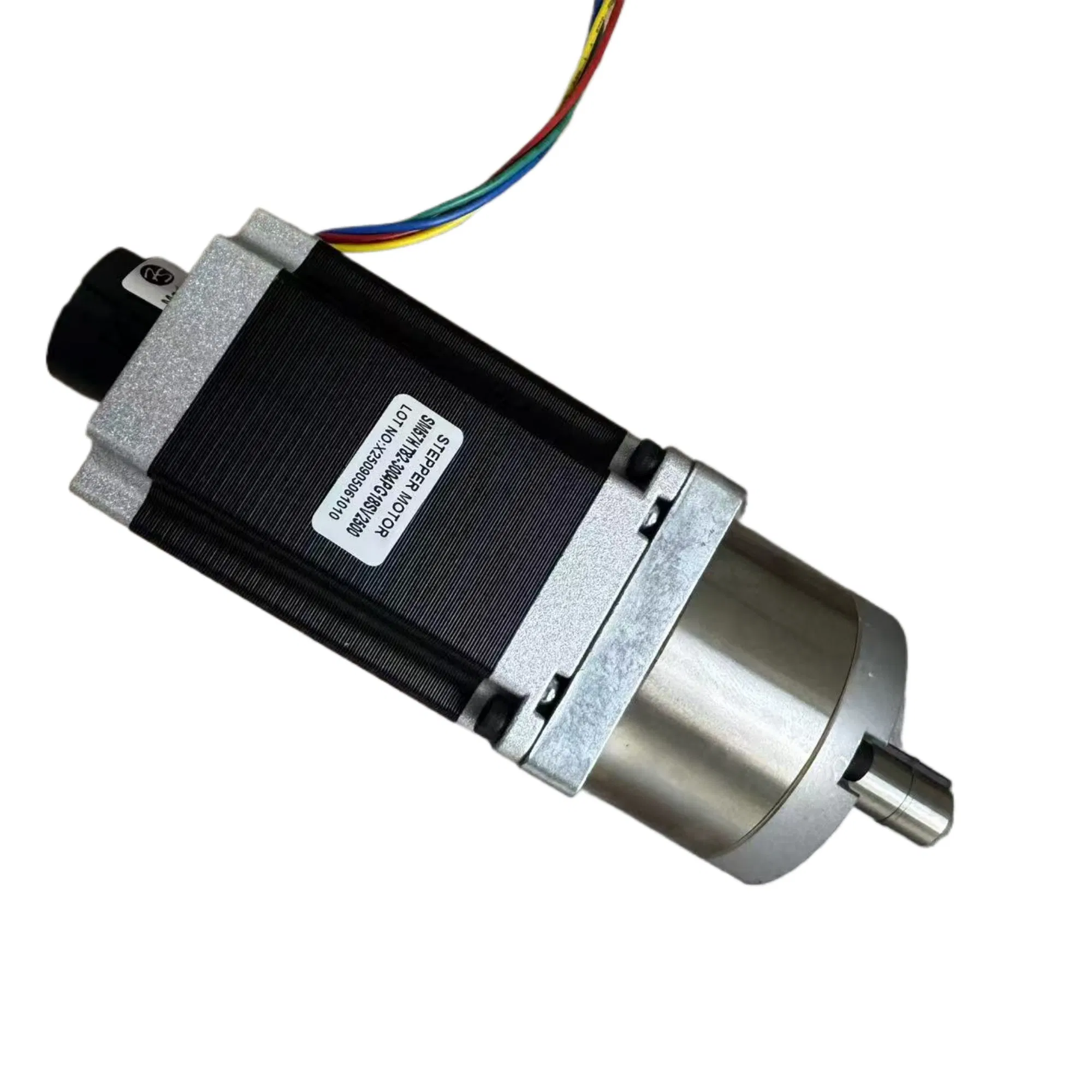

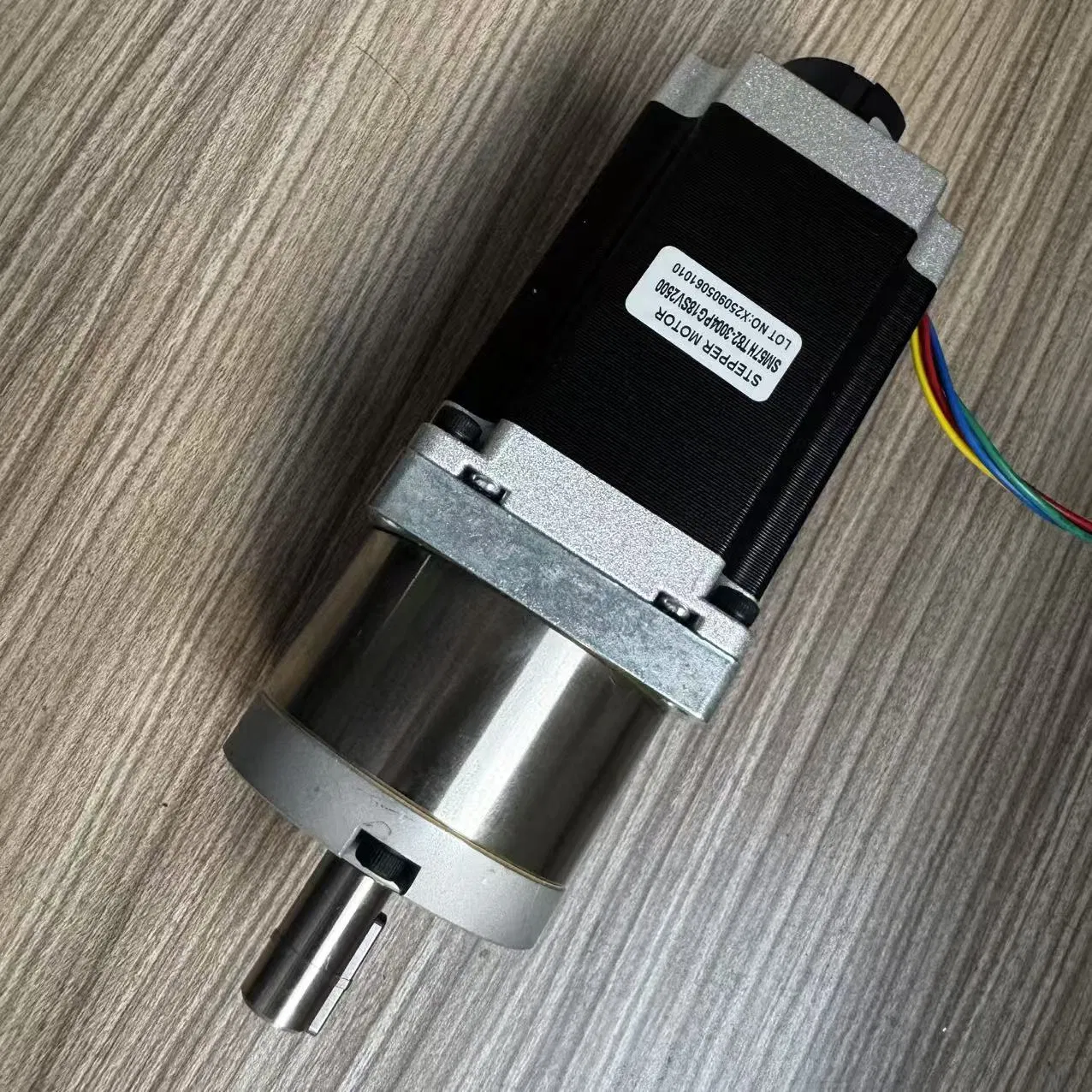

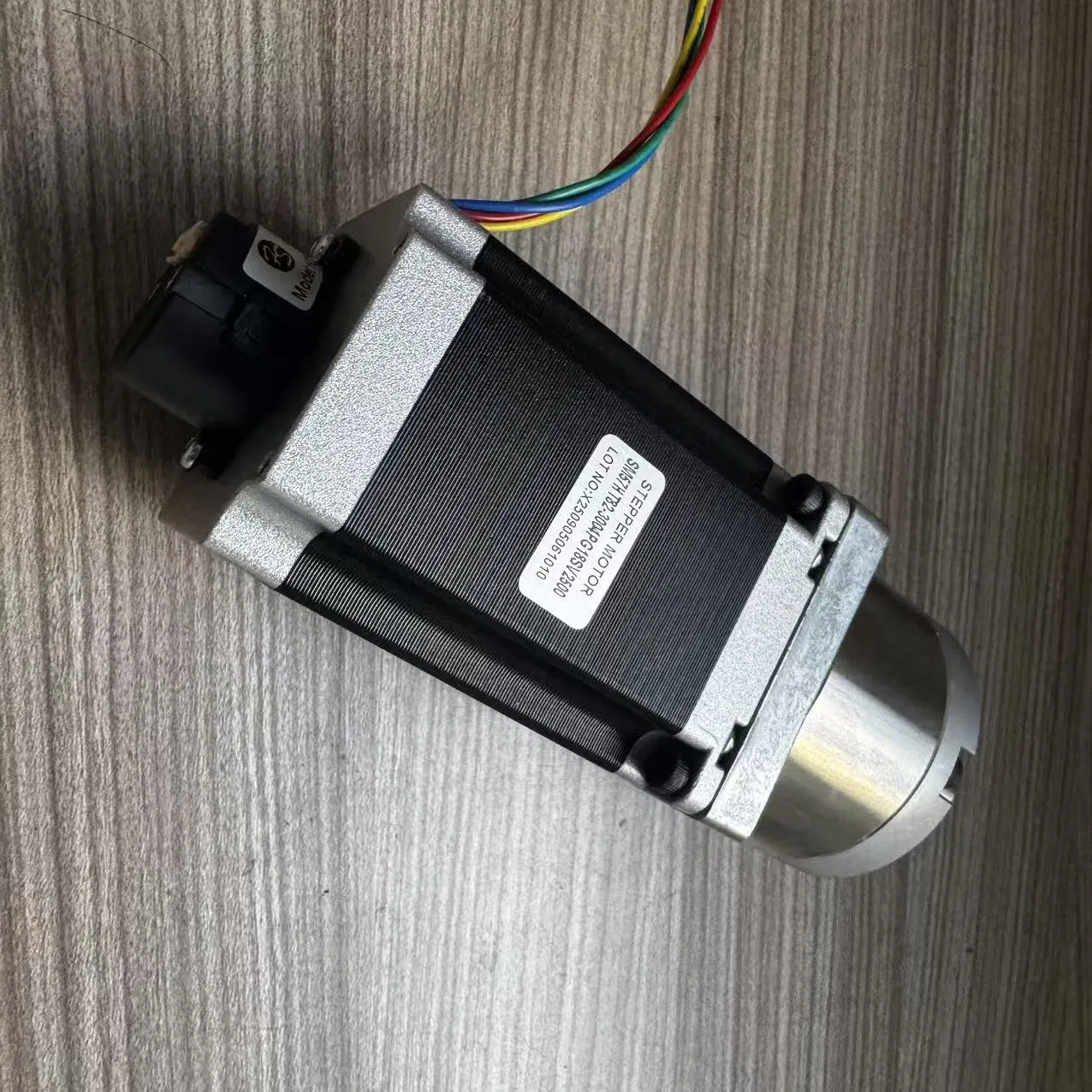

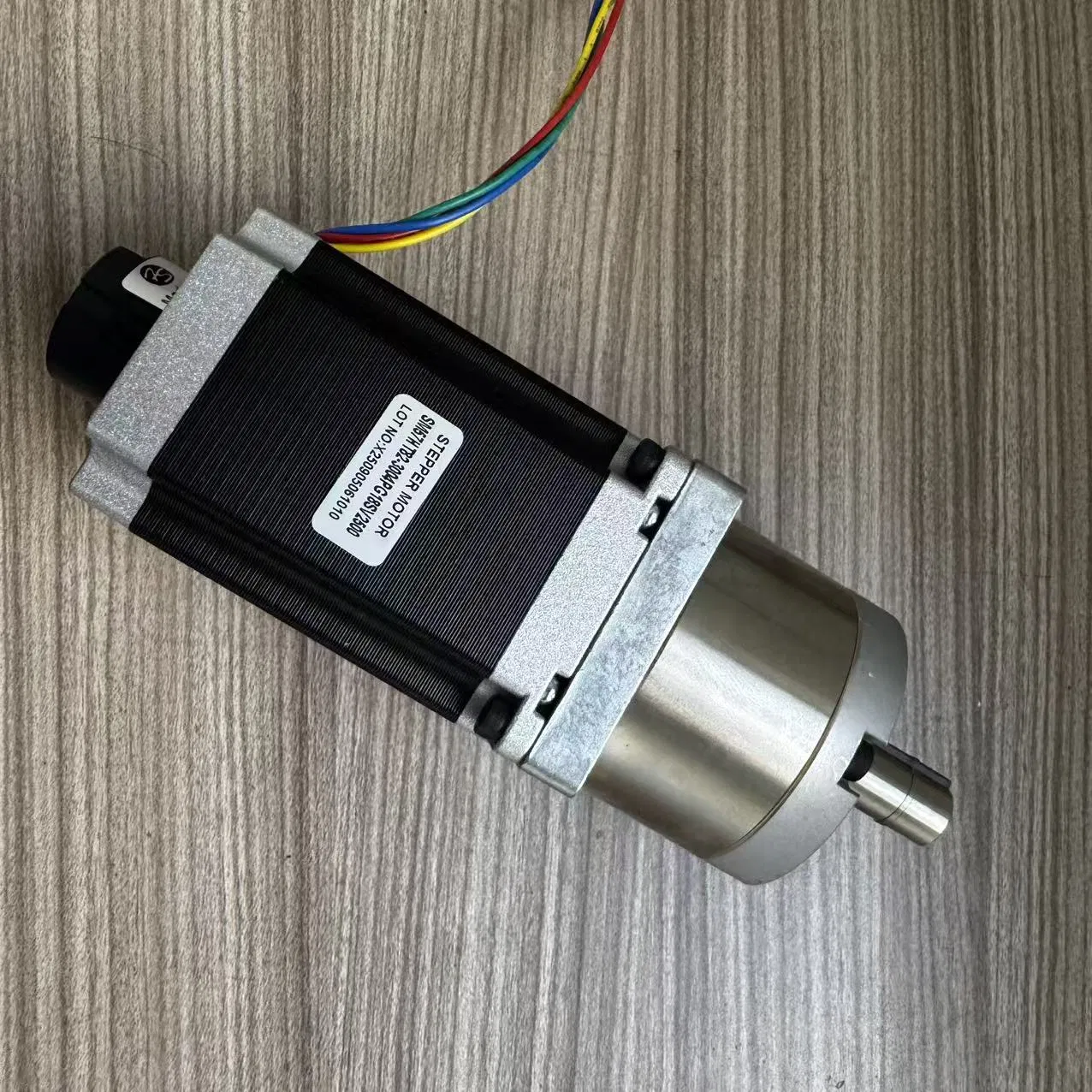

Good Quality Low Backlash NEMA 23 Geared Stepper Motor 57mm Stepping Step Motor with Planetary Gearbox Option with Optical Encoder and Brake

1 / 5

Good Quality Low Backlash NEMA 23 Geared Stepper Motor 57mm Stepping Step Motor with Planetary Gearbox Option with Optical Encoder and Brake

Customization:	Available
Application:	Nc Machine Tool
Speed:	Variable Speed

Send Inquiry

Product Description

1 Basic Specifications

Model NO.

Nema 23 geared

Number of Stator

Two-Phase

Excitation Mode

HB-Hybrid

Function

Control, Driving

Number of Poles

Type

Magnetic-Electric

Certification

ISO9001

Brake

Option with Brake

Encoder

Option with Encoder

HS Code

85011099

Production Capacity

10000 Per Month

Specification

size 57mm nema 23

2 Packaging & Delivery

Package Size

10.00cm * 10.00cm * 20.00cm

Package Gross Weight

3.000kg

Transport Package

Standard Export Package

3 Product Description

Nema 23 Geared Stepper Motor

We provide customizable voltage, dimension, performance, shaft, and mounting options to meet your specific requirements.

Integrated solutions are available including controllers, encoders, gearboxes, and brakes.

Frame Size	57mm Nema 23
Rated Voltage	12v 18v 24v 36v 48v ...etc
Rated Torque	Up to 120Nm with gearbox
Rated Speed	To be customized
Rated Power	To be customized
Protection Class	Option IP 50, 54, 56
EMI	EMI suppression available
Thermal	Thermal protection available
Gearbox	Option with planetary or worm gearbox assembled
Brake	Option with electric brake assembled
Encoder	Option with Optical or Magnetic encoders
Controller	Option with controller integrated

4 Motor Configuration (Encoder & Brake Options)

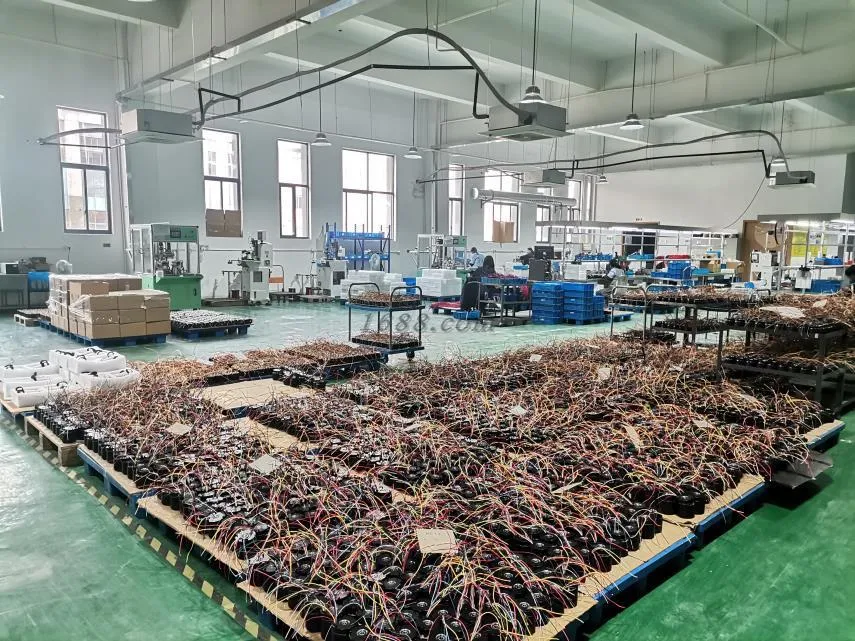

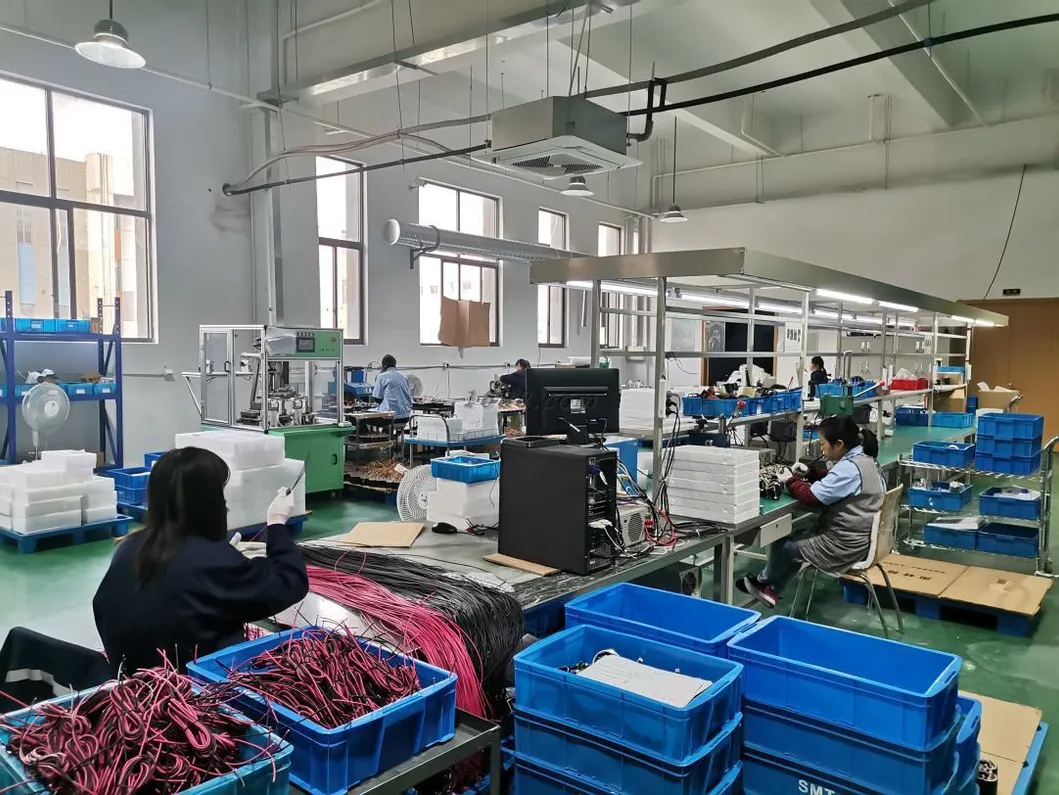

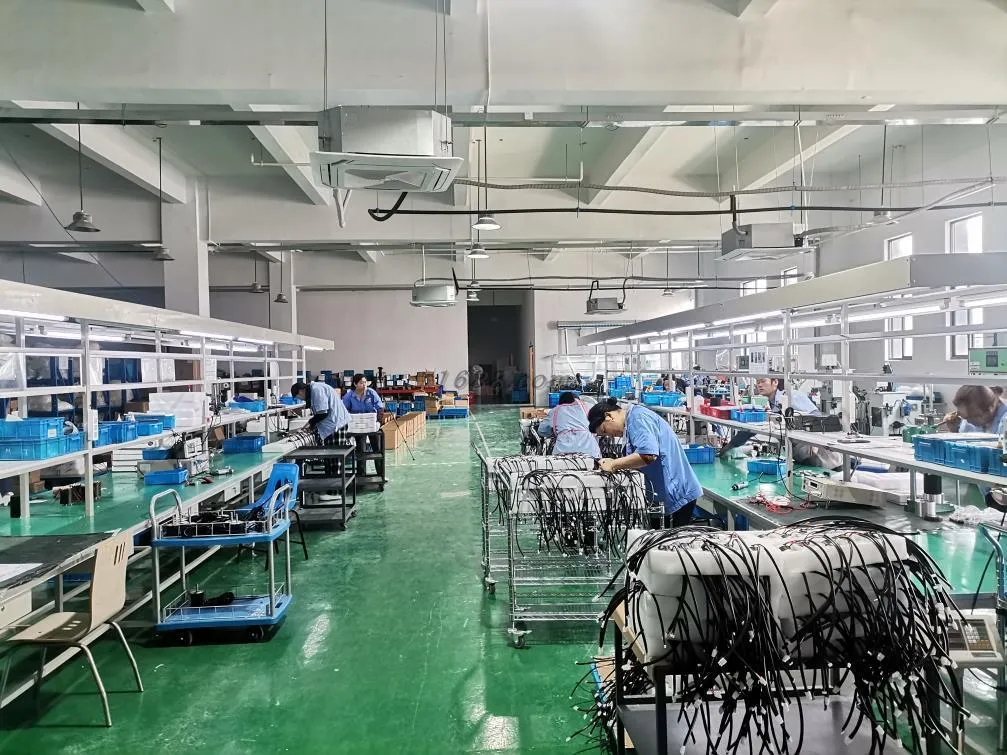

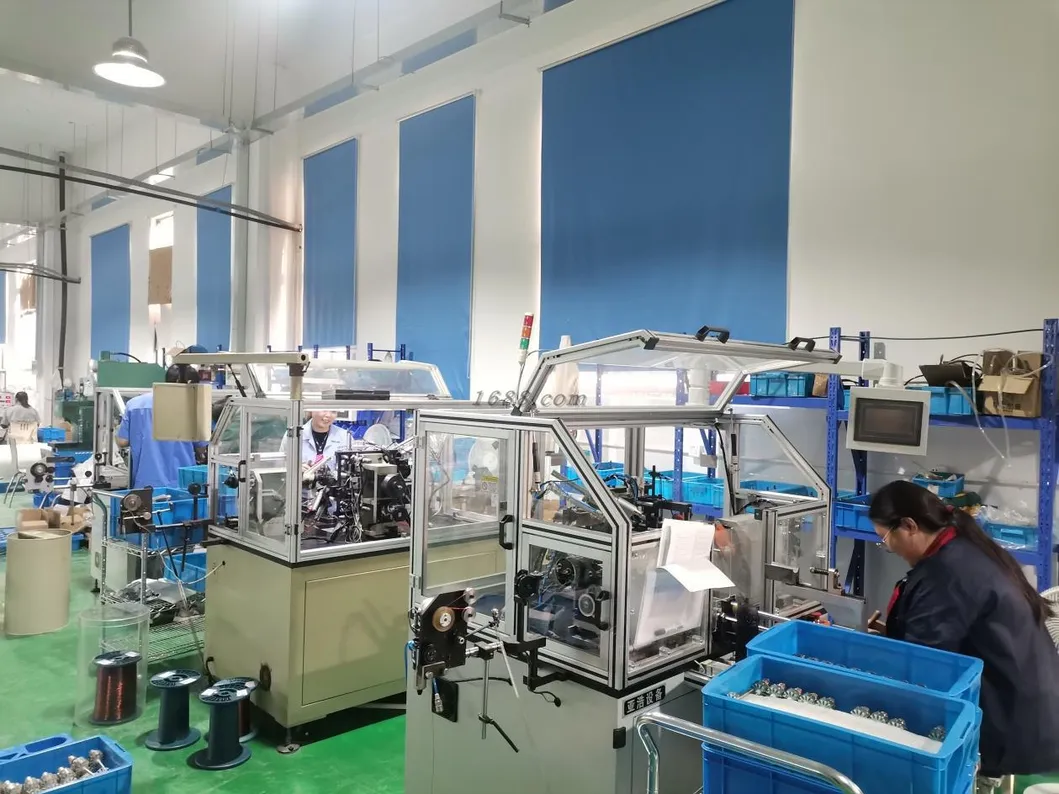

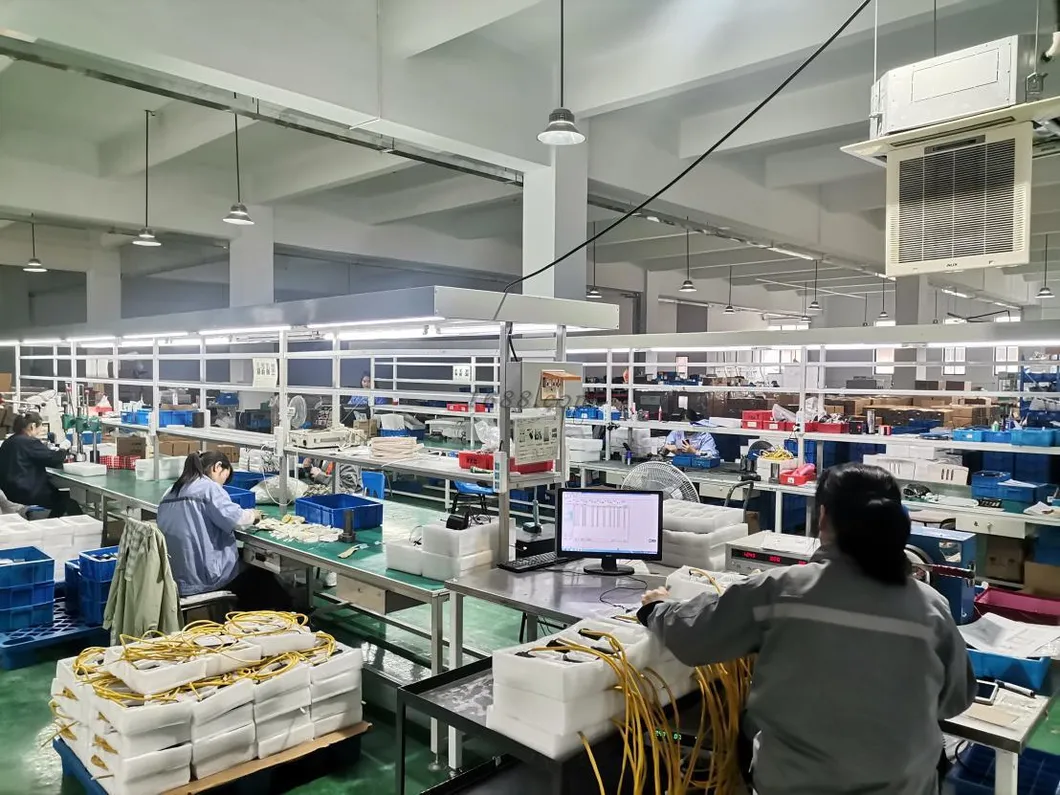

5 Motor Production Gallery

Frequently Asked Questions

Can the Nema 23 geared motor specifications be customized?

Yes, we offer full customization for voltage, dimensions, shaft types, mounting configurations, and performance characteristics to suit your specific application.

What types of gearboxes can be paired with this motor?

The Nema 23 motor can be assembled with either planetary gearboxes for high torque and low backlash, or worm gearboxes depending on your needs.

Are integrated brakes and encoders available?

Yes, we provide options for both electric brakes and optical or magnetic encoders to be integrated directly into the motor assembly for precise control and safety.

What is the maximum torque capacity with a gearbox?

With the appropriate gearbox configuration, the Nema 23 system can achieve a rated torque of up to 120Nm.

What protection classes are offered for harsh environments?

We offer optional protection classes including IP50, IP54, and IP56 to ensure the motor operates reliably in various environmental conditions.

Is EMI suppression available for these motors?

Yes, EMI suppression and thermal protection options are available to enhance the durability and stability of the motor in sensitive electronic environments.
