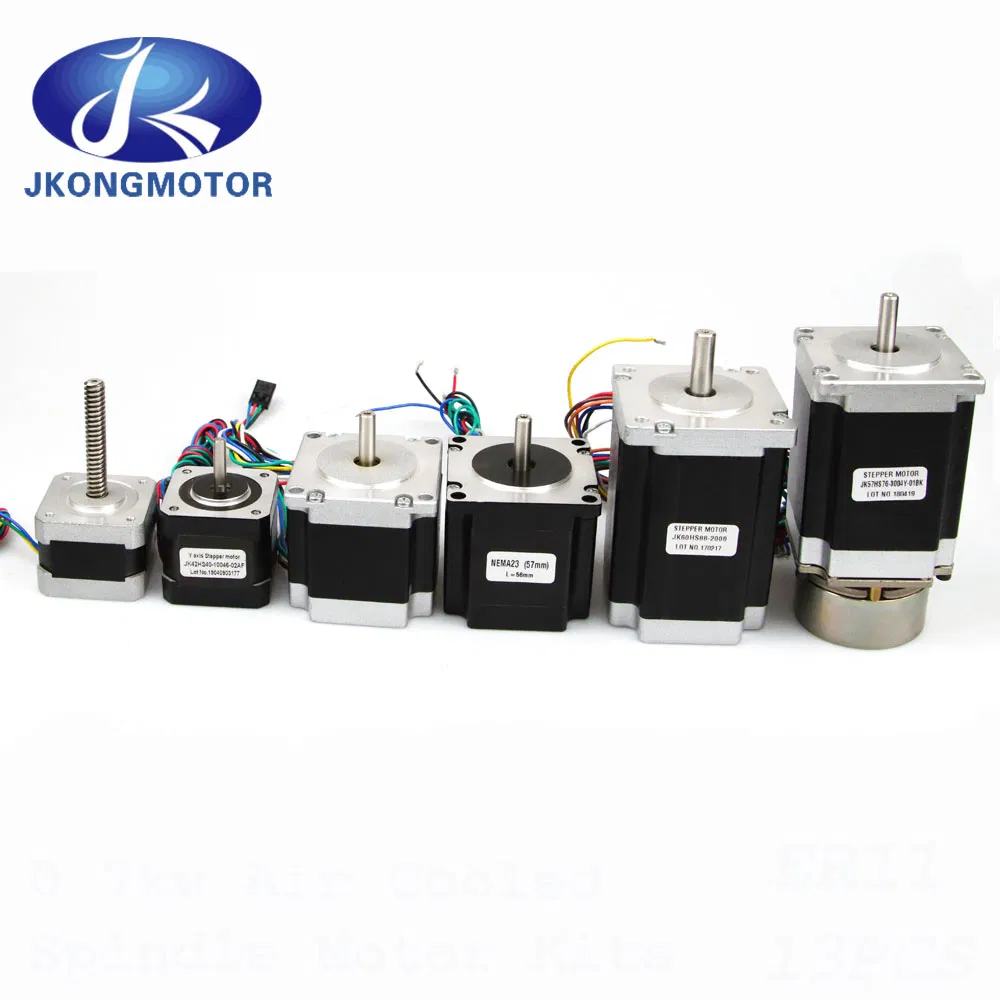

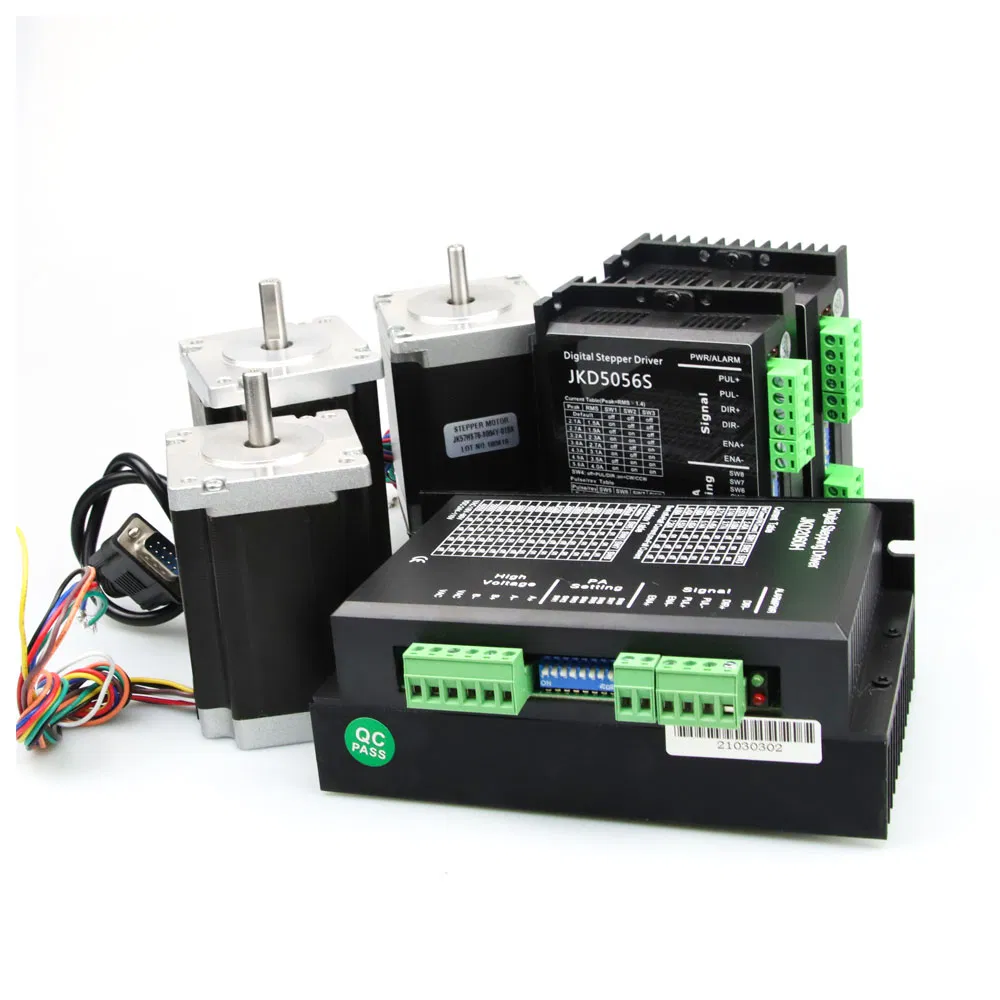

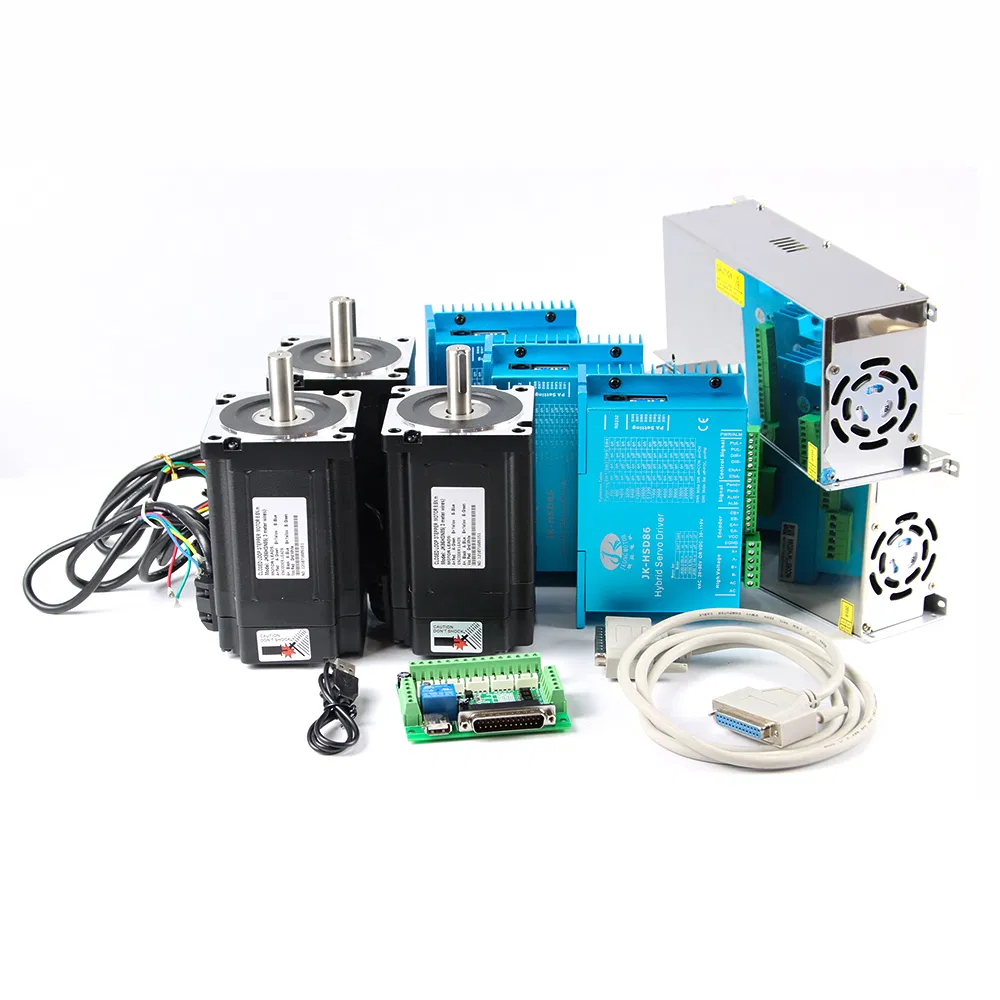

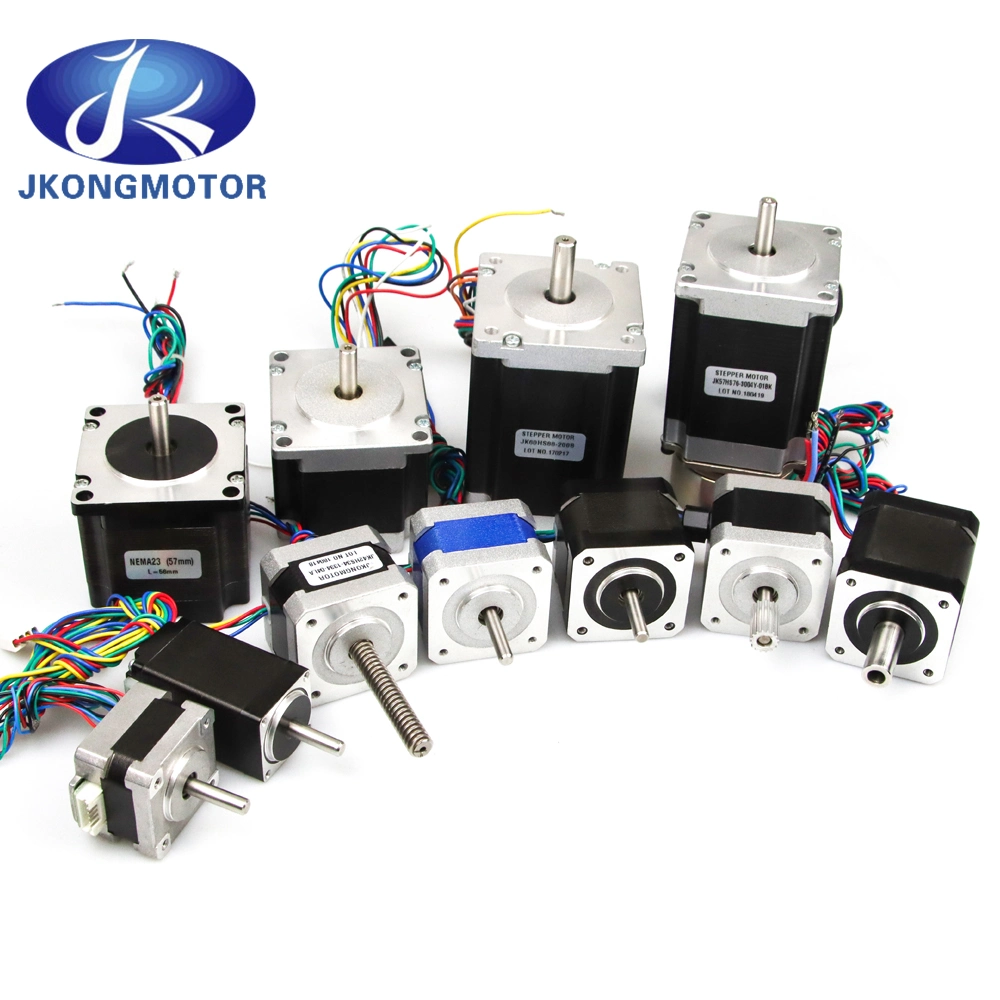

NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine
This series of stepping motors converts electrical pulse signals into angular or linear displacements. These versatile small stepper motors are widely used in 3D printers, stage lighting, laser engraving, textile machinery, medical equipment, and various automation systems.
| Motor series | Phase No. | Step angle | Motor length | Motor size | Leads No. | Holding torque |
|---|---|---|---|---|---|---|
| Nema 8 | 2 phase | 1.8 degree | 30~42mm | 20x20mm | 4 | 180~300g.cm |
| Nema 11 | 2 phase | 1.8 degree | 32~51mm | 28x28mm | 4 or 6 | 430~1200g.cm |
| Nema 14 | 2 phase | 0.9 or 1.8 degree | 27~42mm | 35x35mm | 4 | 1000~2000g.cm |
| Nema 16 | 2 phase | 1.8 degree | 20~44mm | 39x39mm | 4 or 6 | 650~2800g.cm |
| Nema 17 | 2 phase | 0.9 or 1.8 degree | 25~60mm | 42x42mm | 4 or 6 | 1.5~7.3kg.cm |
| Nema 23 | 2/3 phase | 1.8/1.2 degree | 41~112mm | 57x57mm | 4/6/8 | 0.39~3.1N.m |
| Nema 24 | 2 phase | 1.8 degree | 56~111mm | 60x60mm | 8 | 1.17~4.5N.m |
| Nema 34 | 2/3 phase | 1.8/1.2 degree | 65~155mm | 86x86mm | 4/8 | 2~12.2N.m |
| Nema 42 | 2/3 phase | 1.8/1.2 degree | 99~285mm | 110x110mm | 4 | 8~28N.m |
| Nema 52 | 2/3 phase | 1.8/1.2 degree | 173~285mm | 130x130mm | 4 | 13.3~22.5N.m |
| Model No. | Step Angle(°) | Length(mm) | Current(A) | Resistance(Ω) | Inductance(mH) | Holding Torque(g.cm) | Mass(kg) |
|---|---|---|---|---|---|---|---|
| JK20HS30-0604 | 1.8 | 30 | 0.6 | 18 | 3.2 | 180 | 0.06 |
| JK20HS33-0604 | 1.8 | 33 | 0.6 | 6.5 | 1.7 | 200 | 0.07 |
| JK20HS38-0604 | 1.8 | 38 | 0.6 | 10 | 5.5 | 300 | 0.08 |
| JK20HS42-0804 | 1.8 | 42 | 0.8 | 5.4 | 1.5 | 400 | 0.09 |

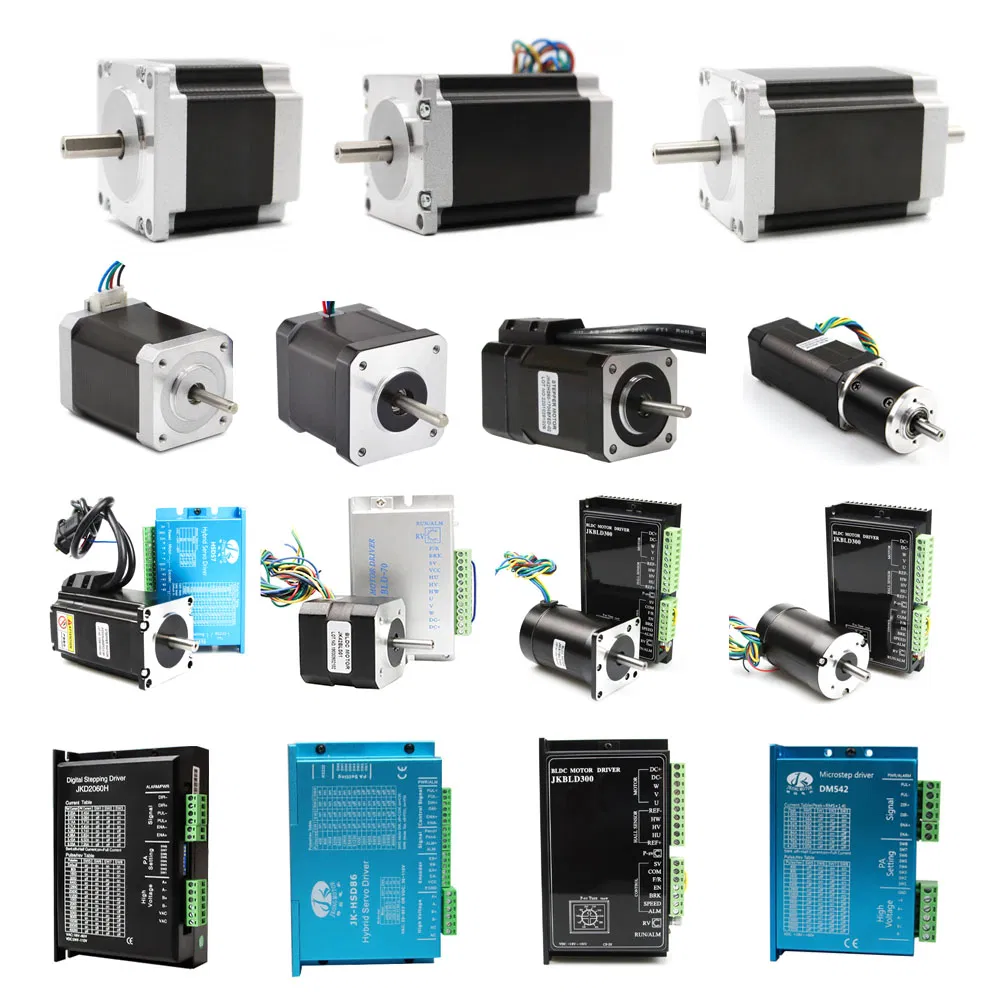

Motor with Driver

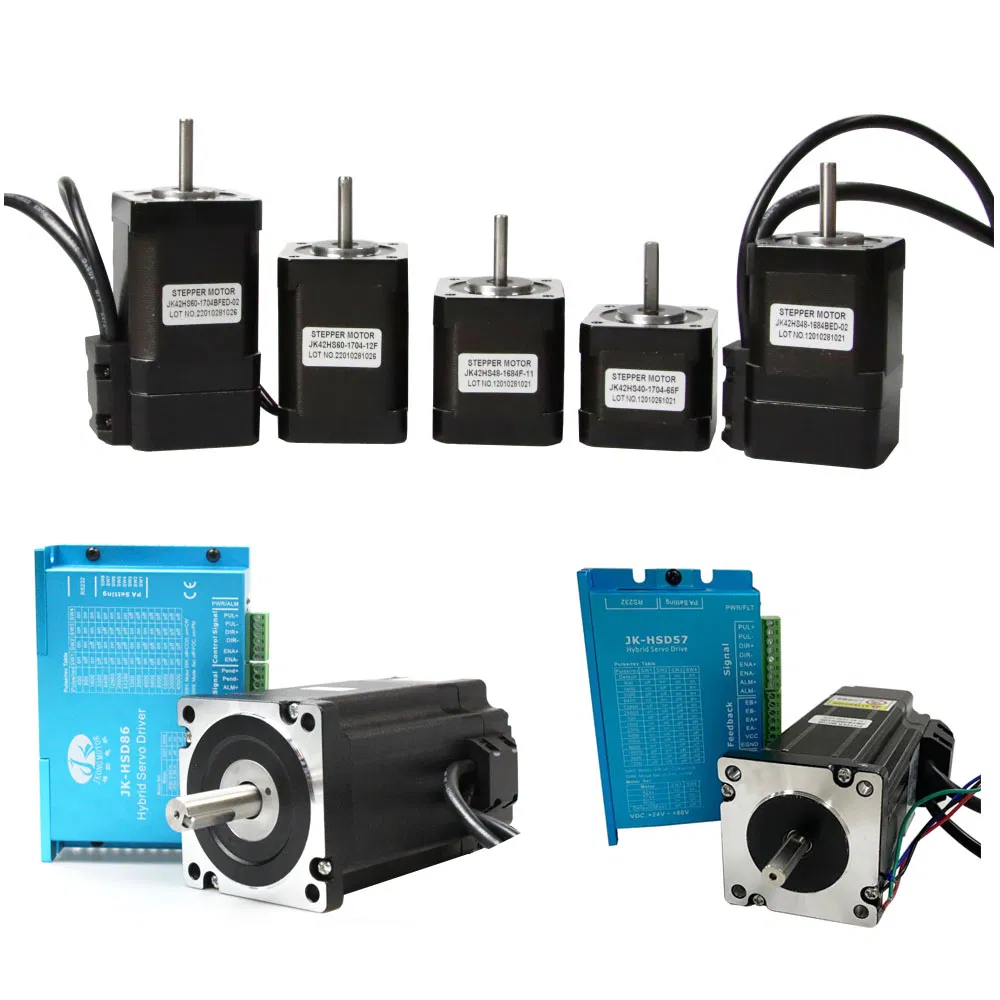

Closed Loop Stepper Motor

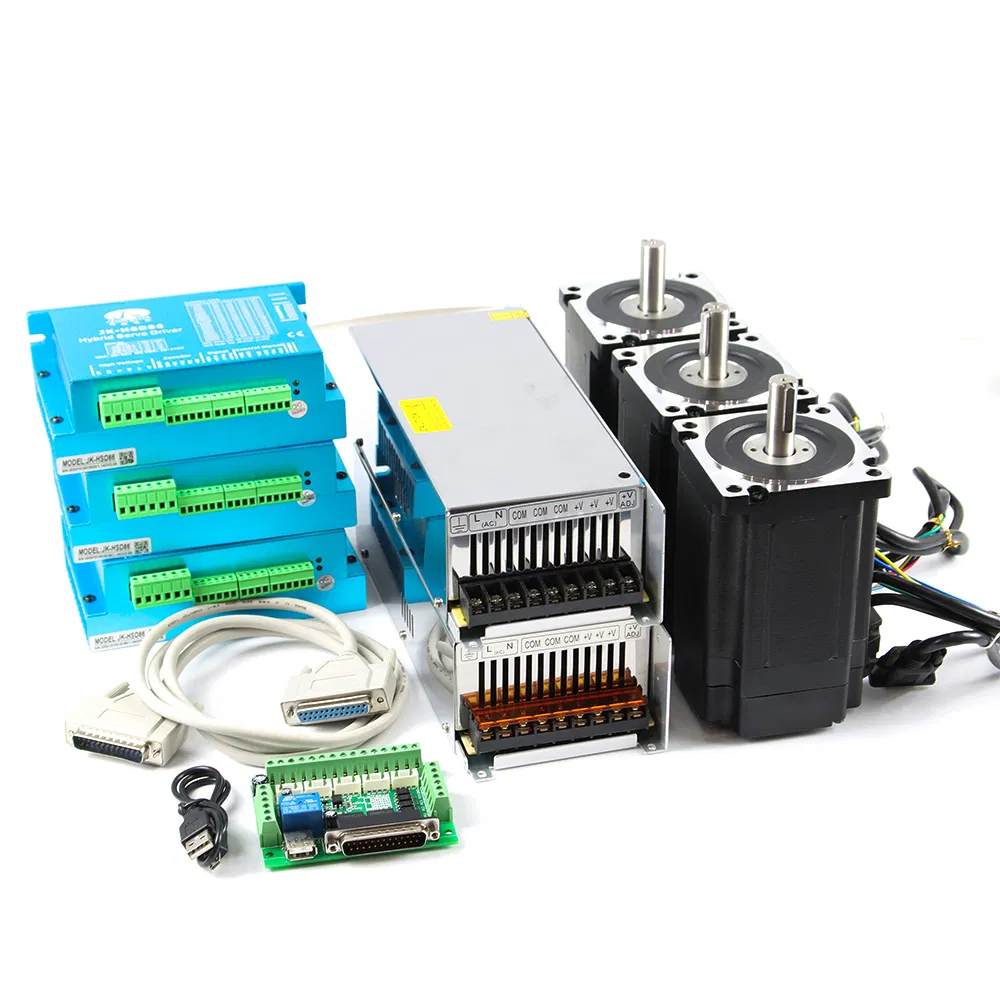

Easy Servo Stepper Motor Kits

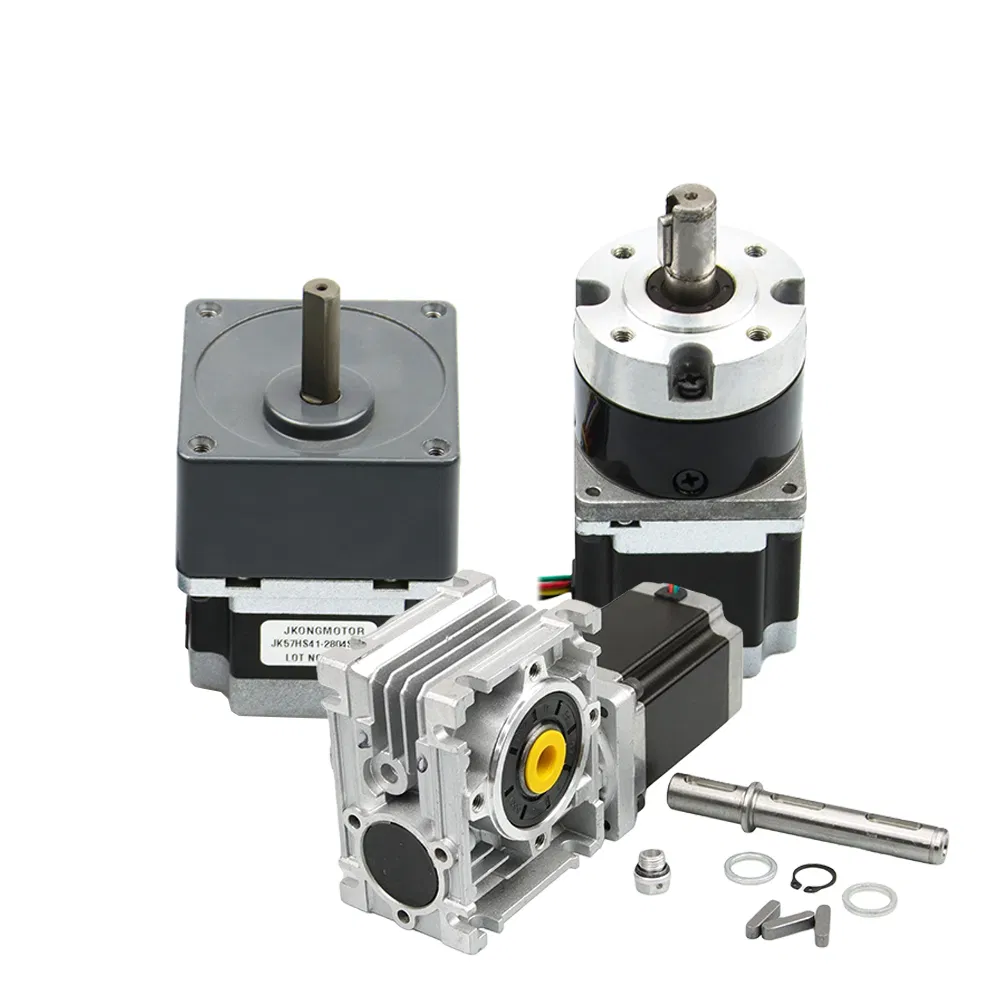

Geared Stepper Motor

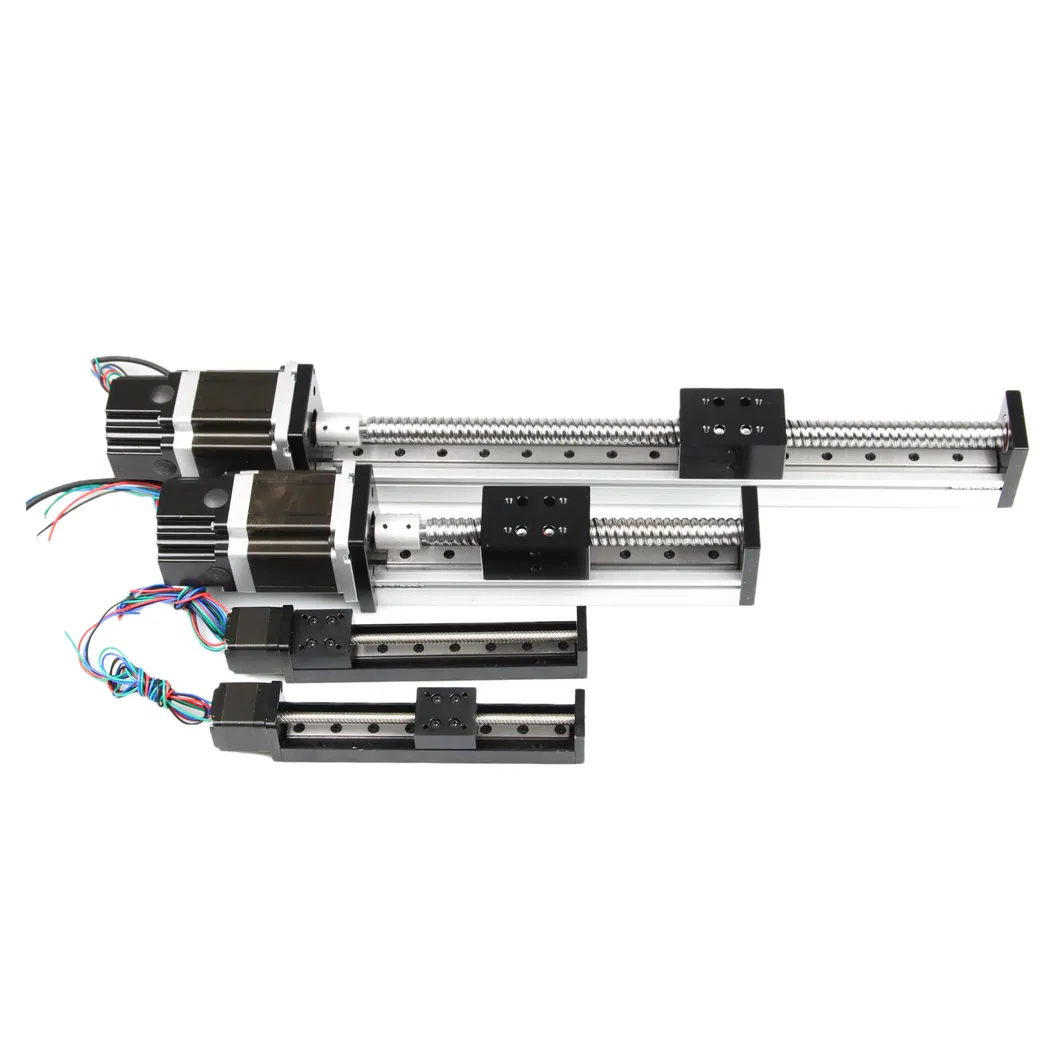

Linear Actuator Stepper Motor

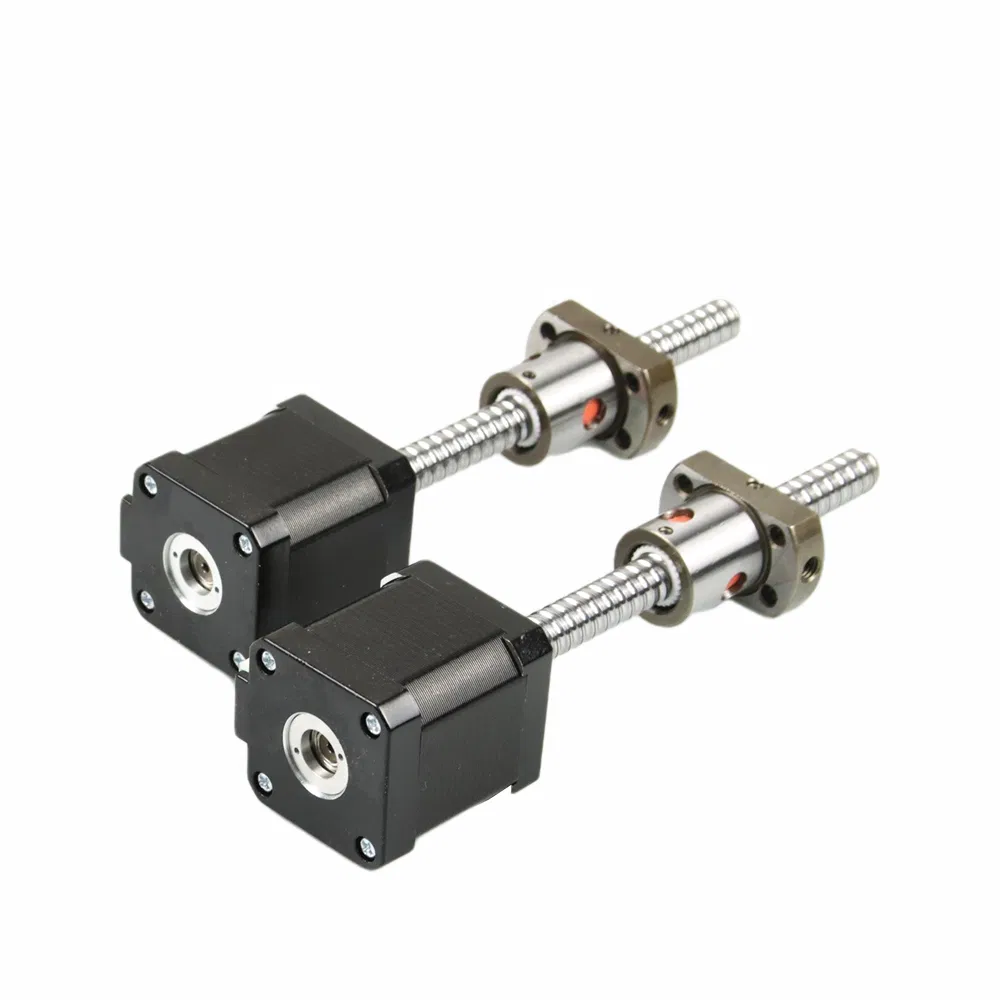

Linear Screw Stepper Motor

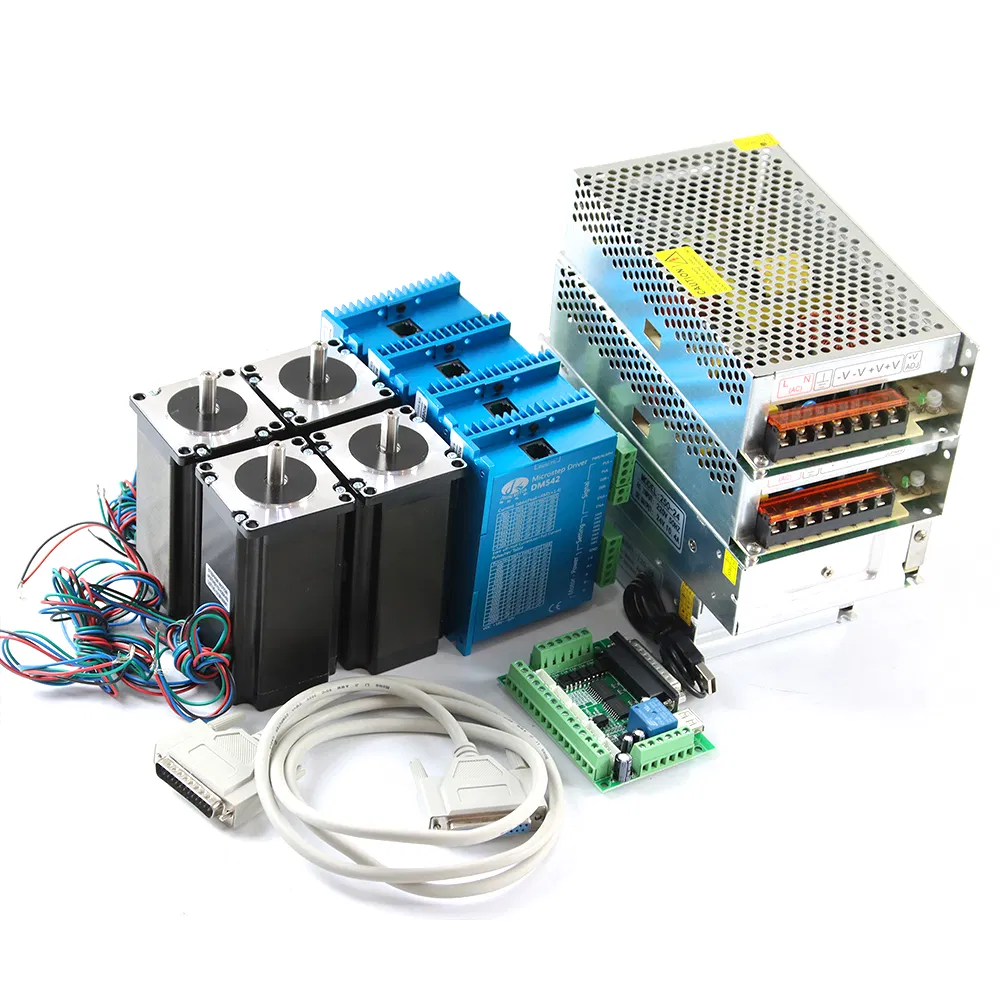

3/4 Axis Cnc Stepper Motor Kits

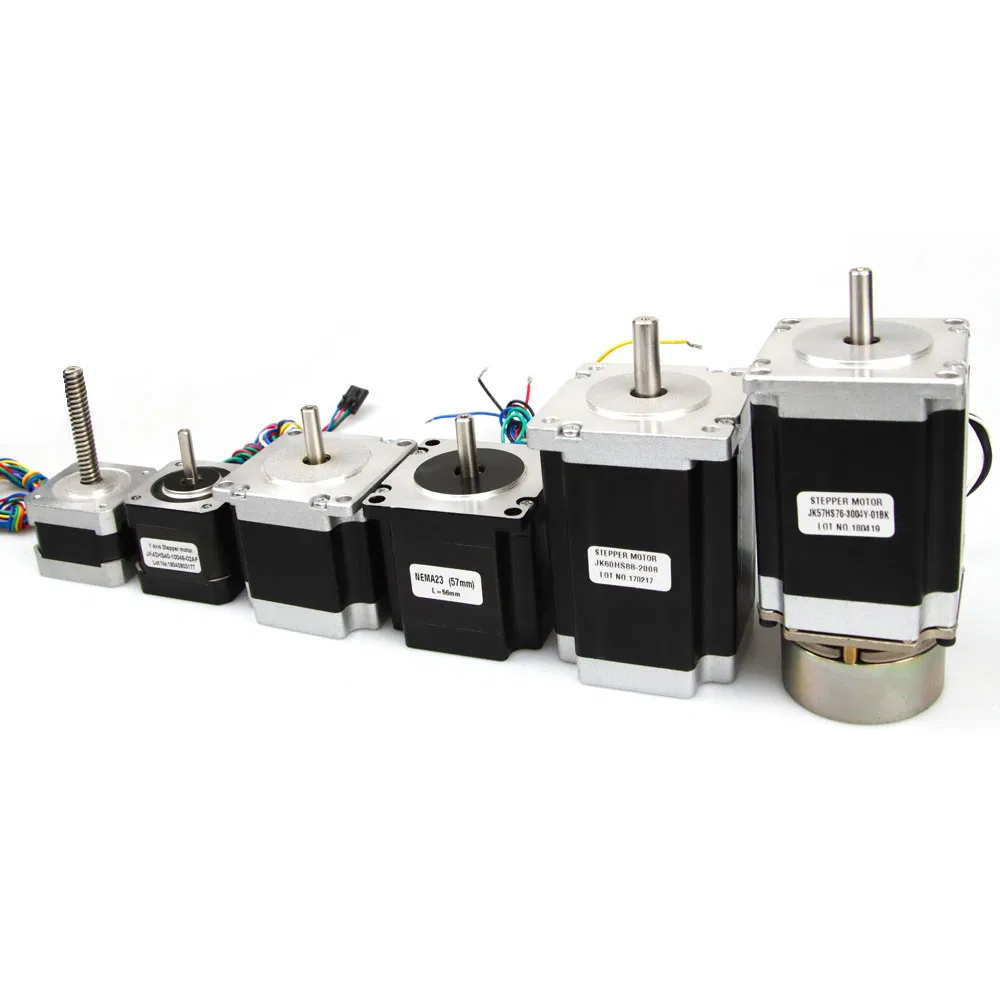

Hybrid Stepper Motor

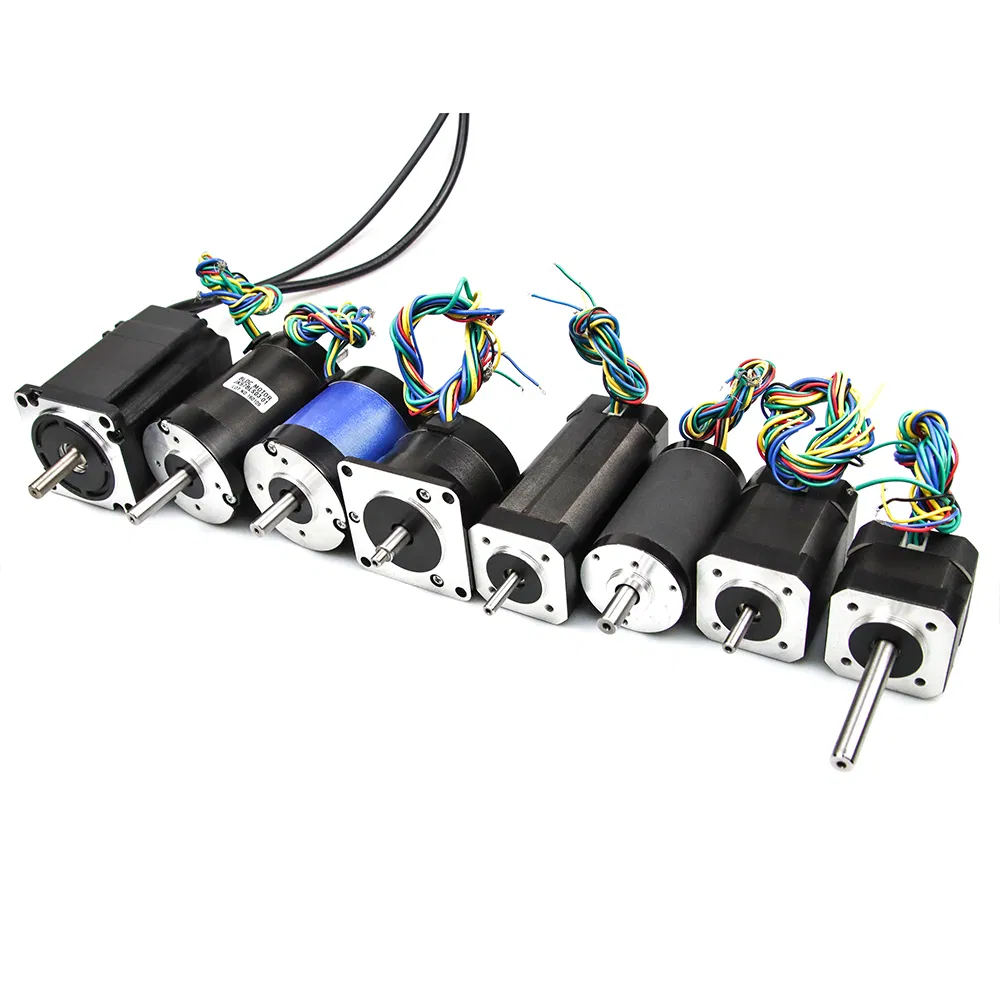

Brushless DC Motor

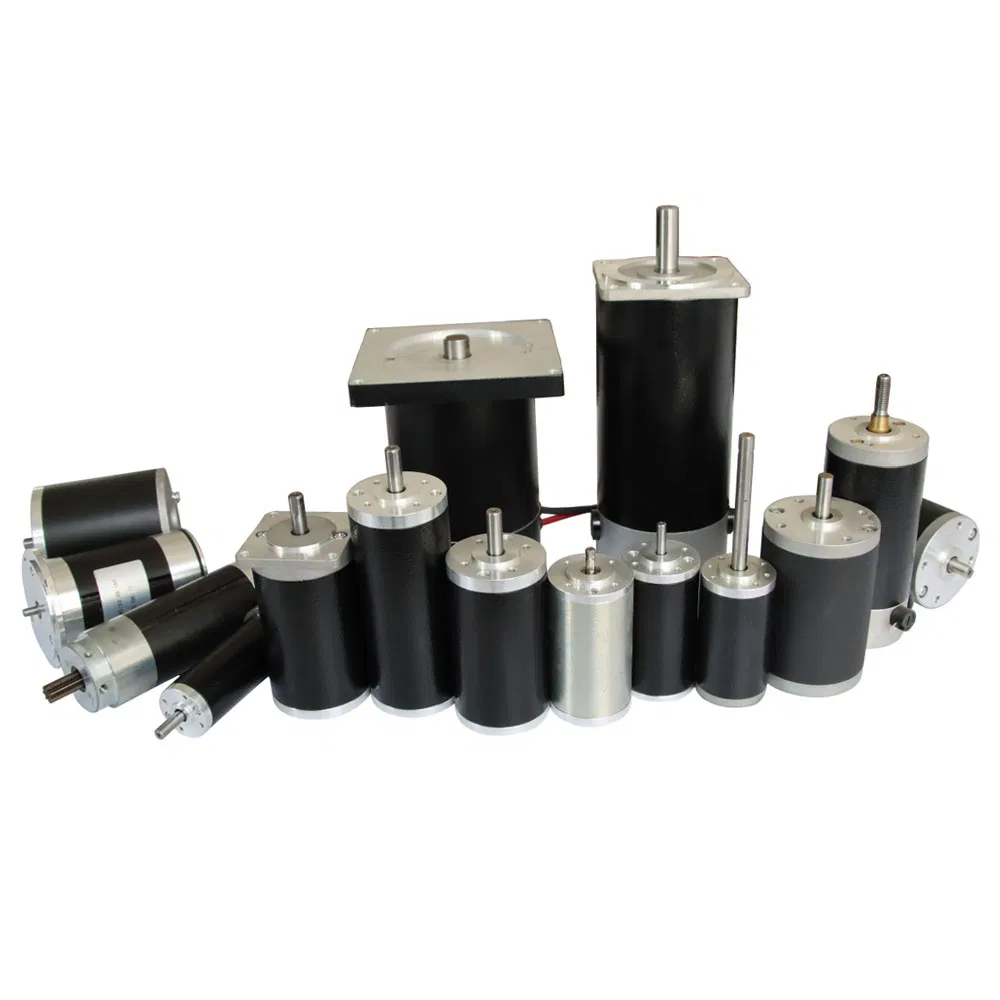

Brushed Dc Motor

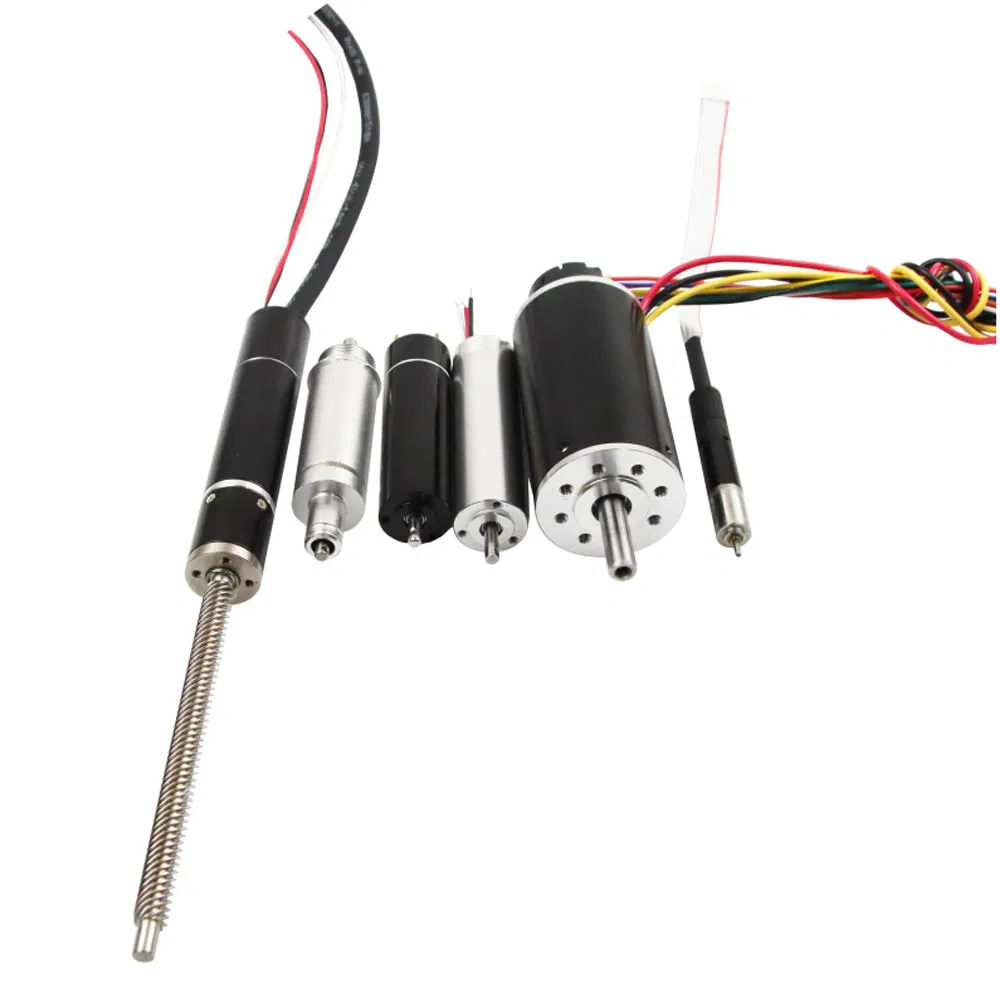

Coreless Dc Motor
