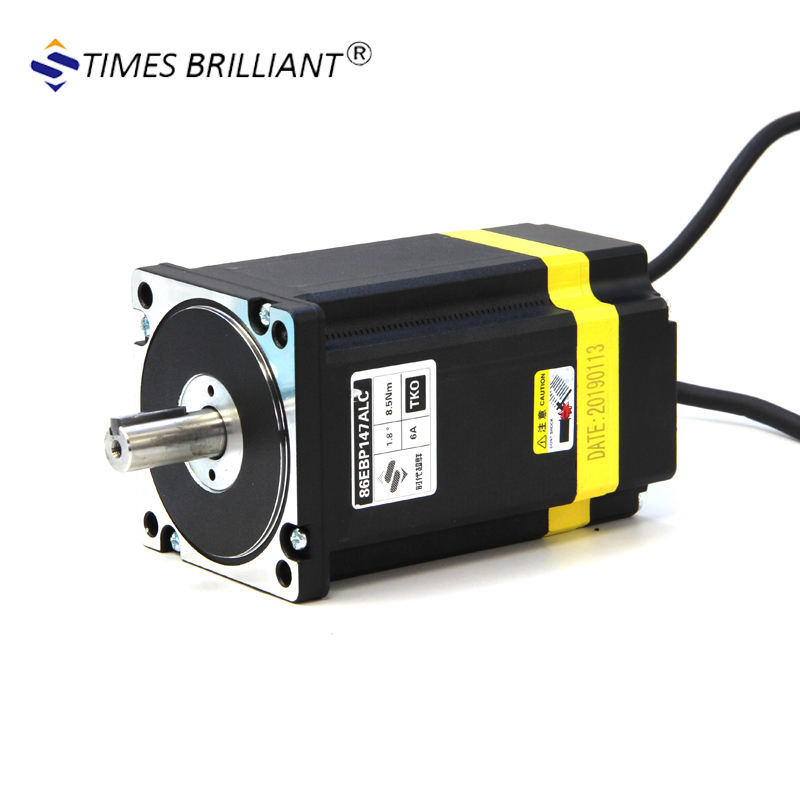

High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit
High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit
High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit
High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit
High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit
1 / 5
High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit
High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit
High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit
High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit
High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit

High-Torque 86ebp147alc-Tk0 2-Phase Closed Loop Stepper Motor Kit

Customization: Available
Application: Clocks and Watches
Speed: High Speed
Send Inquiry

Product Description

📊

Basic Information

Model NO.
86EBP147ALC-TK0
Type
Permanent Magnet
Excitation Mode
HB-Hybrid
Step Angle
1.8
Holding Torque
8.5N.m
Rated Current
6A Peak Value
Phase
2
Number of Poles
2
Insulation Class
B
Certification
CE
Weight
4.5 Kg
Rotor Inertia
2700 Gcm2
📦

Packaging & Delivery

Package Size
90.00cm * 90.00cm * 60.00cm
Package Gross Weight
5.000kg
Transport Package
Polyfoam, Cardboard Carton
⚙️

Product Description

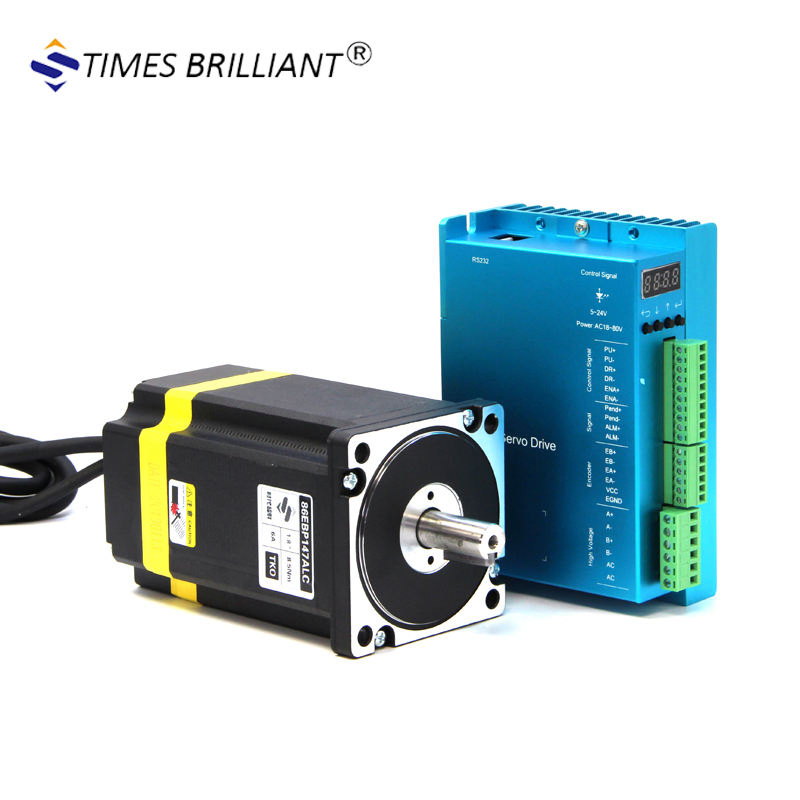

Closed Loop Stepper Motor Kit

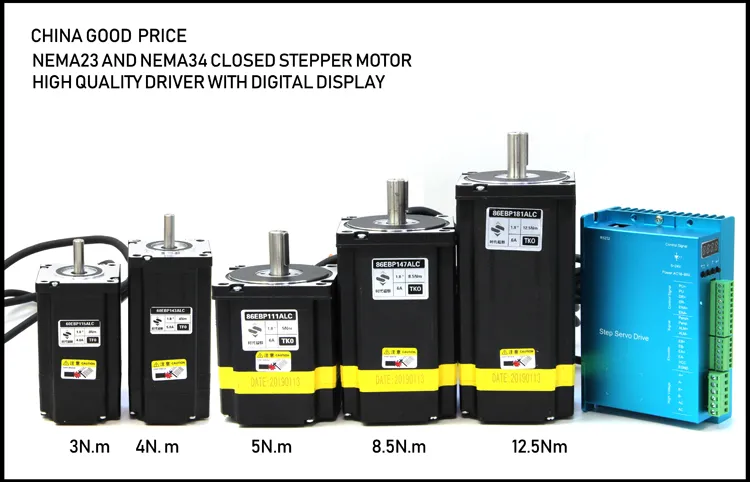

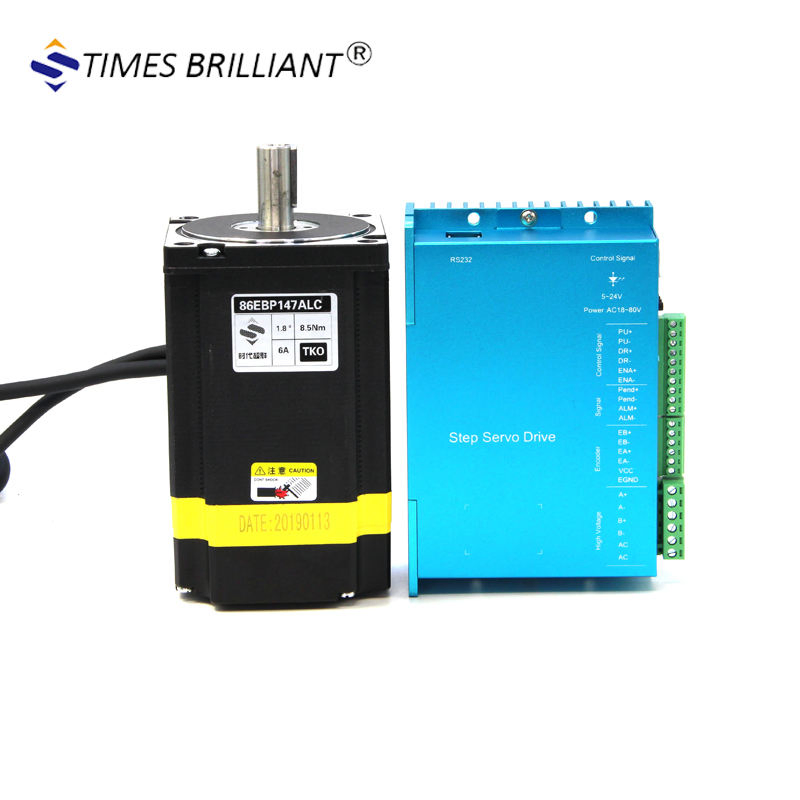

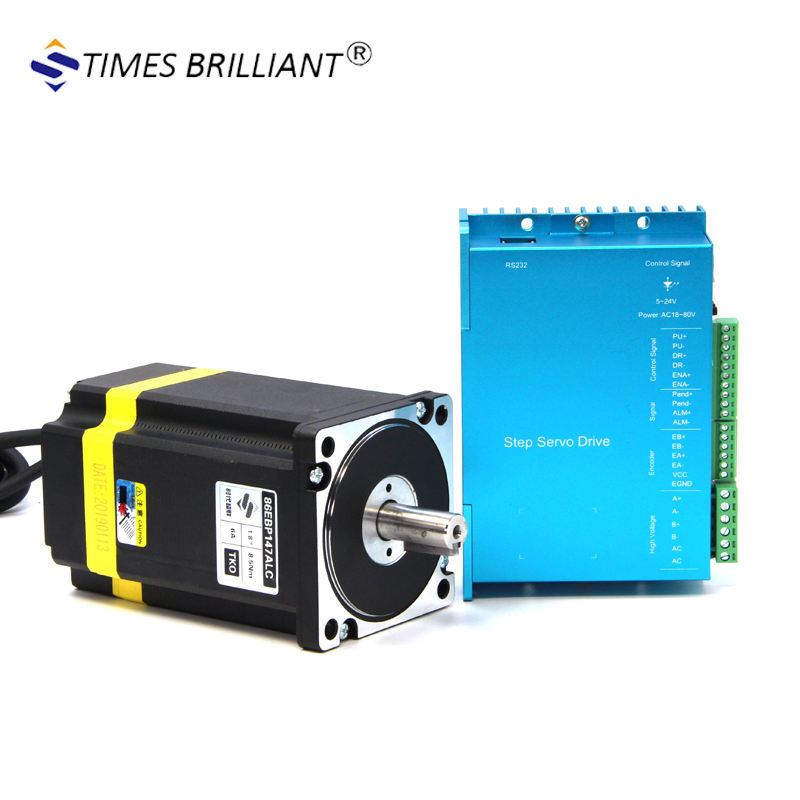

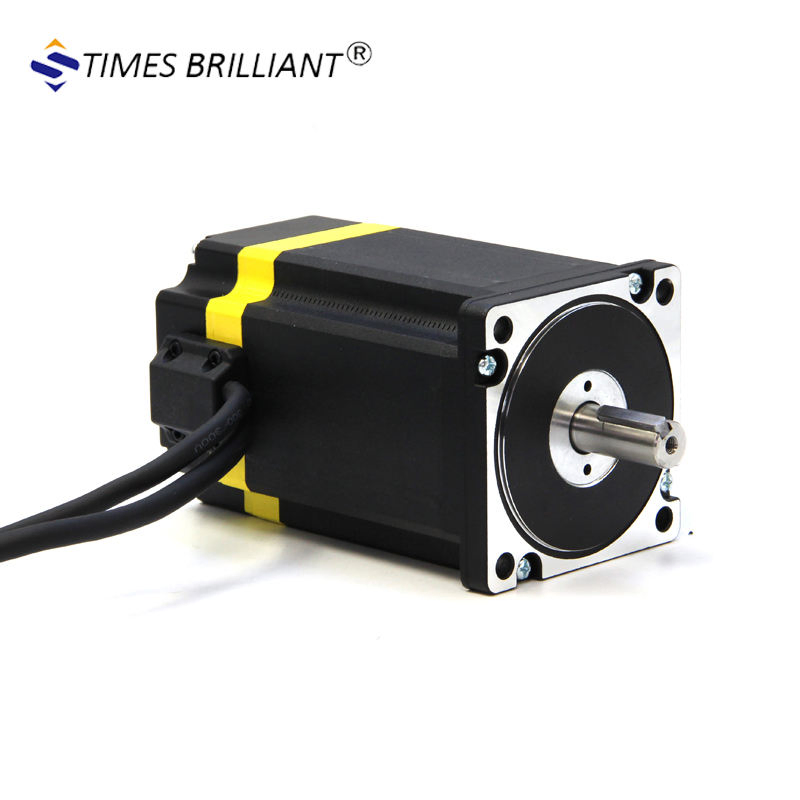

High-Torque 8.5Nm Nema34 Closed Loop Stepper Motor with Driver Kit

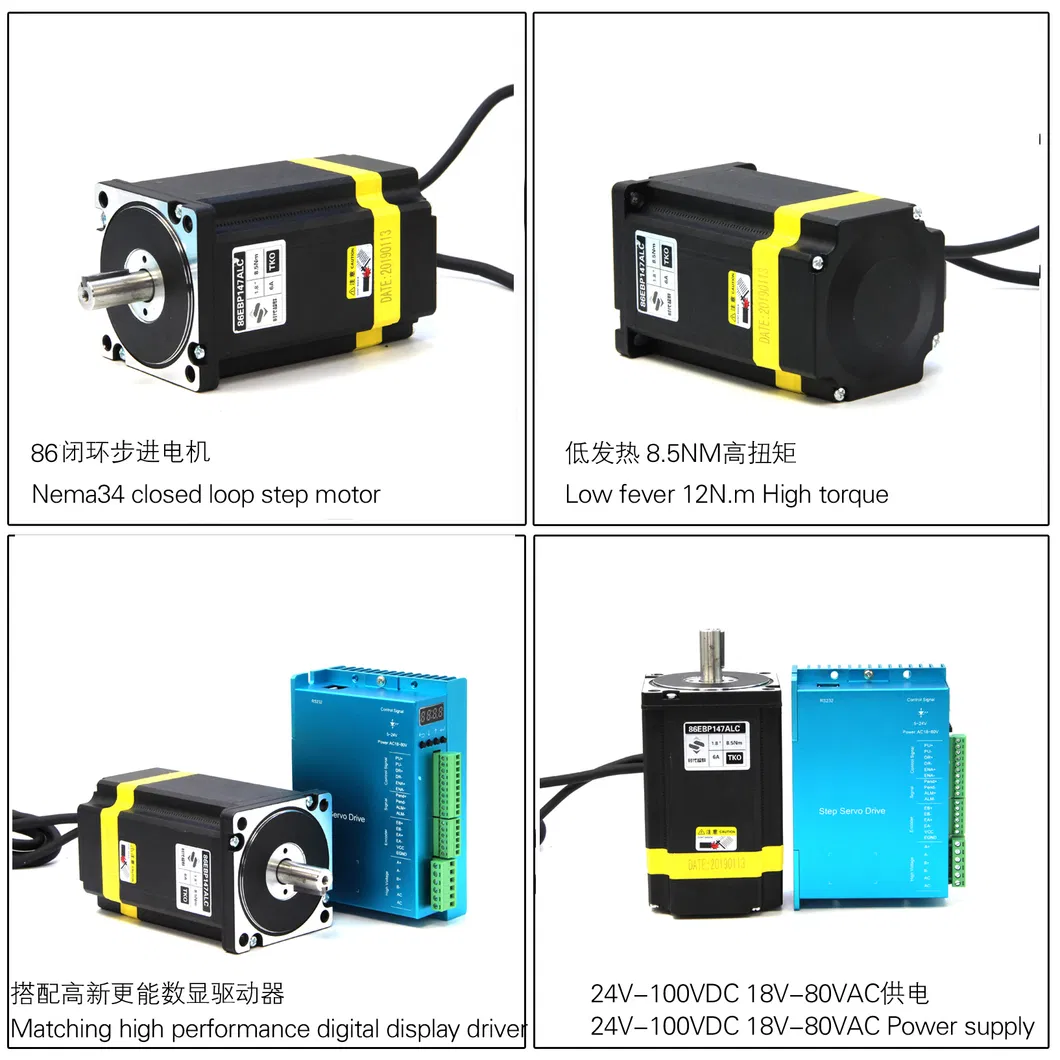

Product Detail 1 Product Detail 2
Note: The motor contains magnetic components; magnetic inspection may be required during transportation for certain shipping methods.

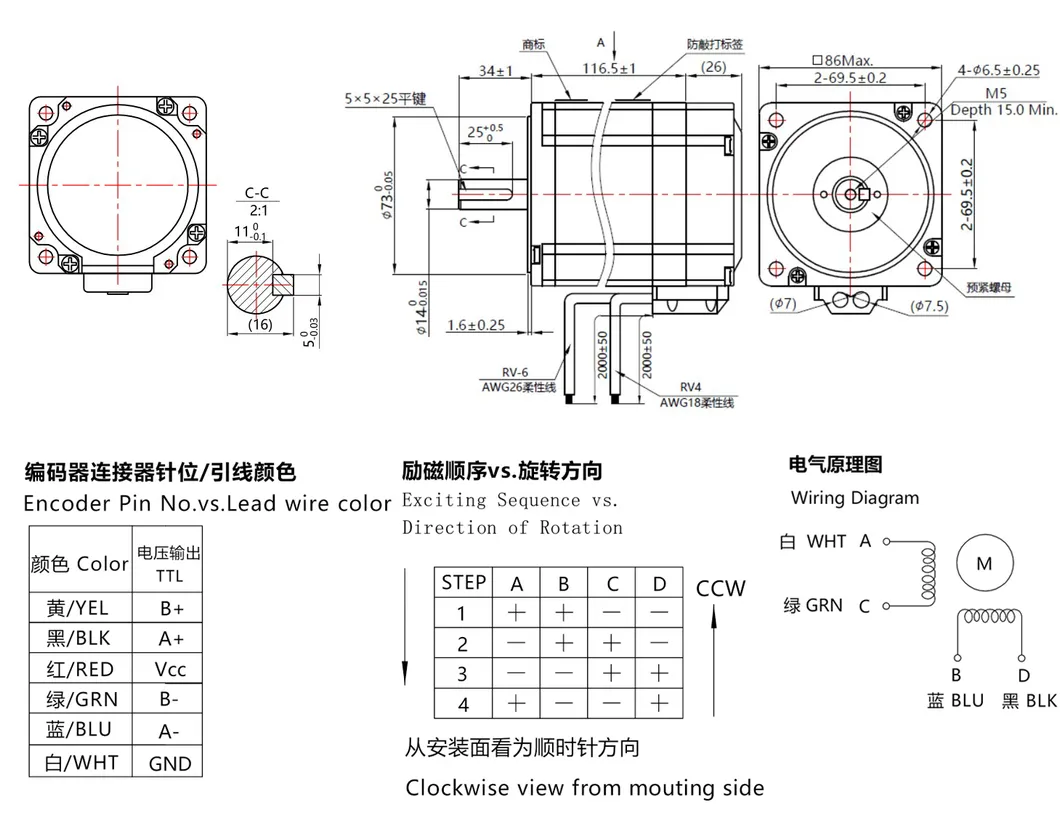

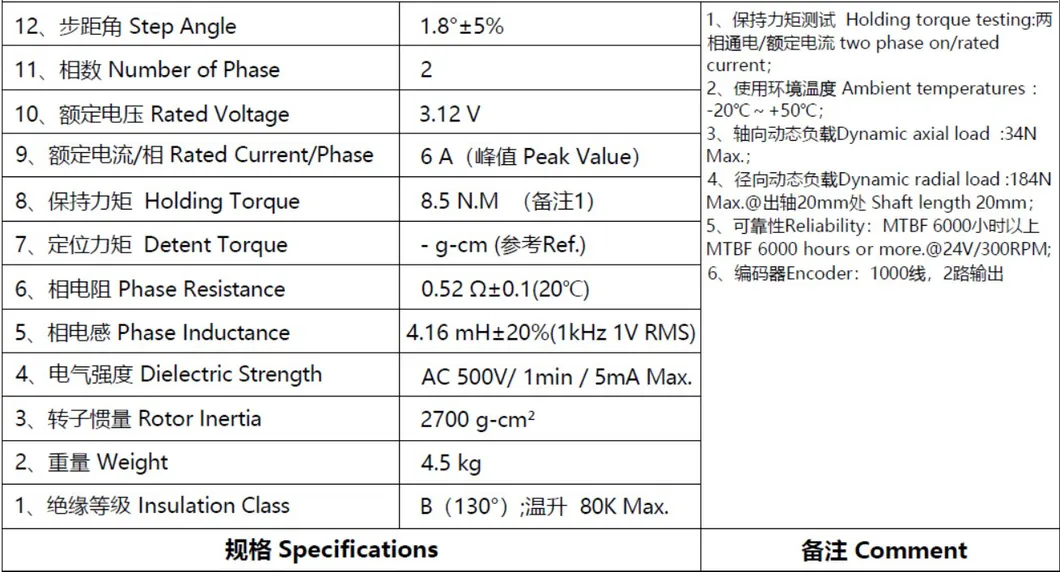

Dimension Drawing Performance Chart
🧠

Advanced Closed-Loop Driver (ZDM-2HA865)

The ZDM-2HA865 represents a new generation of DSP digital step closed-loop drivers. Utilizing advanced vector closed-loop control technology, it eliminates the traditional problem of step loss found in open-loop systems.

Technical Characteristics
  • New DSP chip for 32-bit motor control
  • Advanced vector closed-loop control technology
  • LED digital tube display for intuitive operation
  • Static and dynamic current settings (0--7.2A range)
  • Adaptive drive for 57, 60, and 86 series hybrid closed-loop motors
  • Photoelectric isolation for input/output signals
  • Pulse response frequency up to 200KHz
  • 16 subdivision options (up to 51,200 pulses/rotation)
  • Comprehensive protection: Over-current, over-heat, over-voltage, and tracking error

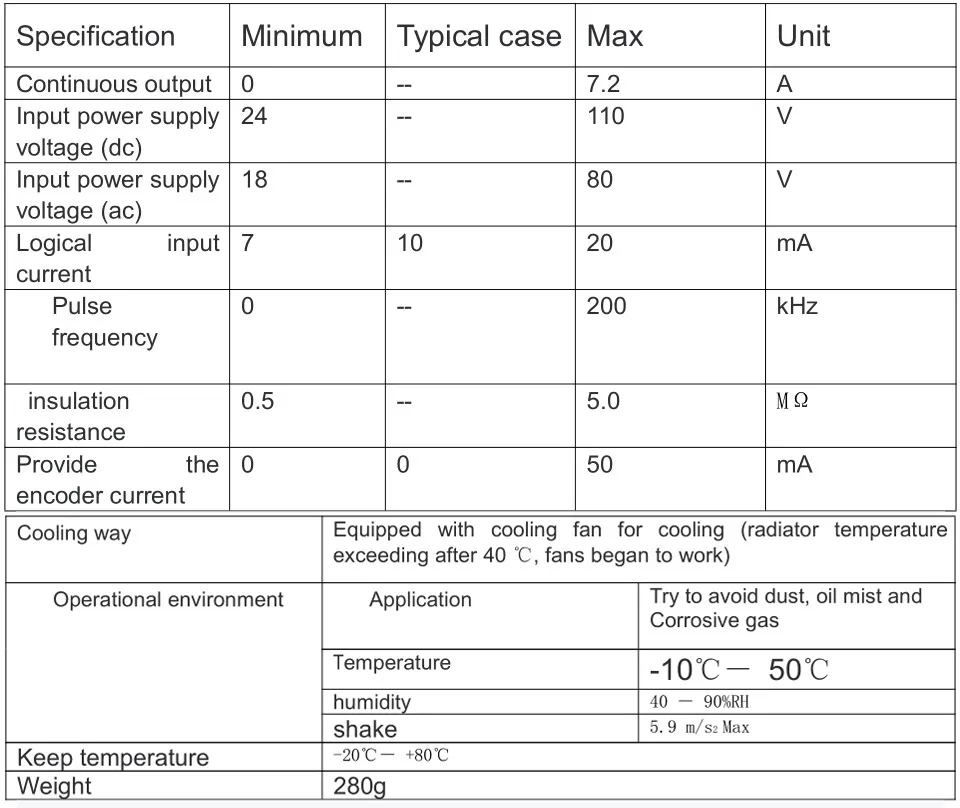

Driver Detail Driver Ports
🛠️

Product Gallery & Service

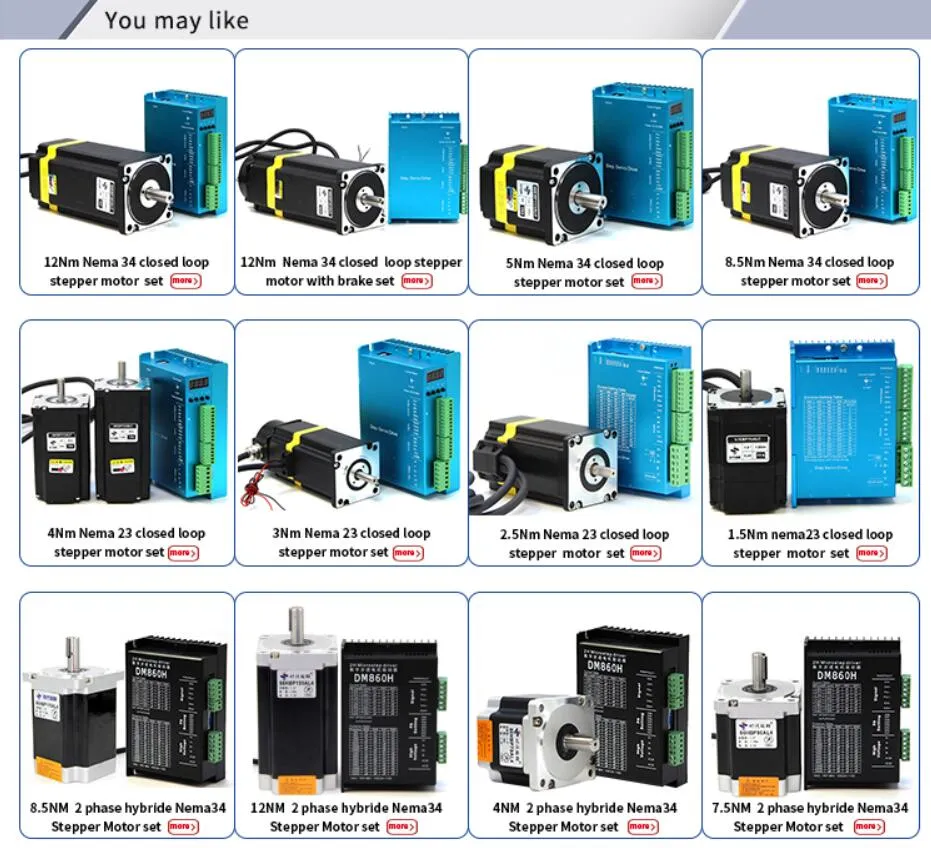

Related Products
Service 1 Service 2 Service 3
Frequently Asked Questions
What is the advantage of a closed-loop stepper motor over an open-loop one?
Closed-loop systems use vector control technology to provide feedback, which completely eliminates step loss, improves high-speed performance, and reduces motor heat and vibration.
What is the holding torque of the 86EBP147ALC-TK0 model?
The motor provides a high holding torque of 8.5 N.m, making it suitable for demanding CNC and industrial driving applications.
What driver is compatible with this motor?
It is perfectly paired with the ZDM-2HA865 DSP digital closed-loop driver, which supports 32-bit control and up to 7.2A current.
What is the maximum pulse response frequency for the system?
The driver supports a pulse response frequency of up to 200KHz, allowing for high-precision and high-speed operation.
Does the system include safety protections?
Yes, the driver includes built-in protection against over-current, over-voltage, over-heating, and tracking errors to ensure system reliability.
What is the step angle of this motor?
The motor has a standard step angle of 1.8 degrees, which can be further refined through the driver's subdivision settings (up to 256 subdivisions).
