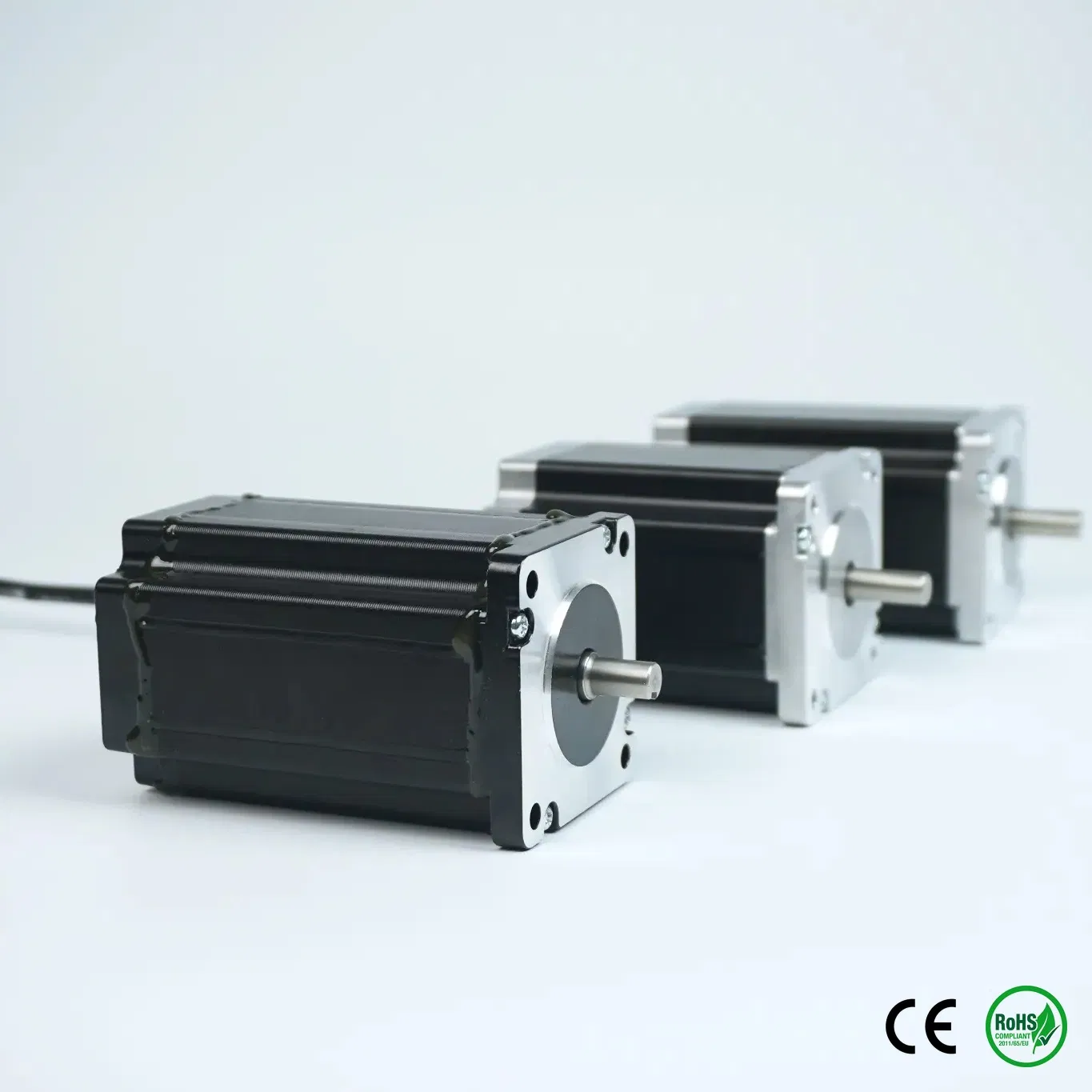

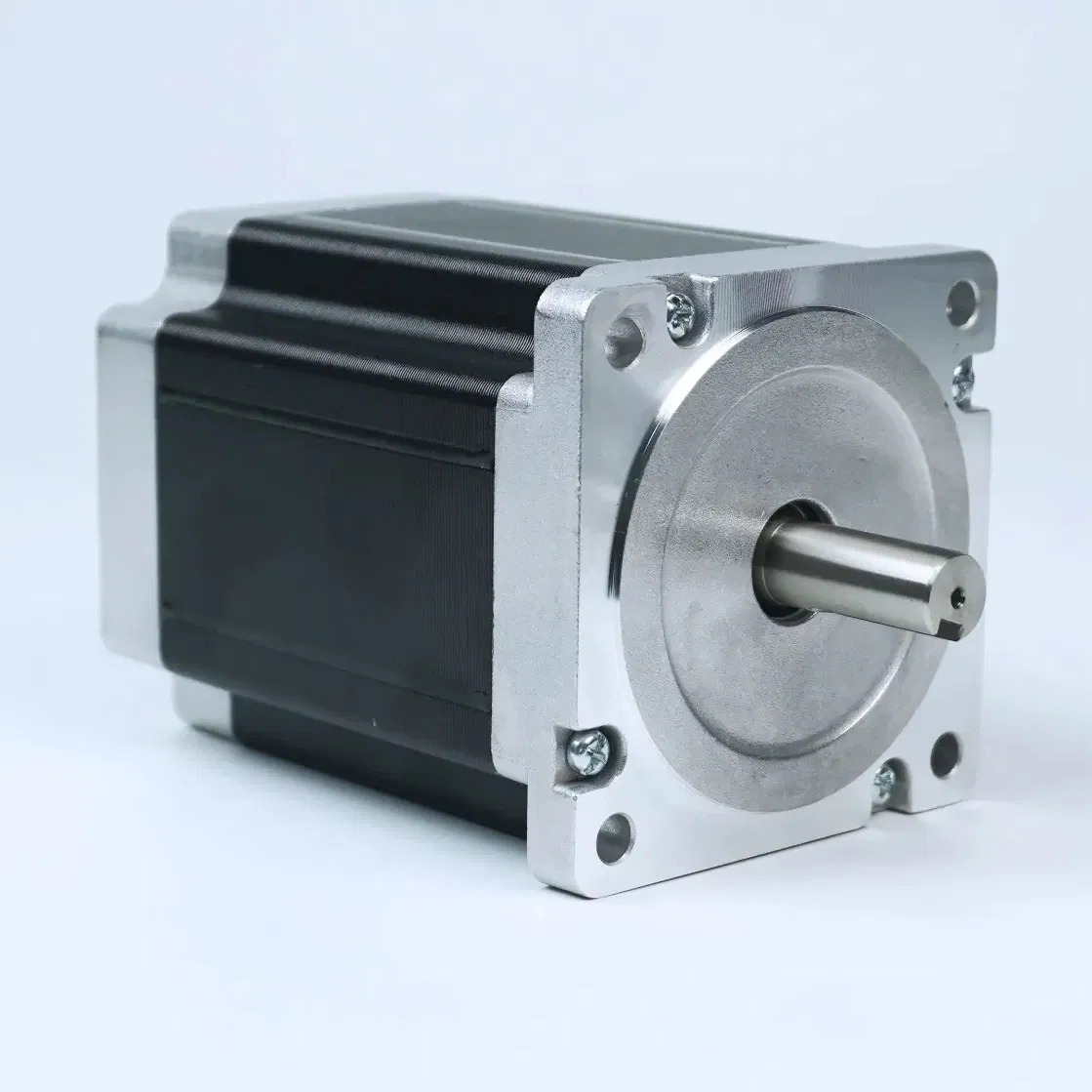

Heavy-Duty 86mm NEMA34 Hybrid Stepper Motor for Textile Machine and Jacquard Loom

1 / 5

Heavy-Duty 86mm NEMA34 Hybrid Stepper Motor for Textile Machine and Jacquard Loom

Customization:	Available
Speed:	Variable Speed
Number of Stator:	Two-Phase

Send Inquiry

Product Description

Basic Specifications

Model NO.

86BHH114-500A-32E

Excitation Mode

HB-Hybrid

Function

Control, Driving

Certification

ISO9001, CE, RoHS

Usage

CNC Machine, Engraving, 3D Printing

Frame Size

86X86X114MM (NEMA 34)

Holding Torque

6.67 N·m (68 kg·cm)

Production Cap.

1,300,000 sets

Product Description

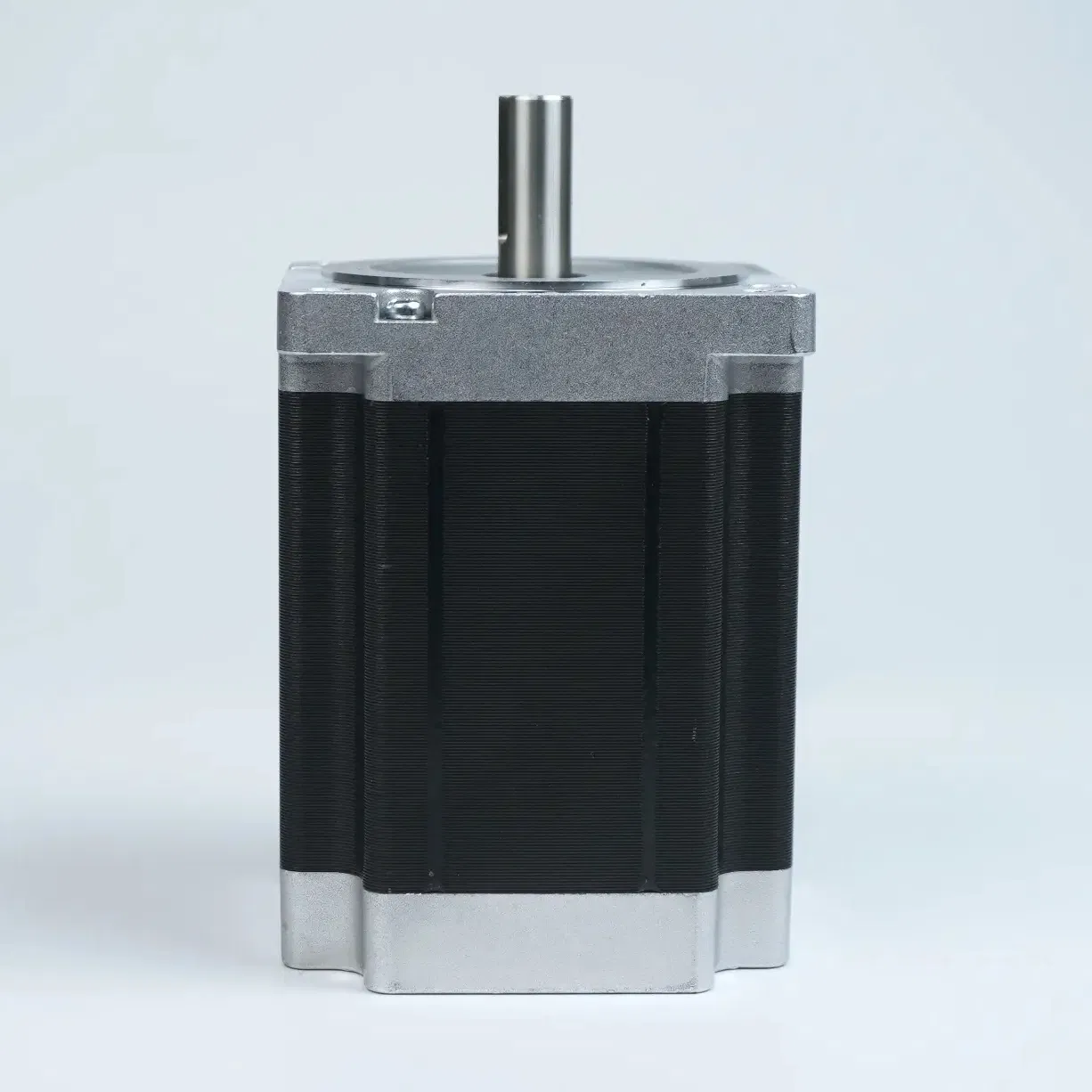

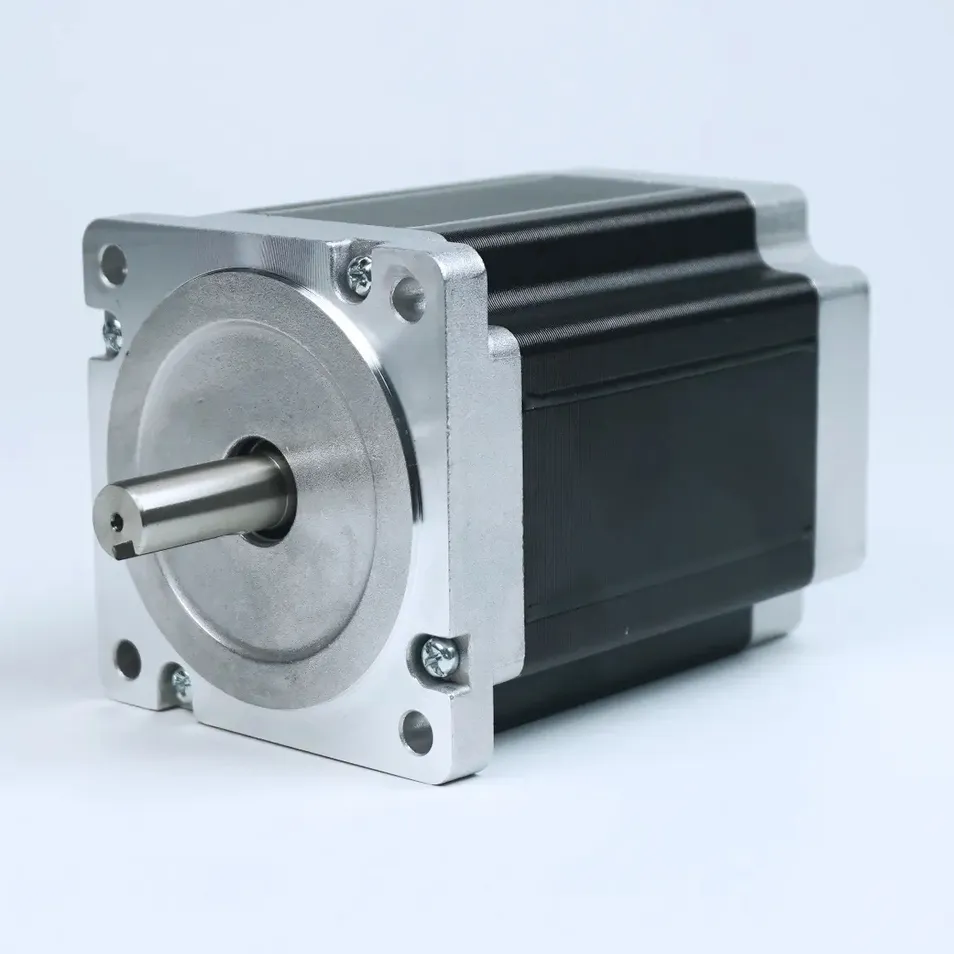

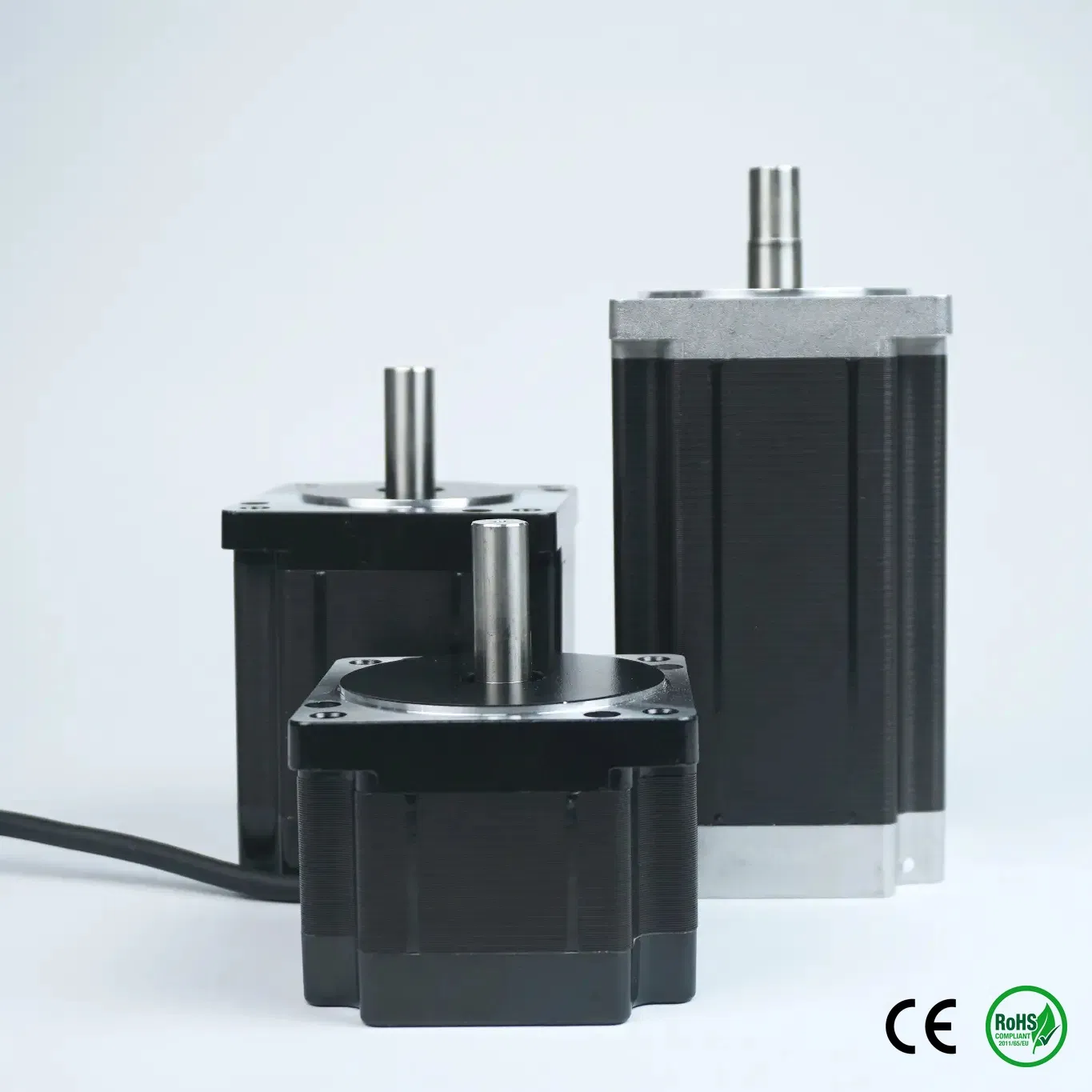

The 86BHH114 is a high-performance NEMA 34 hybrid stepper motor featuring a 114mm body length. It delivers a substantial 6.67 N·m (68 kg·cm) holding torque at 5.0A. This motor is widely recognized as the reference standard for the 86BH series, offering the optimal balance between physical size and torque output.

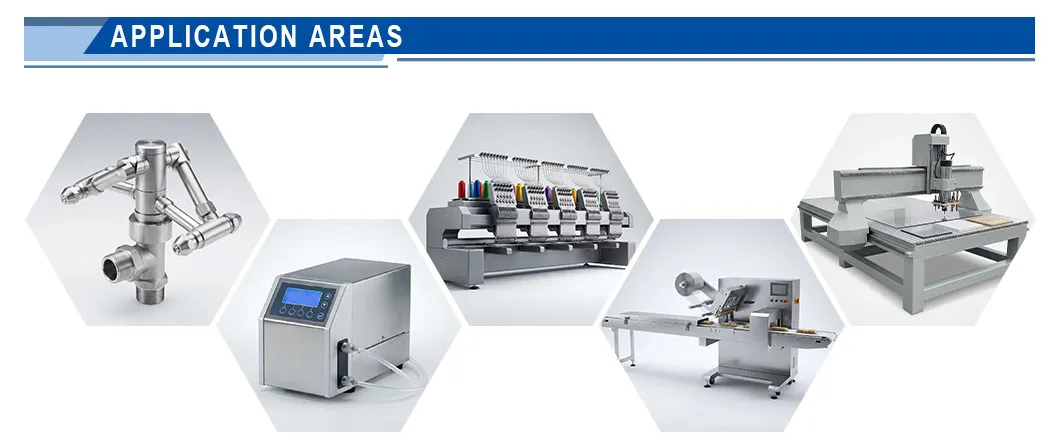

Designed for demanding industrial environments, it is ideal for heavy-duty CNC routers, plasma cutting tables, textile machinery, and advanced industrial automation systems.

★ KEY HIGHLIGHTS

6.67 N·m (68 kg·cm) holding torque
Standard NEMA 34 (86mm) frame size
12.7mm precision shaft diameter
Optimized for CWD860H drivers

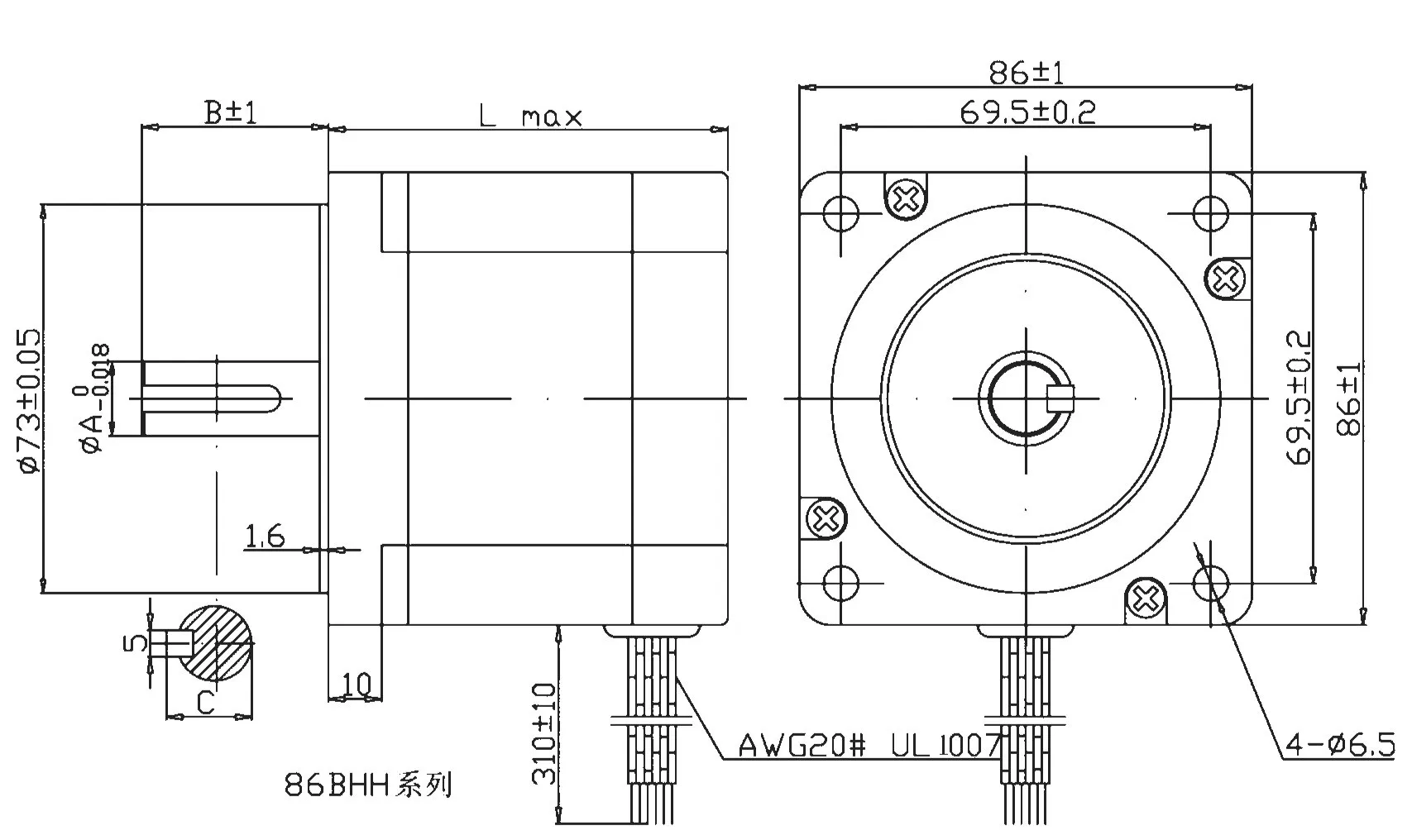

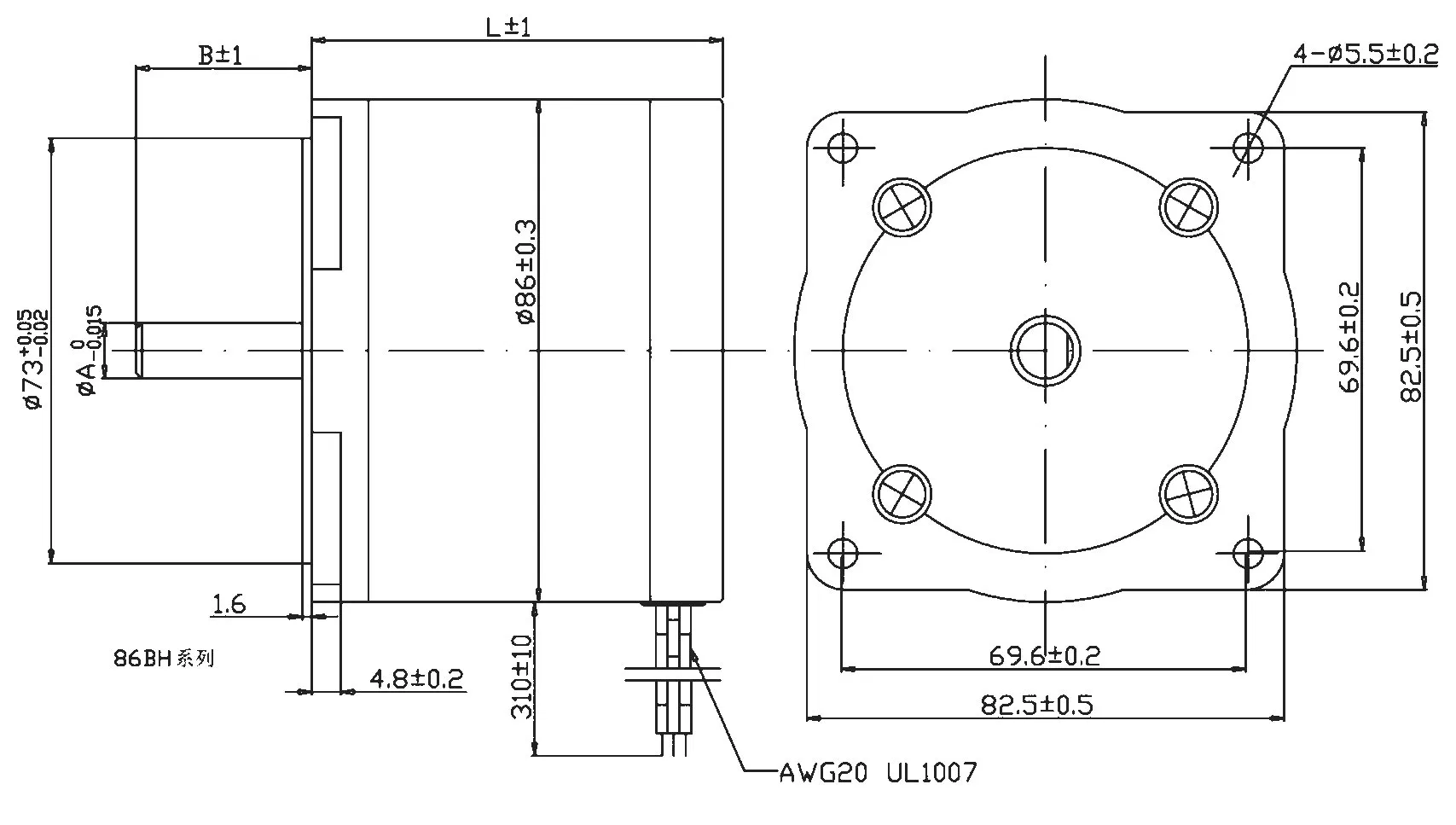

Full Specifications

PARAMETER	VALUE
Step Angle	1.8° ± 5%
Holding Torque	6.67 N·m (68 kg·cm)
Rated Current	5.0 A/Phase
No. of Phases	2
No. of Leads	4
Shaft Diameter	12.7mm
Frame Size	86mm (NEMA 34)
Body Length	114mm
Weight	3.5 kg
Recommended Driver	CWD860H

Industrial Motor Expertise

With over 30 years of specialized experience in motion control solutions, we provide high-quality OEM manufacturing for global industrial clients. Our expertise spans across North America, Europe, and Southeast Asia, serving over 1,800 industrial partners.

Our core strength lies in OEM customization. We collaborate directly with system integrators and automation engineers to develop motors tailored to exact specs: from custom shaft dimensions and winding characteristics to specific connector types and branding requirements.

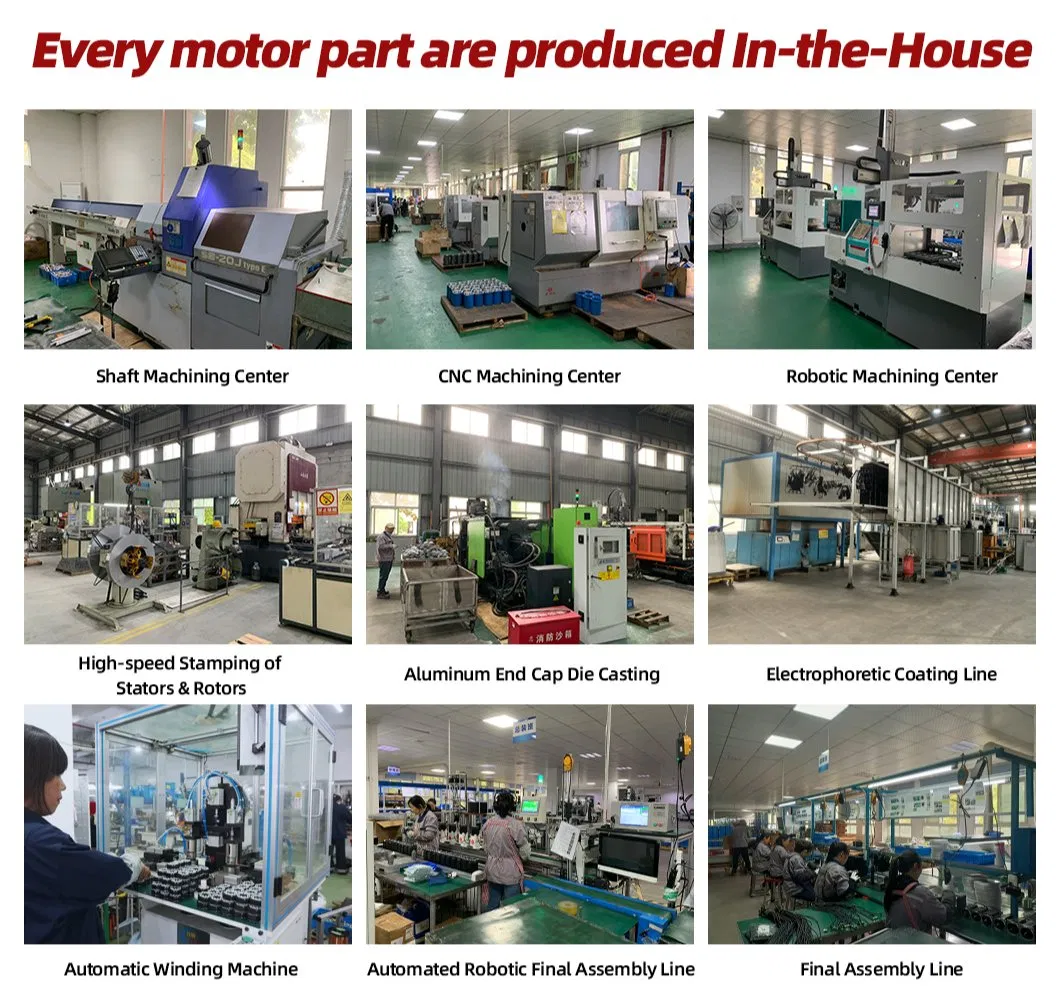

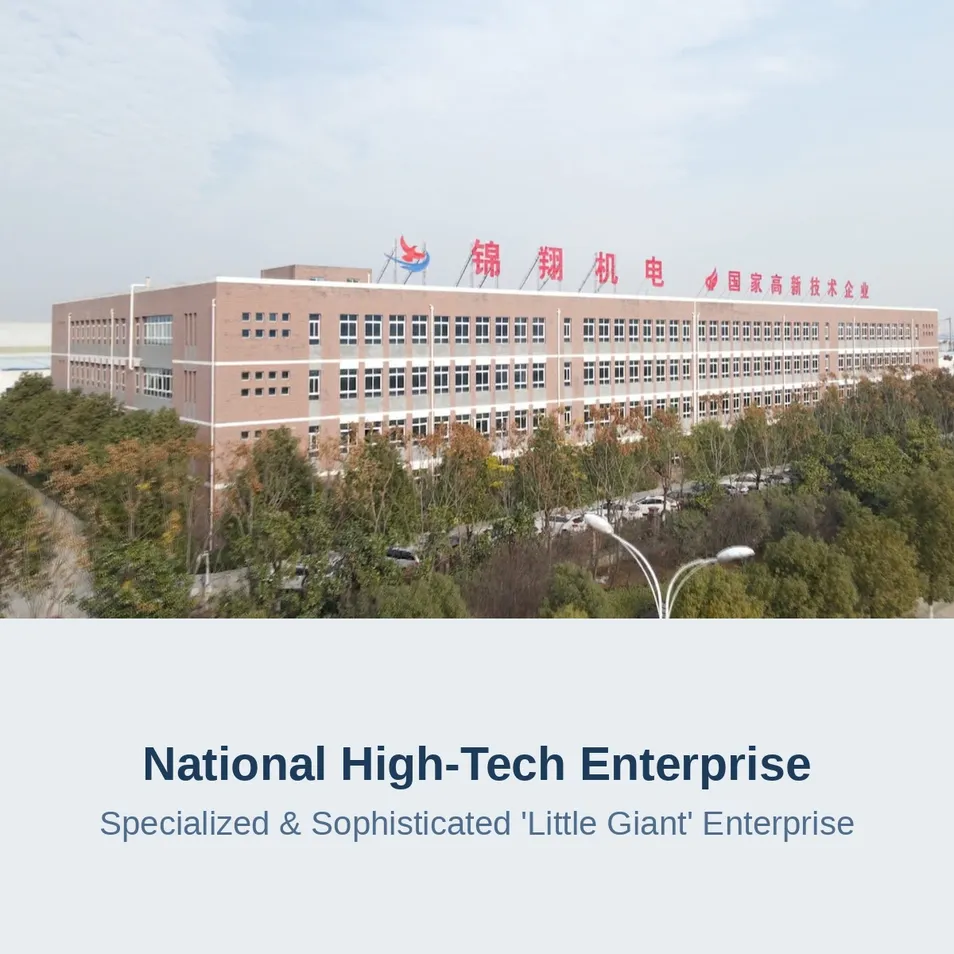

By managing the entire production process in-house, from components to final assembly, we ensure rigorous quality control and technical flexibility for both single-unit prototypes and high-volume production.

Product Gallery & Details

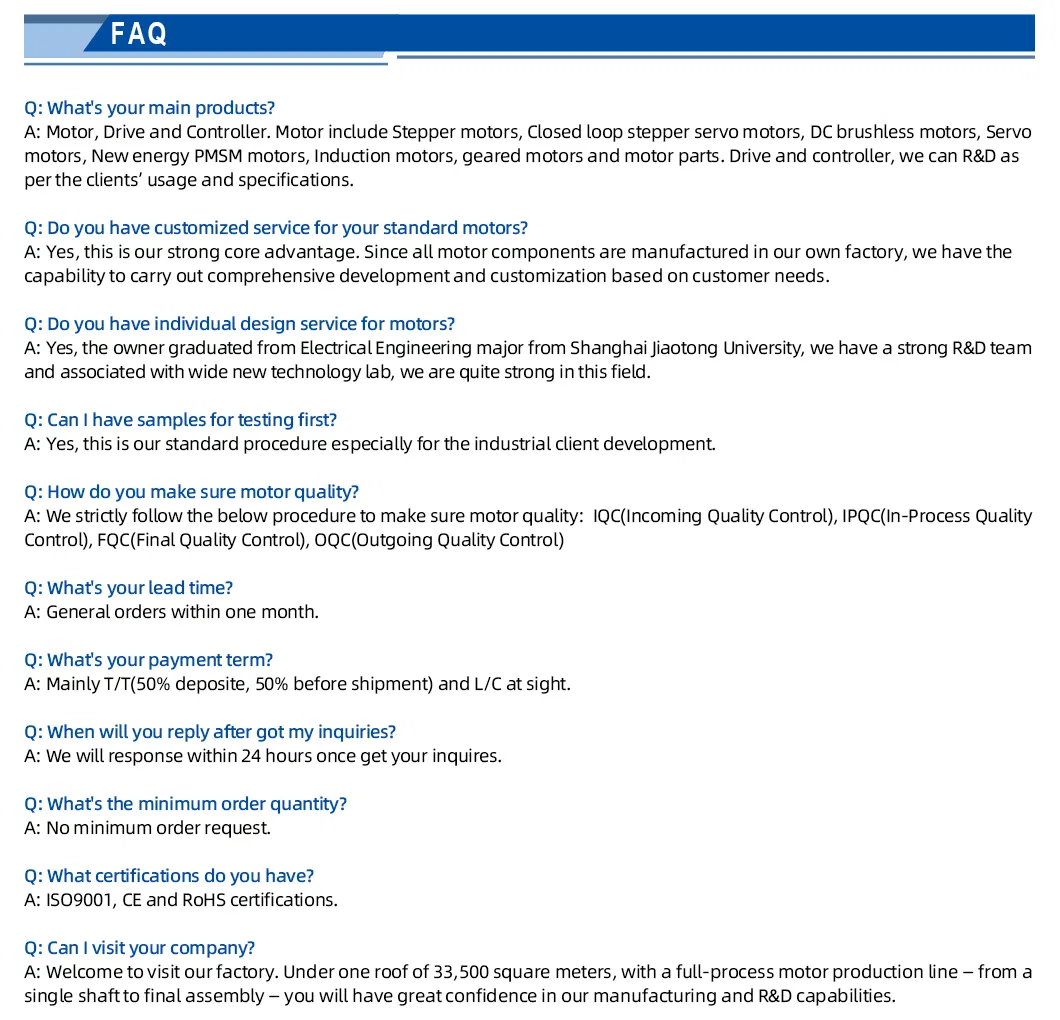

Frequently Asked Questions

What applications is this NEMA 34 motor best suited for?

The 86BHH114 is designed for high-torque applications including industrial CNC routers, textile jacquard looms, plasma cutting tables, and heavy-duty automation machinery where precision and holding power are critical.

Which stepper driver do you recommend for this model?

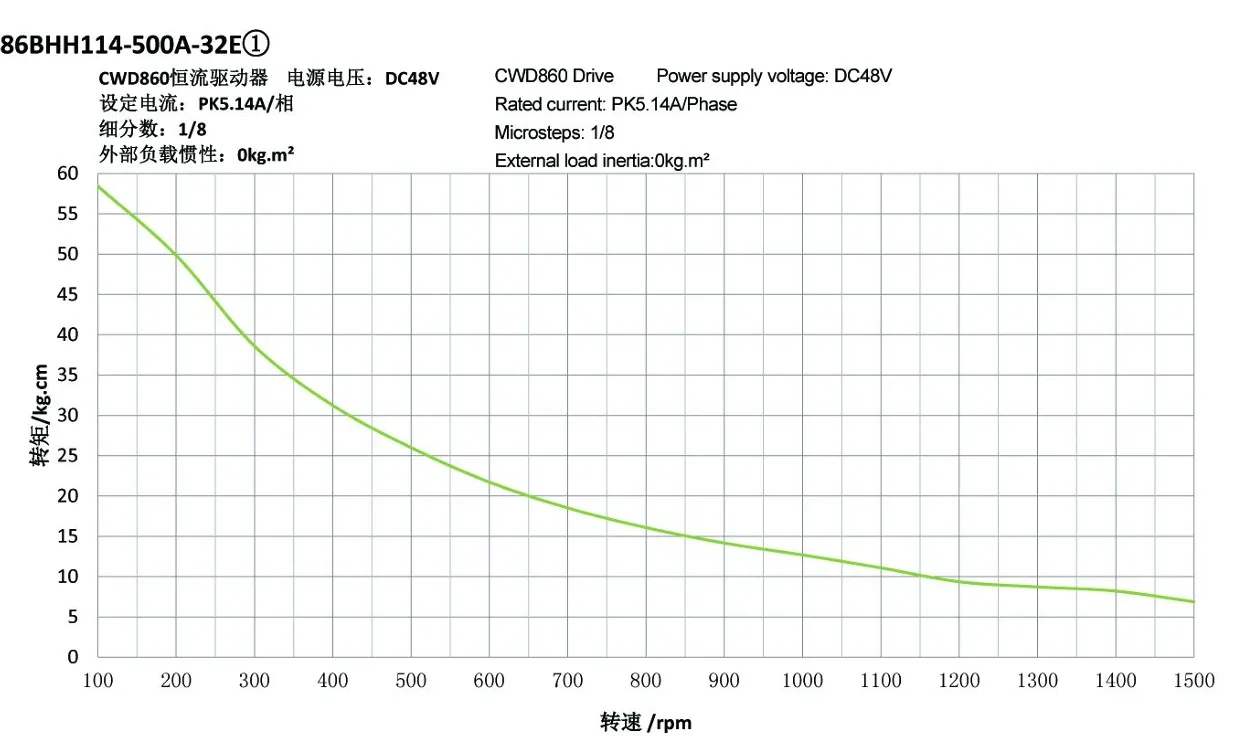

We recommend using the CWD860H driver. This driver is specifically matched to handle the 5.0A current and optimize the torque-speed curve of the 86BH series motors.

Are custom shaft dimensions or windings available?

Yes, as an OEM manufacturer, we specialize in customization. We can modify shaft diameters, lengths, winding specifications, and lead wire connectors to meet your specific application requirements.

What is the advantage of the 114mm body length?

The 114mm length provides the best balance within the NEMA 34 category, offering high holding torque (6.67 N·m) without the excessive weight or footprint of much larger industrial motors.

Does this motor comply with international quality standards?

Absolutely. All our motors are manufactured under ISO9001 quality management systems and are fully CE and RoHS certified for global distribution and use.

How many leads does the motor have and what is the step angle?

The motor features a standard 4-lead configuration for easy wiring and has a precision step angle of 1.8° with a ± 5% tolerance.
