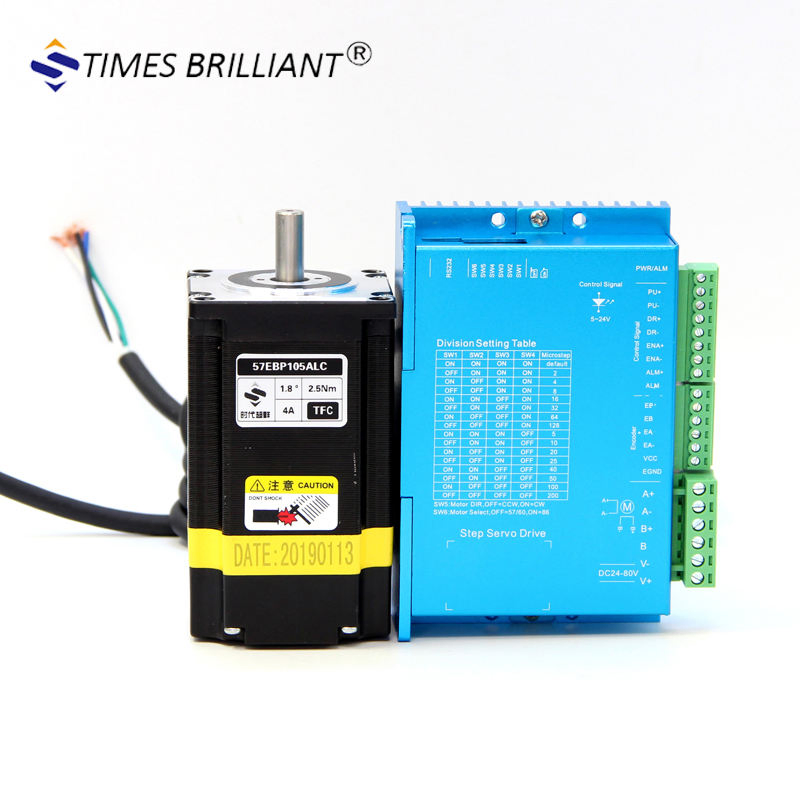

China Low Price 57ebp105alc+Hbs57 2phase NEMA23 Closed Loop Stepper Motor with High Quality Driver Kit 2.5nm

1 / 5

China Low Price 57ebp105alc+Hbs57 2phase NEMA23 Closed Loop Stepper Motor with High Quality Driver Kit 2.5nm

Customization:	Available
Application:	Printing Equipment
Speed:	Constant Speed

Send Inquiry

Product Description

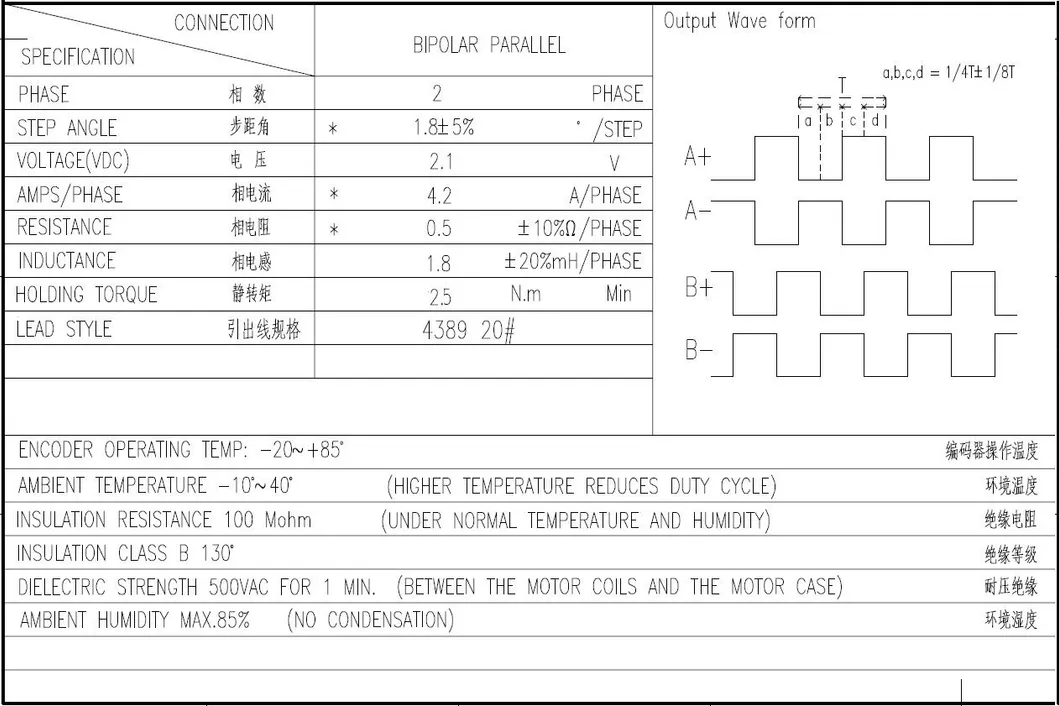

⚙️ Basic Specifications

Model NO.

57EBP105ALC+HBS57

Step Angle

1.8°

Phase

Holding Torque

2.5N.m

Rated Current

4.2A Peak

Excitation Mode

PM-Permanent Magnet

Operate Mode

Three Phase Double Beat

Phase Resistance

0.5 ω±0.1 (20℃)

Phase Inductance

1.8mh±20%

Weight

1.4kg

📦 Packaging & Delivery

Package Size

11.00cm * 11.00cm * 11.00cm

Gross Weight

5.000kg

🔍 Product Description

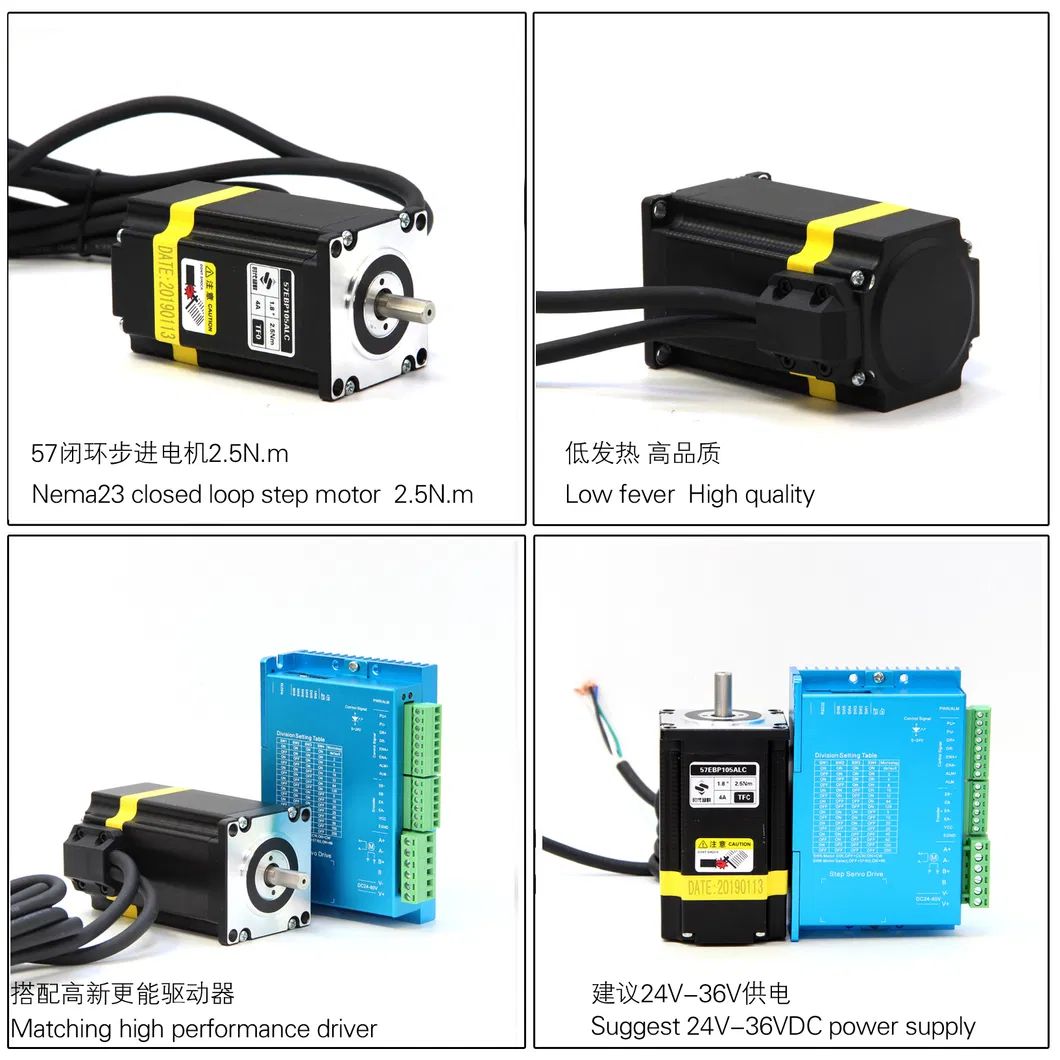

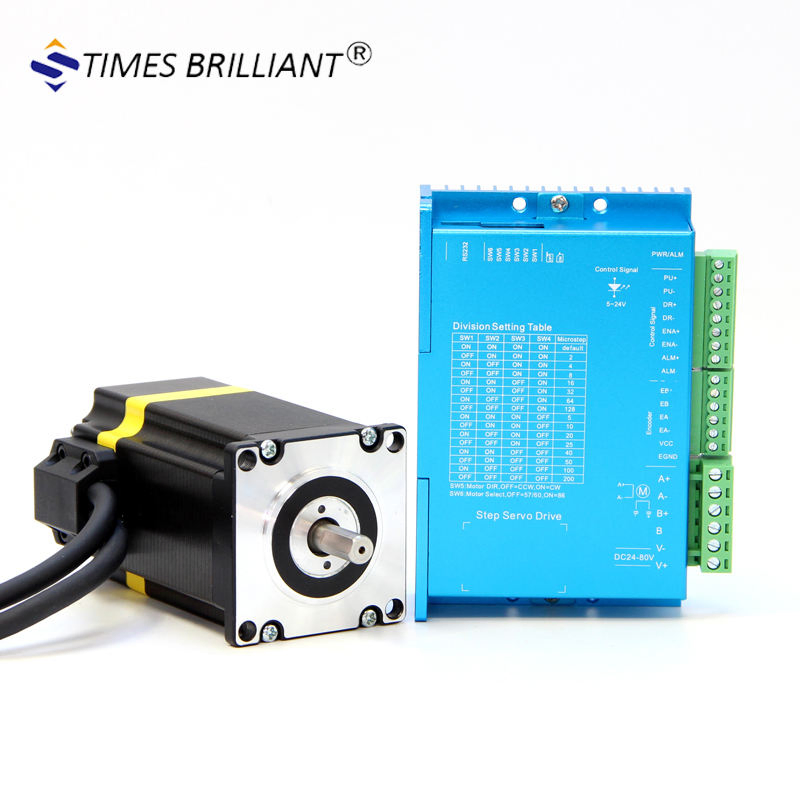

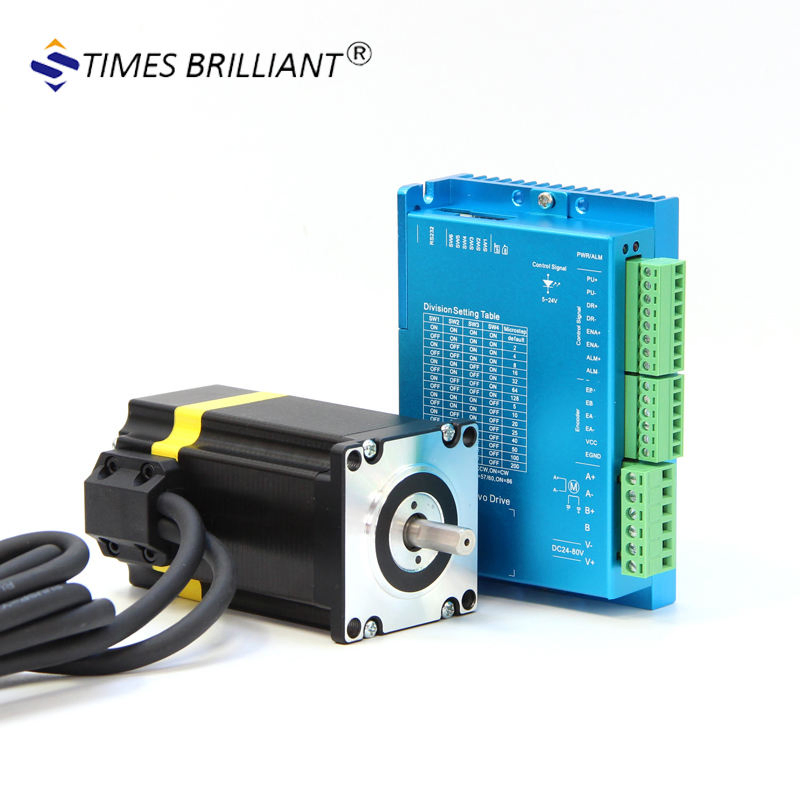

High Performance Nema23 Closed Loop Stepper Motor Kit

This 2-phase Nema23 closed-loop stepper motor system integrates a high-quality driver kit providing a robust 2.5Nm of torque. Designed for precision and reliability, it is an ideal solution for CNC equipment and engraving machines.

⚠️ Note: The motor contains magnetic components. Magnetic inspection fees may apply during air transportation for small quantities.

💎 Advanced Driver Technology: HBS57AJ

The HBS57AJ Driver features a new 32-bit DSP digital control system. It is specifically optimized for Nema23 closed-loop motors used in high-precision CNC equipment.

PWM Current Control: Ensures extremely low noise levels.
High Speed: Torque output is 40% higher than ordinary drivers at high speeds.
Voltage Range: DC 16-70V (Recommended DC 24V for 57 series motors).
Subdivision: Supports up to 256 subdivisions for smooth motion.

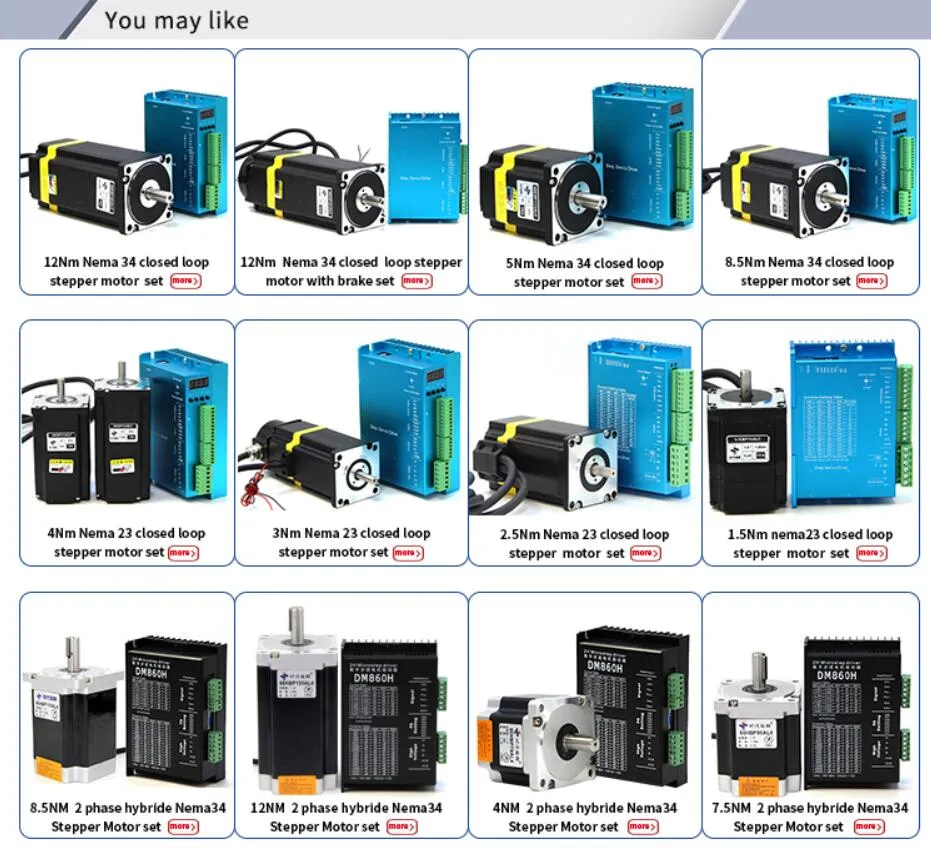

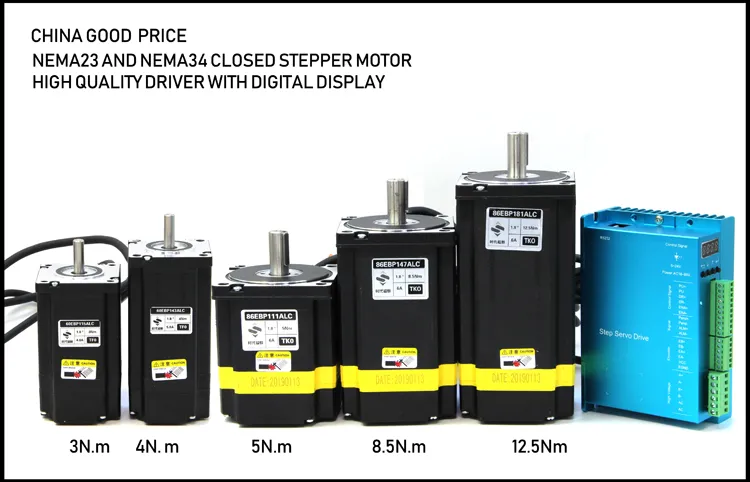

🛠️ Related Products & Quality Assurance

❓ Frequently Asked Questions

What are the benefits of a closed-loop stepper motor system?

Closed-loop systems eliminate the risk of losing steps, which is a common issue with standard stepper motors. They provide real-time feedback, ensuring higher precision, better torque at high speeds, and reduced motor heating.

What is the recommended operating voltage for this motor kit?

The HBS57AJ driver supports a range of DC 16V to 70V. However, for Nema23 (57 series) motors, a power supply of DC 24V is highly recommended for optimal performance.

How does the 32-bit DSP technology improve the motor's performance?

The 32-bit DSP (Digital Signal Processing) allows for advanced PWM current control. This results in significantly lower operational noise and a 40% increase in high-speed torque compared to traditional analog drivers.

What is the maximum holding torque of this model?

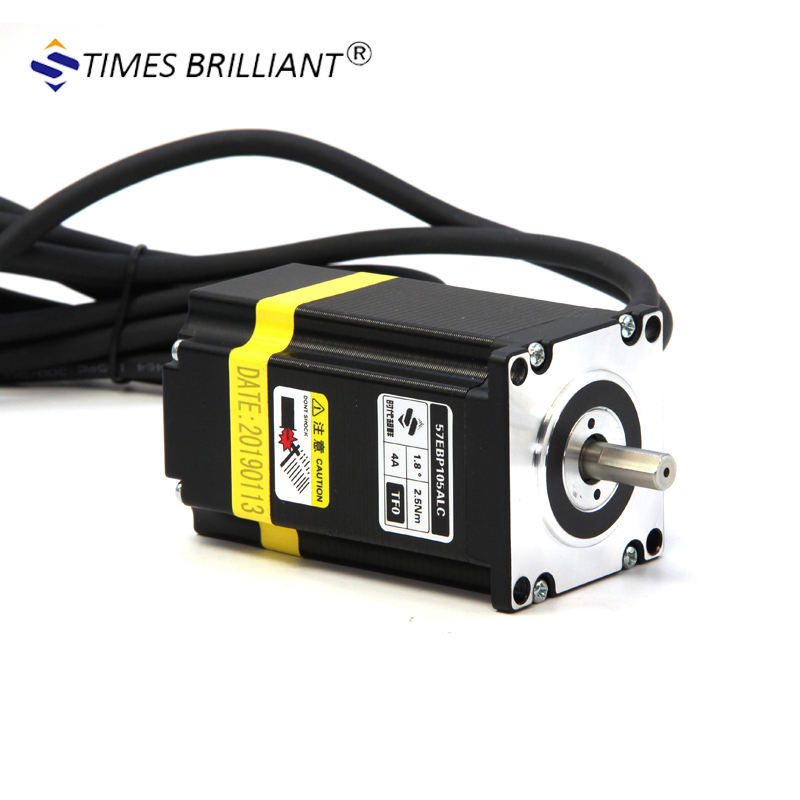

This specific motor model (57EBP105ALC) provides a holding torque of 2.5N.m, making it suitable for medium to high load applications in CNC and automation.

Is this kit compatible with standard CNC software?

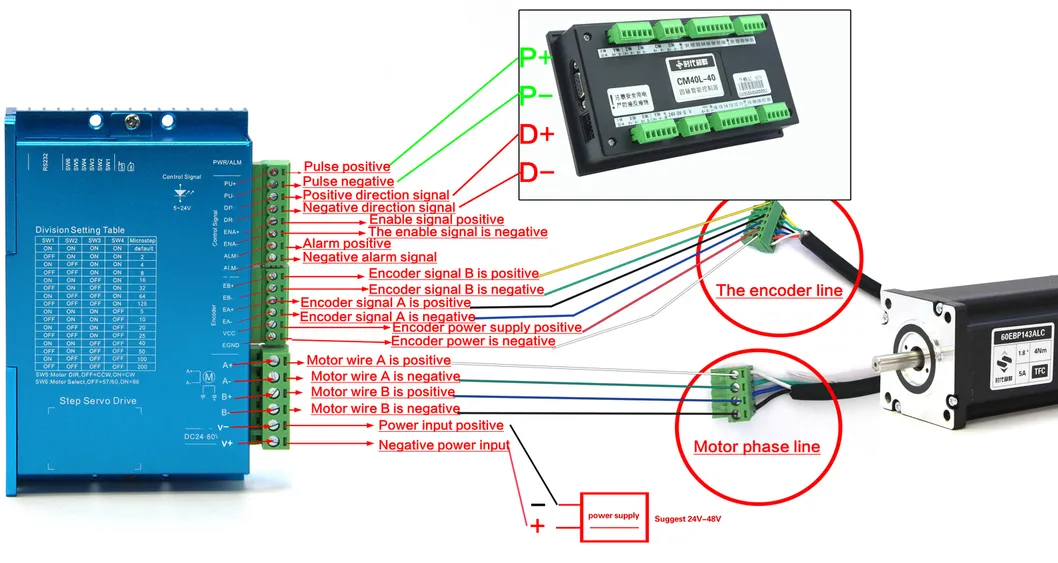

Yes, the driver uses standard pulse and direction signals, making it compatible with most CNC controllers and software used in engraving and milling machines.

Are there special requirements for shipping this motor?

Because the motor contains permanent magnets, it may require a magnetic inspection for air freight. For large wholesale quantities, shipping methods are usually optimized to handle these requirements efficiently.
