Product Description

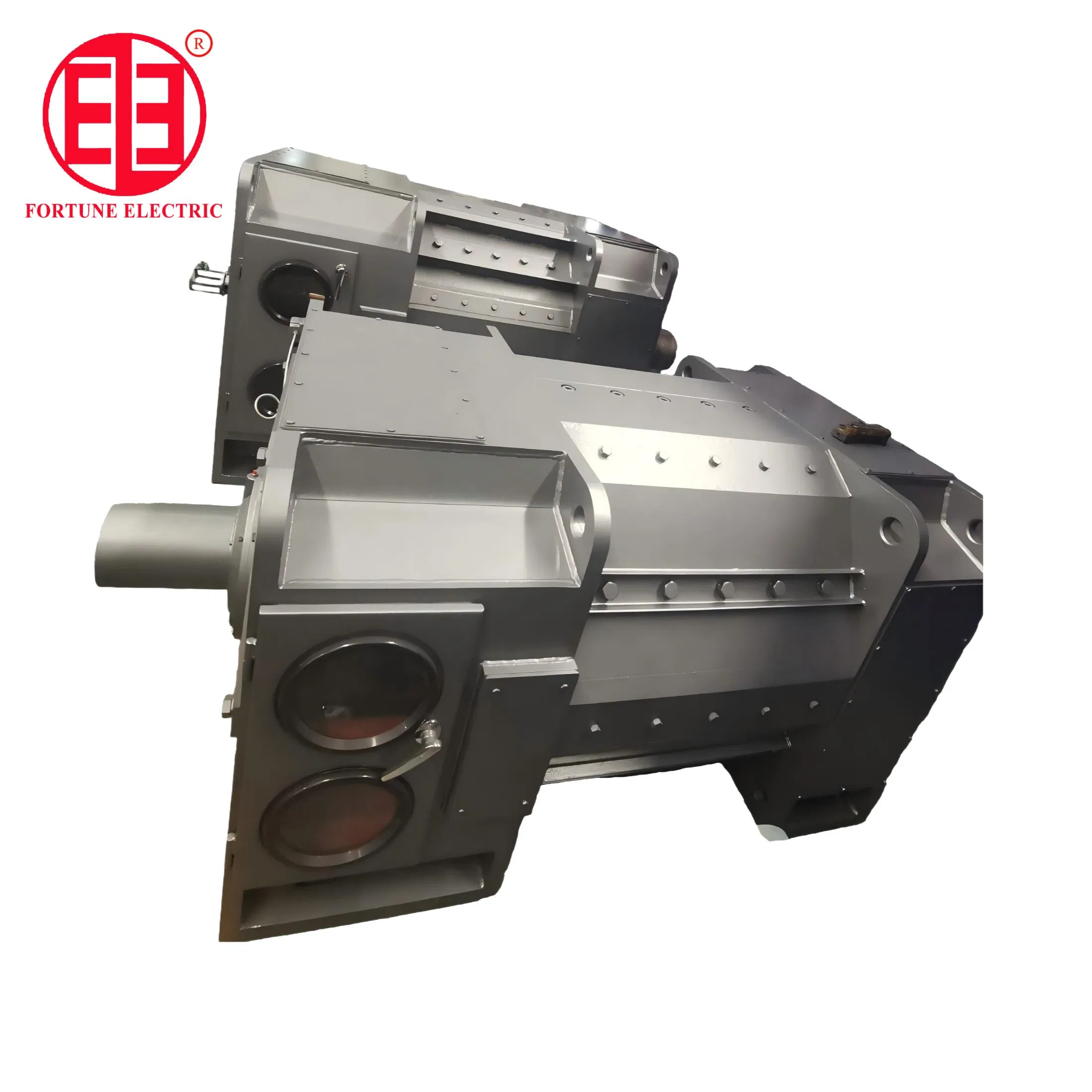

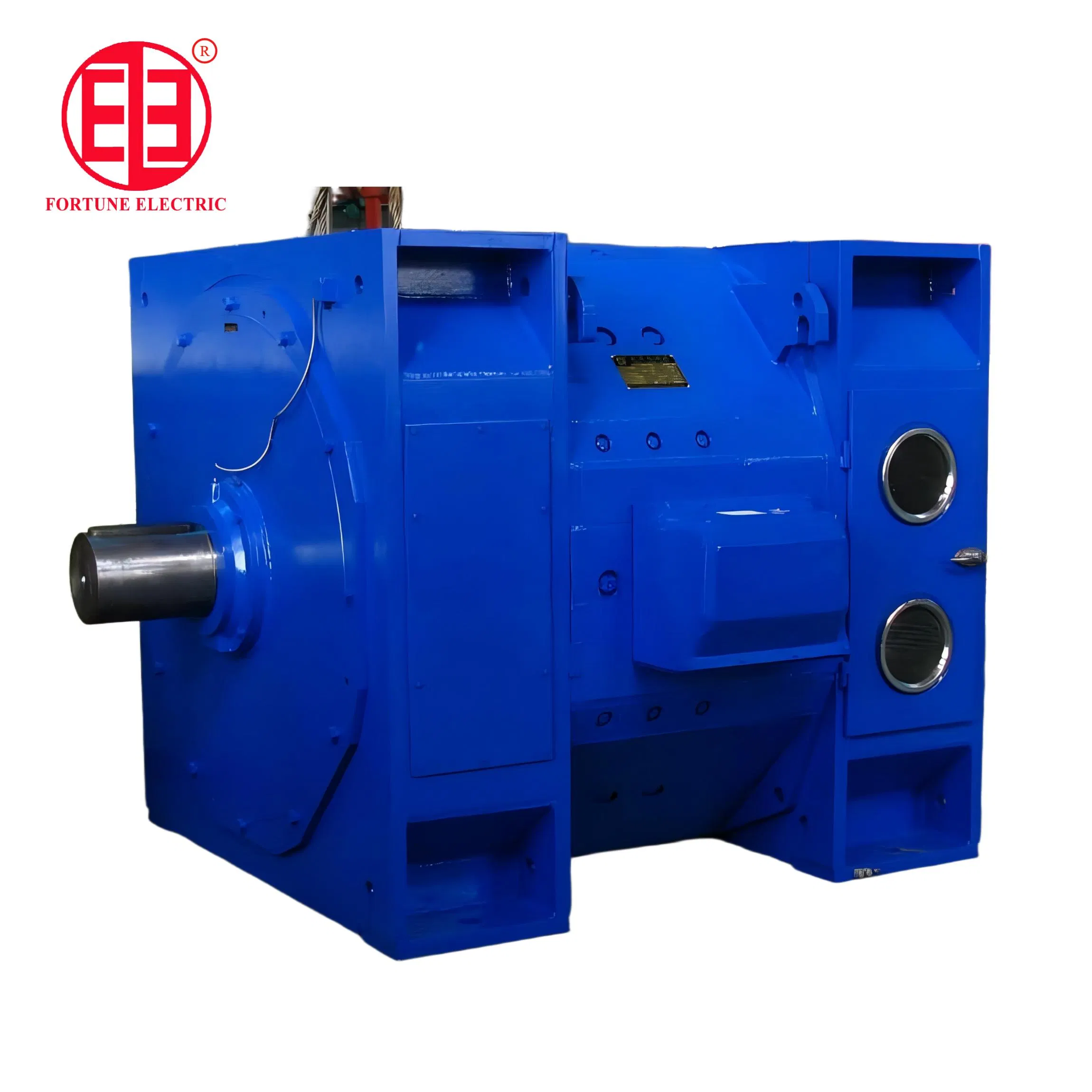

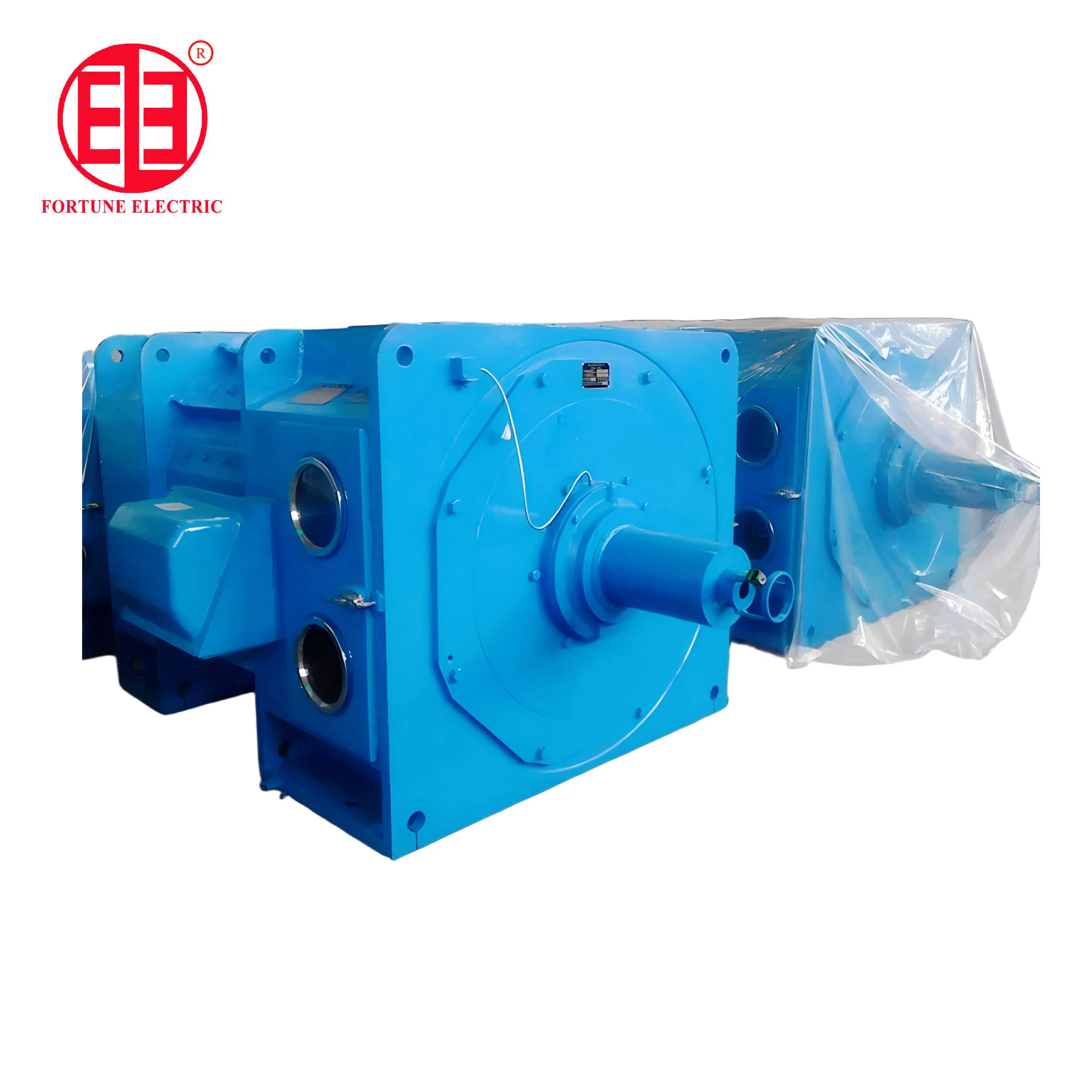

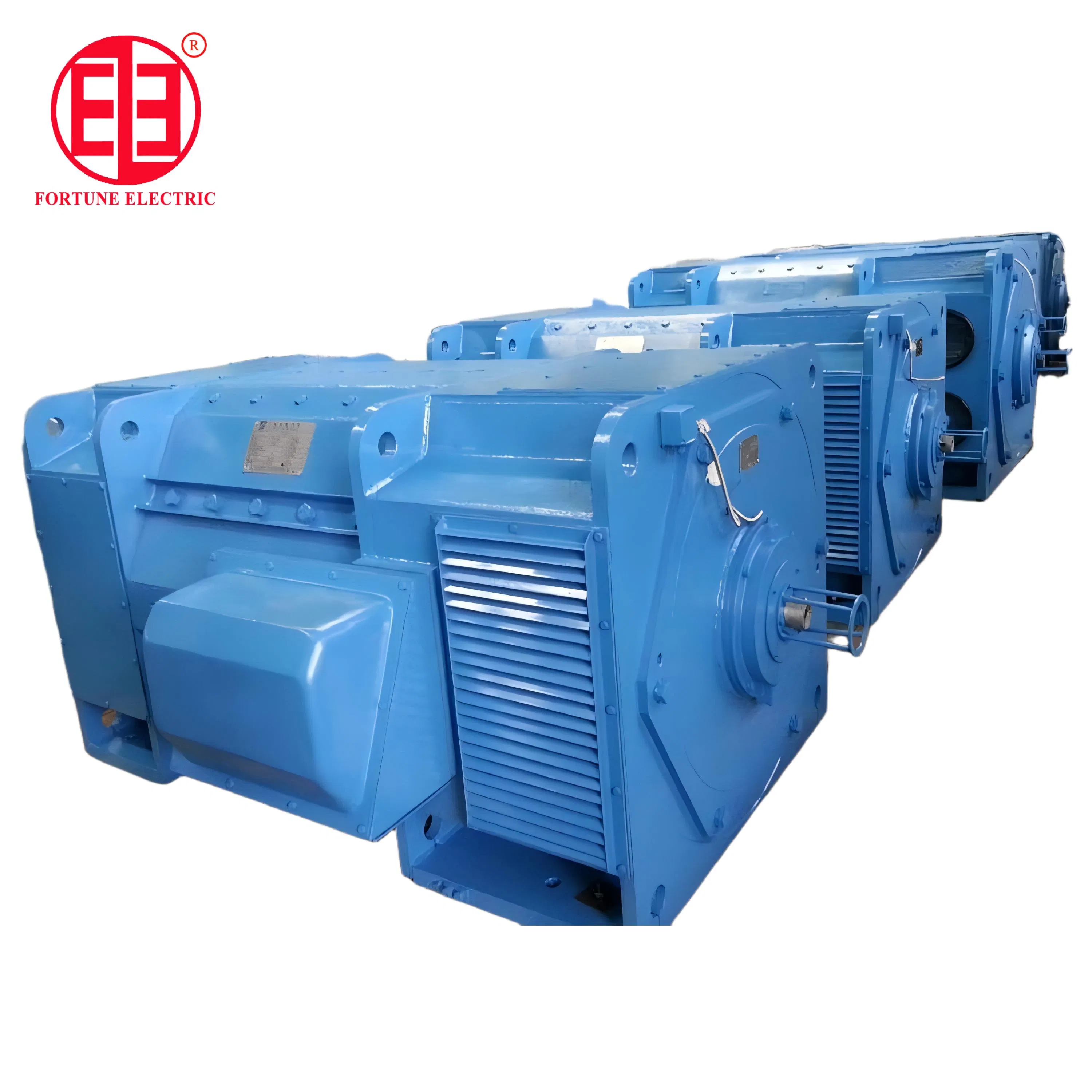

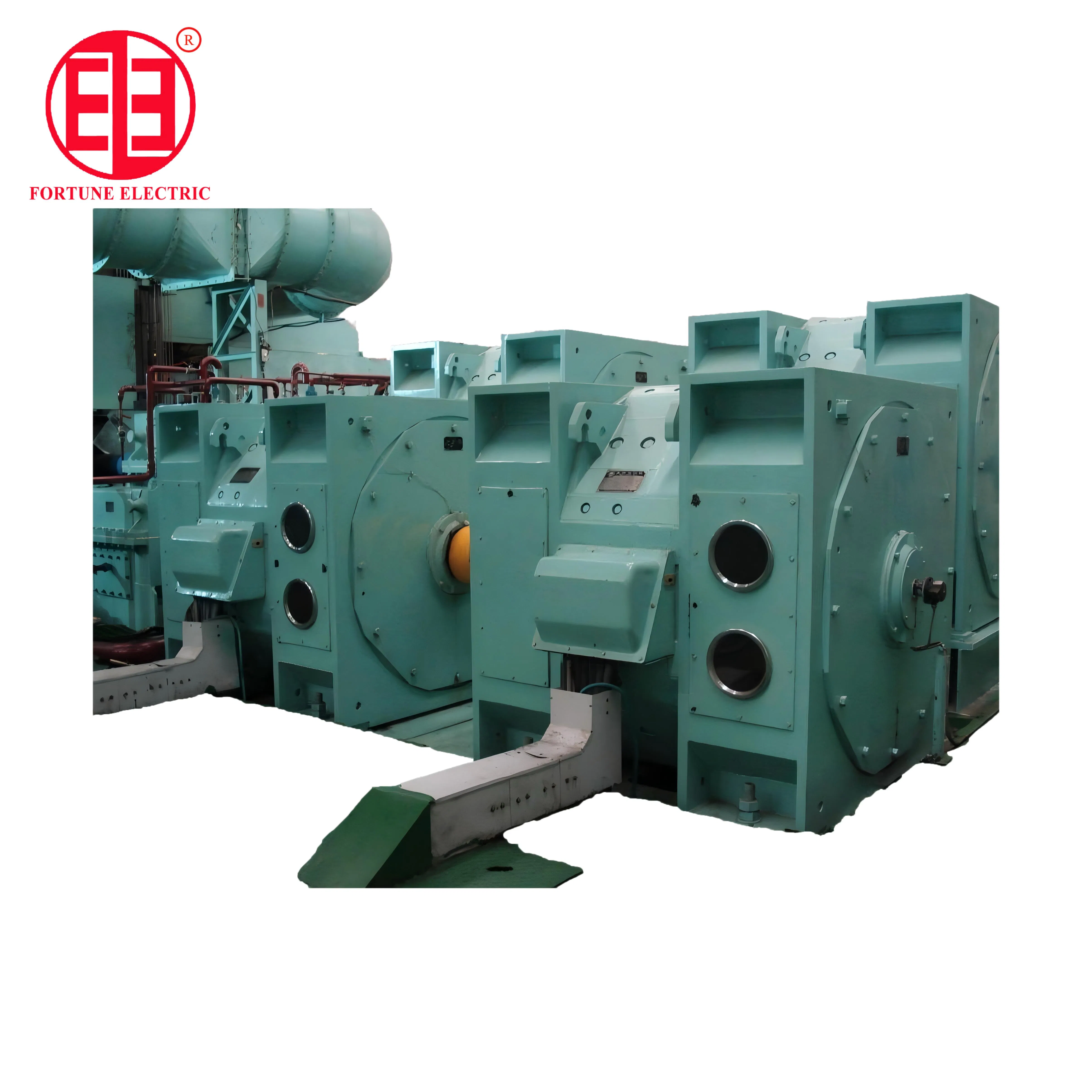

Introducing the Z Series Large Size DC Motor, the latest innovation designed to revolutionize your industrial applications. These motors are expertly crafted for exceptional performance and are versatile in their usage, serving as the prime mover across a multitude of industries. Whether it's functioning as a mill auxiliary in the metallurgical sector or powering metal cutting machine-tools, the Z Series motor provides unparalleled efficiency. Ideal for paper making, printing, textile, dyeing, cement manufacturing, and plastic extrusion, these motors are the quintessential choice for diverse industrial needs.

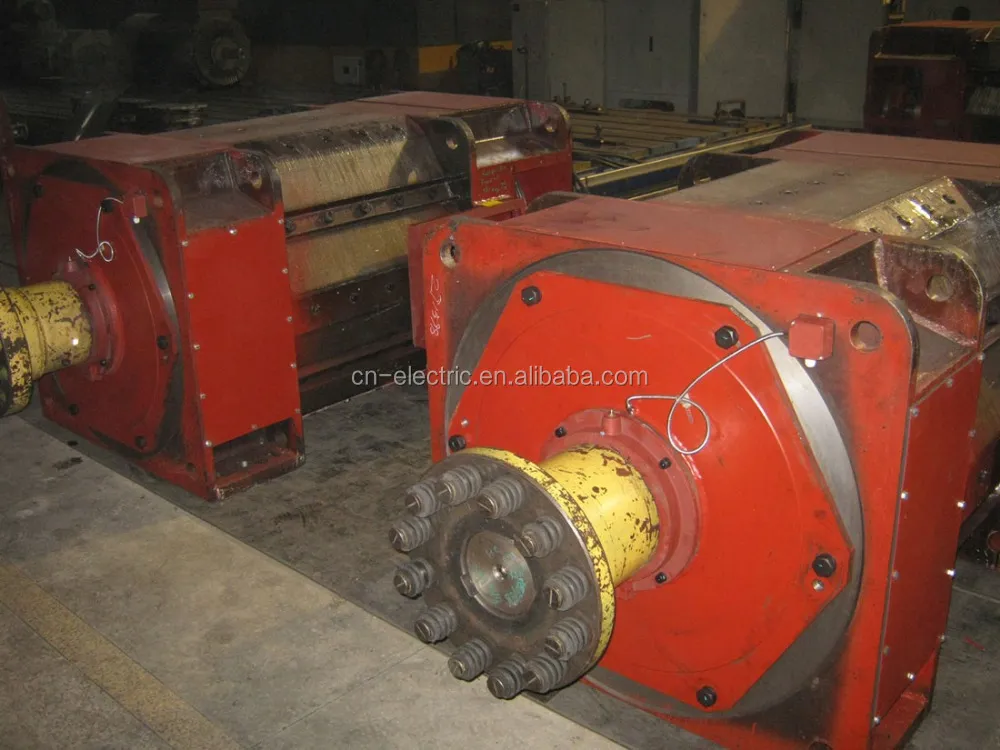

Product Parameters & Standards
Our motors' outline and mounting dimensions adhere to the IEC72 Standard (axial distance dimension B excepted). Performance and technical requirements align with IEC34-1 and the DIN57530 Norm.
Equipped with Class F insulation, these motors boast robust construction and superior impregnation, ensuring outstanding dielectric performance and heat dissipation. Benefits include compact size, lightweight design, high efficiency, and reliability.
These motors offer sustained operation from a fully controlled three-phase bridge without a smoothing reactor. For 160V applications, single-phase bridge thyristor operation is supported with a specified smoothing reactor to manage ripple current effectively.
Frequently Asked Questions
What are the primary applications for Z Series DC motors?
They are widely used in metallurgy as mill auxiliaries, metal cutting, paper making, printing, textile, cement manufacturing, and plastic extrusion industries.
Which international standards do these motors follow?
The motors comply with IEC72 for mounting dimensions, and IEC34-1 as well as DIN57530 for performance and technical requirements.
What is the insulation class of the Z Series motors?
These motors are equipped with Class F insulation, providing excellent heat dissipation and dielectric performance.
What cooling methods and protection ratings are available?

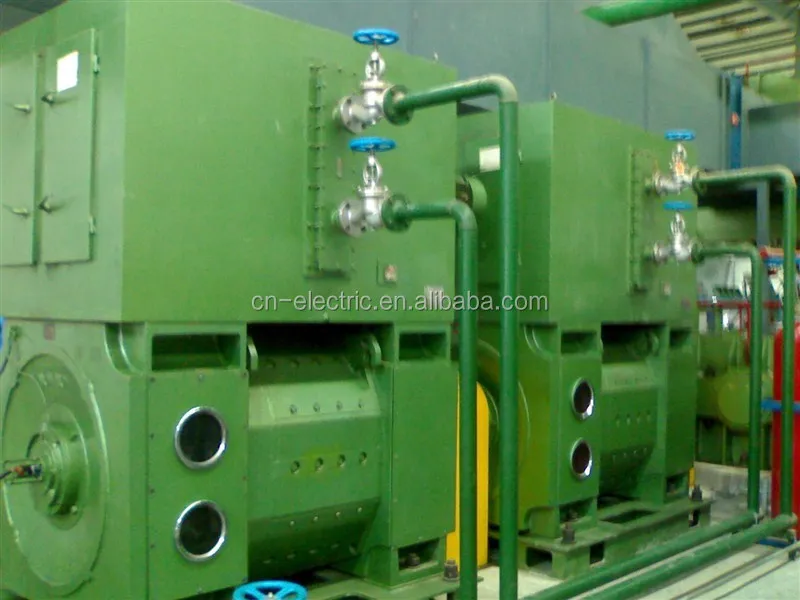

Cooling methods include Ico6, IC17, IC37, and IC86W. Protection ratings range from IP21s to IP54 depending on the specific model.
Can the motor run on a thyristor power supply?
Yes, they are designed for operation from a fully controlled three-phase bridge. Single-phase bridge operation is possible for 160V systems with a smoothing reactor.
What is the standard warranty period?
We provide a 15-month warranty period starting from the date of shipment.
