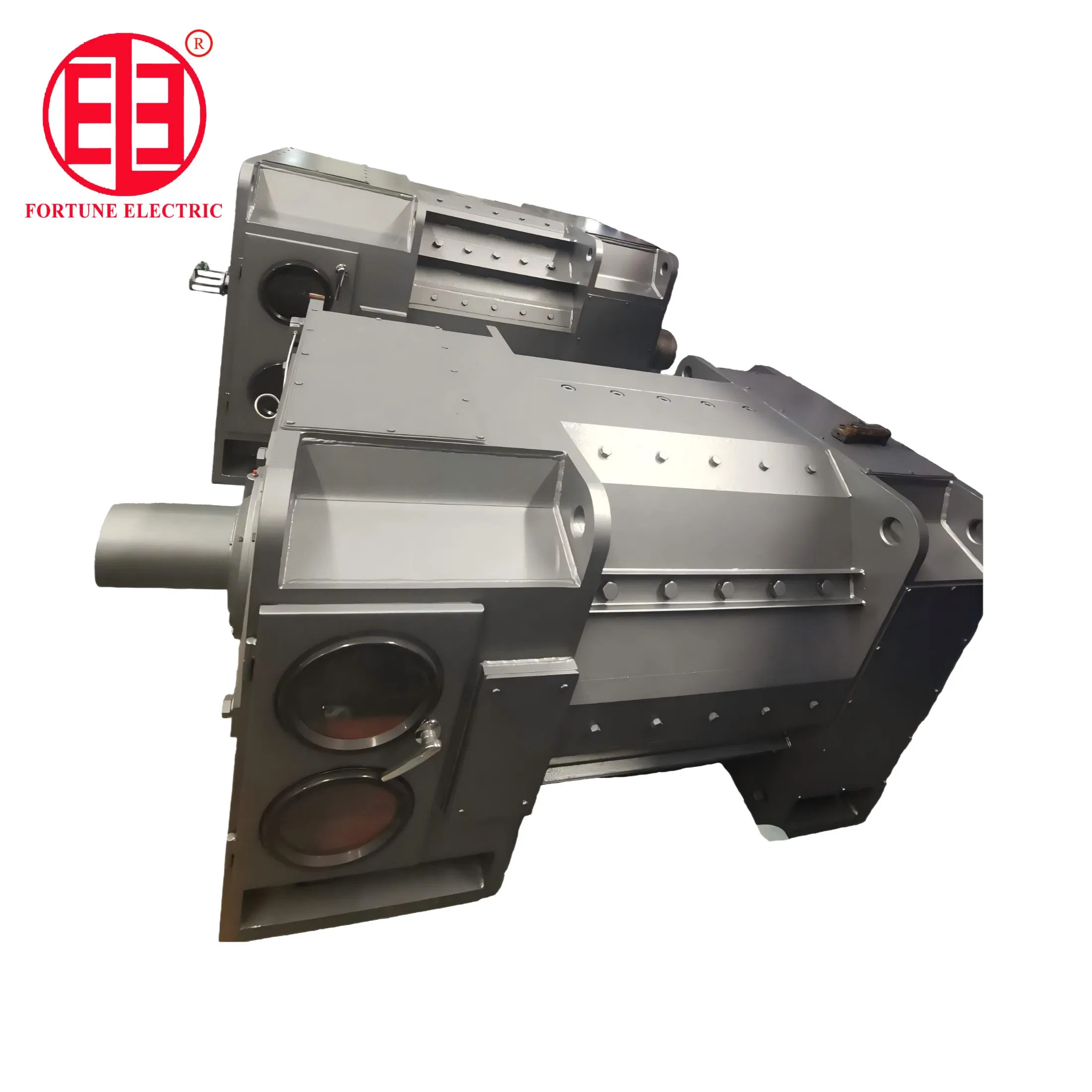

Introducing the Z Series Large Size DC Motor, a premier innovation in electrical engineering. These cutting-edge motors are designed to serve as prime movers across a wide spectrum of industrial applications. Whether it's enhancing the efficiency of mill auxiliary operations in the metallurgical industry, optimizing metal cutting machinery, or advancing production in paper making, print, textile, printing and dyeing, these motors are tailored to meet the diverse needs of modern industry. Additionally, they excel in cement-making and plastic extruding machines, providing versatile solutions for industrial power needs.
Our motors adhere to the rigorous standards of IEC72 for outline and mounting dimensions (excluding axial distance dimension B). Performance and technical specifications align seamlessly with IEC34-1 Standards of the International Electrotechnical Commission and DIN57530 Norm, ensuring global compatibility.
Key Technical Features:
- Class F Insulation: Reinforced with a resilient insulating structure and sophisticated impregnating process.
- Optimized Design: Compact and lightweight yet delivering high output and superior heat dissipation.
- Reliable Operation: Designed for continuous operation without a smoothing reactor on fully controlled three-phase bridges.
- Voltage Versatility: 160V motors can operate on single-phase bridge thyristors with an appropriate smoothing reactor.
Frequently Asked Questions
What are the primary applications for the Z Series DC motors?
They are widely used in metallurgical mill auxiliaries, metal cutting machinery, paper making, printing, textiles, cement production, and plastic extrusion.
Do these motors comply with international standards?
Yes, they meet IEC72 for mounting dimensions and IEC34-1 and DIN57530 for performance and technical specifications.
What type of insulation system is utilized?
These motors use Class F insulation, featuring a resilient structure and a specialized impregnating process for stable dielectric properties.
Are these motors suitable for continuous industrial use?
Absolutely. The Z Series is specifically designed for continuous operation and provides high reliability and efficiency.
Is a smoothing reactor required for all configurations?
A smoothing reactor is not needed for continuous operation on a fully controlled three-phase bridge. It is only required for 160V motors operating on single-phase bridge thyristors.
What are the physical advantages of this motor series?
They are engineered to be compact and lightweight while maintaining powerful output and excellent heat dissipation capabilities.
