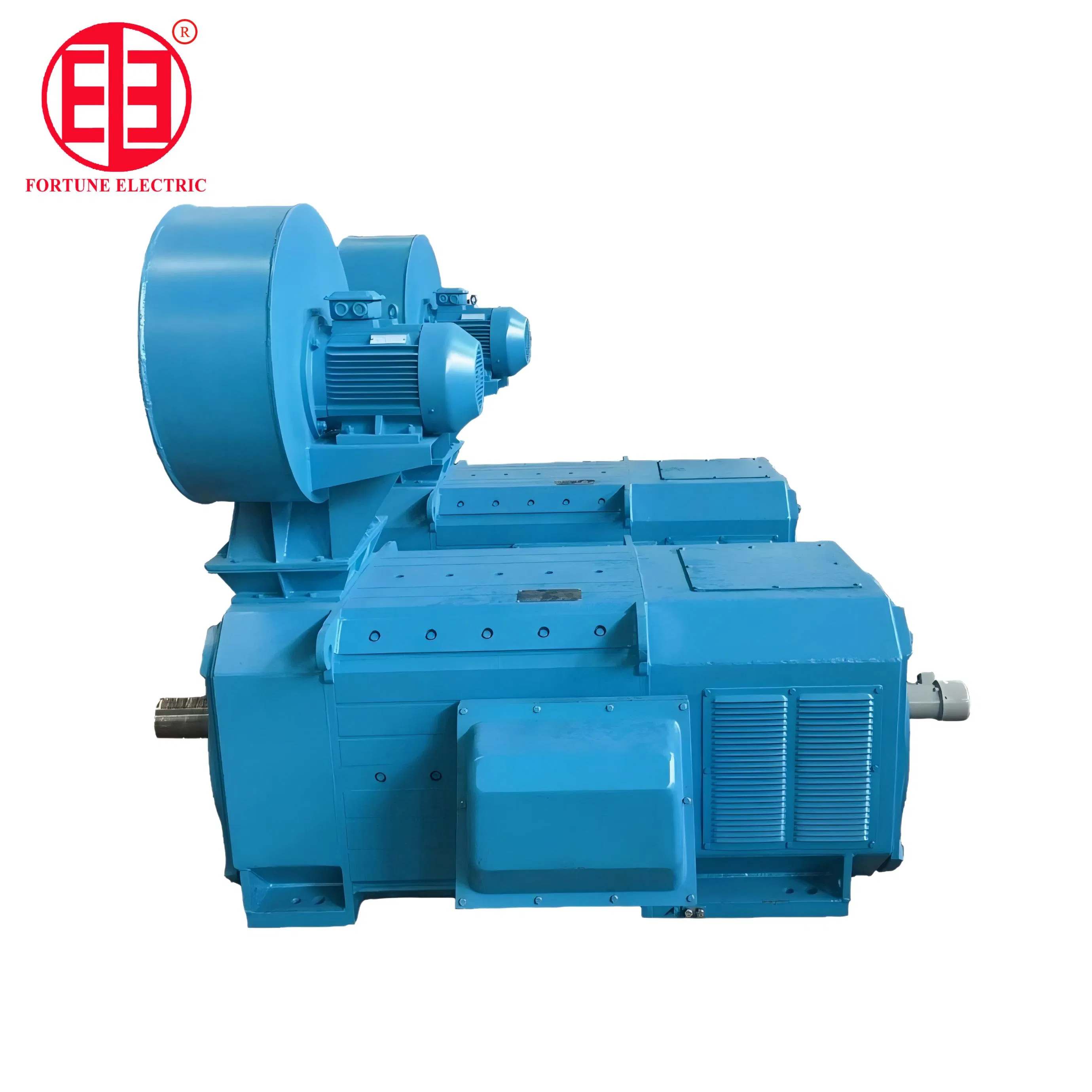

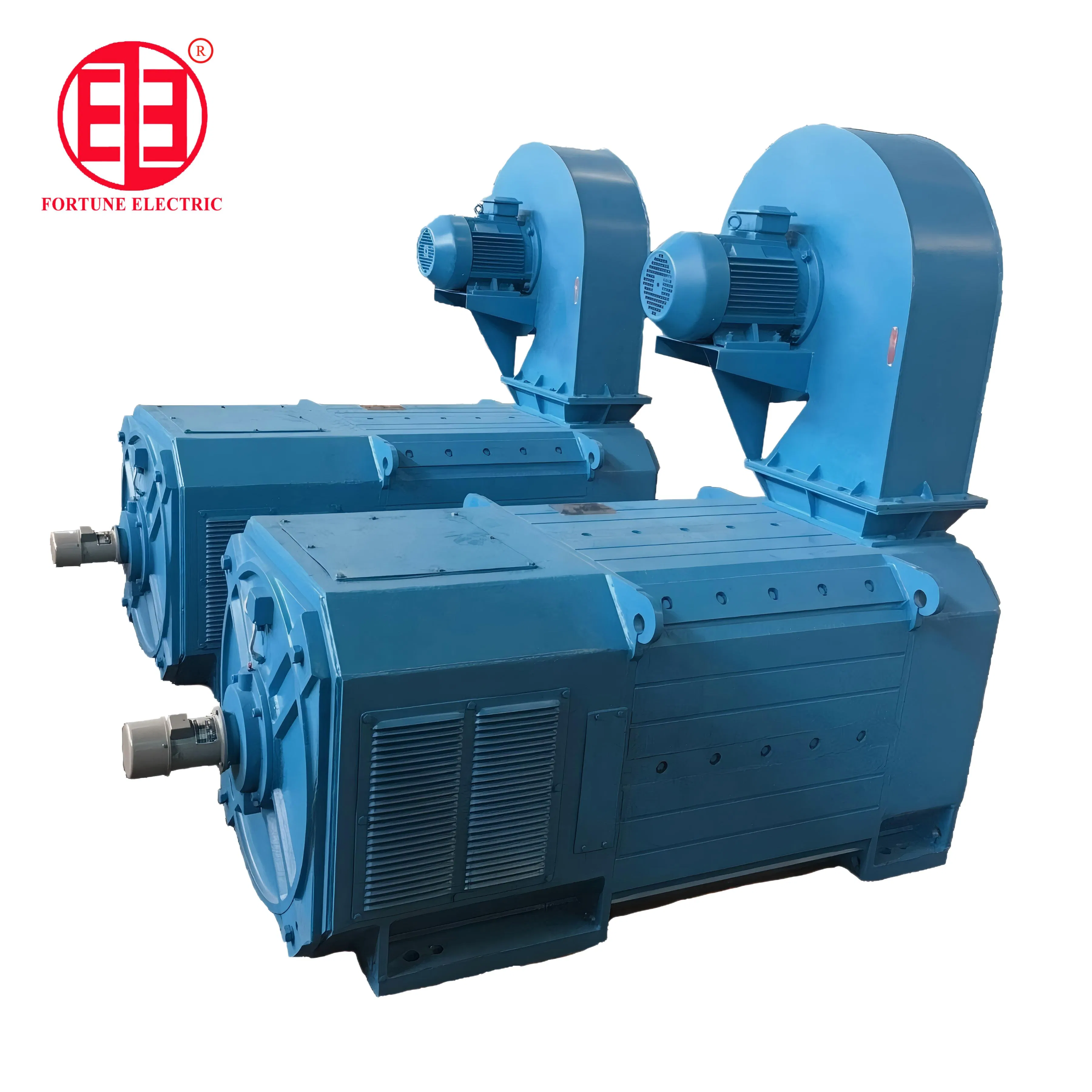

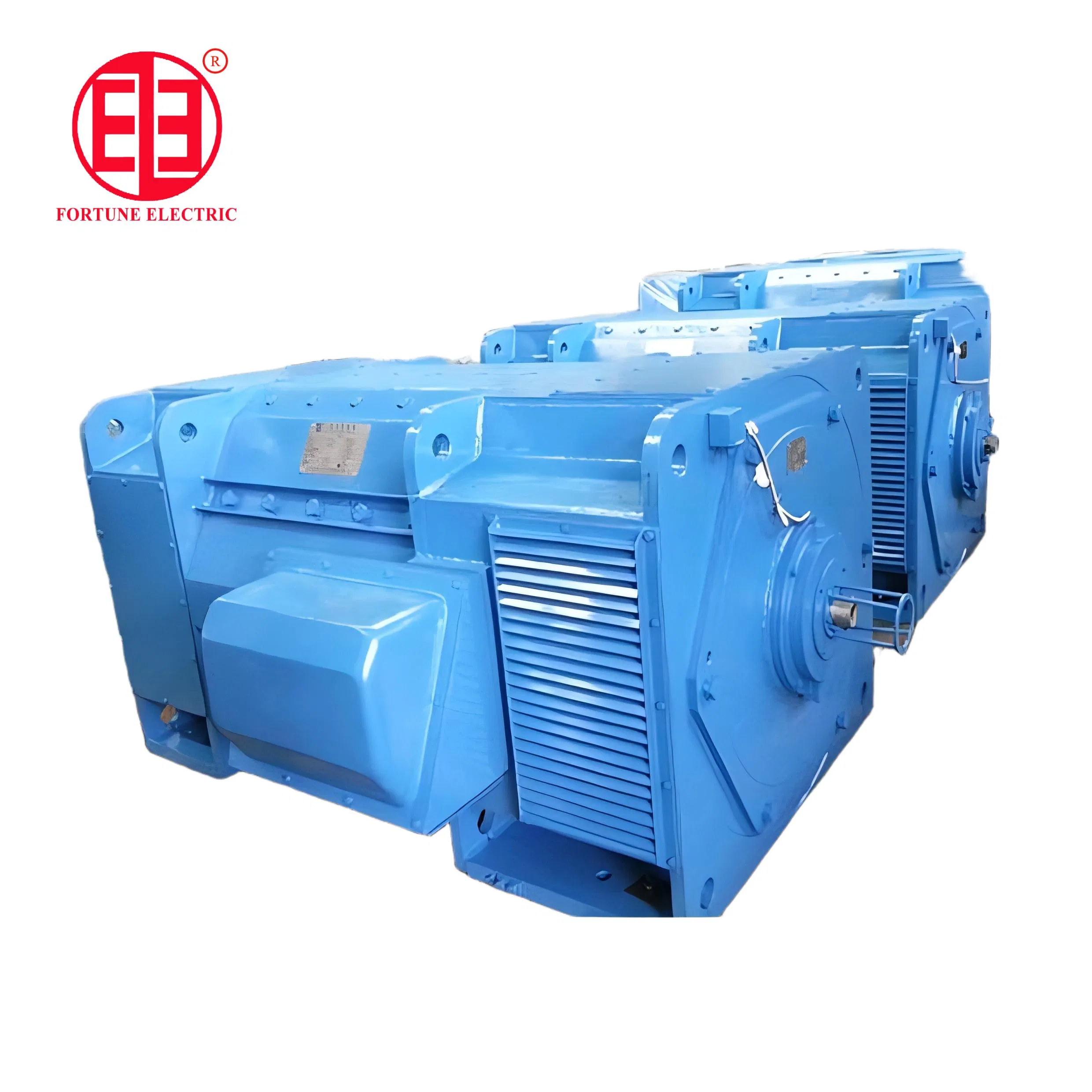

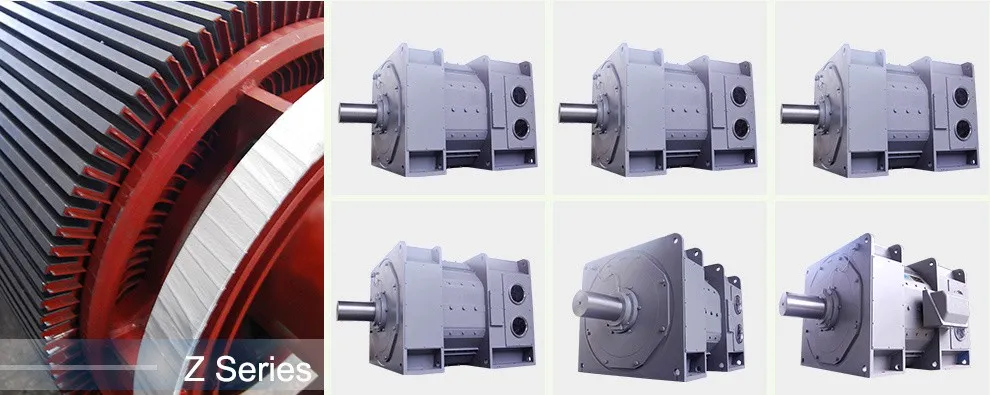

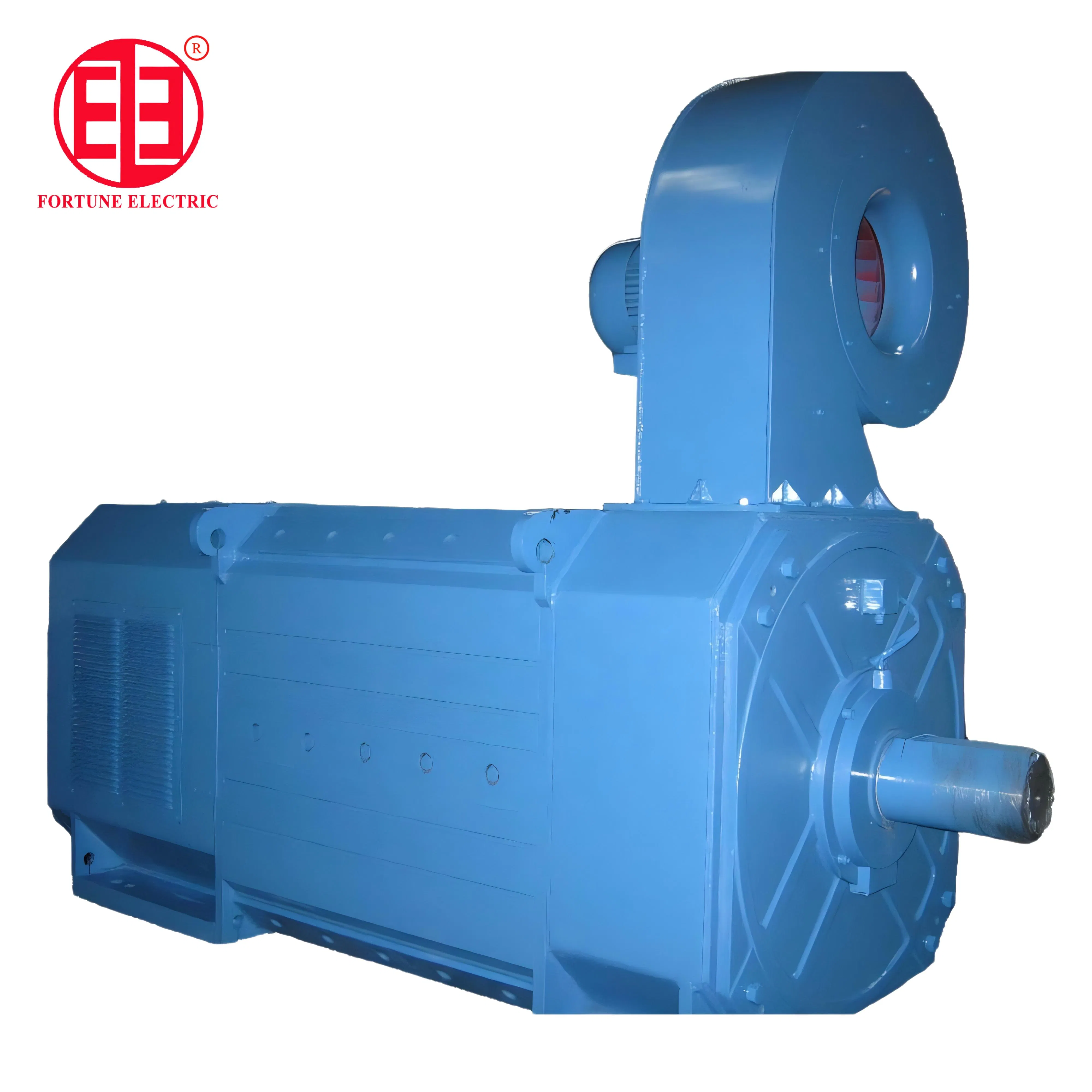

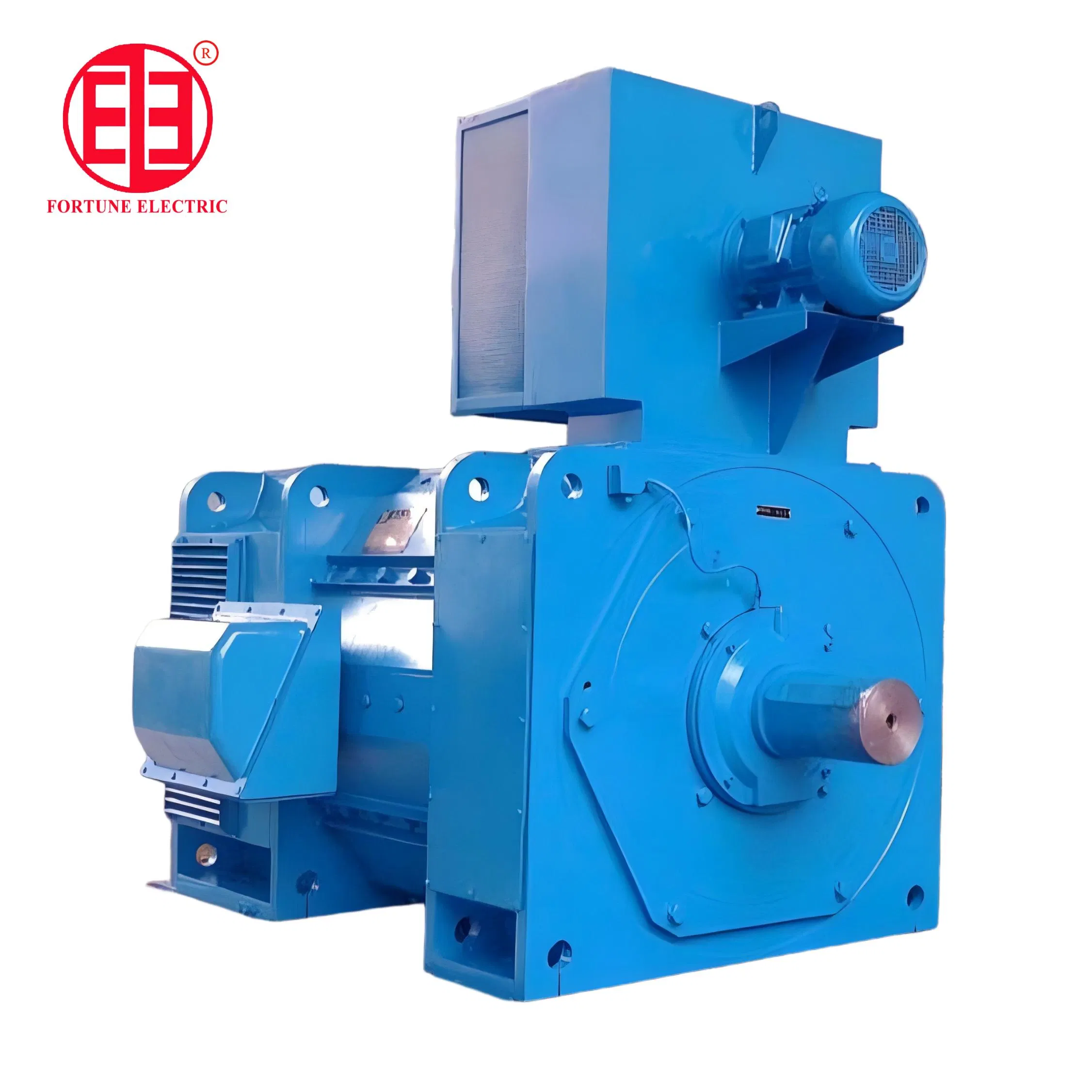

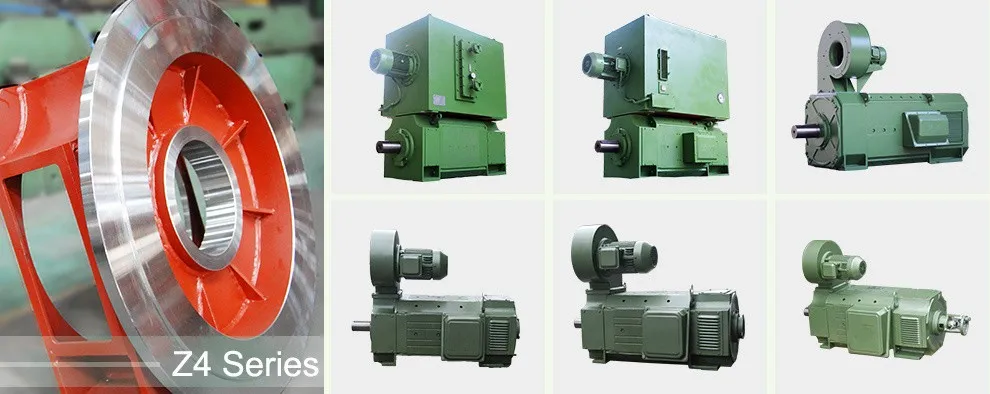

Introducing the Z Series Large Size DC Motor, a marvel of engineering that harnesses a polygon structure to optimize the stator's interior space. The intricately laminated magnet yoke is meticulously crafted for compatibility with silicon-controlled commutate power supplies, enabling it to withstand pulsating currents and abrupt variations in load. Every magnetic pole is precisely aligned to perfection, while the motors boast compensate winding for outstanding reverse performance. With an insulation class of F, this motor assures steadfast insulation strength and superior heat dissipation, thanks to its durable insulation design and advanced nonmenstruum vacuum pressure impregnation.

• Maximum operational altitude: 1,000 meters above sea level.
• Cooling air max: 40°C; Cooling water max: 32°C.
• Compatibility: 3-phase bridge style smoothing reactors and DC generator power supplies.
• Standards Compliance: GB755, IEC60034-1, and JB/T9577.
• Standard Voltages: 440V, 550V, 660V, 750V (Custom options available).
• Excitation: Separate excitation with 220V excited voltage.

We take meticulous care in packaging to ensure product safety: Inner protection comprises 3-4 layers of moisture sealing or as per client specifications. The outer packaging is a robust plywood case, designed for durability during transit.

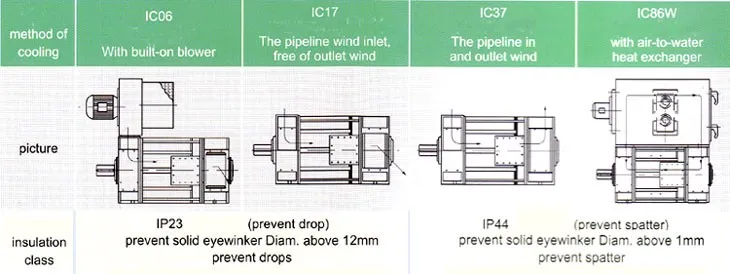

• Cooling Methods: IC06, IC17, IC37, and IC86W.
• Protection Classes: IP23 and IP44 available.
• Installation Types: Comply with GB/T997 (IM1001, IM1002).
• Standard terminal box placement: Right side (Repositionable to left upon request).
• Optional Accessories: Temperature detector, tachogenerator, centrifugal starting switch, and heaters.

Pre-Sales Services: Comprehensive inquiry and consulting support, sample testing, and factory visits.

Post-Sales Services: Meticulous training on installation and usage, with skilled engineers ready for overseas assistance.
