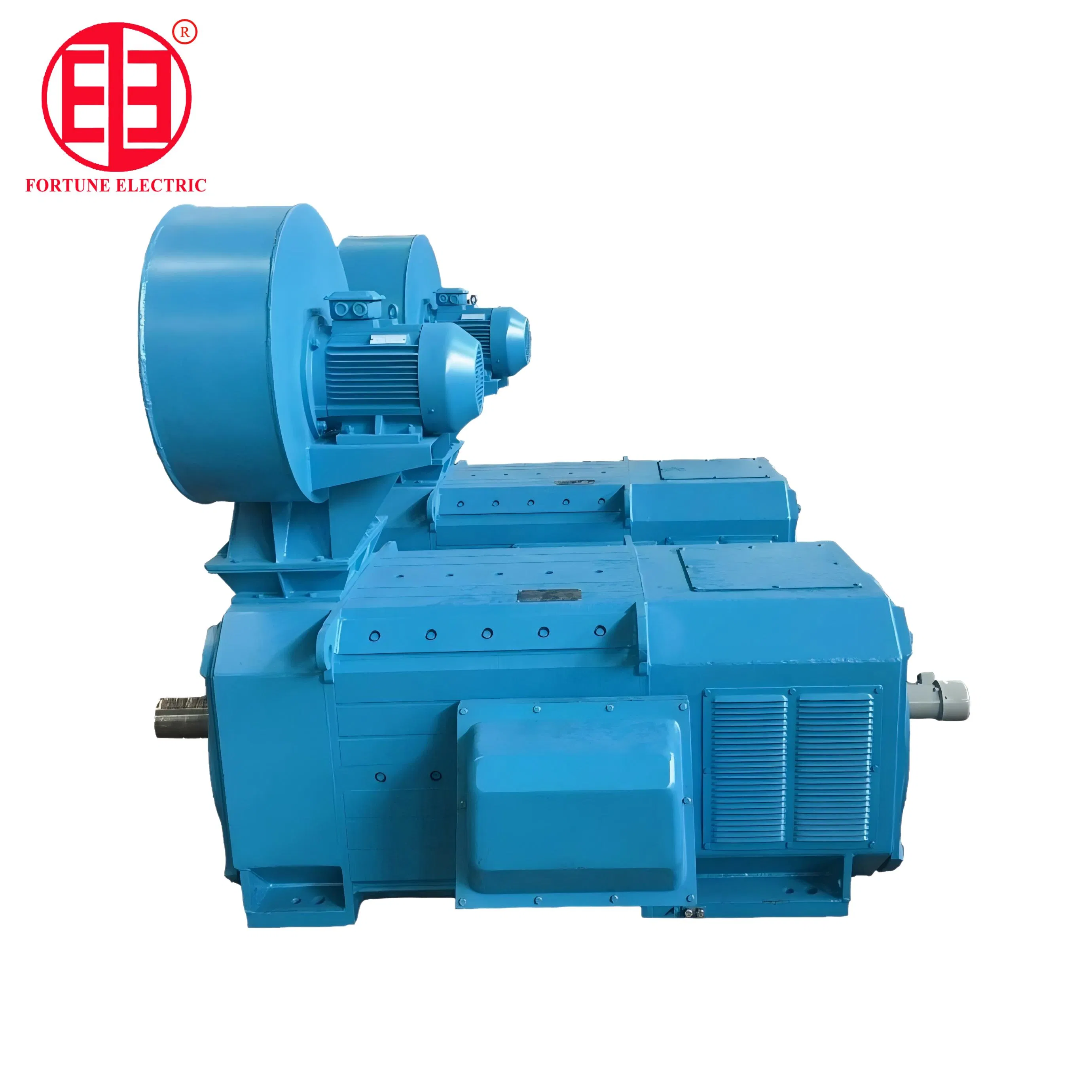

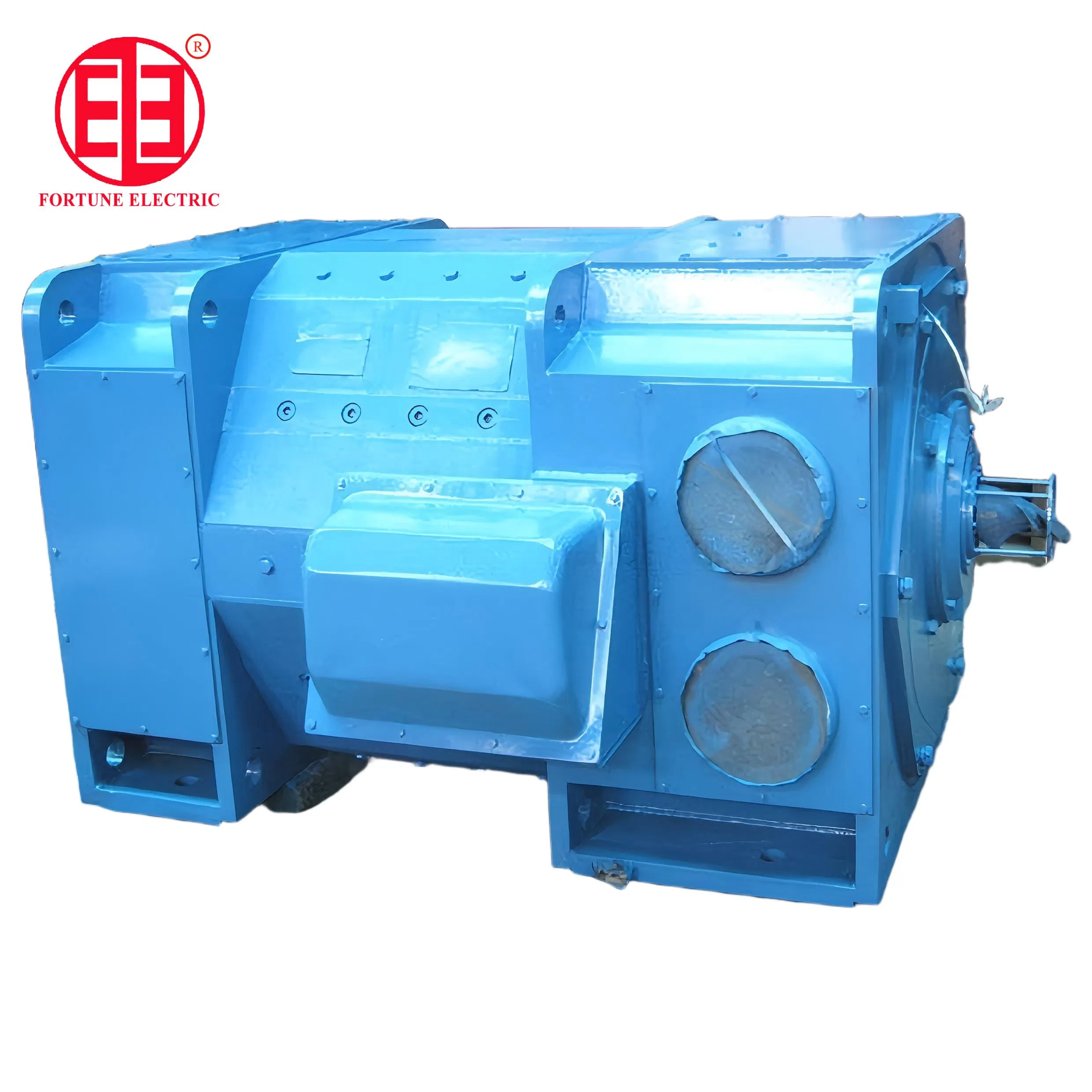

Industrial DC Motor with IP54 Protection for Reliable Operation

1 / 5

Industrial DC Motor with IP54 Protection for Reliable Operation

Customization:	Available
Application:	Industrial
Speed:	Constant Speed

Send Inquiry

Product Description

Basic Information

Function

Driving

Casing Protection

Closed Type

Certification

ISO9001

Model Number

Zz4zyzjzfqz

Frames

110~450

Construction

Shunt Wound

Protect Feature

Drip-Proof

Usage

Industrial Application

Warranty

18 Months After Shipment

Commutation

Brush

Rated Speed

3000, 1500, 750, 600, 400, 300, 20 r/Min

Name

Electric DC Motor

Rated Voltage

160, 220, 400, 440, 460V etc.

Protection

IP54/44/23/21s

Specification

Customized Available

Product Description

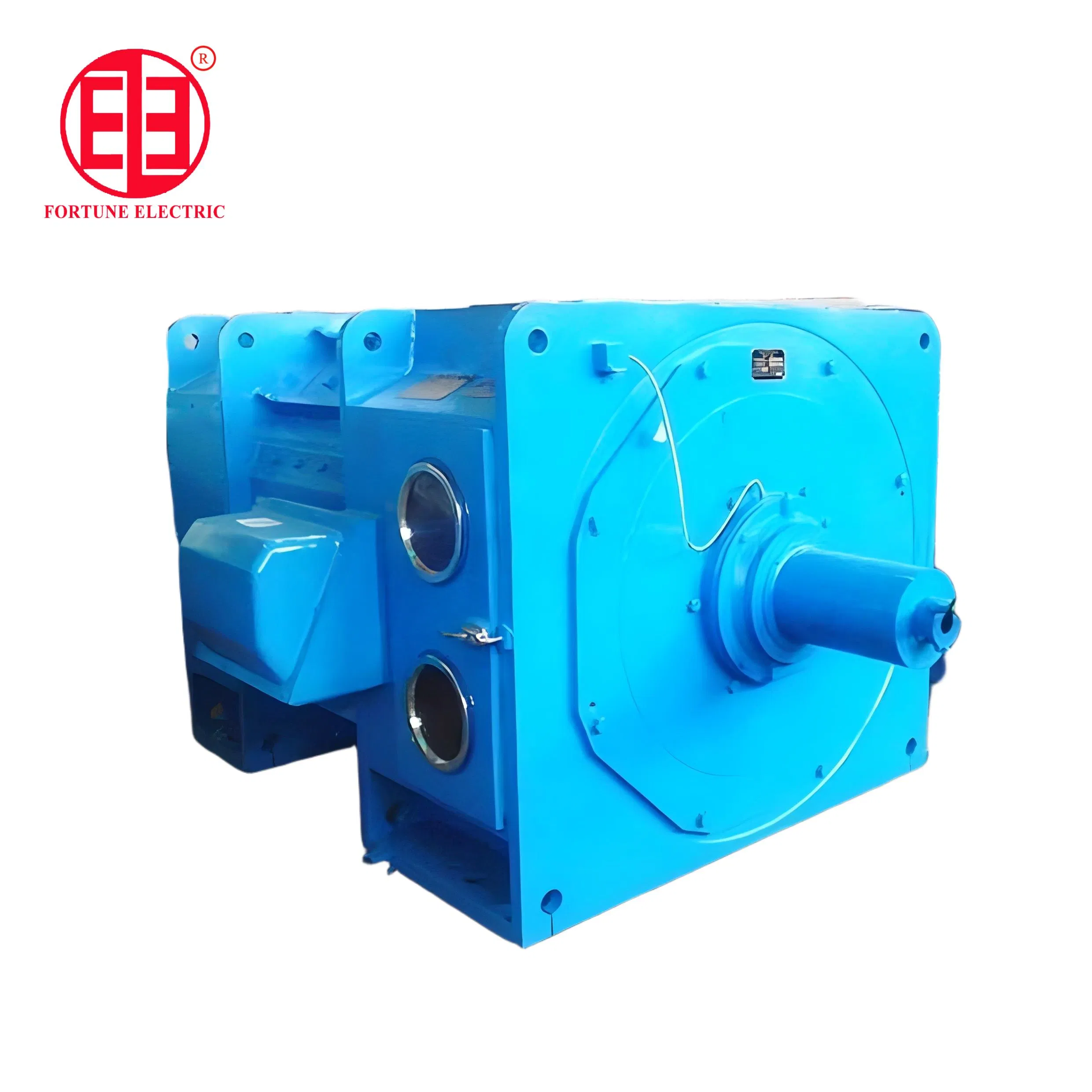

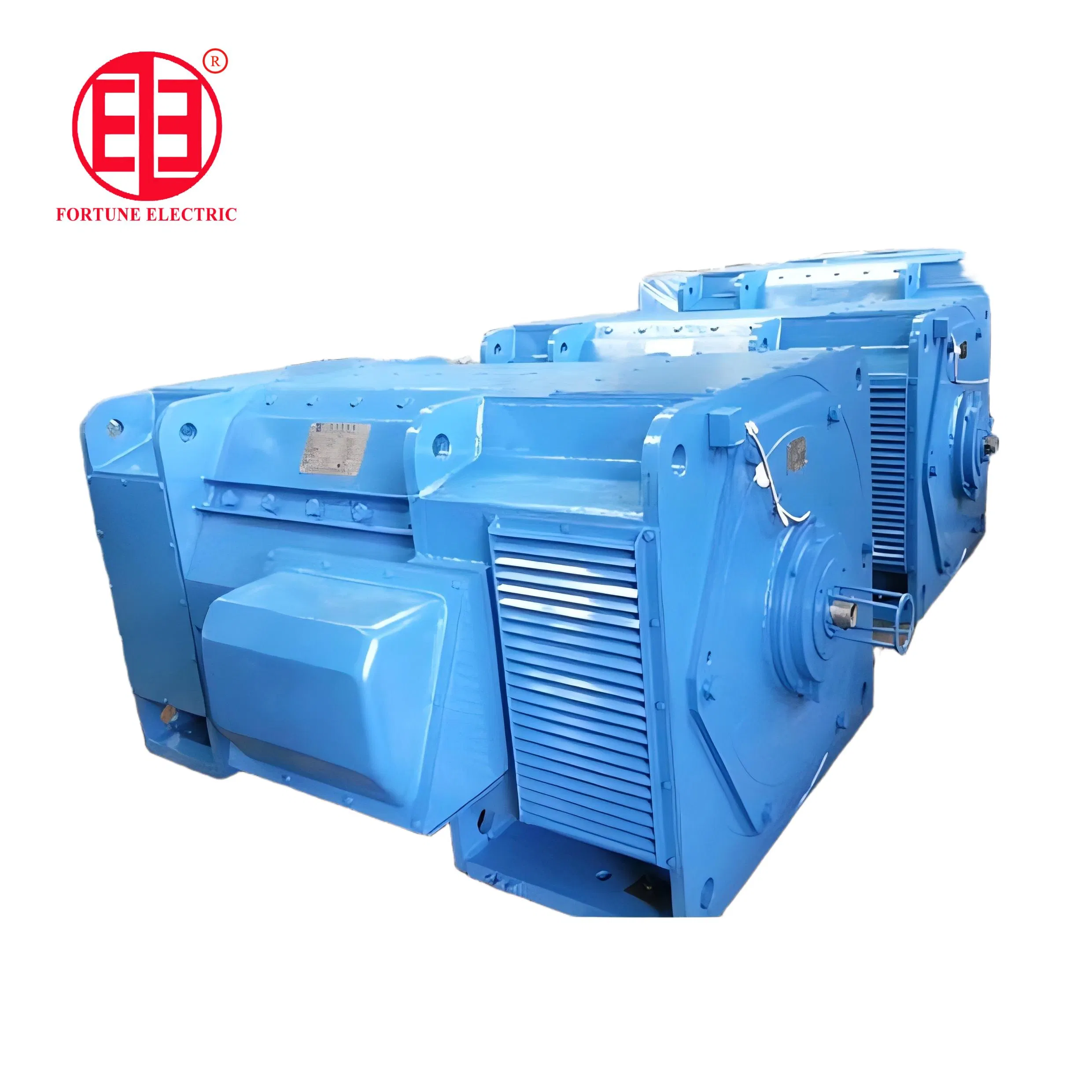

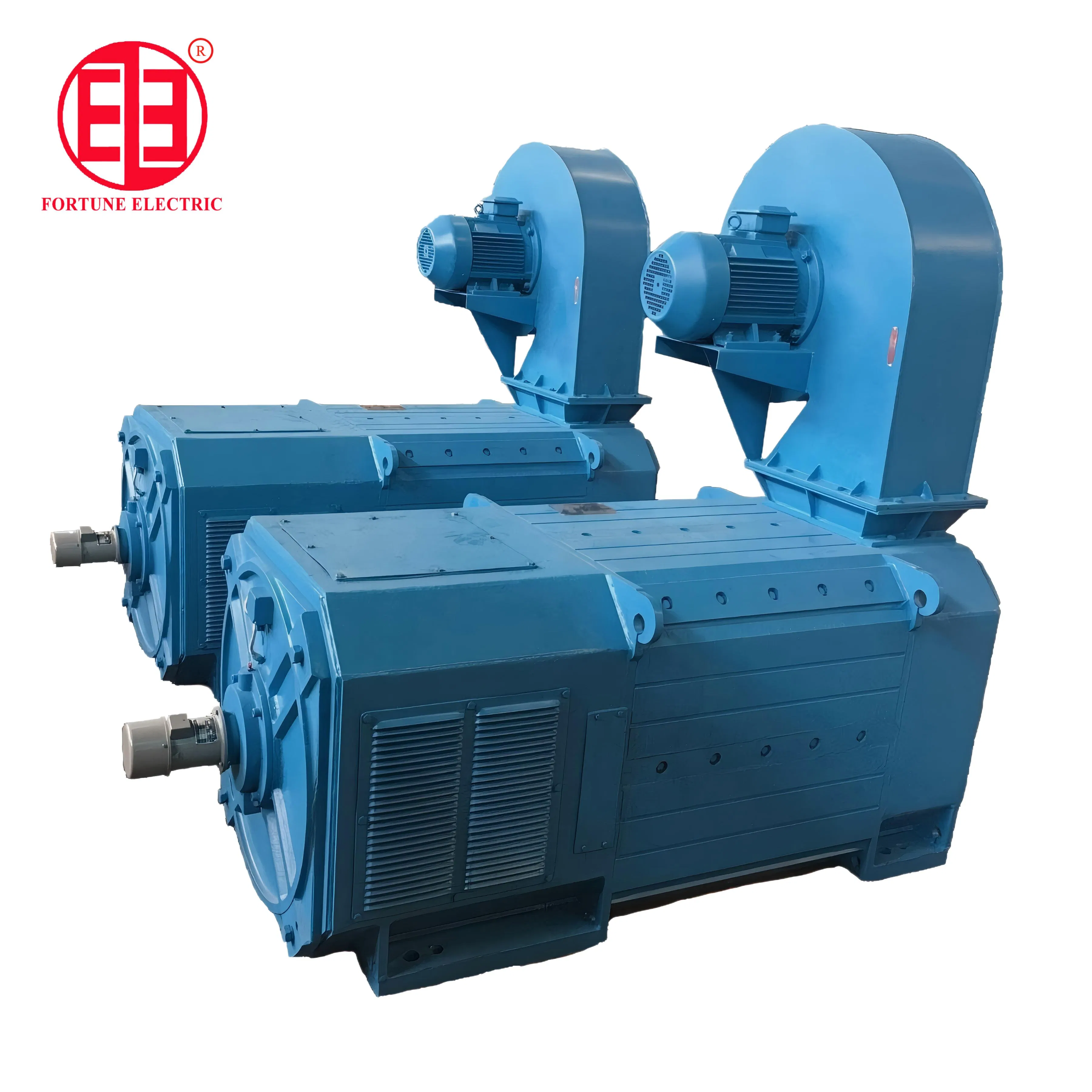

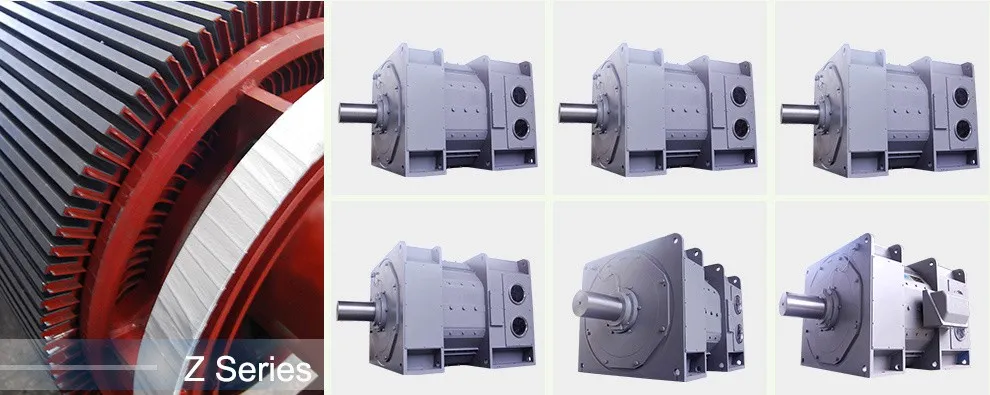

Introducing our Z series Large Size DC motor, a marvel of engineering designed to excel in demanding environments. This powerhouse employs a unique polygon structure to fully leverage the stator's inner space, ensuring robust performance. Its laminated magnet yoke is perfectly suited for silicon-controlled commutate power supplies, effortlessly handling pulsating currents and swift load changes. With magnetic poles that are precisely aligned, this motor offers uncompromising precision. Each motor in this series features compensate winding, providing outstanding reverse performance. Our design boasts an insulation class of F, utilizing a superior insulation structure and nonmenstruum vacuum pressure impregnation, which ensures consistent insulation integrity and efficient heat dissipation.

Product Parameters

Altitude up to 1,000m; Cooling air ≤ 40°C; Cooling water ≤ 32°C.
Conforms to GB755, IEC60034-1, and JB/T9577 standards.
Standard voltages: 440V, 550V, 660V, 750V (Custom options available).
Basic excitation: 220V (Negotiable for other voltages).
Vibration and noise comply with GB10068 and GB10069.3.

Percentage of basic speed	Permissible Overload Current (%)
Percentage of basic speed	Seldom Using	Constantly Using
100	200	175
200	160	150
>300	140	125

Packaging & Shipping

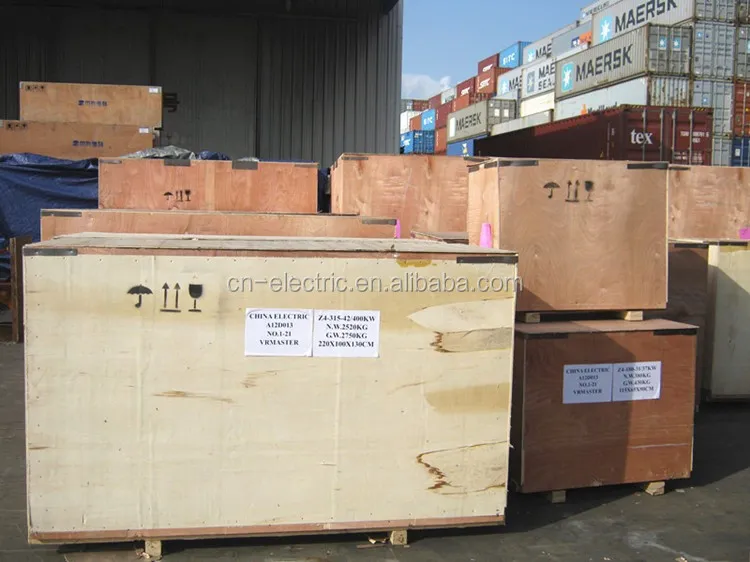

Our packaging solutions are designed to safeguard your assets. The inner packing consists of 3-4 layers of moisture sealers, providing protection against environmental elements. The outer packaging is a robust plywood case, engineered to endure the rigors of transport.

Installation & After-Sales

Installation Instructions:

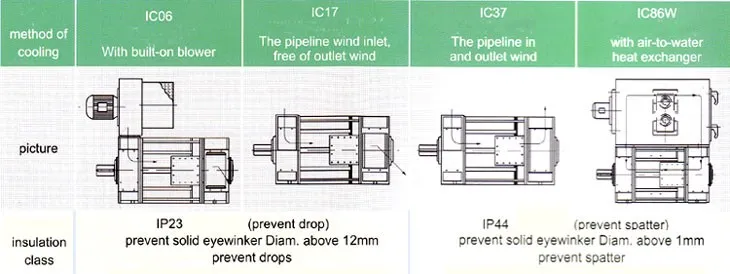

Cooling methods: IC06, IC17, IC37, and IC86W. Protection class: IP23 or IP44.
Installation types: IM1001 and IM1002 (GB/T997 standards).
Terminal box: Standard right side (Custom left side available).
Rolling bearings with continuous oil replenishment system.
Optional: Temperature detectors, tachogenerators, centrifugal switches, and heaters.

Service Commitment:
• Pre-Sales: Inquiry support, sample testing, and factory inspections.
• After-Sales: Training on installation and operation; overseas engineering support available.

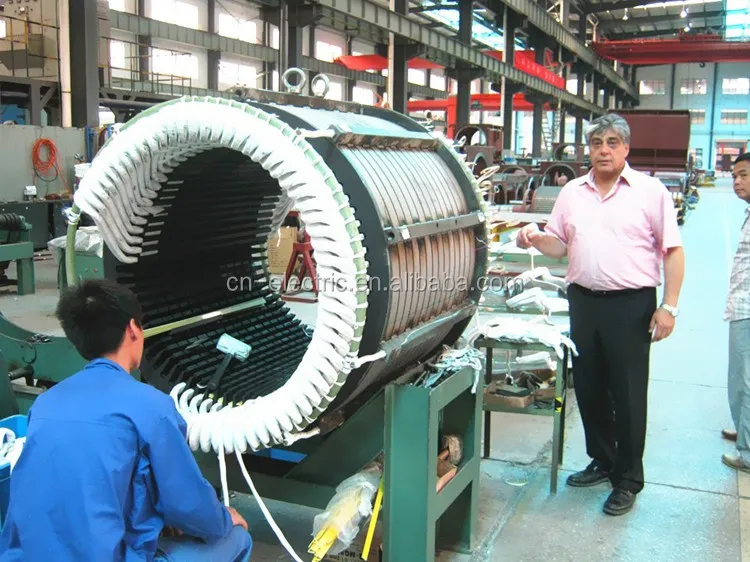

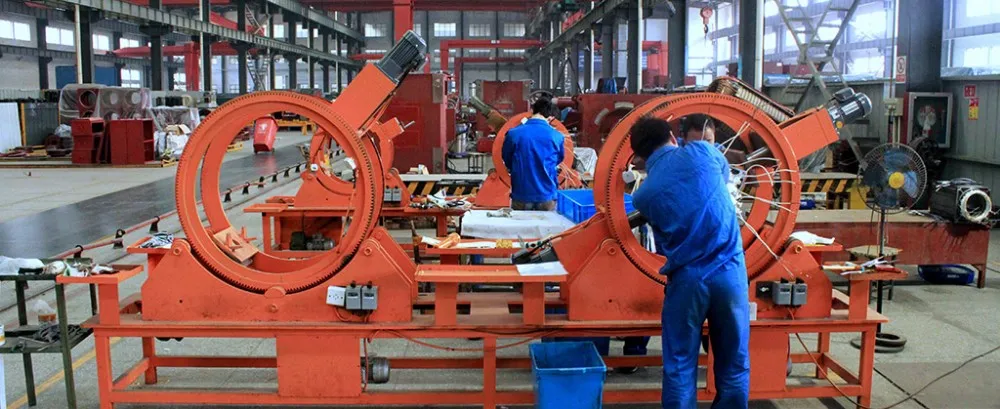

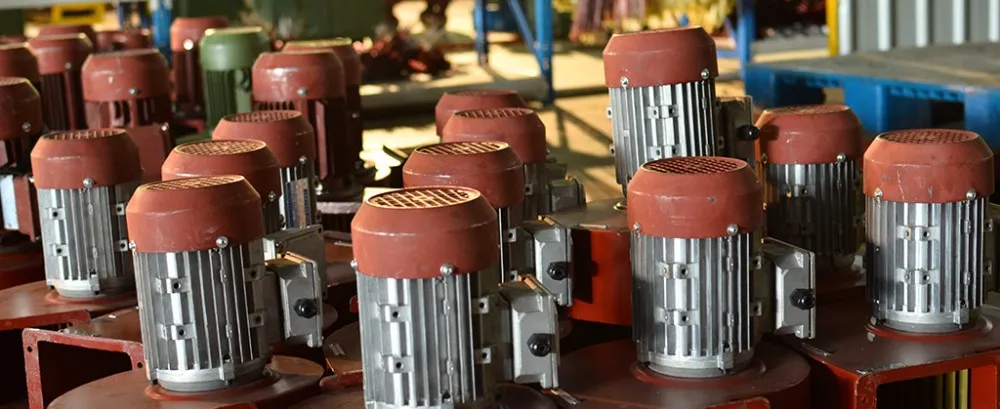

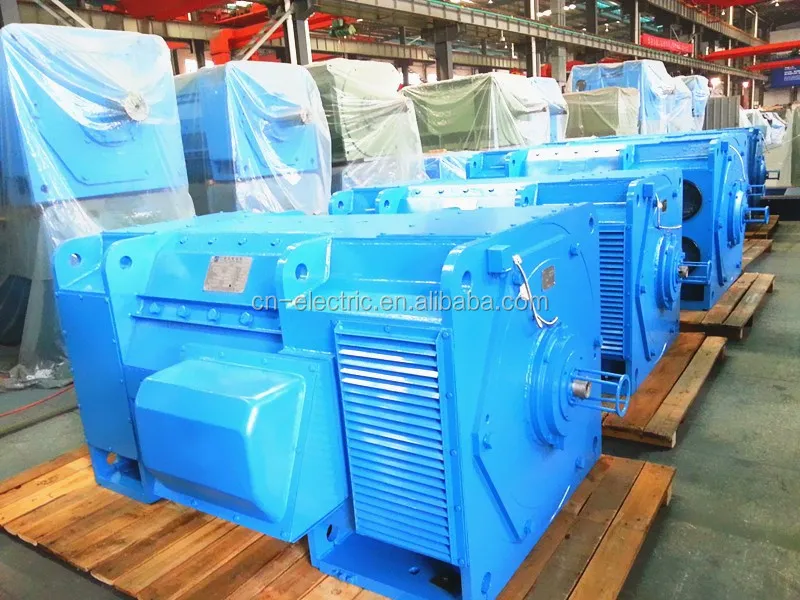

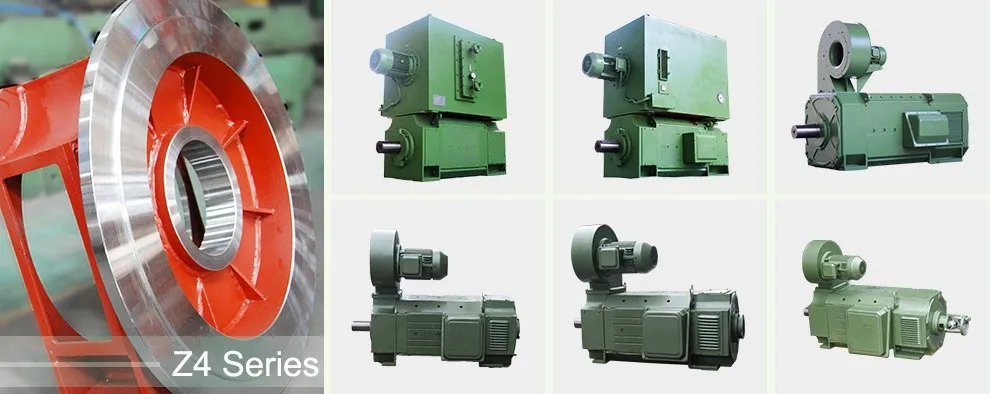

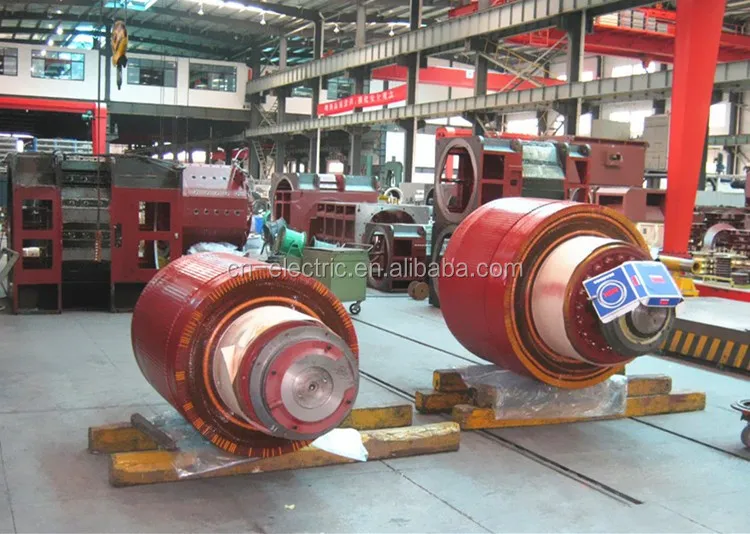

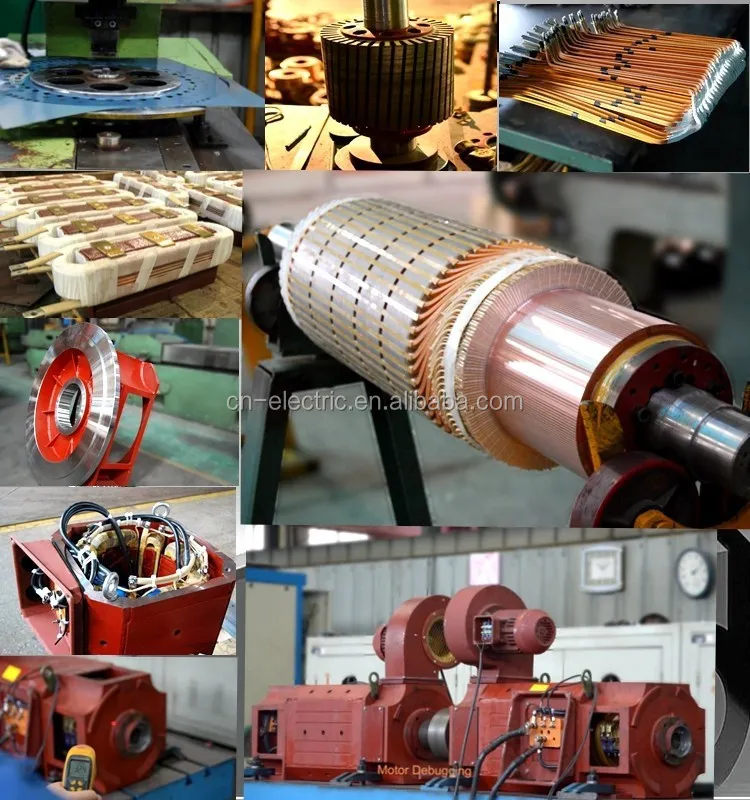

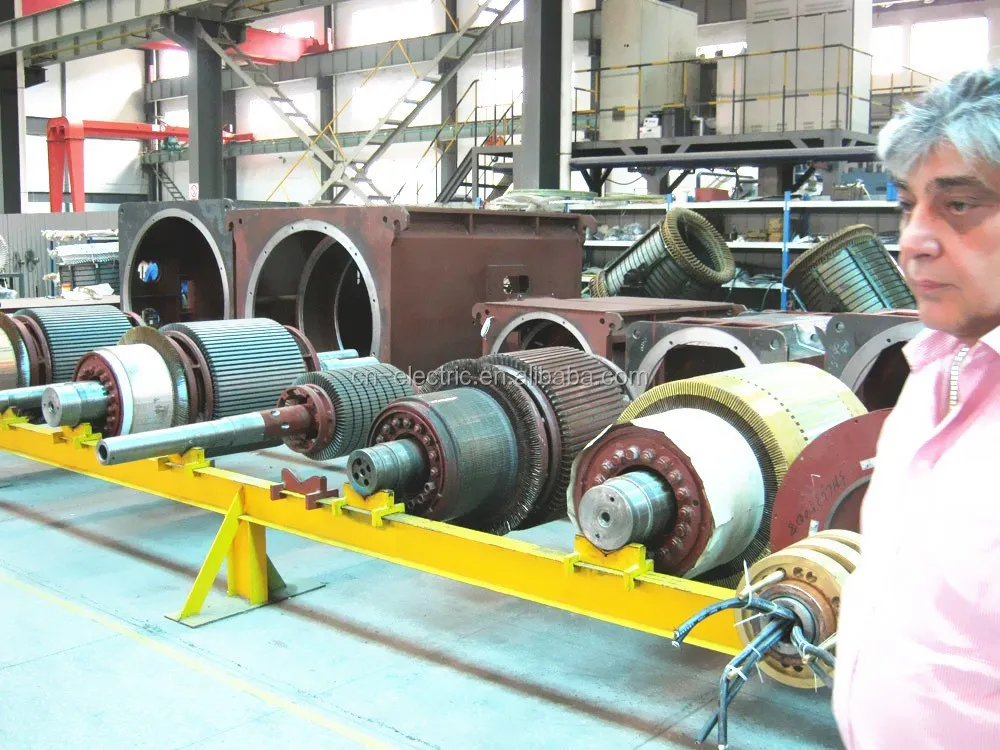

Production Gallery

Frequently Asked Questions

Q1: What are the primary applications for the Z series DC motor?

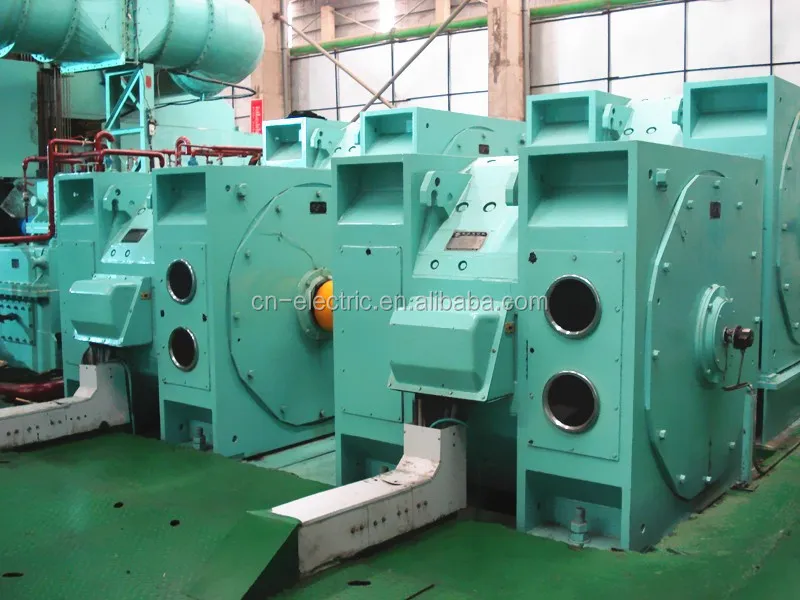

A: These motors are specifically designed for demanding industrial applications, including metal rolling mills, heavy machinery driving, and other environments requiring robust, high-performance power.

Q2: Can the rated voltage be customized?

A: Yes. While standard voltages are 440V, 550V, 660V, and 750V, we can negotiate and provide other voltage configurations based on your specific operational requirements.

Q3: What insulation class is used in these motors?

A: We use Class F insulation. The structure features nonmenstruum vacuum pressure impregnation (VPI) to ensure high dielectric strength and efficient heat dissipation.

Q4: What is the standard warranty period for your DC motors?

A: We provide a comprehensive warranty for 18 months starting from the date of shipment, ensuring peace of mind for your investment.

Q5: What protection and cooling options are available?

A: We offer multiple cooling methods such as IC06, IC17, IC37, and IC86W. Protection classes generally include IP23, IP44, and IP54, depending on the installation environment.

Q6: Are there options for monitoring motor health during operation?

A: Yes, we offer optional accessories including temperature detectors, tachogenerators, coders, and wind pressure switches to ensure safe and continuous monitoring.
