Sweg Motor
Sweg Motor

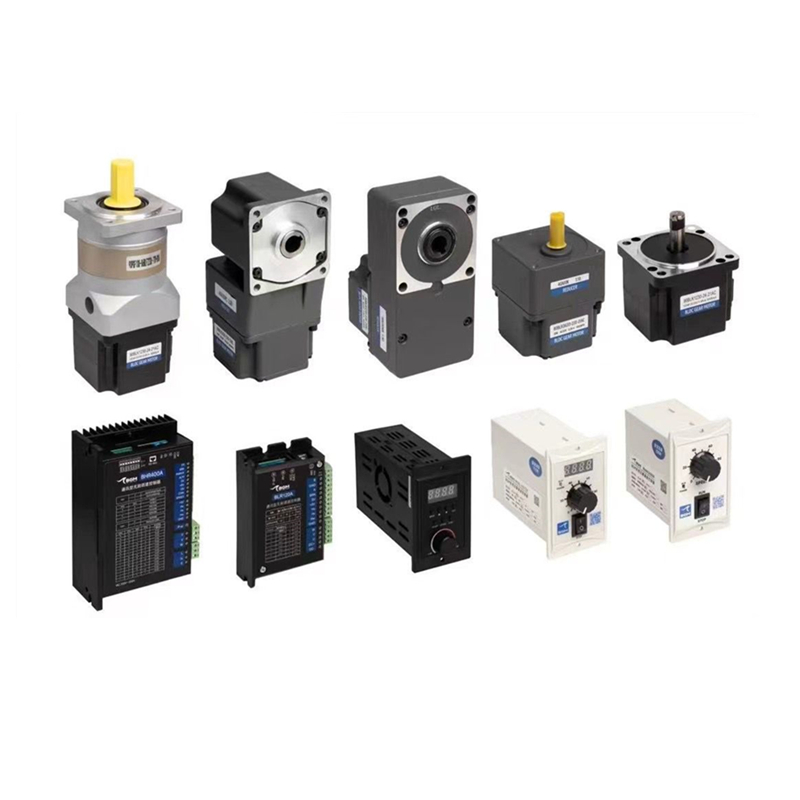

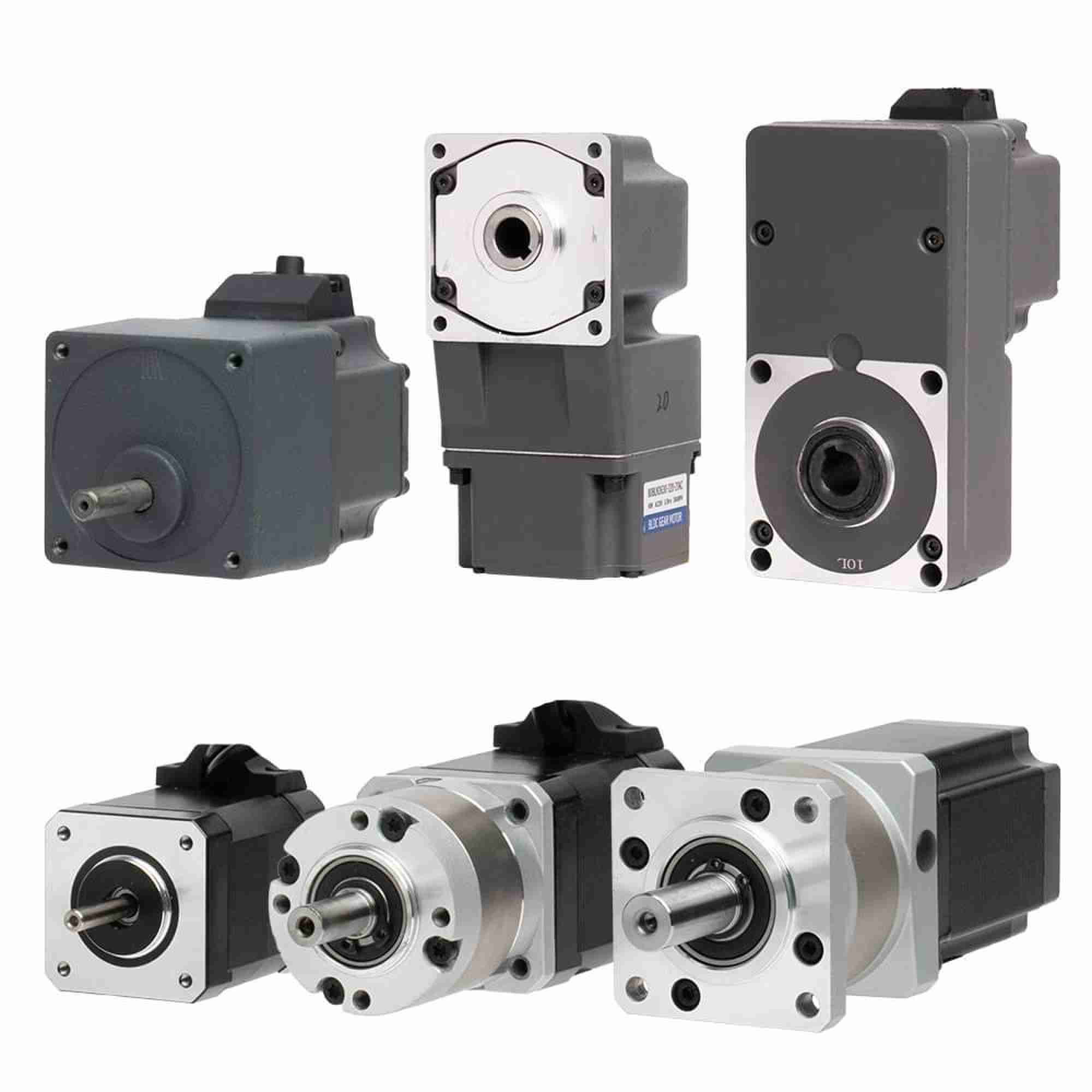

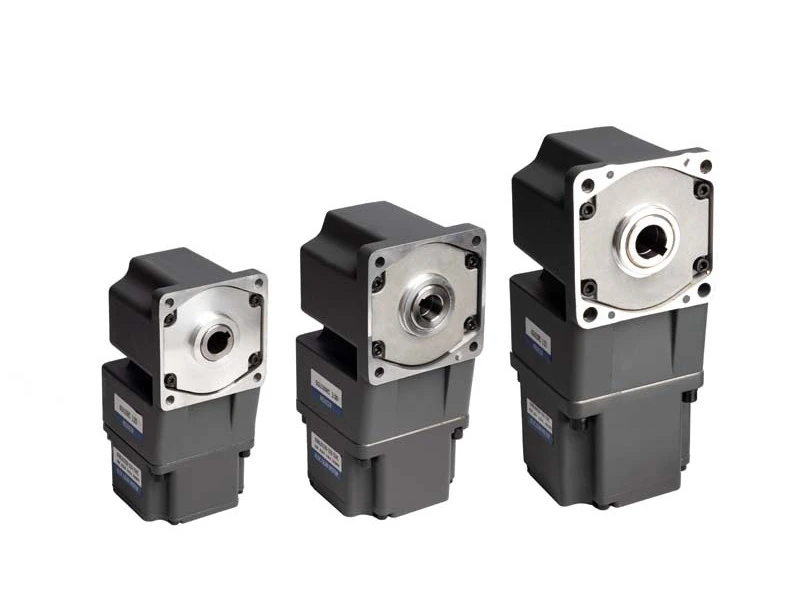

Brushless DC Gear Motor combine high performance DC brushless motors and motor drivers to offer excellent energy savings, high torque and speed stability as well as a wide speed control range. With brushless DC motors you can downsize your application as the motors have slim bodies and provide high power due to permanent magnets being used in the rotor.

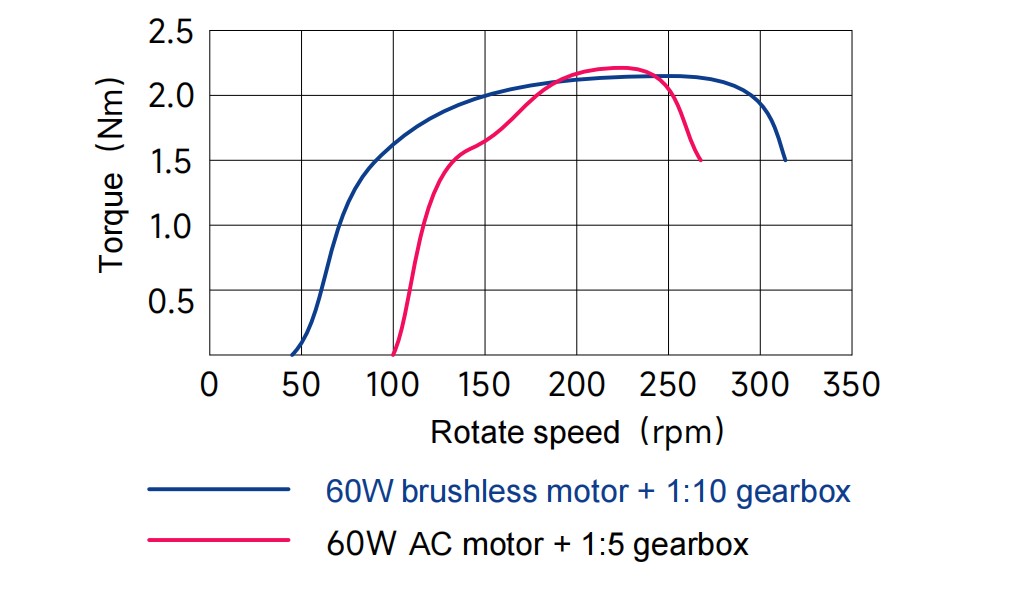

1. Low Speed and High Torque performance
DC brushless motor have a steady big torque when running at low speed.

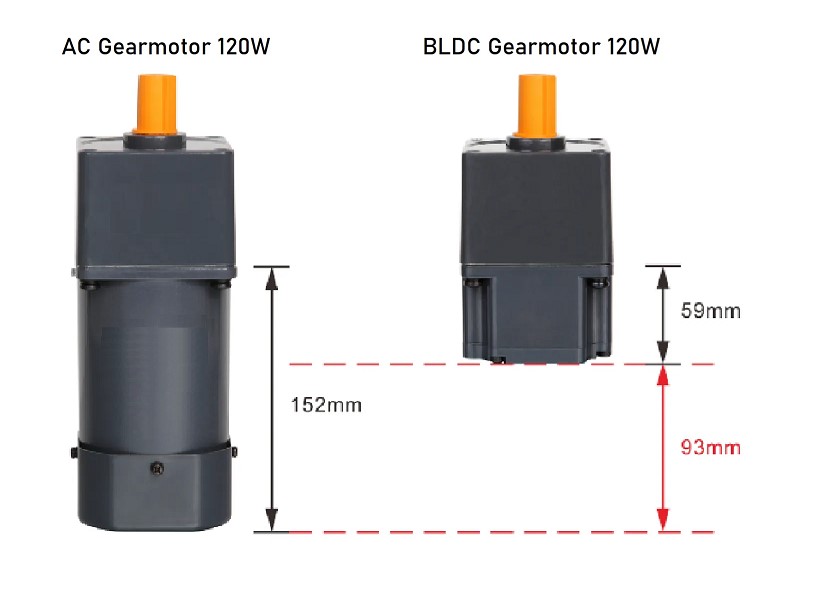

2. Saving Space
DC brushless motor have a slim body and provide high power due to permanent magnets being used in the rotor.

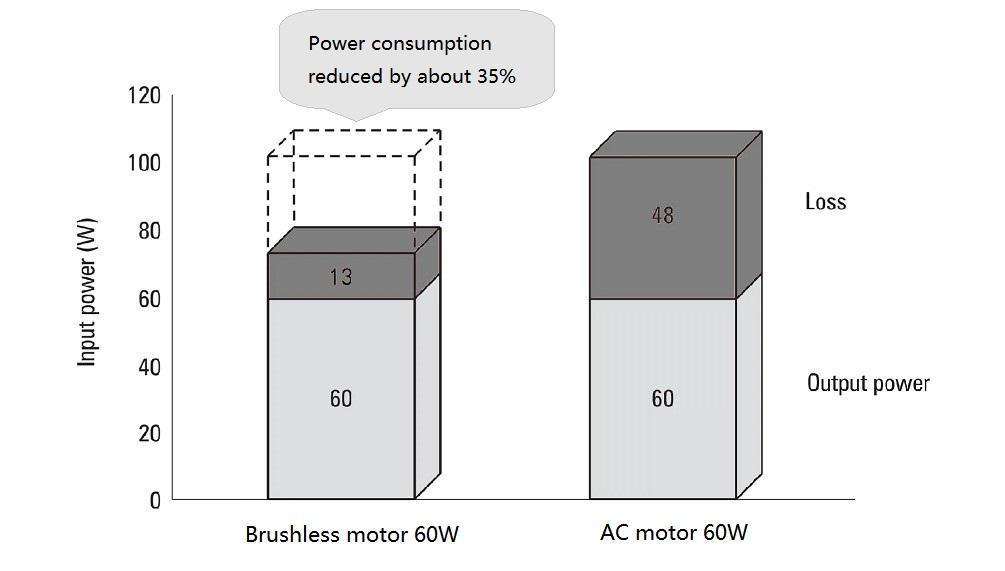

3. Saving Energy
DC brushless motor use permanent magnets, it can reduce the secondary loss of rotor, so compared with adopts frequency conversion control of three-induction motor, the power reduce 35%, this is in favour of saving energy.

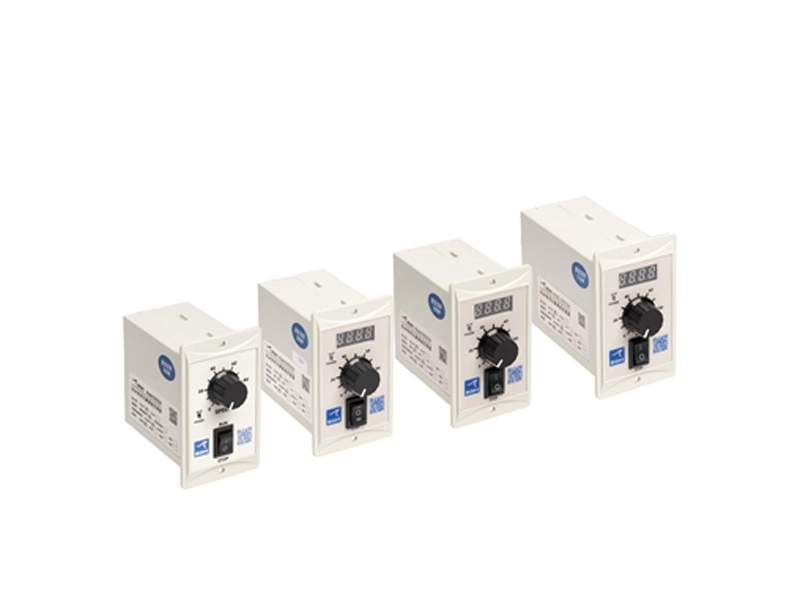

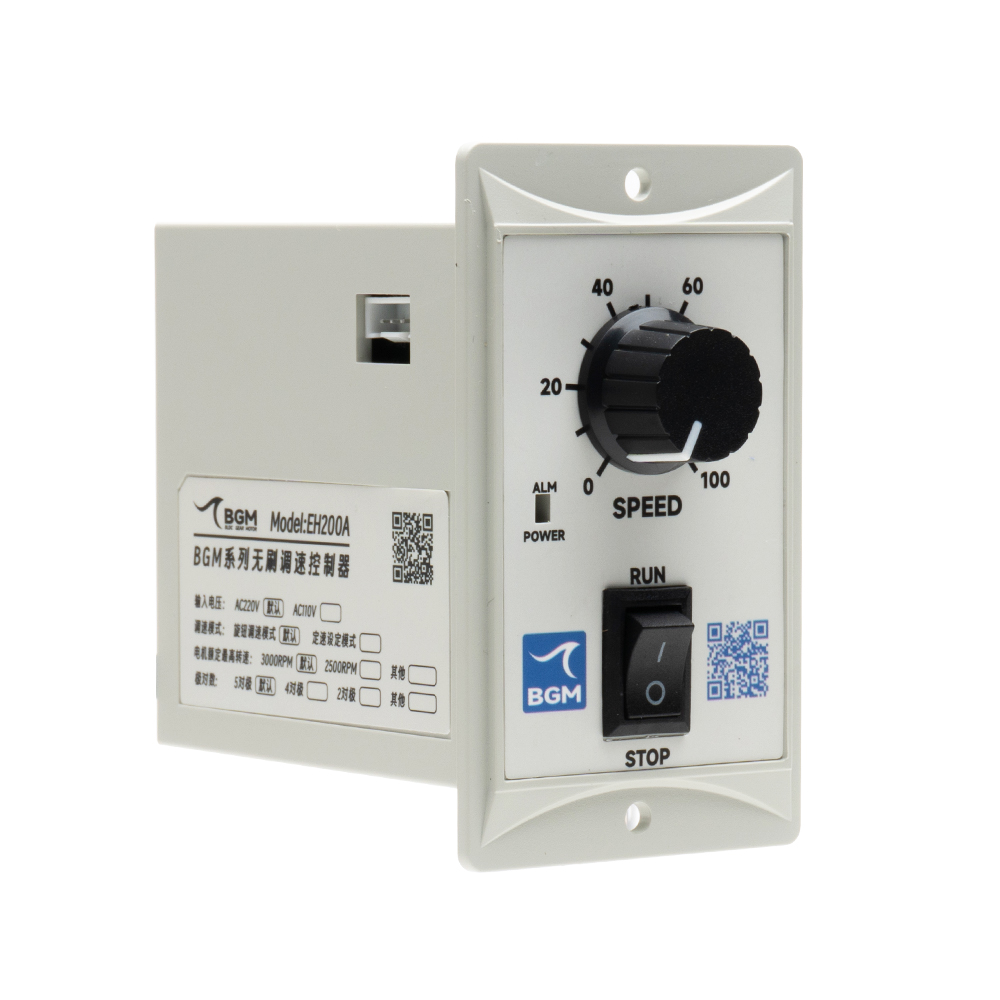

EH200A is a high cost performance AC brushless speed controller. It is for brushless motors 30-750W and lower power. Motor speed can be regulated by the rotary knob of the controller easily.

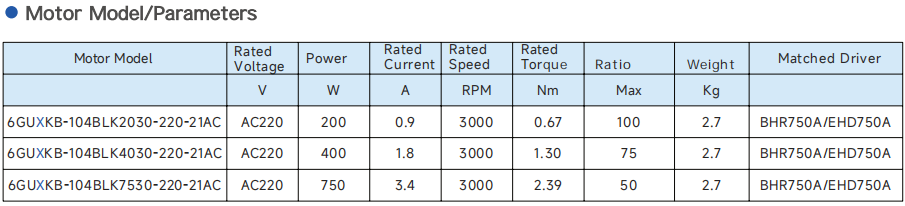

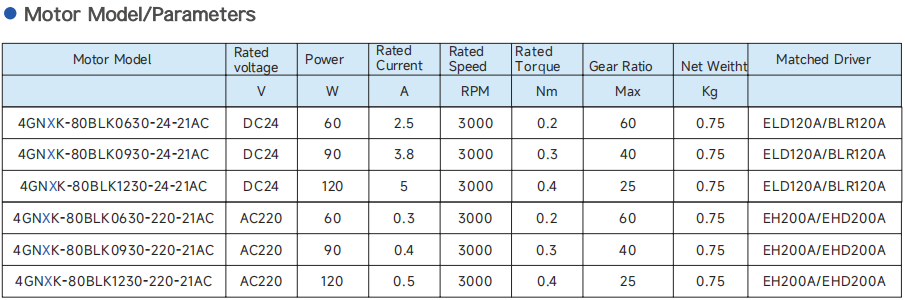

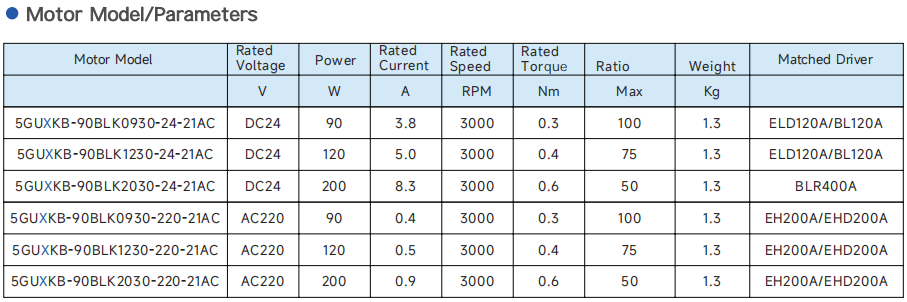

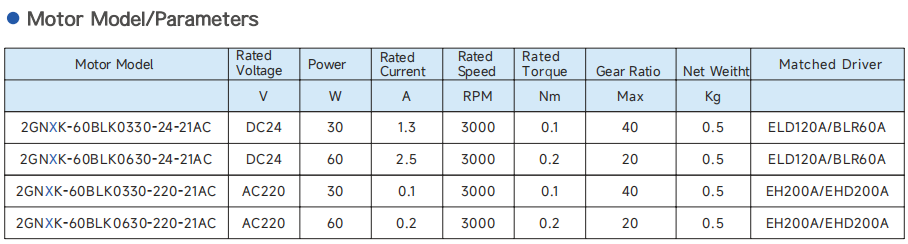

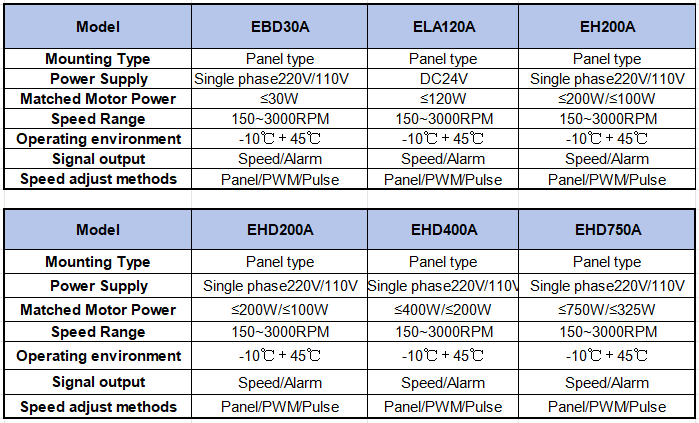

Electrical parameters:
Driver Advantages:

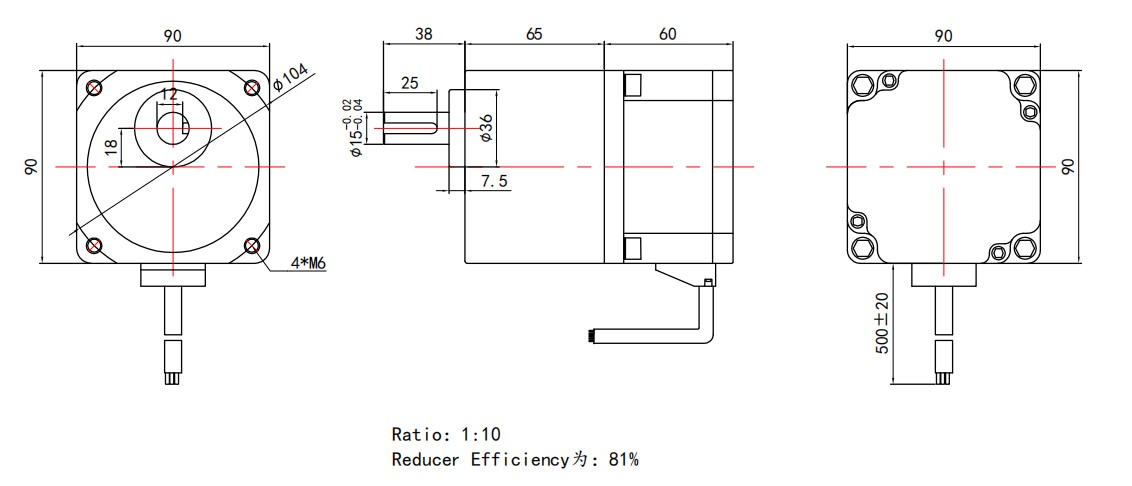

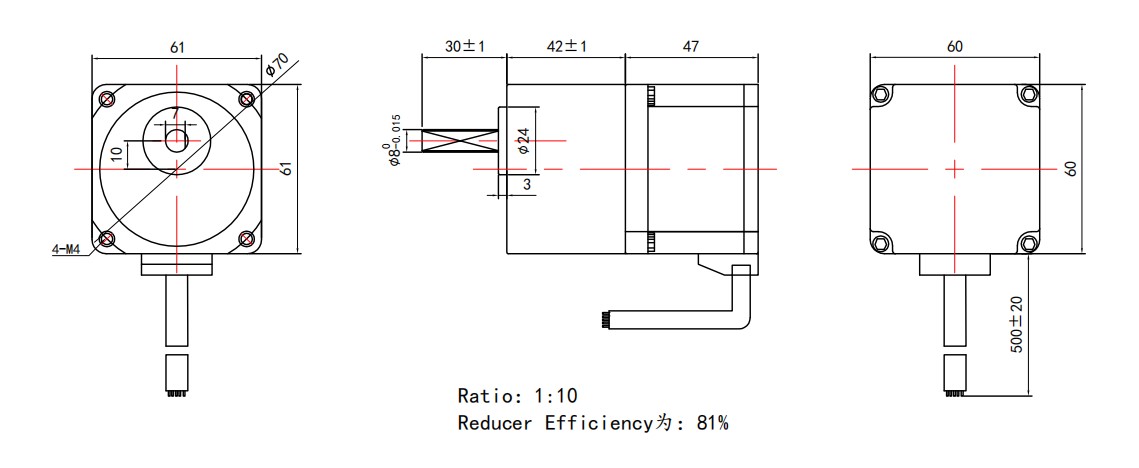

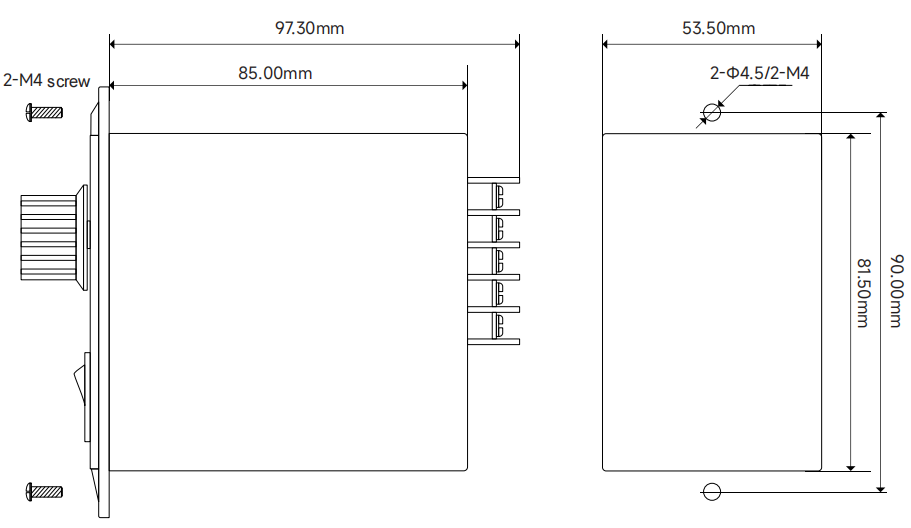

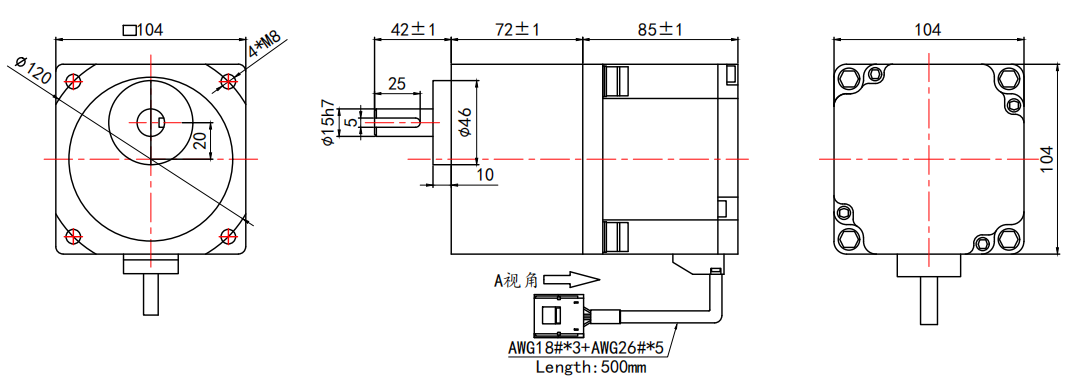

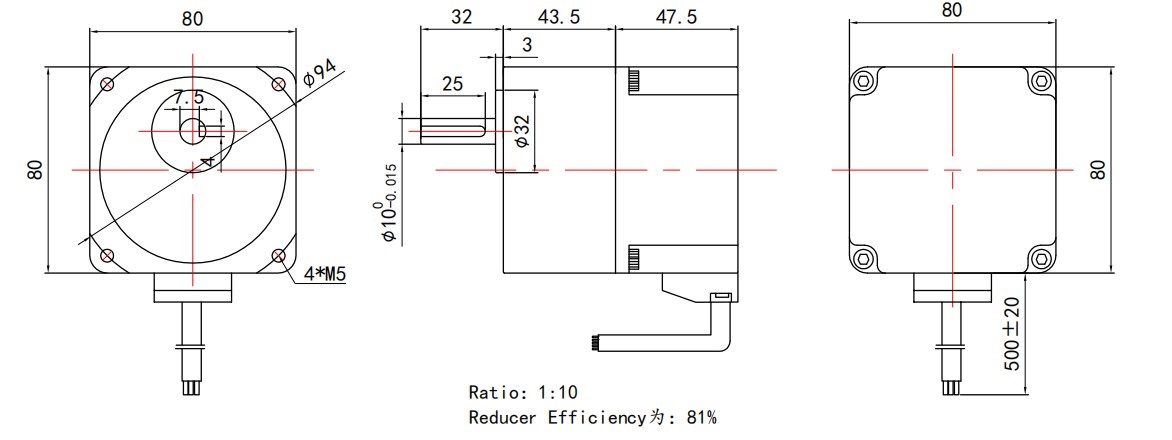

Dimensions:
