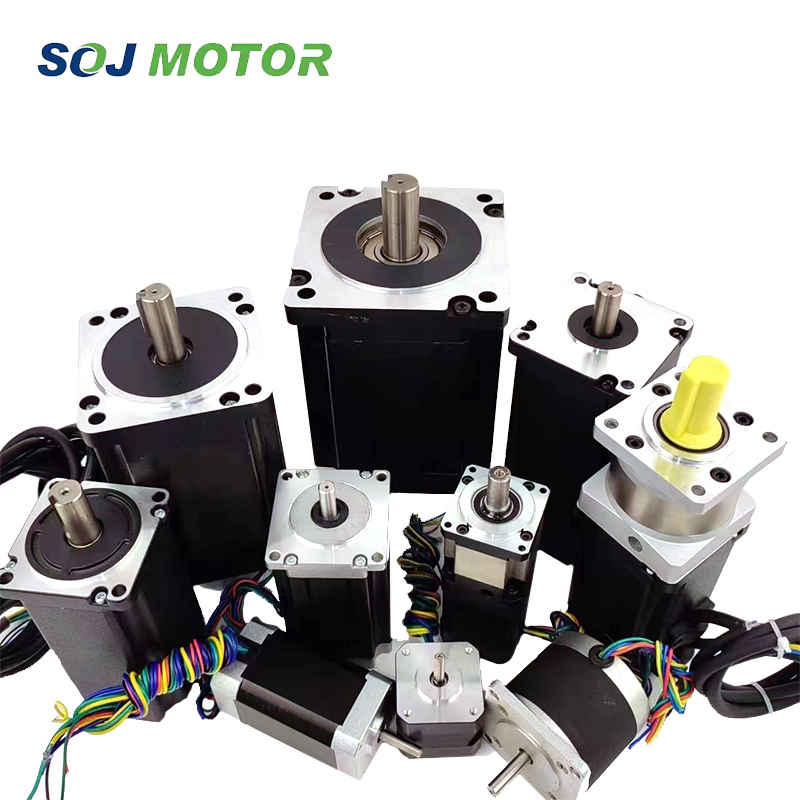

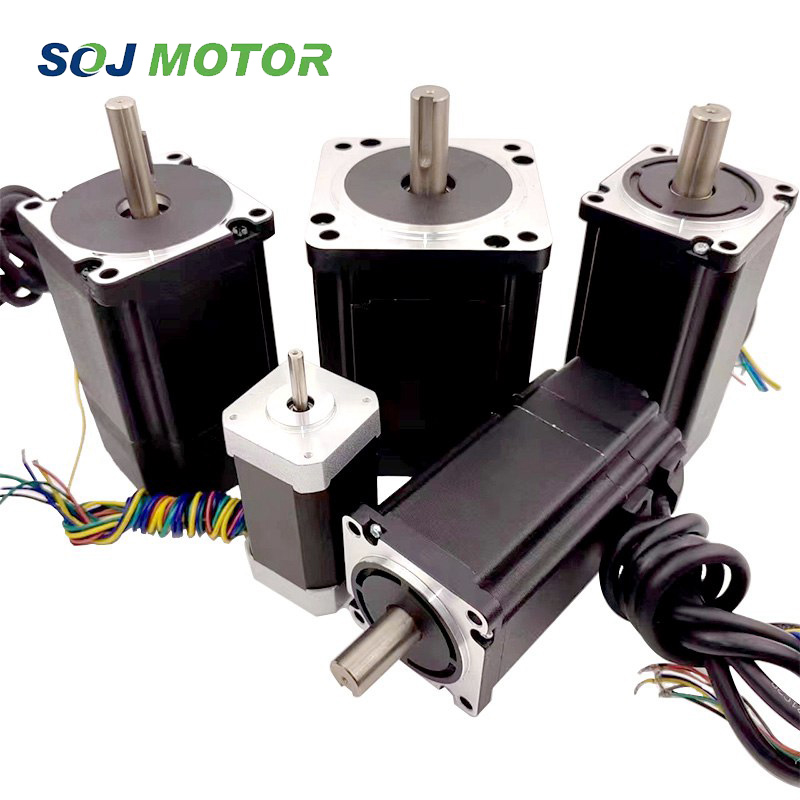

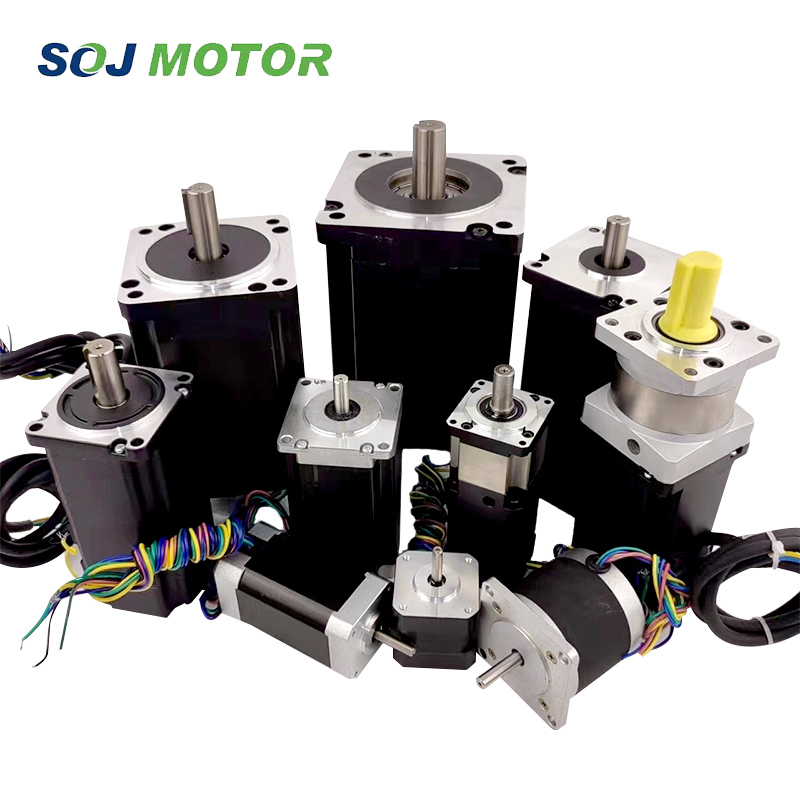

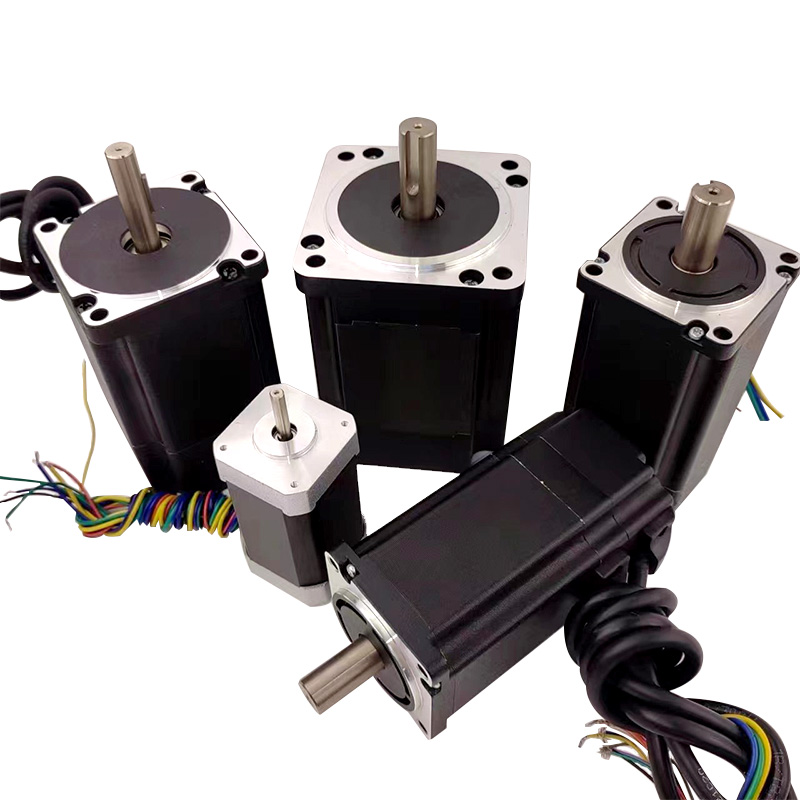

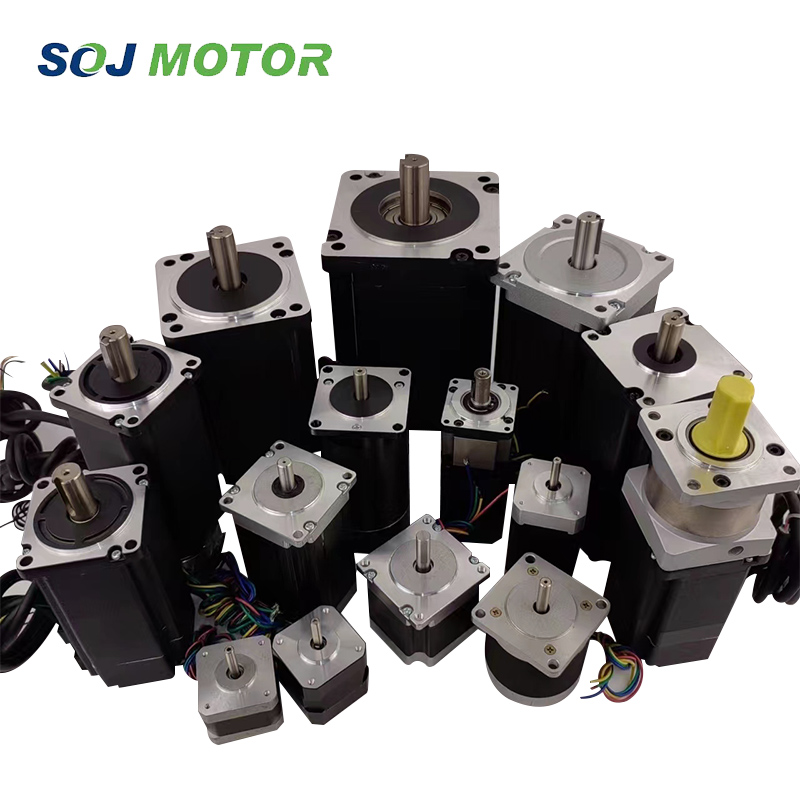

Custom Brushless Electric Planetary Gear Motor 700W High Speed BLDC DC 12V 24V 220V 4000RPM 1000W 4000W 250W CE Certified Global B2B Suppliers

Product Description

Brushless dc motor - Detailed instructions
Winding Type	Star
Hall Effect angle	120°
Insulation Class	B
Ambient Temperature Range	-20C~+50C
Insulation Resistance	100MΩ Min 500V DC
Dielectric Strength	700V AC 1 minute

Product Series	Rated Power	Motor Length	Torsion	Rated Speed	Rated Voltage
42mm BLDC Motor	25~105w	60~101mm	0.0625~115	4000	24
57mm BLDC Motor	17~140w	45~115mm	0.055~0.45	3000	24
60mm BLDC Motor	100~400w	77~141mm	0.32~1.28	3000	48
70mm BLDC Motor	157~439w	86~146mm	0.53~1.4	3000	24~48
80mm BLDC Motor	126~376w	86~126mm	0.4~1.2	3000	48
86mm BLDC Motor	200~789w	70~130mm	0.7~2.5	3000	24~48
90mm BLDC Motor	315~785w	85~135mm	1~2.5	3000	48
110mm BLDC Motor	1000~3000w	110~230mm	3.2~9.6	1500~3000	48
Above only for representative products, products of special request can be made according to the customer request.

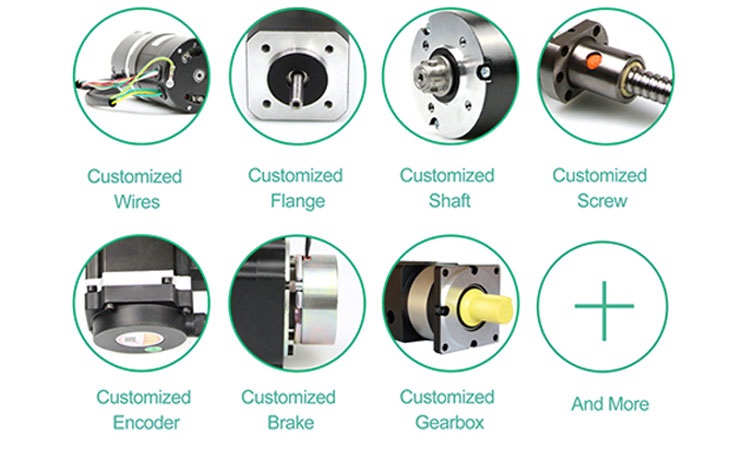

Customized Design

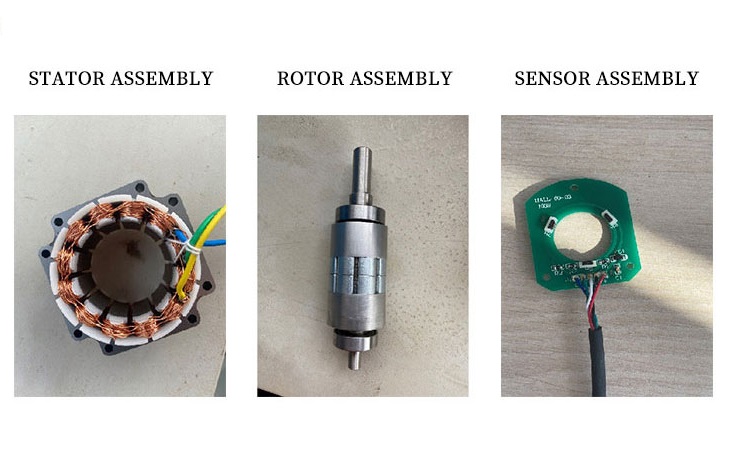

Composition Of Brushless Motor

Products Drawing

Our Services

Packaging & Shipping

FAQ

Can these brushless motors be customized?

Yes, we offer customized designs including motor length, shaft specifications, and performance parameters according to customer requirements.

What is the standard insulation class for your motors?

Our standard brushless DC motors are built with Class B insulation, ensuring reliable performance in various environments.

Do you provide motor drawings or 3D models?

Yes, technical drawings are available for all product series to help with your mechanical integration.

What are the available voltage options?

We provide motors in various voltage ratings, typically 24V and 48V, covering a wide power range from 17W to 3000W.

How are the products packaged for shipping?

Products are securely packaged using professional export-standard materials to ensure safety during international transit.

What is the ambient temperature range for operation?

Our motors are designed to operate efficiently within an ambient temperature range of -20°C to +50°C.

Product Detail
