Customizable Options: Voltage, dimensions, performance, shaft, and mounting tailored to your needs.
🛠️
Integrated Solutions: Available with integrated encoders, gearboxes, brakes, and more.
Please Send Inquiry for the Best and Most Cost-Effective Solution.
Product Specifications & Options
| Diameter |
42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 86mm 90mm |
| Rated Voltage |
10V, 12V, 18V, 24V, 36V, 48V up to 320VDC |
| Rated Torque |
With gearbox up to 120Nm |
| Rated Speed |
Customized based on requirements |
| Rated Power |
10W up to 1000W |
| Protection Class |
Options: IP00, IP40, IP50, IP54, IP56, IP66 |
| EMI |
EMI suppression available |
| Thermal |
Thermal protection available |
| Gearbox |
Options with planetary or worm gearbox assembled |
| Brake |
Option with electric brake assembled |
| Encoder |
Option with Optical or Magnetic encoders assembled |
| Controller |
Option with controller integrated for BLDC Motors |

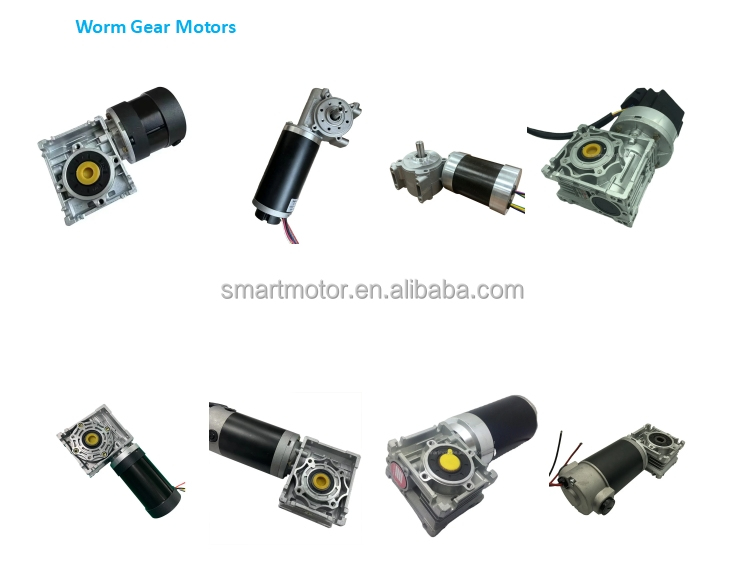

Typical Models Showcase (Customization Available)

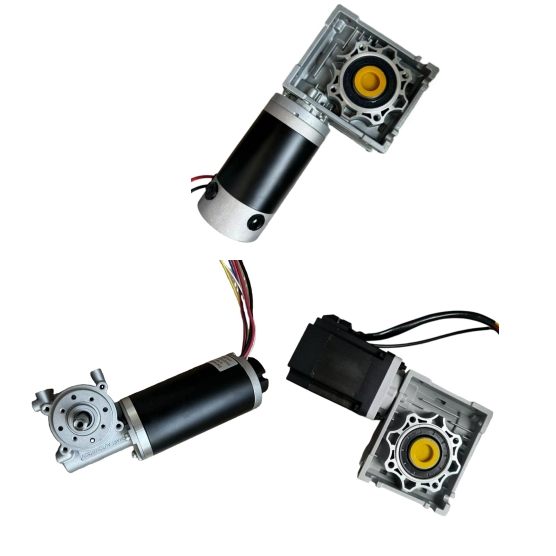

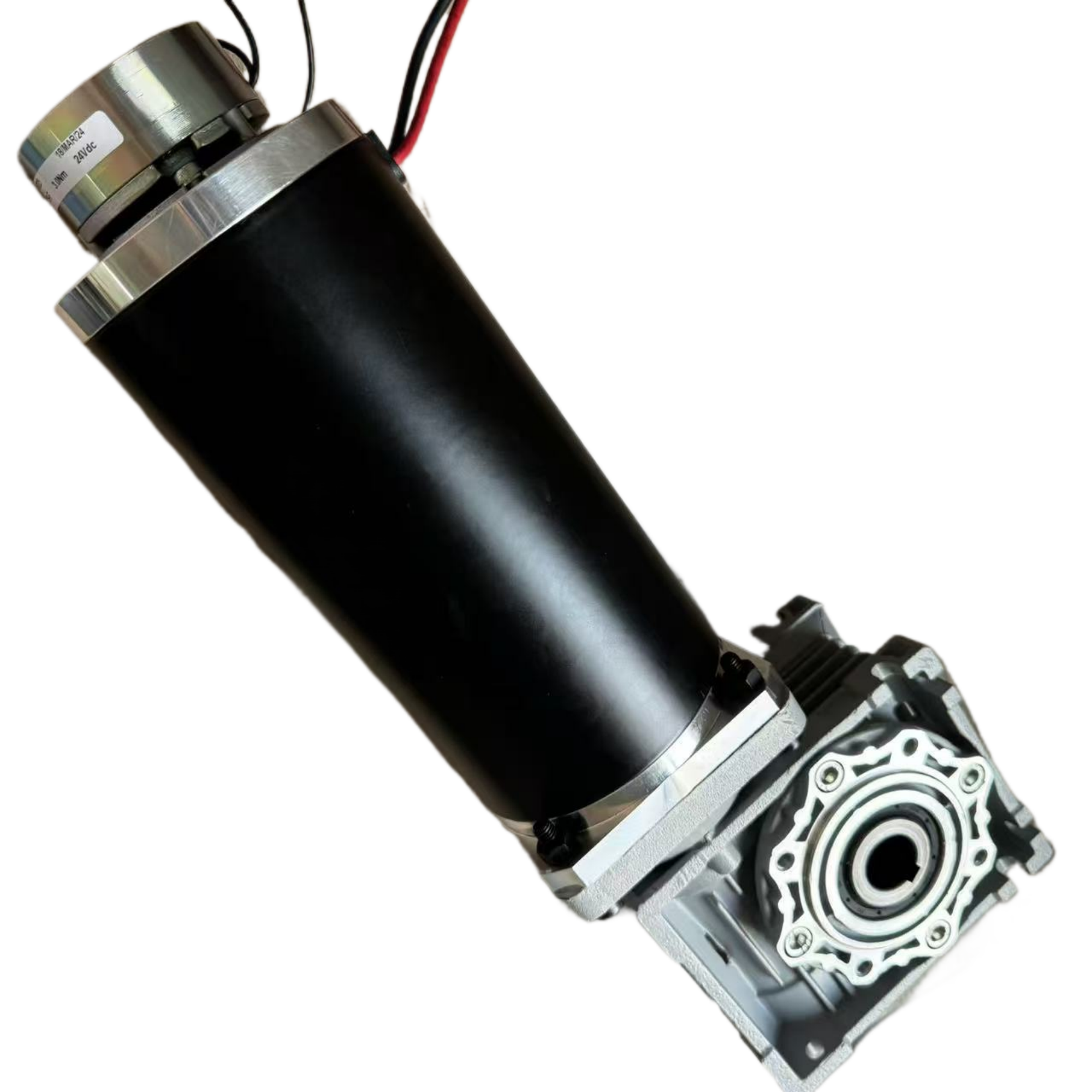

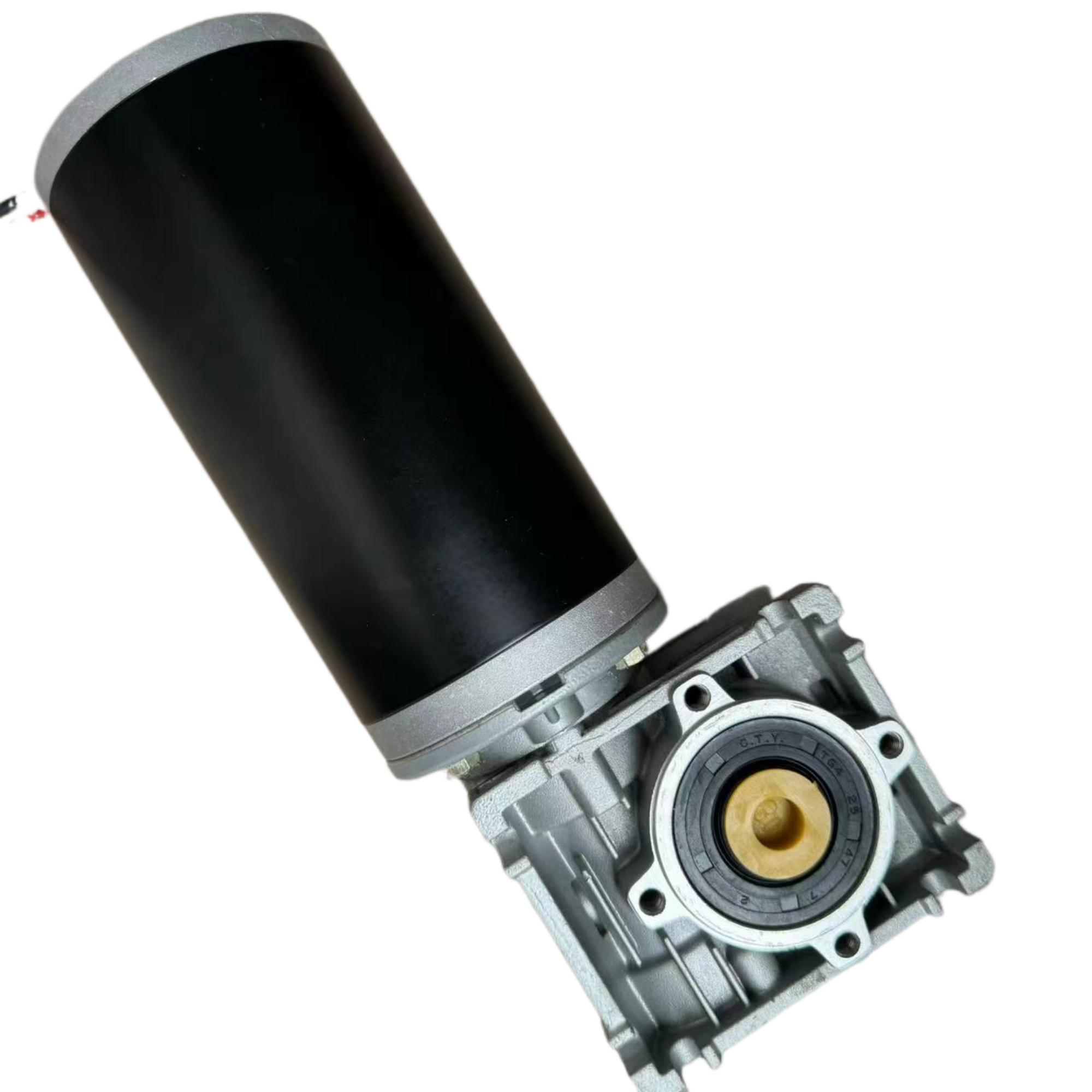

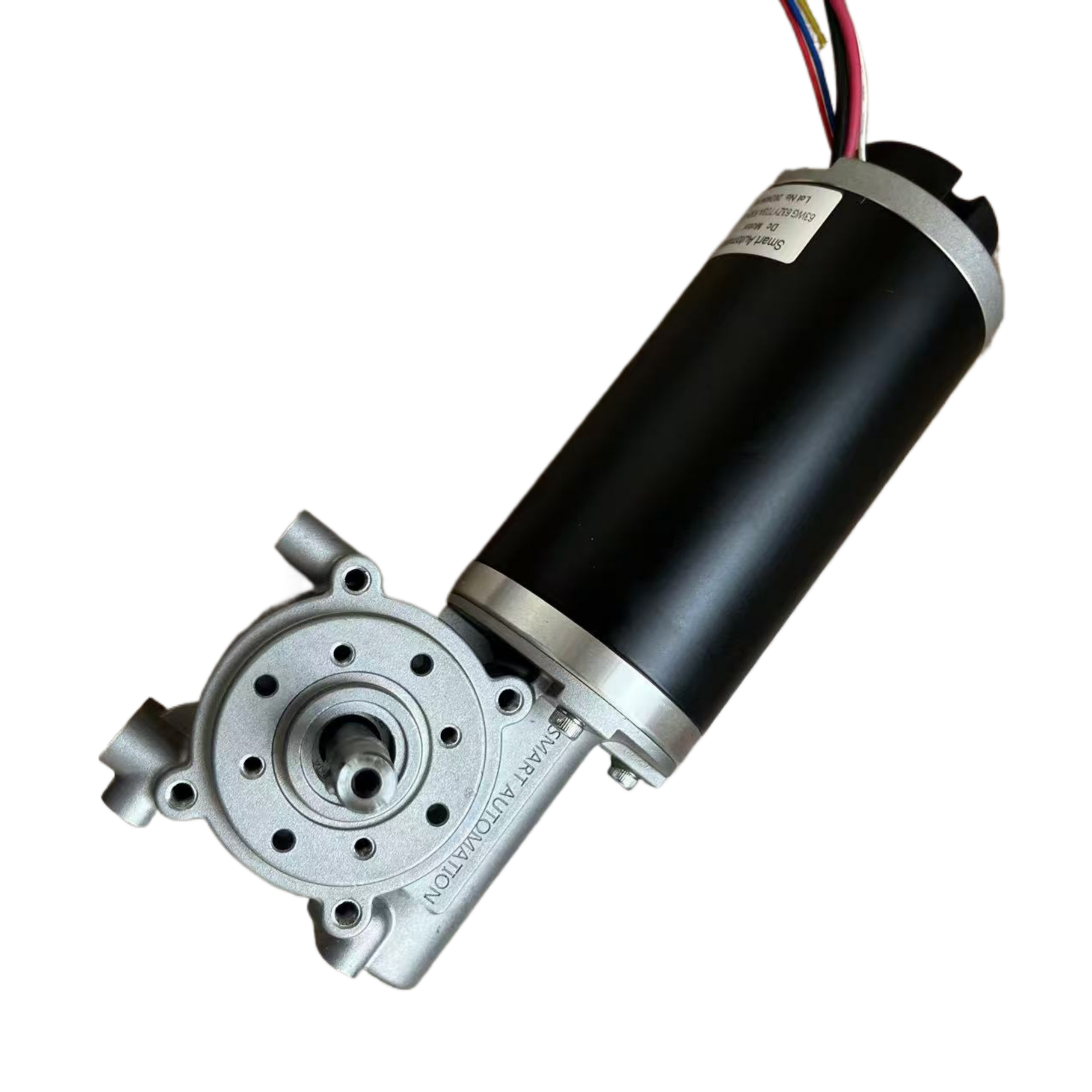

1. Brushed DC Gear Motors with Worm Gearbox

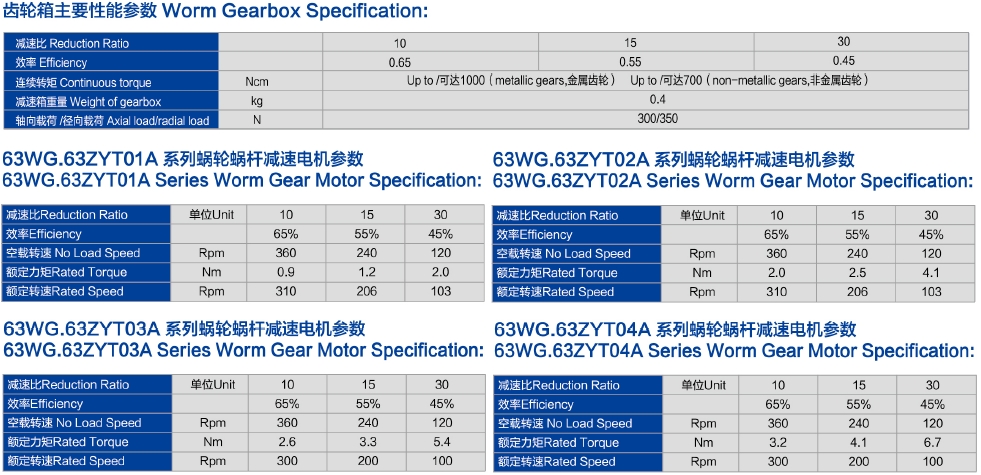

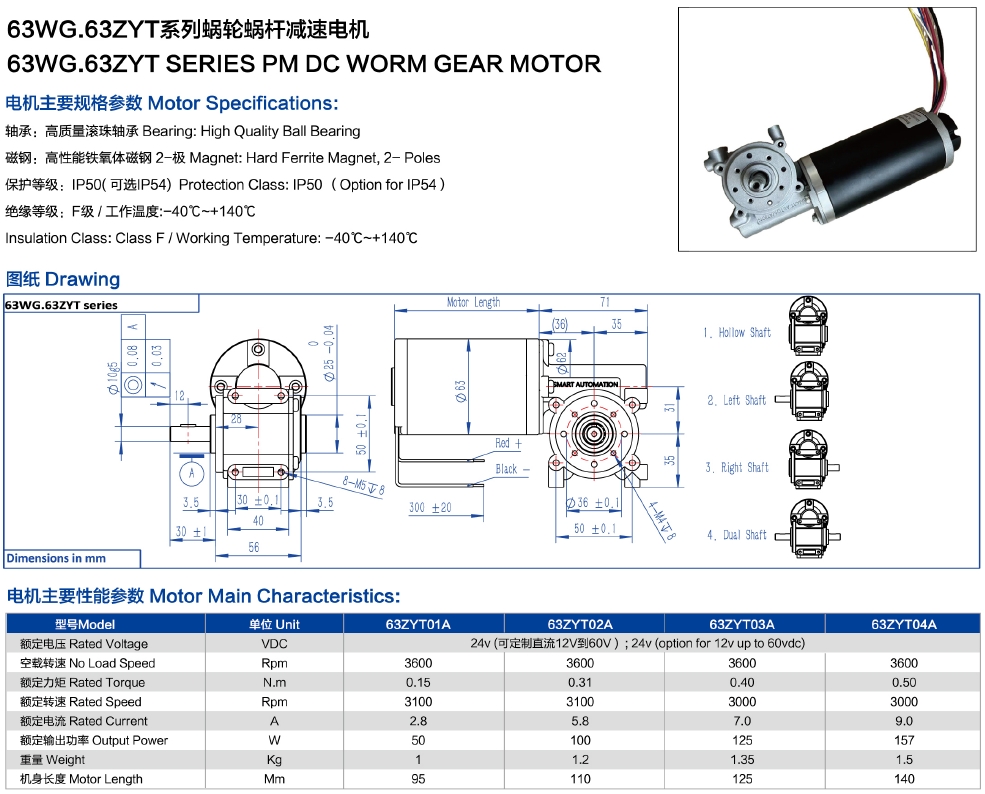

OD 63mm DC Worm Gear Motor

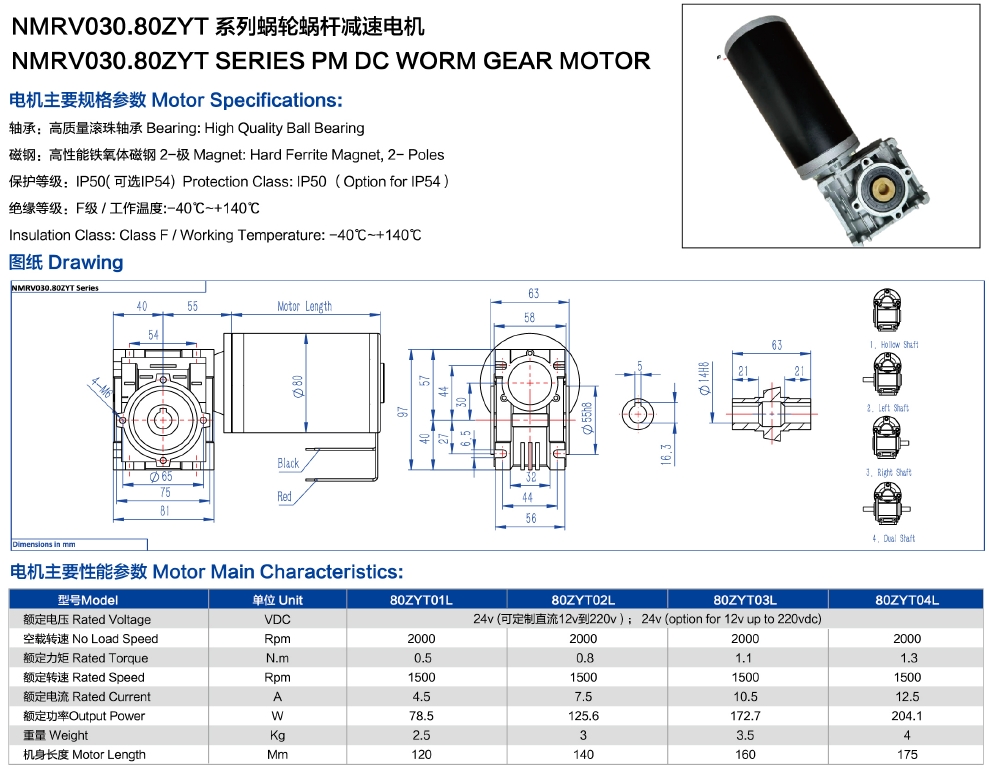

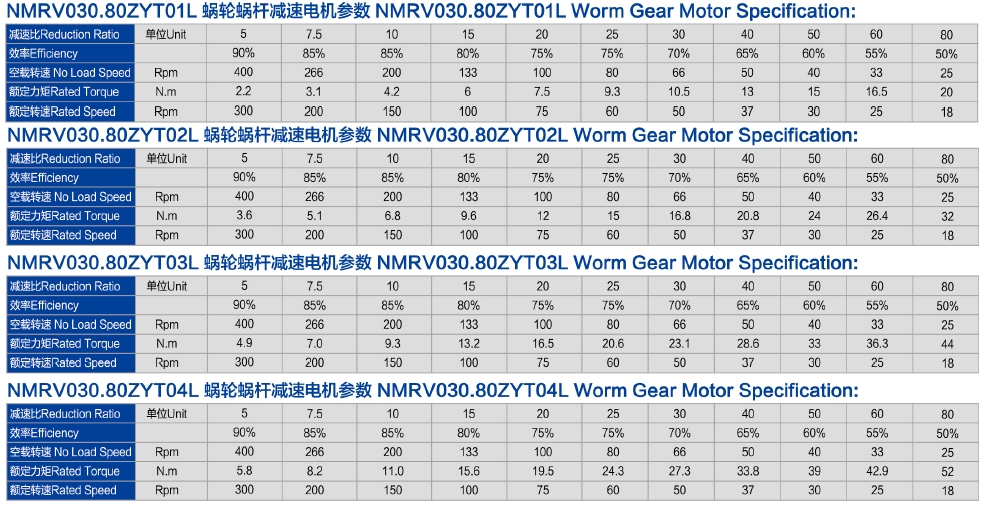

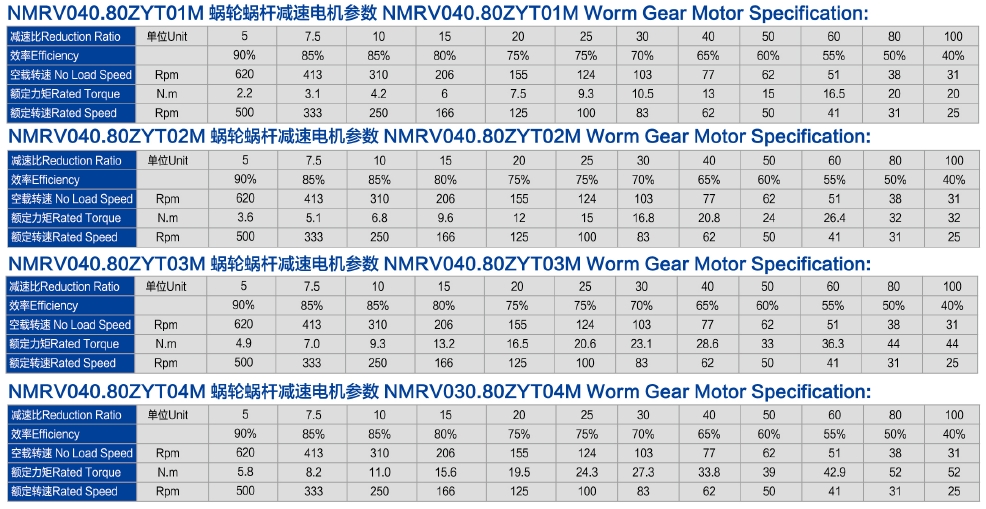

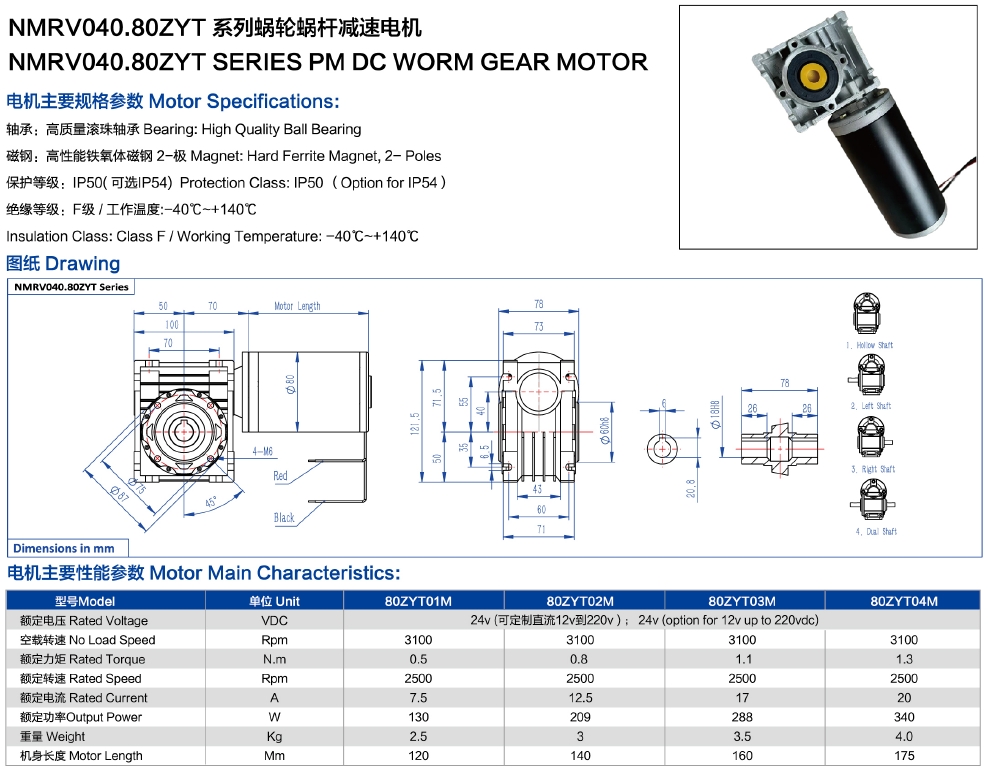

OD 80mm DC Worm Gear Motor

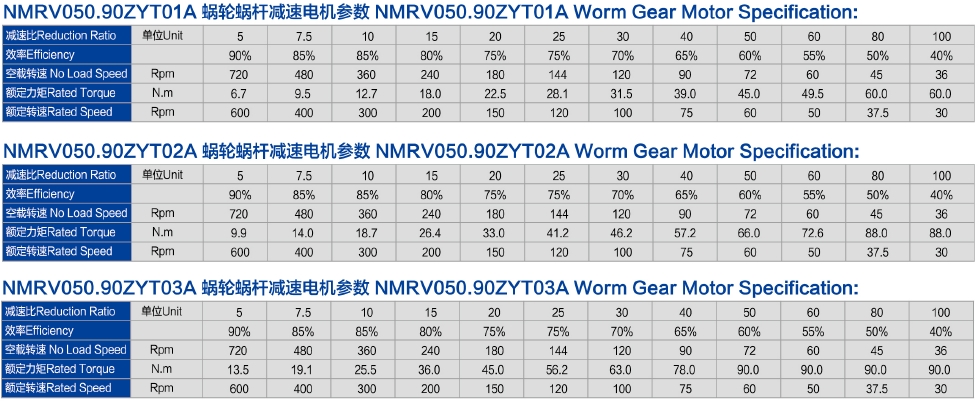

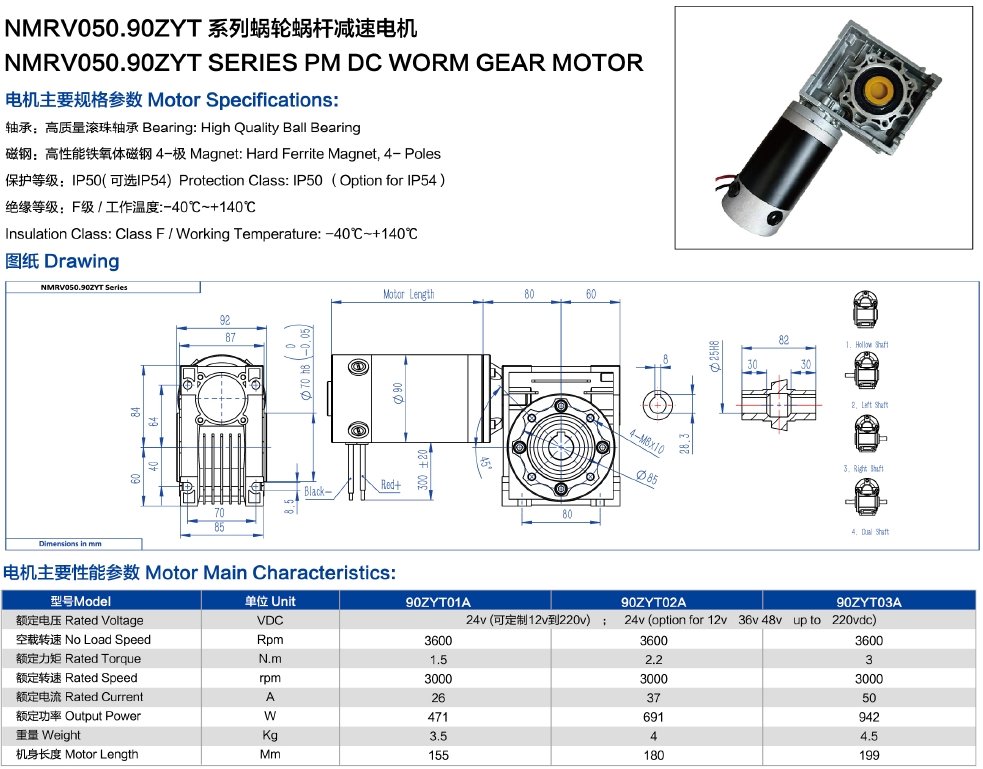

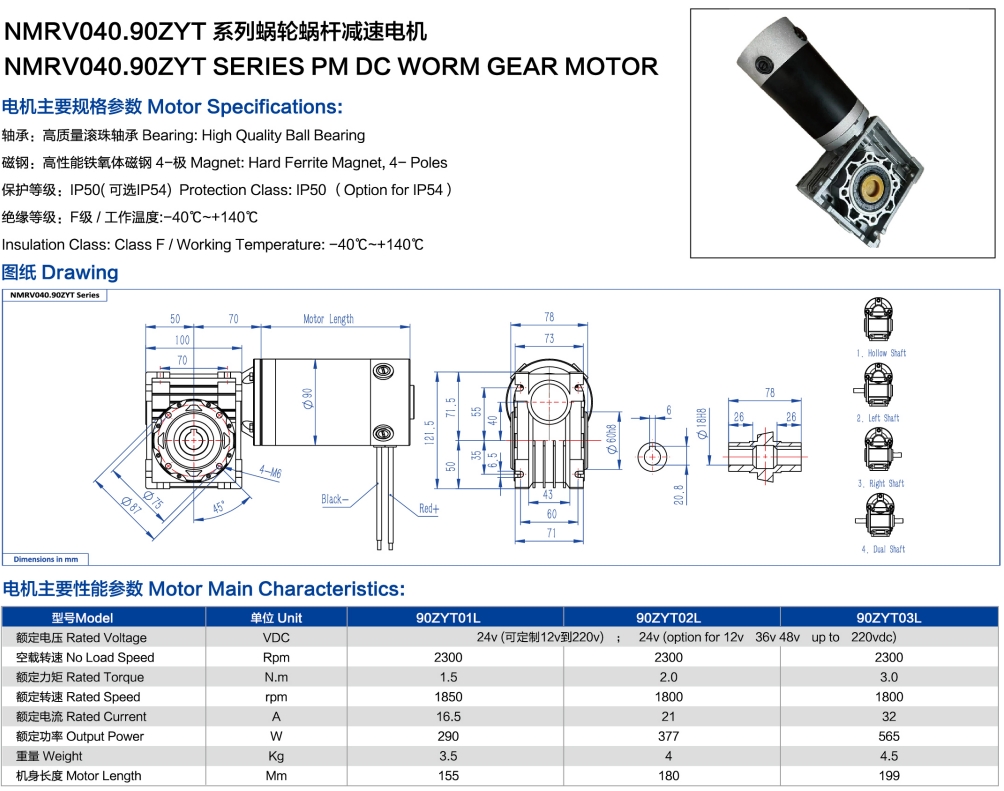

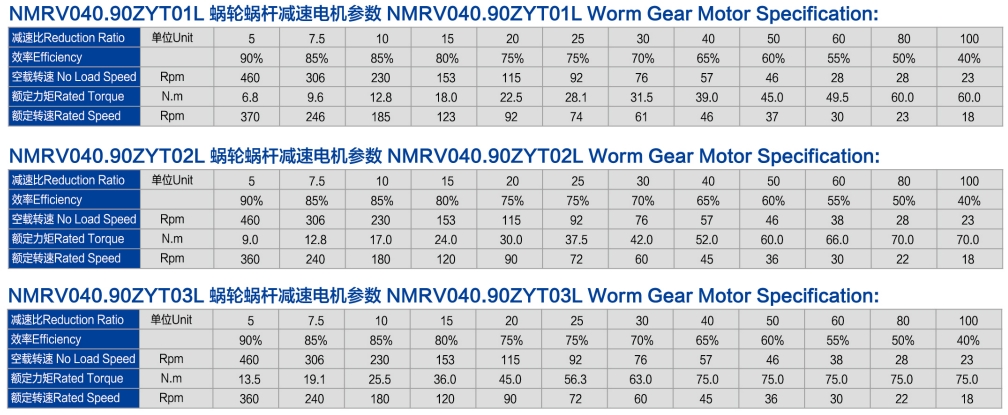

OD 90mm DC Worm Gear Motor
2. Brushless DC Gear Motors with Worm Gearbox

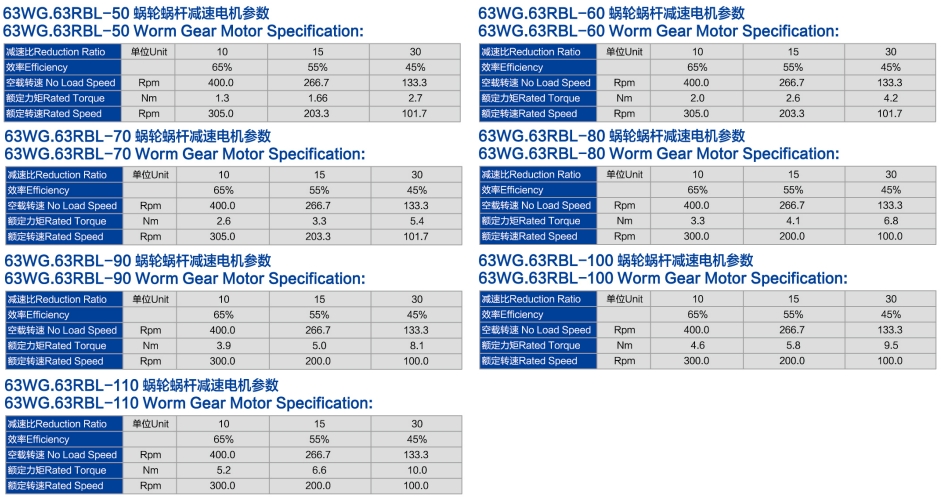

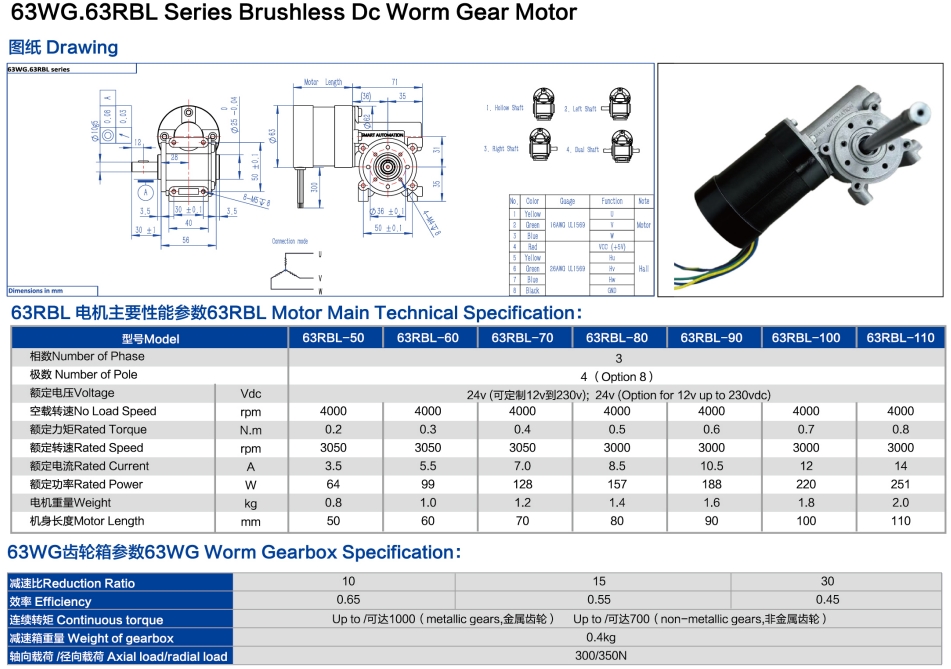

OD 63mm Brushless DC Worm Gear Motor

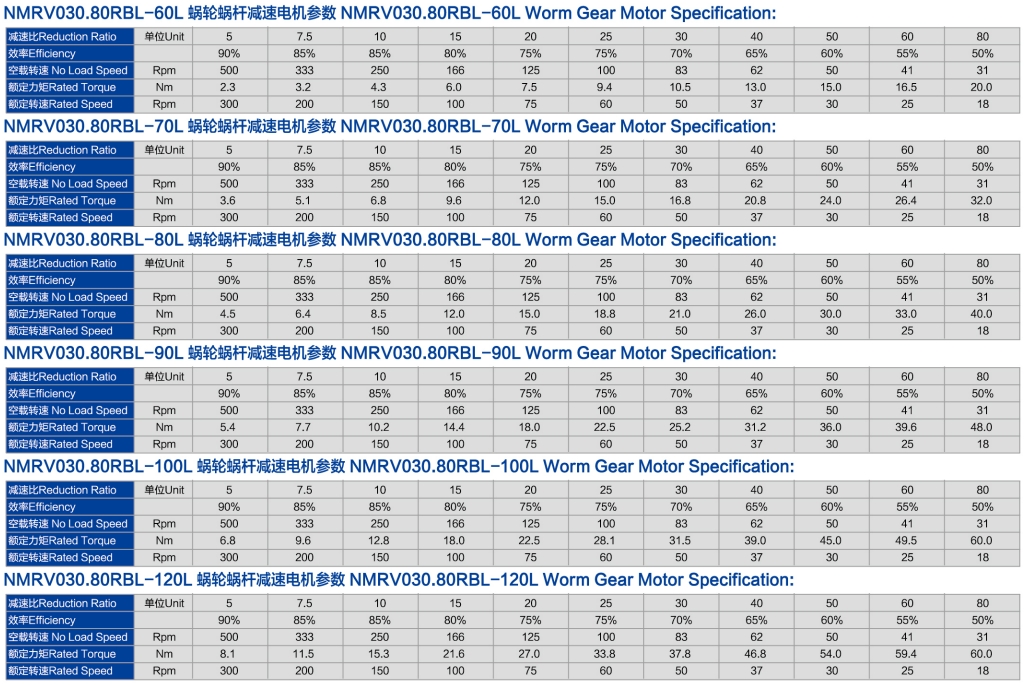

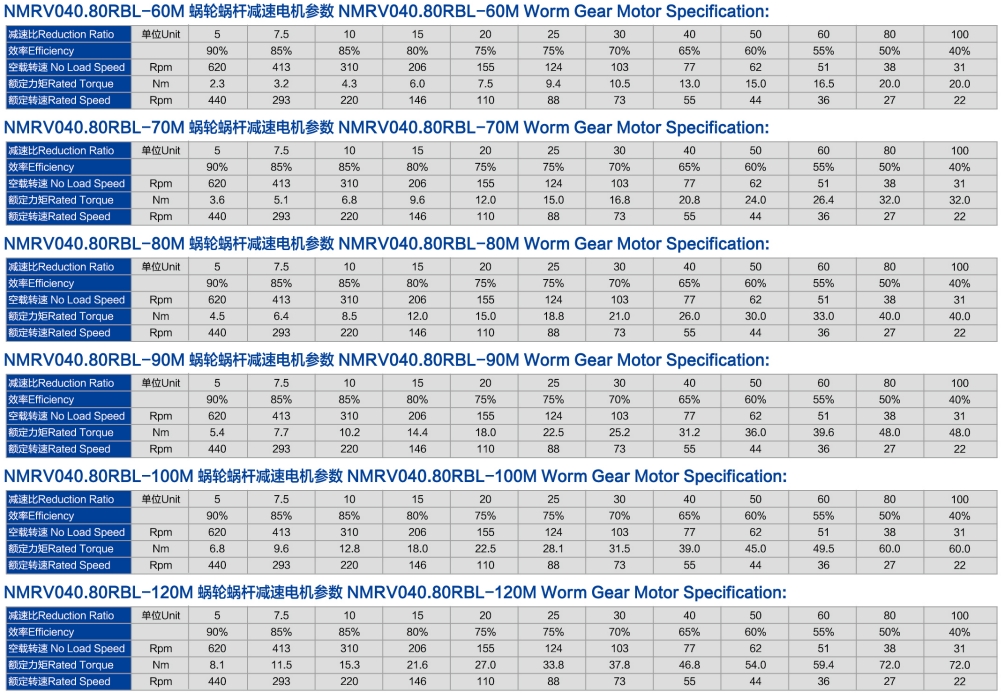

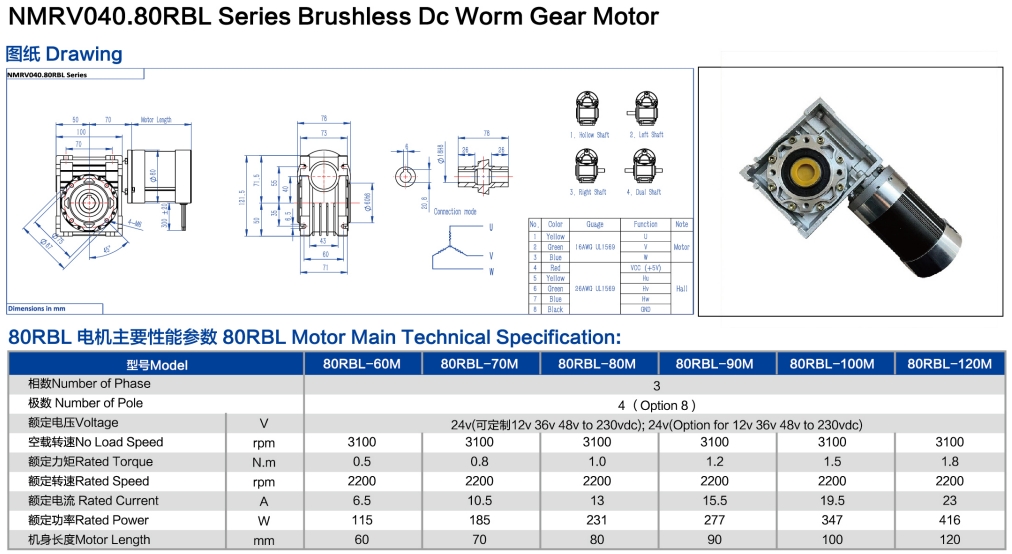

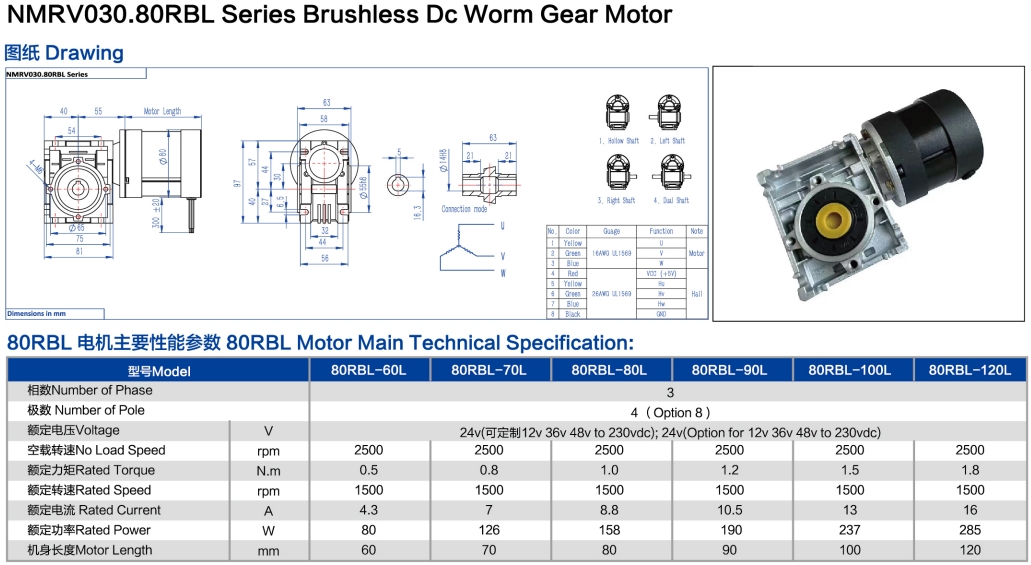

OD 80mm Brushless DC Worm Gear Motor

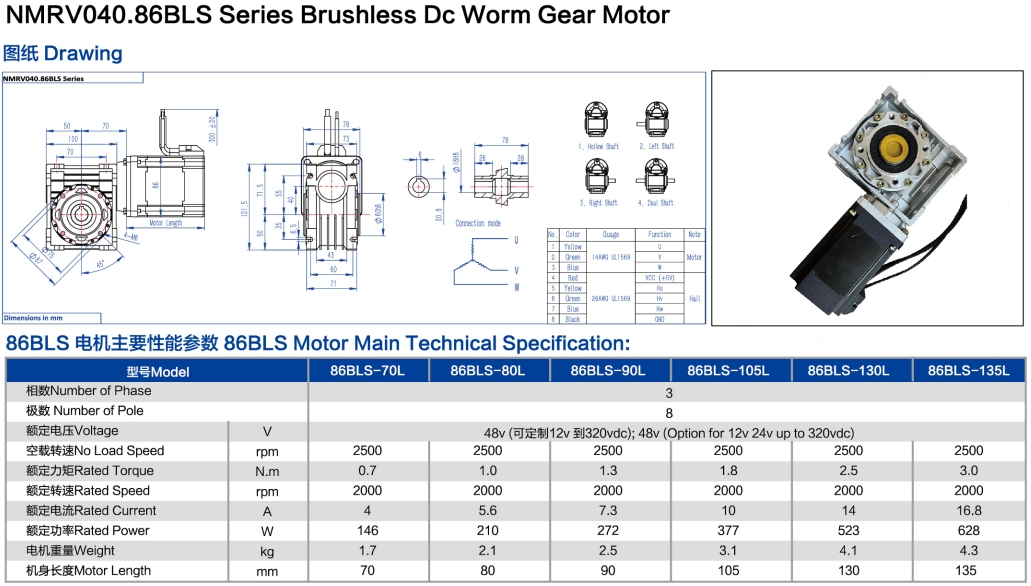

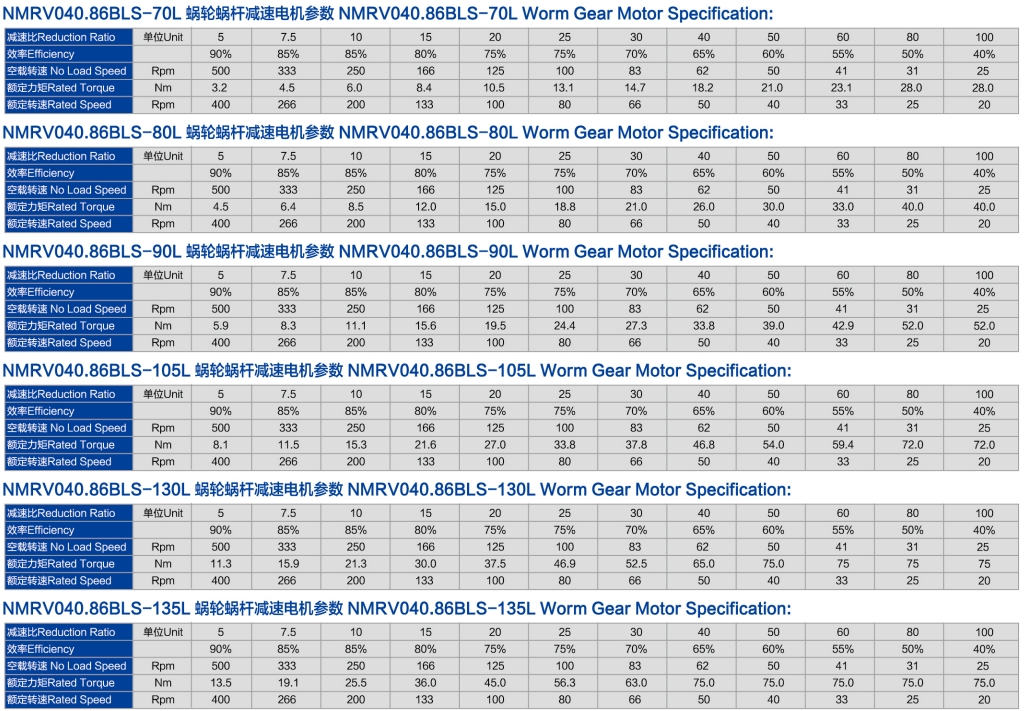

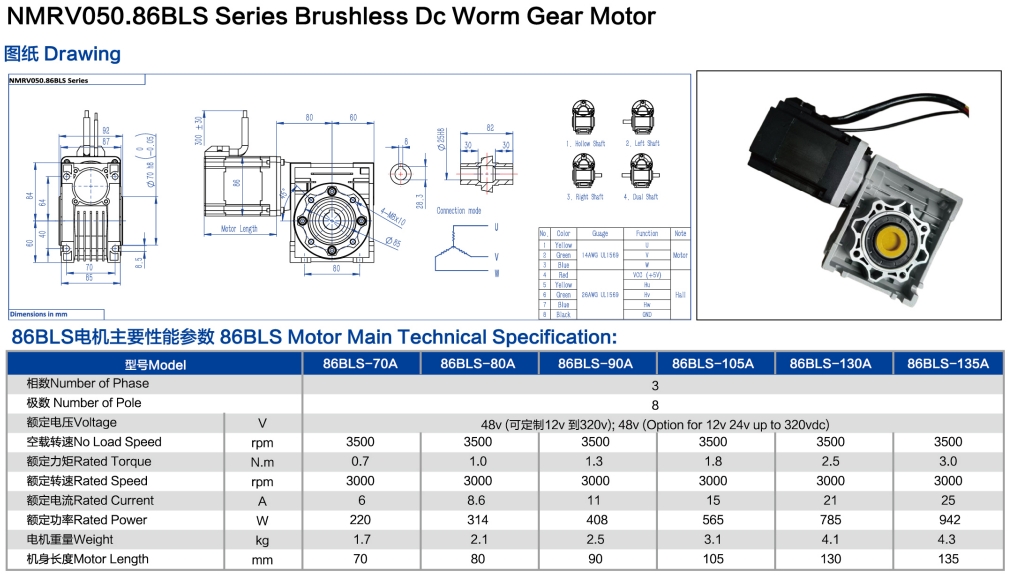

OD 86mm Brushless DC Worm Gear Motor
Frequently Asked Questions
Can these motors be customized?
Yes, we provide full customization for voltage, dimensions, performance, shaft types, and mounting configurations to meet your specific application requirements.
What is the maximum torque available?
With our specialized gearboxes, the rated torque can reach up to 120Nm.
What voltage ranges are supported?
We offer a wide range of DC voltages including 10V, 12V, 24V, 36V, 48V, and up to 320VDC.
Are there integrated accessories available?
Yes, we can integrate optical or magnetic encoders, electric brakes, planetary or worm gearboxes, and controllers specifically for BLDC motors.
What protection ratings do you offer?
We provide multiple IP protection classes ranging from IP00 up to IP66, suitable for various environmental conditions.
Do the motors include EMI or thermal protection?
Both EMI suppression and thermal protection are available options to ensure the safety and reliability of your system.
