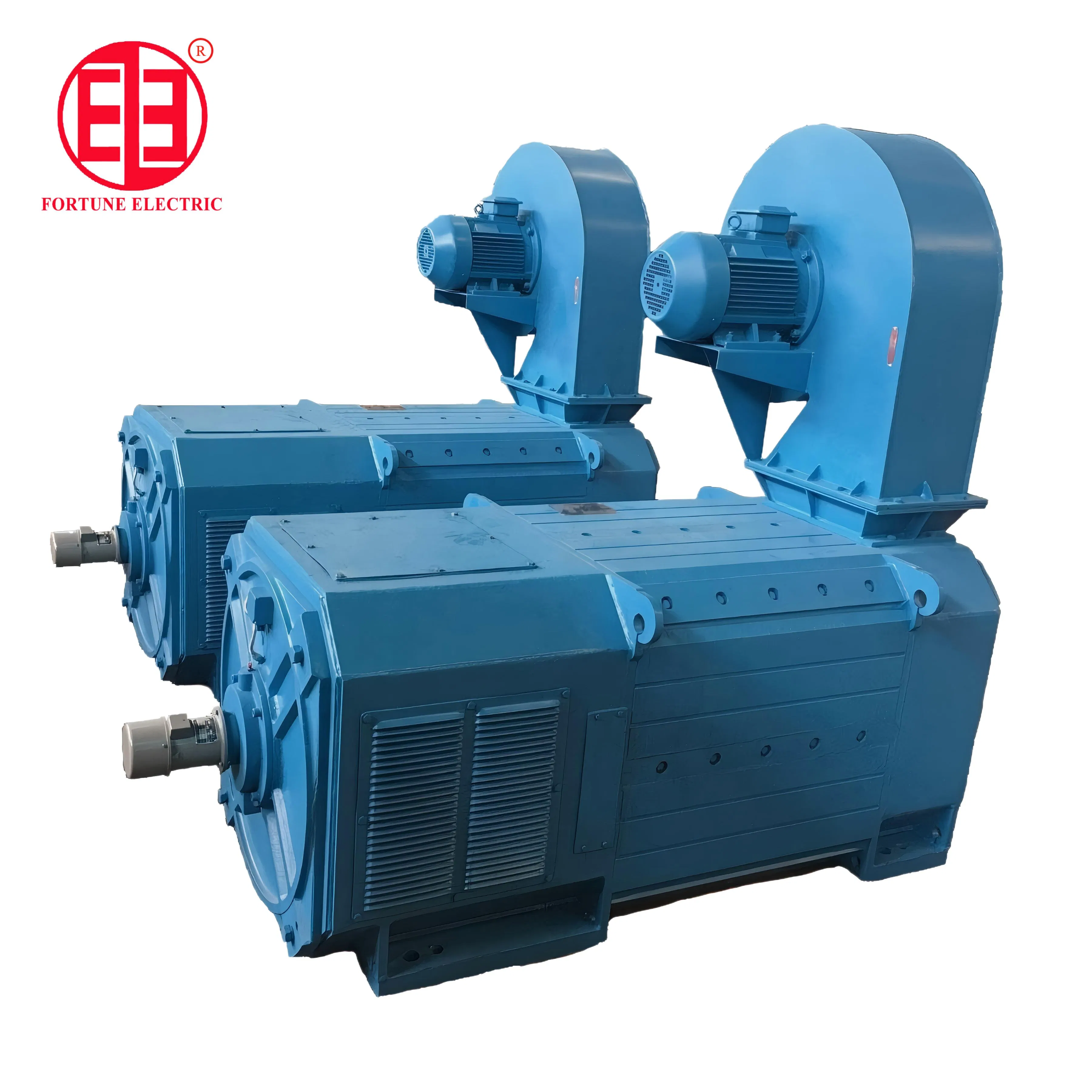

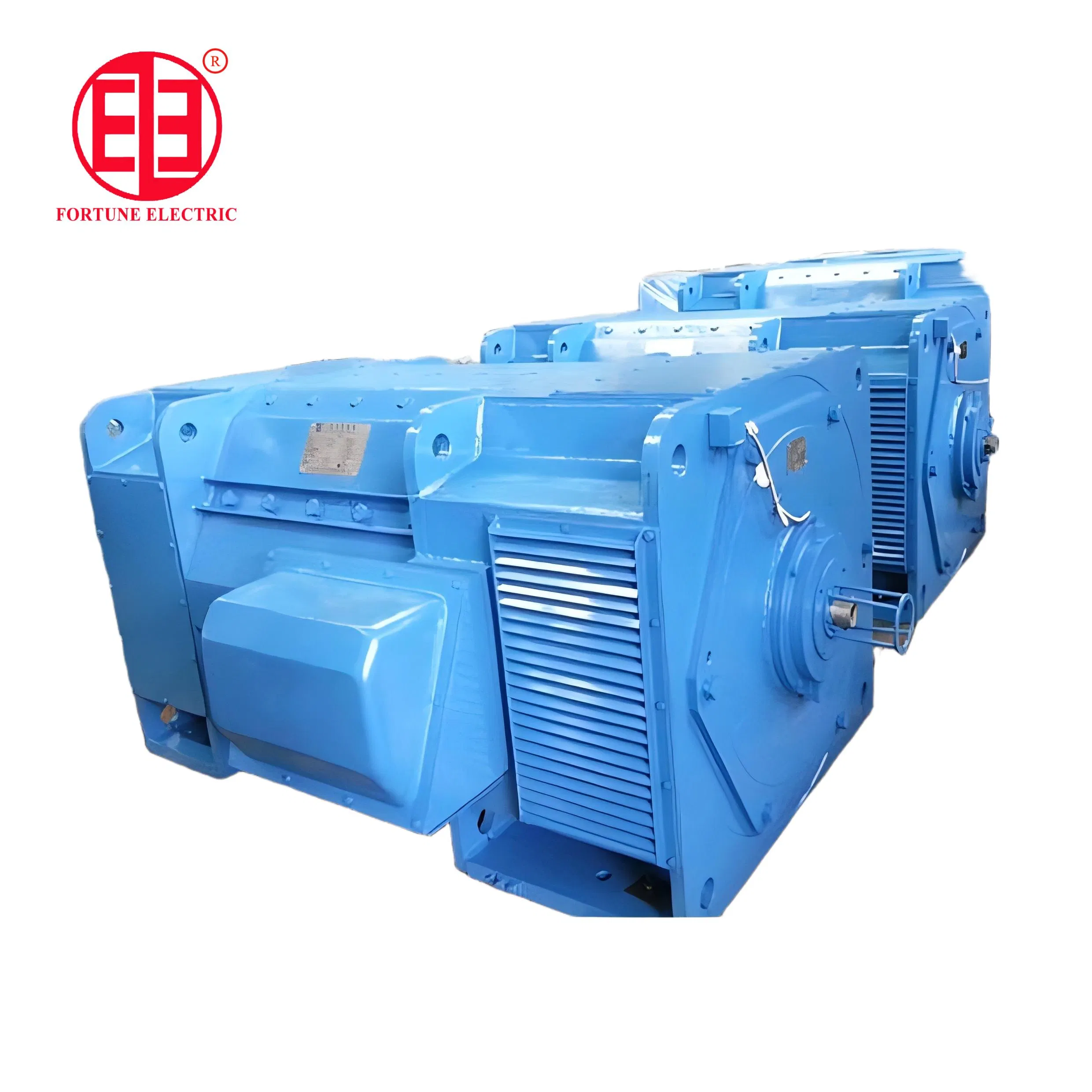

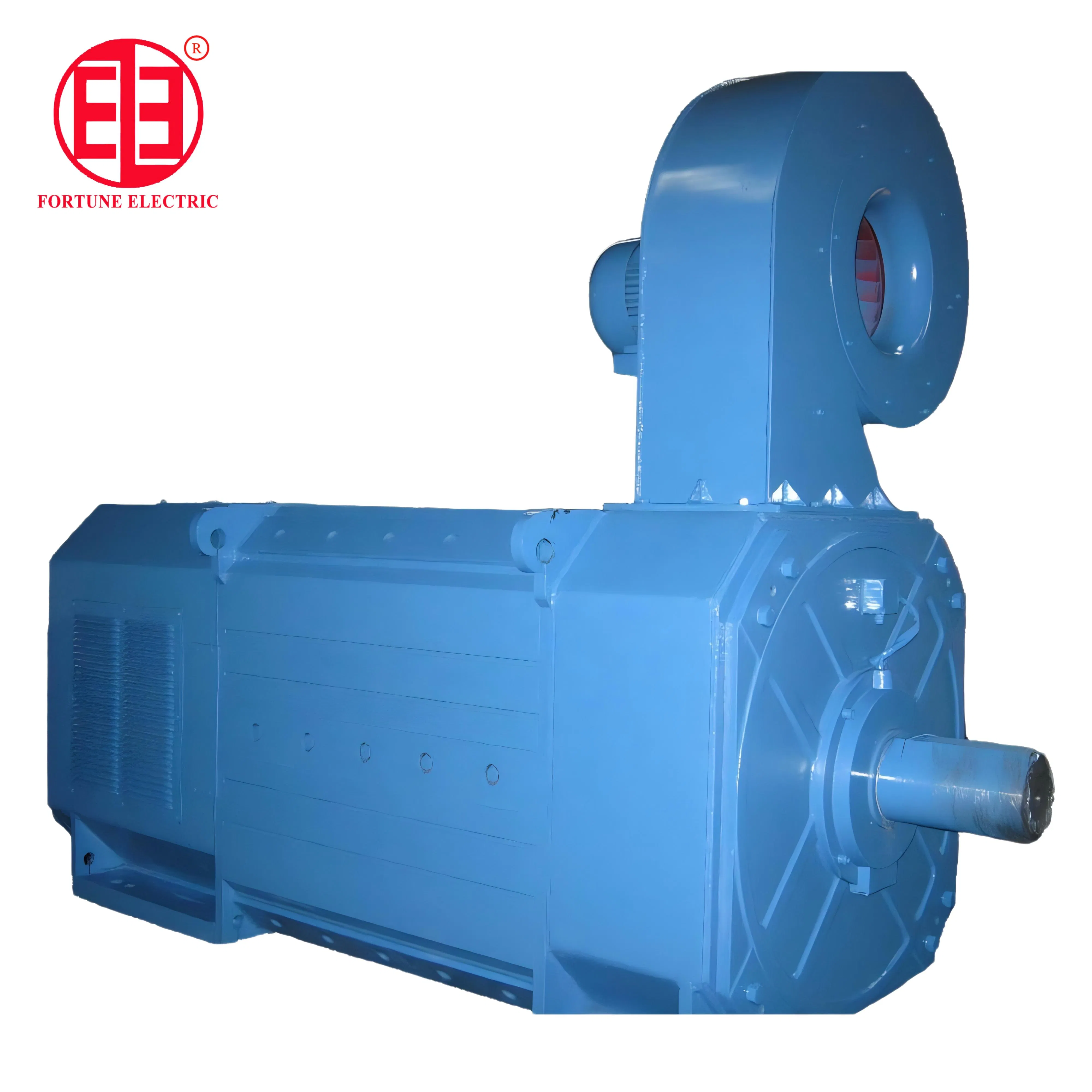

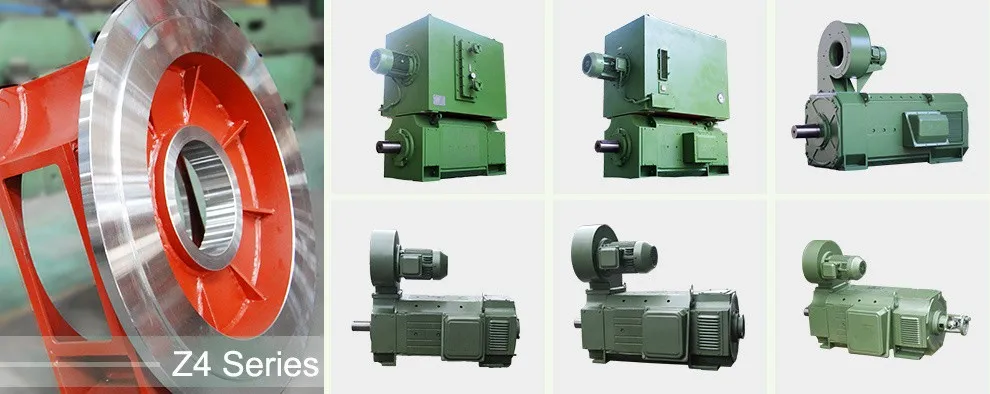

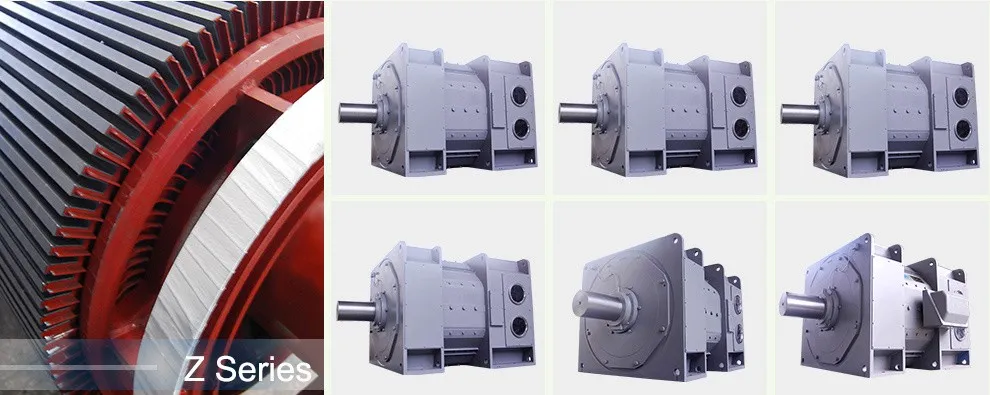

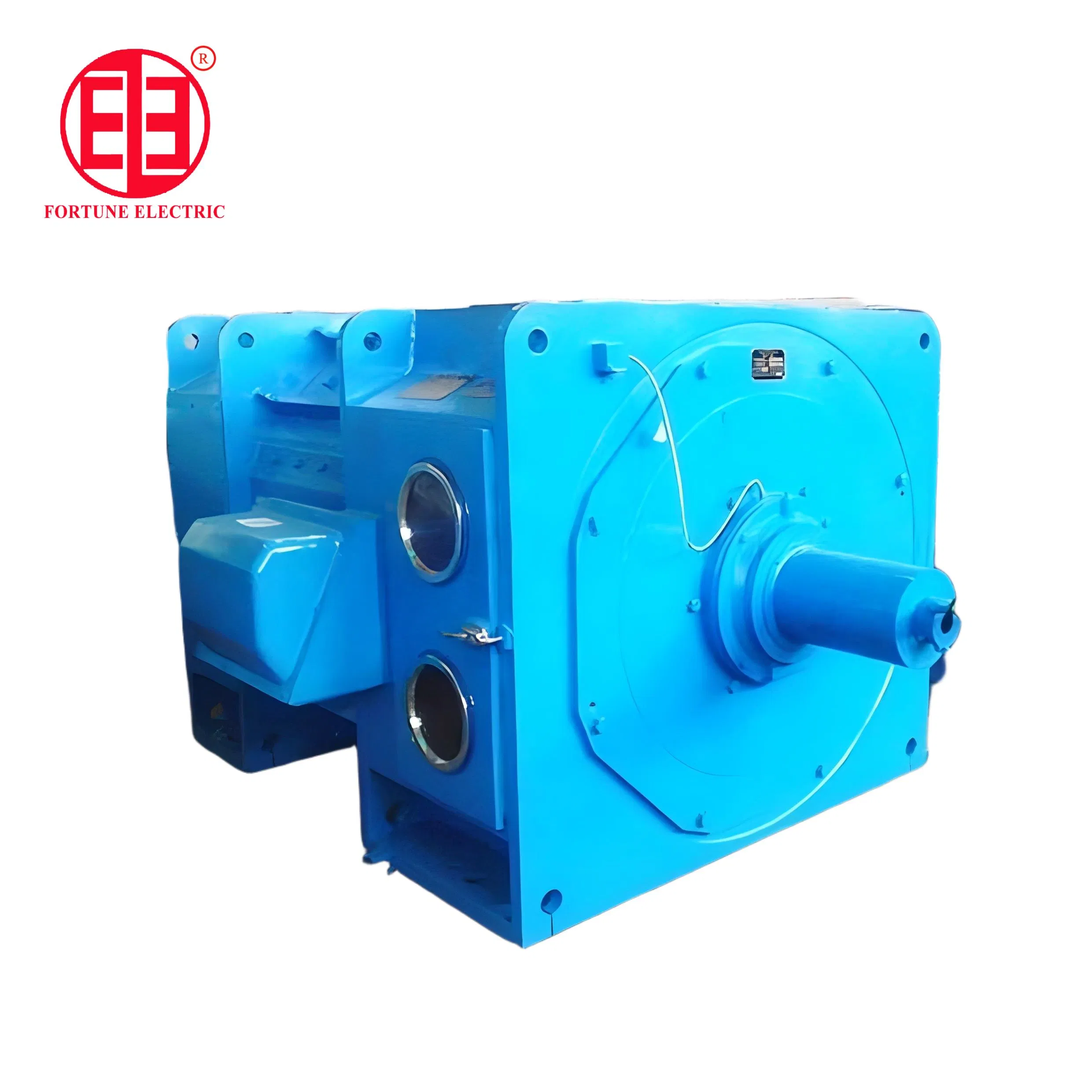

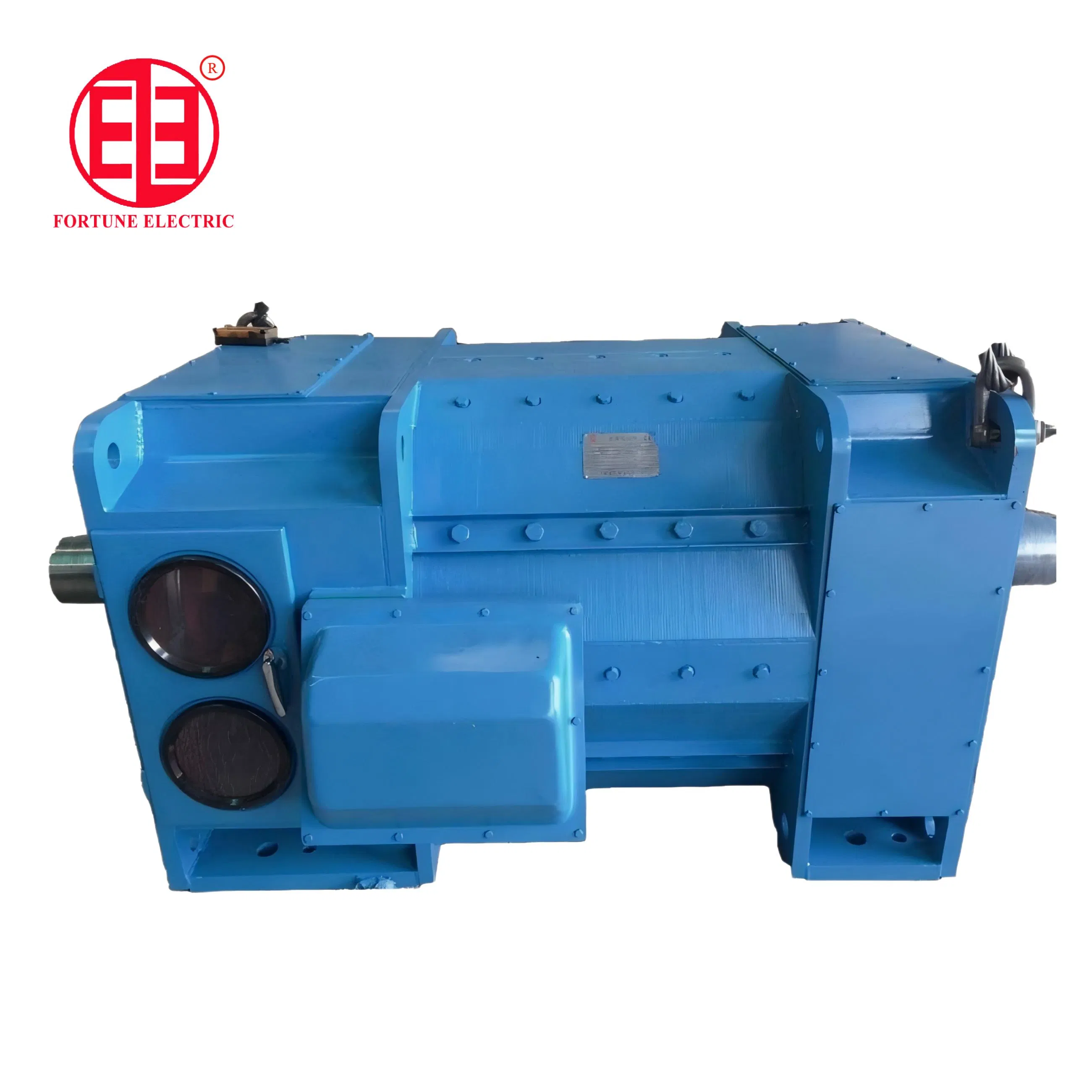

The innovative Z series Large Size DC Motor is ingeniously crafted using a polygon structure that maximizes the utilization of the stator's inner space to its fullest potential. This masterfully engineered design features a magnet yoke that is meticulously laminated, making it perfectly attuned for a silicon-controlled commutate power supply. It boasts a remarkable ability to withstand pulsating currents and rapid current shifts, ensuring seamless adaptation to load changes.

The magnetic poles are crafted with precise orientation to enhance performance. All motors in this stellar system are equipped with compensate winding, ensuring outstanding reverse performance. The motor's insulation class is F, utilizing a highly dependable insulation structure paired with state-of-the-art nonmenstruum vacuum pressure impregnation, which guarantees stable insulation performance and superior heat dissipation.

• Operation conditions: Max altitude 1,000m; Cooling air <40°C; Cooling water <32°C.
• Compatible with 3-phase bridge-style smoothing reactors or DC generators.
• Compliant with GB755, IEC60034-1, and JB/T9577 standards.
• Standard rated voltages: 440V, 550V, 660V, and 750V.
• Excitation style: Separately excited, standard 220V.
• Robust short-time overload capacity (Kind A and Kind B motors).
• Current change rate: 250 times the rated current.
• Vibration and Noise standards: GB10068 and GB10069.3.

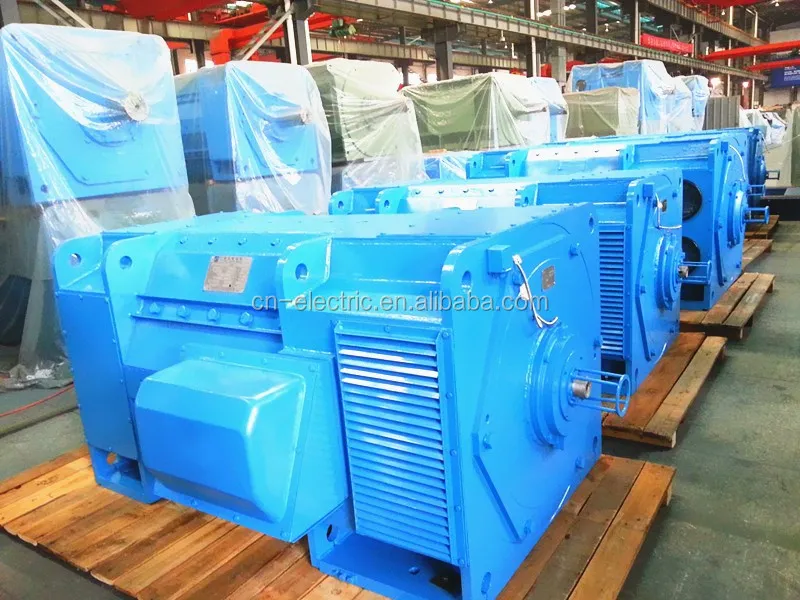

For impeccable protection, the inner packaging comprises 3-4 meticulously layered moisture sealers. The outer packaging is reinforced with a sturdy plywood case, ensuring unrivaled safety during transit.

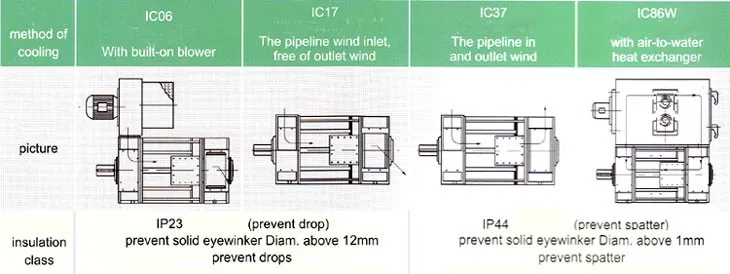

• Cooling methods available: IC06, IC17, IC37, and IC86W. Defense classes: IP23 or IP44.
• Installation types compliant with GB/T997: IM1001 and IM1002.
• Terminal box positioning: Standard right side (customizable to left).
• Equipped with rolling bearings featuring a non-stop oil addition structure.
• Optional accessories: Temperature detectors, tachogenerators, encoders, and anti-condensation heaters.
• Heat exchanger: Typically top-mounted (side-mounting optional).
