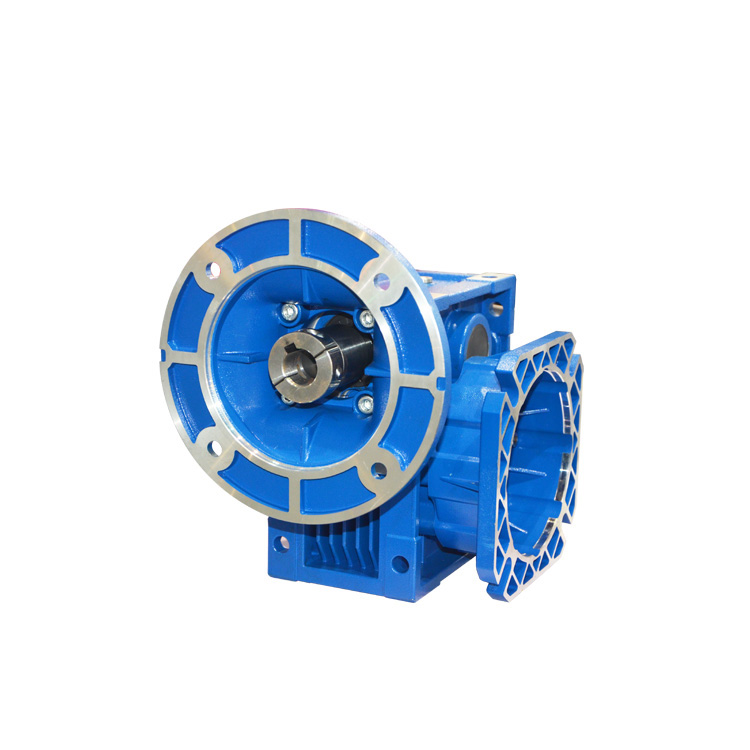

Sweg Motor
Sweg Motor

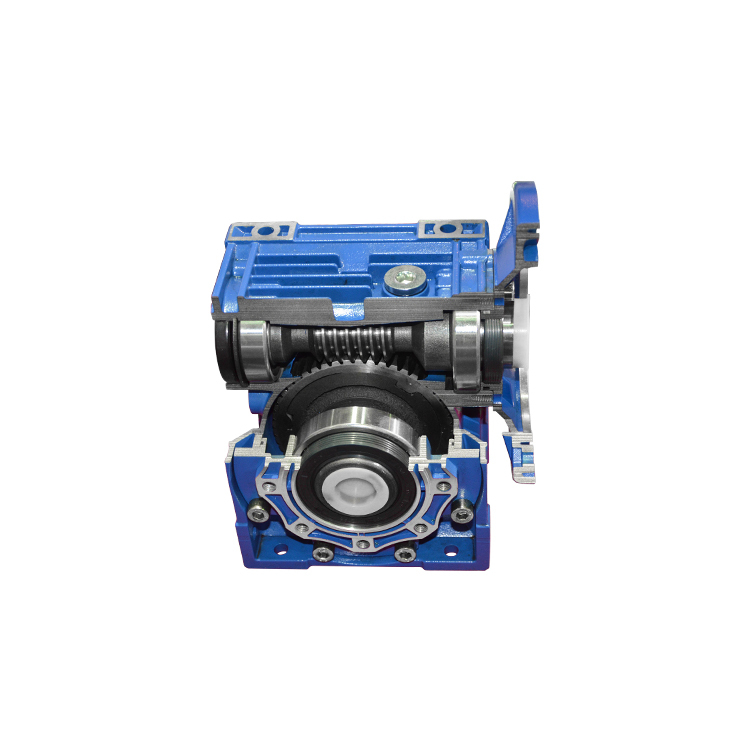

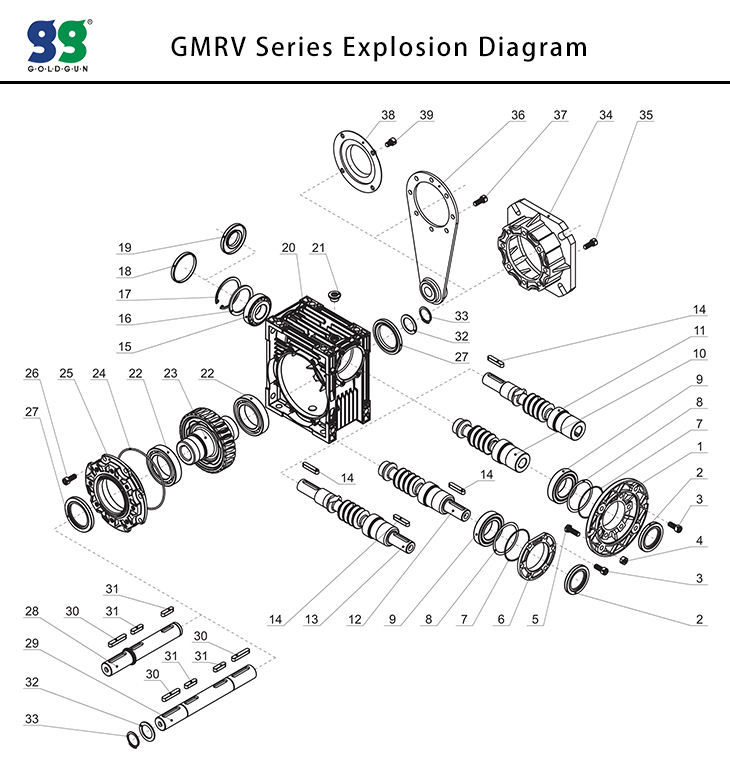

| 1. Flange PAM | 2. Oil seal | 3. Hexagon socket head cap screw |
| 4. Hexagon nuts | 5. Hexagon bolt | 6. Gear unit cover |
| 7. O-ring | 8. Spacer shim | 9. Bearing |
| 10. PAM worm | 11. Double ext. PAM worm | 12. RV worm |
| 13. Double ext. RV worm | 14. Parallel key | 15. Bearing |
| 16. Washer | 17. Circlip for hole | 18. Cap |
| 19. Oil seal | 20. Case | 21. Plug cock |
| 22. Bearing | 23. Worm wheel | 24. O-ring |
| 25. Bearing support cover | 26. Hexagon socket head cap screw | 27. Oil seal |
| 28. Single output Shaft | 29. Double output Shaft | 30. Parallel key |
| 31. Parallel key | 32. Washer | 33. Circlip for shaft |
| 34. Output flange | 35. Hexagon socket head cap screw | 36. Torque arm |
| 37. Hexagon socket head cap screw | 38. Protection cap | 39. Hexagon socket head cap screw |

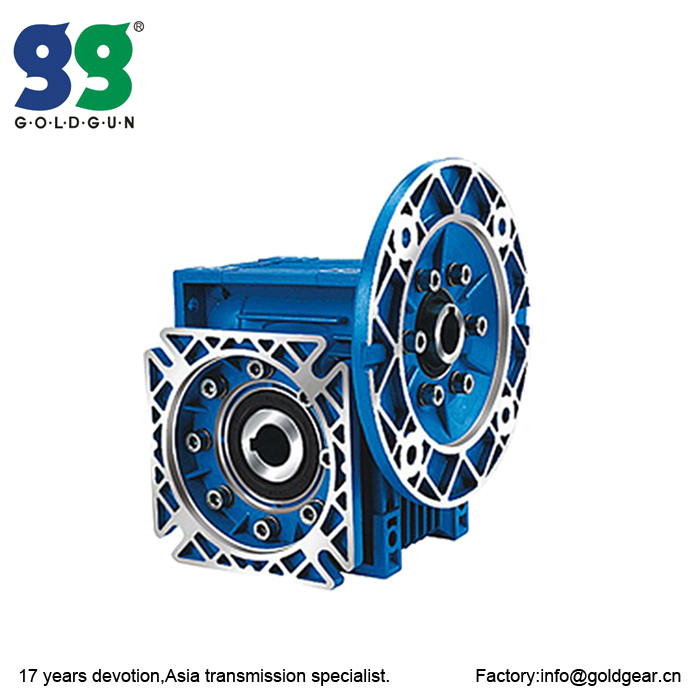

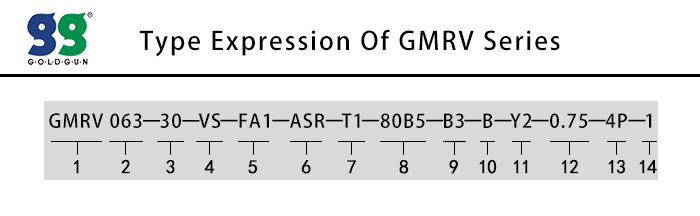

| 1. Worm gearbox type | GMRV= Worm-gear unit with IEC motor interface; GRV= Worm speed reducer with solid input shaft |
| 2. Gearbox size | 025, 030, 040, 050, 063, 075, 090, 110, 130, 150 |
| 3. Reduction ratio | 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 |
| 4. Input options | Double input shaft available |
| 5. Flange mounting | FA, FB, FC, FD, FE |
| 6. Output shaft | ASL, ASR, AB |
| 7. Torque arm | T1, T2 |
| 8. Input flange | B5, B14 (Motor mounting) |
| 9. Mounting position | B3, B6, B7, B8, V5, V6 |
| 10. Motor types | Y2, YD, YVF, Y2EJ... |
| 11. Poles number | 2, 4, 6, 8... |
Established in 2003, we are a professional supplier of transmission solutions, engaged in the research, development, sale and services of speed reducers, motor and transmission parts. Our experienced engineers are always available to analyze and discuss your requirements and ensure full customers’ satisfaction. We are committed to provide end customers and dealers with a complete set of transmission equipment design and procurement solutions, through our 17 years of industry experience and numerous supplier cooperation. Tell us your requirements, we will help to make the whole solution for you.
