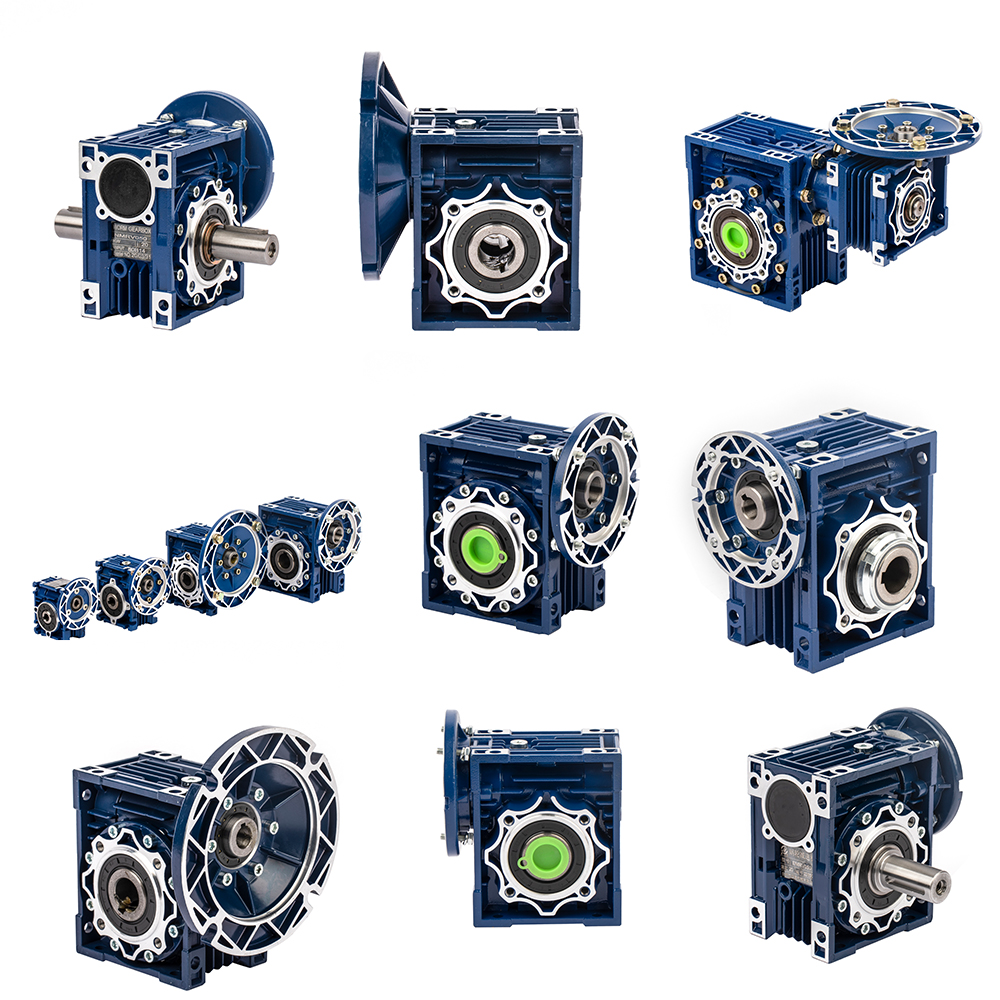

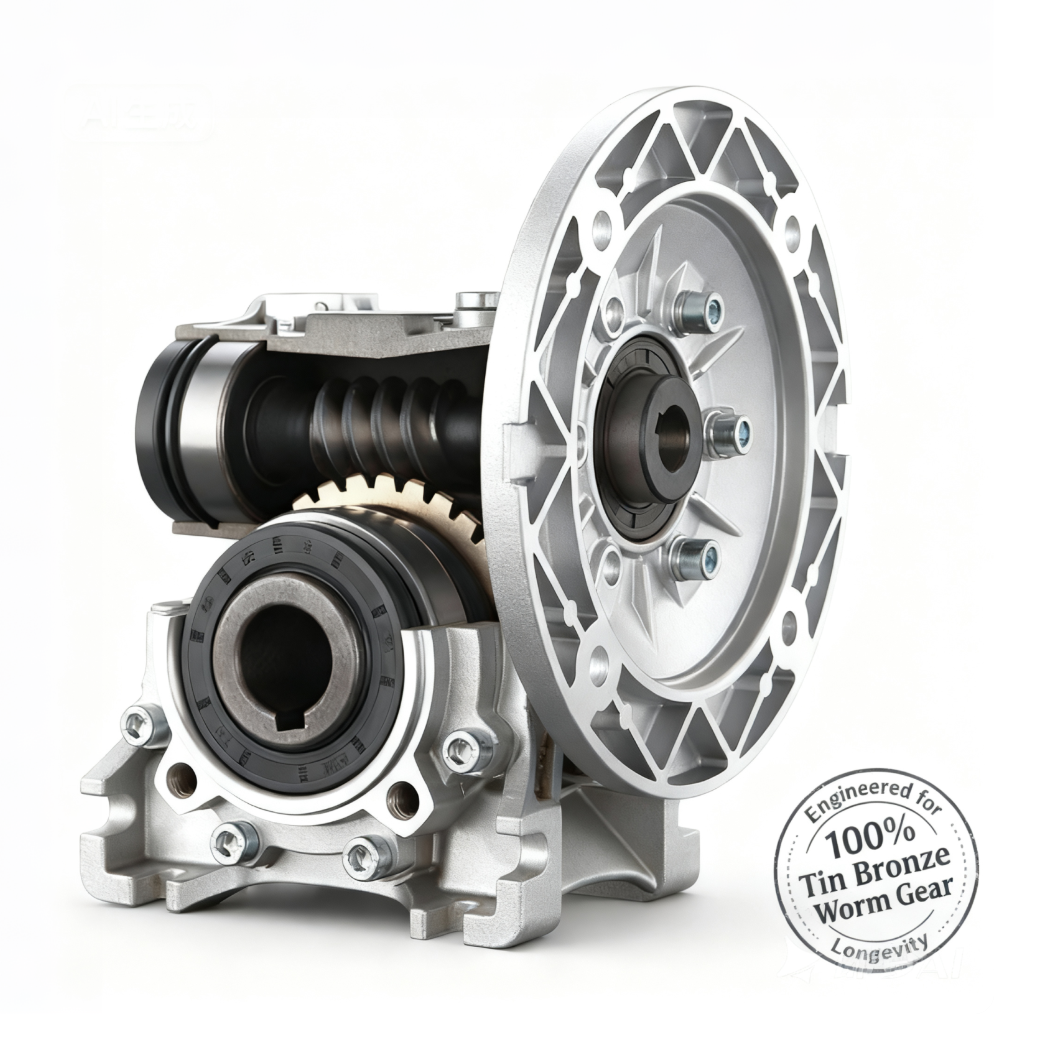

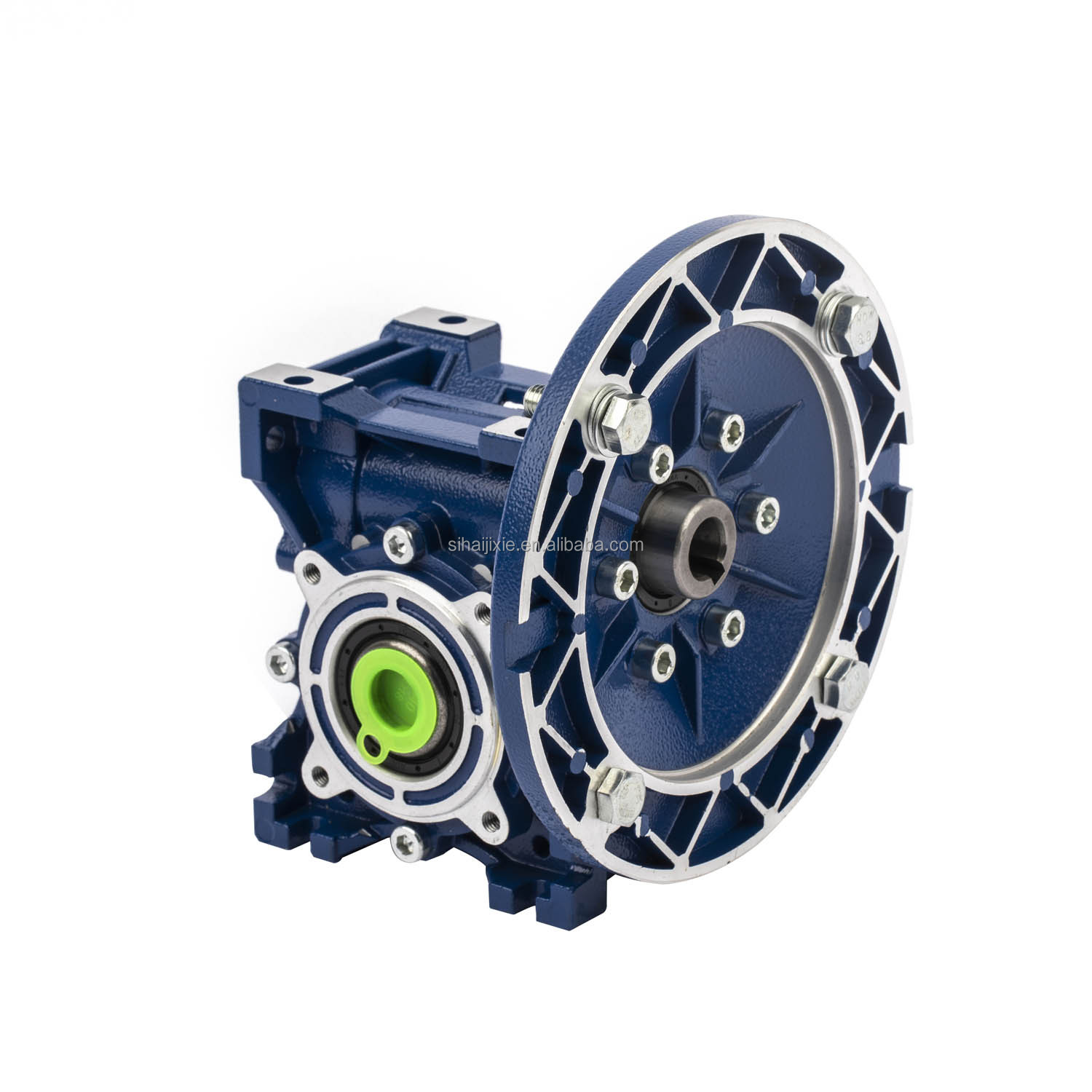

SMRV WORM GEARBOX
Specification
| Product name |
SMRV worm gear reducer |
| Ratio |
5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 |
| Power |
0.25~4.0 KW |
| Color |
Grey: RAL7015; Blue: RAL5010; Silver: RAL9006; Black: RAL9005 or as Request |
| Weight |
9 Kg |
| Material |

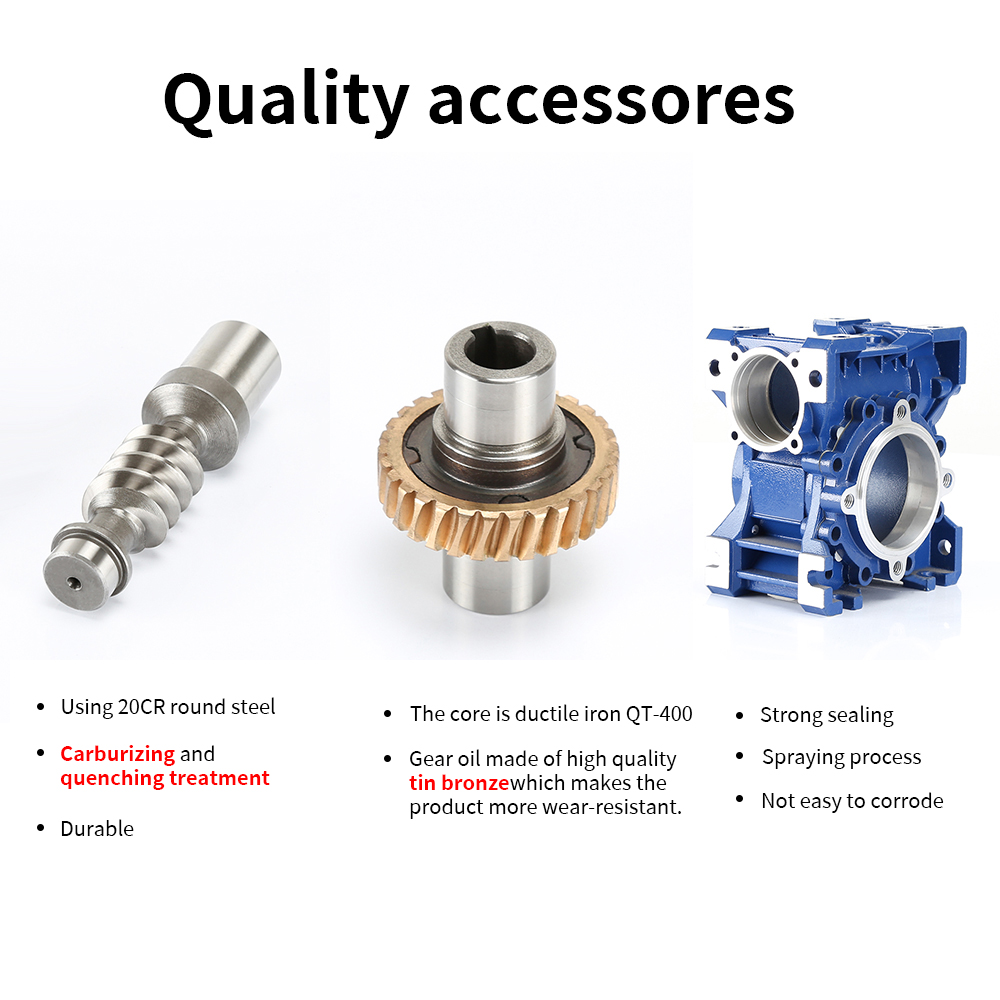

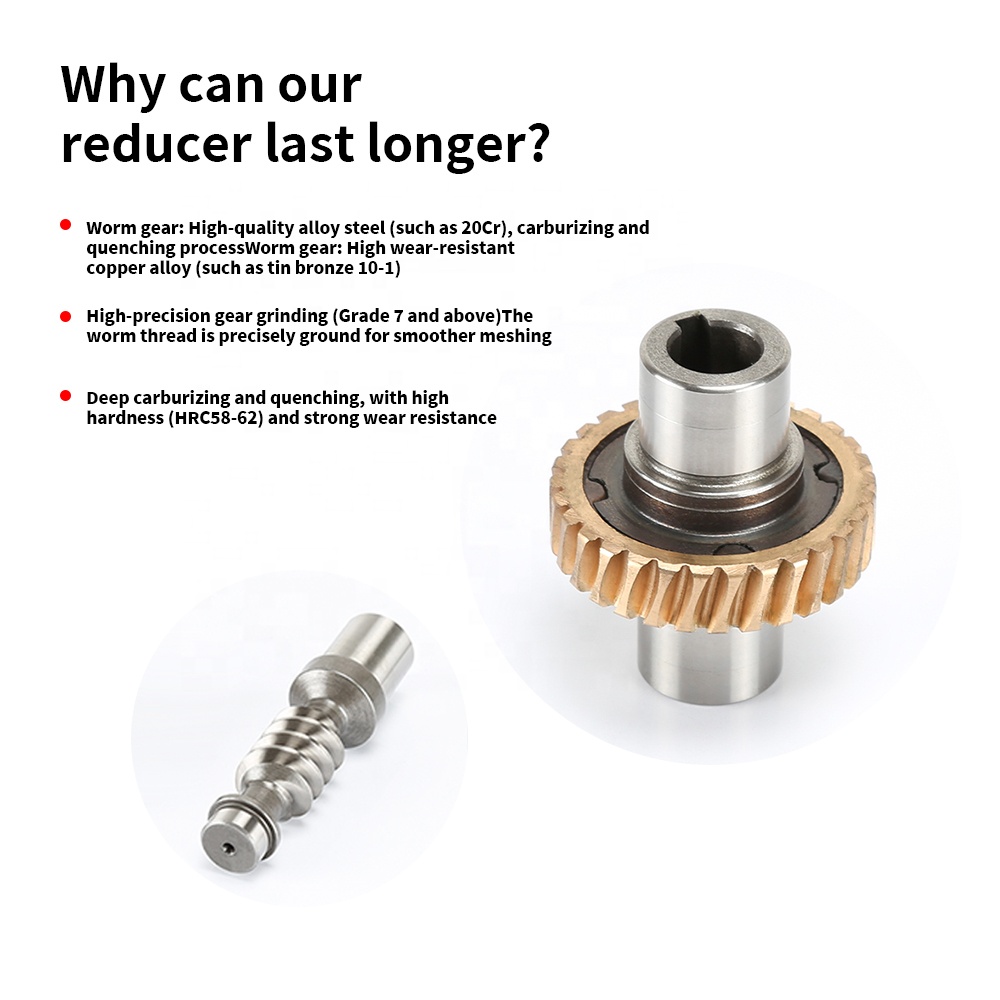

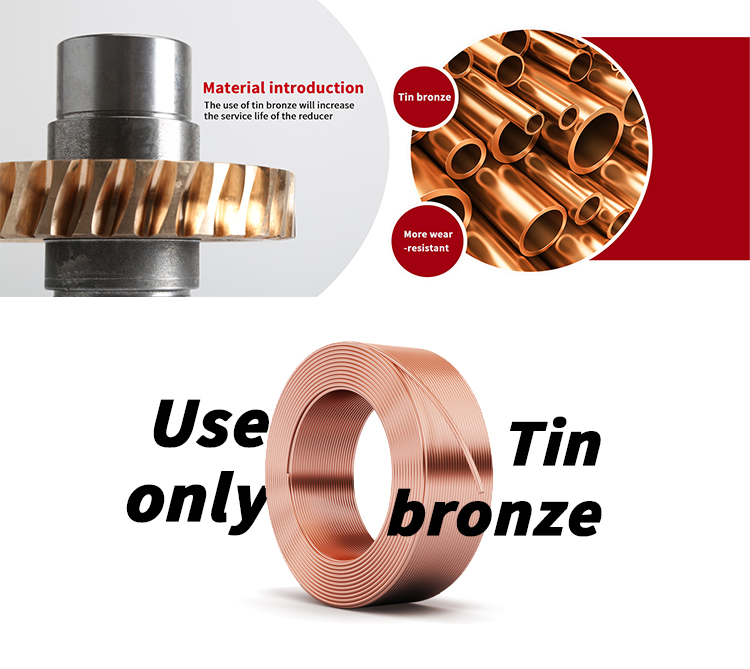

025-105 aluminum alloy, 110-150 cast iron. Worm material: 20Cr carburized and quenched (58-62 HRC). Worm gear hub: ductile iron QT400. Worm teeth: tin bronze ZQSn10-1. |
| Oil seals |
NAK |
| Input versions |

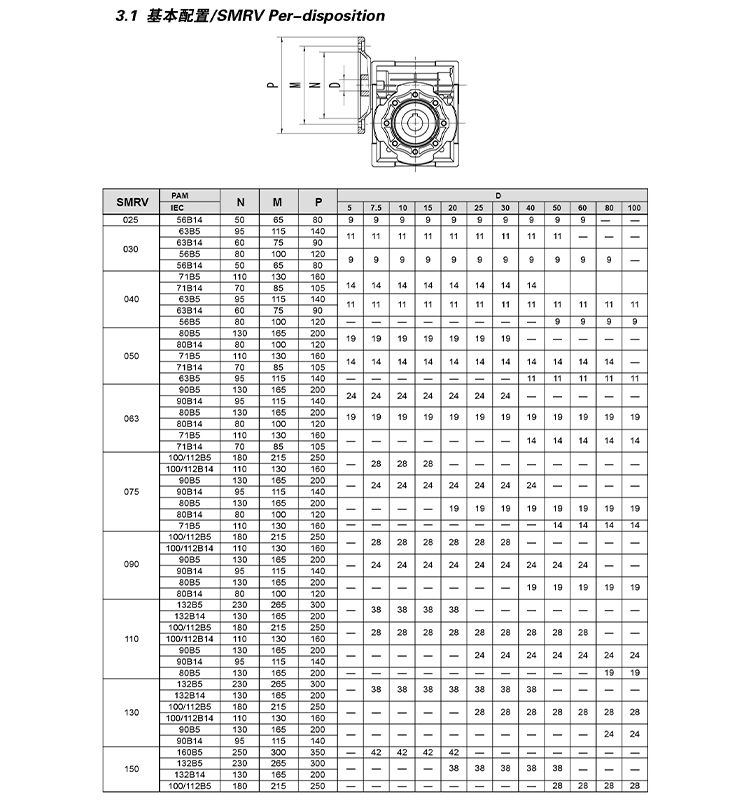

SMRV: motor flanged coupling / extension shaft. SRV: with input shaft. SRV-E: bidirectional input shaft. |
| Suitable motor pole |
2 pole, 4 pole, 6 pole |
| Inch size |
56C/140TC/180TC/210TC Available |
| Extra service |
Personal customization, OEM |
| Quality Assurance |
1 year |
| Features |

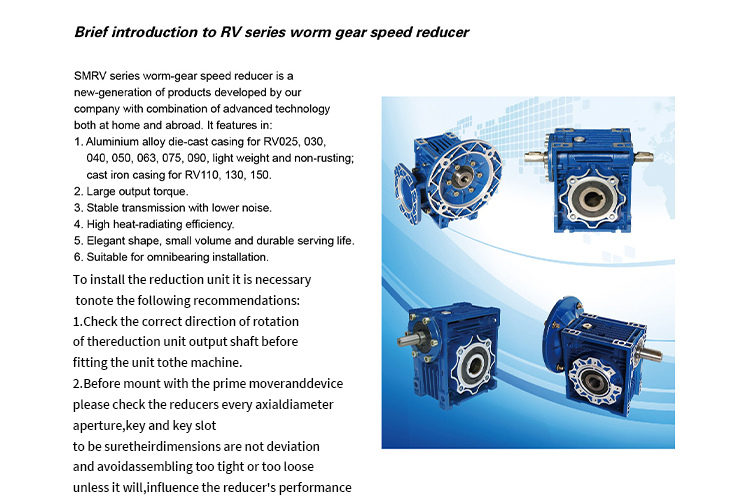

High precision, stable transmission, large output torque, high quality, long service life. Omni-directional installation. |
Surface Coating
First, the shell is treated by surface particle blasting, and then, through special anticorrosion treatment, RAL5010 blue plastic powder or A7205 white plastic powder is sprayed. After polishing and sanding, it is dried at high temperature and then sprayed with RAL5010 paint.
Production Standards & Quality
We produce speed reducers in strict accordance with ISO9001 standard to provide high quality gearboxes at competitive prices. Accessories from international brands: oil seals from SKF, lubricant from Shell, and bearings from NSK. Housing and gears are produced under stringent quality control.

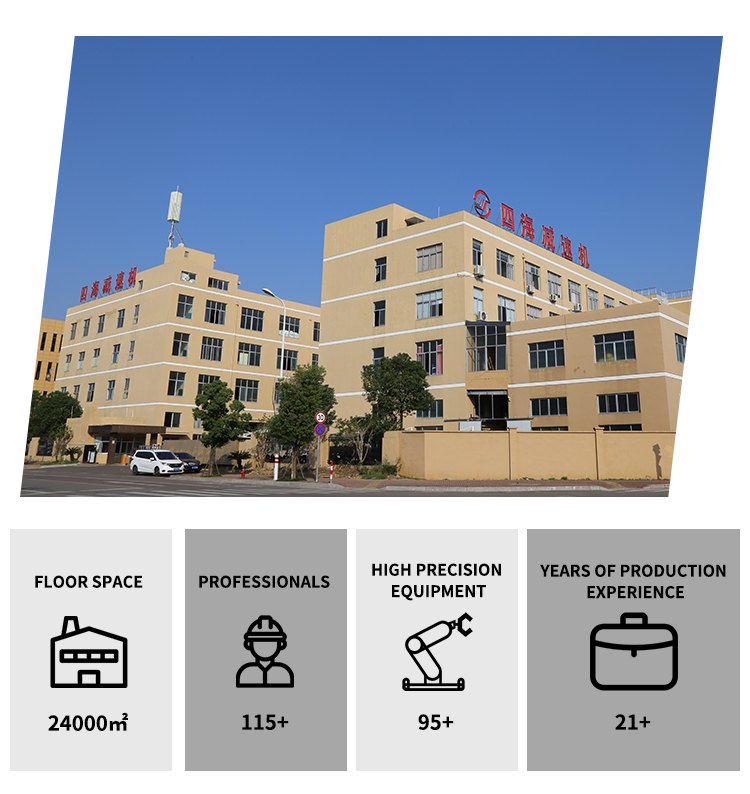

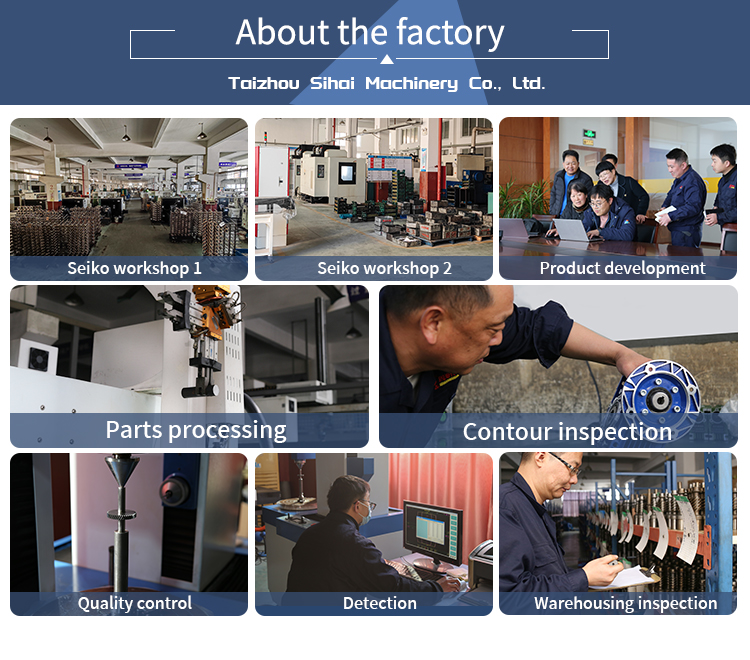

Manufacturing Capability
- History: More than 20 years of experience in manufacture.
- Technology: Professional technical engineers and a strong R&D team.
- Management: Scientific ERP management and strict quality control system.
- Equipment: 50 CNC lathes, 6 machining centers, gear grinding machines, spectrometer, and coordinate measuring instruments.
- Production capacity: 1000 pcs/day.
FAQ
Are you a manufacturer or a trader?
We are manufacturer. You are welcome to visit our factory in China or hold a video conference to tour our facilities.
How to choose a reducer that meets our requirements?
Provide us with the reducer information, related parameter diagrams, or clear photos of the equipment. It is helpful if you specify the type of reducer used initially.
How about your quality?
Quality is the foundation of our company. The quality of our products is strictly guaranteed.

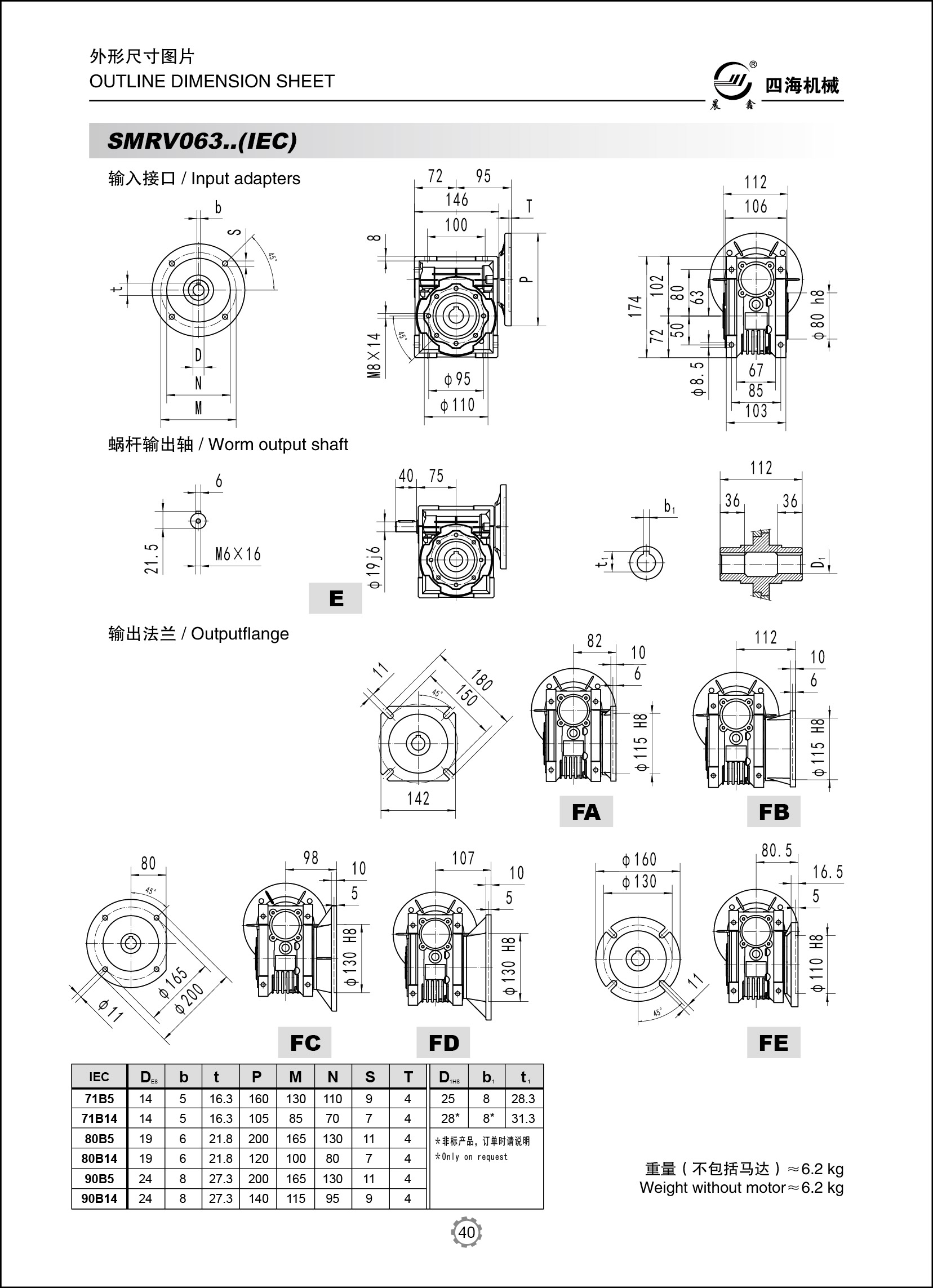

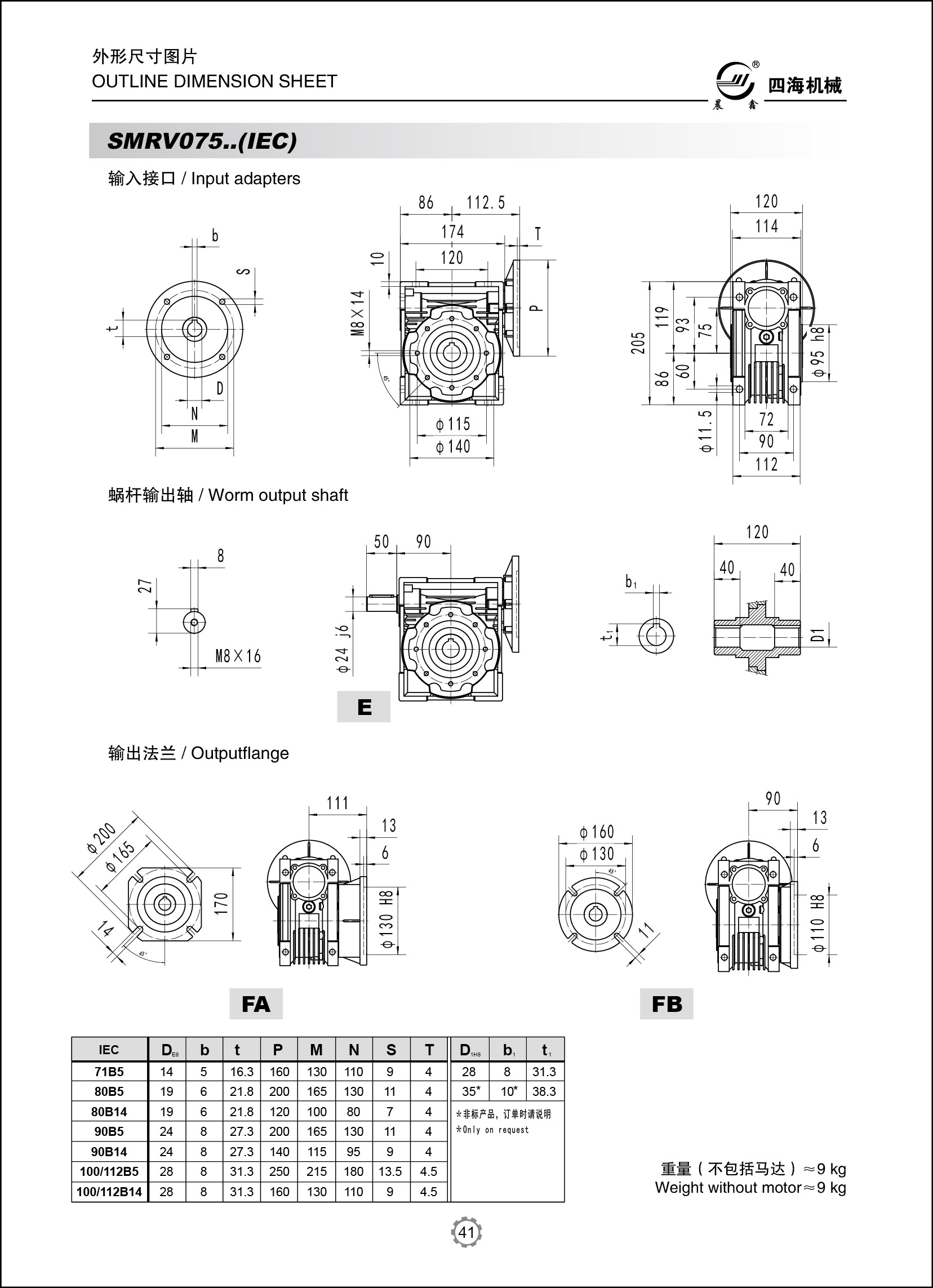

Can I get 3D and 2D drawings?

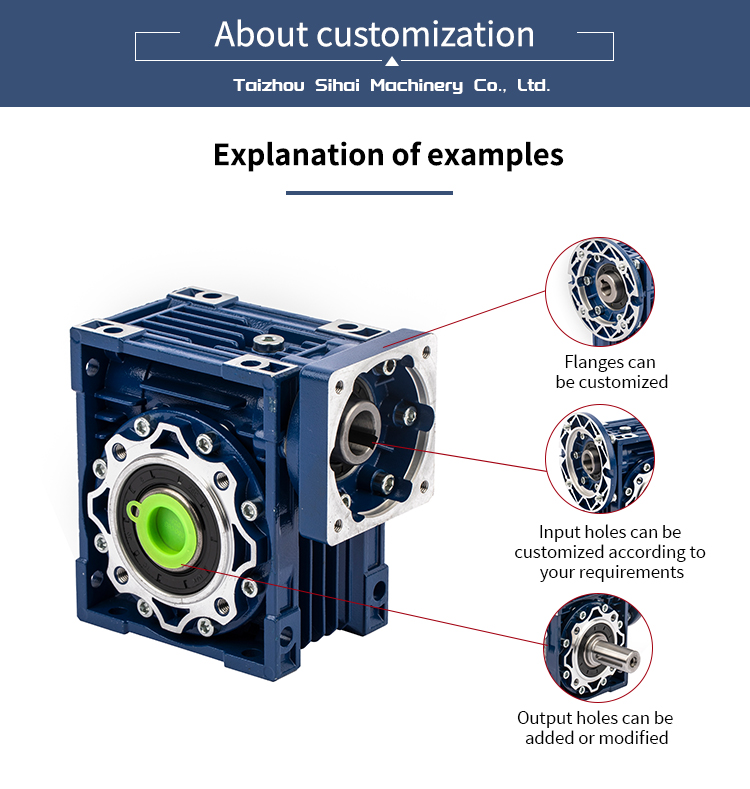

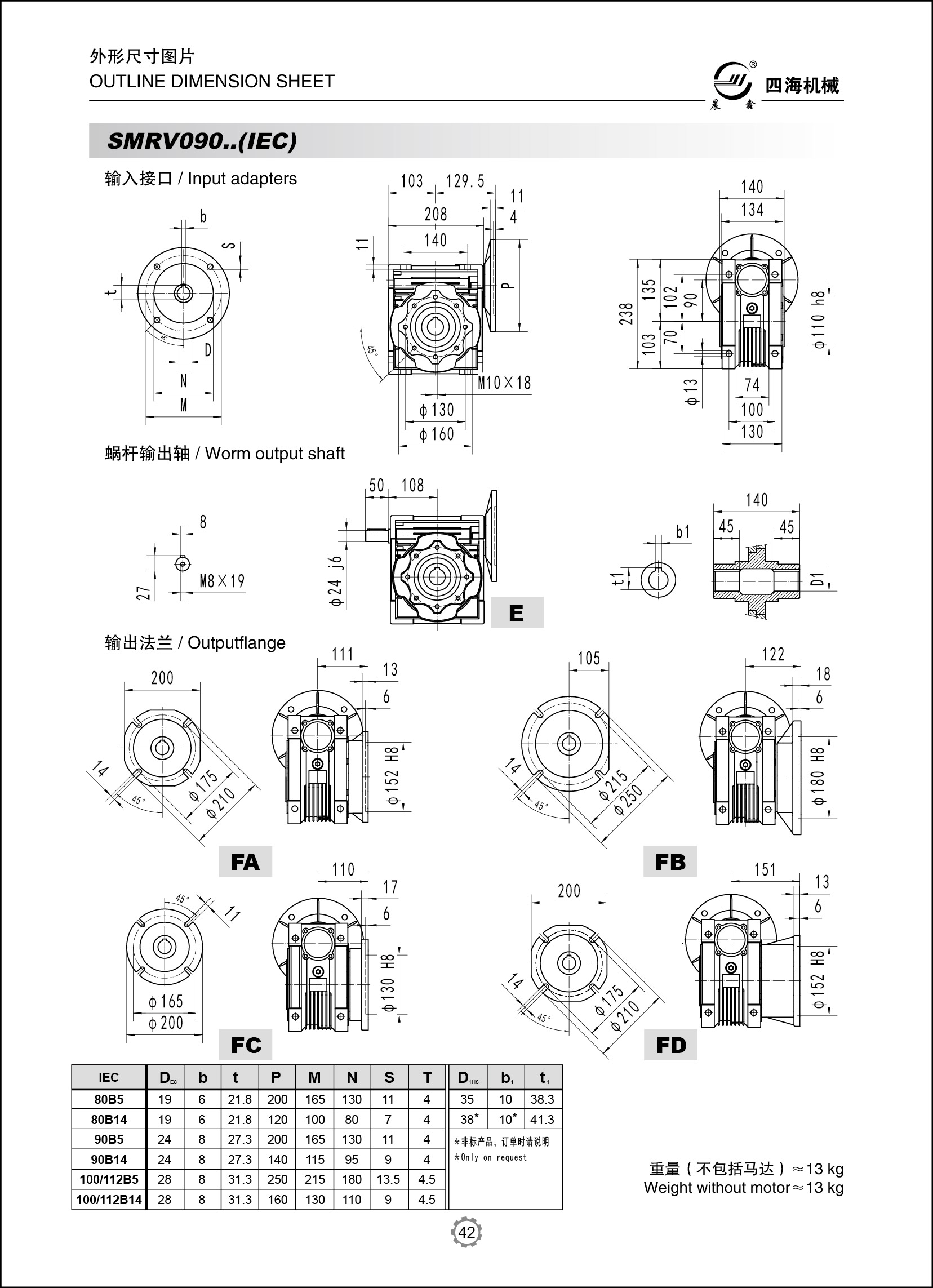

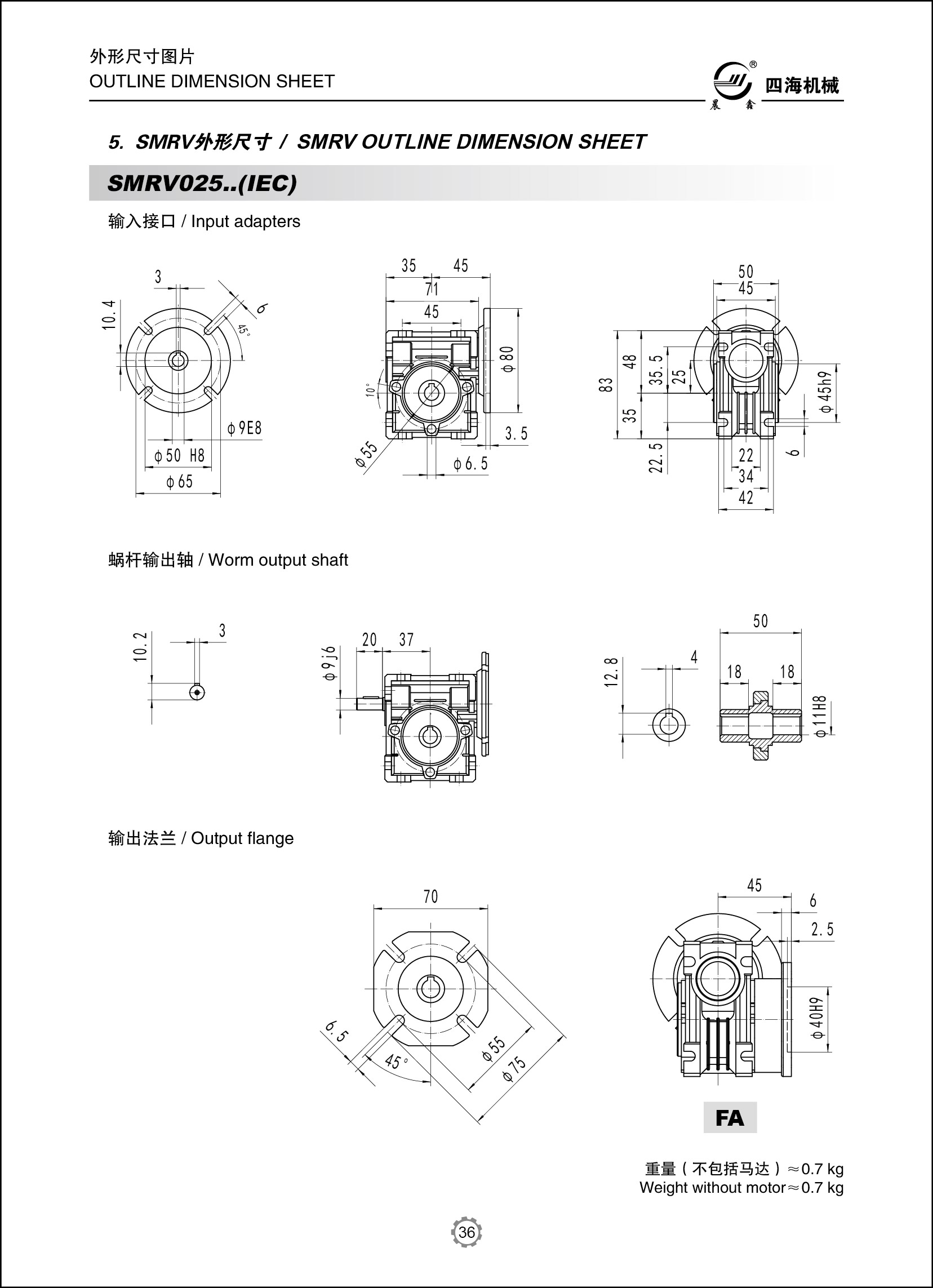

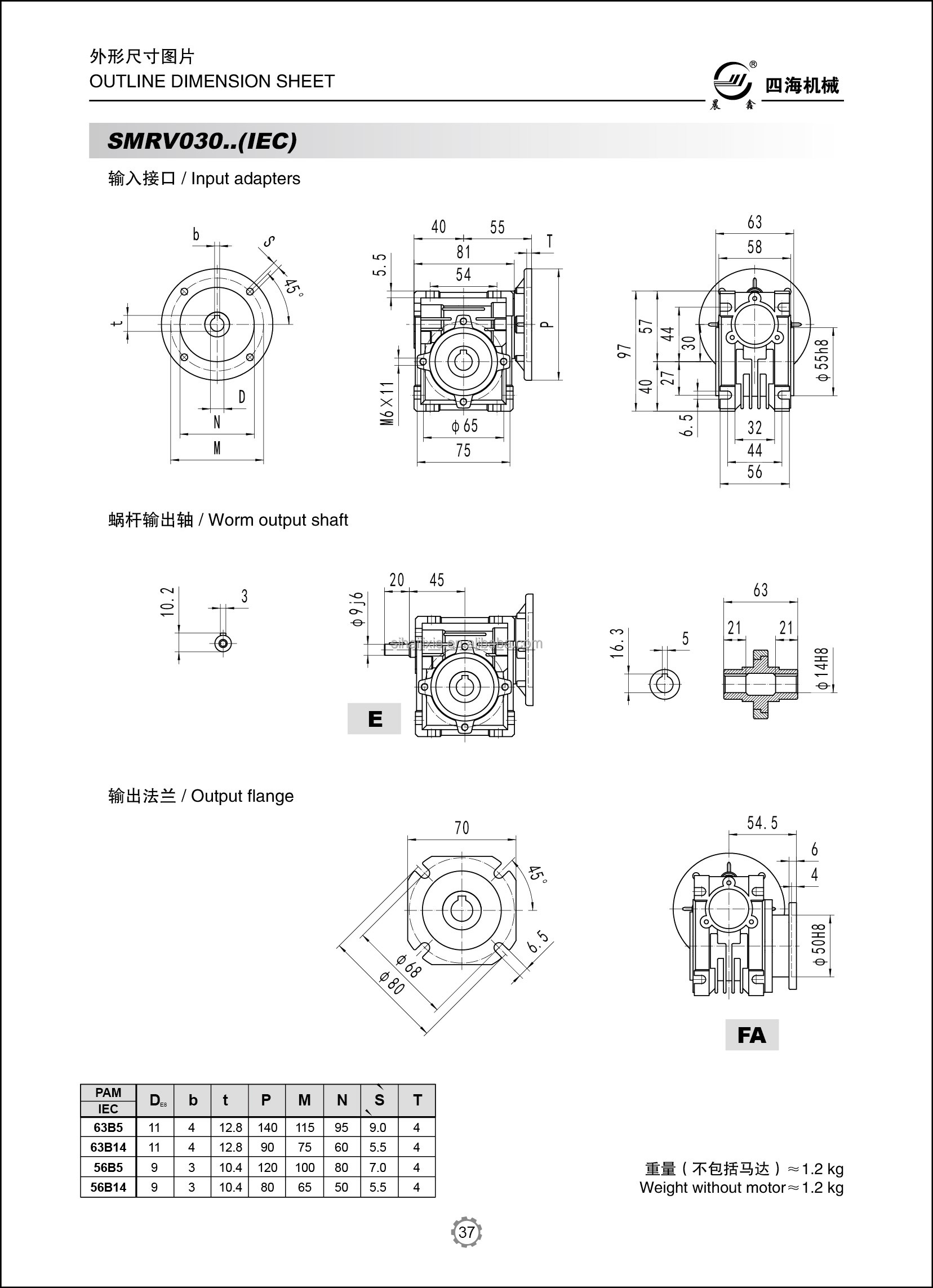

Yes, we provide standard drawings. The input size of the gearbox can be customized according to different motors.
Can you deliver the goods on time?
Absolutely. Our current delivery rate is maintained at 100% to ensure timely supply.
Do you offer customization or OEM services?
Yes, we provide customized reducer solutions and OEM services to satisfy diverse customer needs.
