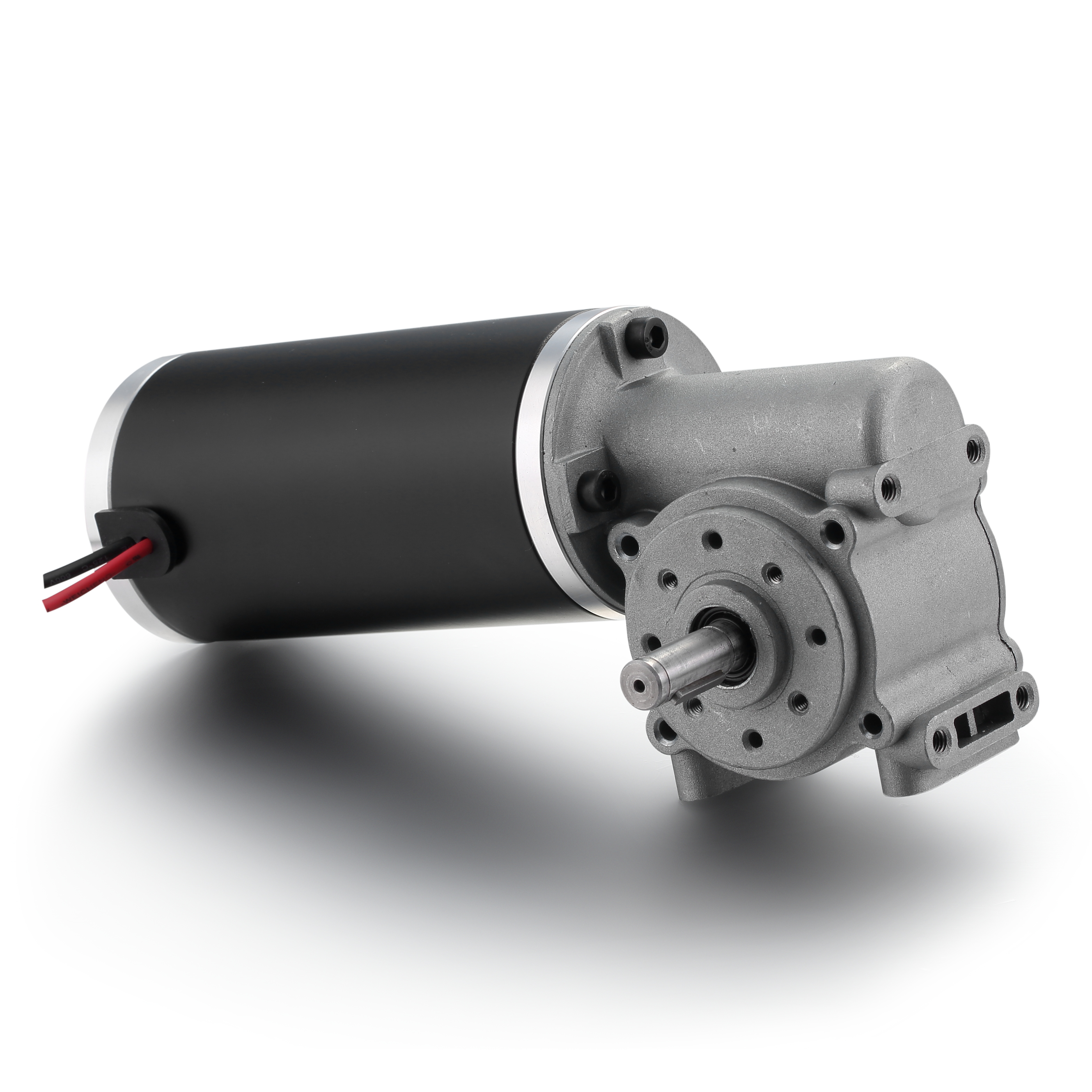

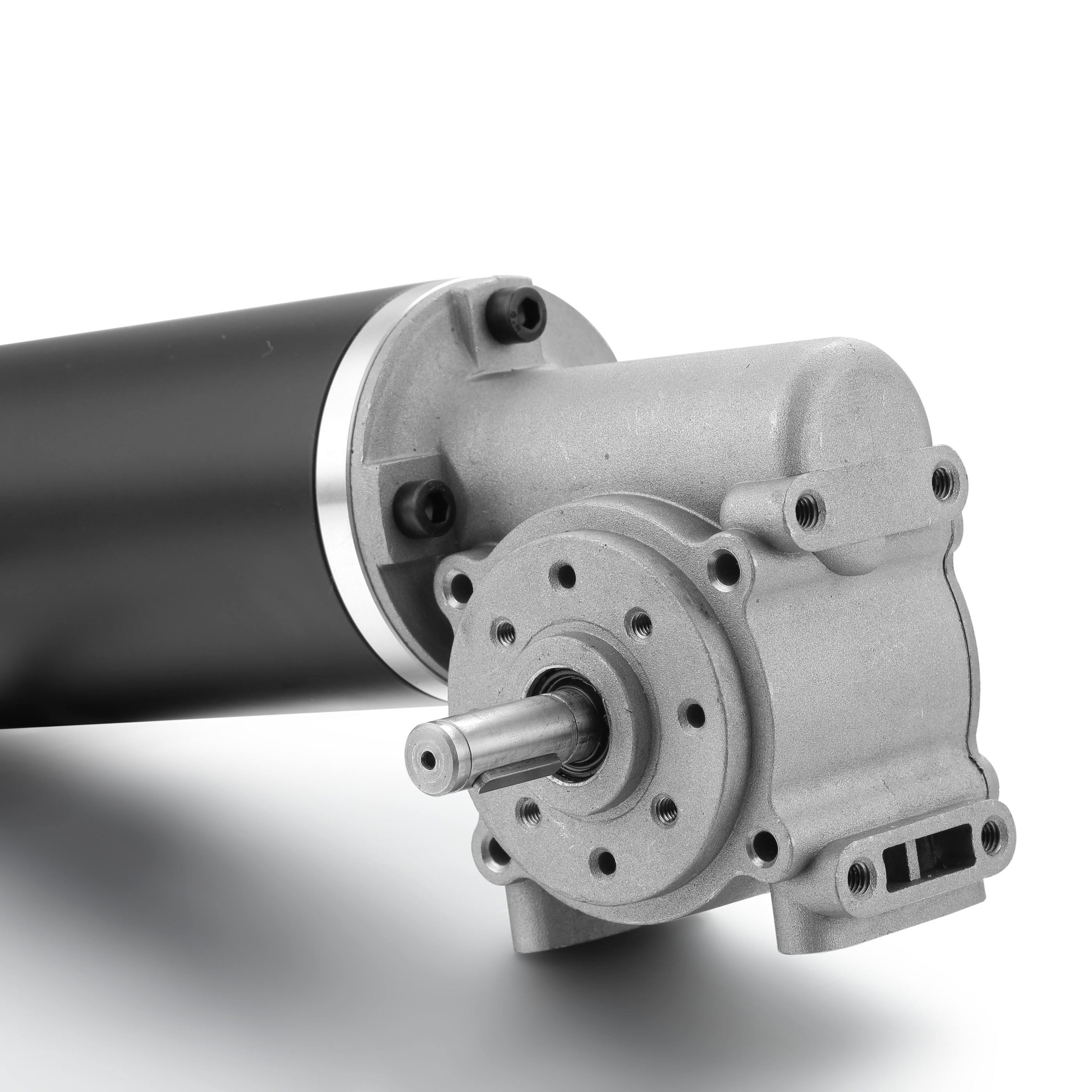

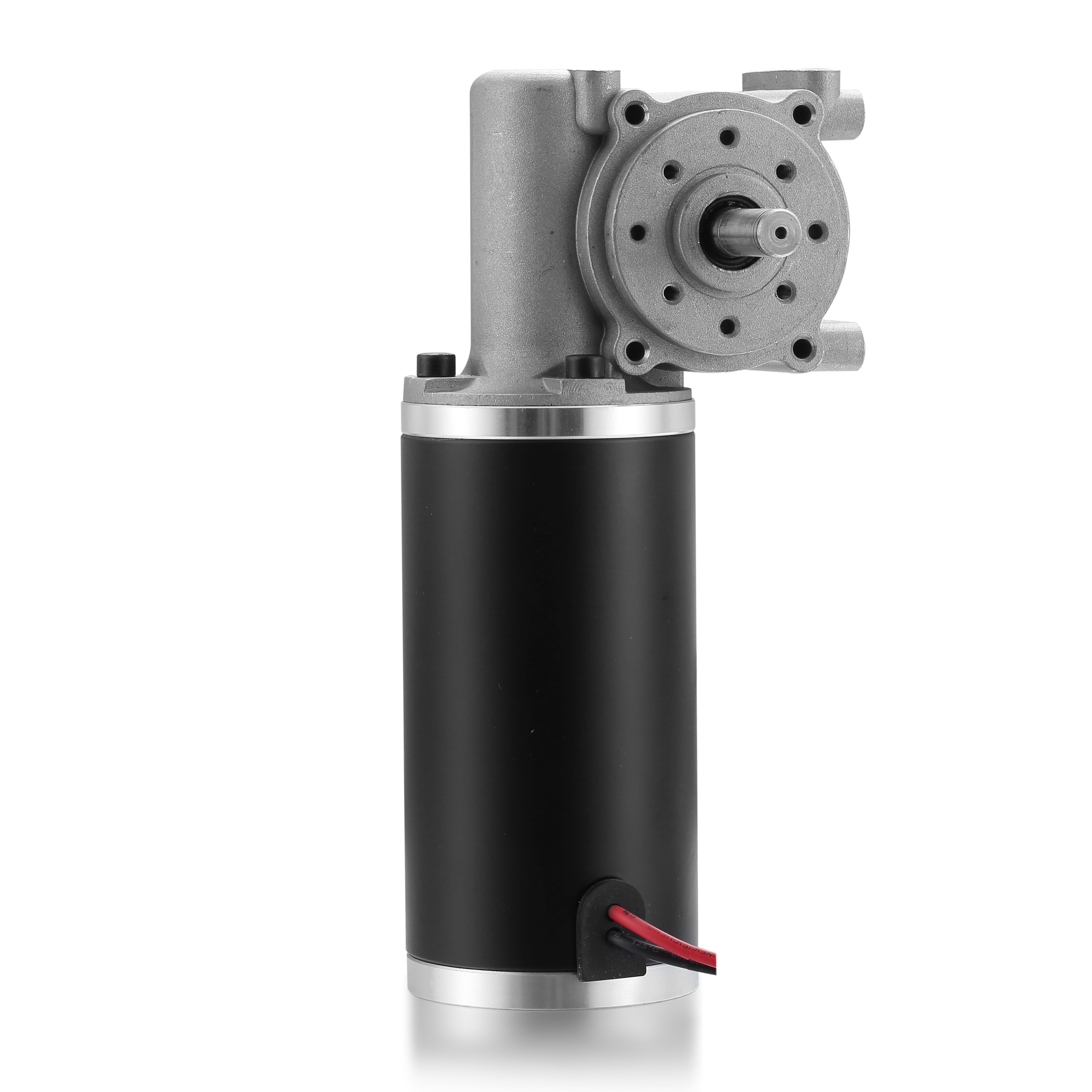

Sweg Motor
Sweg Motor
| Operating temperature | -20℃~50℃ |
|---|---|
| Rotation direction | CW/CCW |
| Noise | ≤75dB |
| Work condition | S1 |
| Insulation class | B-H |
| Protection class | IP40 |
| Model | RATED LOAD | NO LOAD | STALL | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Voltage (V) | Power (W) | Speed (rpm) | Torque (N.m) | Current (A) | Speed (rpm) | Current (A) | Torque (N.m) | Current (A) | |
| BG 63ZYT1230 | 12 | 52 | 3000 | 0.15 | 6.6 | 4000 | 1 | 0.45 | 19.8 |
| BG 63ZYT4830 | 48 | 100 | 3000 | 0.31 | 3 | 4000 | 0.5 | 1 | 9 |
* Customization available based on specific requirements.
| Ratio | 10 | 15 | 30 |
|---|---|---|---|
| Rated speed (rpm) | 300 | 200 | 100 |
| Rated torque (N.m) | 0.75 | 1 | 2.25 |

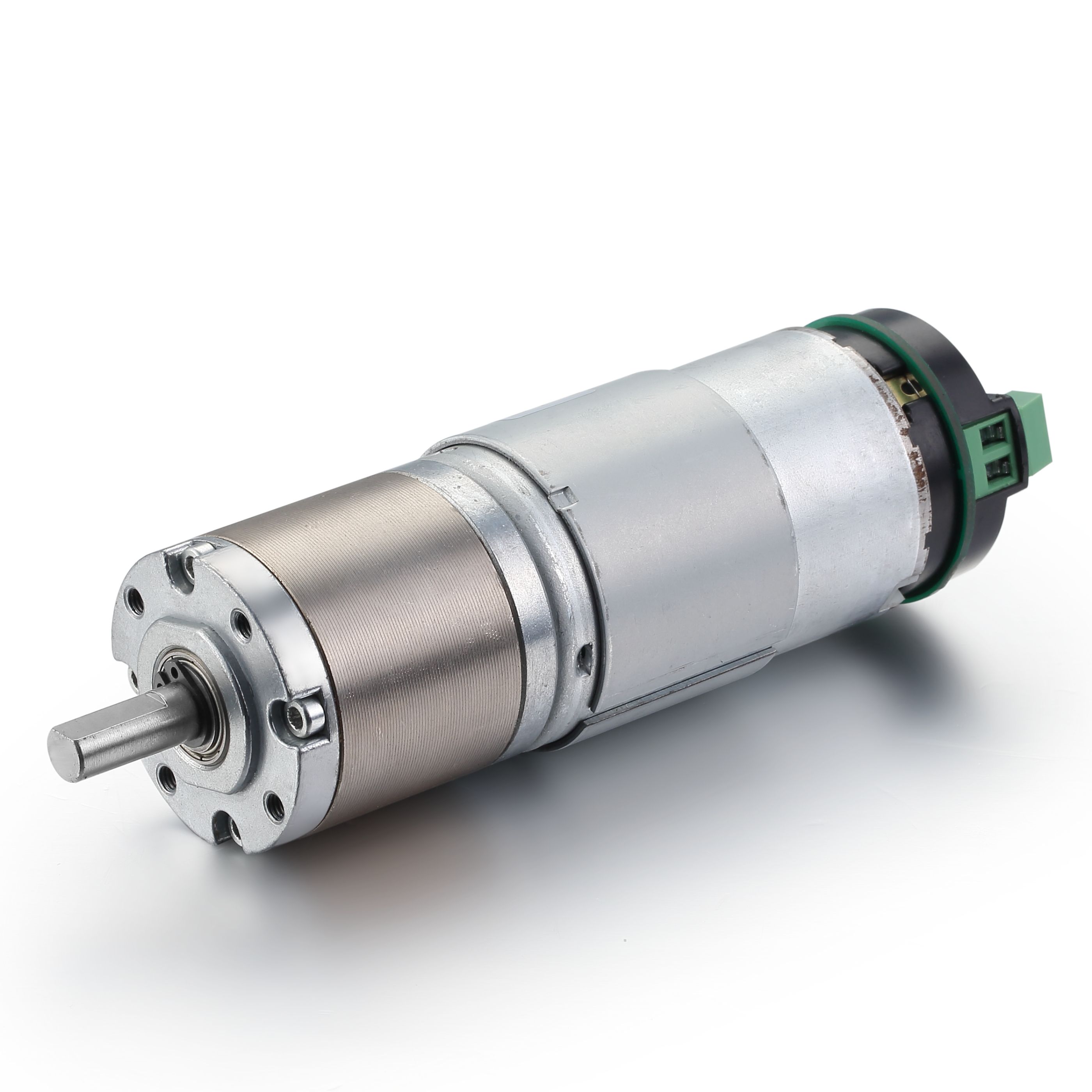

42mm DC Brushed Planetary Gear Motor

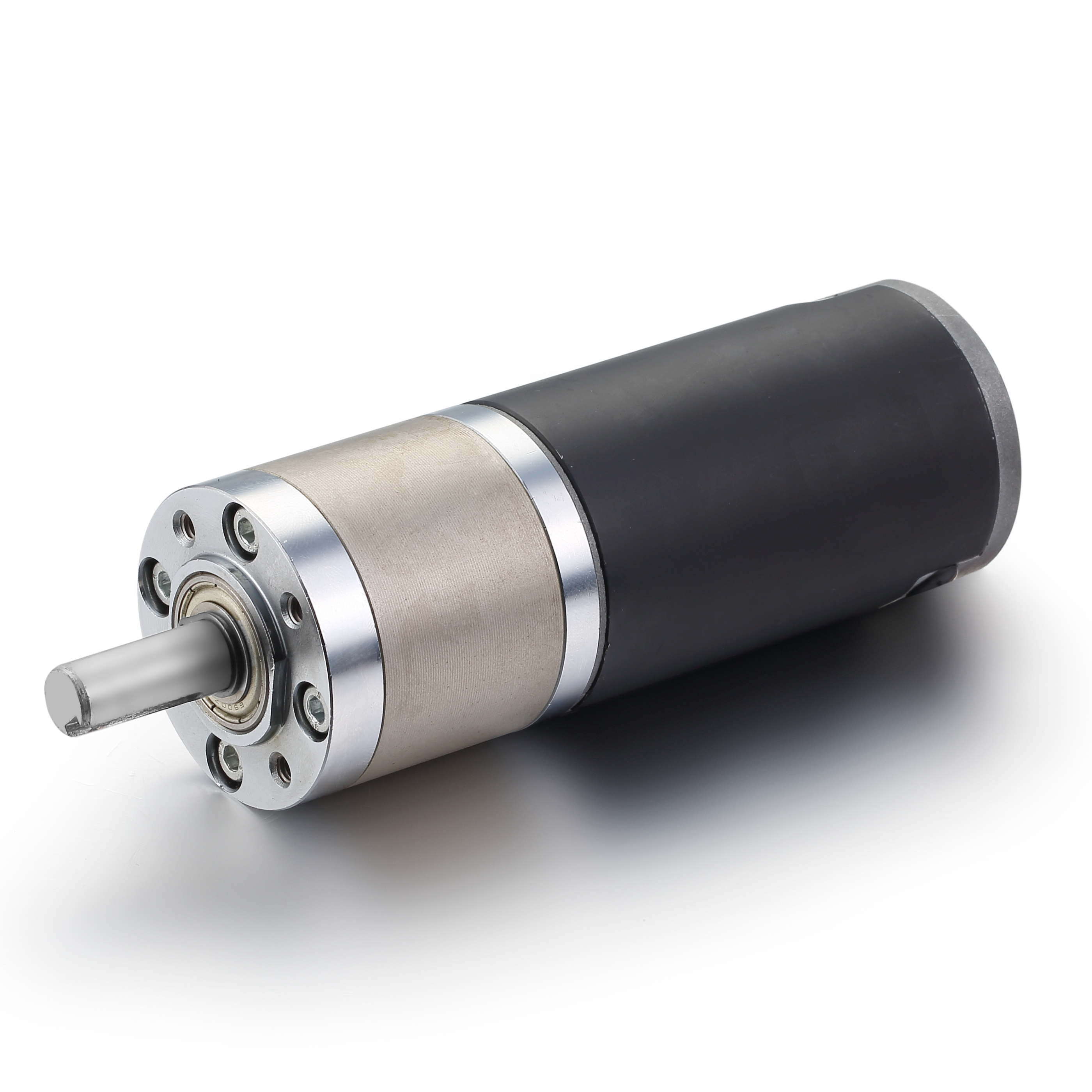

45mm DC Brushed Planetary Gear Motor

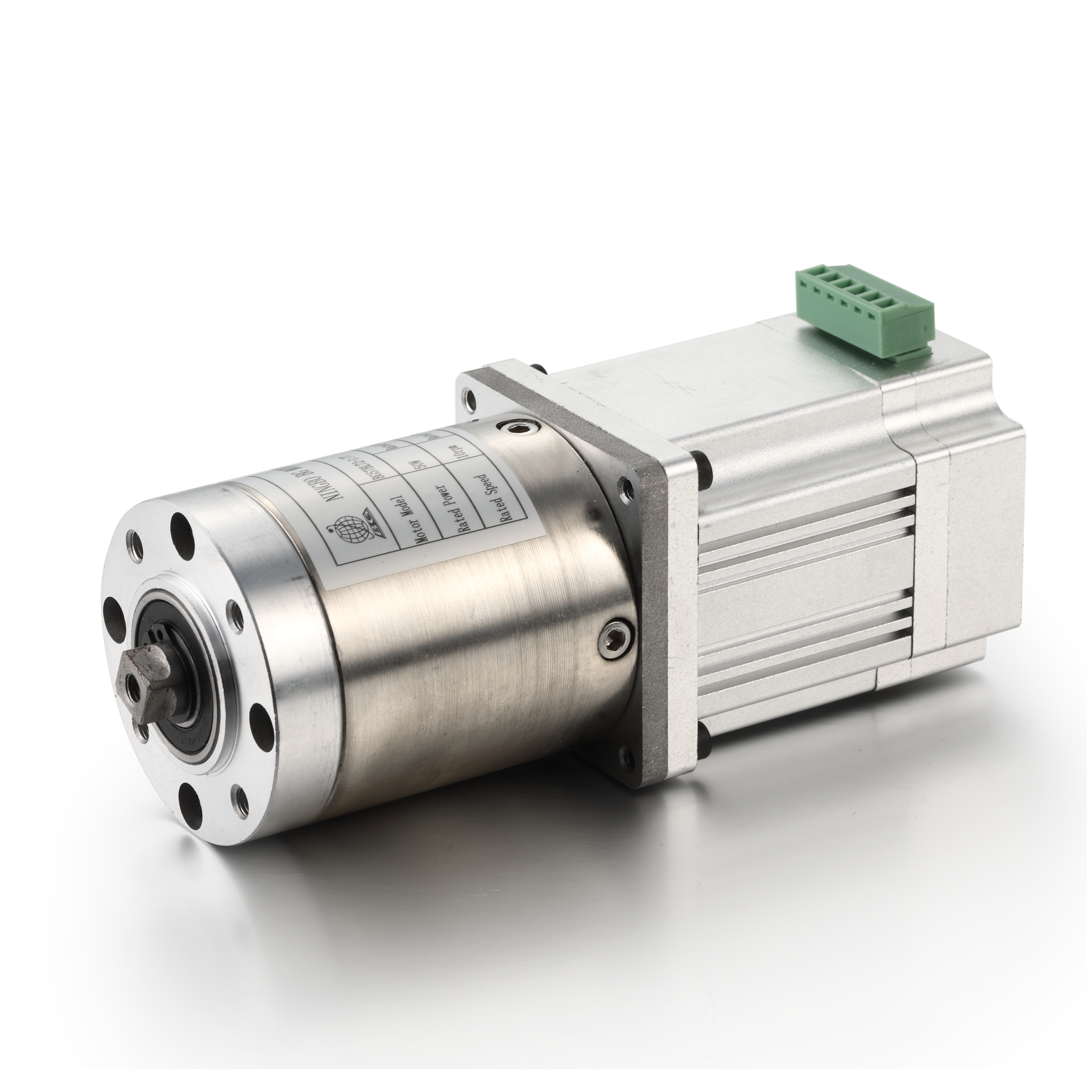

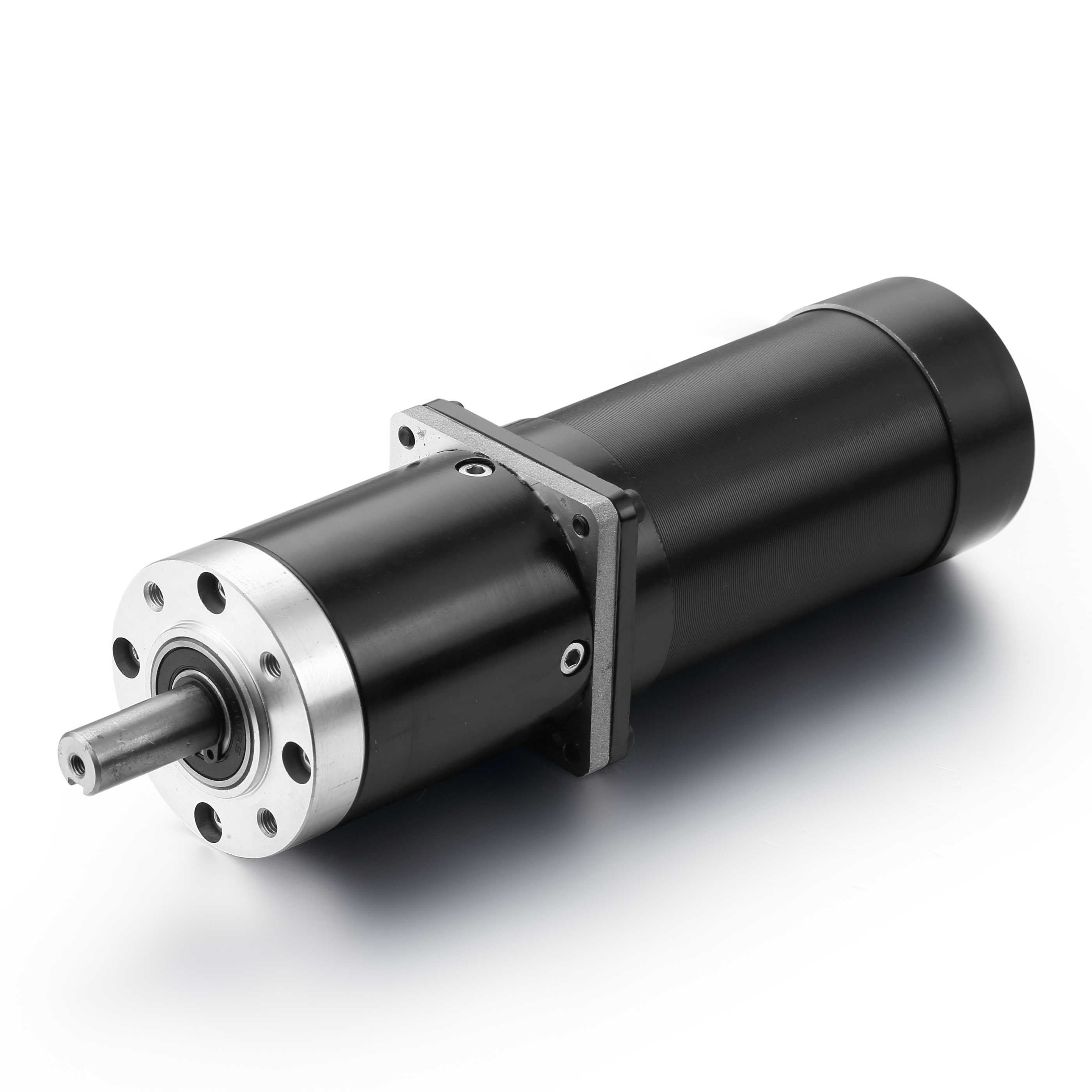

57mm DC Brushless Planetary Gear Motor
57mm DC Brushless Planetary Gear Motor

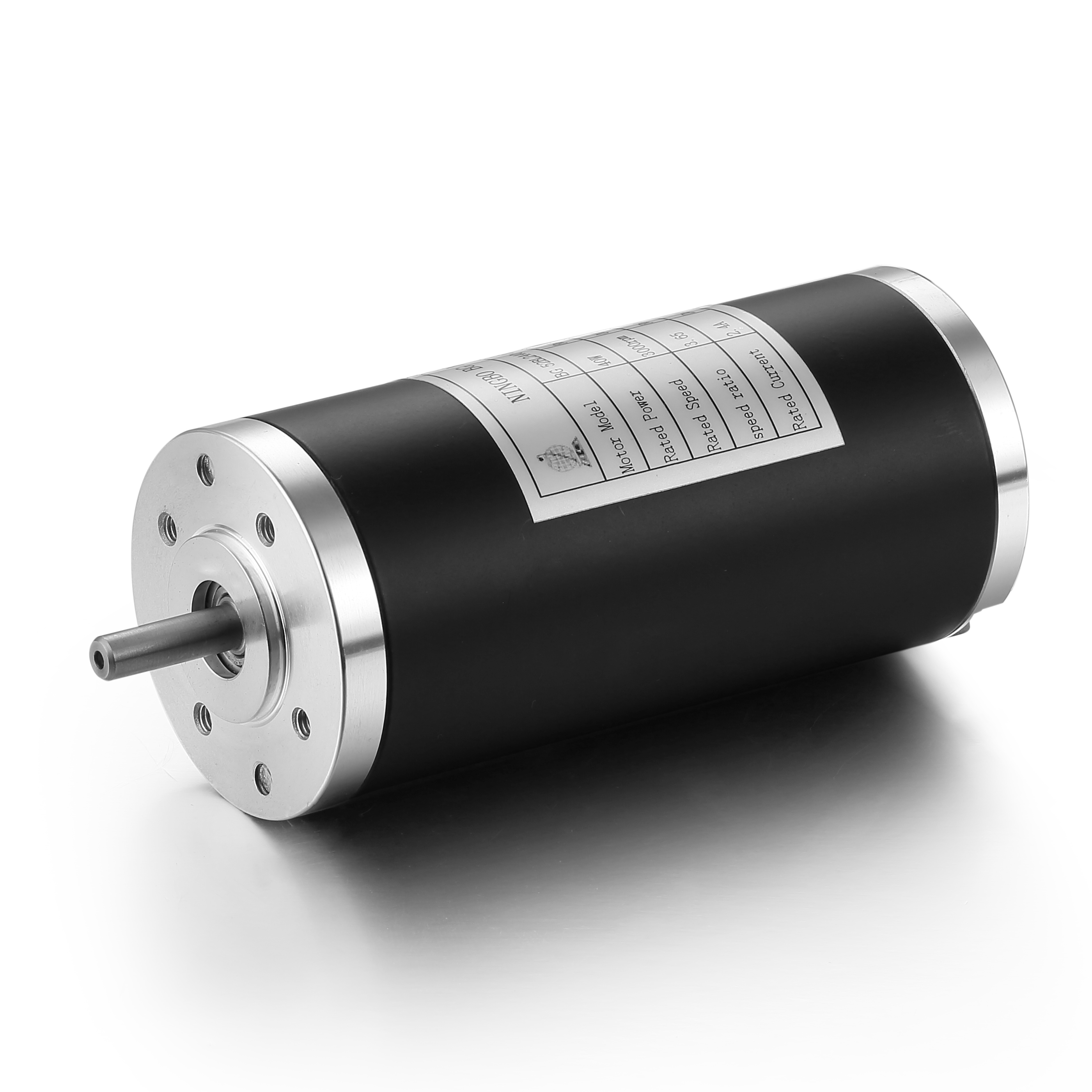

63mm Brushed DC Motor

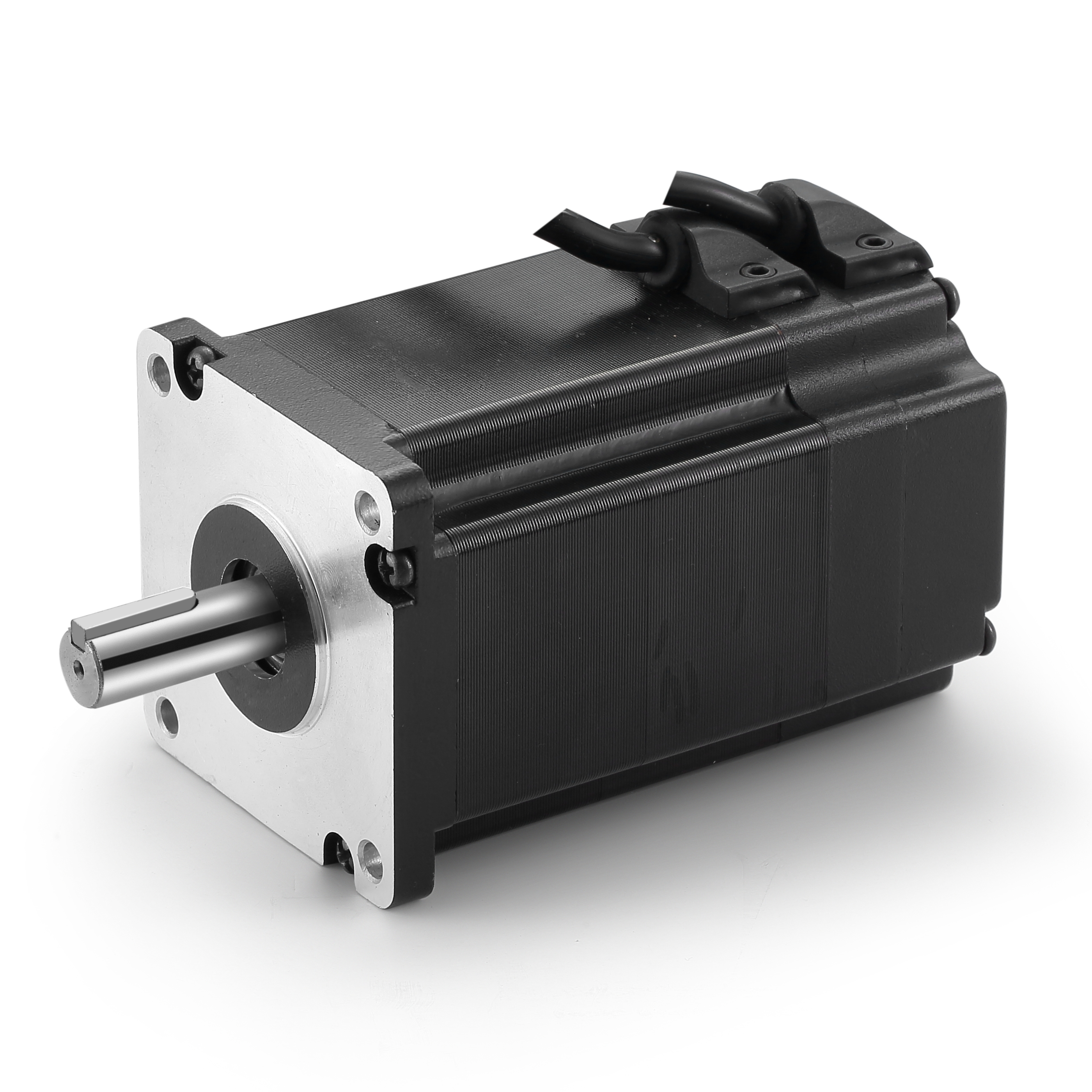

70mm Brushless DC Motor

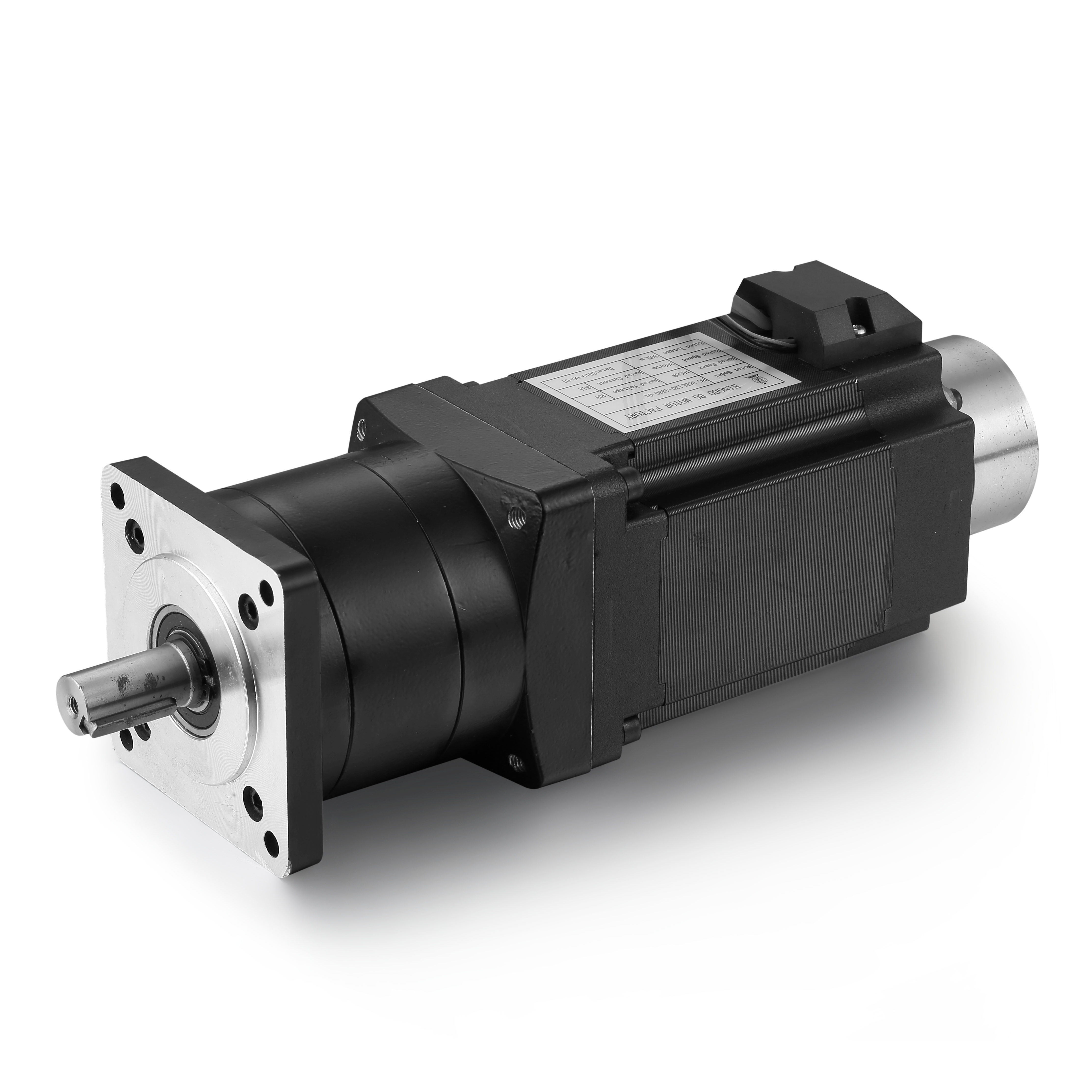

86mm DC Brushless Planetary Gear Motor

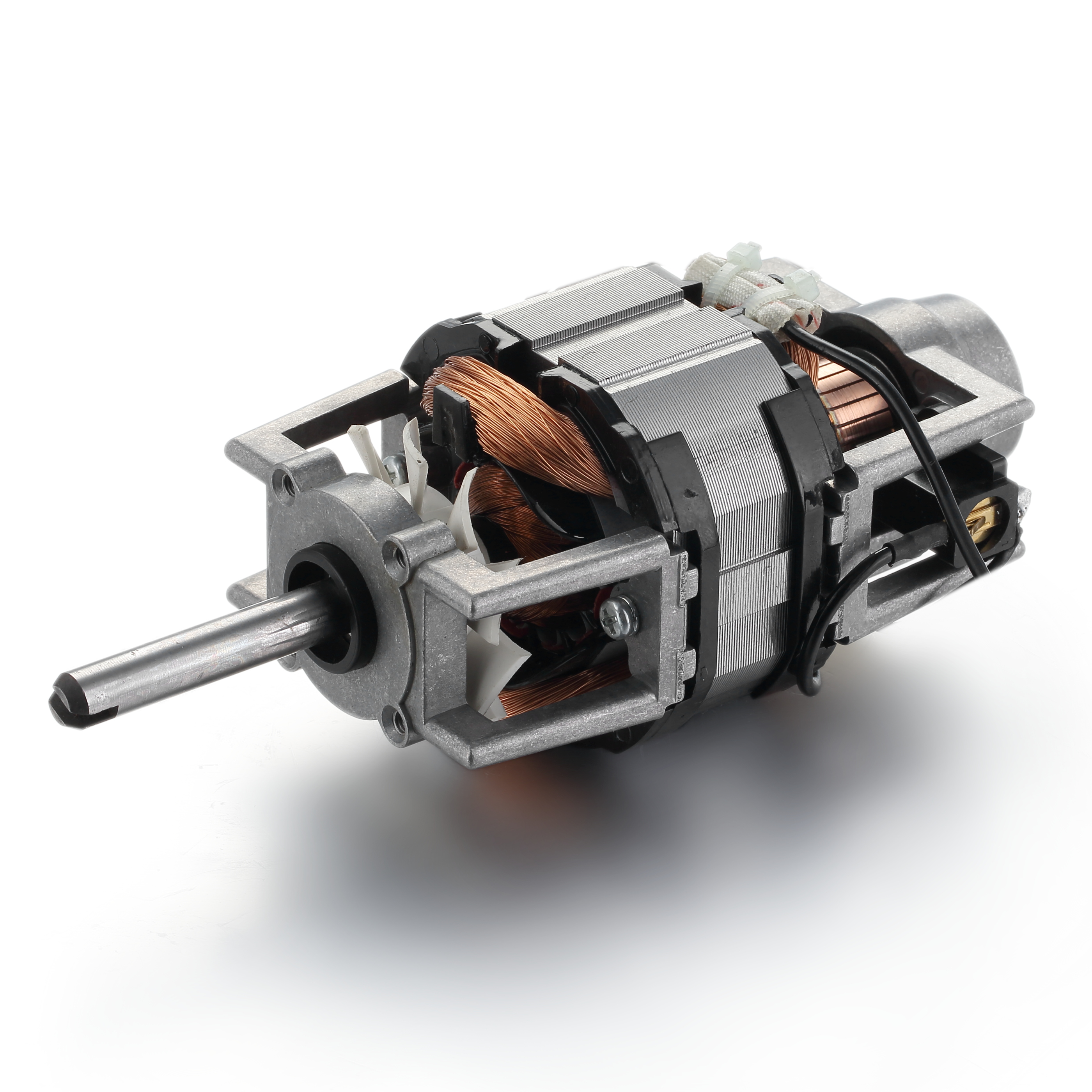

7630 AC Motor

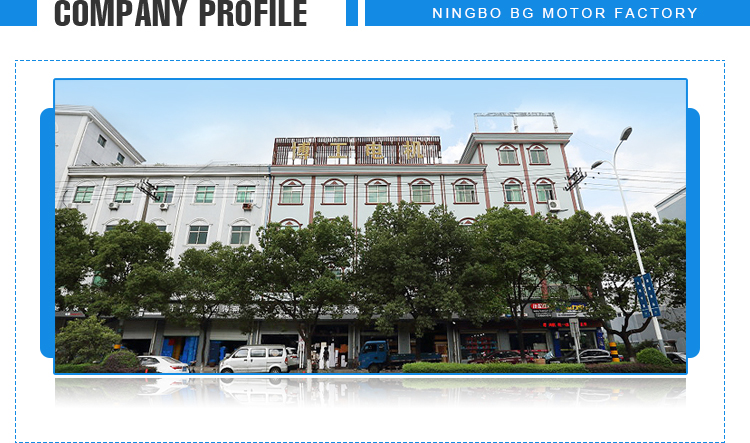

Established in 1994, we are a professional manufacturer of brushless DC motors, brushed DC motors, planetary gear motors, worm gear motors, Universal motors and AC motors. We have a plant area of 6000 square meters, multiple patent certificates, and independent design and development capabilities with strong technical force. Our annual output exceeds 1 million units.
We focus on provide overall motor solutions, professional customized services, and rapid response to customer needs. Our motor products are exported to 20 countries, including the United States, Germany, Italy, the United Kingdom, Poland, Singapore, South Korea, and more.
Our products are widely applied in AGVs, underwater robots, medical equipment, sewing machines, automobiles, automatic doors, lifting equipment, and various industrial applications.
