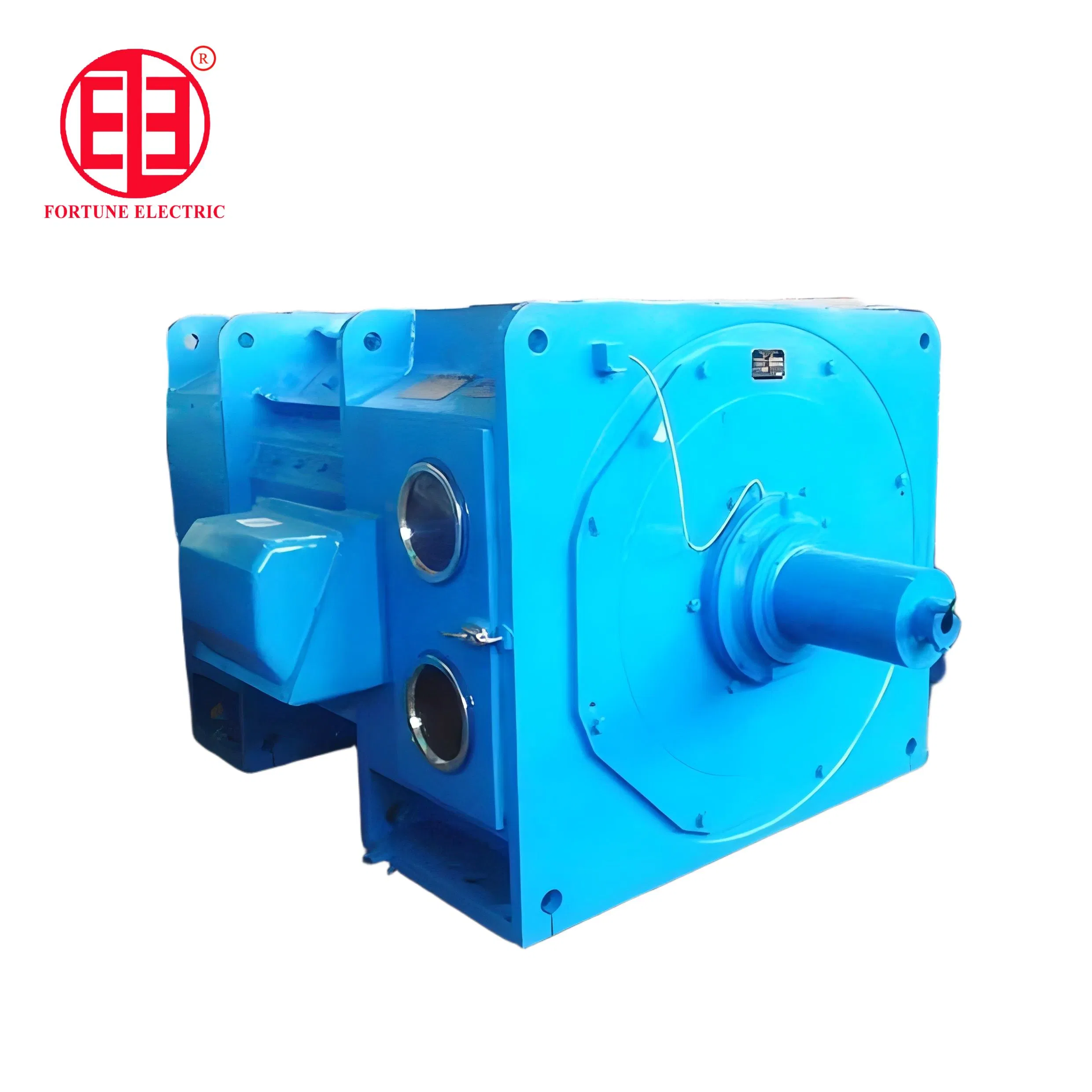

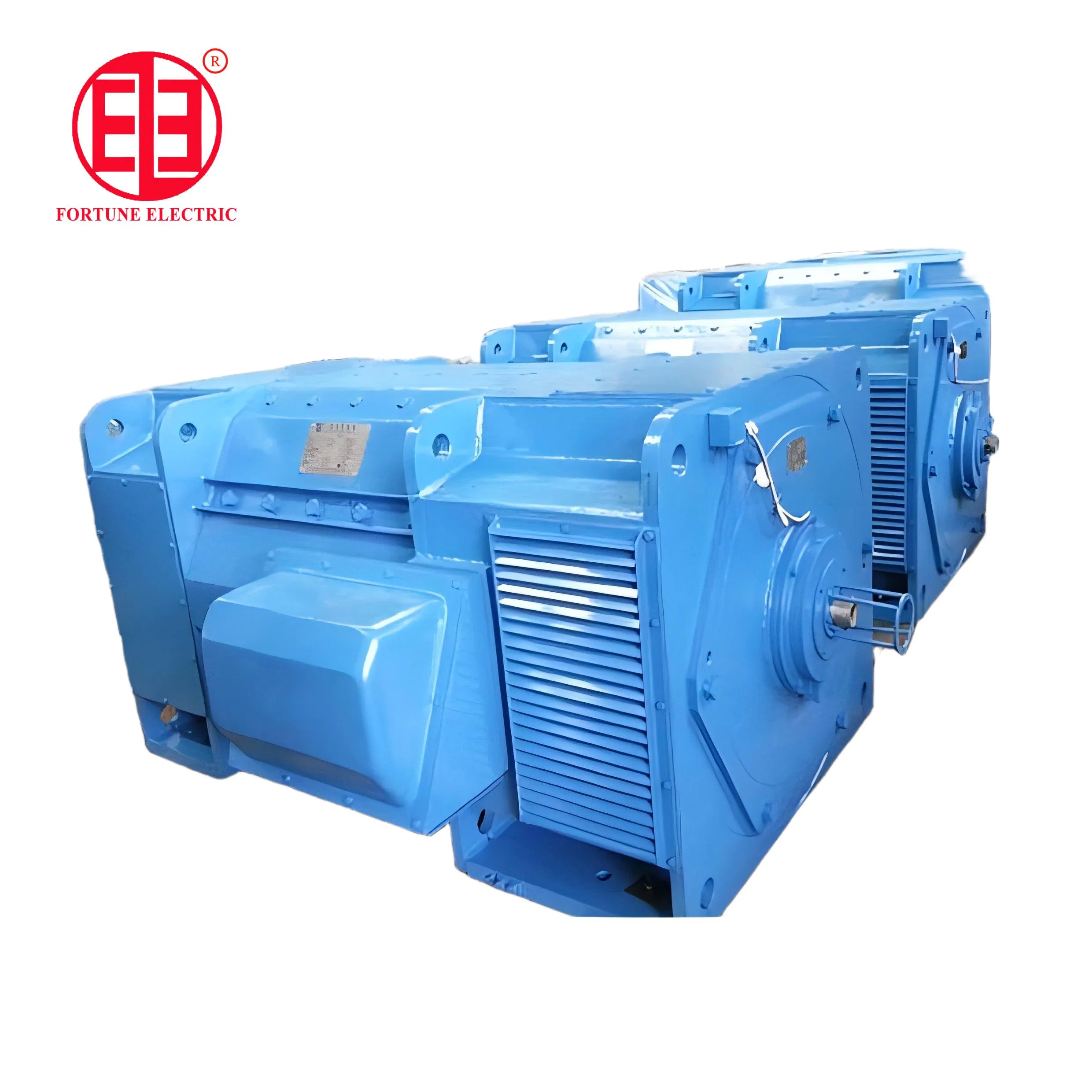

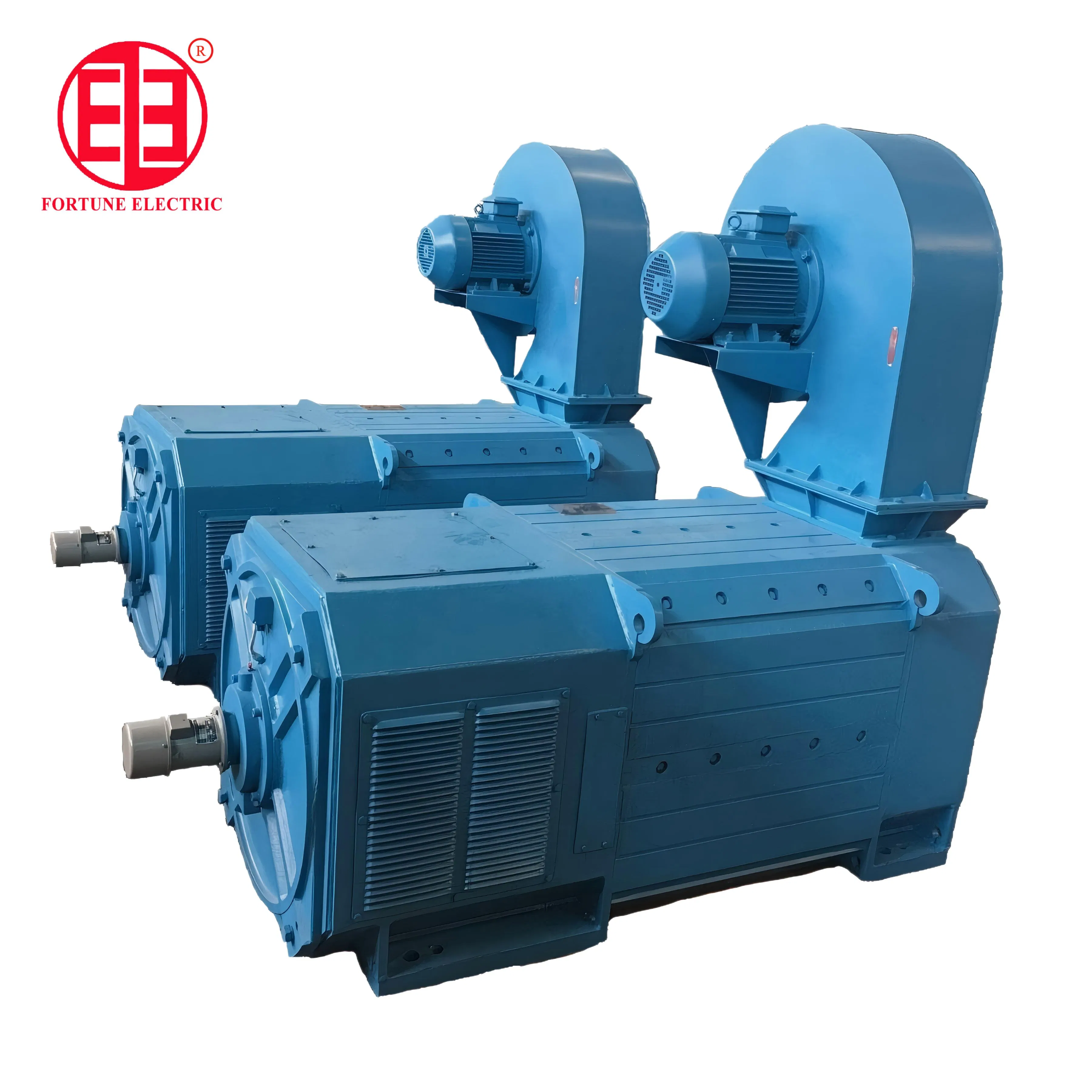

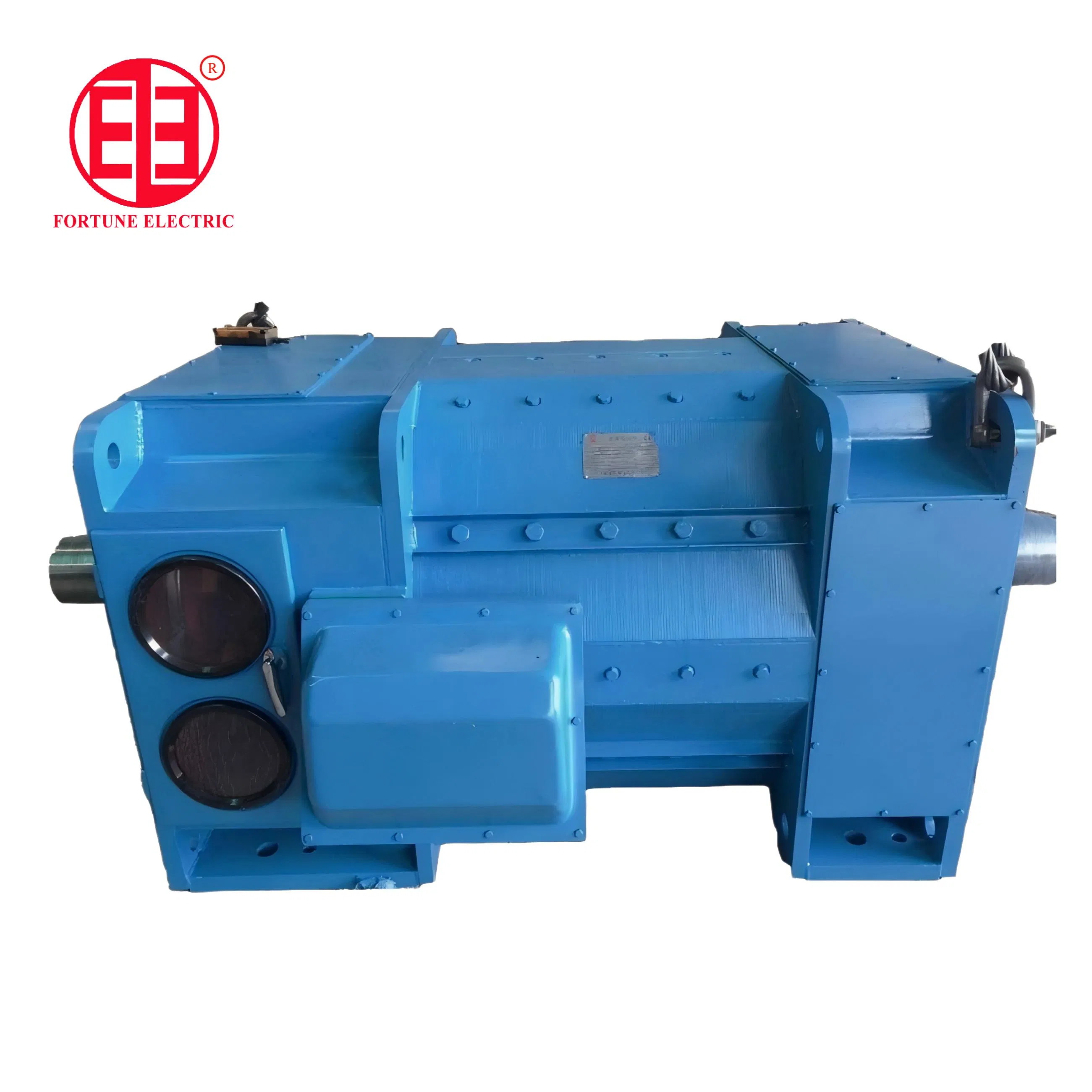

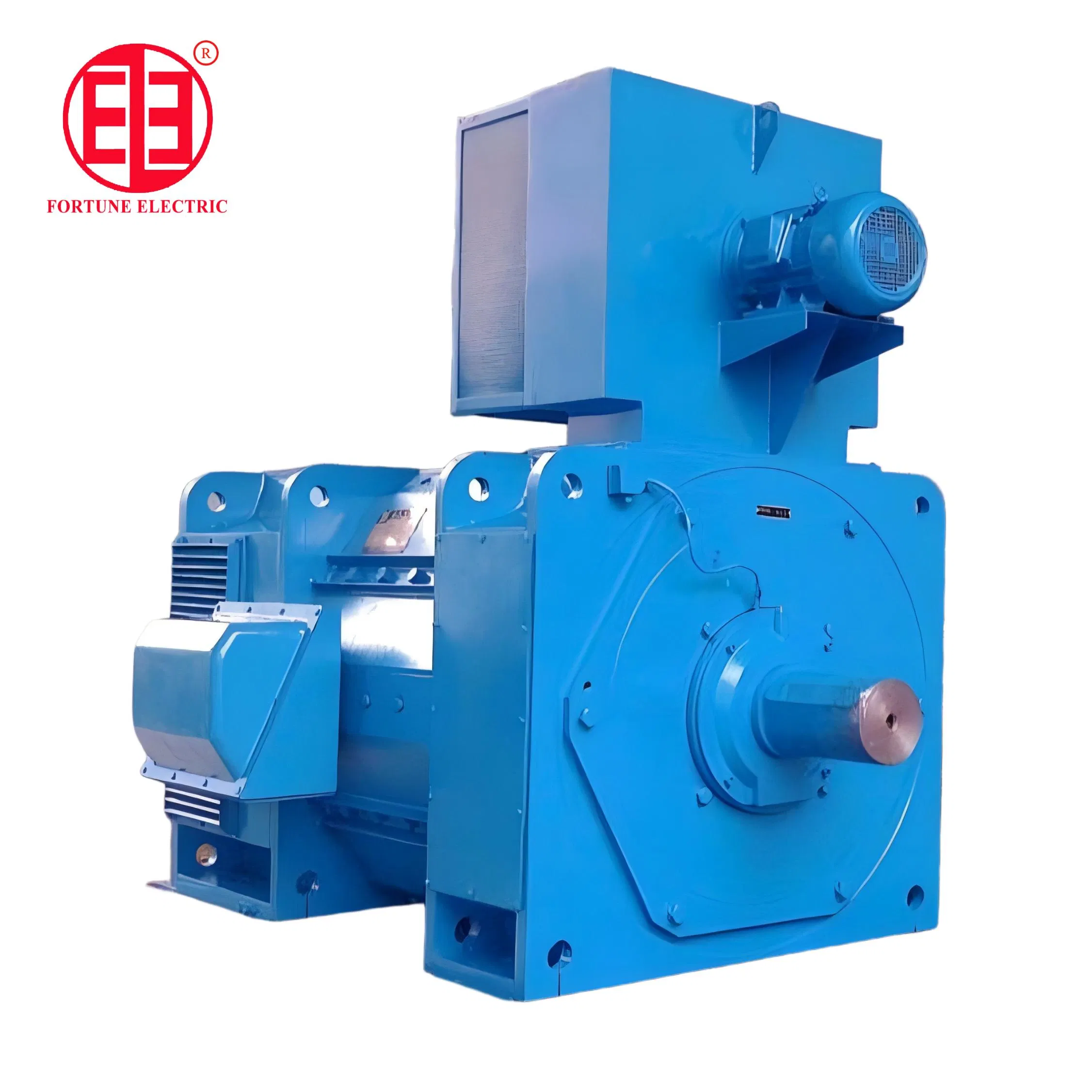

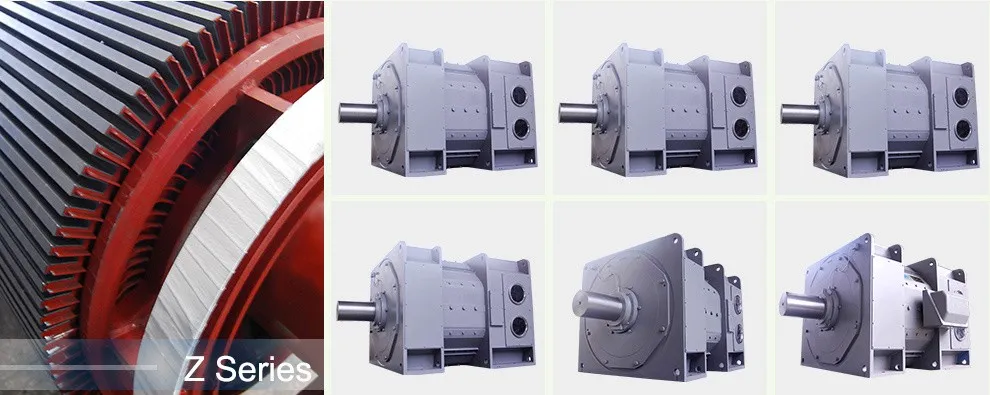

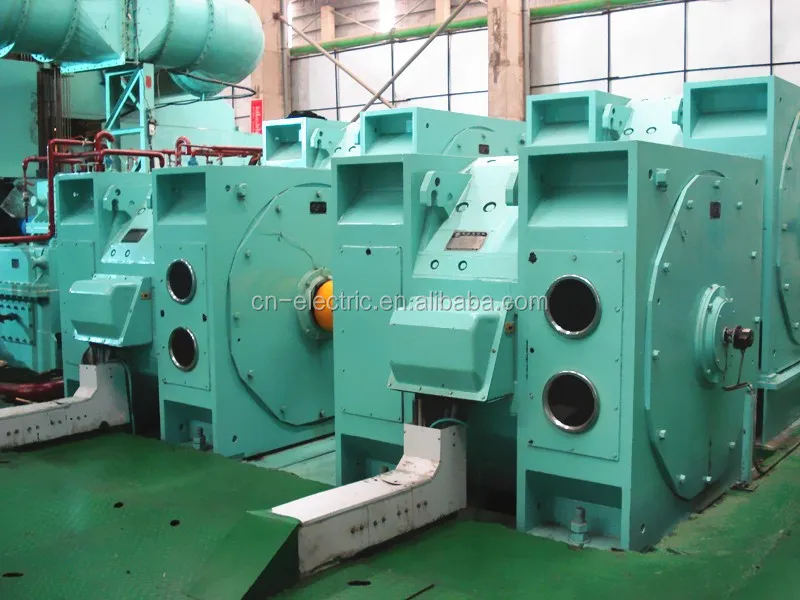

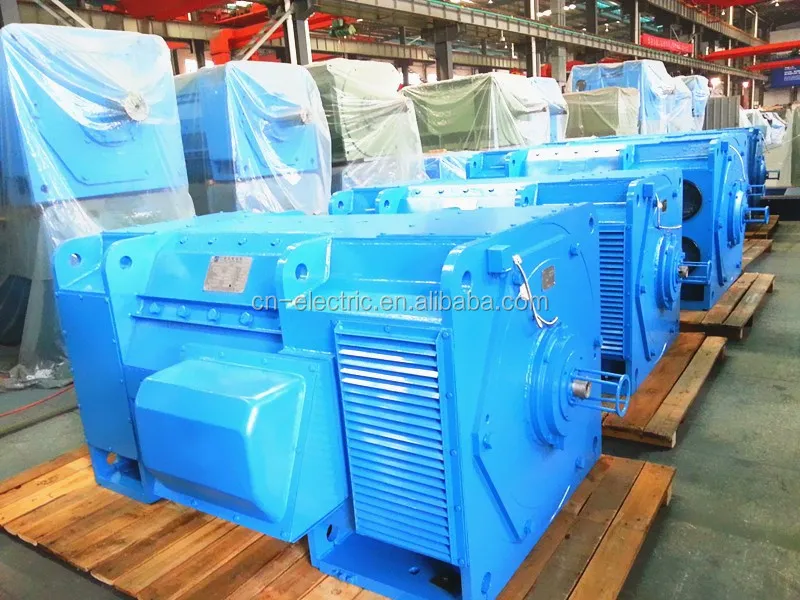

200 HP Z Series Direct Current Motor for Heavy Duty Applications

1 / 5

200 HP Z Series Direct Current Motor for Heavy Duty Applications

Send Inquiry

Product Description

Introducing the Z Series Large Size DC Motor, thoughtfully engineered with a polygon structure that enhances the stator's inner space efficiency. This masterpiece features a laminated magnet yoke, perfectly adapted for silicon-controlled commutation power supplies, and can withstand pulsating and rapid current changes with ease. Our precision-oriented magnetic poles and compensate winding guarantee superior reverse performance across all motors in the system. Boasting an F-class insulation, this motor employs a reliable insulation structure paired with nonmenstruum vacuum pressure impregnation for consistent insulation quality and exceptional heat dissipation characteristics.

Product Parameters

Environmental Limits: Max altitude 1,000m; Cooling air temp max 40°C; Cooling water temp max 32°C.
Standard Compliance: Adheres to GB755, IEC60034-1, and JB/T9577 standards.
Voltage Options: Standard 440V, 550V, 660V, 750V (others negotiable).
Excitation Type: Separately excited, 220V standard.
Overload Capacity: Type A for general industry; Type B for metal rolling mills.
Current Stability: Withstands up to 250 times the rated current change rate.
Noise & Vibration: Compliant with GB10068 and GB10069.3 standards.

Percentage of basic speed	Operation Frequency
Percentage of basic speed	Seldom Using	Constantly Using
100	200	175
200	160	150
>300	140	125

Frame	Cooling Wind (M³/hr)	Wind Pressure (Pa)	Motor Power (Kw)	Weight (Kg)	Water Flux (M³/hr)	Motor Power (Kw)	Weight (Kg)
H500	10000	1900	7.5	300	19	11	900
H560	16500	2250	15	400	22	18.5	1100
H710	23500	2400	18.5	600	40	2*11	1600

Packaging & Shipping

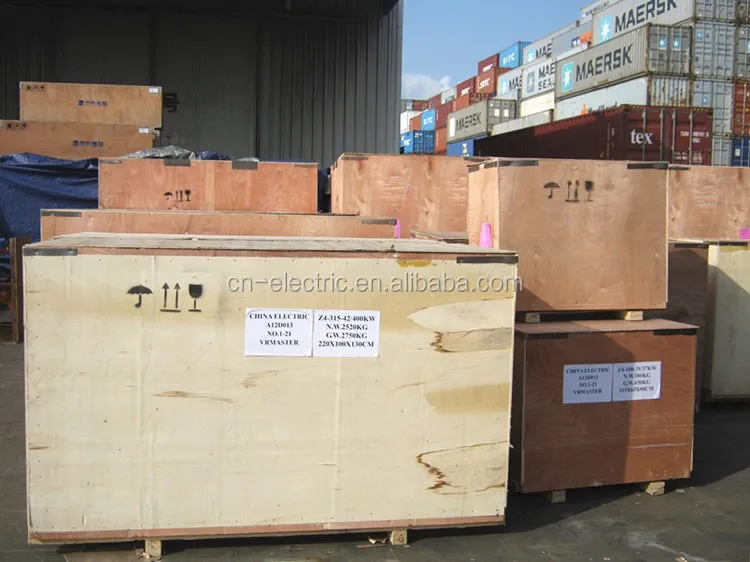

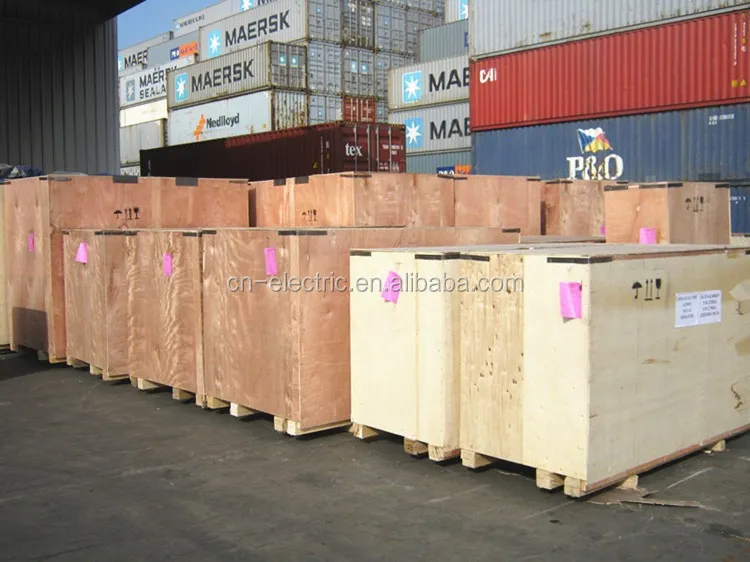

Protective packaging that matches your needs: Inner packing comprises 3-4 layers of moisture sealers or tailored as per your specification. The external packing is fortified with a robust plywood case to ensure safety during transit.

Installation & After Sales

Installation Instructions:

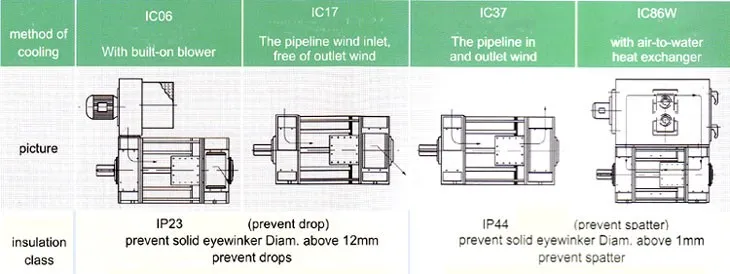

Cooling methods: IC06, IC17, IC37, IC86W; Protection: IP23, IP44.
Styles: IM1001, IM1002 (GB/T997).
Customizable terminal box positions (Right/Left).
Optional accessories: Temperature detectors, tachogenerators, heaters, and encoders.

Service Commitment:

Pre-Sales: Inquiry support, sample testing, and facility tours.
After-Sales: Professional installation training and overseas engineering support.

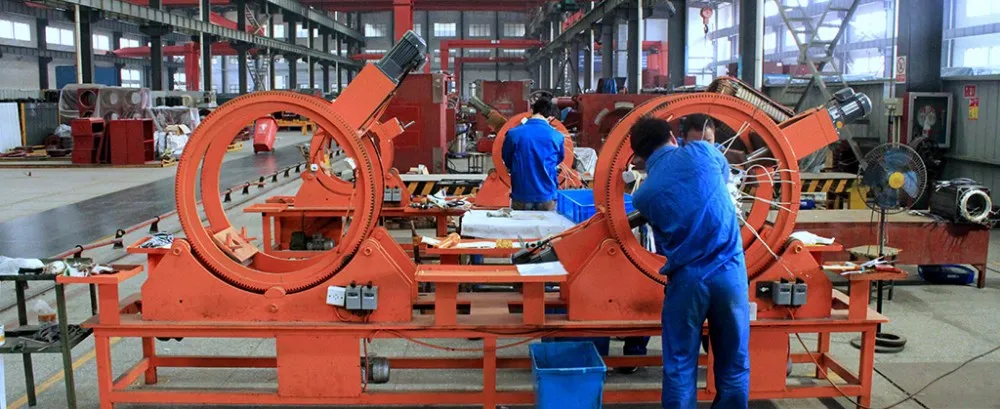

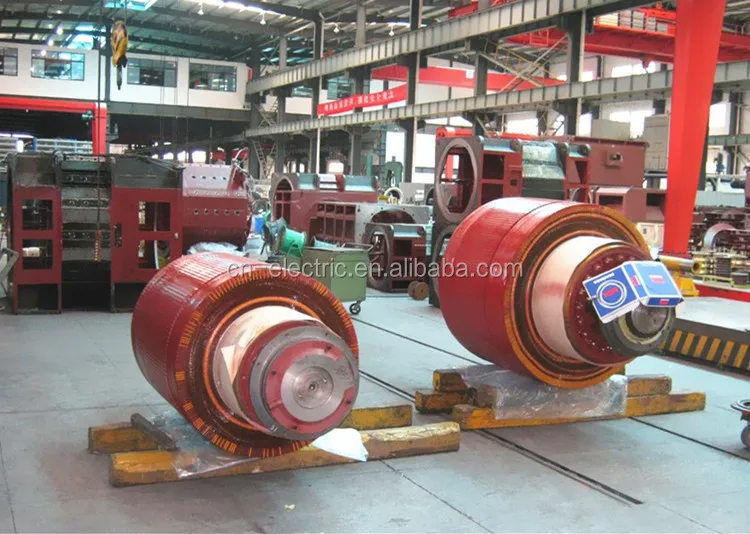

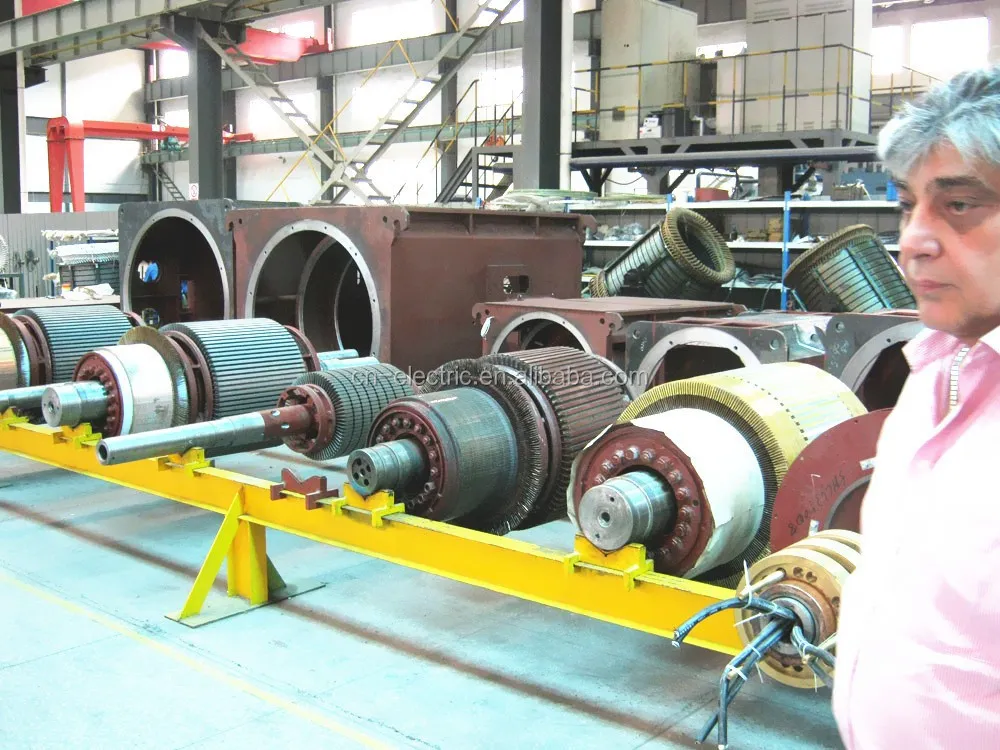

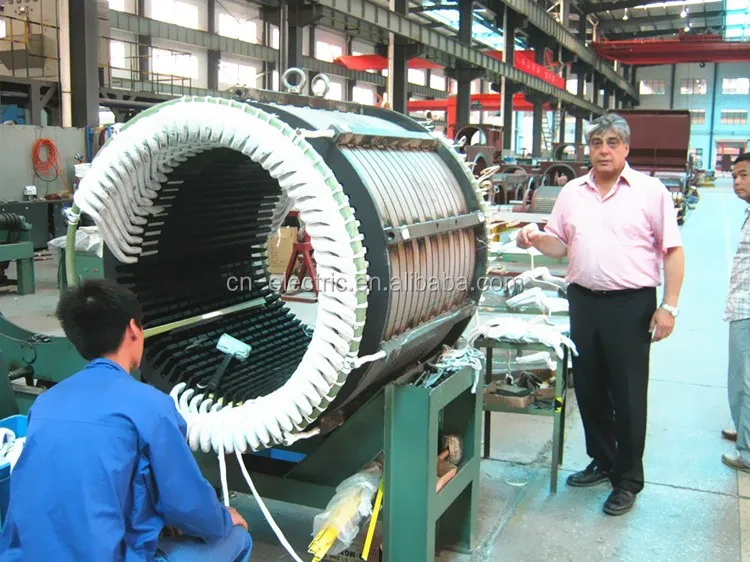

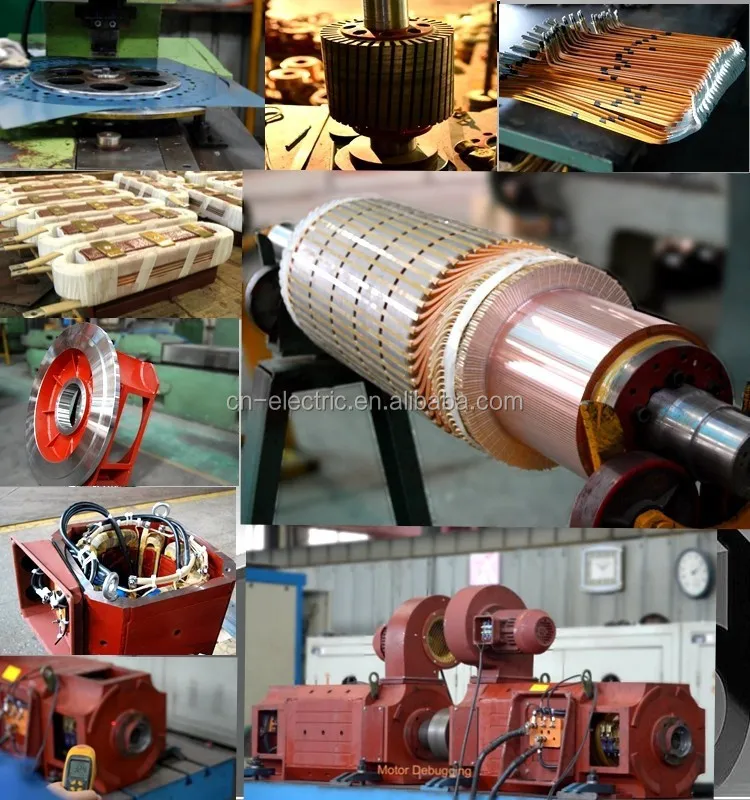

Manufacturing Facility

Frequently Asked Questions

1. What are the key design features of the Z Series DC motor? The Z Series features a polygon structure for high stator efficiency, a laminated magnet yoke for pulsating current resistance, and F-class insulation for superior heat dissipation.

2. Which international standards do these motors comply with? All motors are manufactured in strict adherence to GB755, IEC60034-1, and JB/T9577 standards.

3. Can the voltage and excitation be customized? Yes, while standard voltages range from 440V to 750V and excitation is typically 220V, other specifications are negotiable to meet your requirements.

4. What cooling and protection options are available? We offer cooling methods including IC06, IC17, IC37, and IC86W, with protection classes IP23 and IP44 to suit various industrial environments.

5. How are the motors protected during international shipping? Motors are packed with 3-4 layers of moisture sealers and encased in robust plywood crates to prevent damage and corrosion during transit.

6. Do you provide after-sales technical support? Yes, we provide comprehensive training for installation and usage, and our engineers are available for overseas service and technical support.
