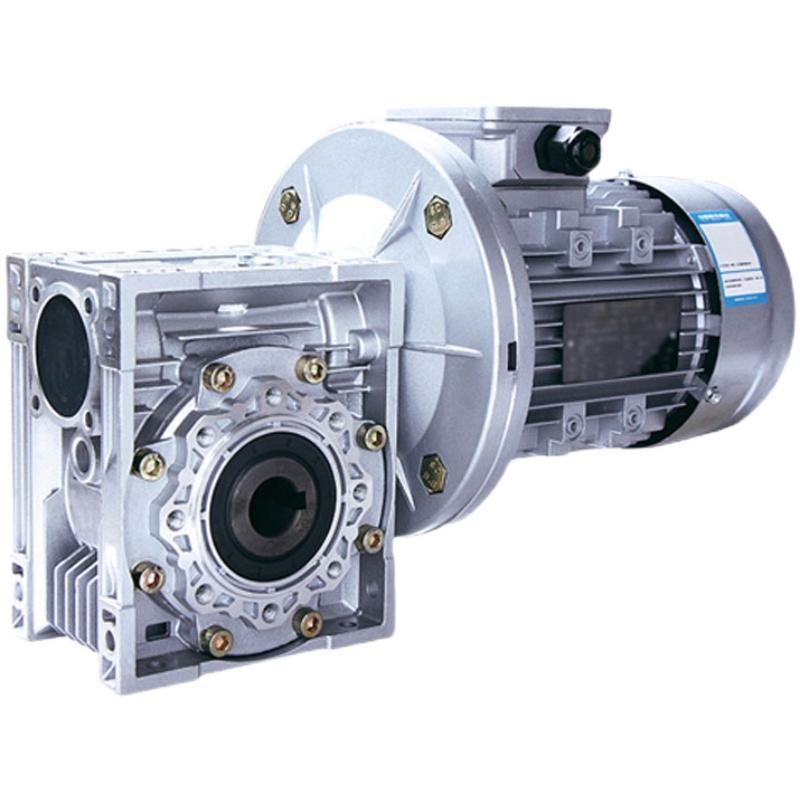

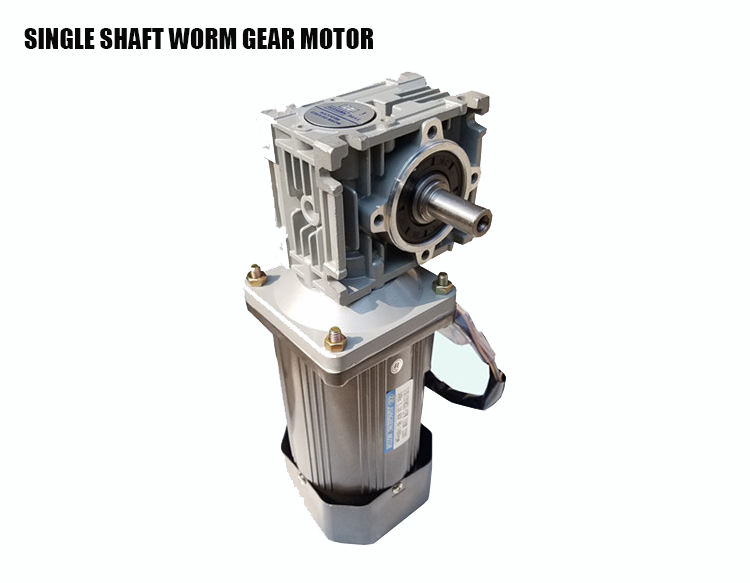

0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor
0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor
0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor
0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor
0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor
1 / 5
0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor
0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor
0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor
0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor
0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor

0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Three Phase AC Asynchronous Gear Motor

Send Inquiry

Product Description

0.5HP 0.37KW 4P 1440RPM 3Phase NMRV50 1:30 Worm Reducer Gear Motor

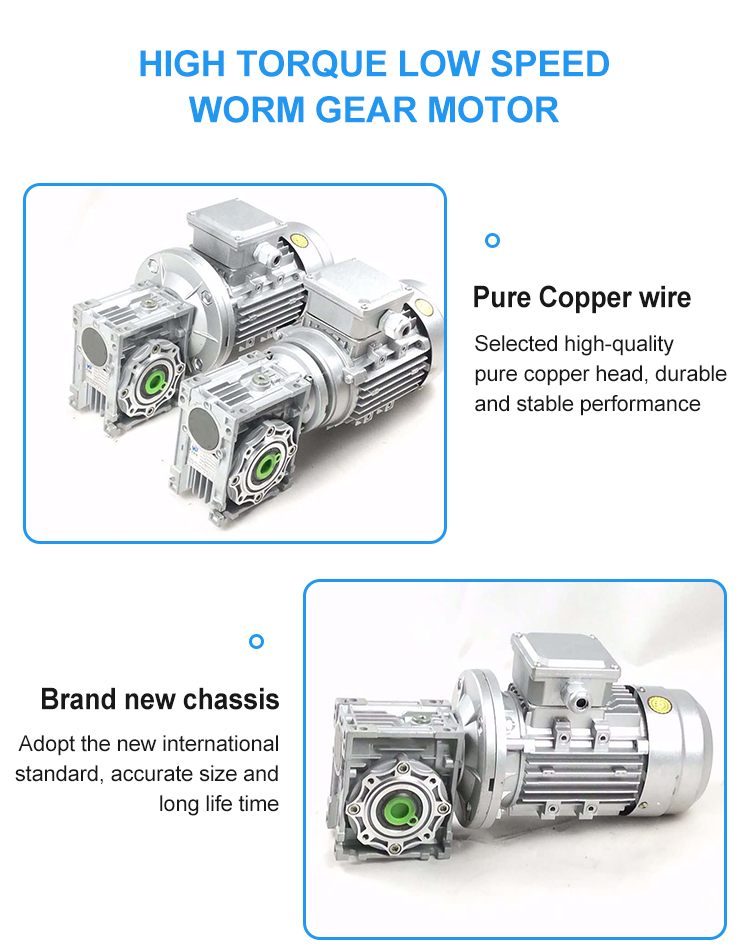

NMRV50 Worm Reducer Front View

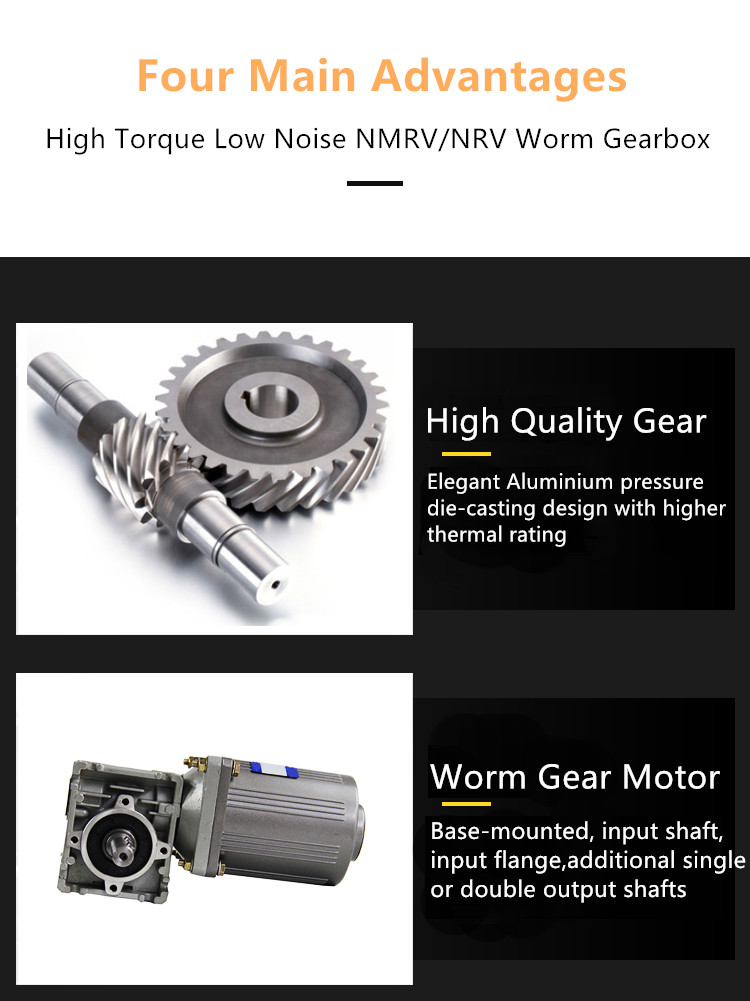

NMRV50 Gear Motor Side View

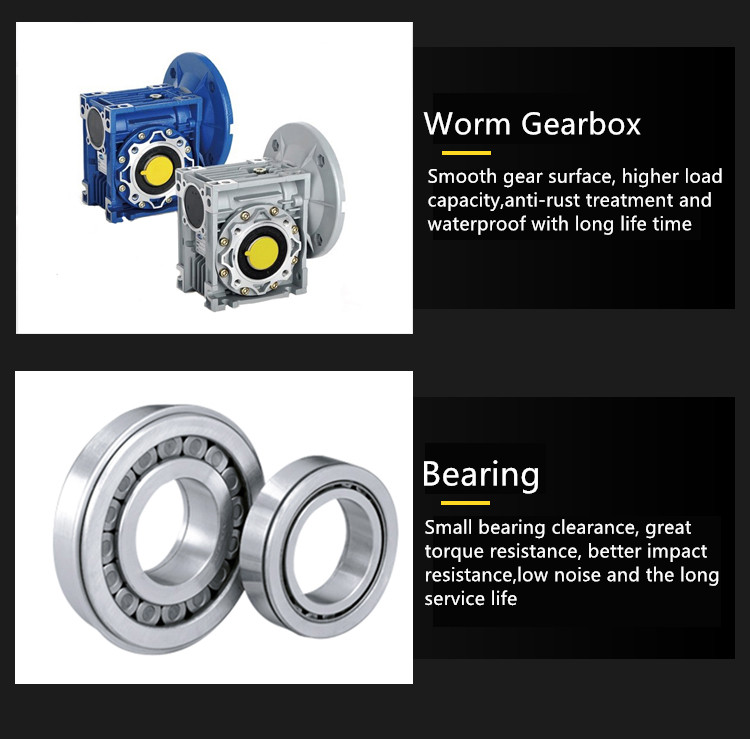

NMRV50 Reduction Motor Detail
Wide Application
Suitable for Food Stuff, Ceramics, Chemical, and Wood working industries.
High Quality Materials
Aluminum Alloy Housing (Size 25-110) and Tin Bronze Pinion for durability.
Model No. NMRV025, NMRV030, NMRV040, NMRV050, NMRV063, NMRV075, NMRV090, NMRV110, NMRV130, NMRV150
Ratio 5, 7.5, 10, 15, 20, 25, 30, 40, 50
Housing Material Size 25-110 Aluminum Alloy, Size 110-150 Cast-Iron
Internal Components Worm Wheel: ZCuSn10Pb1 | Worm: 20Cr | Pinion: Tin Bronze | Output Shaft: Steel-45#
Matching Motor 40W ~ 750W
Available Colors Blue / Silver Grey / Custom Request
Standard IEC Standard Flange

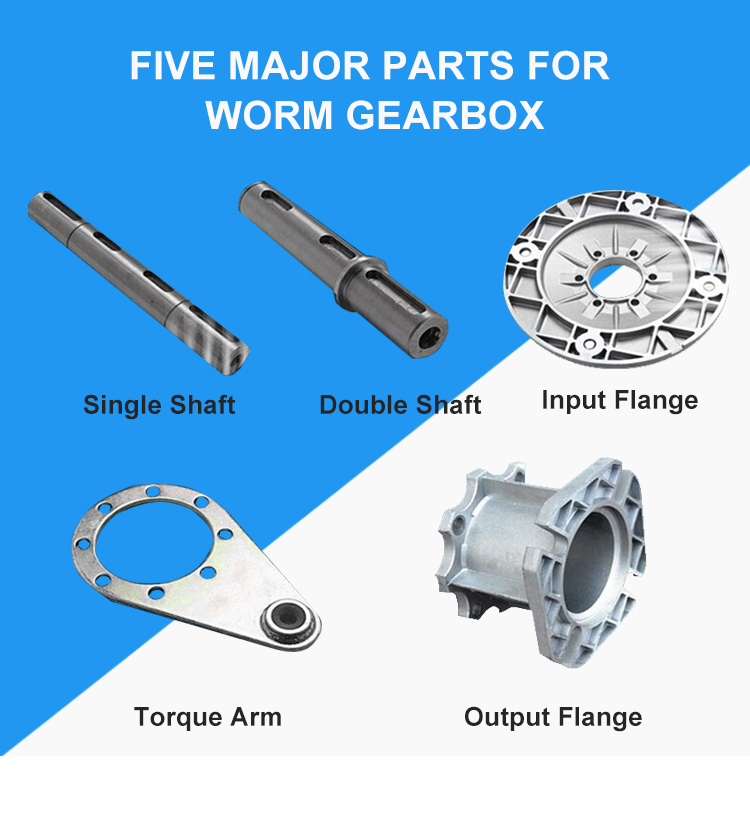

Technical Layout

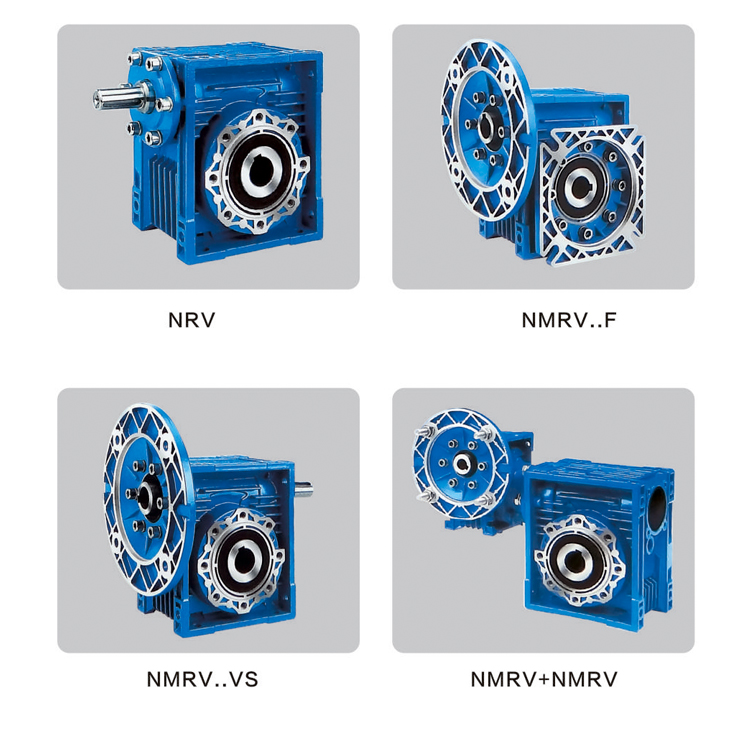

Motor Specifications
Internal Structure

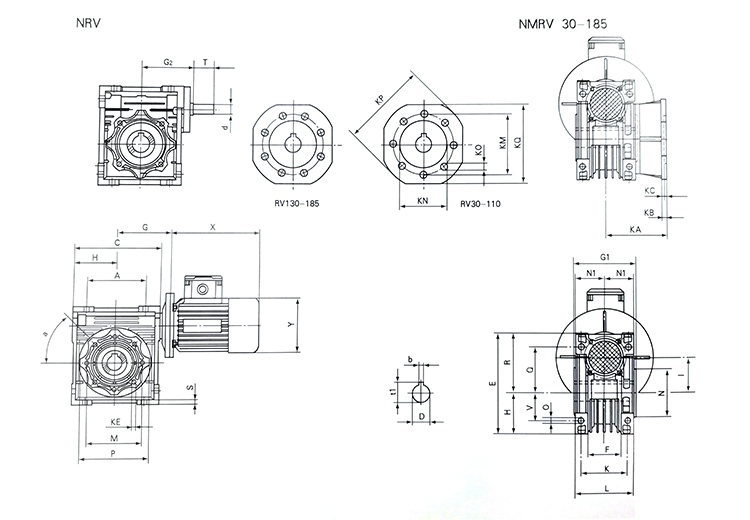

Dimension Chart
Frequently Asked Questions
What industries is this gear motor suitable for?
This NMRV50 worm reducer is designed for industrial machinery such as food processing, ceramics, chemical equipment, packaging, dyeing, woodworking, and glass manufacturing.
What materials are used in the construction of the gearbox?
For sizes 25-110, the housing is made of aluminum alloy. For sizes 110-150, cast-iron is used. The worm is made of 20Cr, the worm wheel of ZCuSn10Pb1, and the output shaft is 45# steel.
Can I get a custom color for the motor?
Yes, while our standard colors are Blue and Silver Grey, we can provide custom colors based on specific customer requirements.
What motor power range can be matched with this reducer?
This series of worm reducers is compatible with motor power ratings ranging from 40W to 750W (0.5HP).
What are the available reduction ratios?
The available reduction ratios include 5, 7.5, 10, 15, 20, 25, 30, 40, and 50. This specific model features a 1:30 ratio.
Does the motor use a standard flange?
Yes, the motor is designed to fit IEC Standard Flanges. Custom flange requests can also be accommodated.
