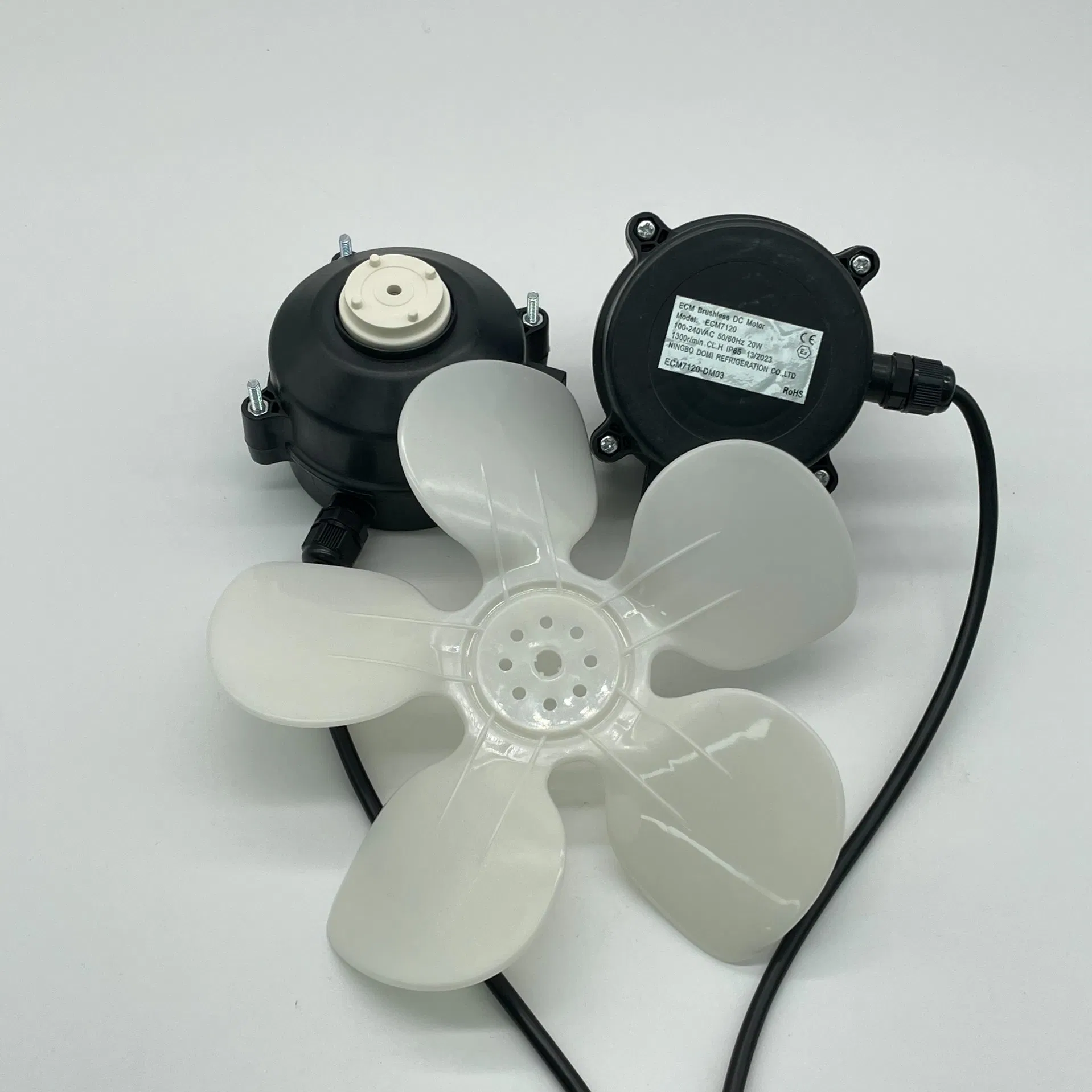

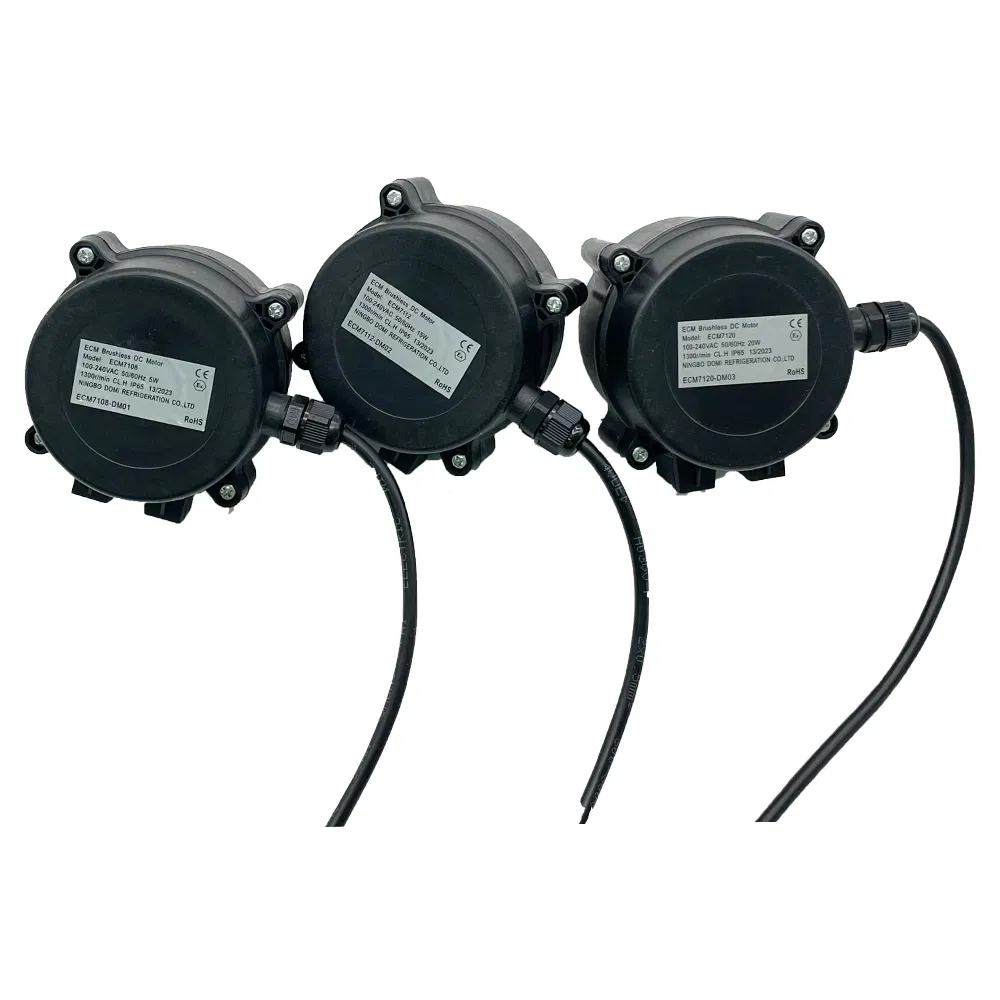

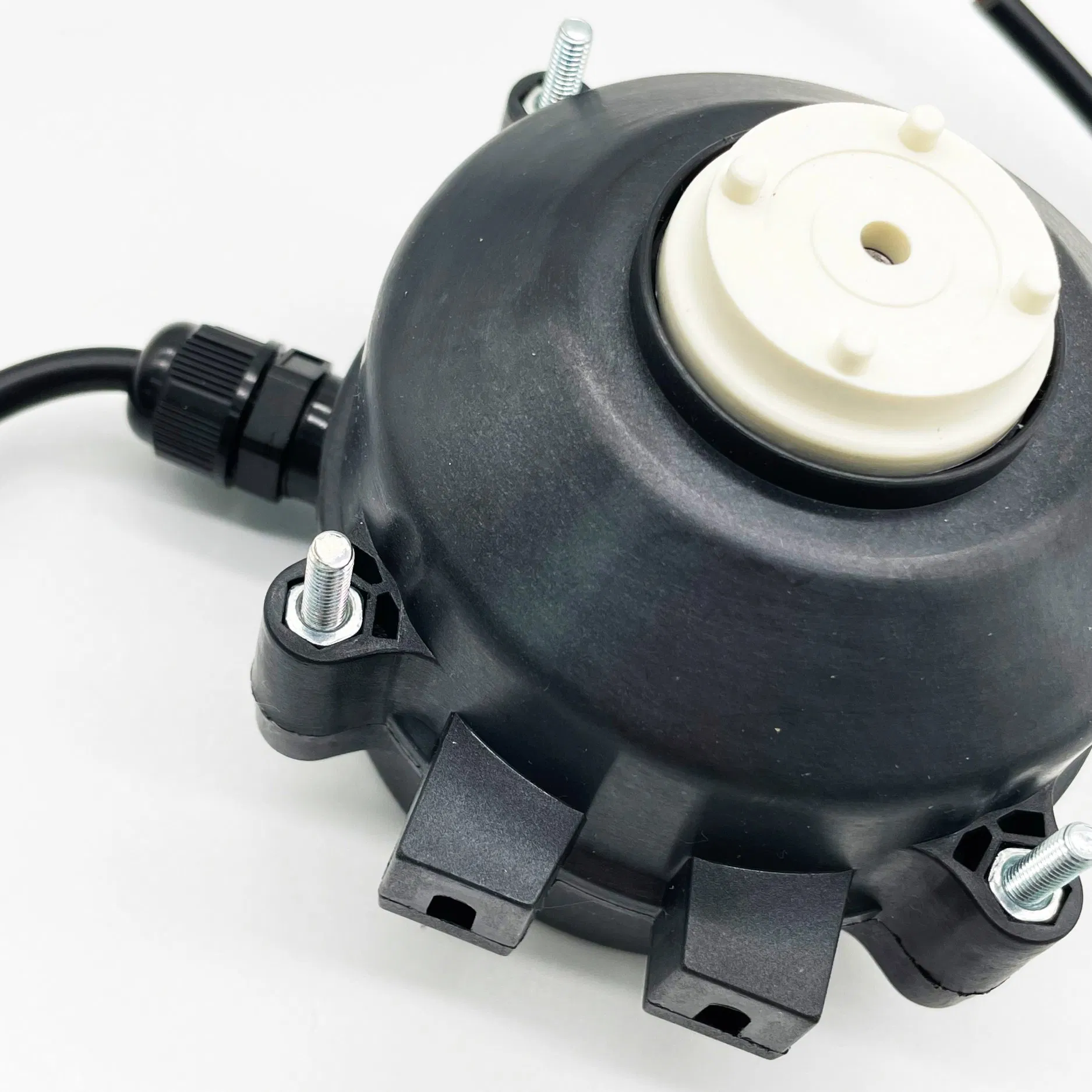

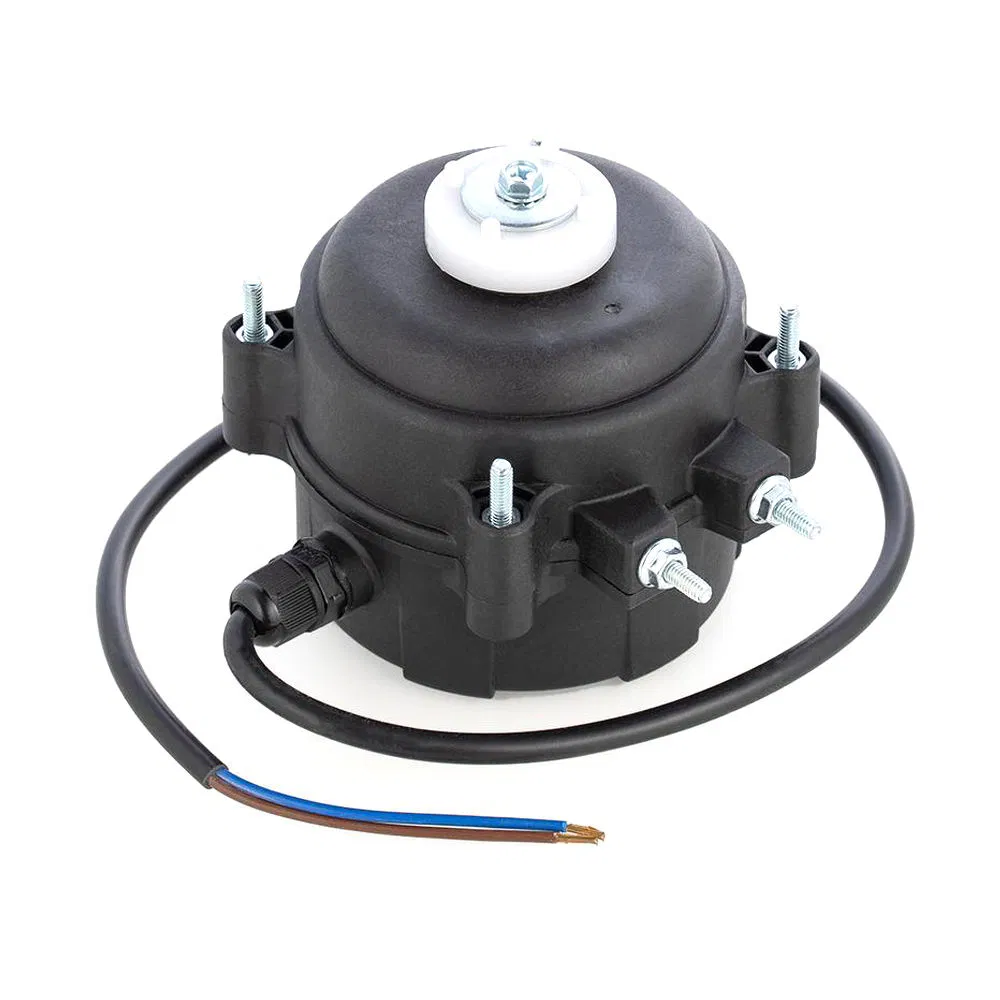

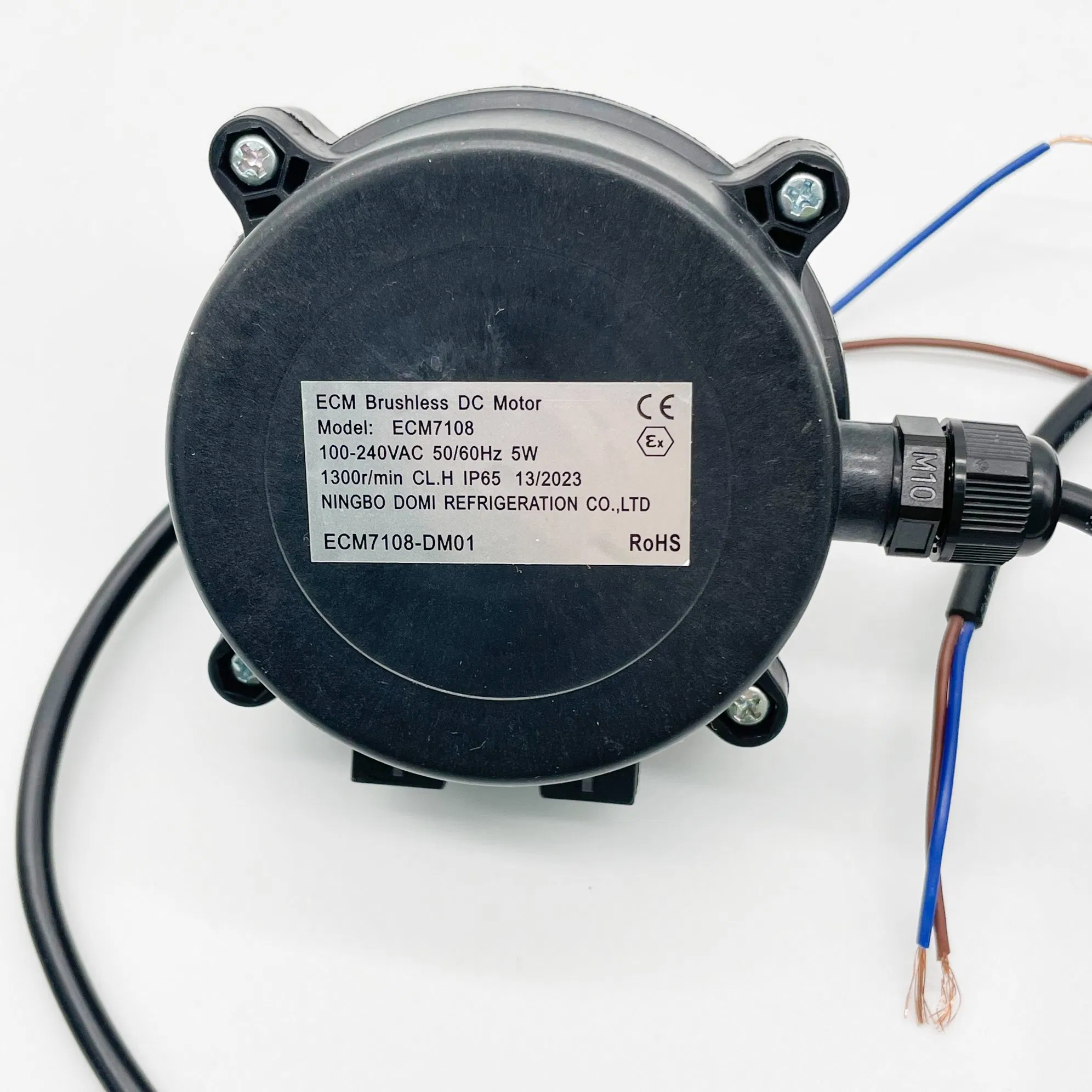

Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade
Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade
Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade
Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade
Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade
1 / 5
Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade
Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade
Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade
Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade
Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade

Versatile Brushless Ec Motor AC DC 100-240V 6115 Refrigeration and HVAC Fan Motor Ecm Brushless Motor with Plastic Blade

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model
Domi
Parts
Motor
Use
Condenser
MOQ
500 PCS
Warranty
1 Year
RPM
1350/1550
Package
Carton/Pallet
Specification
10*15cm
Origin
China
HS Code
8501400000
Product Specifications

ECM Motor AC EC Shaded Pole ECM 7108 7112 7120 Q EC Shaded Pole freezer fan Motor with fan blades for Refrigeration.

Type Features Nominal Data Speed (r/min) Output (W) Amb. Temp Dimensions
V Hz a b c
7108 Standard CW&CCW / 2 Speeds AC115 / 230 50/60 500-2300 5 -30ºC-50ºC 83 43.5 32.5
Standard CW&CCW AC100-240 50/60 500-2300 5 -30ºC-50ºC 74 43.5 32.5
7112 Standard CW&CCW / 2 Speeds AC115 / 230 50/60 500-2300 15 -30ºC-50ºC 87 43.5 32.5
Vari-speed DC24 - 500-2300 15 -30ºC-50ºC 87 43.5 32.5
Standard CW&CCW / 2 Speeds AC100-240 50/60 500-2300 15 -30ºC-50ºC 78 43.5 32.5
Key Features & Benefits

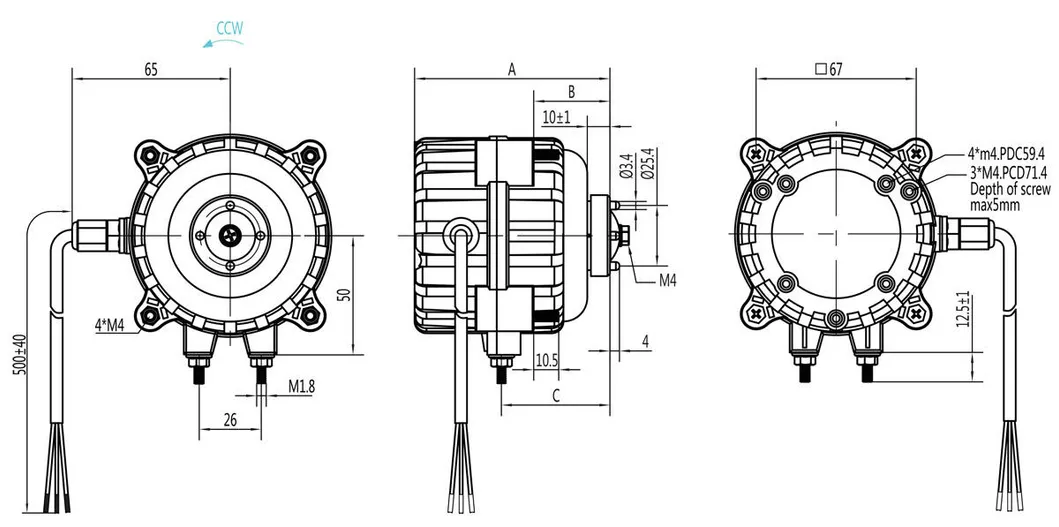

ECM Motor Technical Comparison
  • ▶
    High Energy Efficiency: Saves up to 70% energy compared to YZF series, significantly reducing electricity costs and carbon emissions.
  • ▶
    Advanced Safety (Class II): Thermoplastic housing provides Class II protection, eliminating the need for an earth conductor.
  • ▶
    High Protection (IP65): Fully enclosed design for superior moisture and dust resistance, ideal for high-humidity environments.
  • ▶
    Patented Reliability: Dual-chamber design separates electronic controls from dust and humidity for long-term stability.
  • ▶
    Seamless Replacement: External structure compatible with YZF series accessories (blades, rings, brackets).
Product Gallery

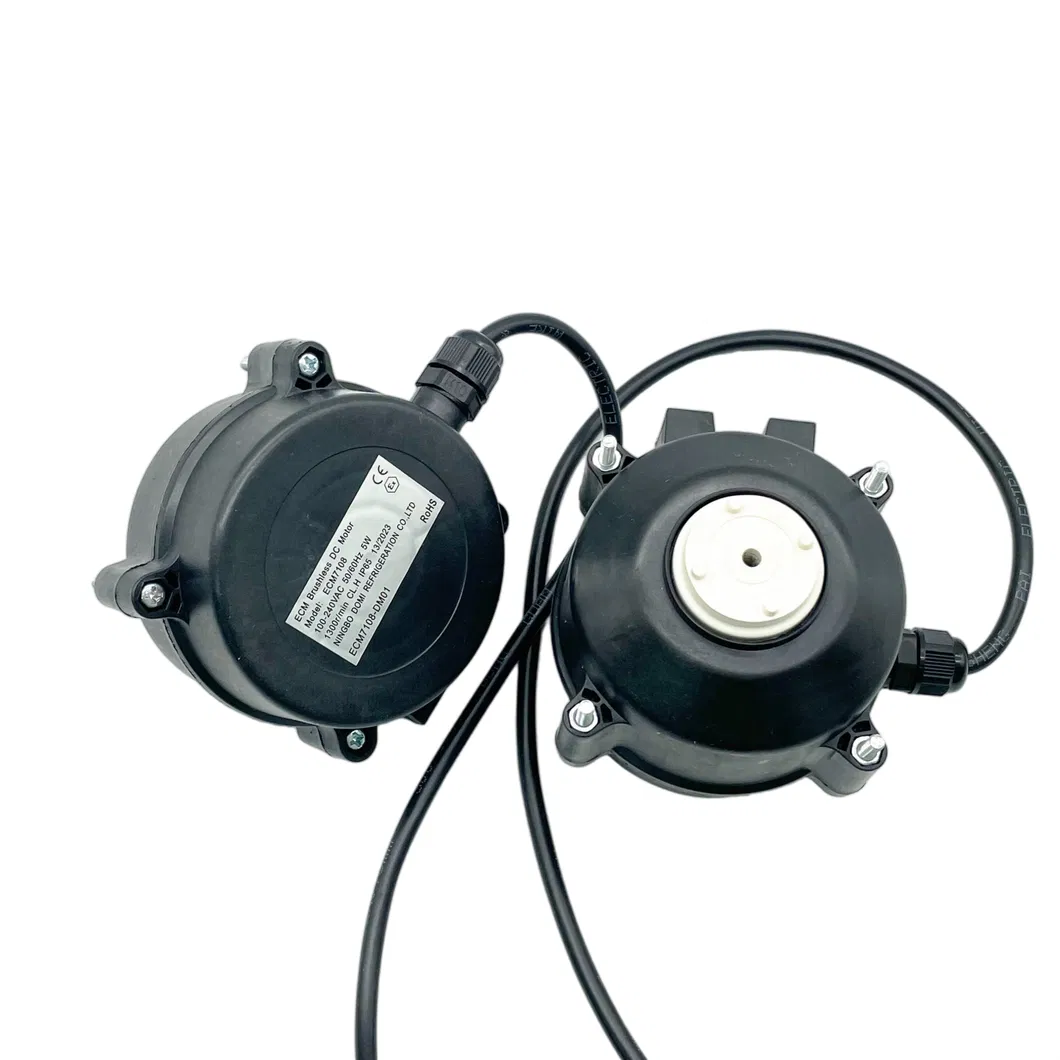

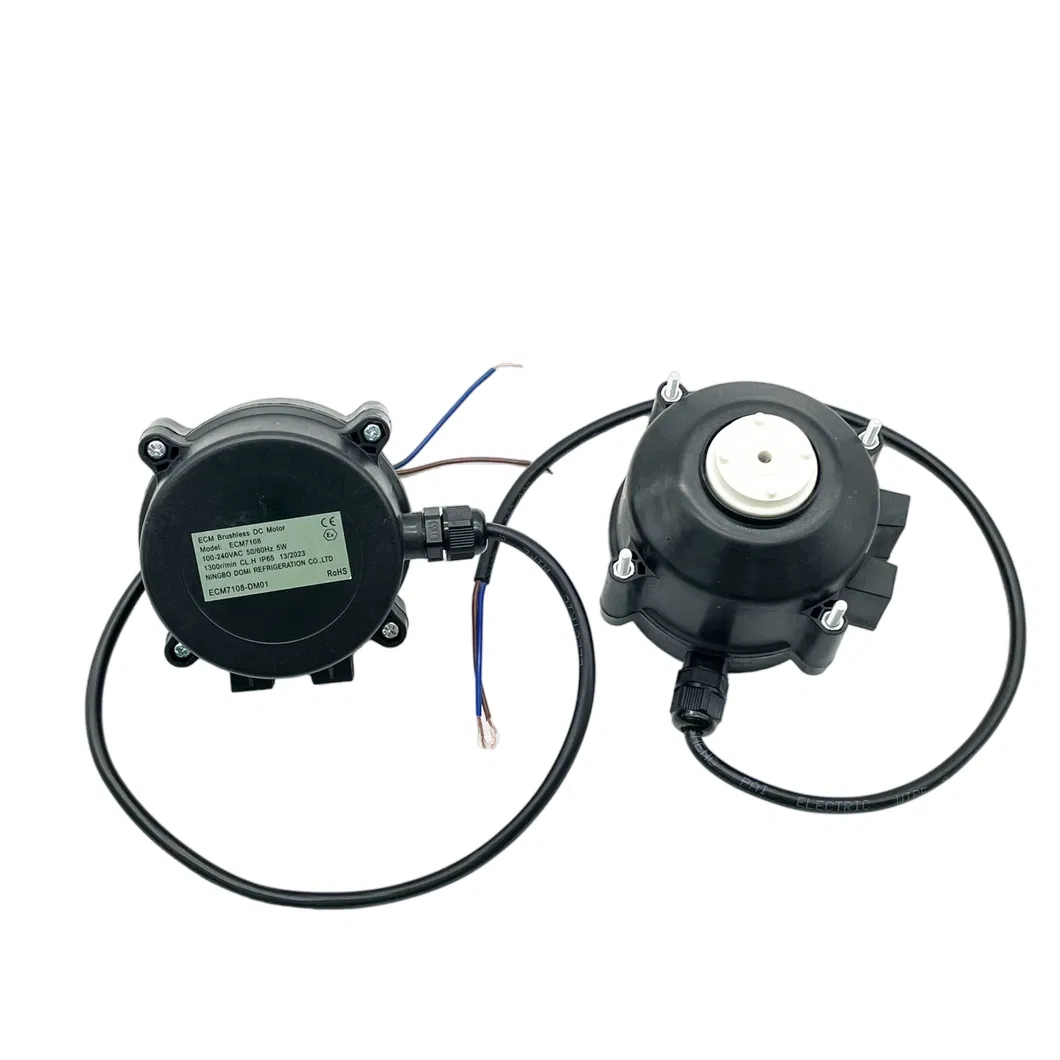

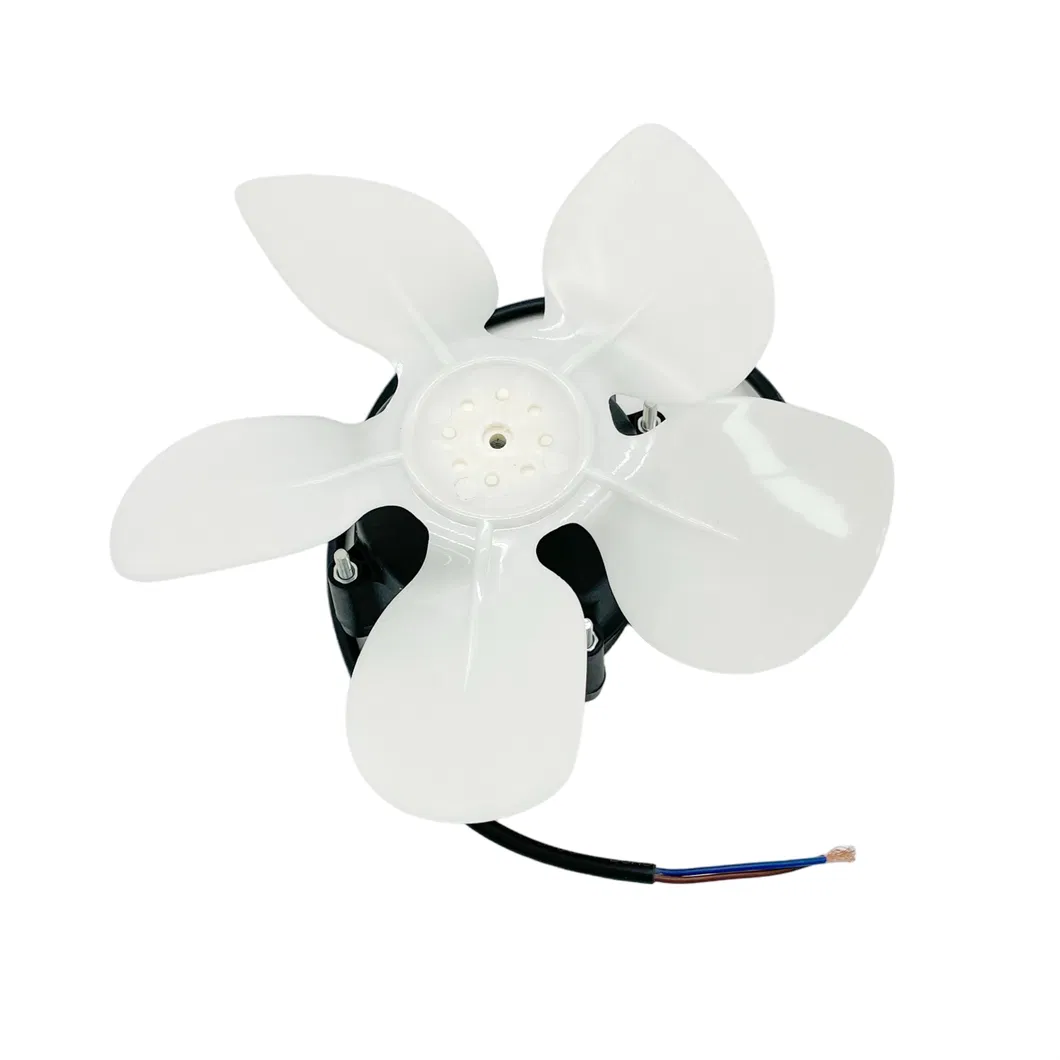

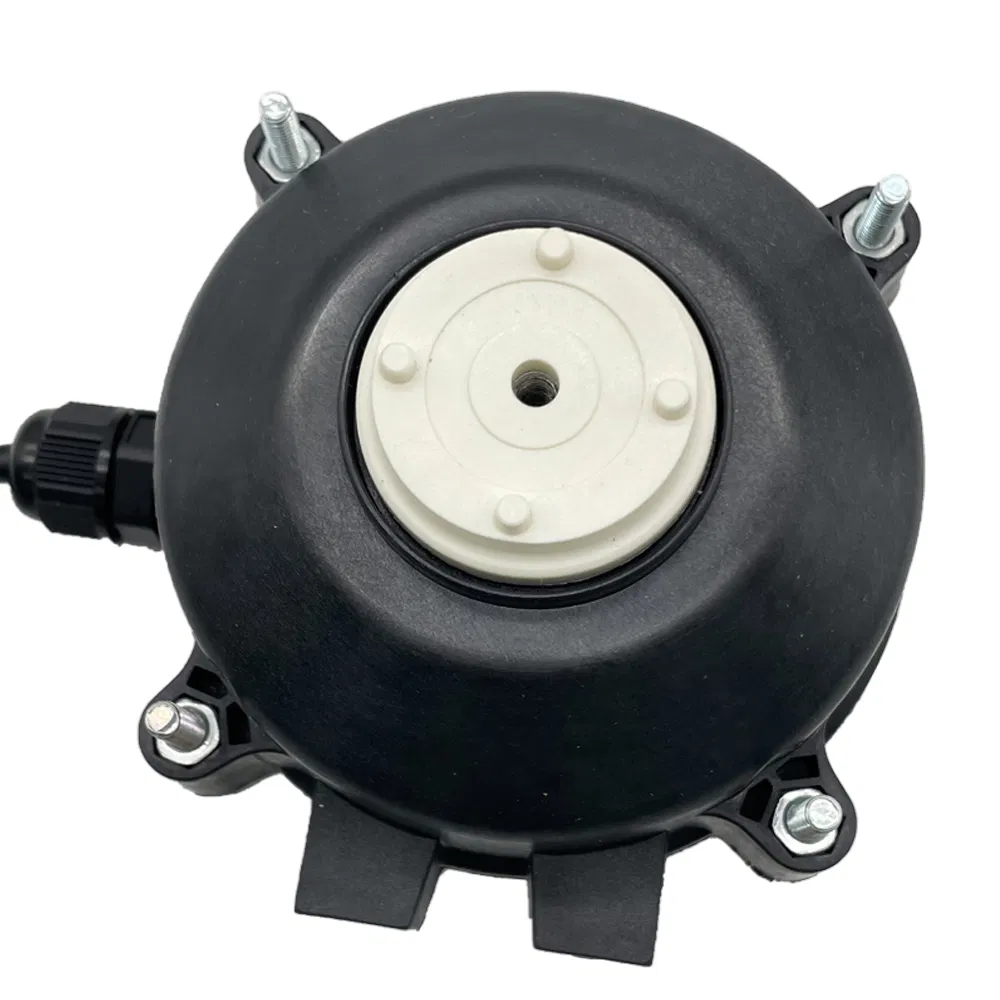

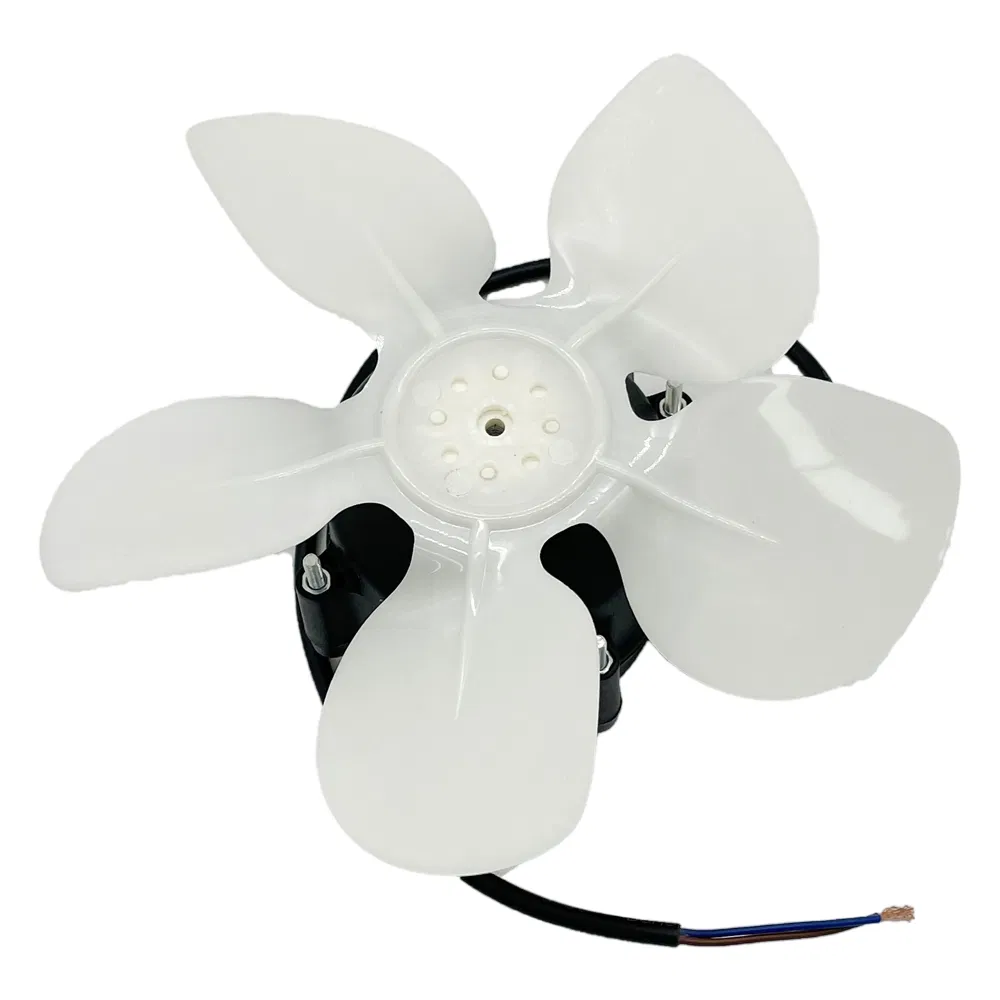

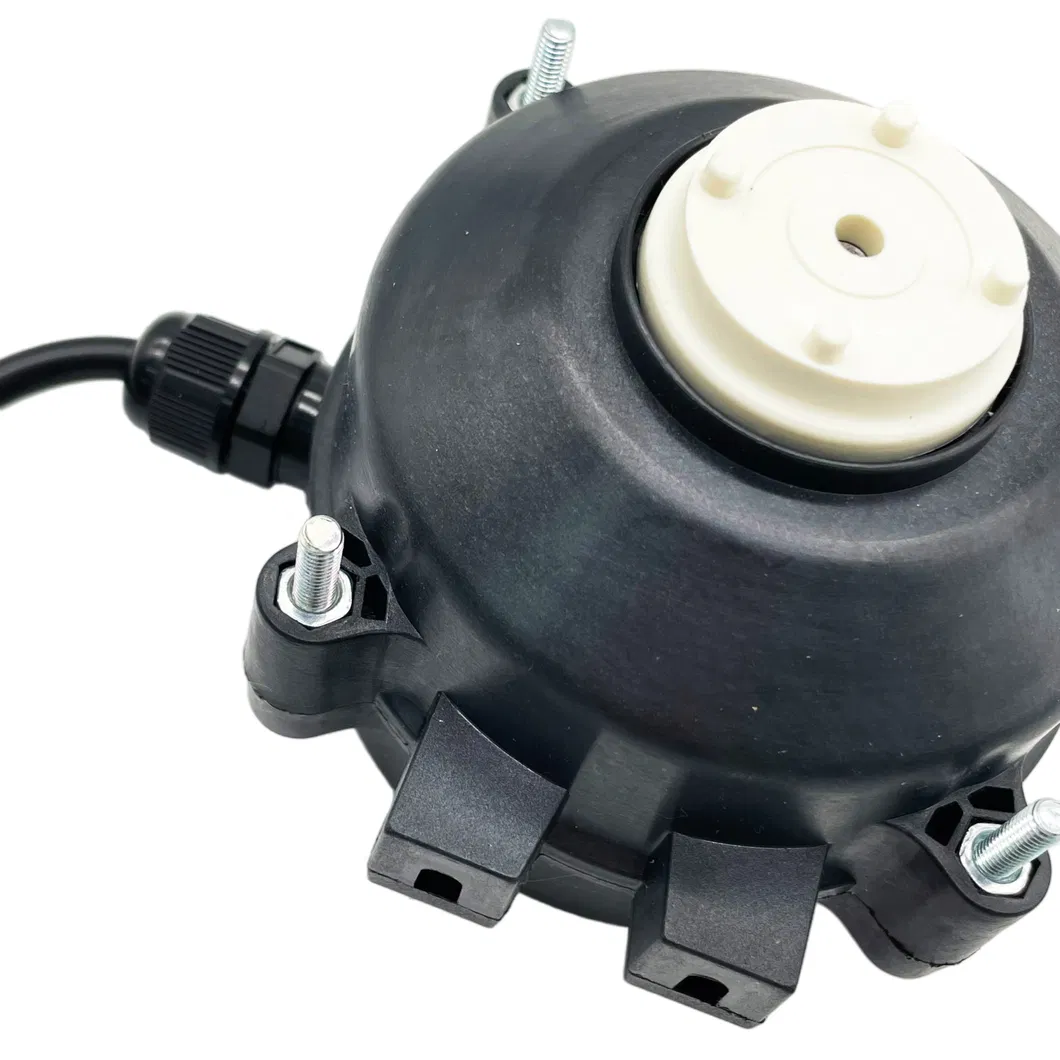

Motor detail 1 Motor detail 2 Motor detail 3 Motor detail 4 Motor detail 5 Motor detail 6
Factory Workshop
Workshop overview Production line Quality control Testing area
Frequently Asked Questions
1. Can I get some samples?
Yes, sample orders are available for quality check and market testing.
2. How are quality problems handled?
If there is any quality issue, we offer comprehensive technical support or return services.
3. Do you have sales promotion products?
To stay competitive in the global market, we frequently offer promotional products. Please contact us for the latest offers.
4. How is client profit ensured?
Our products feature a high quality-to-price ratio, ensuring most clients achieve a considerable profit margin.
5. What is the typical response time?
All inquiries are typically replied to within 24 hours, excluding holidays.
6. Are the ECM motors compatible with existing systems?
Yes, they are designed to maintain a similar structure to YZF series, making them drop-in replacements for refrigeration systems.
