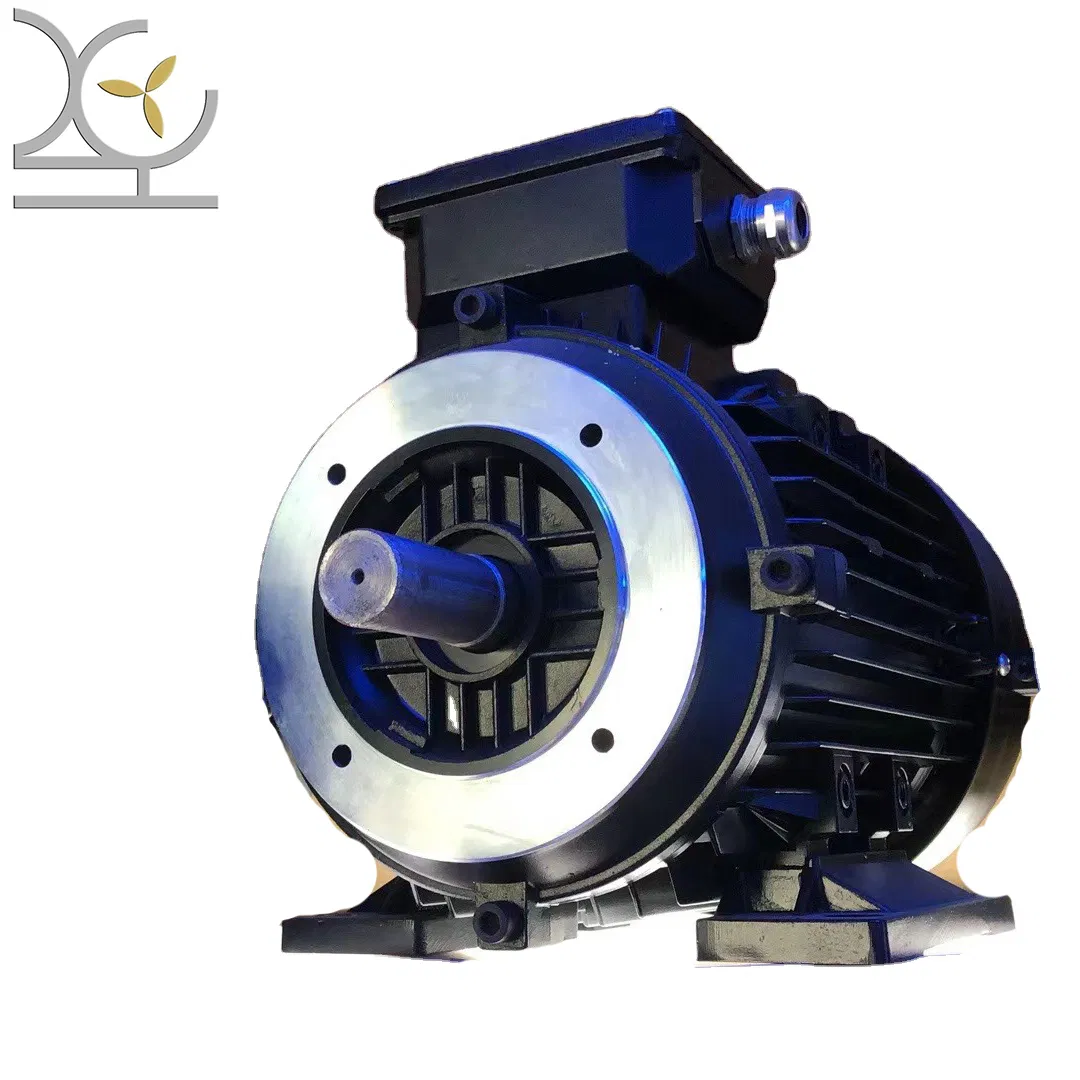

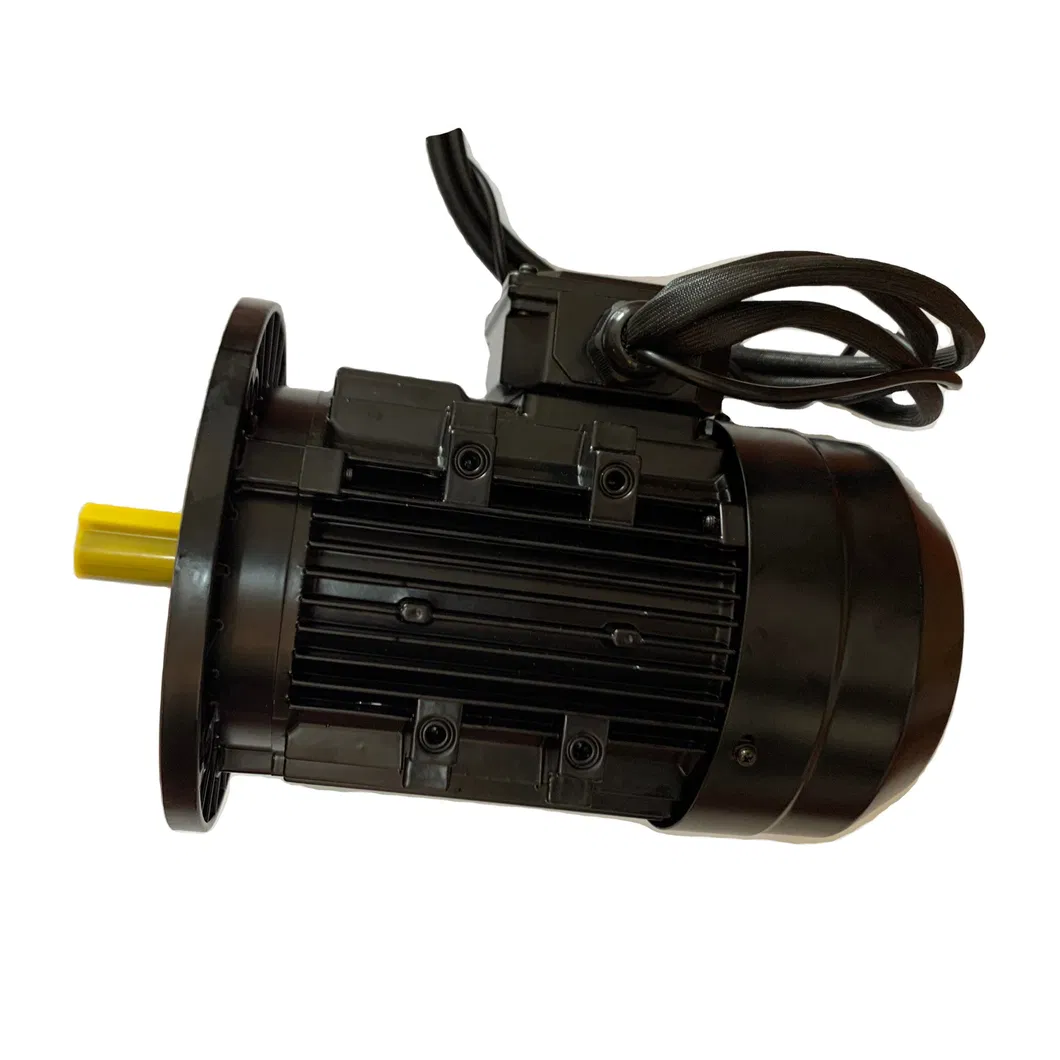

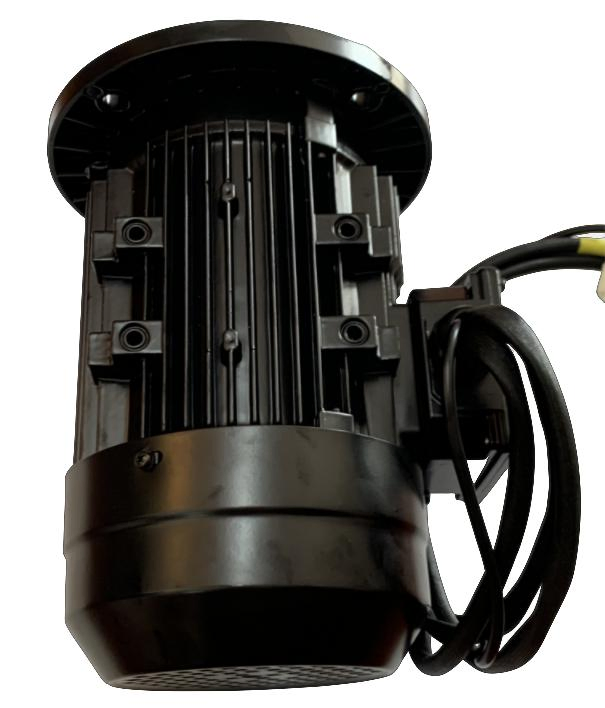

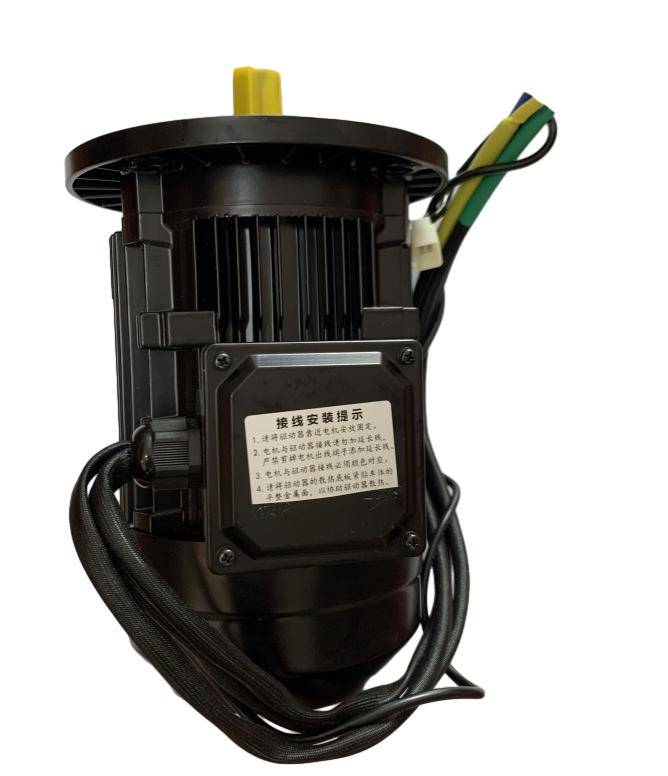

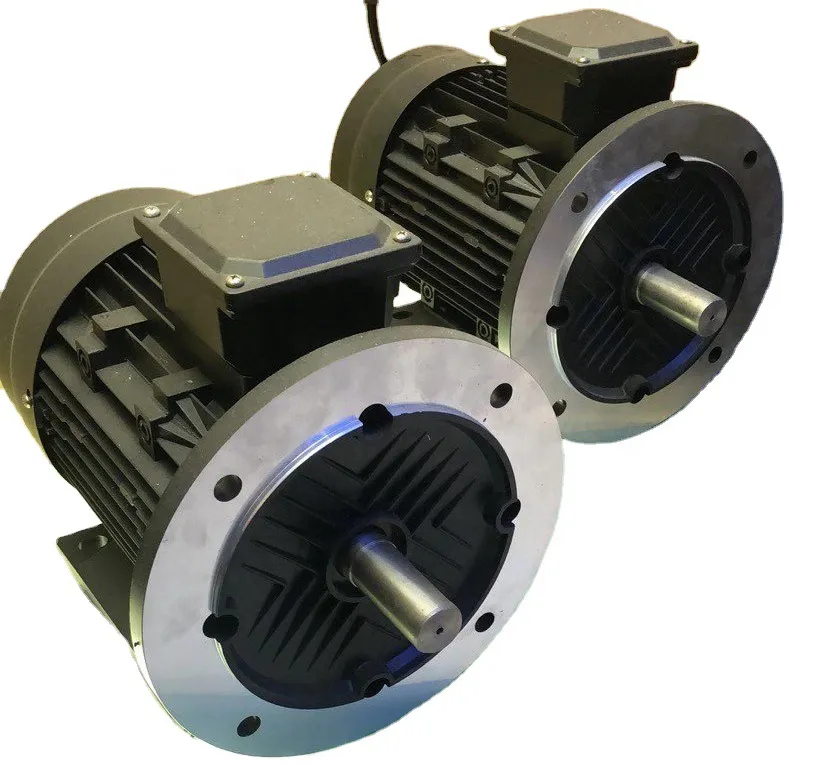

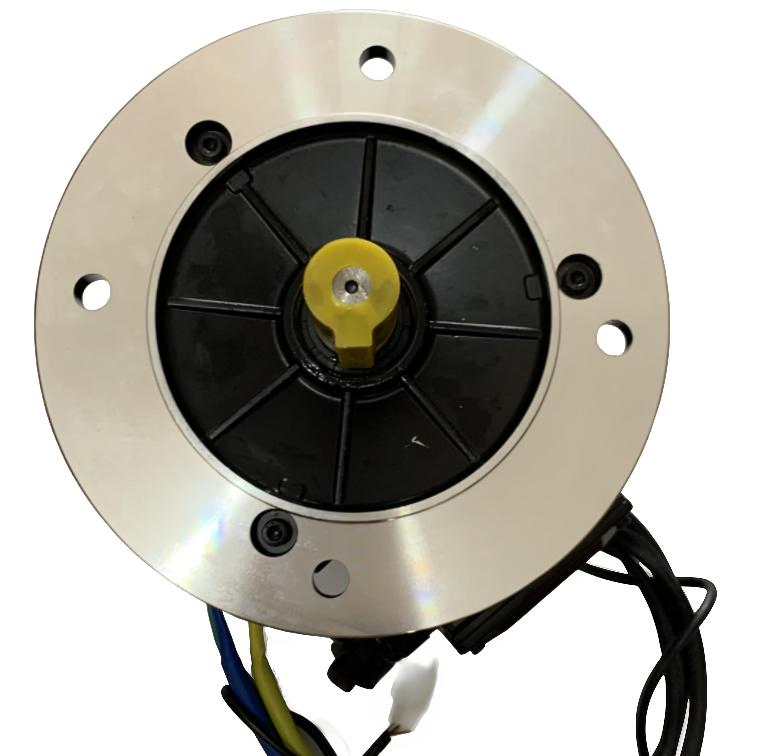

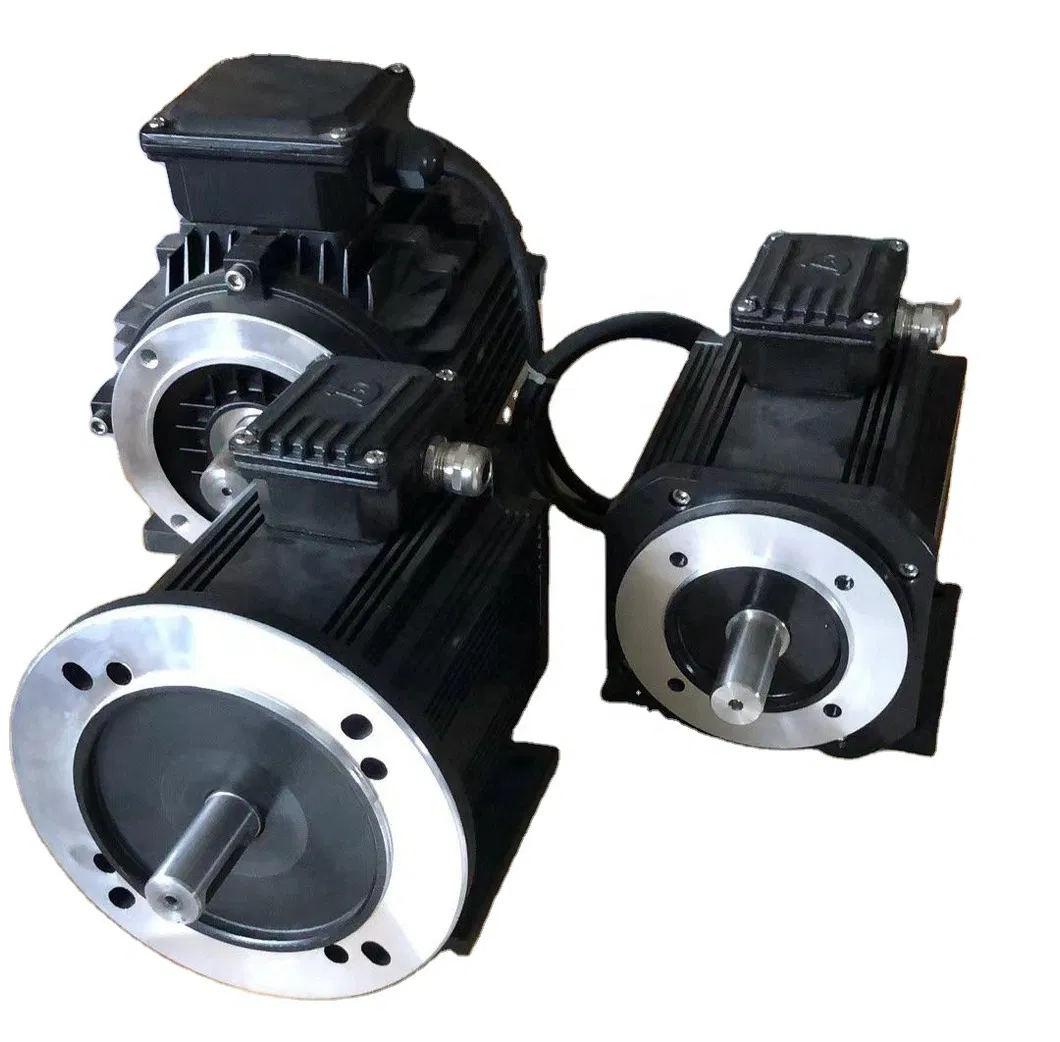

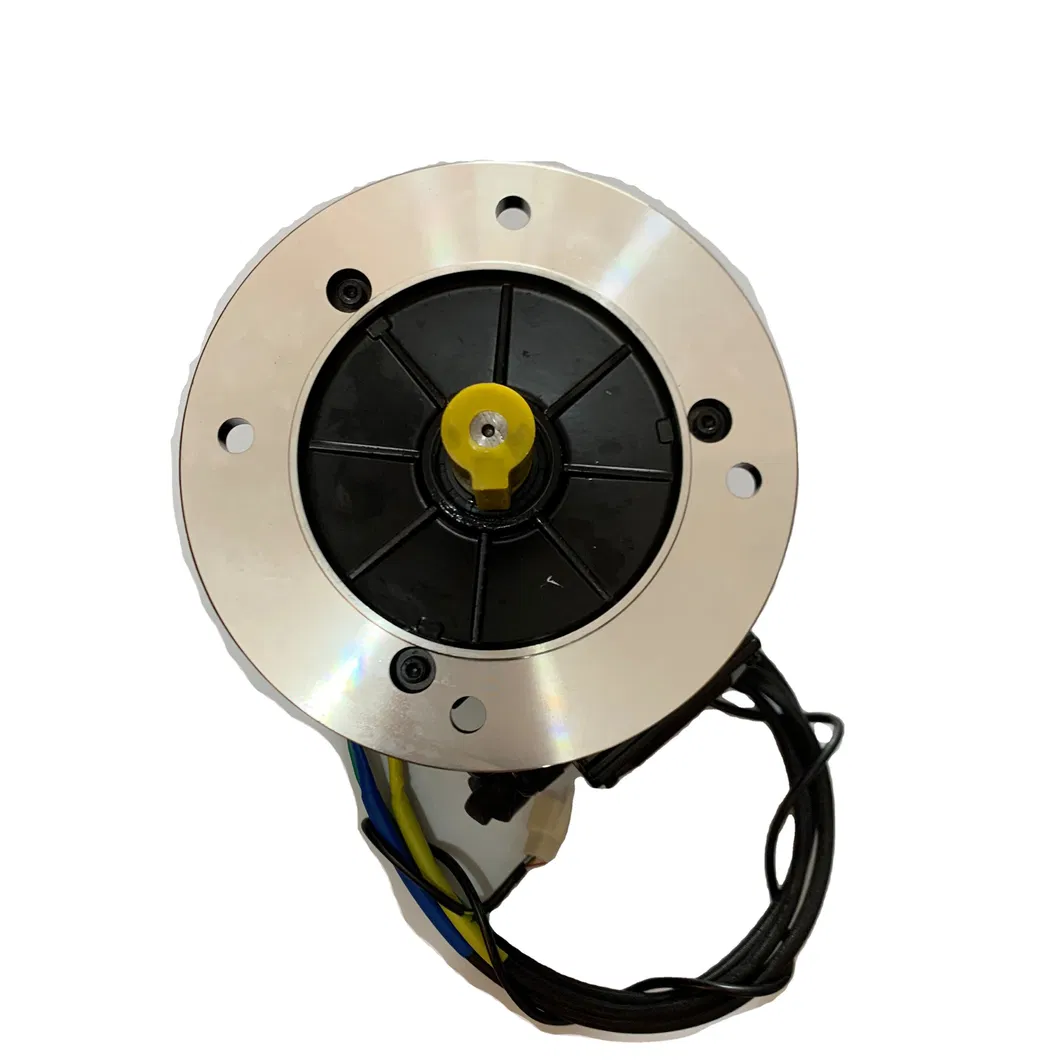

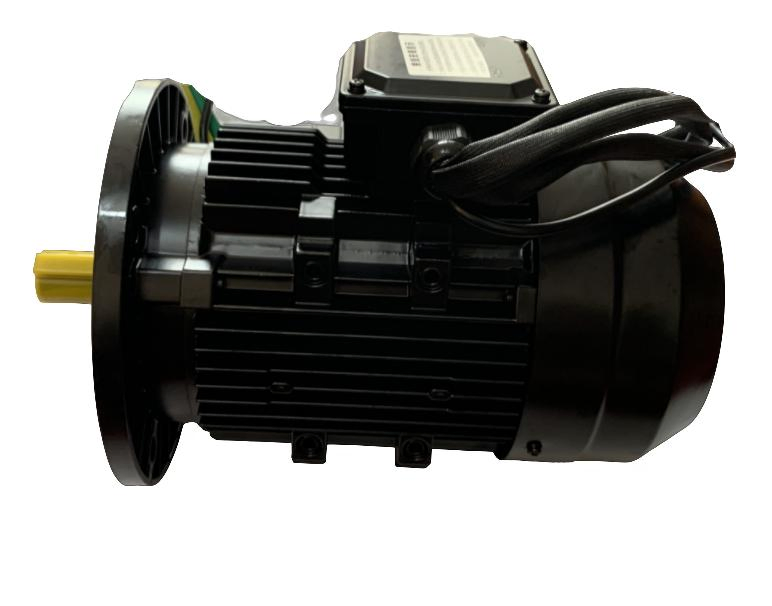

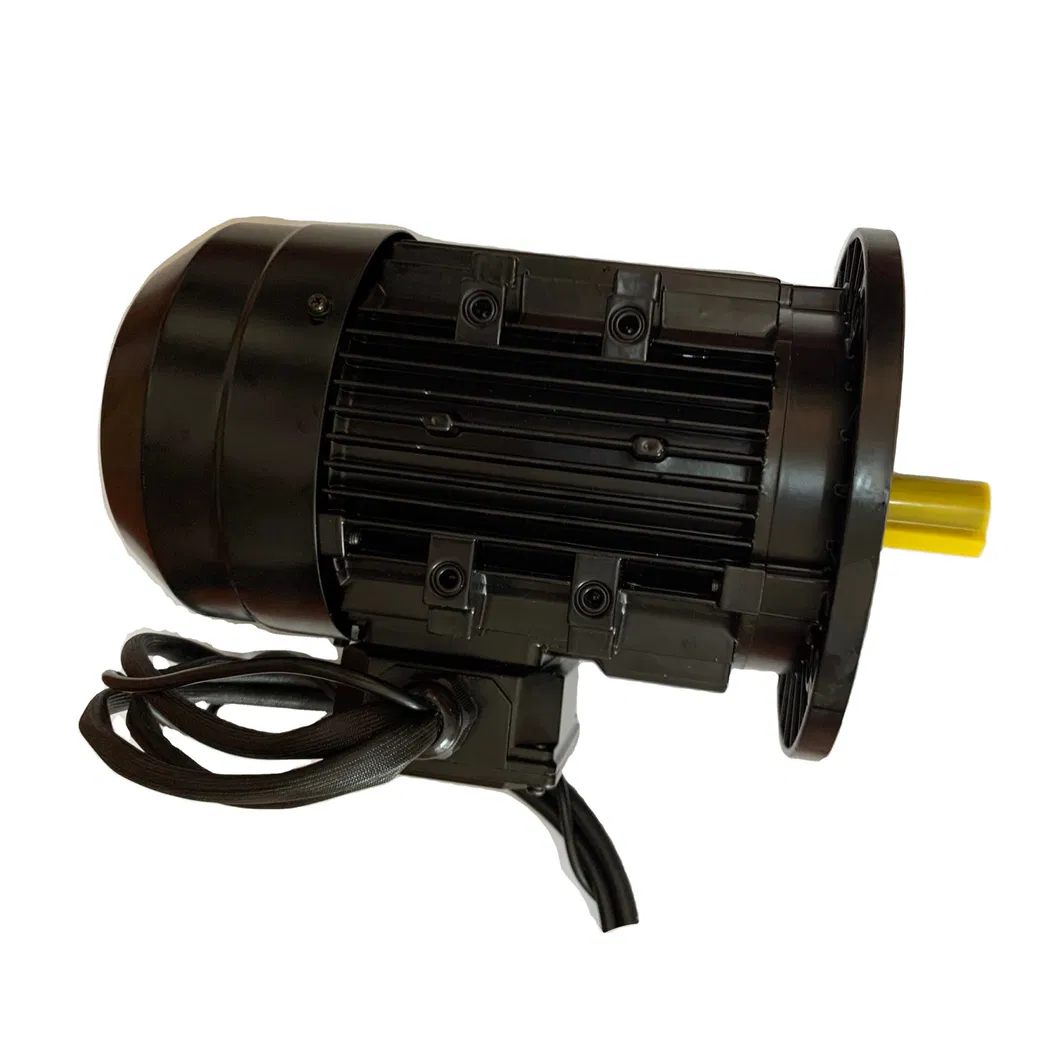

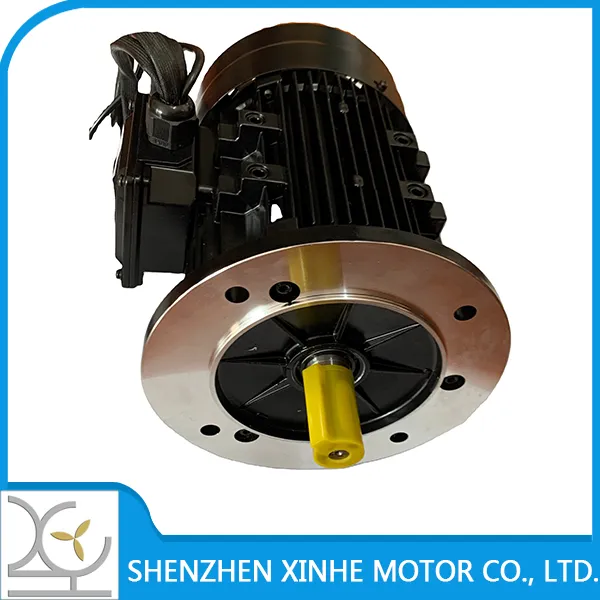

This permanent magnet high-power brushless DC motor uses a new structure. The maximum power of the current S1 working system can be 12KW, with a range from 0.5KW to 12KW available for selection.
Voltage options range from 24VDC to 120VDC, and load torque from 1N.M to 100N.M. The motor tail adopts fan cooling, which can be modified to water cooling upon request.
Equipped with a multi-functional controller; CAN functionality is available through customization.
Construction
Permanent Magnet
Key Features:
- Protection grade: IP68, insulation grade: F
- Winding overhang structure optimization: small volume, light weight, high efficiency
- Super high coercivity NdFe35 permanent magnetic materials
- Low noise and low vibration
- High torque, fast dynamic response, and strong overload capacity
