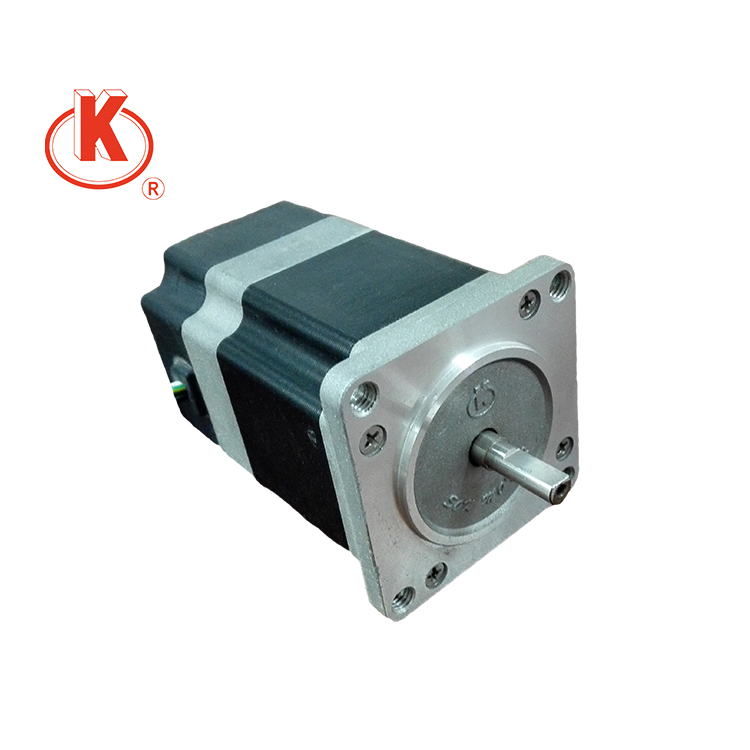

55TDY060D4-2c PMSM Synchronous Motor For Heat Exchanger

Send Inquiry

Product Description

⚡ WHY CHOOSE US

📦 Product Description

PM slow speed synchronous motor is one kind of totally enclosed motor, which can naturally turn at low speed (60 rpm, 72 rpm, 115 rpm, 214 rpm, 300 rpm, etc.). For even lower speed planetary gear reducers are offered. SOK synchronous motors produce very low speed with modest gear reductions.

🌐 Ambient Condition

1. Temperature: -25℃ ～ +40℃;
2. Relative humidity: ≤95%;
3. Atmospheric pressure: 74.8KPa (2500m);
4. Vibration: 10～55Hz, double amplitude 1.5mm;
5. Impact: 150m/s2

⚙️ Typical Application

Auto-testing equipment

Medical equipment

Timing belt drives

X-ray scanning

Textile machines

Electrical valve actuator

Cryogenic pump

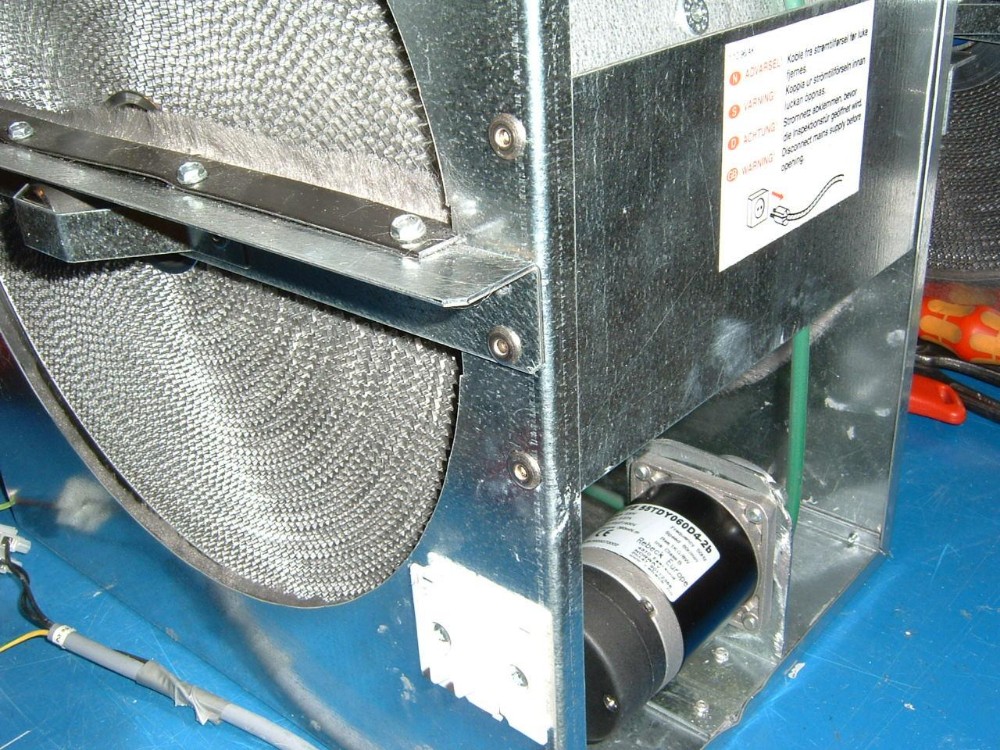

Heat exchanger

Remote control of switches rheostat

Printing, packaging machines

Antenna rotors

Auto-welding machines

📊 Specifications

Parameter of PM synchronous motor:

Model	Voltage (V)	Phase	Fre. (Hz)	Syn. Speed (r/min)	Input current (A)	Input power (W)	Max. torque (mN.m)	Rated torque (mN.m)	Starting torque (mN.m)
55TDY060D4-2B	220	1	50	60	0.80	16	400	380	200
55TDY060A3-2	110	1	50	60	0.16	16	400	380	200
55TDY060D1-2	24	1	50	60	0.80	20	400	380	200
55TDY060D4-2	220	1	50	60	0.08	16	400	380	200
55TDY060S2-2	36	3	50	60	0.38	16	500	450	300
55TDY060S4-2	220	3	50	60	0.08	16	500	450	300
55TDY115A1-2	24	1	50	115.38	0.80	20	300	270	150
55TDY115A4-2	220	1	50	115.38	0.08	16	300	270	150

Note: The typical specifications above just for your reference.

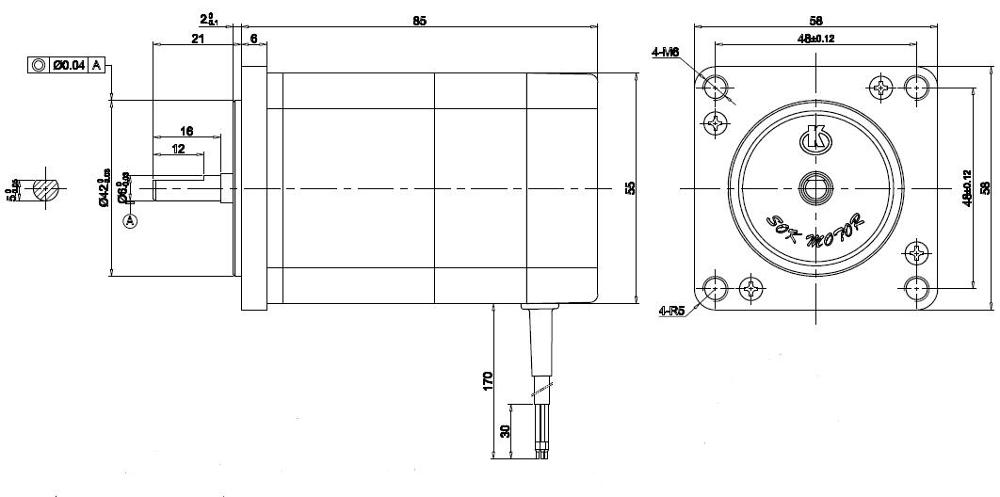

📐 Outline Drawing

Dimension of PM synchronous motor:

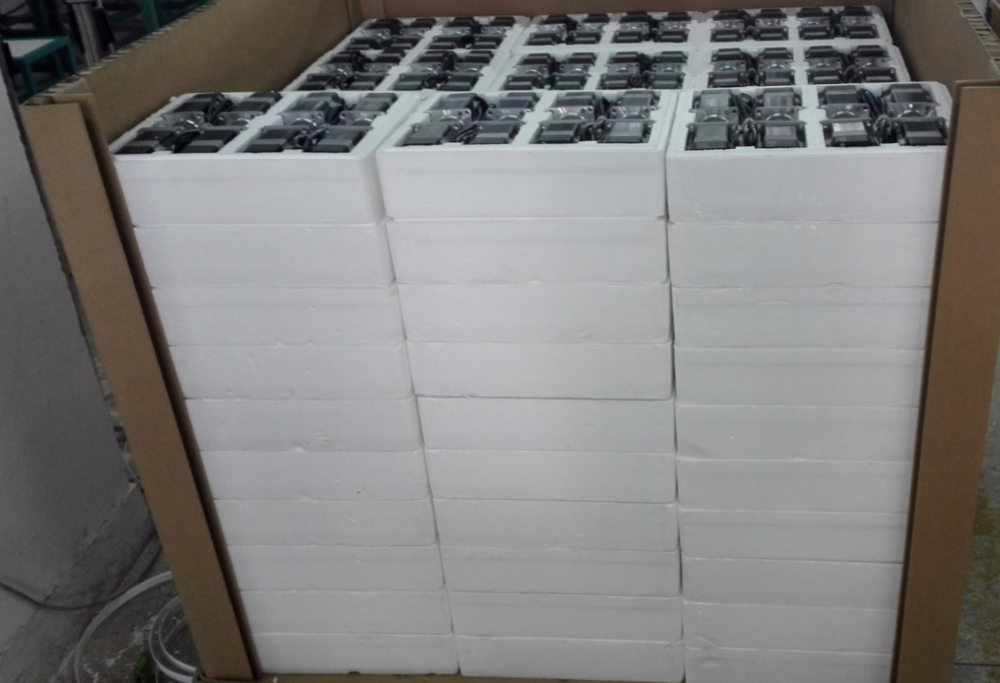

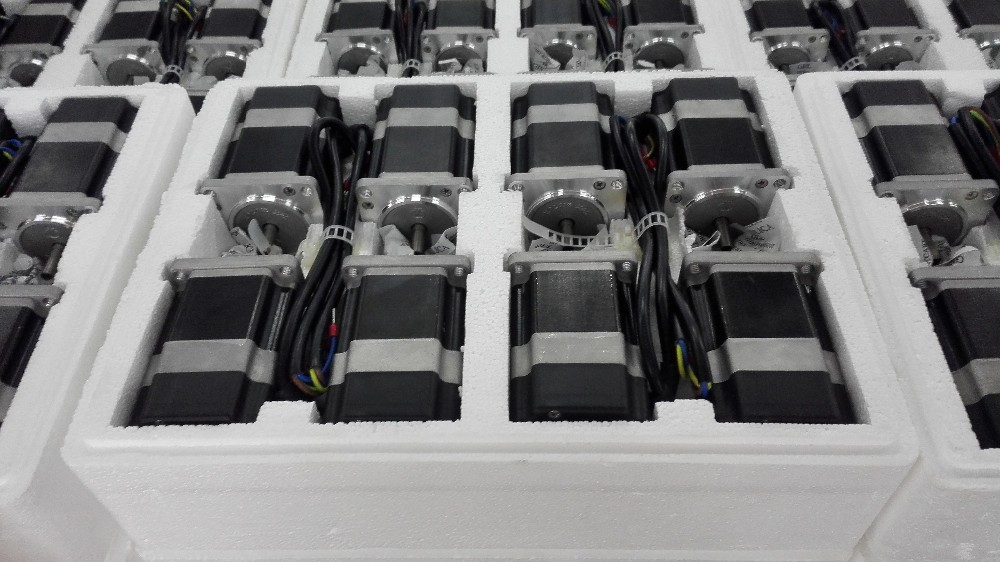

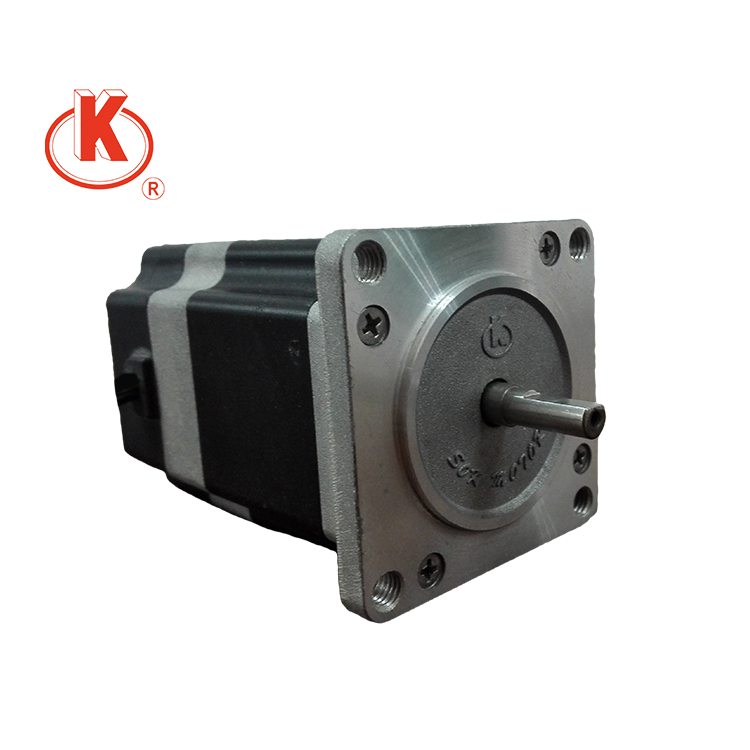

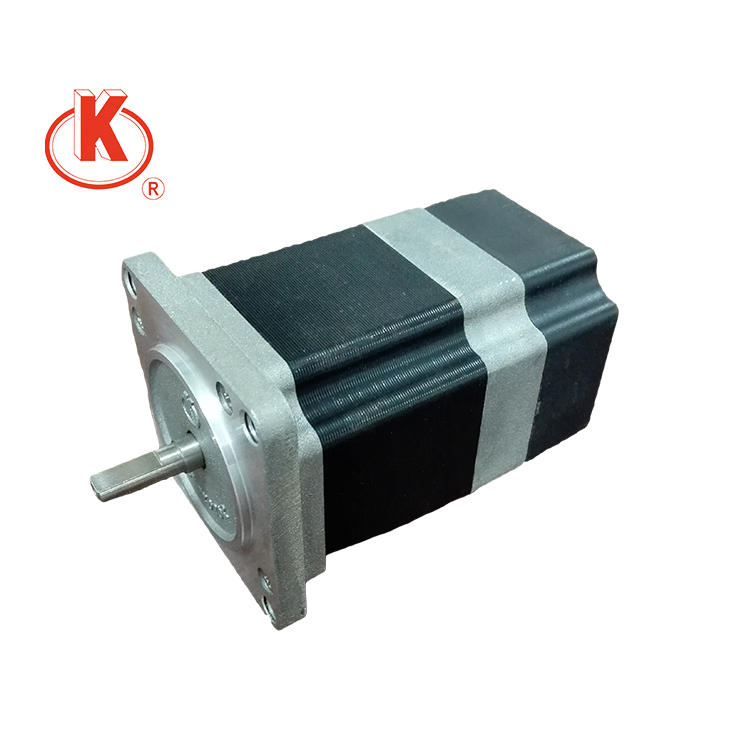

Picture of 55TDY060D4-2B product and Package:

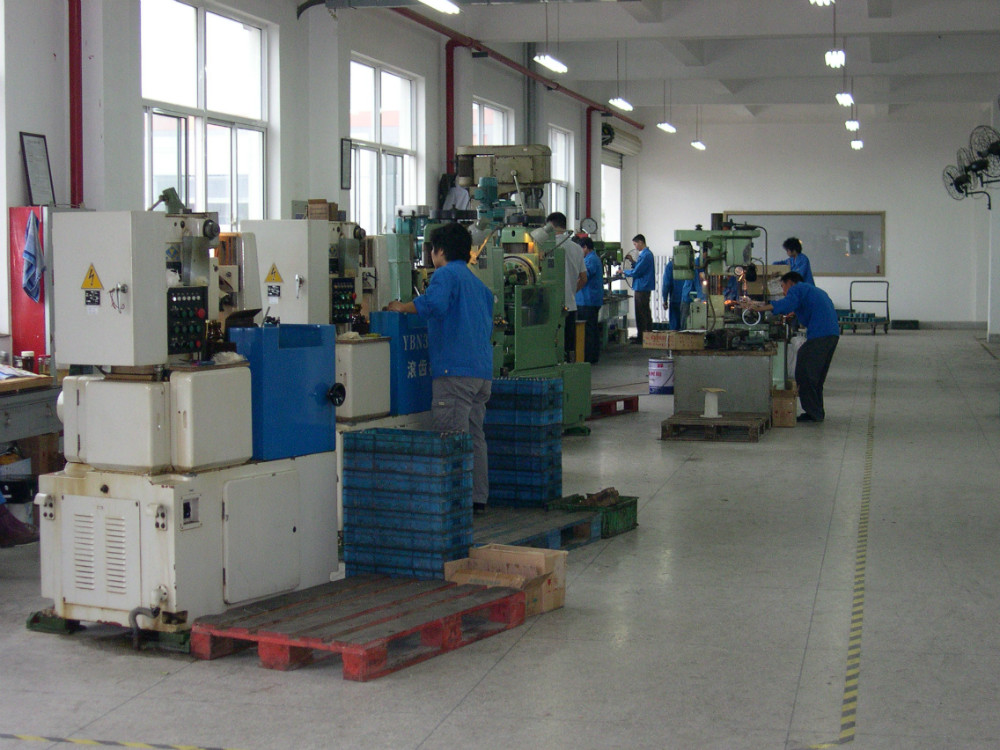

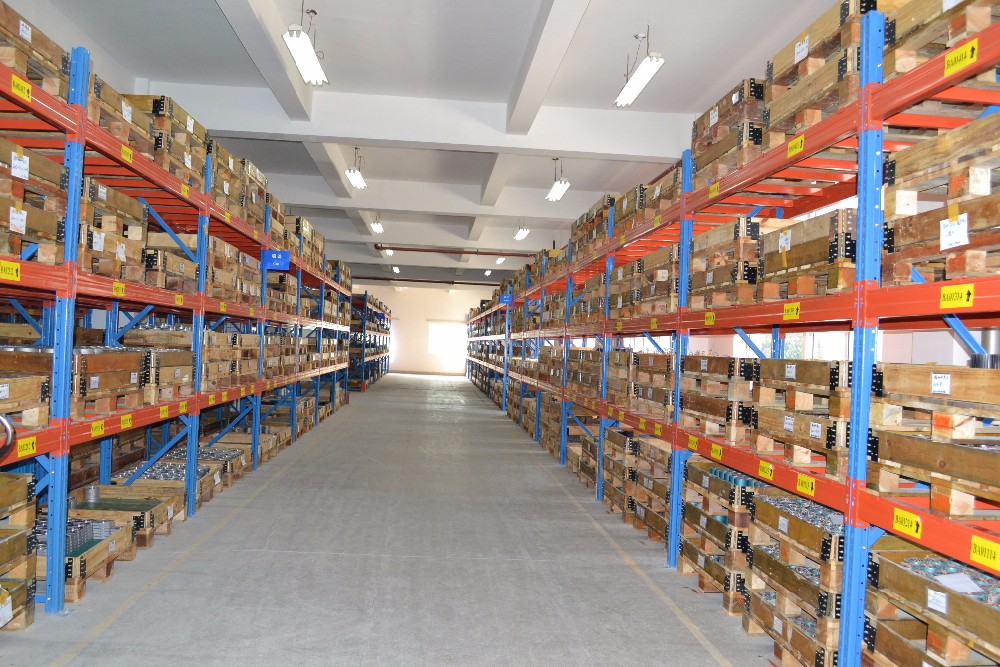

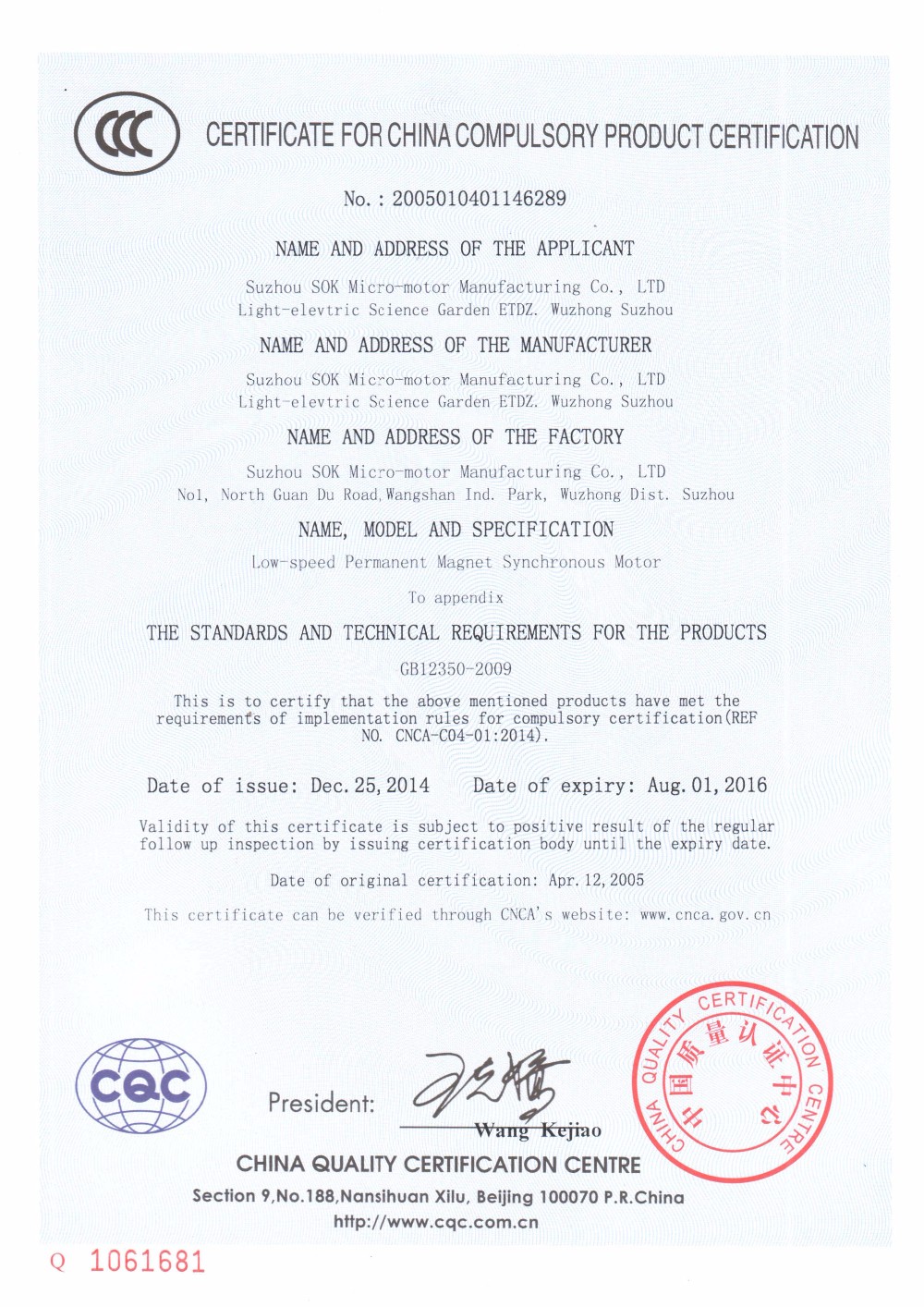

🏭 Production & Certifications

🔗 Related Products

220V 55mm 1 rpm 5N.m ac synchronous motor

220V 130mm 20rpm 72N.m AC Gear Motor

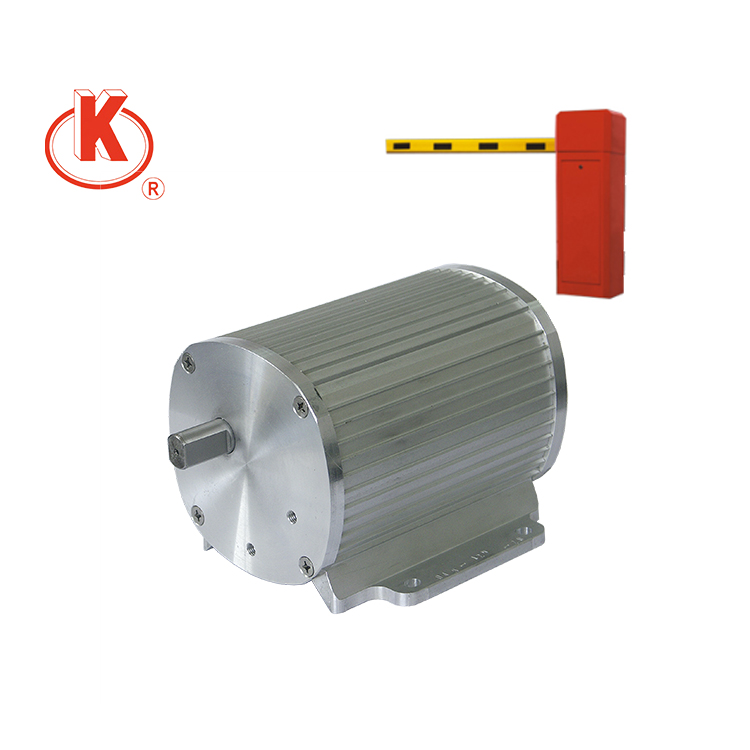

220V 110V heavy duty boom gate motor

Frequently Asked Questions

What is a PM slow speed synchronous motor?

It is a totally enclosed motor designed to rotate at naturally low speeds such as 60 rpm or 72 rpm without complex gear systems.

Can these motors achieve even lower speeds?

Yes, for speeds lower than the standard range, planetary gear reducers can be integrated to meet specific requirements.

What is the operating temperature range?

These motors are built to perform reliably in ambient temperatures ranging from -25℃ to +40℃.

Are the motors resistant to humidity?

Yes, they are designed to operate in environments with relative humidity up to 95%.

In which industries are these motors typically used?

They are widely used in medical equipment, textile machinery, printing and packaging machines, and automated welding systems.

Can I request a motor with custom specifications?

The listed specifications are typical examples. If you require a different configuration, please consult for customized solutions.
