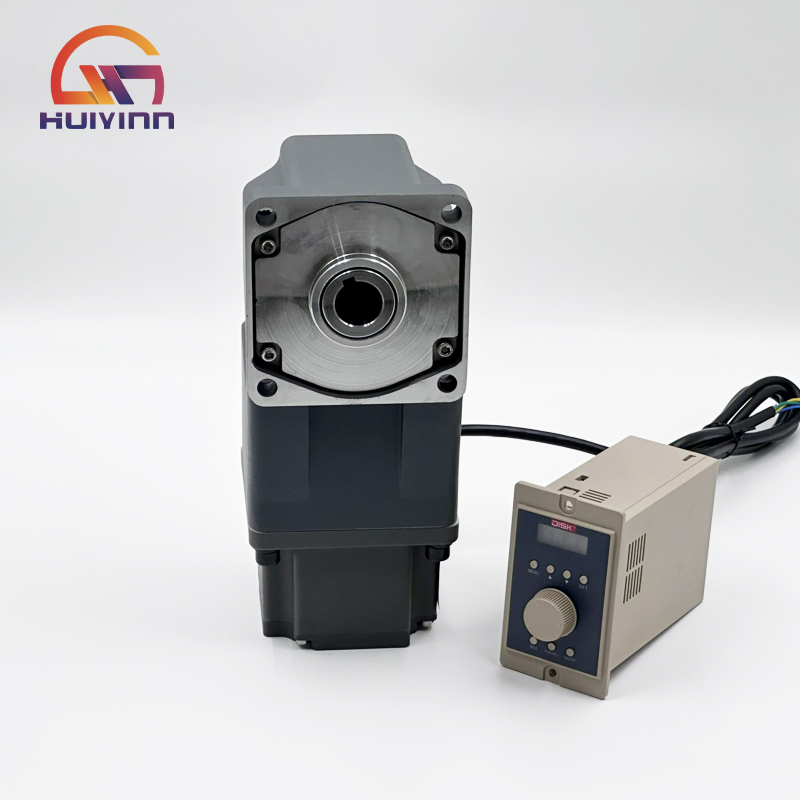

Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor
Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor
Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor
Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor
Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor
1 / 5
Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor
Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor
Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor
Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor
Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor

Ac Permanent Magnet Synchronous Electric Motor Permanent Magnet Pmsm Motor 60w Permanent Magnet Motor

Send Inquiry

Product Description

AC Permanent Magnet Synchronous Electric Motor (PMSM) - 60W

Our permanent magnet AC gear motor series includes parallel shaft, 90-degree hollow shaft, 90-degree solid shaft, medium vertical, and medium horizontal series, designed for high-performance industrial applications.

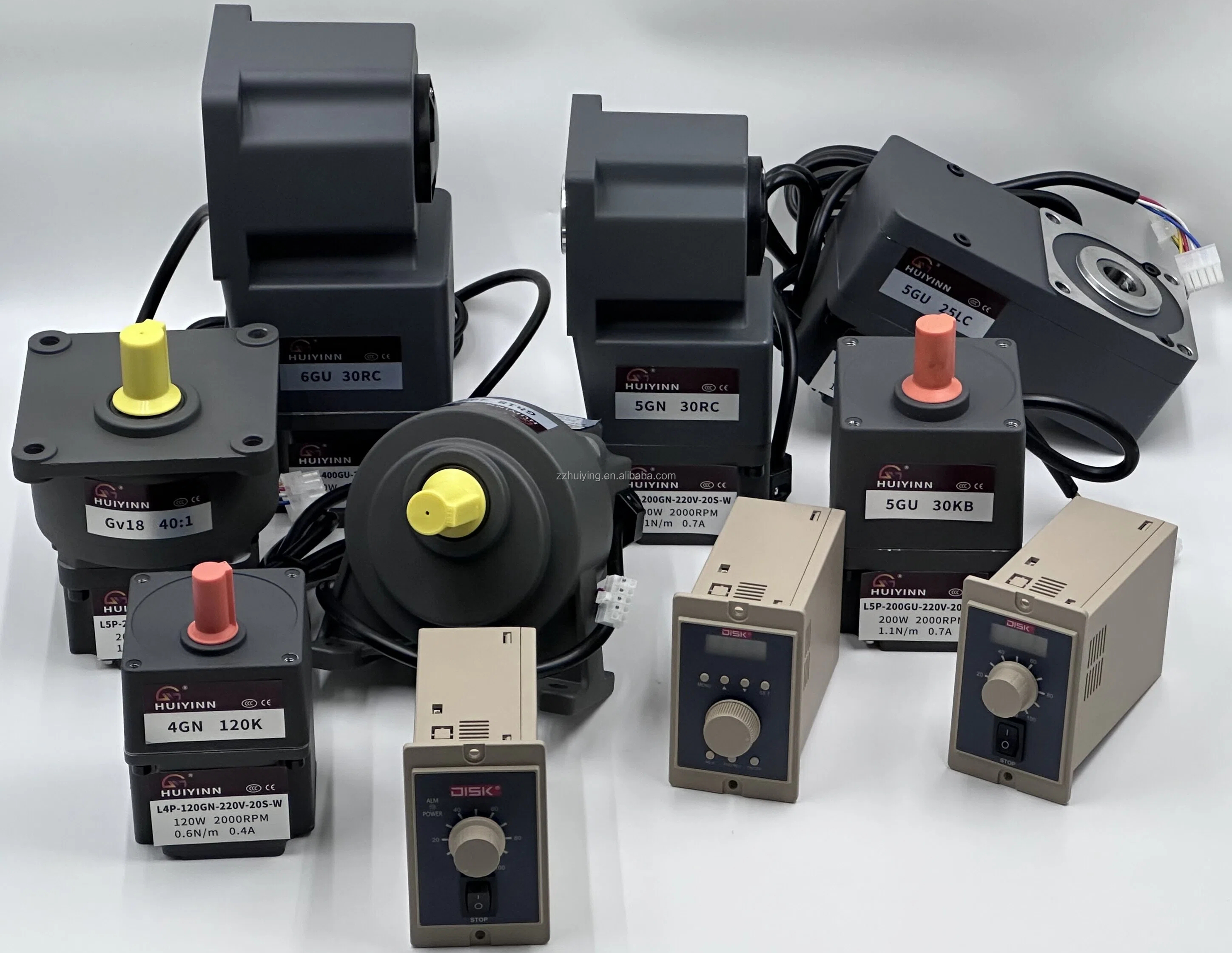

Permanent Magnet AC Gear Motor
Product Advantages

High Power AC Motor International Variable Frequency Speed Regulating Permanent Magnet Motor

⚙️
High Torque: Torque remains unchanged after speed regulation, unlike ordinary AC motors.
📏
Space Saving: Compact design ideal for devices with limited installation space.
📊
Multiple Speed Ratios: Gearbox offers various options to meet specific output requirements.
⚡
Sufficient Power: Features a 100% pure copper rotor for stable power output.
🛡️
Durability: Equipped with imported bearings for long service life and locked rotor protection.
🌱
Eco-Friendly: Brushless motor design, energy-saving and environmental protection.

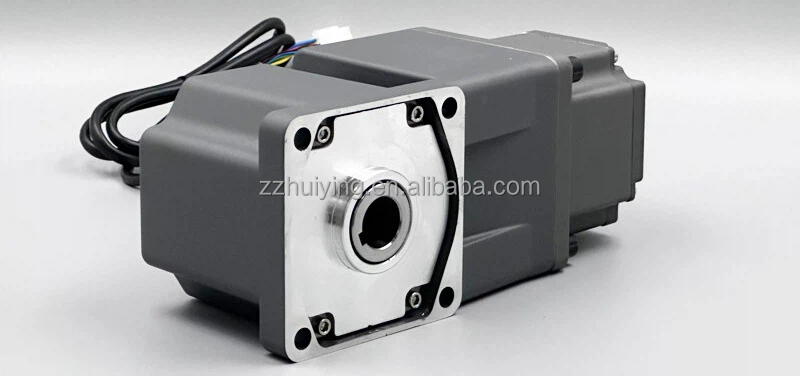

Motor Feature 1

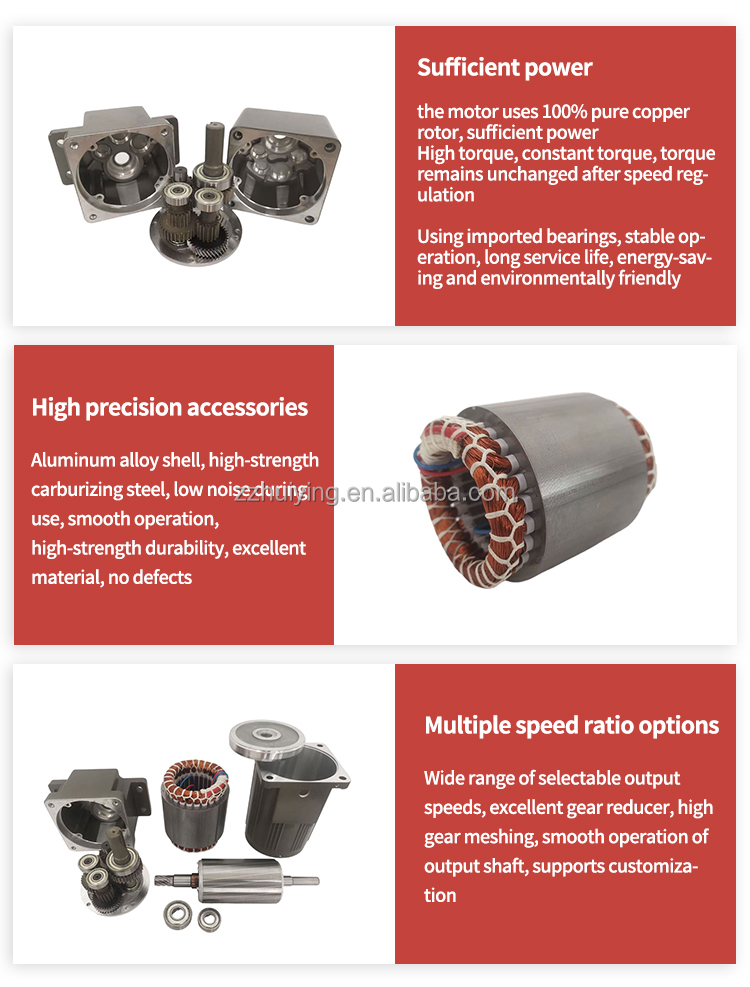

Motor Feature 2

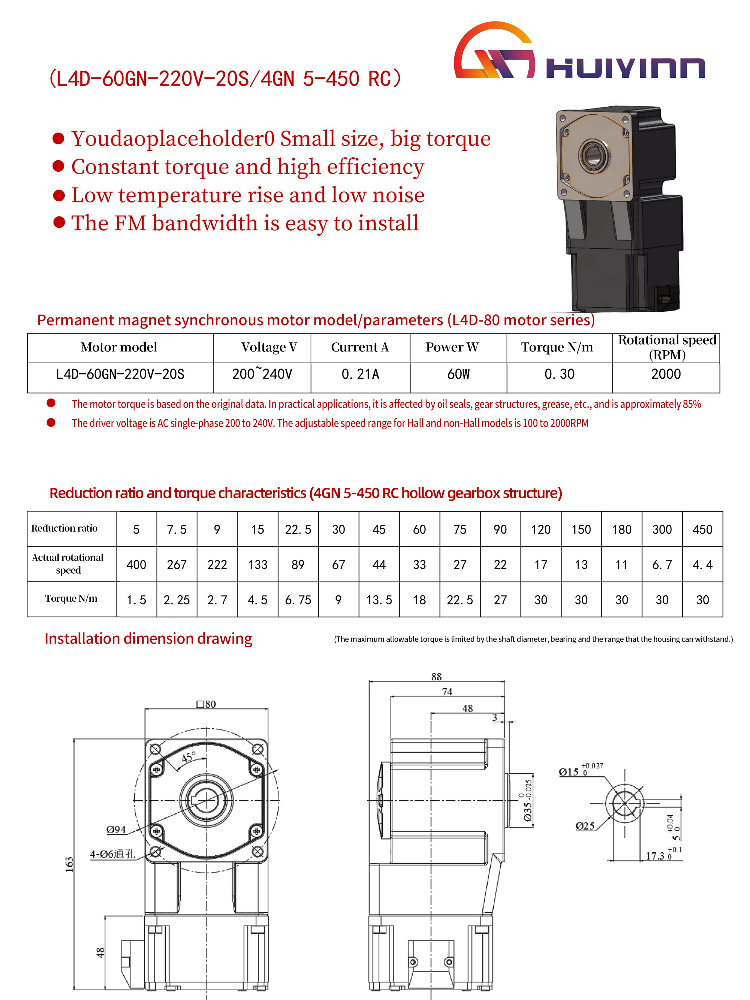

Technical Specifications
NamePermanent magnet AC Gear motor
ModelL4D-60GN-220V-20S/4GN 5-450 RC
Gearing ArrangementStraight gear reducer
Voltage220V
Power60W
Rotational Speed2000 RPM
Mounting Position90 degree right angle hollow shaft
UsagePackaging, papermaking, printers, screening, conveyors, food machinery, etc.

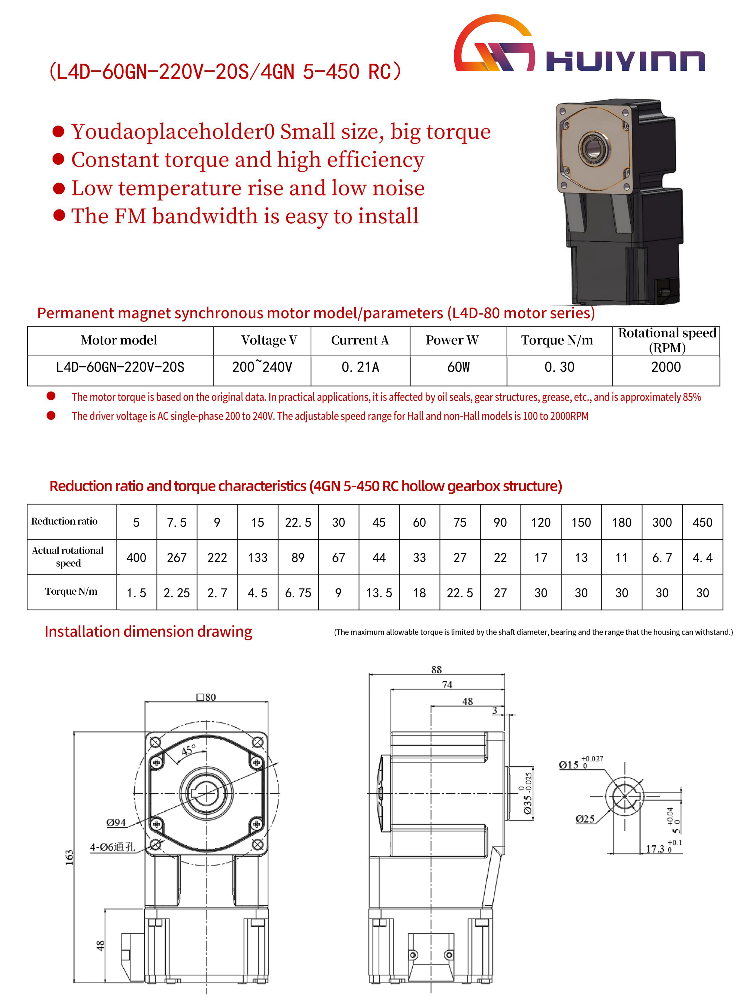

Spec 1
Spec 2
Spec 3
Control & Communication Features
  • Dual Mode: Supports seamless and Hall mode switching with two input points.
  • Communication: 485 communication, multi-speed function (up to 7 ranges), and optional brake resistor.
  • Versatile Modes: Arbitrary switching between speed and torque modes; supports output function after reaching torque.
  • Vector Energy: Motor shaft can be locked and force adjusted even when stopped.
  • Rapid Response: Supports 0.03 second start and stop function (Industry preferred).

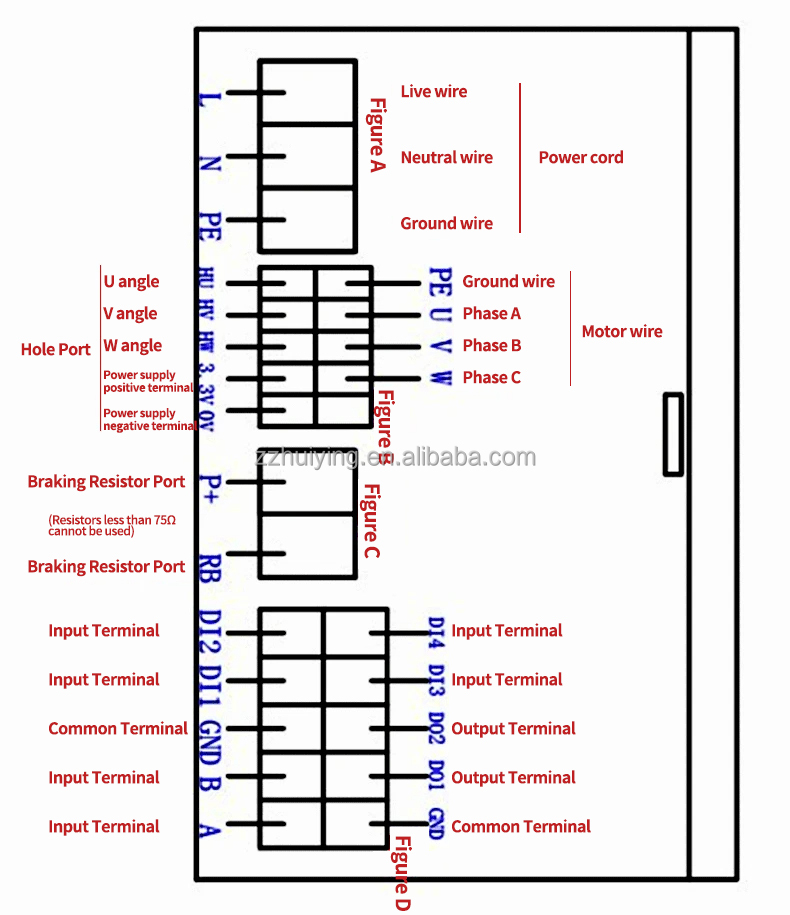

Control Board

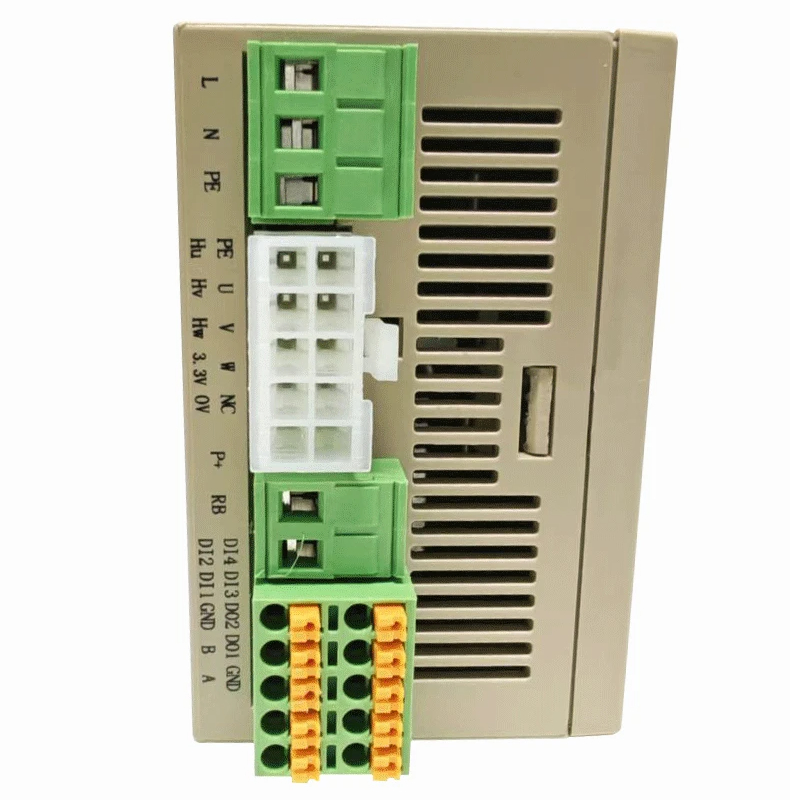

Port Definition & Wiring
Power / Motor Port Hall Port Input Port
L / NPower Live / Neutral0V / 3.3VHall Power Neg / PosDI1 / DI2Input Port 1 / 2
PEGround WireHU / HV / HWHall U / V / W AngleDI3 / DI4Input Port 3 / 4
U / V / WMotor Phase A / B / CP+ / RBBraking Resistor PortGNDCommon Terminal
Wide Range of Applications
Applications
Professional Packaging

1. Outer packing: Standard export carton with required shipping marks.

2. Inner packing: Waterproof packaging, covered with customized foam.

Packaging
Facility 1
Facility 2
Frequently Asked Questions
What are the main advantages of a PMSM motor compared to standard AC motors?
PMSM motors offer higher efficiency, higher power density, and maintain constant torque even after speed regulation, which is a significant advantage over traditional induction motors.
Does this motor support speed and torque control?
Yes, it supports arbitrary switching between speed mode and torque mode, and it also features a vector energy function that allows the shaft to be locked and force to be adjusted while stopped.
What is the response time for start and stop functions?
This motor series supports a 0.03-second start and stop function, making it ideal for high-precision and high-cycle industrial operations.
Can I choose different reduction ratios for the gearbox?
Yes, multiple reduction ratios are available. We can provide the appropriate gearbox configuration based on your specific power and output speed requirements.
How do you ensure the quality of the motors?
We implement strict quality control with pre-production samples and a final inspection before every shipment. Our motors utilize 100% pure copper rotors and imported bearings for maximum reliability.
Is the motor suitable for harsh environments?
The motor features locked rotor protection and is built with durable components. For specific environmental requirements, please confirm the IP rating needed for your application.
