Product Description
PM slow speed synchronous motor is one kind of totally enclosed motor, which can naturally turn at low speed (60 rpm, 72 rpm, 115 rpm, 214 rpm, 300 rpm, etc.).
For even lower speed planetary gear reducers are offered. SOK synchronous motors produce very low speed with modest gear reductions.
Specifications

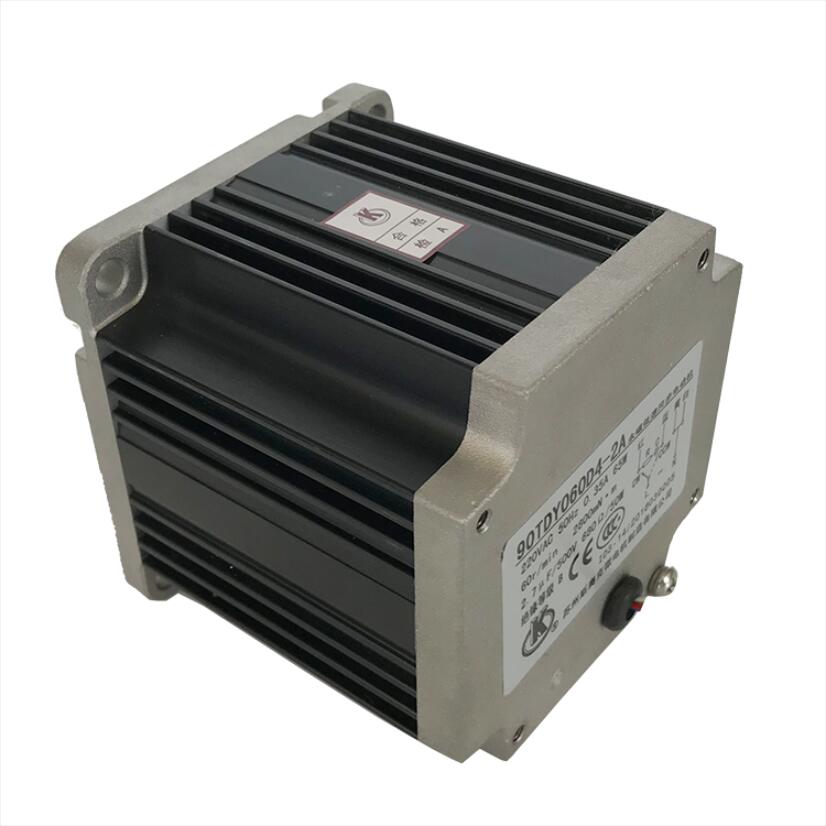

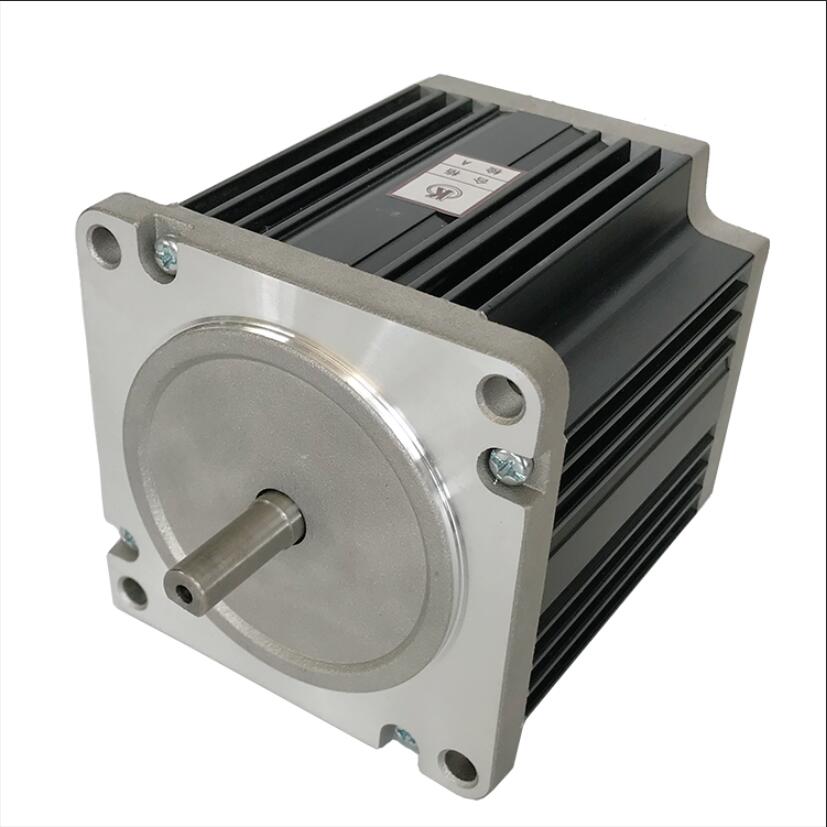

Parameter of Permanent Magnet Synchronous Motor 115RPM single phase
| Model |
Voltage (V) |
Phase |
Freq. (Hz) |
Syn. Speed (r/min) |
Input current (A) |
Input power (W) |
Max. torque (mN.m) |
Rated torque (mN.m) |
Starting torque (mN.m) |
| 70TDY072D7-3 |
220 |
1 |
60 |
72 |
0.25 |
50 |
1500 |
1400 |
800 |
| 70TDY060S1-3 |
24 |
3 |
50 |
60 |
1.75 |
36 |
1700 |
1600 |
1000 |
| 70TDY138D6-2 |
110 |
1 |
60 |
138.46 |
0.25 |
28 |
700 |
640 |
350 |
| 70TDY060D3-2 |
110 |
1 |
50 |
60 |
0.32 |
35 |
850 |
800 |
450 |
| 70TDY060S3-2 |
110 |
3 |
50 |
60 |
0.32 |
35 |
1600 |
1500 |
750 |
| 70TDY072S7-2 |
220 |
3 |
60 |
72 |
0.30 |
50 |
1200 |
1100 |
600 |
| 70TDY072D7-2 |
220 |
1 |
60 |
72 |
0.12 |
24 |
900 |
850 |
450 |
| 70TDY115S1-2 |
24 |
3 |
50 |
115.38 |
1.70 |
35 |
1600 |
1500 |
750 |
| 70TDY072S10-2 |
400 |
3 |
60 |
72 |
0.10 |
32 |
1600 |
1500 |
750 |
| 70TDY360A7-2 |
220 |
1 |
60 |
360 |
0.12 |
25 |
400 |
350 |
200 |
| 70TDY060D2-2 |
36 |
1 |
50 |
60 |
0.70 |
24 |
900 |
850 |
450 |
| 70TDY115S2-2 |
36 |
3 |
50 |
115.38 |
0.85 |
28 |
1100 |
1000 |
550 |
Note: The typical specifications above just for your reference. Please feel free to contact us if you can't find the motor you required. We are always here being ready to help.
Frequently Asked Questions
What are the main advantages of PM slow speed synchronous motors?
These motors offer high torque at low speeds without complex gearing, ensuring quiet operation, long life, and precise synchronization with the power frequency.
Can the speed of these motors be customized?
Yes, we provide various natural speeds such as 60rpm, 72rpm, and 115rpm. For even lower speeds, we can integrate planetary gear reducers.
Are these motors suitable for continuous operation?
Absolutely. Our synchronous motors are designed for durability and are ideal for continuous applications like medical equipment and industrial drives.
What environmental conditions can the motor withstand?
They operate effectively in temperatures from -25℃ to +40℃ and can handle high relative humidity up to 95%, as well as significant vibration and impact.
Do you offer both single-phase and three-phase models?
Yes, our technical specification table includes various configurations for both 1-phase and 3-phase power supplies to meet different industrial needs.
How do I choose the right torque for my application?
You should consider the starting torque and rated torque requirements of your machinery. Our technical team can assist you in matching the motor parameters to your specific load.
