NANPU PMSM Brushless 48V-72V 5KW High Torque Permanent Magnet Synchronous Motor IE4 Efficiency IP65 Waterproof DC Electric

Product Description

Products Description

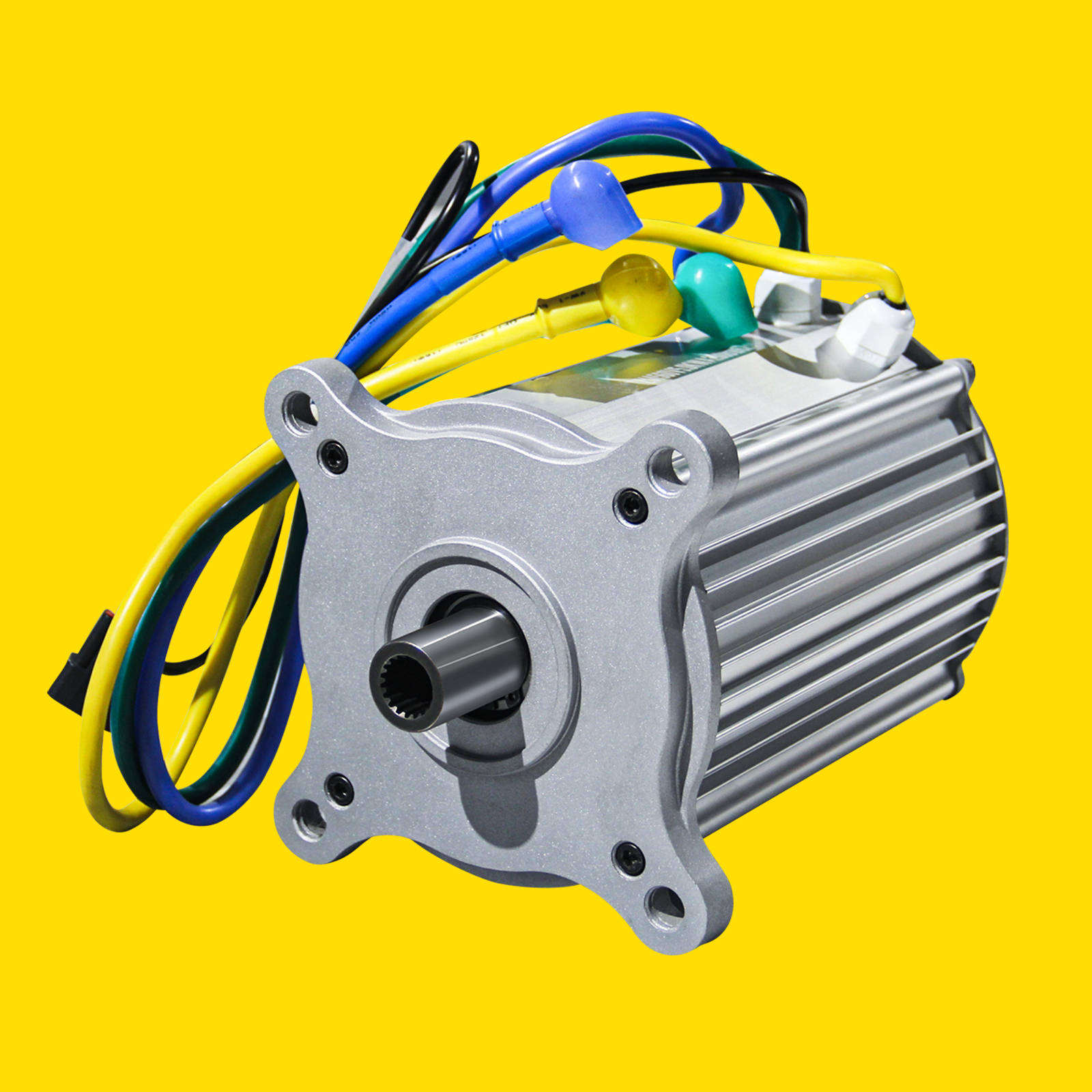

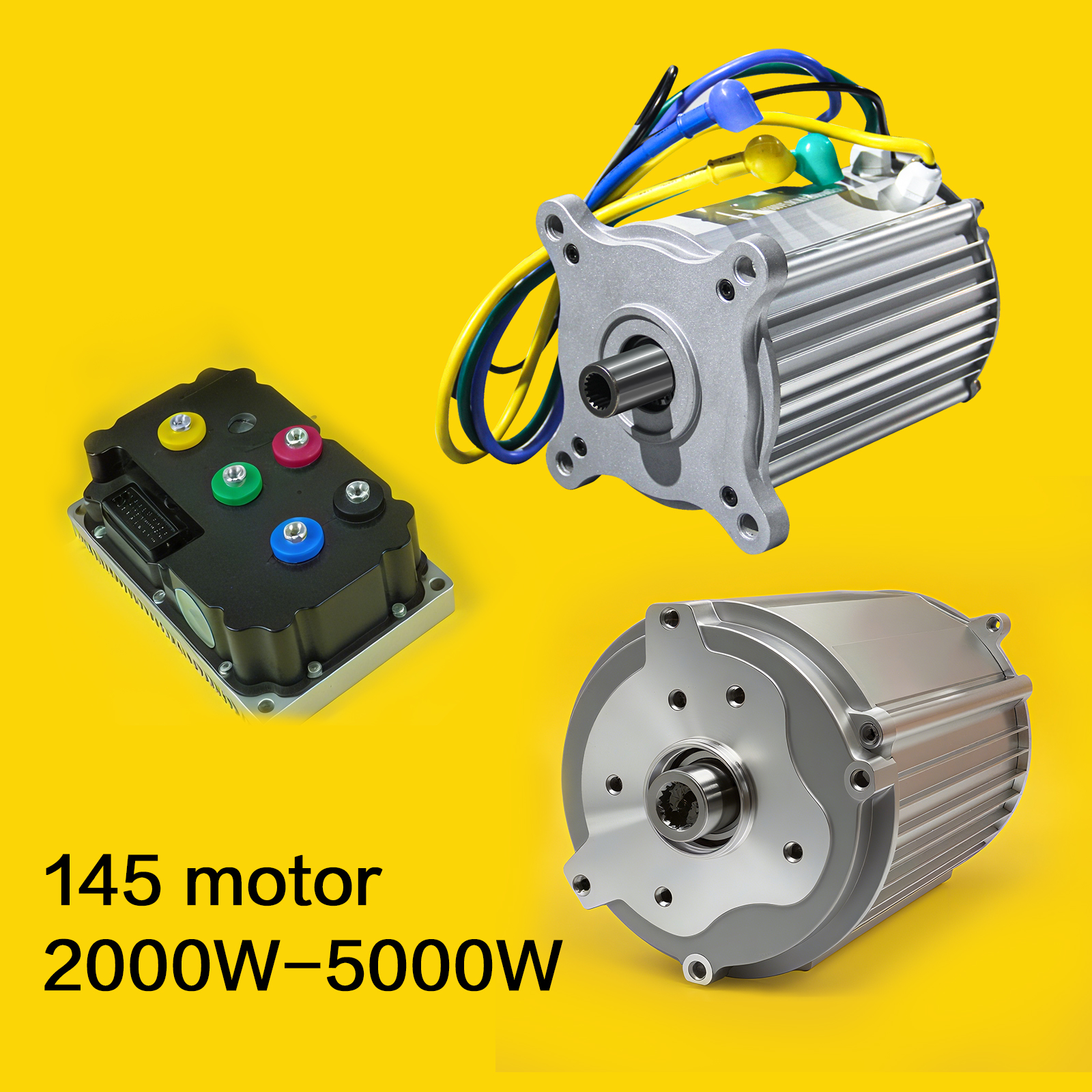

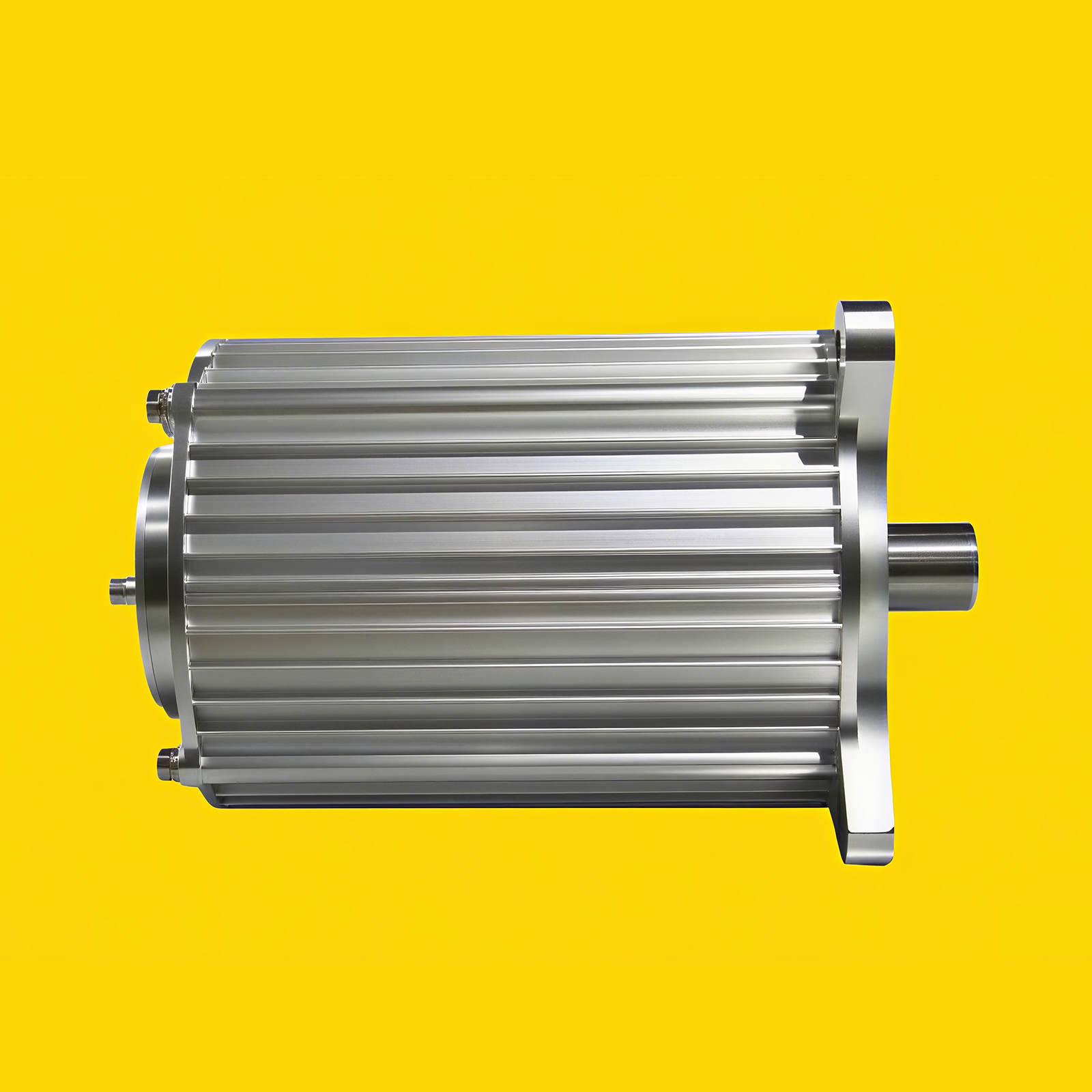

Product Display
Technical Parameters
Voltage 48V Motor direction Left
Rated current 116A Rated speed 3000rpm
Rated power 5KW Peak power 10KW
Rotor height 120MM Magnetic steel grade 38SH
Line length 1.2m Position sensor Encoder
Peak torque 77Nm Protection level IP65
Voltage 60V Rated current 92A
Rated power 5KW Peak power 10KW
Thermal Class H Pole 4 pole pairs, 12 slots
Weight 18kg Working system S9
Voltage 72V Rated current 77A
Motor shaft 18-tooth internal spline Carton size 34*25*22 CM

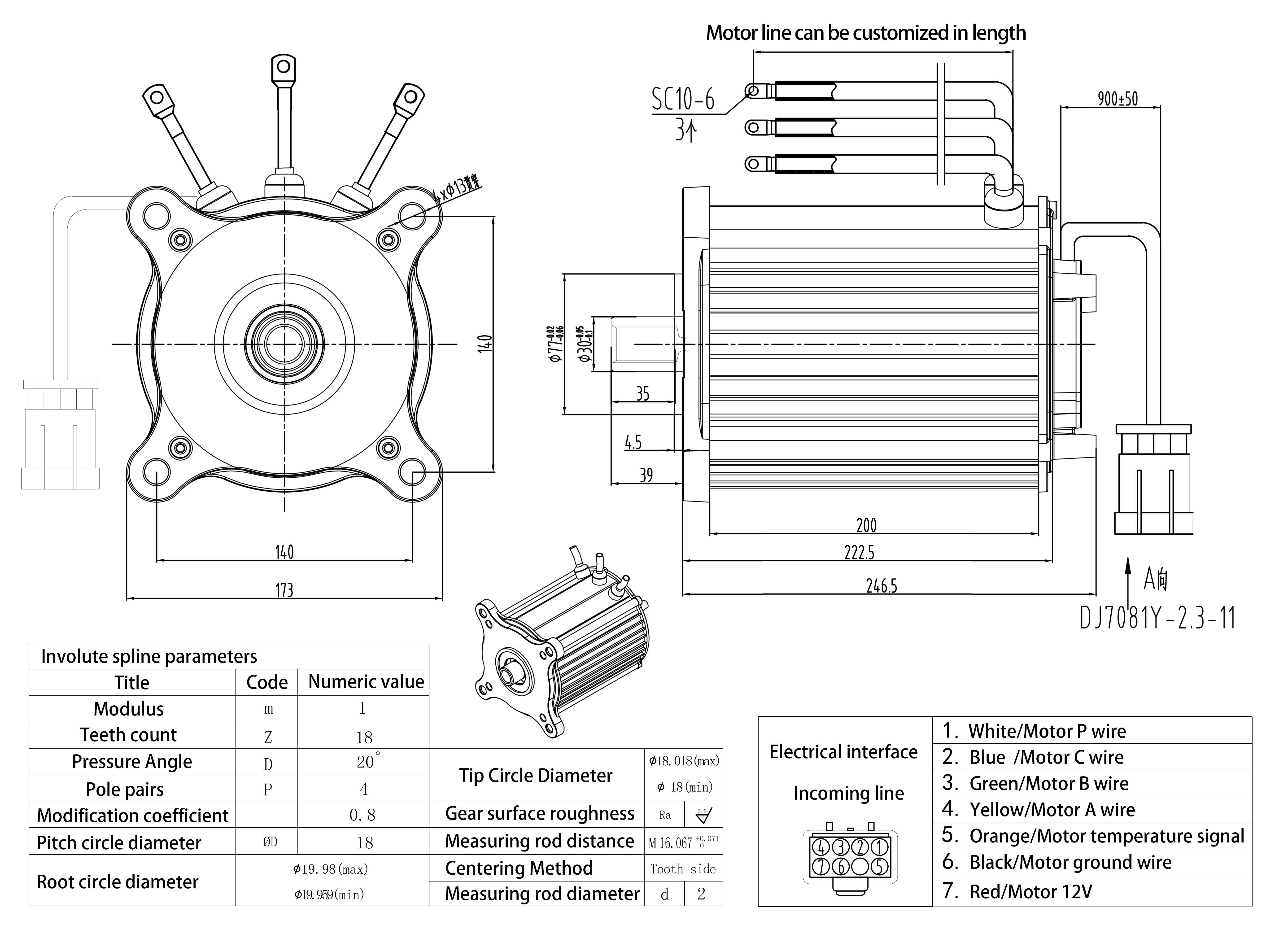

Drawing & Dimensions
Technical Drawing 1
Technical Drawing 2
Company Profile & Advantages
Factory Overview

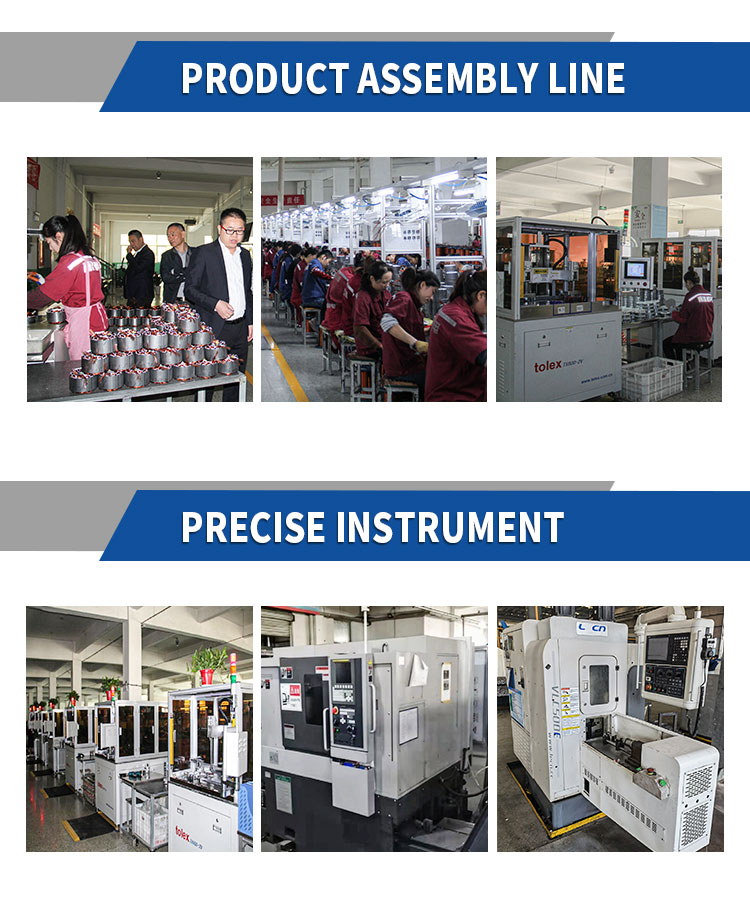

Our Advantages
Certifications & Delivery
Quality Certificates
Delivery time: 1. Inventory time: 15-30 days.
Frequently Asked Questions
What is the mode of transportation?
We provide express delivery (FedEx, DHL, TNT, etc.), air freight, and sea freight. Shipping costs are calculated based on the chosen transportation mode and the actual weight of the products.
What payment methods do you accept?
We support various payment methods including T/T, Visa, Western Union, Moneygram, and Secure Payment Escrow.
Can we print our own brand or logo on the products?
Yes, we provide OEM manufacturing services in China and can print your brand or logo according to your specific requirements.
Why do website images sometimes differ from the actual products?
Variations may occur due to lighting, browser settings, or different production batches. Images are for reference; physical products serve as the final standard. Please clarify any concerns before ordering.
How do you ensure product quality?
We implement strict quality control standards throughout the manufacturing process, and our products hold relevant industry certifications for safety and performance.
What is the standard warranty for these motors?
Our motors are built to high industrial standards (IP65 protection, H-class thermal insulation), ensuring long-term durability and reliable performance under standard working conditions.
